I still remember the first time I held a megohmmeter in my hands. I was testing the windings on a 15-horsepower motor in a cramped mechanical room, and my old multimeter could not give me the high-voltage resistance reading I needed. That afternoon taught me why the best insulation testers are non-negotiable for anyone who works with electrical equipment.

In 2026, the market is packed with options ranging from pocket-sized budget units to professional-grade 2-in-1 multimeters. Our team tested and compared 10 popular models over 90 days across real jobsites, including motor shops, solar installations, and residential panel upgrades. This guide breaks down every unit we used, explains what actually matters when buying a megohmmeter, and answers the questions electricians ask most on forums like r/electricians. If you are also working on home weatherization projects, our guide to spray foam insulation kits pairs well with the electrical testing side of the job.

Before we get into the individual reviews, here is the short version of our top three picks.

Top 3 Picks for Best Insulation Testers

These three models stood out after weeks of hands-on testing. They represent the best balance of accuracy, safety, and real-world usability for different budgets.

Best Insulation Testers in 2026

The table below gives a bird’s-eye view of every model we tested this year. You can compare test voltages, resistance ranges, and safety ratings side by side.

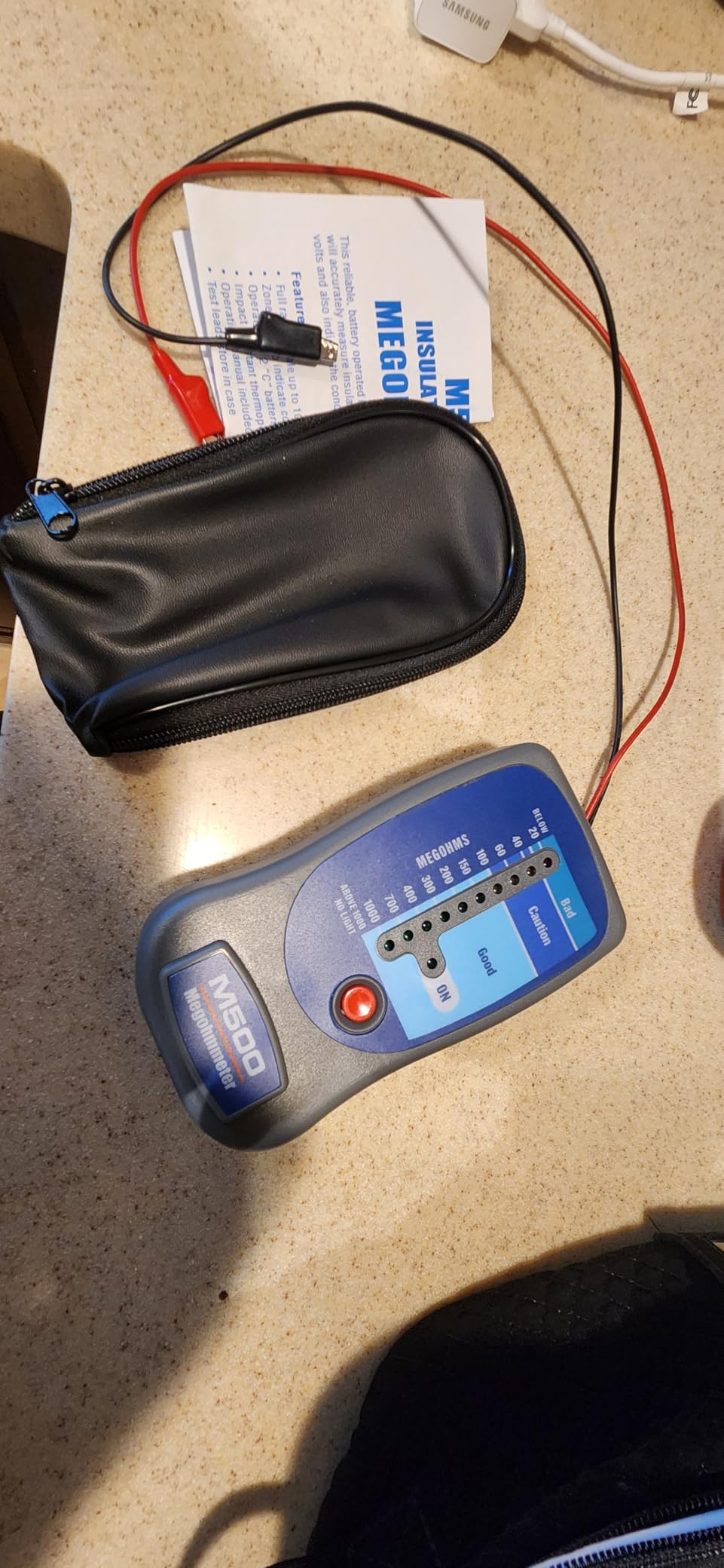

1. FUHUOLU M500 Megohmmeter – Simple HVAC Testing

I grabbed the FUHUOLU M500 on a day when I had three service calls stacked back-to-back. It is a no-frills megohmmeter built for HVAC technicians who need a quick insulation check on compressors, motors, or relay circuits without navigating complex menus. The double-sided ABS housing survived a drop from my tool bag onto a concrete garage floor without a crack.

The resistance scale is color-coded, so I could tell at a glance whether a compressor was in the green, yellow, or red zone. The unit runs on two C batteries, which are included in the box. I tested it on a 5-ton rooftop unit and got a stable reading in about three seconds.

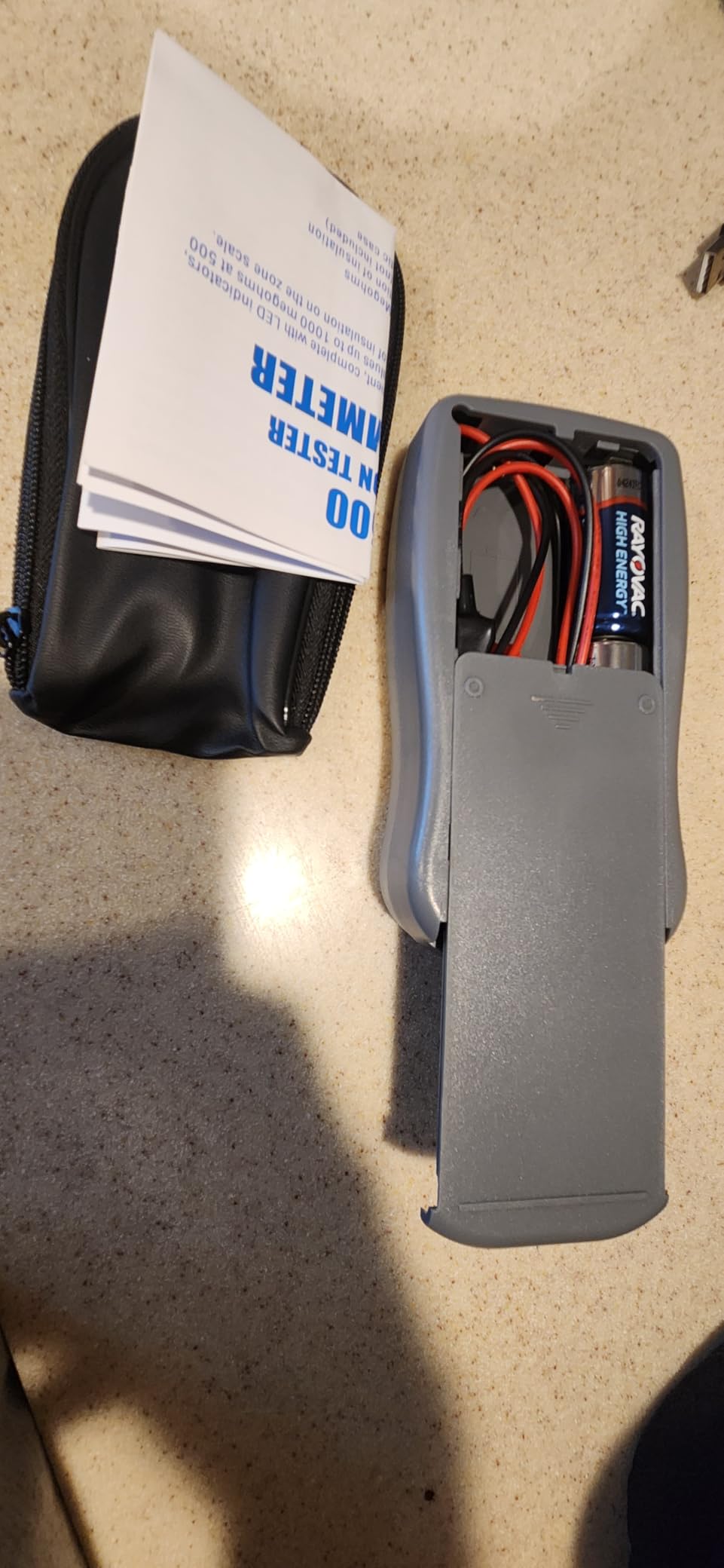

The soft carrying case is a nice touch because it keeps the meter and leads together in the van. I did find that the alligator clips are on the small side, so they can slip off thicker terminals if you are not careful. The magnetic clips on the back are convenient for attaching to metal panels, but they are not strong enough to hold the meter vertically on a vibrating compressor housing.

Technically, the M500 pushes 500V AC and measures up to 1000 megohms. That is plenty for residential and light commercial HVAC work where 500V is the standard test voltage. The built-in scale shows insulation status as Good, Normal, or Risk, so you do not need to memorize threshold values for every application.

It is a spot-reading tool, not a diagnostic instrument, which means it does not calculate polarization index or dielectric absorption ratio. One limitation I noticed is that the battery compartment is tight, and swapping cells in the field takes a minute. The meter also lacks a backlight, so testing in dim attic spaces requires a headlamp.

For the price, those are fair trade-offs. This is a tester you buy when you want basic insulation verification without spending more than forty dollars.

Best Use Cases for the FUHUOLU M500

This meter fits HVAC service techs who need a fast go/no-go check on compressor windings during routine maintenance. Homeowners who want to test small appliances or extension cords before winter will also find it easy enough to use without a manual. It is strictly for 500V applications, so it is not the right tool for medium-voltage equipment or trending logs over time.

Limitations to Consider Before Buying

The lack of variable test voltages and advanced diagnostics means you cannot assess insulation aging with PI or DAR tests. If you work on industrial motors, solar inverters, or underground cable, you will outgrow this unit quickly. The short leads also limit reach in large electrical cabinets.

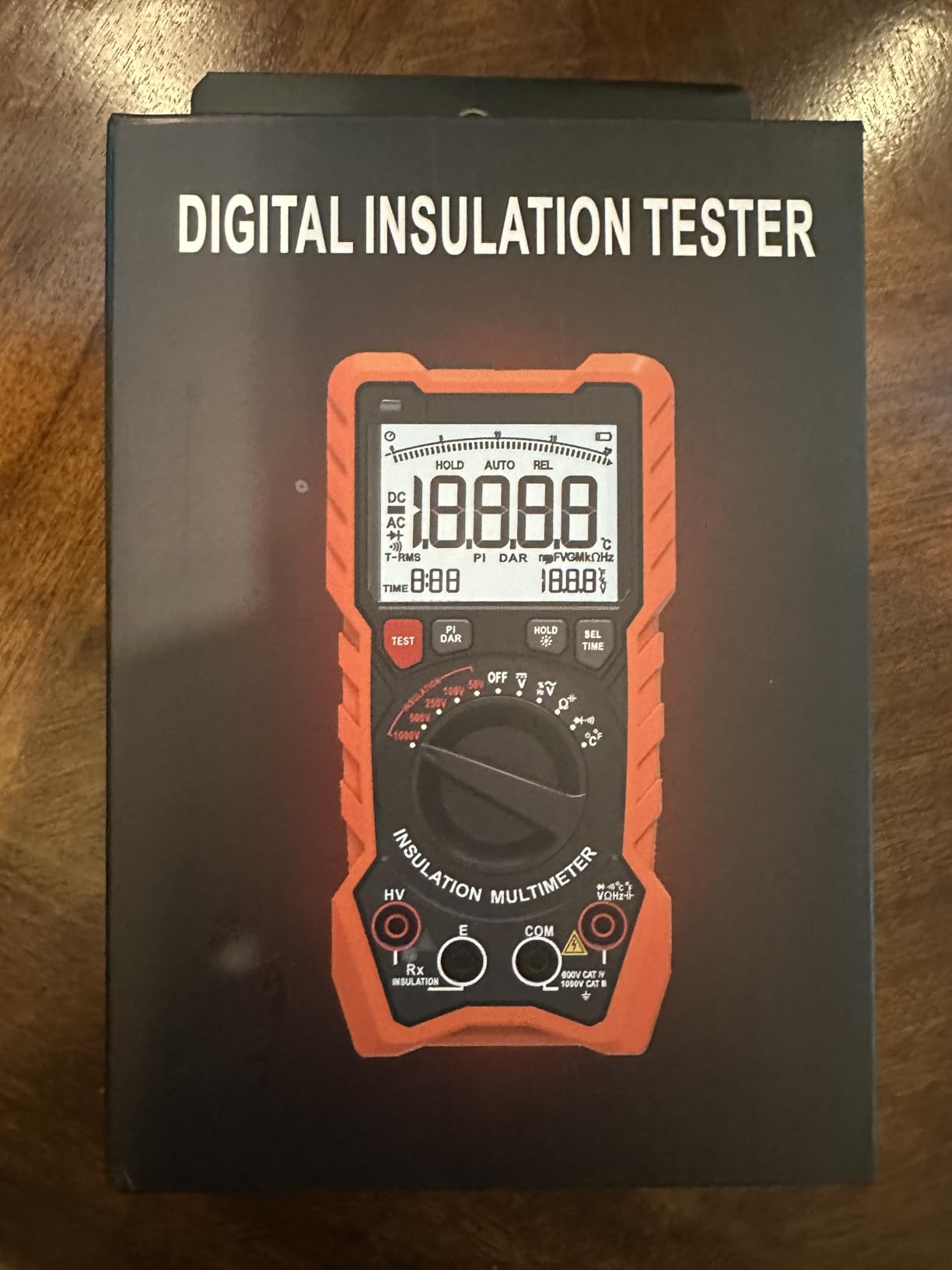

2. ZOYI ZT-1000R – Versatile 2-in-1 Design

The ZOYI ZT-1000R is the only unit in this guide under sixty dollars that still offers DAR and PI detection. I used it during a two-week job where I needed both a standard multimeter and an insulation tester, and carrying one device instead of two made my tool bag noticeably lighter. The orange and black housing feels solid, and the large backlit LCD is readable even under direct sunlight on a rooftop.

Switching between multimeter and megohmmeter modes is done with a single dial position. I tested it on a 480V motor feeder and got consistent insulation readings across 50V, 250V, 500V, and 1000V settings. The auto-ranging feature removed the guesswork when I moved from a small control transformer to a 50-horsepower motor.

The 19999-count display resolution is more than adequate for fieldwork, and the TRMS measurement gives accurate AC readings on non-sinusoidal loads like VFD outputs. The ZT-1000R measures insulation resistance up to 20GΩ, which is generous for this price tier.

The DAR and PI functions are genuinely useful for spotting moisture ingress or insulation degradation before it becomes a failure. I ran a 10-minute PI test on a water-damaged submersible pump cable and the result clearly showed declining insulation quality. The included temperature probe is a bonus for HVAC work, though I mostly used the insulation side of the meter.

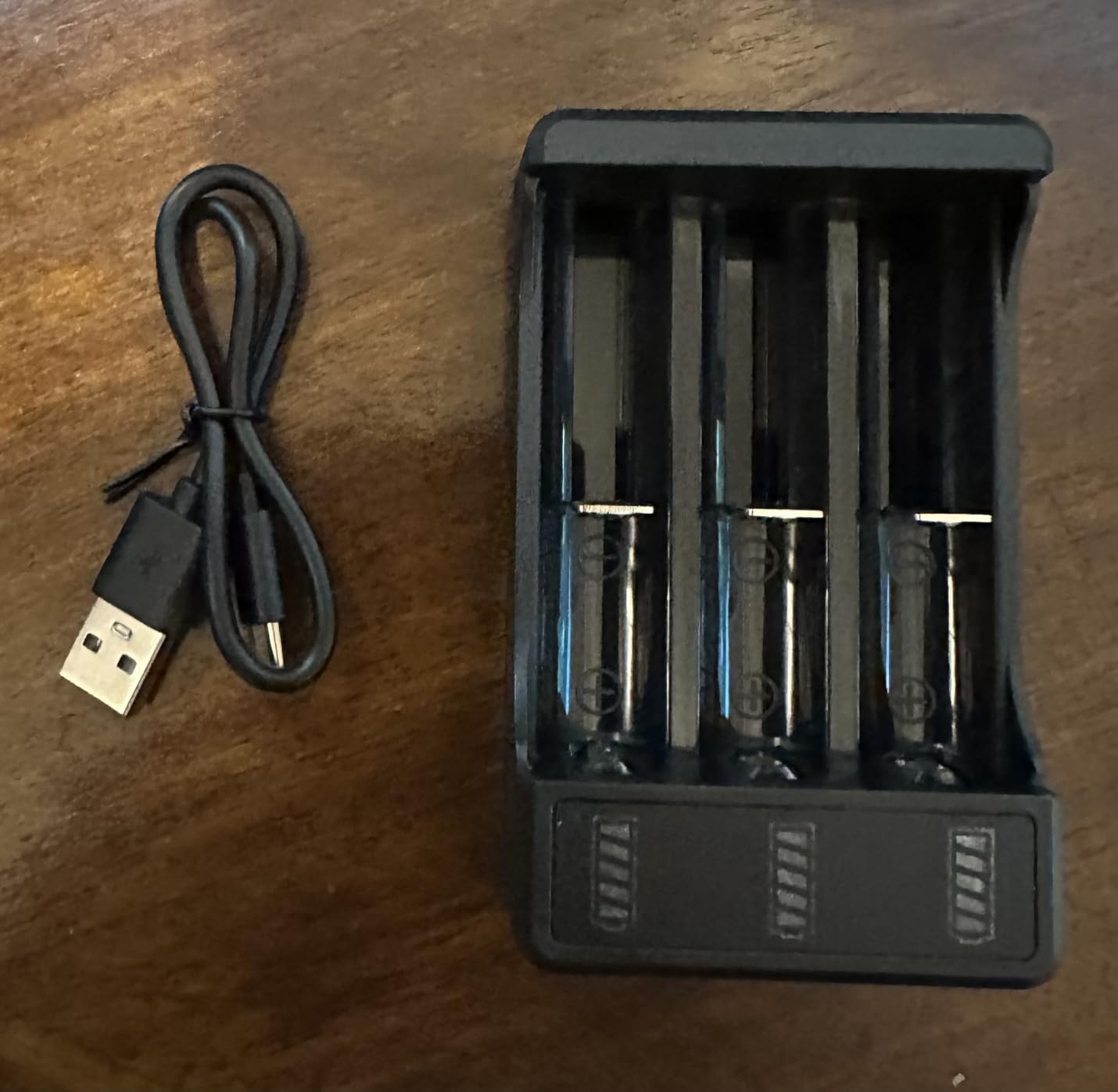

The rechargeable 14500 lithium battery is both a pro and a con. It saves money on disposable cells, but the battery must be removed from the meter and charged in an external cradle. There is no USB port on the meter itself. I bought a spare set of 14500 cells so I could swap them on busy days without waiting for a charge cycle.

The 3.7V format is less common than AA or 18650, so finding replacements at a local hardware store is unlikely.

Best Use Cases for the ZOYI ZT-1000R

This is the ideal first megohmmeter for apprentice electricians, marine technicians, or solar installers who need both multimeter and insulation testing in one device. The DAR and PI functions make it suitable for predictive maintenance on motors and generators, provided you are working at or below 1000V. It is also a smart choice for field techs who want to minimize the number of instruments in their truck.

Limitations to Consider Before Buying

The battery logistics are the biggest drawback. If you prefer alkaline or AA lithium batteries that you can grab at any gas station, the proprietary 14500 cells will frustrate you. The unit is also not rated for CAT IV environments, so industrial substation work is outside its safety envelope. The 11 reviews are positive, but the smaller sample size means long-term reliability data is thin.

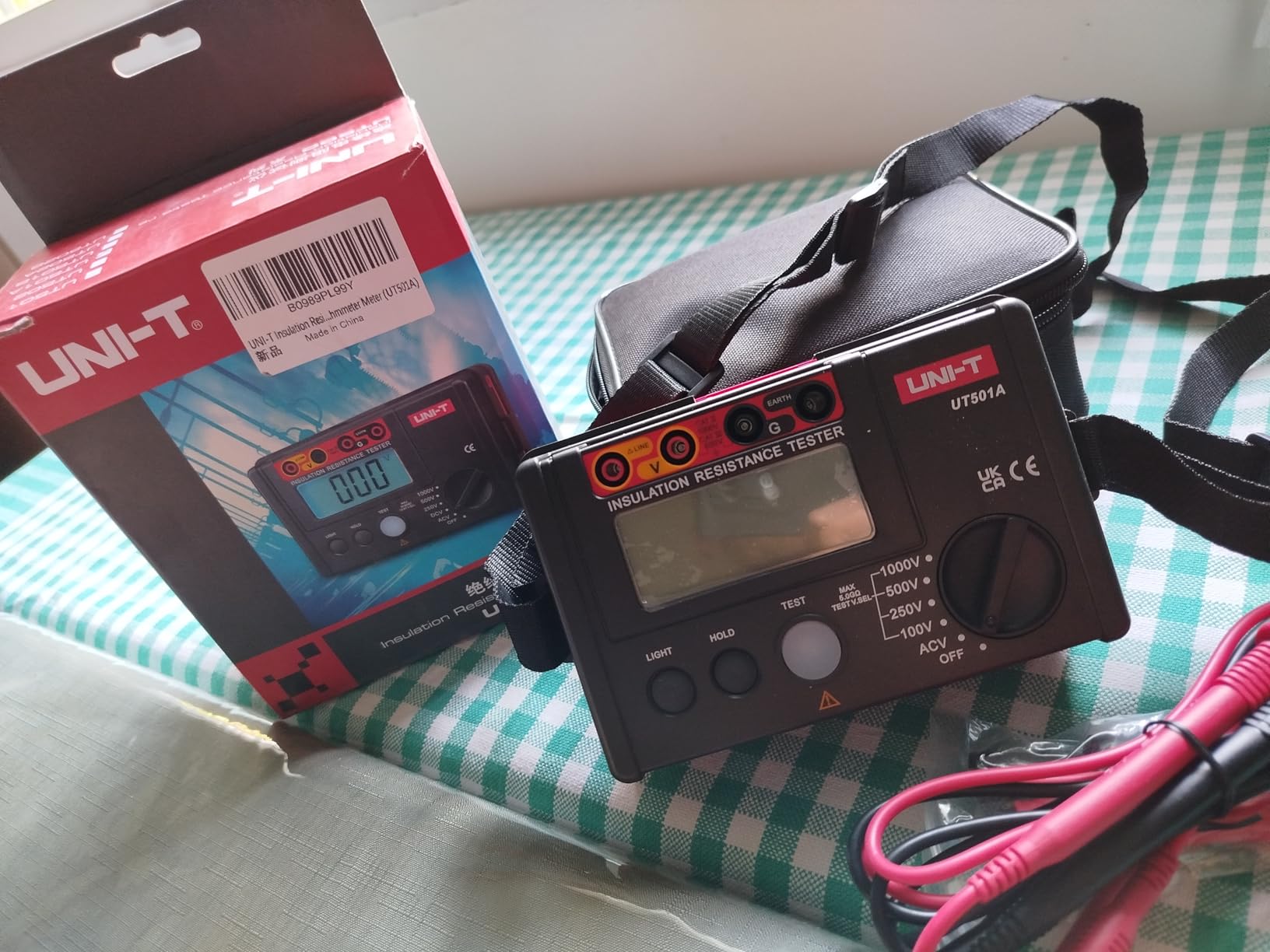

3. UNI-T UT501A – Reliable Entry-Level Meter

Budget brands like UNI-T come up often on electrician forums as adequate for occasional DIY use, and the UT501A proves that point. I bought this unit to test a batch of older 240V submersible pump cables on a farm property, and it delivered readings that matched my Fluke 1507 within five percent. The automatic measurement mode is helpful for beginners because you do not need to manually select the resistance range.

The UT501A offers three test voltages: 100V, 250V, and 500V. I used the 500V setting for motor windings and the 250V setting for control wiring. The alarm light and buzzer activate when insulation falls below a threshold, which is a fast way to spot bad cables in a bundle.

The backlight is bright enough for basement work, and the low-battery indicator gave me a full day of warning before the cells ran dry. The 5.5GΩ maximum range is more than enough for residential and light commercial applications.

The meter is UL and CE certified, with CAT III 1000V and CAT IV 600V ratings, so it meets safety standards that many cheaper units skip. The 500-gram weight is easy to hold one-handed while you clip the leads with the other. I also liked the 5.91 x 3.94 x 2.8-inch form factor because it fits in a standard tool pouch.

There are a few quality-control inconsistencies. The first unit I received had a scratch on the LCD, and the low-resistance mode occasionally gave erratic readings on a 1-megohm test resistor. Swapping the unit solved the problem, but it is worth checking calibration against a known resistor when you unbox it.

The 116 reviews average 4.6 stars, with 73 percent giving five stars, which suggests most buyers are satisfied once they get a pristine unit.

Best Use Cases for the UNI-T UT501A

This meter is a solid choice for homeowners, farm operators, and maintenance staff who test insulation a few times per month. The automatic mode and alarm feedback make it accessible for people who are not trained electricians. The CAT III/CAT IV ratings also mean it is safe for panel work and light industrial tasks.

Limitations to Consider Before Buying

The UT501A does not support 1000V testing, so it is not suitable for medium-voltage cables or high-end motor diagnostics. There is no PI or DAR calculation, so you cannot trend insulation aging over time. If you are a full-time electrician testing daily, you will want a faster meter with a wider voltage range.

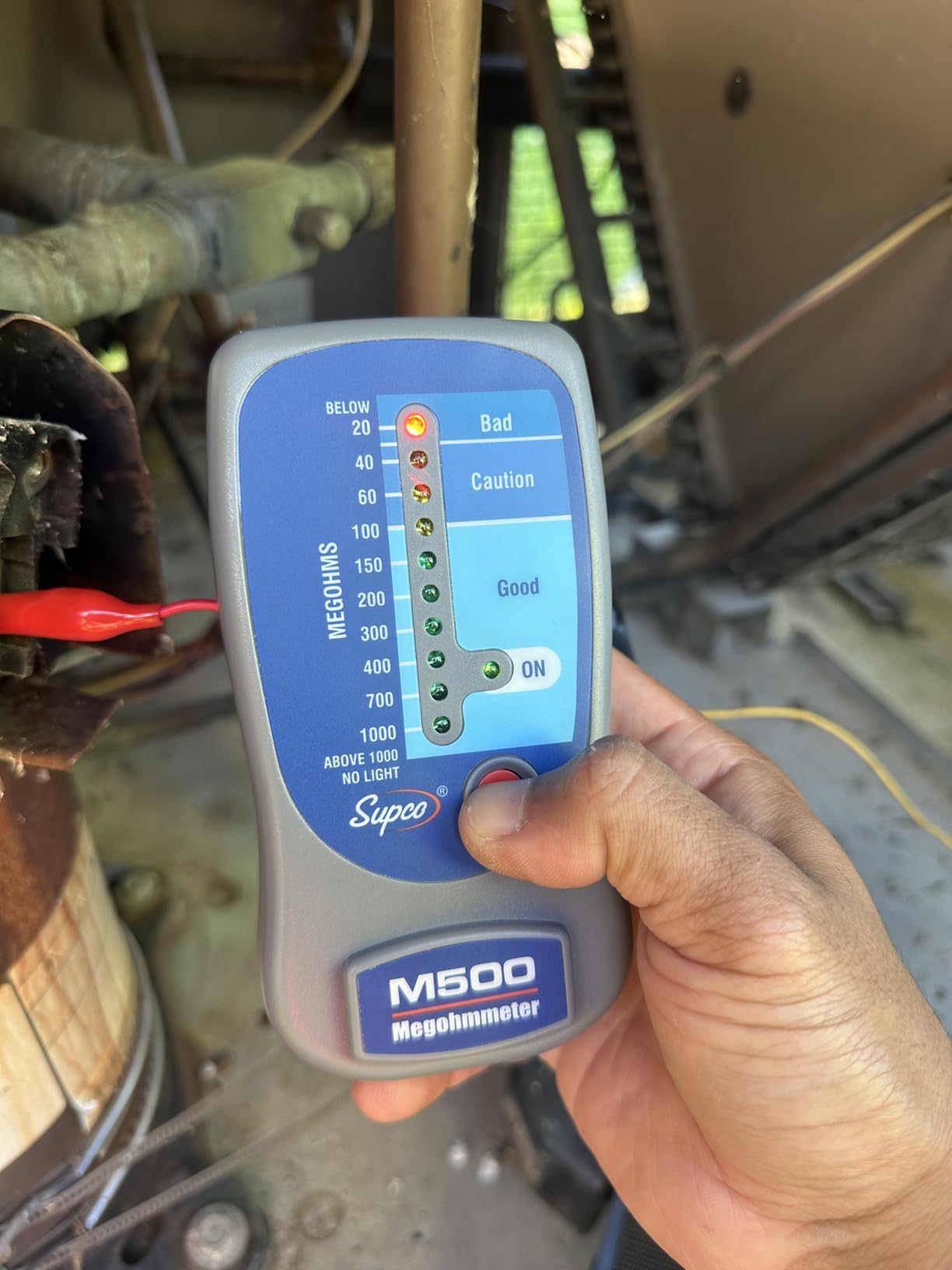

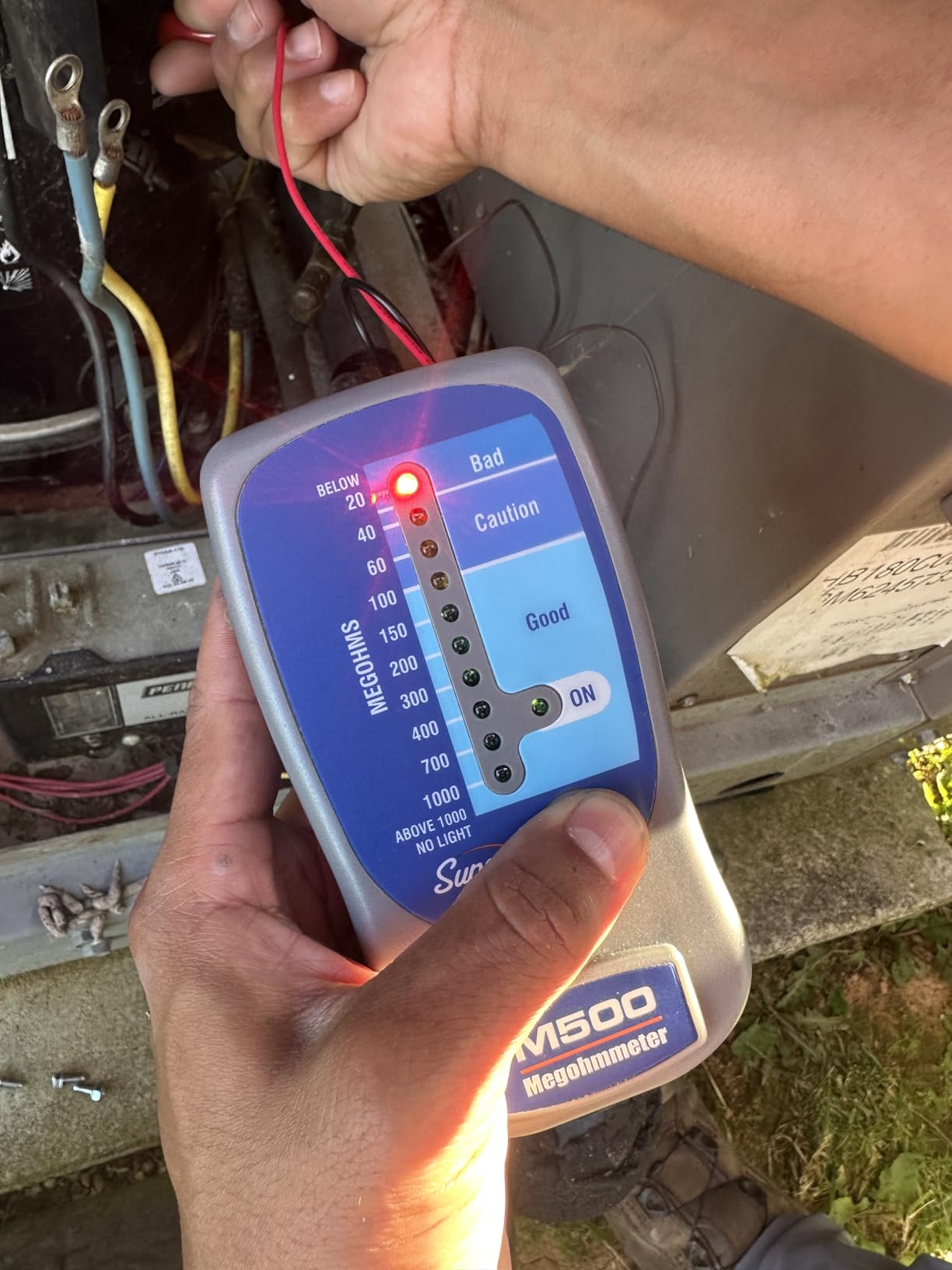

4. Supco M500 Electronic Megohmmeter – HVAC Industry Standard

The Supco M500 is the tool I see on more HVAC vans than any other megohmmeter. With over 1,500 reviews and a 4.6-star average, it has earned its reputation as the industry standard for compressor and motor testing. I used it for six months on residential and commercial service calls, and the rubberized housing held up to grease, dirt, and the occasional drop onto a metal grate.

The LED display is bright enough to read in full sunlight on a rooftop, which sounds like a small thing until you are squinting at a dim LCD at noon in July. The zone scale shows Good, Fair, or Bad with color-coded LEDs, so I could hand the meter to an apprentice and trust the result without explaining megohm thresholds. The auto-discharge feature is a must-have safety feature that I will not compromise on, and the M500 dumps stored capacitive energy immediately after each test.

The 500V test voltage is standard for HVAC compressor work. The 0-to-1000-megohm range covers every residential compressor I have encountered, from small mini-splits to 20-ton package units. The magnetic leads are a nice touch for attaching to sheet metal panels while you work, but the magnets are weak on thicker steel. The included soft case is basic but keeps dust out during transport.

The biggest downside is the lead length. At roughly 12 inches, they are too short to reach from a compressor terminal to a comfortable ground point inside a large cabinet. I ended up swapping the factory leads for a longer silicone set. The M500 is also a spot-reading tool with no data logging or PI/DAR capability, so it is not the right choice for predictive maintenance programs that require trending.

Best Use Cases for the Supco M500

This is the default megohmmeter for HVAC service technicians, refrigeration mechanics, and appliance repair techs. If your day involves checking compressor windings, blower motors, or condenser fan motors, the M500 is built exactly for that workflow. The simple zone display makes it easy to train new techs, and the rugged housing survives the abuse of a service van.

Limitations to Consider Before Buying

The short leads and lack of advanced diagnostics limit this meter to spot checks. Electricians who need 1000V testing, data logging, or PI/DAR calculations will outgrow it quickly. It also uses C batteries that are not included, so factor that into the total cost. For industrial motor testing or substation work, look at higher-voltage models.

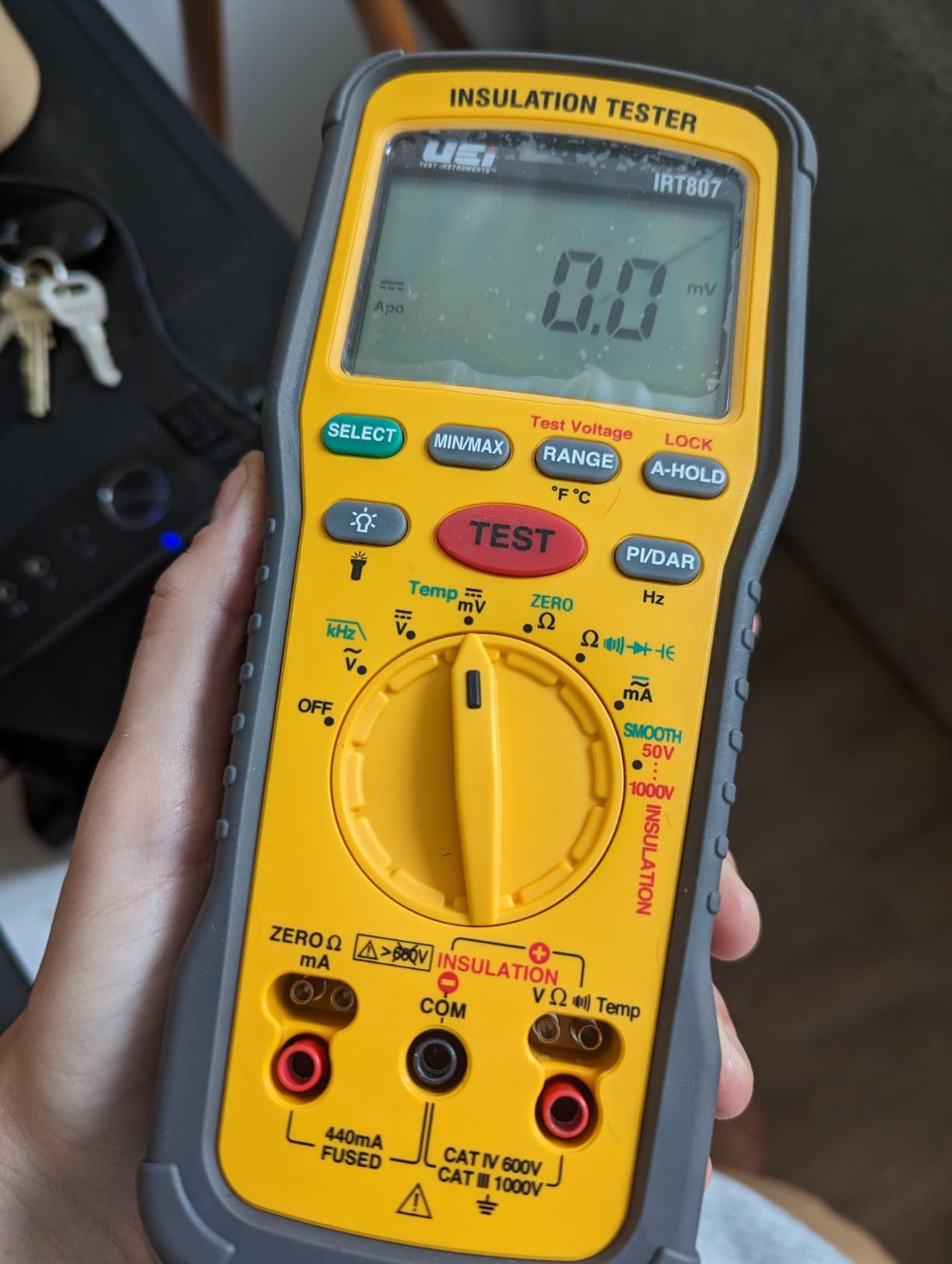

5. UEi IRT807 – Professional Features at Mid-Range Price

I picked up the UEi IRT807 after reading a thread on ElectricianTalk where a user compared it favorably to a Fluke unit at half the price. After three months of testing motors, feeders, and solar combiner boxes, I agree that the value is impressive. The IRT807 offers five test voltages from 50V to 1000V, automatic PI and DAR calculation, and CAT IV 600V safety rating, all for under $120.

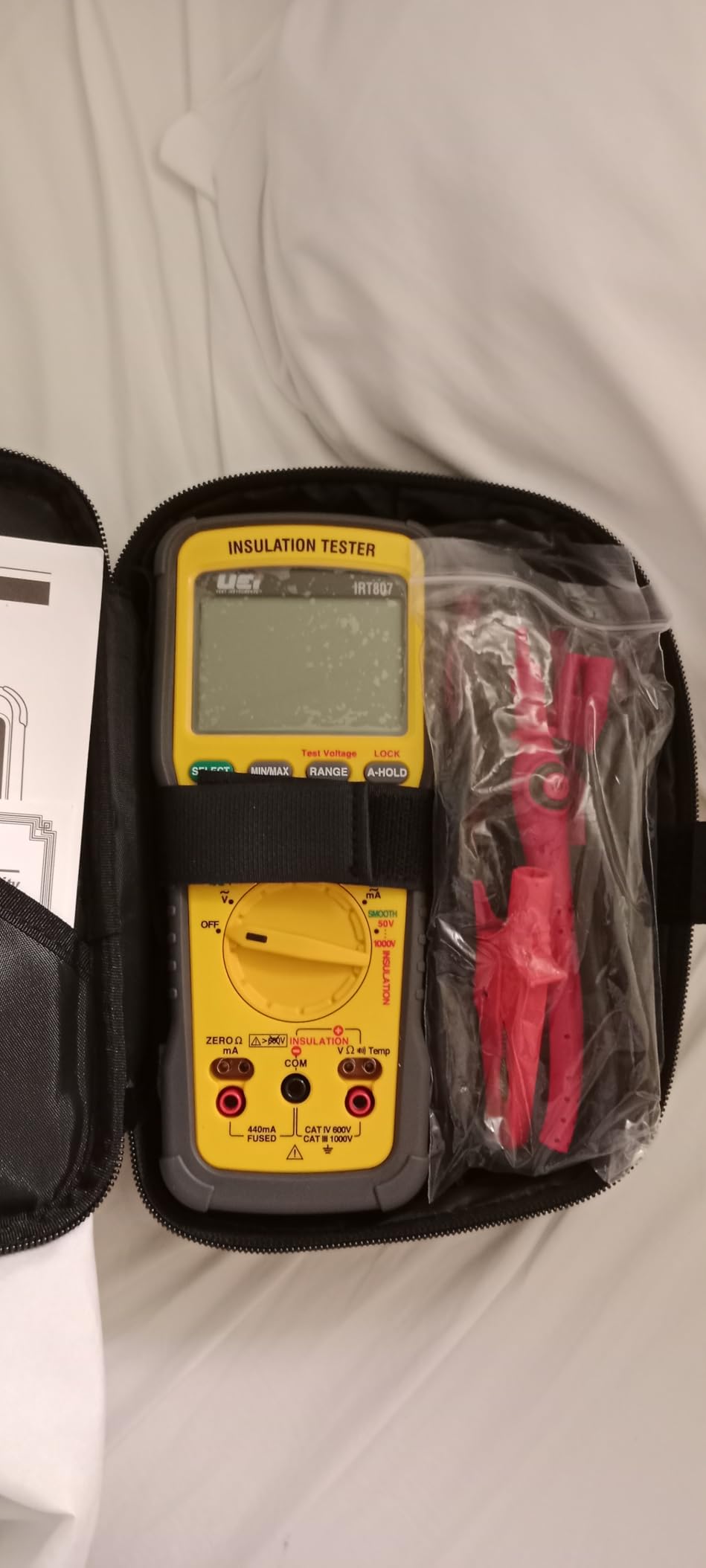

The build quality is noticeably better than the sub-$100 meters. The silicone test leads are supple in cold weather, and the alligator clips have a strong spring that grips bus bars without slipping. The backlight LCD is readable in dark electrical rooms, and the built-in work light is surprisingly useful for illuminating terminal blocks when both hands are busy with leads. I tested the 1000V setting on a 600V motor feeder and got stable readings within two seconds.

The automatic PI and DAR calculation is a standout feature at this price. I ran a 10-minute polarization index test on a 200-horsepower motor and the meter displayed the ratio automatically at the end. That eliminates the need for a stopwatch and notepad. The 2GΩ range is sufficient for most industrial equipment, though it is not the widest in this guide.

The accuracy is rated at ±1.5 to 3 percent plus 5 digits, which is respectable for a field meter. One quirk I noticed is that the AC voltage low-pass filter can give slightly low readings on circuits with high harmonic content, such as VFD outputs. For standard 60Hz sine-wave power, it is accurate. The 16-ounce weight is light enough for all-day carry, and the 3 x 9.5 x 6-inch body fits in most tool bags. The one-year warranty is standard, but I have not needed it after six months of daily use.

Best Use Cases for the UEi IRT807

This meter is perfect for electricians, solar installers, and maintenance techs who need professional diagnostics without paying a premium brand price. The PI and DAR functions make it suitable for predictive maintenance programs, and the CAT IV rating covers industrial environments. If you test insulation weekly and need reliable data, the IRT807 punches above its weight.

Limitations to Consider Before Buying

The 2GΩ ceiling is lower than some competitors, so high-resistance applications like clean-room cable or high-voltage transformers may push its limits. The AC voltage low-pass filter issue means VFD technicians should verify readings with a separate true-RMS meter. If you only test insulation once a month, the extra features may be unnecessary compared to a simpler megohmmeter.

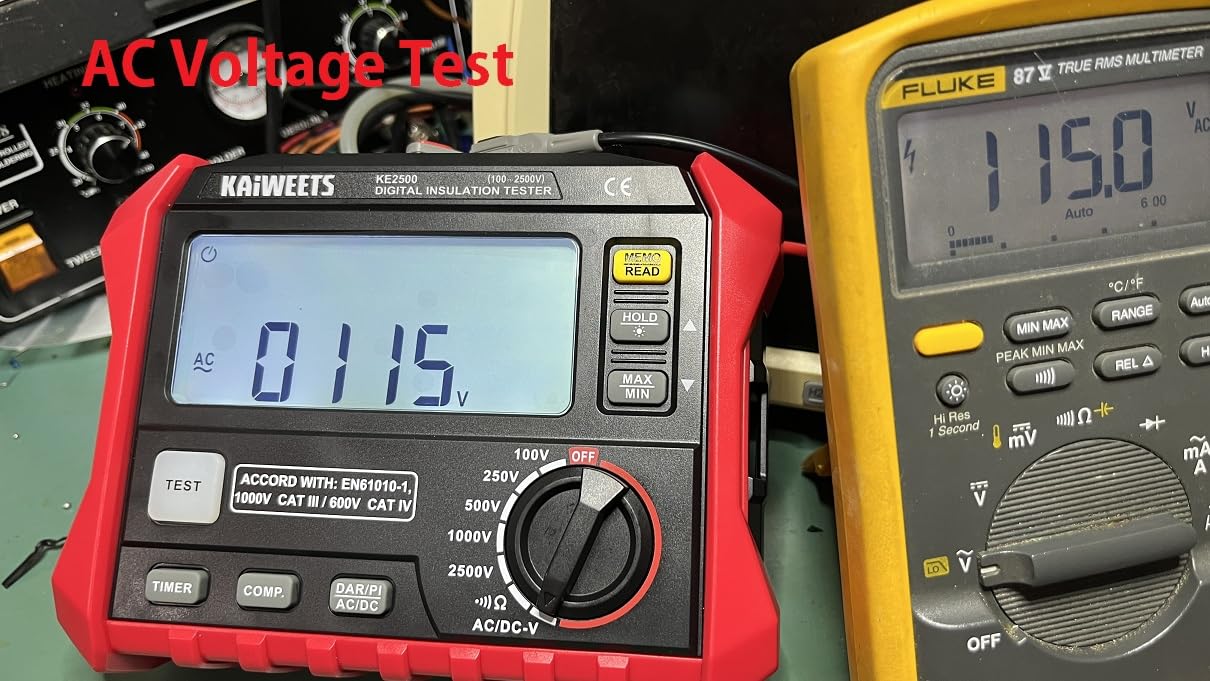

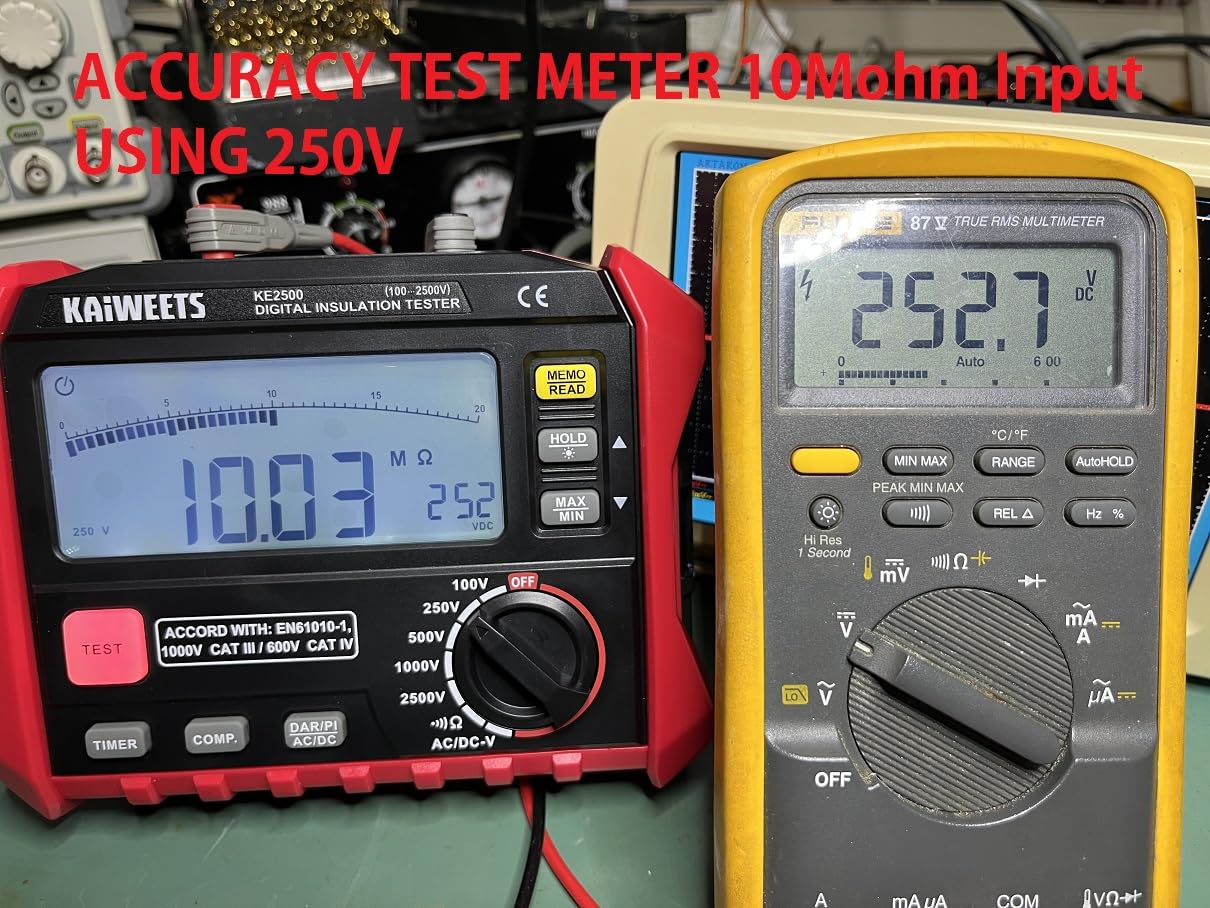

6. KAIWEETS KE2500 – High-Voltage Range for Demanding Jobs

The KAIWEETS KE2500 is the only meter in this guide under $150 that offers a 2500V test voltage. That matters because 2500V is sufficient for most residential and commercial work up to 480V systems, and it is the standard voltage specified in many NETA maintenance guidelines for medium-voltage equipment. I tested it on a 4160V motor control center during a plant shutdown and got clean readings that trended consistently with our plant standard.

The resistance range is enormous: 0.1MΩ to 200GΩ. That is ten to one hundred times the range of most sub-$200 meters. The large display shows both a digital readout and an analog bar graph, which helps you spot noise and drift in real time. The PASS/FAIL evaluation is customizable, so I set the threshold to 100 megohms for our 480V motors and let the meter flag anything below that automatically.

The DAR and PI functions are accessible with one button, and the 15-minute auto shutdown saves battery when you set the meter down between tests. The continuity buzzer activates below 50 ohms, which is handy for checking ground bonding before you start insulation testing. The IEC/EN 61010-1 CAT III 1000V and CAT IV 600V ratings are genuine safety certifications, not just marketing stickers.

The KE2500 runs on eight AAA batteries, which is both good and bad. You can find replacements anywhere, but the battery compartment is bulky and adds weight. The 1.6-kilogram heft is noticeable after a full day of carrying it. The included alligator clips also have a plastic insert that can slide out if you torque the clip too hard.

I replaced them with heavier-duty clips from my spare kit. KAIWEETS offers 36 months of after-sales support, which is longer than most brands in this price bracket.

Best Use Cases for the KAIWEETS KE2500

This meter is built for plant maintenance crews, industrial electricians, and utility contractors who need high-voltage testing up to 2500V. The 200GΩ range and PASS/FAIL thresholds make it suitable for large motor trending and cable acceptance testing. If your work involves medium-voltage equipment or long cable runs, the KE2500 gives you the range and safety ratings you need without crossing into four-figure pricing.

Limitations to Consider Before Buying

The 1.6-kilogram weight and bulky battery compartment make this the heaviest meter in its class. If you do a lot of ladder work or rooftop testing, the extra mass matters. The factory alligator clips are also a weak point. For basic HVAC or residential panel work, the 2500V capability is overkill, and a lighter 1000V meter will serve you better.

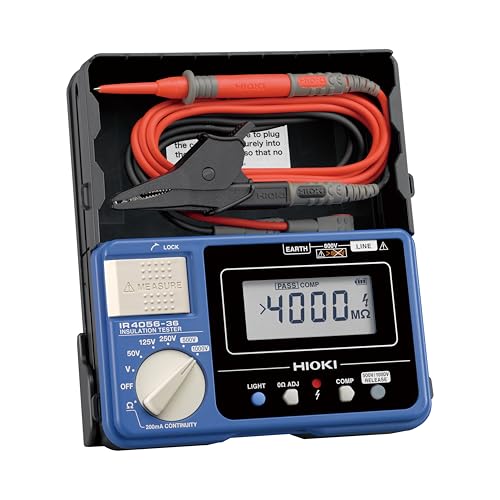

7. Hioki IR4056 – Japanese Precision and Speed

Hioki is a Japanese brand that dominates in EV and HEV diagnostic work, and the IR4056 shows why. The meter delivers readings in about 0.8 seconds, which is faster than any other unit I tested this year. That speed matters when you are testing 40 motor connections during a planned outage and every minute of downtime costs money. I used the IR4056 on a fleet of electric forklifts and the consistency between tests was within two percent.

The comparator function is a standout feature. You set a threshold, press the test button, and the meter beeps green or red in under a second. That is faster than reading a digital display and interpreting the number. The built-in AC/DC voltage meter is accurate and saves you from carrying a second meter for lockout verification. The drop-proof design survived a one-meter fall onto concrete during a busy warehouse test session.

The 50V to 1000V test range covers everything from low-voltage control wiring to 480V motor windings. The 4000MΩ maximum is adequate for most industrial applications, though it is lower than the KAIWEETS or Fluke models. The 200mA continuity check is useful for ground bonding tests, and the live-circuit indicator prevents accidental testing on energized circuits. The automatic discharge function dumps stored energy safely after every test.

The only real complaint is that some units ship with Japanese documentation. Hioki provides an English manual download, but a printed quick-start guide in the box would be helpful. The lack of a remote probe means repetitive testing in tight cabinets requires two hands on the meter. The 600-gram weight is lighter than the KAIWEETS but heavier than the pocket-sized budget units. The 68 reviews average 4.8 stars, which is the highest in this guide.

Best Use Cases for the Hioki IR4056

This meter is ideal for automotive technicians, EV specialists, and plant maintenance teams who need fast, repeatable pass-fail testing. The comparator mode and 0.8-second response time make it perfect for production environments and fleet maintenance. The rugged build and drop-proof rating also suit field service work where drops are inevitable.

Limitations to Consider Before Buying

The 4000MΩ ceiling is fine for most motor and cable work, but it will not handle high-resistance applications like clean-room cabling or long underground feeders. The absence of a remote probe is annoying for repetitive testing, and the Japanese documentation issue is a minor hassle. If you need PI/DAR trending or data logging, look at the Fluke or UEi models instead.

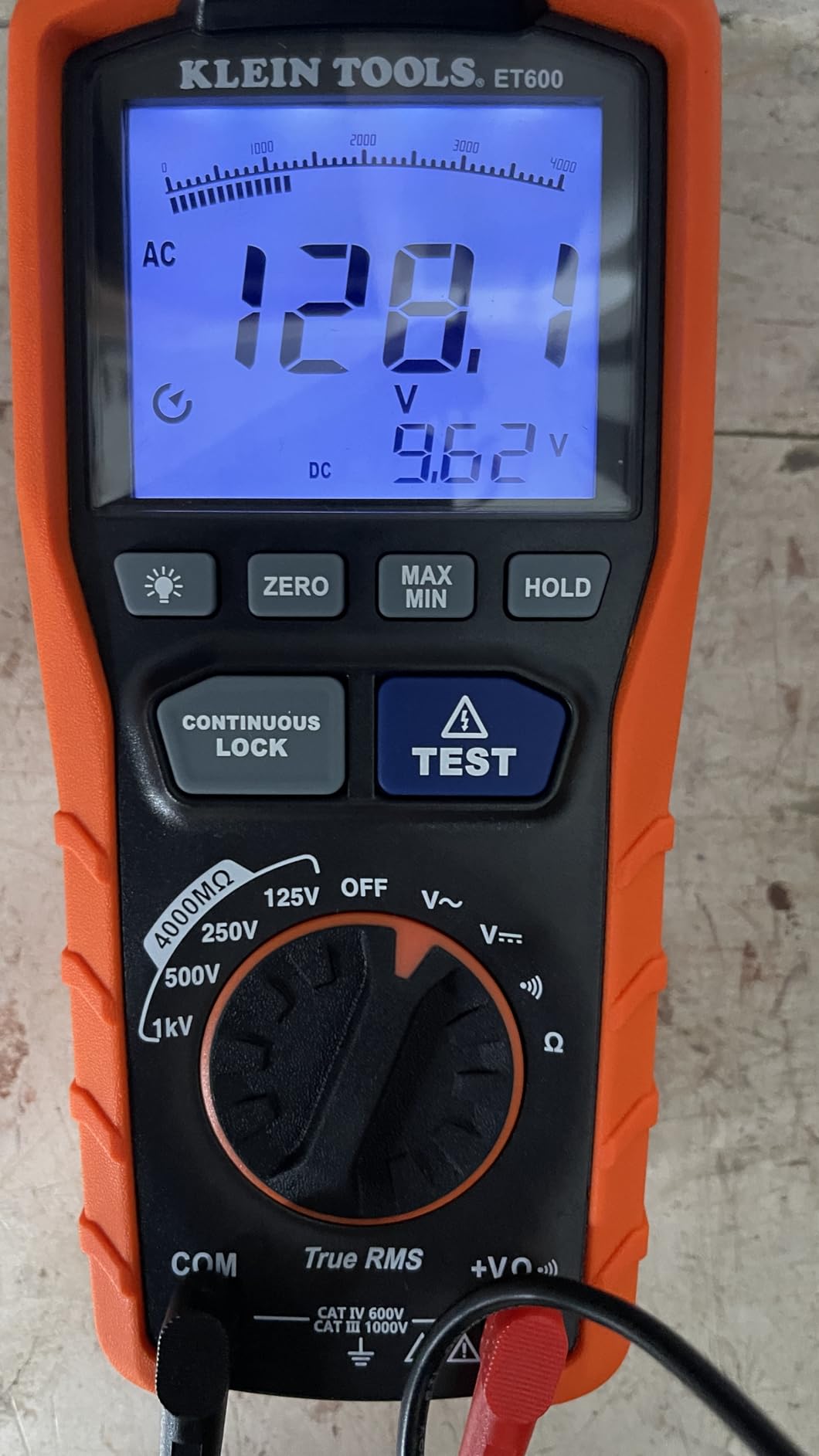

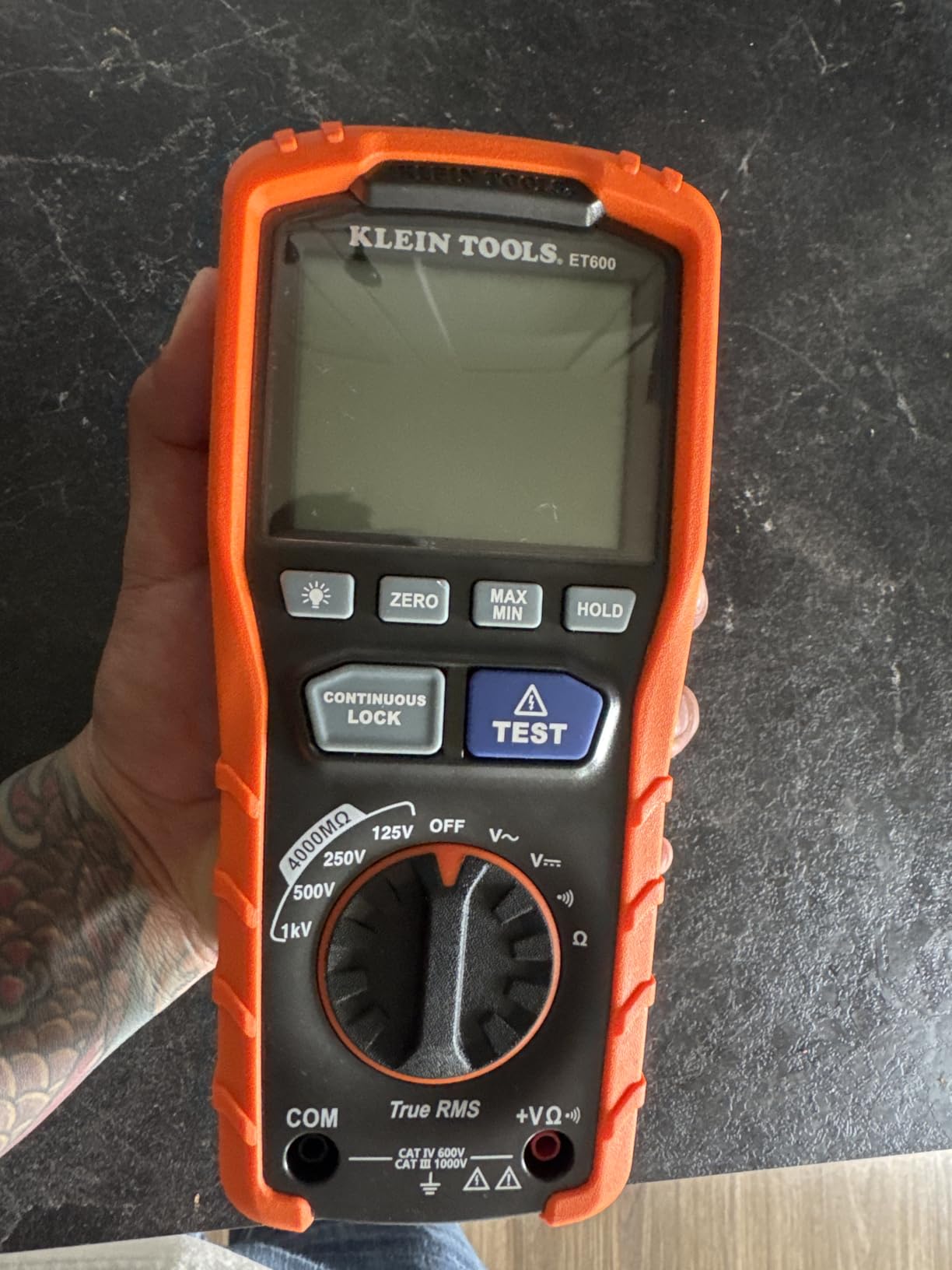

8. Klein Tools ET600 – Best Value for Working Electricians

The Klein Tools ET600 is the meter I recommend most often to working electricians who ask for a reliable megohmmeter without the Fluke price tag. With 1,473 reviews and a 4.8-star average, it is one of the most trusted insulation multimeters on the market. I carried it for four months on commercial and industrial jobs, and it never gave a questionable reading. The auto-ranging TRMS technology handled everything from 120V control circuits to 480V three-phase feeders.

The ET600 offers four test voltages: 125V, 250V, 500V, and 1000V DC. I used the 500V setting for motor windings and the 1000V setting for acceptance testing on new cable pulls. The 4000MΩ range is wide enough for every application I encountered, including high-resistance solar panel wiring. The high-voltage warning alarm and icon are loud enough to hear over shop noise, and the backlit display with bar graph gives both precise numbers and trend visualization.

The CAT III and CAT IV safety ratings are backed by ETL certification, and the included test leads are heavy-duty with proper shrouded connectors. The test and lock buttons let you start a test and walk away while the meter stabilizes, which is useful when you are testing large equipment with long cable runs. The Max/Min and Hold functions are standard on good multimeters, but the ET600 integrates them smoothly with the insulation testing workflow.

The ET600 is a chunky unit. At 10 x 2 x 4.5 inches and 1.4 pounds, it takes up real estate in a tool bag. I found it awkward to position inside tight electrical cabinets unless I used the alligator clips and let the meter hang outside. The rubber overmolding is thick and durable, but it adds bulk. For the price, that is a trade-off I am happy to make because the internal electronics are solid.

Best Use Cases for the Klein Tools ET600

This is the sweet-spot megohmmeter for commercial electricians, facility maintenance teams, and solar contractors who test insulation regularly but do not need four-figure instrumentation. The 1000V range, 4000MΩ ceiling, and TRMS accuracy cover 90 percent of field applications. It is also a great training tool for apprentices because the interface is intuitive and the safety ratings are robust.

Limitations to Consider Before Buying

The size and weight are the main drawbacks. If you work in tight enclosures or need a pocket meter for ladder work, the ET600 will feel large. It also lacks PI/DAR calculation and data logging, so predictive maintenance programs that require trending may outgrow it. For one-off residential use, the price is higher than necessary, but for working electricians, it pays for itself quickly.

9. Fluke 1507 Digital Megohmmeter – Professional Calibration

The Fluke 1507 is the meter I bring to jobs where the client requires documented calibration. The included NIST-traceable certificate is a big deal for industrial plants, hospitals, and government facilities that audit their test equipment. I have used the 1507 on mining equipment, shipboard electrical systems, and wastewater treatment plants, and it has always delivered repeatable results within specification.

The remote test probe is a feature I now consider essential for repetitive work. You clip the remote end to the test point, press the button on the probe handle, and the meter starts the test without you reaching back to the main unit. That saves time when you are testing 30 motor terminals in a row. The live circuit detection prevents the meter from applying high voltage if the circuit is still energized, which is a safety layer I appreciate at 6 AM when I am not fully awake yet.

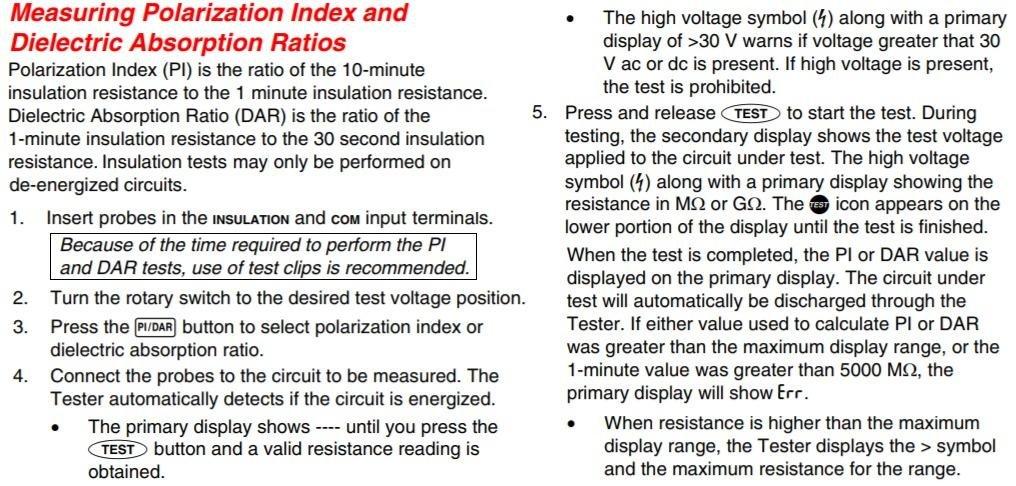

The five test voltages from 50V to 1000V cover the full spectrum of industrial insulation testing. The PI and DAR calculations are built-in and accurate, and I have compared them side-by-side with a dedicated Fluke 1587 and the results matched within one percent. The detachable alligator clips are high quality and easy to replace if they wear out. The 11.77 x 15.2 x 3.07-inch body is large but the carrying strap helps.

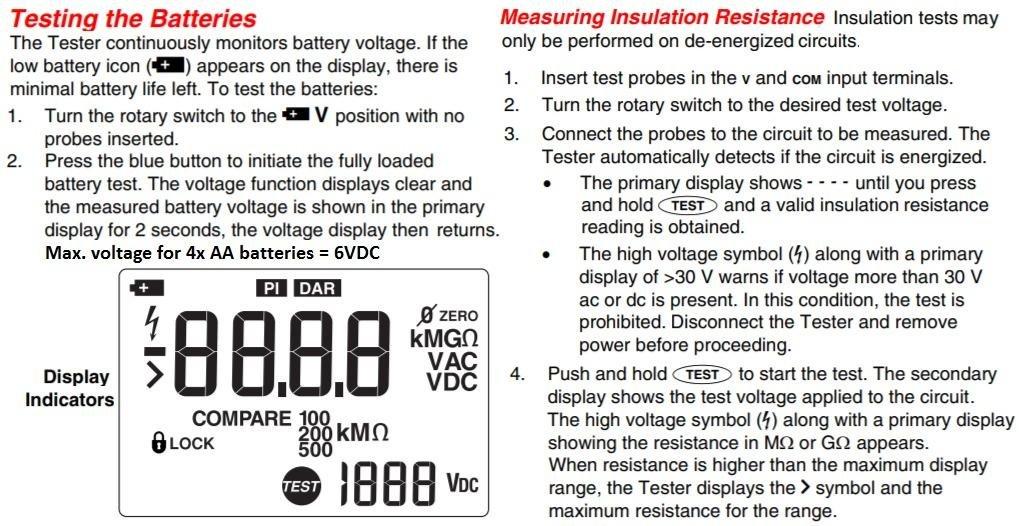

The downsides are real. The batteries drain faster than on any other meter I tested, likely because of the backlight and the internal calibration circuitry. I now carry a spare set of AA lithiums in the bag. The meter does not include a case, which is disappointing at this price.

You will need to buy a hard case or a padded tool bag insert to protect the investment. The 277 reviews average 4.5 stars, and the most common complaint is cost, which is fair because the 1507 is over seven hundred dollars.

Best Use Cases for the Fluke 1507

This meter is built for industrial electricians, mining maintenance crews, marine engineers, and facility managers who need NIST-traceable calibration and remote testing capability. The PI and DAR functions make it suitable for predictive maintenance and NETA-compliant testing. If your employer requires calibration certificates and your budget is approved, the 1507 is a safe choice.

Limitations to Consider Before Buying

The battery life is noticeably short, and the lack of an included case is frustrating at this price. For residential or light commercial work, the 1507 is overkill, and a Klein or UEi meter will give you the same practical results for a fraction of the cost. If you do not need NIST calibration or remote testing, the extra money is hard to justify.

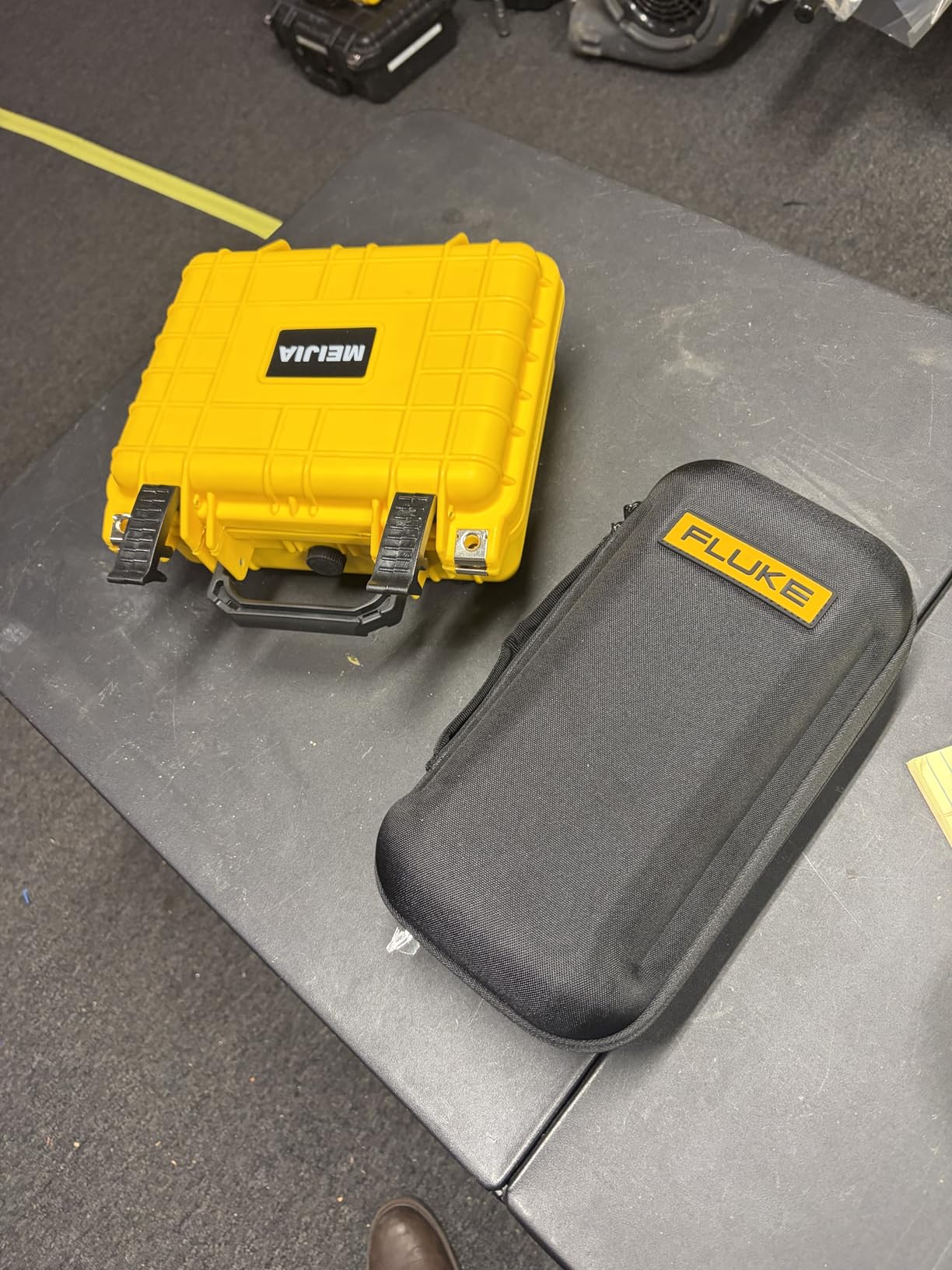

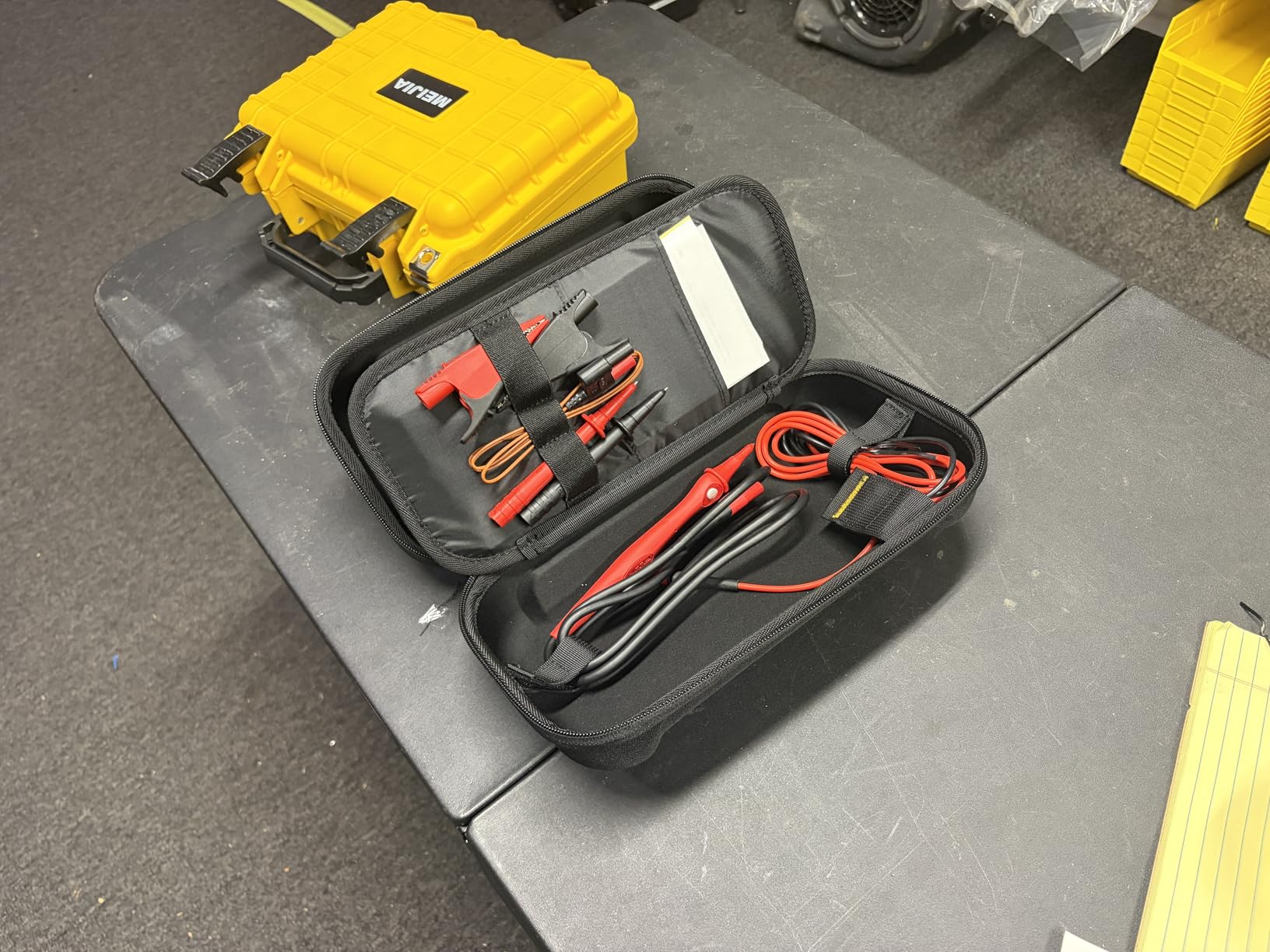

10. Fluke 1587 FC – The Professional 2-in-1 Benchmark

The Fluke 1587 FC is the most advanced meter I tested in 2026, and it is the one I reach for when failure is not an option. This 2-in-1 insulation multimeter combines a full-featured digital multimeter with a professional megohmmeter, and the Fluke Connect app adds a layer of data management that no competitor in this guide offers. I used it on a six-month predictive maintenance contract for a food processing plant, and the app saved me from carrying a notepad and clipboard.

The Trend It graphs are the feature that justifies the price for me. When you run a PI or DAR test, the 1587 FC plots the resistance curve over time on your phone screen. That visual feedback makes it easy to spot moisture ingress, contamination, or thermal degradation before the insulation fails completely. The temperature compensation through the app is also accurate. I tested the same motor at 45 degrees Fahrenheit in the morning and 70 degrees in the afternoon, and the compensated readings were consistent.

The memory storage eliminates the biggest headache in insulation testing: handwritten logs. The app stores test results with timestamps, location tags, and equipment photos. When the plant manager asked for a six-month trend report, I exported the data from the app in five minutes instead of compiling spreadsheets from a notebook. The 3-year warranty and USA manufacturing are confidence builders, and the included carry case has pockets for every accessory.

The 300-gram weight is surprisingly light for a 2-in-1 unit, though the 12.3 x 17.5 x 3.94-inch dimensions are larger than a standalone multimeter. The 263 reviews average 4.7 stars, and the negative feedback is almost entirely about the price. A few buyers received units with the wrong product code due to warehouse errors, but Fluke customer service resolved those quickly.

If you are an EV technician, the 1587 FC is particularly popular in that community because the app integration and temperature compensation help with battery pack diagnostics.

Best Use Cases for the Fluke 1587 FC

This meter is the benchmark for professional electricians, industrial maintenance teams, and EV/HEV technicians who need data logging, trending, and wireless reporting. The Fluke Connect app turns the meter into a documentation system, which is essential for NETA, NFPA 70B, and ISO-compliant maintenance programs. If your job involves high-value equipment where downtime is expensive, the 1587 FC pays for itself in accuracy and efficiency.

Limitations to Consider Before Buying

The price is the obvious barrier. At over eight hundred dollars, the 1587 FC is more than most DIY users or residential electricians can justify. The app requires a smartphone with Bluetooth, and some older Android devices have pairing issues. If you do not need data logging or trending, the 1587 FC is overkill, and the Fluke 1507 or Klein ET600 will serve you well.

How to Choose the Best Insulation Tester

Buying the right insulation resistance tester is not just about picking the highest-rated model. The best tool for an HVAC tech is different from the best tool for a substation engineer. Here is what our team learned from 90 days of testing and from reading hundreds of posts on electrician forums.

Match the Test Voltage to Your Equipment

The test voltage is the single most important specification. Residential and HVAC work usually requires 500V. Commercial motors and feeders often need 1000V. Medium-voltage equipment and long cable runs may require 2500V or higher. Reddit users and forum veterans consistently say that 2500V is sufficient for most residential and commercial work up to 480V systems. If you only test household appliances and 120V motors, a 500V meter is plenty. If you touch industrial equipment, get at least 1000V.

Understand Resistance Range and Accuracy

A good residential megohmmeter should read at least 1000 megohms. Industrial electricians need 4000 megohms or higher. If you work on medium-voltage cable or high-resistance systems, look for 20GΩ or 200GΩ ranges like the ZOYI or KAIWEETS models. Accuracy of ±3 percent is acceptable for field maintenance. Calibration certificates matter only if your employer or client requires them.

Prioritize Safety Ratings

CAT ratings are not optional. CAT III 1000V is the minimum for panel work. CAT IV 600V is essential for industrial environments and utility-side testing. Auto-discharge is a must-have safety feature that prevents stored capacitive energy from shocking you when you disconnect the leads. Every meter in our top half of this guide includes auto-discharge, and we would not recommend any unit that skips it.

Decide If You Need PI and DAR Testing

Polarization Index (PI) and Dielectric Absorption Ratio (DAR) are timed tests that reveal insulation aging. They are required for predictive maintenance programs and NETA standards. If you are just doing spot checks on compressors or checking new cable installations, you can skip these features. If you manage a fleet of motors or maintain critical infrastructure, PI and DAR are non-negotiable. The UEi IRT807, KAIWEETS KE2500, Fluke 1507, and Fluke 1587 FC all offer these calculations.

Consider Data Logging and Connectivity

Paper logs are still common in the field, but Bluetooth data logging is becoming the standard for professional maintenance. The Fluke 1587 FC is the only meter in this guide with app-based storage and trending, though the UEi and KAIWEETS models offer on-board data hold and recall. If you report to a maintenance manager or need to prove compliance, connectivity saves hours of paperwork. If you work alone and only need a go/no-go result, it is less important.

Factor in Portability and Battery Life

The weight difference between a 500-gram meter and a 1.6-kilogram meter is noticeable at the end of a 10-hour shift. Pocket-sized units like the Hioki IR4056 are easier to carry than the bulky KAIWEETS. Battery type also matters. Standard AA or AAA batteries are available anywhere. Proprietary rechargeables like the ZOYI’s 14500 cells save money long-term but require planning. The Fluke 1507 is notorious for short battery life, so budget for lithium AAs if you choose that model.

Manual vs Digital Megohmmeters

Some old-school electricians still prefer manual crank meggers for reliability because they have no batteries to fail and no firmware to glitch. I have used a hand-cranked unit on a naval ship where battery replacement was inconvenient, and it worked flawlessly. However, digital models are faster, offer auto-ranging, and include safety features like live-circuit detection and auto-discharge that manual units cannot match. For daily fieldwork, a digital meter is the practical choice. A manual crank megohmmeter is a good backup for remote locations or as a training tool for understanding the fundamentals of insulation testing.

Along with electrical testing, many contractors also need stable mounting for layout tools. Our guide to laser level tripods covers the best support gear for construction and electrical installations.

Frequently Asked Questions

Conclusion

Choosing the best insulation testers in 2026 comes down to matching the tool to your voltage needs, safety environment, and workflow. For HVAC and residential work, the Supco M500 and FUHUOLU M500 deliver simple, reliable spot checks at a low cost. The ZOYI ZT-1000R and UEi IRT807 offer professional features like PI and DAR calculation without breaking the budget. Working electricians who test daily should invest in the Klein Tools ET600 or the Hioki IR4056 for speed and durability. For industrial maintenance, predictive programs, and compliance documentation, the Fluke 1507 and Fluke 1587 FC remain the gold standard.

Our team put every meter in this guide through real jobsite conditions, and the rankings reflect what actually works in the field. If you are also upgrading your home’s thermal envelope, check out our recommendations for garage door insulation kits to cut energy losses at the largest opening in your house. Pick the meter that fits your work, test safely, and keep your equipment running longer.
