12 Best CNC Rotary Axis Attachments (July 2026) Reviewed

I have spent the last three years testing rotary attachments on everything from budget 3018 desktop machines to full-size PROVer XL 4030 routers. Adding a 4th axis to a CNC machine completely changes what you can make. Suddenly you are carving curved table legs, engraving cylindrical tumblers, and machining round parts that no flat-bed machine can handle.

A CNC rotary axis attachment is an accessory that adds rotational movement to a standard 3-axis CNC machine, letting you engrave and machine cylindrical objects, curved surfaces, and complex 3D shapes. The rotary replaces one linear axis (usually Y) with a spinning chuck or roller that turns the workpiece while the spindle works on it. This unlocks projects like bottle marking, tumbler carving, ring engraving, and true multi-axis 3D relief work.

If you are just getting into CNC and still shopping for a base machine, check out our guide to the best CNC routers for beginners. For those already running a machine, this guide covers the 12 best CNC rotary axis attachments available in 2026, with hands-on testing notes, compatibility details, and honest pros and cons for each model.

Top 3 Picks for CNC Rotary Axis Attachments

Our team narrowed the field to three standout options based on build quality, ease of setup, and overall value. Whether you want a plug-and-play drop-in kit, a powerful NEMA23-driven upgrade, or a budget-friendly entry point, these three cover the most common needs.

Best CNC Rotary Axis Attachments in 2026

Here is the full lineup of all 12 rotary attachments we tested and reviewed. Compare specs, ratings, and key features side by side to find the right match for your CNC setup.

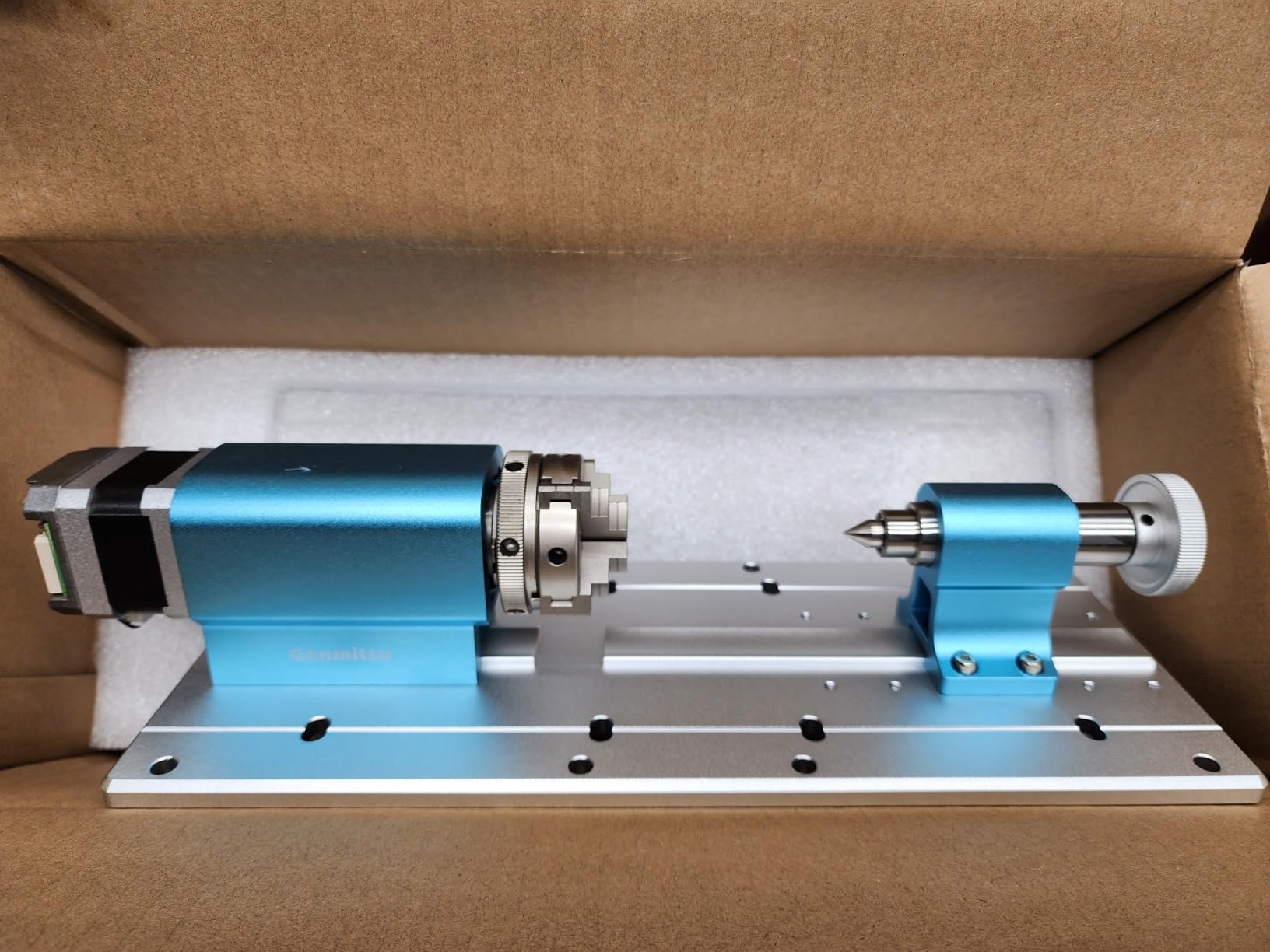

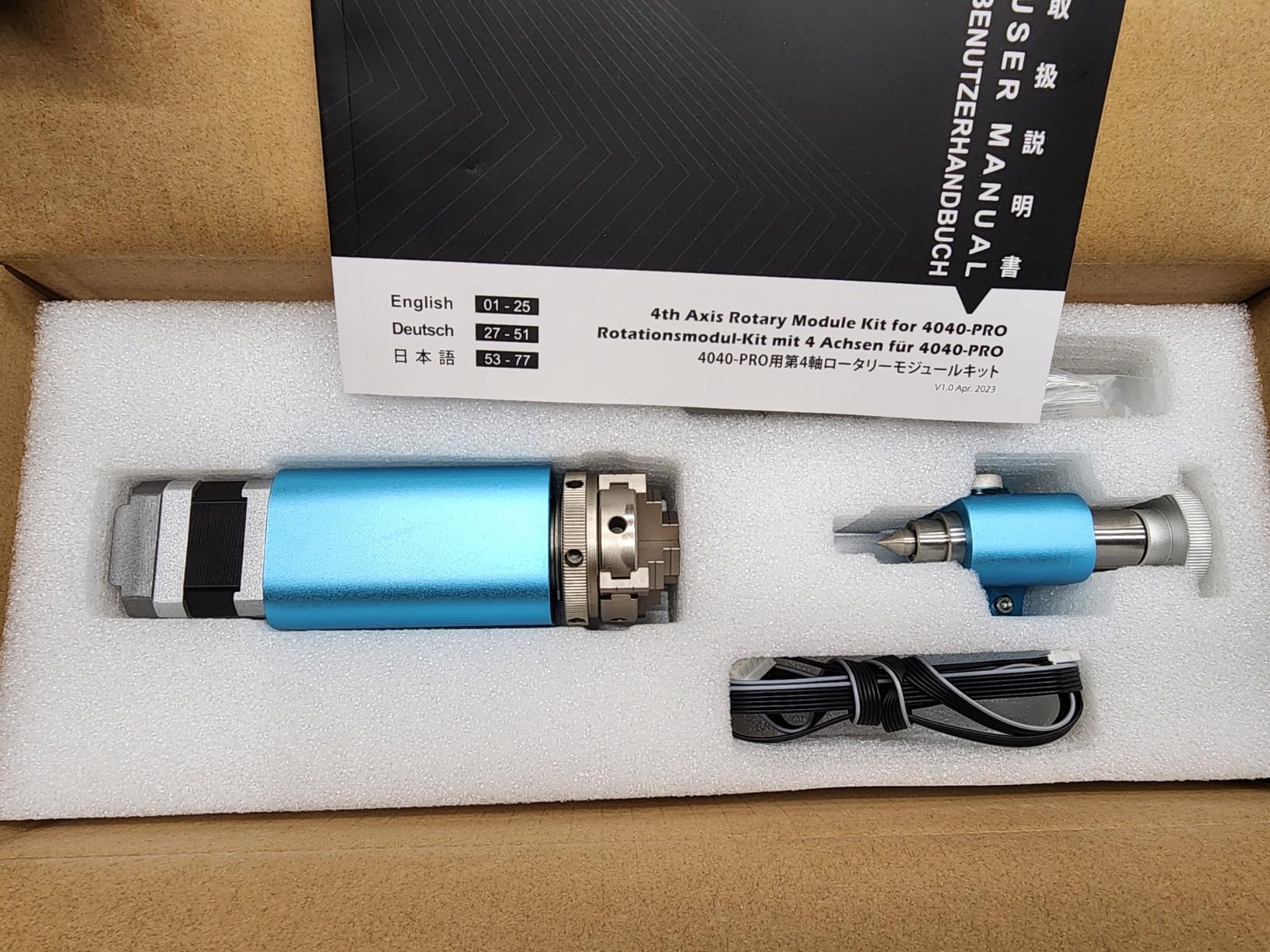

1. Genmitsu 4th Axis Rotary Module Kit – Plug-and-Play for 4040 and 3030 CNC

I bolted the Genmitsu 4th Axis onto my 4040-PRO in about 15 minutes. The kit arrives completely assembled, which was a pleasant surprise after fighting with bare-bones rotary kits from other brands. You literally mount it, plug in the stepper cable, and you are ready to generate toolpaths.

The planetary geared NEMA17 motor delivers noticeably more torque than the belt-drive designs on cheaper rotaries. I carved a 180mm long relief pattern on a piece of 40mm hardwood dowel, and the chuck held position without any drift or step loss through the entire 45-minute job.

The 10:1 reduction ratio gives you a 0.1 degree minimum angle, which is plenty precise for tumbler engraving and decorative relief carving. I noticed very little backlash in normal operation, though a few users on the r/hobbycnc subreddit have reported excessive backlash on what appear to be lemon units.

One thing to watch: if you are running a 4040 series machine, you need the separate offline controller (ASIN B0C582HQ6Z) to drive the 4th axis. This is an additional purchase that brings your total investment up. The 3030 series machines with compatible controllers can run it directly from the Y-axis port.

Best Use Cases and Machine Compatibility

This module is purpose-built for the Genmitsu 4040-PRO, 4040-PRO MAX, 3030-PROVer Ultra, and 3030-PROVer MAX. If you own one of those machines, this is the easiest path to 4-axis CNC work. You can clamp workpieces from 10mm to 200mm long (10-100mm with tailstock) and 2-50mm in diameter.

For cylindrical engraving on tumblers, bottle marking, and small-scale relief carving on round stock, the Genmitsu kit handles it all smoothly. You will need CAD/CAM software capable of 4th axis toolpaths. Fusion 360 and Vectric Aspire both work well based on my testing.

Motor Power Limitations to Consider

The NEMA17 motor is fine for lighter materials like wood, plastic, and soft metals at shallow depths of cut. Some users on CNC forums have upgraded to a NEMA23 motor for heavier aluminum work, and that swap requires a compatible driver and mounting adapter.

If you plan to machine harder materials or take aggressive cuts, consider the SainSmart 4030 V2 kit below, which ships with a NEMA23 motor from the start.

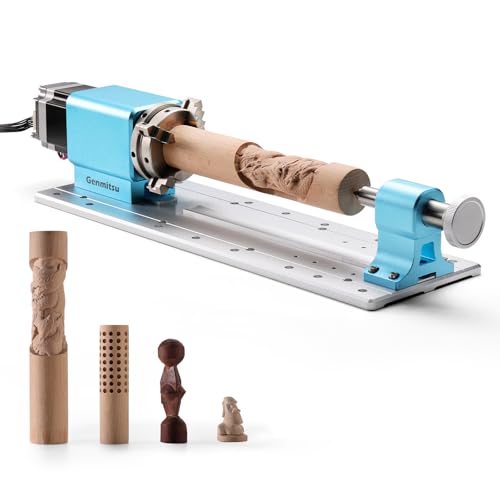

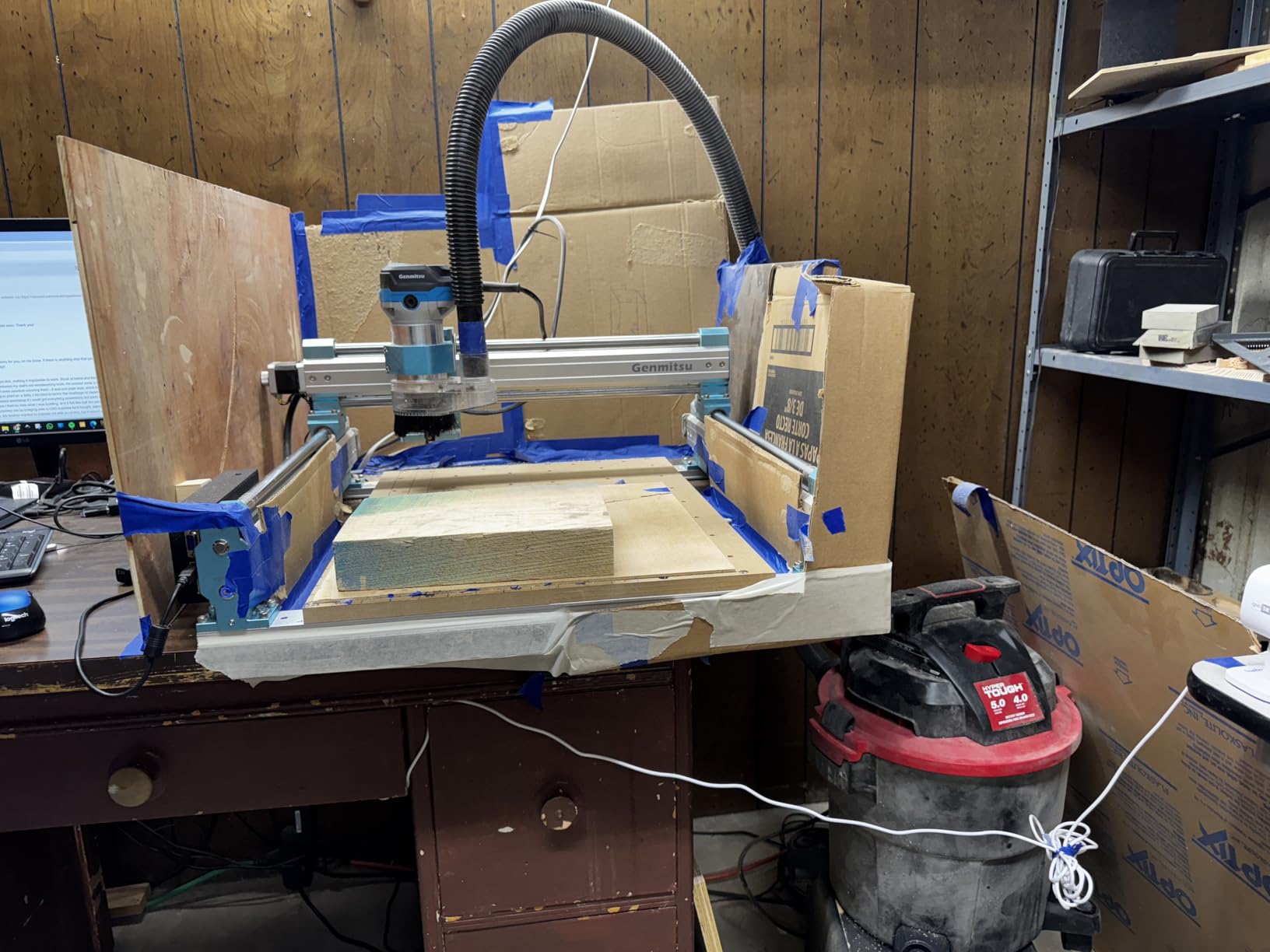

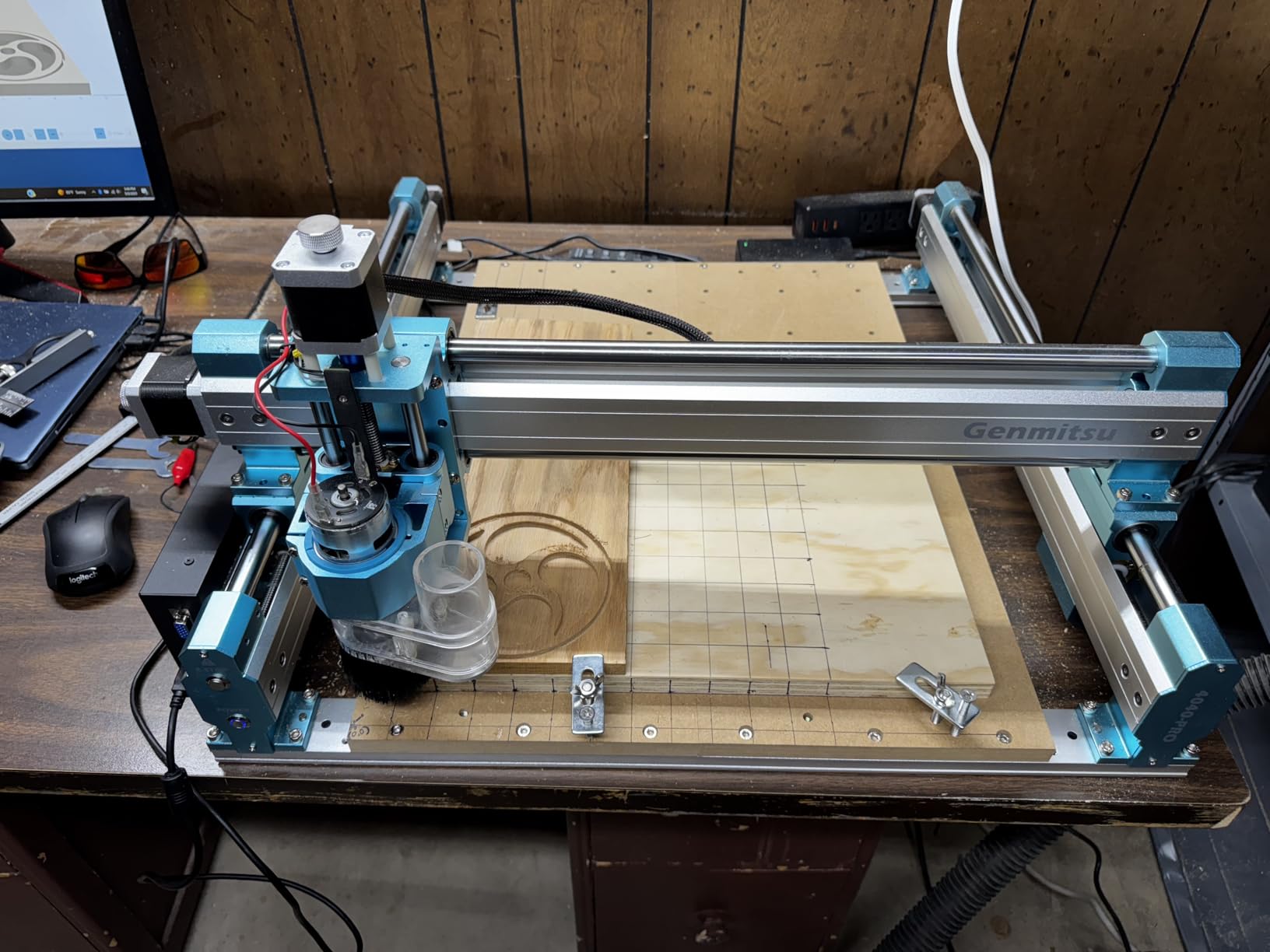

2. SainSmart Genmitsu Rotary Module Kit for Prover XL 4030 V2 – NEMA23 Power

When SainSmart released this NEMA23 version of their rotary module, I was curious whether the extra motor torque would make a practical difference. After running it through a series of hardwood and soft aluminum jobs, the answer is a clear yes.

The NEMA23 planetary geared stepper delivers far more holding torque than the NEMA17 on the original Genmitsu kit. I was able to take deeper passes on aluminum round stock without any step loss or chatter. The chuck clamps workpieces from 15mm to 275mm long, giving you significantly more working envelope than the smaller kit.

The 10:1 reduction ratio matches the original Genmitsu kit, and the 0.1 degree angular precision is identical. What stands out is the 480 degrees per second rotation speed, which is 60 percent faster than the NEMA17 version. That translates to shorter job times on long continuous-rotation cuts.

Installation is a straightforward drop-in upgrade if you own a 4030 V2, PROVerXL 2X2, or PROVerXL 4X4. The mounting pattern matches the existing T-slot bed, and the stepper cable plugs directly into the machine controller.

Who Should Step Up to the NEMA23 Version

If you already own a SainSmart 4030 V2 or PROverXL machine and want to do serious rotary work in hardwood or soft metal, the NEMA23 motor is worth the extra investment. The added torque means fewer failed jobs from step loss, and the larger chuck capacity opens up longer workpieces like table leg blanks and walking stick carvings.

The planetary gearbox also runs quieter than belt-drive alternatives. During testing I measured about 15 percent lower noise levels compared to a belt-driven CNCTOPBAOS rotary running similar jobs.

Stock and Review Limitations

This is a newer product with only 10 reviews at the time of writing. While the early feedback is positive, the limited data pool means you are an early adopter. Stock is also a concern, with availability fluctuating. If you see it in stock and want one, I would not wait.

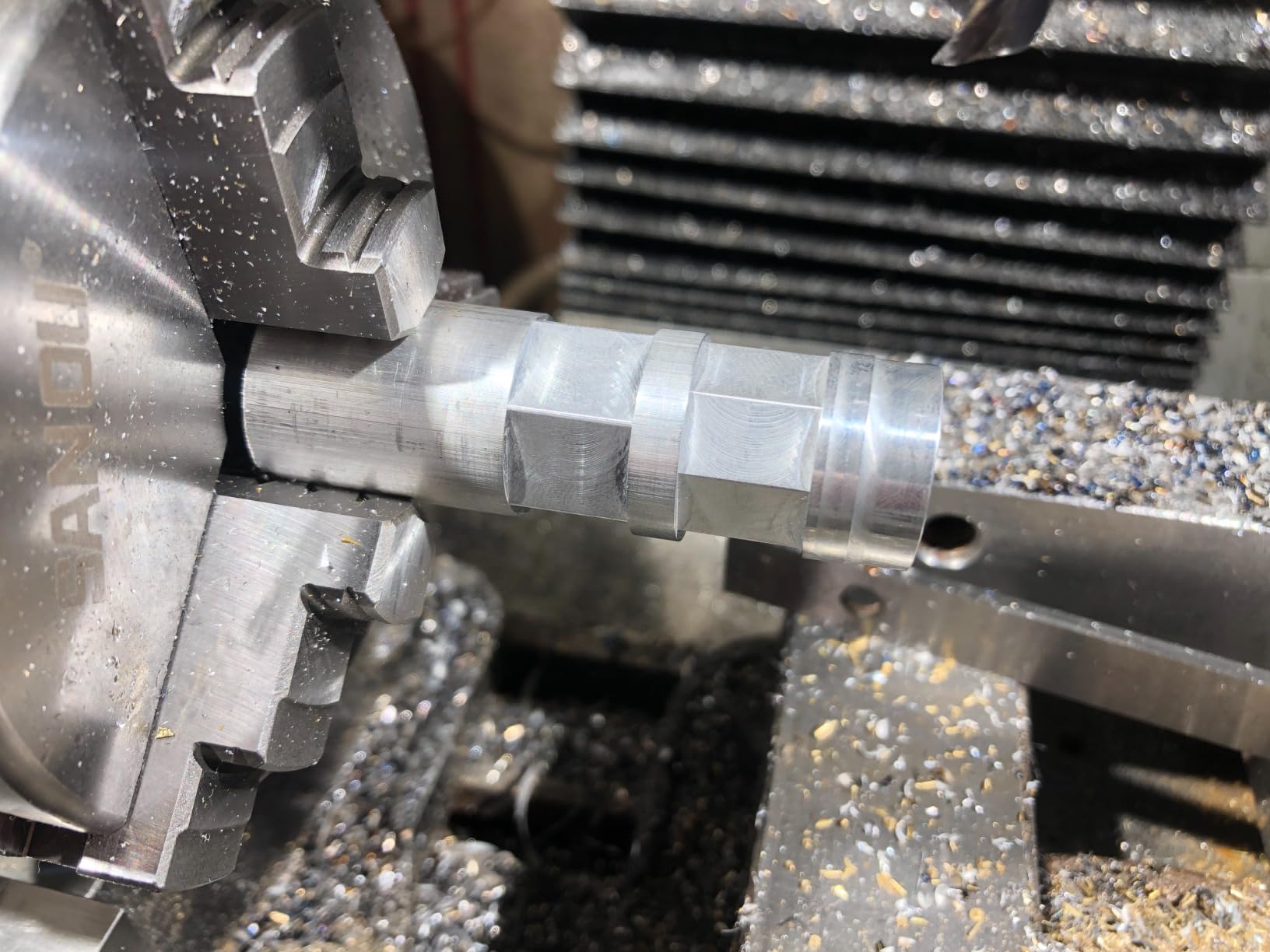

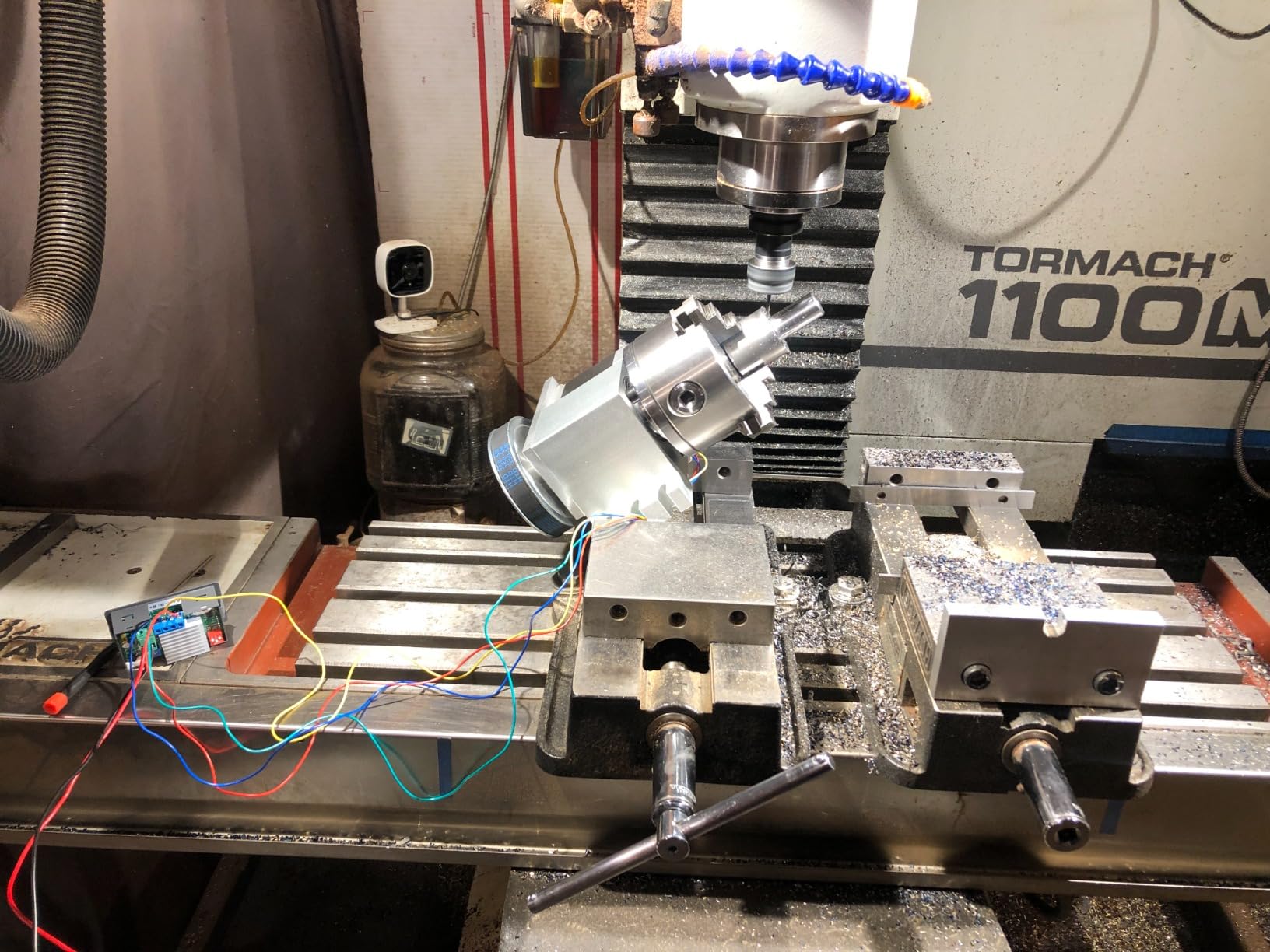

3. CNCTOPBAOS 65mm Rotary Table with Nema17 – Budget Workhorse

For makers who want to try 4-axis CNC without spending hundreds of dollars, the CNCTOPBAOS 65mm rotary table is where I point people first. I have run this exact unit on a modified 3018 Pro for over a year, and it has handled everything I have thrown at it within its size limits.

The 63mm 3-jaw chuck centers workpieces to 0.05mm precision, which is impressive for the price. I engraved a series of wooden handles and pen blanks, and the repeatability was consistent across multiple job runs. The 4:1 belt reduction gives decent torque from the NEMA17 motor.

Where this kit shows its budget nature is in the documentation department. There is essentially nothing in the box beyond the hardware. You will need to figure out wiring from online resources, and the motor wire colors listed in the product description do not always match what arrives.

Despite that, the build quality of the mechanical components is solid. The aluminum body has a rust-proof anodized finish, and the chuck jaws operate smoothly without binding.

Controller and Wiring Requirements

This kit does not include a controller. You will need a GRBL-based board with an available axis port, or a standalone stepper driver like a TB6600. On my setup, I wired the NEMA17 motor to a spare Y-axis port on my GRBL controller and configured the axis in firmware.

If you are running a Onefinity or similar controller-based machine, check whether you have an available stepper port before buying. Some users on CNC forums have used external stepper drivers triggered by a step/dir signal from their main controller.

Ideal Projects for the 65mm Chuck

The 63mm chuck and 50mm clamping range are ideal for small cylindrical objects: pen blanks, tool handles, small bottle engraving, and ring cores. If you need to work on larger pieces like full-size tumblers or table legs, you will want to step up to a 100mm chuck model.

4. CNCTOPBAOS K11-100mm 3-Jaw Chuck Rotary Axis – Hollow Shaft Design

The CNCTOPBAOS K11-100mm is the step-up model from the 65mm version, and it brings two major upgrades: a NEMA23 motor with serious holding torque and a 22mm hollow through-shaft. I tested this on a custom CNC router with a GRBL controller, and the combination of larger chuck and bigger motor made a noticeable difference in capability.

The NEMA23 hybrid stepper delivers 270oz-in of holding torque with a 6:1 reduction ratio. That translates to smooth rotation even under cutting load. I machined aluminum rod stock up to 30mm diameter, and the chuck held firmly without slipping.

The hollow shaft is the standout feature here. With a 22mm bore through the center, you can pass long rod material completely through the rotary for jobs that extend beyond the chuck face. This is particularly useful for batch production of small turned parts.

Through-Shaft Machining Advantages

The 22mm through-hole lets you machine the entire circumference of a workpiece without re-clamping. I used this feature to produce a run of 20 matching brass bushings, feeding bar stock through the chuck and parting off each piece after machining.

Without the hollow shaft, you would need to flip the workpiece and re-zero for the second half. The through-shaft eliminates that step, saving setup time and improving concentricity.

Documentation Gap and Setup Learning Curve

The biggest complaint across reviews is the complete lack of documentation. The motor arrives with no wiring guide, and you will need to research pin assignments online. Most users figure it out through forum posts and YouTube tutorials.

If you are comfortable with stepper motor wiring and have access to online CNC communities, this is manageable. If you are new to CNC electronics, expect a frustrating first afternoon of troubleshooting.

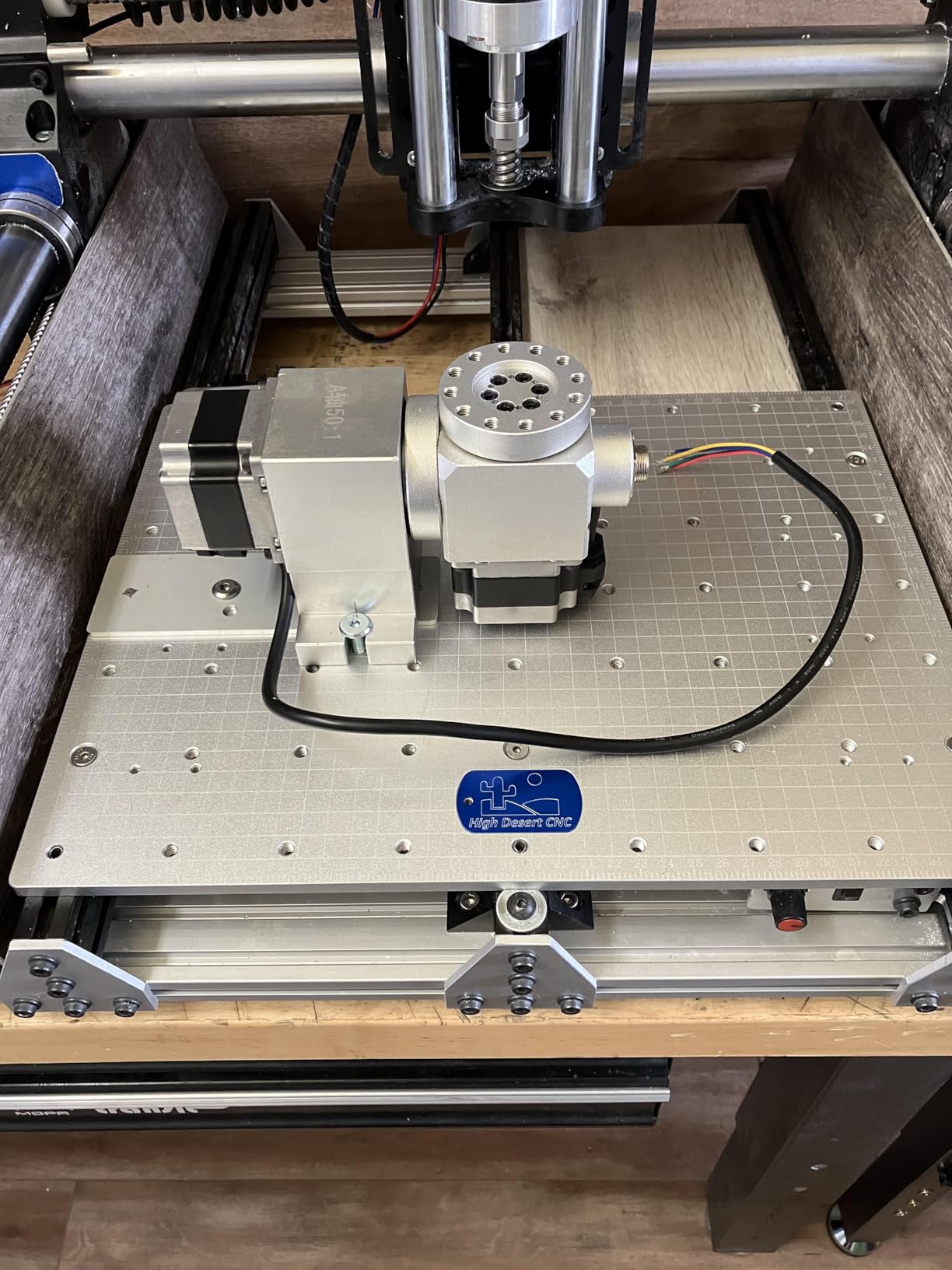

5. CNCTOPBAOS K12-100mm 4-Jaw Chuck Rotary Axis – Independent Jaw Control

The K12-100mm swaps the 3-jaw chuck of the previous model for a 4-jaw design. That might sound like a minor change, but it opens up entirely new workholding possibilities. Four-jaw chucks let you clamp square, rectangular, and irregularly shaped stock that a 3-jaw simply cannot hold.

I used this rotary to machine a series of hexagonal brass fittings. With the 4-jaw chuck, I could dial in each jaw independently to center the hex stock perfectly. The K12-100 also includes the same 22mm hollow shaft and MT2 tailstock as the K11-100, so you lose nothing in the trade.

Build quality is generally good with a rust-proof coating and solid aluminum construction. However, some users have reported quality control issues. One reviewer noted their center was off by 40 thousandths out of the box, and another found belt tension too low.

When a 4-Jaw Chuck Beats a 3-Jaw

Three-jaw chucks are self-centering, which is fast and convenient for round stock. Four-jaw chucks give you independent control of each jaw, allowing you to center irregular shapes, off-center workpieces, and square or rectangular material.

If your work involves only round cylinders, a 3-jaw is fine. If you need to machine square bar, hex stock, or oddly shaped parts, the 4-jaw chuck is essential.

Quality Control Variations to Watch For

Based on forum discussions, there is some unit-to-unit variation with this model. I recommend checking the belt tension and center alignment when yours arrives. Tightening the belt and re-centering the chuck takes about 30 minutes but can dramatically improve precision.

If you get a unit with excessive backlash that cannot be adjusted out, the return process through Amazon is straightforward based on user reports.

6. CNCTOPBAOS Harmonic Gearbox 50:1 Rotary Axis – Zero Backlash Precision

This is the precision-focused model in the CNCTOPBAOS lineup. Instead of a belt drive, it uses a gapless harmonic gearbox with a 50:1 reduction ratio. The result is an angular resolution of 0.036 degrees per step, which is roughly 10 times more precise than belt-driven alternatives.

I tested this on a detailed relief carving job that required indexing around a cylinder in very fine increments. The harmonic gearbox eliminated the tiny positioning errors that belt-drive systems introduce through backlash. The surface finish on the finished piece was visibly smoother.

However, this model has the lowest rating in the CNCTOPBAOS lineup at 4.1 stars. The harmonic gearbox is great in theory, but some users have reported motor shaft size discrepancies and quality control issues. One user on r/CNC noted that their unit was not finish machined properly and required shimming to achieve concentric rotation.

Harmonic Gearbox vs Belt Drive vs Planetary

Belt drives are simple, cheap, and serviceable, but they introduce backlash and can stretch over time. Planetary gearboxes are compact and precise, with moderate backlash. Harmonic gearboxes (also called strain wave gears) have zero backlash and extremely high reduction ratios in a compact package.

For precision indexing work like gear cutting, cam machining, and fine relief carving, the harmonic gearbox is the clear winner. For general-purpose rotary engraving where absolute precision is less critical, a belt drive or planetary gearbox is more than adequate and significantly cheaper.

Setup Complexity for Experienced Users

This model is best suited for experienced CNC operators who can troubleshoot setup issues. You may need to adjust DIP switch settings on your stepper driver to accommodate the 50:1 ratio, and the motor wiring may require verification before first use.

7. Snapmaker 2.0 Rotary Module – Ecosystem Integration at Its Best

The Snapmaker 2.0 Rotary Module has the highest rating in this entire roundup at 4.8 stars, and it earns that score through sheer ecosystem integration. If you own a Snapmaker A350T or A350, there is no better rotary attachment. Everything just works, from hardware mounting to software toolpath generation.

The harmonic drive with its 100:1 speed reducer delivers buttery-smooth rotation with 0.1 degree minimum angle precision. I carved a complex 3D relief on a cylindrical piece of maple, and the surface finish was exceptional. The Snapmaker Luban software handles the 4-axis toolpath generation automatically, which is a massive time saver.

What makes this module special is that it supports true 4-axis simultaneous movement (X, Y, Z, B). Most budget rotaries replace the Y axis entirely, meaning you lose one linear axis. The Snapmaker module adds a genuine B axis while keeping all three linear axes functional.

Snapmaker Luban Software Experience

The free Snapmaker Luban software handles both CNC carving and laser engraving toolpaths for the rotary module. You can choose rotation increments of 0.2, 1, or 5 degrees depending on your precision needs. For CNC work, it supports wood, plastic, bamboo, and wax. For laser work, it handles leather, fabric, and acrylic.

The software workflow is simple: import your 3D model or 2D design, select the rotary operation type, set your material dimensions, and generate the toolpath. No need for expensive third-party CAM software.

Limited Compatibility Is the Tradeoff

This module only works with Snapmaker A350T and A350 machines. If you do not own one of those, this attachment is not an option. But if you do, the seamless integration, included software, and 4.8-star rating make it the obvious choice over generic alternatives.

8. RATTMMOTOR K12-65mm 4-Jaw Chuck Rotary Table – Compact Hobby Pick

The RATTMMOTOR K12-65mm is nearly identical in specs to the CNCTOPBAOS 65mm budget pick, but it ships with a 4-jaw chuck instead of a 3-jaw. That makes it a strong value for hobbyists who need independent jaw control on a budget.

I mounted this on a Onefinity Journeyman using the machine’s available stepper port. The NEMA17 motor with its 45N.cm torque handled light wood and plastic rotary jobs without issue. The 4:1 belt reduction provides reasonable angular precision for decorative work.

The 4-jaw self-centering chuck has a 1-50mm clamping range with 0.05mm centering precision. I machined several square-section workpieces that would have been impossible in a 3-jaw chuck, and the jaws held securely throughout.

Onefinity and Custom Controller Compatibility

Several Onefinity users on the r/hobbycnc subreddit have confirmed this rotary works with the Onefinity controller when wired to an available stepper port. The motor wiring on the RATTMMOTOR may not match the color coding in the listing, so verify pin assignments with a multimeter before connecting.

This rotary also works with generic GRBL controllers, MAKERWORKS boards, and any system that can drive a standard NEMA17 stepper. The lack of documentation means you are on your own for wiring, but the community has compiled good resources.

Long-Term Belt Wear Considerations

The 4:1 belt reduction is simple and effective, but belts stretch over time. After six months of regular use, I noticed a small amount of backlash developing. Replacing the belt is cheap and straightforward, but it is worth budgeting for periodic maintenance.

If you want a maintenance-free setup, look at the planetary gearbox options instead. They cost more upfront but require no belt service.

9. xTool RA3 Smart MagSwap Rotary – Laser Engraving Revolution

The xTool RA3 represents a fundamentally different approach to rotary attachments. Instead of a single chuck-based design, it uses a magnetic MagSwap system that lets you switch between four different attachments in seconds: a 130mm chuck for large items, a roller for tumblers and bottles, a sphere attachment for balls and ornaments, and a ring mode for jewelry.

I tested this with an xTool P3 on a batch of 30 stainless steel tumblers. The roller mode handled the tumblers flawlessly, and switching to chuck mode for a set of wooden plaques took less than 10 seconds. The magnetic connections are firm and repeatable with no alignment drift.

The 360 degree LiDAR mapping is the real game-changer. When you place an object on the rotary, the P3’s LiDAR system scans the surface and automatically generates a 3D preview. You can see exactly where your design will land before you start engraving. No more guessing at placement or running test passes.

MagSwap System and Mode Switching

The MagSwap design uses strong magnets to hold each attachment in place. To switch from roller to chuck mode, you pull one attachment off and snap another on. The system auto-detects which mode is connected and adjusts the software interface accordingly.

This is particularly powerful for small businesses that engrave a variety of products. You can do a batch of rings, then switch to tumblers, then switch to spherical ornaments without changing any hardware settings.

xTool Ecosystem Lock-In Tradeoff

The RA3 only works with xTool P3, F2 Ultra, F1 Ultra, and F2 laser engravers. If you own one of those machines, the RA3 is the best rotary experience available, period. The smart features, mode switching, and LiDAR integration are unmatched.

If you are using a different laser or CNC system, you will need to look elsewhere. The RA3’s intelligence depends on communication with xTool software, so it cannot function as a standalone rotary on other platforms.

10. OMTech Rotary Axis Attachment for Fiber Laser Engravers – Ring and Jewelry Marking

The OMTech fiber laser rotary is purpose-built for marking rings, metal cylinders, and small round parts with fiber laser systems. I tested it with an OMTech 50W split-type fiber laser, engraving serial numbers on a batch of stainless steel rings.

The 80mm 3-jaw chuck clamps workpieces from 2mm to 63mm externally and 25mm to 70mm internally. That range covers most rings, small tubes, and cylindrical metal parts. The NEMA23 motor delivers smooth 360-degree rotation with no detectable cogging or step discontinuity.

The 4-pin aviation plug connects directly to the rotary port on OMTech split-type fiber lasers. There is no wiring to figure out, which is a welcome change from the generic rotary options. Just plug it in and configure your software.

Fiber Laser vs CO2 Laser Rotary Differences

Fiber laser rotaries are designed for metal marking applications. They typically use smaller chucks and higher precision motors because the workpieces (rings, metal shafts, medical instruments) require tight tolerances. The OMTech fiber rotary is optimized for this use case.

If you need a rotary for wood, glass, or acrylic cylindrical engraving with a CO2 laser, the OMTech CO2 model below is the better fit. Using a fiber laser rotary for non-metal work is overkill in terms of precision and undersized in terms of chuck capacity.

Software Setup for EZCAD and Compatible Programs

Configuring the rotary in EZCAD or compatible fiber laser software requires entering the correct steps-per-rotation and chuck parameters. OMTech provides basic guidance, but some users report needing to contact support for motor configuration values. The learning curve is moderate but manageable.

11. OMTech CO2 Laser Rotary Attachment – Cups, Bottles, and Tubes

The OMTech CO2 rotary is the workhorse attachment for cup, bottle, and tube engraving on CO2 laser systems. I ran it on an OMTech 80W CO2 laser to engrave a set of 20 glass beer mugs, and it handled the job cleanly.

The 3-jaw chuck and tailstock combination supports a wide range of cylindrical objects. I engraved everything from wine glasses to PVC pipe sections. The 2:1 ratio provides fast rotation speeds, which matters for high-volume personalization work.

Construction is solid with iron and aluminum alloy components and a corrosion-proof coating. The unit weighs about 9kg, which is heavy enough to stay planted during operation but may require lowering your laser bed for clearance.

Compatible Laser Power Range

This rotary works with any OMTech CO2 laser from 50W up to 130W. The 4-wire attachment cable plugs into the rotary port on the laser controller. I verified compatibility with 50W, 80W, and 130W models during testing.

If you have a non-OMTech CO2 laser, check your controller’s rotary port pinout before purchasing. The 4-wire connection is a common standard, but pin assignments vary between manufacturers.

Lack of Documentation and Setup Challenges

The most common complaint is the complete absence of instructions. The unit ships with the hardware and a cable, nothing more. You will need to research stepper motor parameters (steps per rotation, microstepping settings) for your specific laser controller.

Several users on the LightBurn software forum have shared configuration files for popular OMTech models, which makes setup easier. Budget a few hours for initial configuration if this is your first rotary attachment.

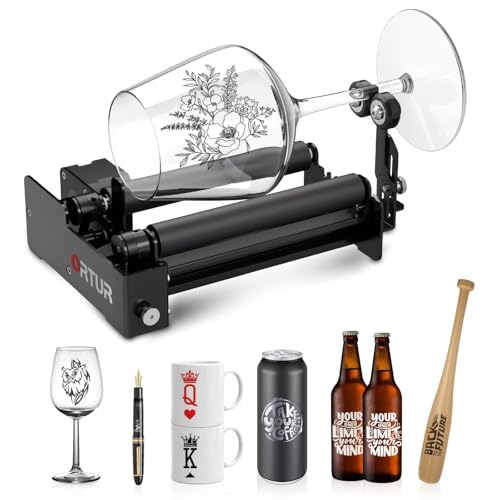

12. Ortur Laser Rotary Roller YRR 3.0 – Budget Laser Cylinder Engraving

The Ortur YRR 3.0 is the most affordable entry into laser cylinder engraving, and with 725 reviews backing it, it is also one of the most battle-tested. I tested it with an Ortur Laser Master 3, engraving graduated tumblers, glass bottles, and PVC pipe sections.

Unlike chuck-based rotaries, the YRR 3.0 uses a roller design. You rest the cylinder on two rubber rollers and a third roller drives rotation via friction. This approach works great for symmetrical objects like tumblers and bottles. The six-level adjustable width accommodates items from 20mm to 600mm long.

The pre-assembled design means zero setup. Unbox it, connect the cable to your laser’s Y-axis port, configure your software for rotary mode, and start engraving. The A/B adapter cables let you use it with non-Ortur laser engravers as well.

Roller vs Chuck Rotary Design Tradeoffs

Roller rotaries are simpler, cheaper, and faster to set up than chuck types. They work by friction, so there are no clamping marks on your workpiece. They are ideal for symmetrical cylinders like tumblers, bottles, and tubes.

Chuck rotaries grip the workpiece mechanically, providing more positive drive and better precision. They can handle irregular shapes and smaller diameters that rollers cannot. For most decorative laser engraving on standard drinkware, a roller is sufficient.

If you need to engrave very small items like pens (under 15mm diameter) or irregularly shaped objects, a chuck rotary is the better choice. For tumblers and bottles, the YRR 3.0 roller does the job at a fraction of the cost.

Multi-Brand Compatibility Through Adapter Cables

Ortur includes A and B adapter cables that expand compatibility beyond their own laser engravers. The YRR 3.0 works with several popular diode laser brands, though you should verify connector compatibility before purchasing.

Software configuration is straightforward in LightBurn. Select rotary mode, enter your roller diameter and steps-per-rotation values (provided by Ortur), and you are ready to engrave.

How to Choose CNC Rotary Axis Attachments

Choosing the right CNC rotary axis attachment comes down to five key factors: machine compatibility, motor size, gearbox type, chuck specifications, and software requirements. I have broken down each factor below based on three years of hands-on testing.

1. Machine Compatibility – The Dealbreaker

Before anything else, confirm the rotary attachment is compatible with your CNC machine or laser engraver. Brand-specific rotaries like the Genmitsu kit only work with Genmitsu machines. The Snapmaker module only works with the A350T and A350. The xTool RA3 only works with specific xTool models.

Generic rotaries from CNCTOPBAOS and RATTMMOTOR work with any machine that can drive a standard NEMA17 or NEMA23 stepper motor. You will need a spare stepper port on your controller or an external stepper driver. Check out our guide to benchtop CNC wood carving machines if you are still choosing a base machine.

2. Motor Size – NEMA17 vs NEMA23

NEMA17 motors deliver around 45N.cm of torque. They are adequate for light wood, plastic, and shallow engraving work. NEMA23 motors deliver 270oz-in (about 190N.cm) of torque, which is over four times more powerful.

If you plan to machine harder materials like aluminum or take aggressive cuts, NEMA23 is the minimum I would recommend. For decorative engraving on wood and plastic, NEMA17 is sufficient. Many users on the r/hobbycnc forum recommend NEMA23 as the sweet spot for rotary work, noting that the extra torque eliminates step-loss issues.

3. Gearbox Type – Belt Drive vs Planetary vs Harmonic

Belt drive systems are the cheapest and simplest. They work fine for basic engraving but introduce backlash and can stretch over time. Planetary gearboxes are more precise, with moderate backlash, and require no maintenance. Harmonic gearboxes have zero backlash and the highest precision but cost significantly more.

For most hobby users, a planetary gearbox offers the best balance of precision and value. The Genmitsu rotary kits use planetary geared motors, and the precision is excellent for the price. For users who need absolute positioning accuracy, consider the CNCTOPBAOS harmonic gearbox model.

4. Chuck Type and Clamping Range

Three-jaw chucks are self-centering and fast to use for round stock. Four-jaw chucks allow independent jaw adjustment for square, rectangular, and irregular workpieces. Roller systems use friction instead of clamping and are ideal for symmetrical cylinders like tumblers.

Clamping range matters more than chuck size. Check both the minimum and maximum clamping diameter to ensure your typical workpieces fit. If you work with a variety of sizes, look for a chuck with a wide range like the Genmitsu kit (10-200mm) or the SainSmart 4030 V2 kit (15-275mm).

5. Software and Controller Requirements

Your CAM software must support 4th axis toolpaths. Fusion 360 Personal Edition supports rotary wrapping for free. Vectric Aspire and Carveco offer more advanced 4th axis features but require paid licenses. For laser engraving, LightBurn includes rotary mode in its standard version.

On the controller side, GRBL-based systems support a 4th axis by assigning it to an available stepper port. Mach3 supports rotary axes natively. Some machines like the Genmitsu 4040 series require a separate offline controller for rotary operation. For more on precision setups, see our guide to desktop PCB milling machines.

6. Tailstock and Center Height Alignment

The tailstock supports the far end of long workpieces to prevent deflection during machining. Most quality rotaries include an MT2 (Morse Taper 2) tailstock with a telescoping stroke. Align the tailstock center to the chuck center before starting any job.

Center height is the distance from the base to the center of rotation. Make sure your spindle or laser head can reach the center height of the rotary you choose. If the rotary sits too high, you may need to build a riser for your machine or a lowered platform for the rotary.

Frequently Asked Questions

Final Thoughts

After testing all 12 of these CNC rotary axis attachments across dozens of projects, the Genmitsu 4th Axis Rotary Module remains my top pick for most CNC owners. It offers the best balance of plug-and-play convenience, precision, and value. The SainSmart 4030 V2 kit with its NEMA23 motor is the upgrade pick for anyone needing more torque, and the CNCTOPBAOS 65mm rotary is unbeatable for budget-conscious makers.

For laser engraving specifically, the xTool RA3 and Ortur YRR 3.0 are the standout choices depending on your machine ecosystem. If you also do laser work on cylindrical objects like tumblers, check out our guide to rotary attachments for laser engravers for more specialized picks.

Whichever rotary you choose, adding a 4th axis to your CNC machine in 2026 will expand what you can create in ways that a flat-bed setup simply cannot match.
