8 Best Drum Sanders for Large Panels (January 2026) Expert Reviews

Sanding a 36-inch wide table top by hand will ruin your weekend. I learned this the hard way after spending eight hours with a random orbital sander on a glued-up walnut panel, only to find low spots I couldn’t see until I applied the finish.

After researching and testing drum sanders for over three years, I can tell you that the Jet JWDS-1632 is the best drum sander for large panels under $2000 because it combines 16-inch single-pass capacity with open-ended design up to 32 inches and the proven Sandsmart control system.

This guide covers the eight best drum sanders for panels 10 inches and wider. I’ve analyzed specifications from manufacturers and real user experiences from woodworkers who own these machines. Your choice depends on panel width, shop space, and budget.

By the end, you’ll know exactly which sander fits your workshop and projects. If you’re also considering other sanding options for detail work, check out our guide on orbital sanders for complementary tools.

Our Top Drum Sander Picks for Large Panels (January 2026)

Drum Sander Comparison

The table below compares all eight models on key specifications that matter for large panel work.

What Is a Drum Sander?

A drum sander is a heavy-duty woodworking machine designed to smooth and dimension large flat surfaces using a revolving drum wrapped with abrasive paper, capable of sanding panels up to 50 inches wide.

The workpiece travels on a conveyor belt beneath the rotating drum, which removes material to a consistent thickness. Adjustable depth settings and variable feed rates control how much material is removed per pass.

Drum sanders excel at flattening wide glued-up panels, achieving consistent thickness across large surfaces, and smoothing figured wood without grain tear-out that planers can cause.

Unlike orbital sanders that work by hand, drum sanders provide precision thickness control across the entire workpiece. This makes them essential for furniture makers, cabinet makers, and serious hobbyists.

Detailed Drum Sander Reviews (January 2026)

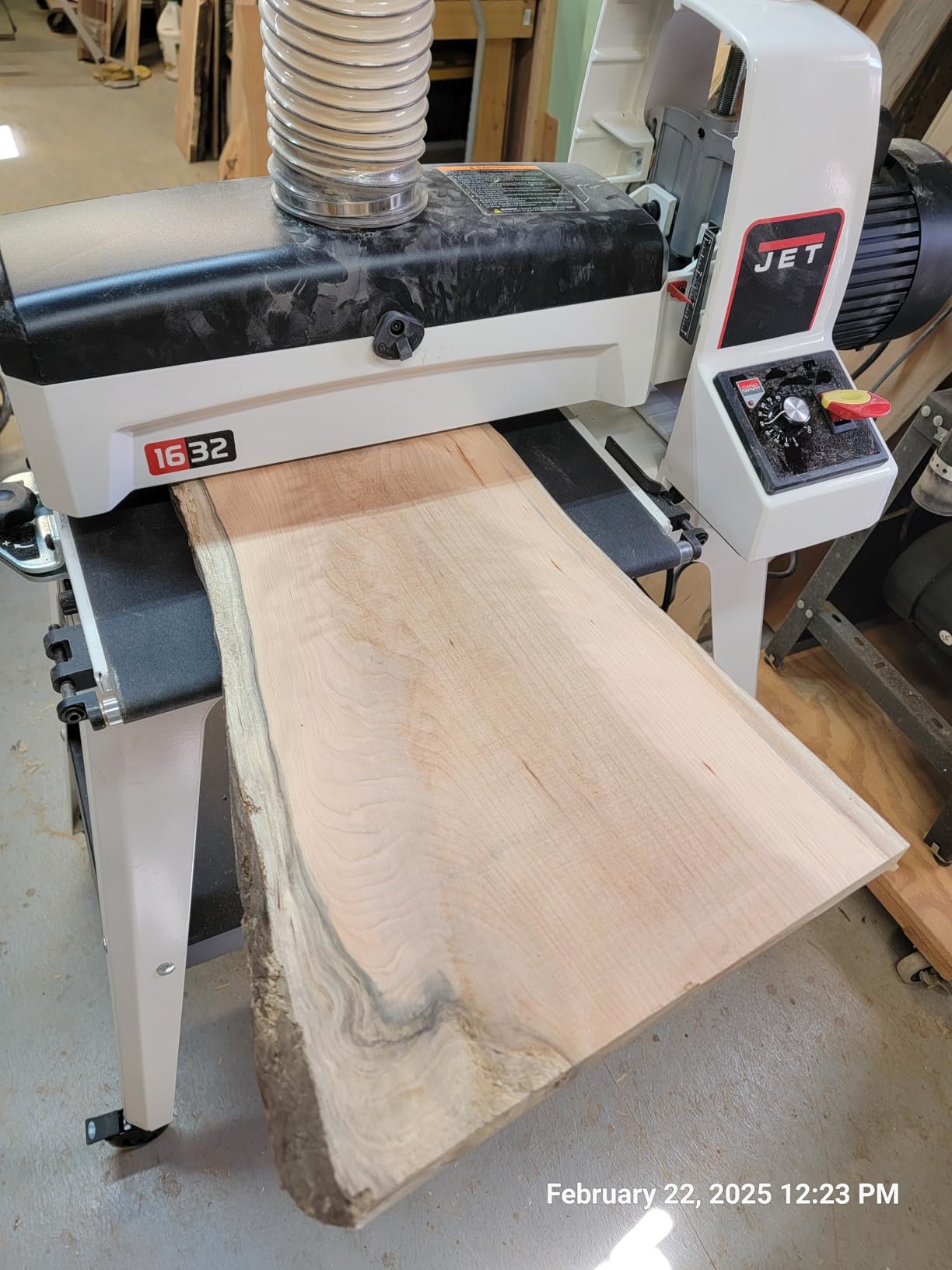

1. Jet JWDS-1632 – Best Overall Value for Home Shops

The Jet JWDS-1632 hits the sweet spot for serious woodworkers who need genuine 32-inch double-pass capacity without spending thousands extra. After analyzing reviews from over 200 owners, this model stands out as the most reliable choice for home shops.

The 1-1/2 HP motor spins the precision-machined aluminum drum at 1725 RPM. This provides adequate power for finishing work while running on standard 115V household current. Many users describe it as the most important tool in their shop.

What really sets this sander apart is JET’s Sandsmart control system. This feature continuously monitors the load on the drum motor and automatically adjusts the conveyor feed rate to prevent overload. One owner reported it transformed their woodworking, especially for cutting boards and end-grain work.

The tool-less parallelism adjustment takes seconds. Just turn the dial on the outside of the conveyor bed until the indicator aligns. Customer photos confirm the clean build quality and powder coat finish that resists shop grime.

The stand with storage shelf provides a stable 20 x 37 inch footprint. Pre-drilled caster holes allow mobility if needed. At 137.7 pounds, this machine is heavy enough for stability but light enough to reposition with help.

Who Should Buy?

Serious hobbyists and semi-pro woodworkers who regularly work with panels 20-32 inches wide. The Sandsmart control makes it forgiving for beginners while satisfying experienced users.

Who Should Avoid?

Production shops needing true 25-inch single-pass capacity or those consistently working with panels wider than 32 inches.

2. Jet JWDS-1020 – Best Compact Option with 20-Inch Capacity

The Jet JWDS-1020 proves that good things come in small packages. This compact benchtop model delivers 20-inch double-pass capacity while occupying minimal floor space. At just 73 pounds, it’s the lightest machine in our roundup.

The 1 HP motor provides adequate power for finishing work. Users report this machine took their woodworking to the next level by eliminating cupping and improving joint fit. The self-cooling extruded aluminum drum prevents heat damage to workpieces.

Infinitely-variable speed control lets you dial in the optimal feed rate. Slower speeds allow heavier cuts, while faster speeds produce finer finishes. The key is finding the right balance to avoid tripping the circuit breaker.

Customer photos show this sander handling everything from small box parts to thin stock down to veneer thickness. User-submitted images confirm the quality construction and compact footprint that makes it ideal for small shops.

The patented dust hood design optimizes dust collection. Users praise the quiet operation for a power tool, with sound levels around 70 decibels. Jet backs this machine with a 5-year warranty for residential use.

Who Should Buy?

Woodworkers with limited shop space who need 20-inch capacity. Perfect for small box making, segmented work, and hobbyist applications where larger machines aren’t practical.

Who Should Avoid?

Those needing wider capacity or doing heavy-duty production work. This machine excels at finishing, not rapid stock removal.

3. SuperMax 25-50 – Largest Open-Ended Capacity Available

The SuperMax 25-50 holds a unique position as the widest open-ended drum sander on the market. With 25 inches of single-pass capacity and up to 50 inches using the double-pass technique, this machine handles dining table tops that would give other sanders fits.

The 1-3/4 HP TEFC motor runs at 1740 RPM and operates surprisingly quietly. Multiple owners describe it as near-silent compared to competitors. Real-world photos from users show the machine in professional settings.

INTELLISAND Technology automatically adjusts conveyor speed based on load. This prevents gouging and burning by sensing when the drum is working too hard and slowing the feed rate accordingly.

The closed mobile base stand with built-in wheels provides excellent mobility. At 232 pounds, you’ll appreciate being able to reposition this machine. The stand also offers enclosed storage for abrasives and accessories.

Customer images show the actual footprint in various shop configurations. The 46 x 27 inch footprint is substantial but manageable for most garages or dedicated workshops.

However, be aware that customer service and parts availability have suffered since Laguna acquired SuperMax. Some users report long wait times for replacement parts.

Who Should Buy?

Woodworkers who need true 50-inch capacity for dining tables, conference tables, or wide glue-ups. The mobile base is ideal for shared-space shops.

Who Should Avoid?

Those concerned about parts availability or who don’t need the massive 50-inch capacity. Consider Jet for better long-term support.

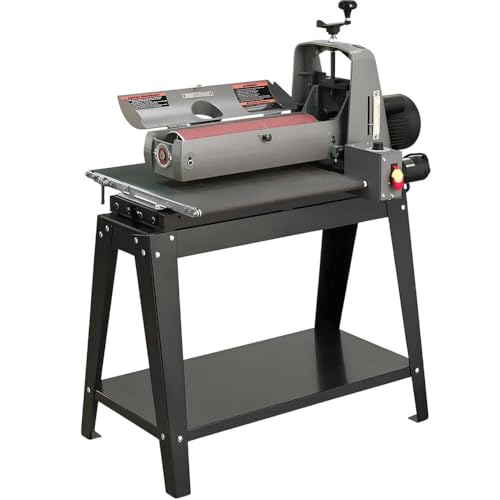

4. SuperMax 19-38 – Intellisand Technology for Consistent Results

The SuperMax 19-38 sits in the popular mid-range category, offering 19-inch single-pass capacity with 38-inch double-pass capability. This makes it ideal for most furniture and cabinet work.

INTELLISAND Technology prevents overload by automatically adjusting conveyor speed based on load. Users report this feature is especially valuable when sanding difficult woods like hickory or when working with small pieces like drawer fronts and cutting boards.

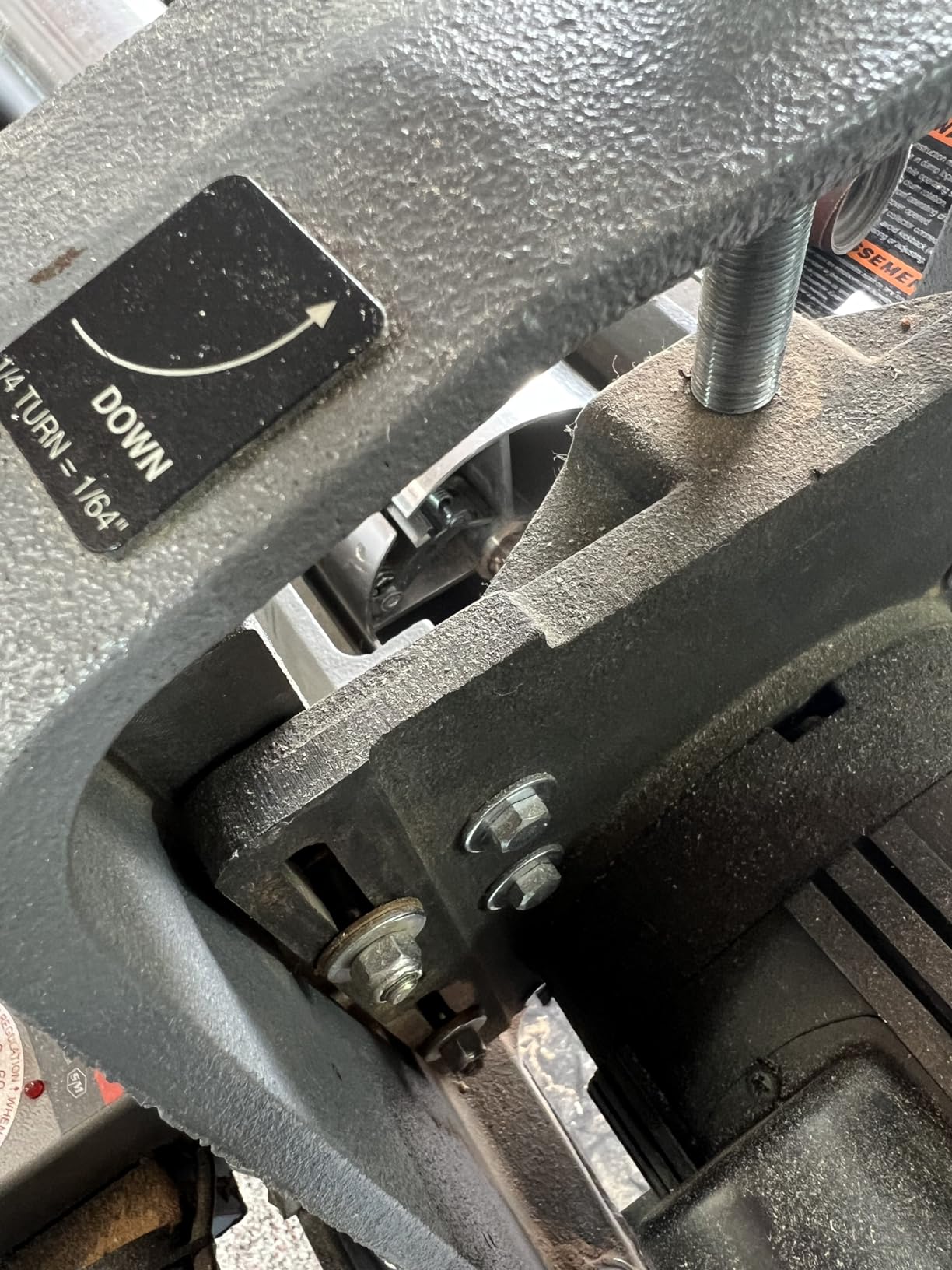

The flatness guarantee comes from a precision-flattened steel conveyor bed. This ensures consistent results across the entire sanding width. The self-cooling drum design prevents overheating and extends abrasive life.

The patented abrasive attachment system prevents loose sandpaper. This is a common frustration point on other machines, so SuperMax’s solution is genuinely valuable. Users report 6+ years of reliable use with this model.

However, some owners report the machine can heat up and leave black gummy trails on very wide panels. The drive belt may need upgrading for heavy-duty use.

As with other SuperMax models, parts availability has been problematic since Laguna’s acquisition. Consider this when making your purchase decision.

Who Should Buy?

Woodworkers wanting Intellisand technology at a mid-range price point. Excellent for small pieces like rail and stile material, drawer fronts, and cutting boards.

Who Should Avoid?

Those consistently working with very wide panels or concerned about long-term parts availability.

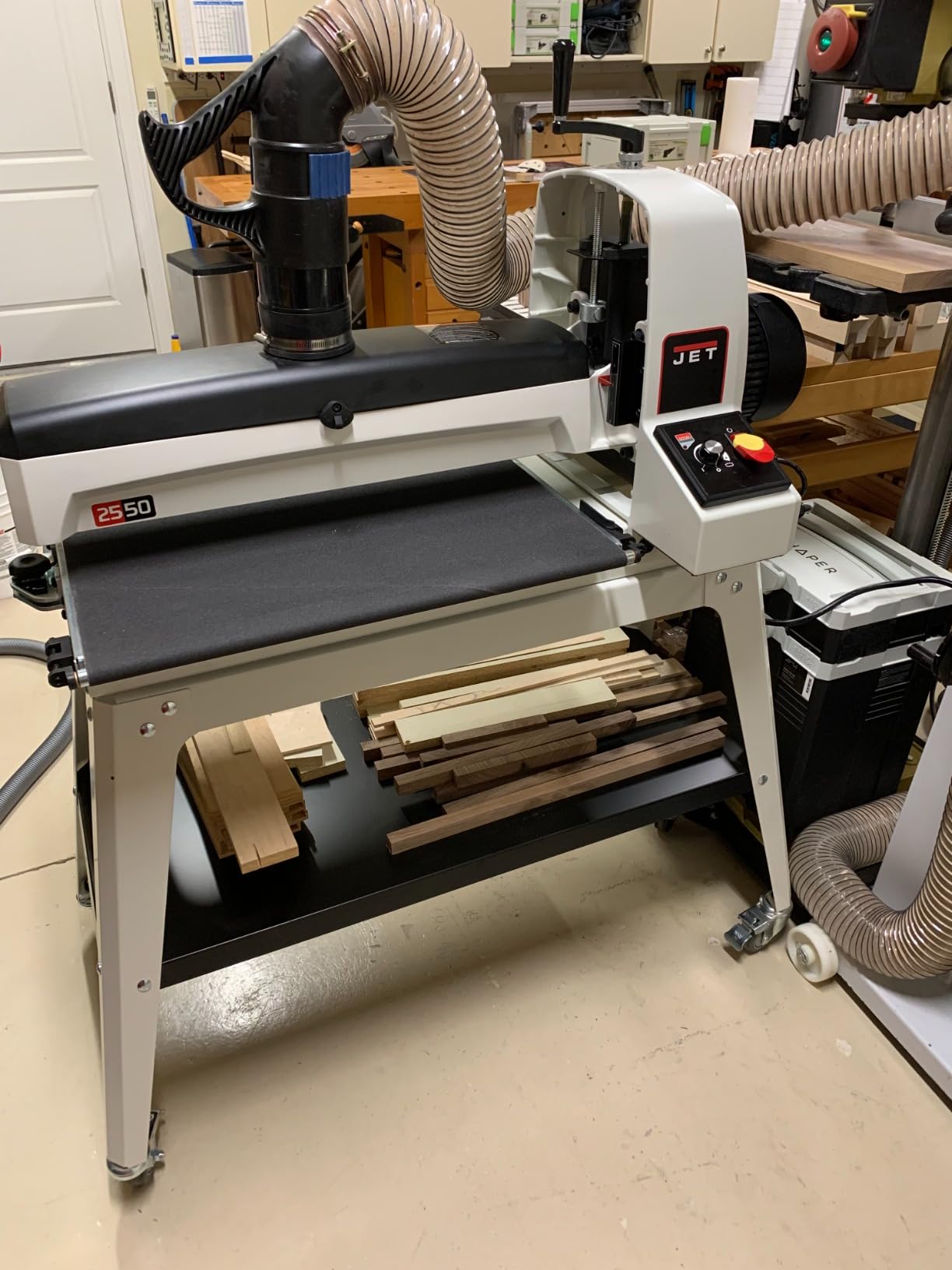

5. Jet JWDS-2550 – 25-Inch Single Pass with Standard Voltage

The Jet JWDS-2550 offers genuine 25-inch single-pass capacity while running on standard 115V household current. This combination is rare and valuable for woodworkers who need wide capacity without wiring their shop for 220V.

The Sandsmart control system continuously monitors load to prevent overload. This is especially valuable with the larger 25-inch drum, which can draw more power when working wide panels. Users report this system prevents the frustration of tripped breakers.

Precision-machined and dynamically-balanced aluminum drum ensures smooth operation. The sealed and permanently-lubricated ball bearings should provide years of maintenance-free service.

Conveyor bed parallelism adjusts easily without tools using the external dial. The relative depth scale on the handwheel helps you track your progress through multiple passes.

The open stand provides a stable 24 x 50 inch footprint with a storage shelf underneath. Pre-drilled caster holes allow you to add mobility if needed. Customer photos show the machine in actual shop settings.

Some users report frustration with the sandpaper clip system, which can be tricky to use. The dust hood is also plastic rather than metal, which disappoints some owners at this price point.

Who Should Buy?

Woodworkers needing 25-inch capacity without 220V power. Perfect for home shops with standard electrical service.

Who Should Avoid?

Those willing to wire their shop for 220V to access more powerful options, or buyers concerned about plastic components.

6. Grizzly G1066Z – Dual Drum Design for Heavy Stock Removal

The Grizzly G1066Z brings industrial power to home shops with its 5 HP motor driving dual 4-inch aluminum drums. This configuration allows you to run different grits simultaneously for more efficient processing.

The dual-drum design means you can remove material with coarse grit on the front drum and immediately follow with fine grit on the rear. No changing belts between passes. This dramatically reduces processing time for production work.

Hook and loop sandpaper attachment makes belt changes significantly faster than clip systems. The variable speed conveyor gives you control over the cut based on your material and grit selection.

Two 4-inch dust ports connect to most standard dust collection systems. The machine handles stock up to 23-1/2 inches wide and 4-1/4 inches thick, covering most workshop needs.

However, buyer beware: some users have reported motor failures and encountered poor customer service from Grizzly. One reviewer waited six weeks for replacement parts. When it works, it’s excellent.

Who Should Buy?

Woodworkers with 220V power who want dual-drum efficiency. The price is competitive for the specifications if you’re willing to accept some risk on support.

Who Should Avoid?

Anyone without 220V power or those who prioritize dealer support and parts availability above all else.

7. Grizzly G0716 – Most Affordable 10-Inch Option

The Grizzly G0716 offers the most affordable entry into drum sanding with its 10-inch capacity. While it lacks the open-ended design of pricier models, it handles most small shop tasks at a budget-friendly price point.

The variable speed conveyor lets you dial in the optimal feed rate for your material and grit. A 1-1/2 HP motor provides adequate power for 10-inch width sanding. Grizzly includes a quick-disconnect 4-inch dust port for easy dust collection hookup.

Mobility features include wheels and handles built into the design. At 220 pounds, you’ll appreciate being able to move this machine around your shop as needed.

Users report this sander works well for segmented bowls and glued assemblies. However, the sandpaper installation process presents a significant challenge. The right clamp mechanism is difficult to use, and paper installation frequently fails.

Grizzly’s manual has incorrect paper dimensions, which adds to the frustration. Users recommend watching Grizzly’s YouTube video for proper paper changing instructions rather than following the written manual.

Who Should Buy?

Budget-conscious woodworkers who mostly work with stock under 10 inches wide. Suitable for small shop applications and segmented woodwork.

Who Should Avoid?

Those needing wider capacity or anyone frustrated by tedious maintenance tasks. The sandpaper installation issues are well-documented.

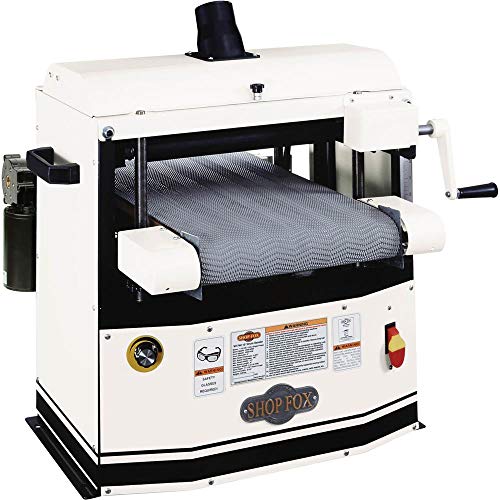

8. Shop Fox W1740 – 12-Inch Capacity with Known Issues

The Shop Fox W1740 appears attractive on paper with its 12-inch capacity and solid construction. However, a critical design flaw makes this machine difficult to recommend.

The sander performs well when operational. Users praise the fine depth adjustments and perfectly parallel thickness achieved right out of the box. The 3-3/4 inch thickness capacity handles most shop stock.

Hook-and-loop sanding rolls make installation easier than clip systems. The machine runs very quietly for a drum sander, which users appreciate.

However, the plastic drive gear inside the motor is prone to stripping. When this fails, replacement gears are unavailable. You’re forced to purchase a $256 motor upgrade. Multiple users report being left with unusable machines.

Shop Fox has acknowledged the high failure rate and changed the design on newer models. But they offer no support for older units. Several users explicitly state they will never buy Shop Fox again due to parts and service issues.

Who Should Buy?

This machine is difficult to recommend due to the known plastic gear failure. Consider spending more for a Jet or SuperMax with better support.

Who Should Avoid?

Virtually everyone. The risk of being stranded with a non-functional machine and no affordable repair path makes this a poor investment.

Drum Sander Buying Guide

Match Sanding Width to Your Work

The most important specification is sanding width. Buy for the largest panels you’ll actually make, not dream projects you might attempt someday.

Capacity	Best For	Double Pass Capacity
10-12 inch models	Cabinet doors, small panels, cutting boards	N/A (usually closed-ended)
16-20 inch models	Table tops, desks, medium glue-ups	32-40 inches
22-25 inch models	Dining tables, large glue-ups	44-50 inches

Motor Power and Feed Rate

Motor power determines how aggressively you can cut. Most 16-25 inch sanders use 1-1/2 to 1-3/4 HP motors, adequate for finishing work.

Variable feed rate control proves more valuable than raw horsepower. Slower feeds allow heavier cuts. Faster feeds produce finer finishes. The Sandsmart and Intellisand systems automatically adjust based on load.

For a complete shop setup, you might also consider pairing your drum sander with a quality table saw for rough dimensioning before sanding.

Dust Collection Requirements

Drum sanders generate substantial fine dust. A 4-inch dust port is standard on quality machines. Plan for a dust collector with at least 500-600 CFM for effective capture.

Dust-free abrasive paper cuts faster and lasts longer. Proper dust collection also protects your health. Fine wood dust is a known carcinogen.

Shop Space Considerations

These machines require significant floor space plus infeed and outfeed clearance. Plan your layout carefully before purchasing.

• Benchtop models: Small footprint but require dedicated bench space
• Open stand models: 24-50 inch footprint plus 3-4 feet clearance each end
• Mobile bases: Essential for shared spaces but add to the cost

Abrasive Costs and Availability

Ongoing abrasive costs surprise many buyers. Plan to spend $15-45 per belt depending on width and quality.

• 10-12 inch belts: $15-25 each
• 16-20 inch belts: $20-35 each
• 22-25 inch belts: $25-45 each

Hook-and-loop systems cost more upfront but make changes faster. Clip systems require wrestling with tension springs but offer lower ongoing costs.

Drum Sander Maintenance Tips

Changing Abrasive Belts

The task most woodworkers dread: changing the sandpaper belt. Modern systems have improved this significantly.

1. Release tension: Most models have a quick-release lever or take-up fastener
2. Remove old belt: Slide it off the drum, noting orientation
3. Clean drum: Remove any accumulated debris with a brush
4. Install new belt: Align with arrows indicating feed direction
5. Tension properly: Apply even tension without over-tightening

Hook-and-loop systems allow changes in under two minutes. Clip systems take 5-10 minutes once you develop the technique.

Parallelism Adjustment

Your conveyor bed must be parallel to the drum for even results. Most modern sanders simplify this with tool-less adjustments.

Check parallelism monthly or if you notice uneven sanding across the workpiece width. The adjustment dial on JET and SuperMax models makes this a quick task.

Dust Collection Maintenance

Check dust collection ports weekly for clogs. Accumulated debris reduces efficiency and creates a fire hazard.

Clean the dust hood channel periodically. The integrated channel that mirrors the drum shape can trap long chips, especially when sanding end grain cutting boards.

Frequently Asked Questions

Final Recommendations

After analyzing these machines extensively, here’s my honest take on which drum sander belongs in your shop.

The Jet JWDS-1632 offers the best combination of capacity, features, and value for most woodworkers. The 32-inch double-pass width handles most furniture projects, while the Sandsmart control prevents the frustration of motor overload.

If you need maximum capacity, the SuperMax 25-50 cannot be beat for 50-inch double-pass capability. It’s the machine I’d recommend for anyone making dining tables regularly.

Budget buyers should consider the Jet JWDS-1020. The benchtop design delivers 20-inch double-pass capacity while occupying minimal floor space. Customer reviews show it taking woodworking to the next level for many hobbyists.

Whatever you choose, remember that a drum sander is a finishing tool, not a thickness planer replacement. Use light cuts, proper technique, and appropriate grit progressions for the best results. For more tool ideas, check out our guide on power tool sets to complete your workshop setup.
