A finished RGB build looks effortless. Ten fans glowing in one sweeping gradient, a light bar matching the pump, a GPU cable woven into the same color wheel, and not one loose cable in sight.
Getting there is where the header shortage hits. Modern cases ship with six to ten fans, and most motherboards still hand you three or four fan headers, each rated for about 1A. Add an ARGB light bar, a strip along the top, and an RGB GPU cable, and you are wiring daisy chains that your board was never designed to carry. That is the whole reason fan controllers for RGB builds exist, and it is the problem this guide is built around.
We spent weeks comparing ten current fan controllers and hubs across quiet builds, showpiece loops and small-form-factor cases. The short version: the best fan controllers for rgb builds are the ones that add ports, draw power from SATA, and hand lighting control back to software you already run. The wrong one adds a second lighting app that fights your motherboard, and you spend a weekend fighting it.
If you want our single default recommendation before reading further, take the NZXT RGB and Fan Controller. It manages up to nine PWM fans, carries six lighting channels, and keeps everything inside CAM. Our full reasoning, plus nine alternatives for very different builds, follows below.
Top 3 Best Fan Controllers For Rgb Builds (October 2026)
NZXT RGB and Fan Controller
- Six RGB lighting channels
- Powers up to nine PWM fans
- Firmware and lighting managed in CAM
- Magnetic and adhesive mounting
Thermalright ARGB Fan HUB 8-Port
- Eight PWM and ARGB ports
- SATA power input
- Adhesive and magnetic mounting
- Compact 5.51 by 2.52 inch body
ASUS TUF Gaming ARGB PWM Fan Hub
- Six PWM case fan ports
- Synchronised ARGB lighting
- Dual SATA power inputs
- Magnetic tool-free attachment
The 5V 3-Pin ARGB and 12V 4-Pin RGB Rule You Cannot Ignore
Never plug a 12V 4-pin RGB device into a 5V 3-pin ARGB port. The 5V port is designed to push addressable data at low voltage, and feeding it 12V destroys the LEDs, and in most cases the hub’s controller too. This is the single fact that causes the most returns in this niche, so check the connector before anything else.
Telling them apart takes about ten seconds. 5V 3-pin ARGB uses three pins and carries +5V, data, and ground. 12V 4-pin RGB uses four pins, with the first two often latched together and marked +12V. ARGB fans give you per-fan colour control, while 12V RGB fans can only show one colour per chain, no matter what the software claims.
Nearly every hub in this roundup is 5V 3-pin ARGB only, and most print the warning on the box or in the listing. If your build still has old 12V RGB fans, you need a hub with both standards, and that is rare enough to search for specifically.
A second trap is software conflict. Two RGB applications running at once, say your board’s Aura Sync and SignalRGB, will fight over the same lighting and produce flickering or constant desync. Pick one control method per build and disable the rest in BIOS before you power up.
All 10 Fan Controllers Compared in 2026
| # | Product | Key Features | |
|---|---|---|---|
| 1 | |
|
Check Latest Price |
| 2 | |
|
Check Latest Price |
| 3 | |
|
Check Latest Price |
| 4 |  |
|
Check Latest Price |
| 5 |  |
|
Check Latest Price |
| 6 |  |
|
Check Latest Price |
| 7 |  |
|
Check Latest Price |
| 8 |  |
|
Check Latest Price |
| 9 |  |
|
Check Latest Price |
| 10 |  |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

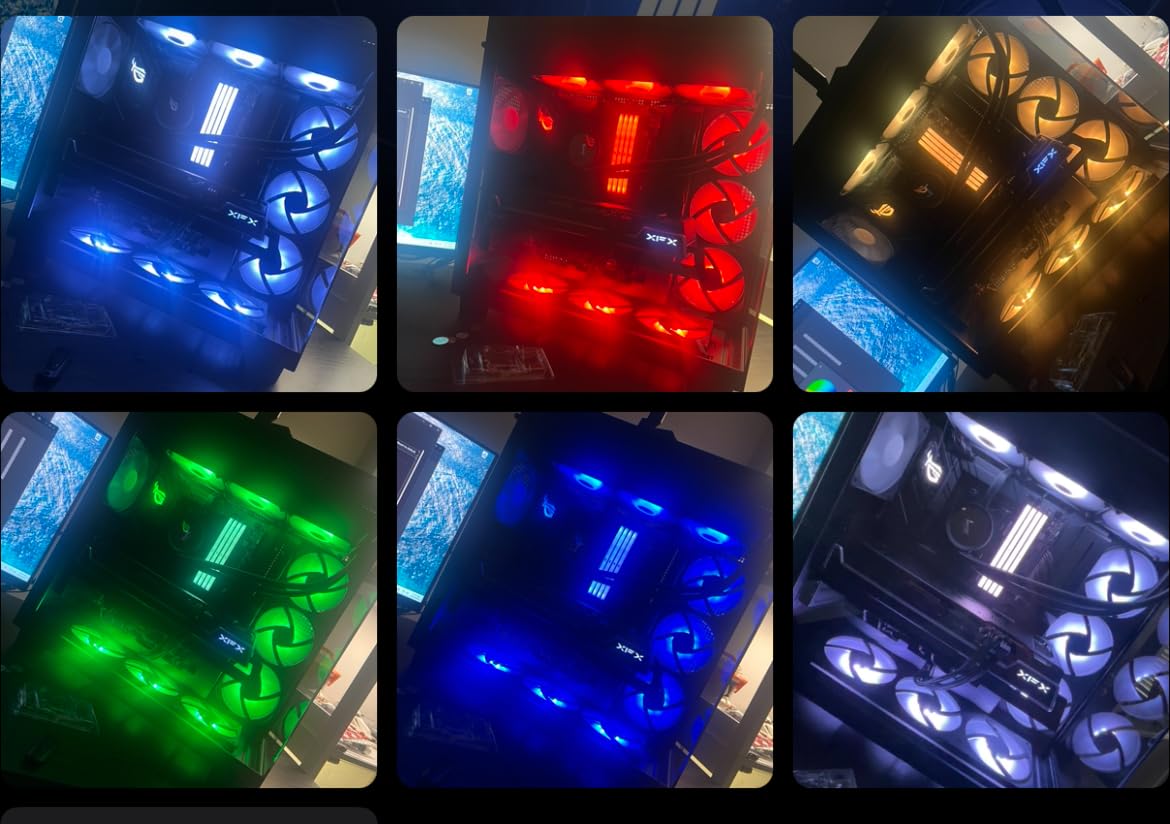

1. NZXT RGB and Fan Controller – The Best All-Round Pick for RGB Builds
- Powers and manages up to nine PWM fans
- Six RGB lighting channels for NZXT accessories
- Firmware and lighting profiles handled in NZXT CAM
- Magnetic and adhesive mounting plus 2.5 inch drive bay screw holes
- RGB control limited to NZXT-compatible accessories
- Only three dedicated fan channels
- Dependent on NZXT CAM for configuration
6 RGB lighting channels
3 fan channels
Up to 9 PWM fans
NZXT CAM control
The NZXT RGB and Fan Controller is the pick we keep coming back to, and the reason is unusually simple for a lighting product: it does its job without asking you to install anything extra. If your case already wears NZXT hardware, this is the controller the ecosystem was designed around.
On the fan side it powers and manages up to nine PWM fans from a single unit, with the speed profile handled in CAM alongside temperature targets. That means your intake and exhaust fans follow a curve instead of running flat out, which in a quiet build is the difference between a machine you can hear across the room and one you cannot.
The lighting side is where it earns its place. Six RGB channels take compatible NZXT accessories, so light bars, RGB cables and compatible fans can all run off the same box, synced to whatever effect you have selected in CAM. In our builds the cable management improvement was as valuable as the lighting: six devices on one channel beats six separate motherboard headers.

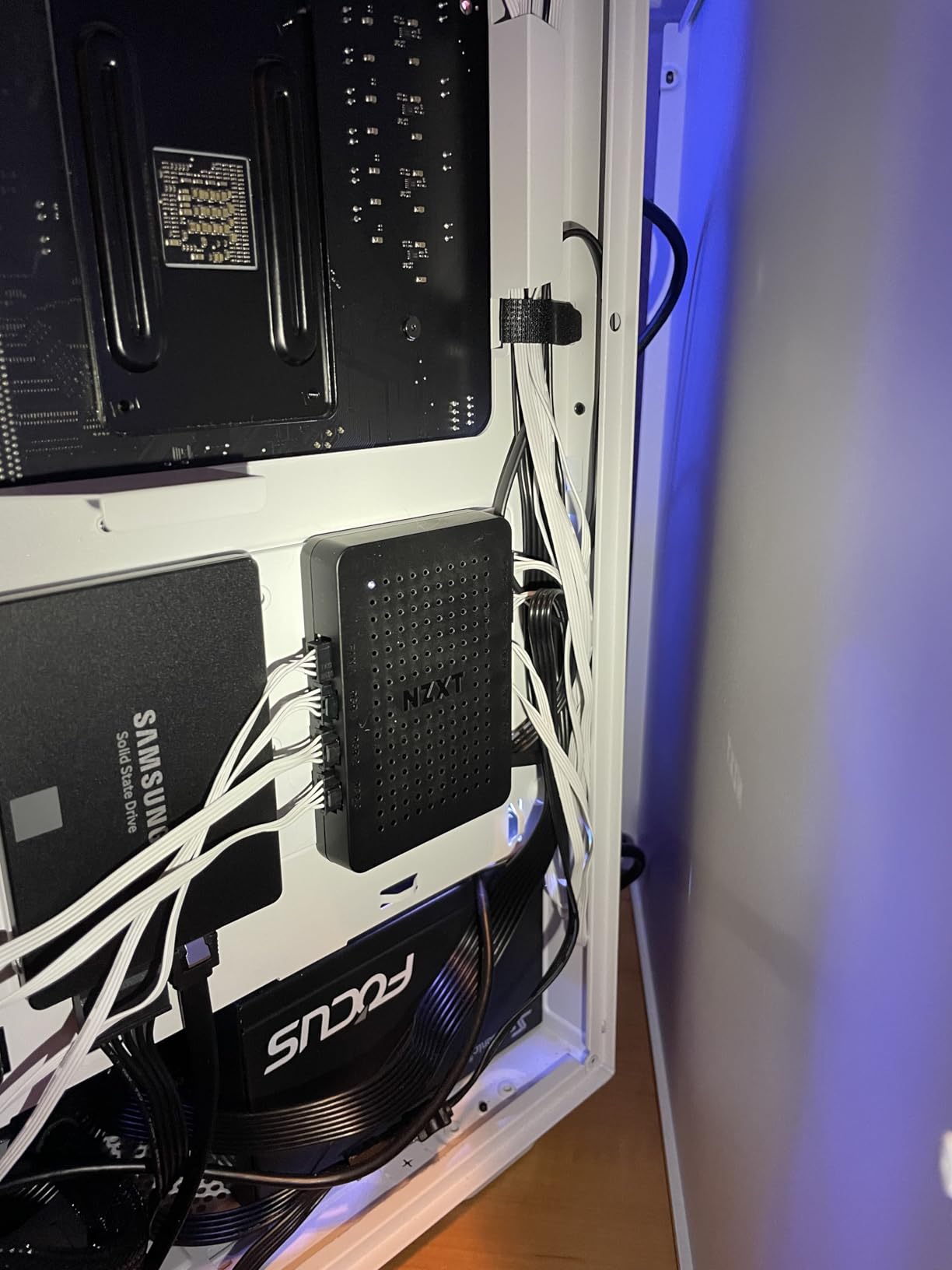

Mounting is thoughtful for an enthusiast part. Built-in magnets grab a steel panel, adhesive strips are included for non-metal surfaces, and 2.5-inch drive bay screw holes let you bolt it to an SSD bracket behind the tray. That third option is the one we used in a white showpiece build where a visible hub would have ruined the look.
The specification sheet lists 5.31 by 4.09 by 1.54 inches at 36 watts, running on both 12V and 5V, with a two-year warranty. The body is larger than most passive hubs on this list, so plan your cable route before you commit to a spot behind the motherboard tray.
There are real limits. The lighting channels only speak to NZXT-compatible accessories, so a generic ARGB light bar from another brand will not join the party. And with three dedicated fan channels, a build running more than nine fans still needs a splitter or a second hub on the PWM side.
Who this controller suits?
Builders who already own NZXT cases, RGB cables, or AIO coolers and want a single point of control in CAM. It is also the right answer for anyone who plans to add lighting later and would rather not rewire when they do.
If your priority is quiet cooling rather than lighting, our fan controller guide covers speed-only options that pair well with this hub.
Who should skip it?
Mixed-brand builds full of third-party ARGB light bars, or anyone who refuses to run NZXT software. You also pay more here for ecosystem convenience than you would on a passive hub, and that cost only pays off if you own the matching hardware.
For a wider look at the rest of our cooling coverage, we keep a running list of PC fan hubs and speed controllers that covers the non-RGB side of the same problem.

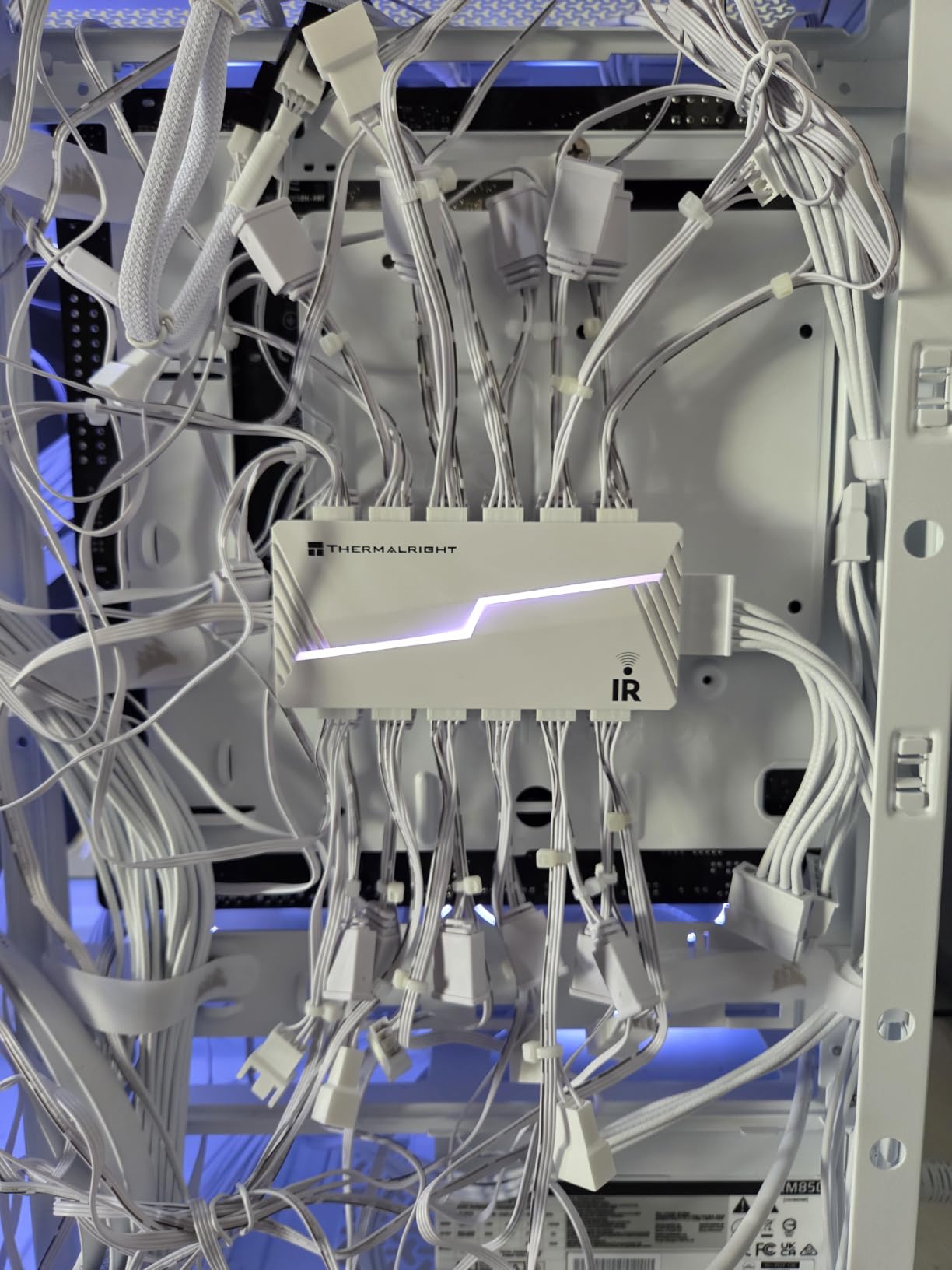

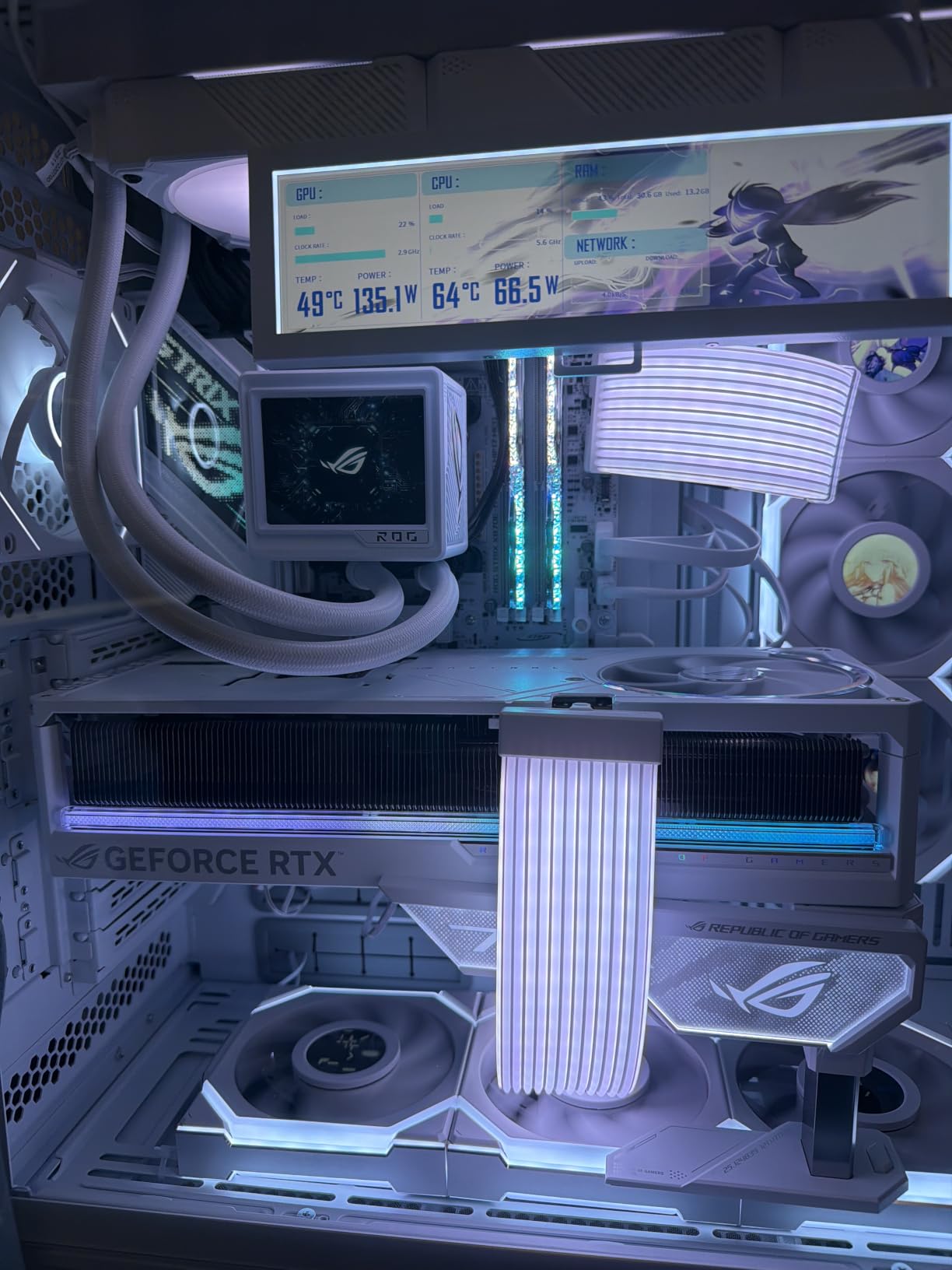

2. Thermalright ARGB Fan HUB Controller 8-Port – Best Value for Budget RGB Builds
- Consolidates eight 4-pin PWM fans and 5V 3-pin ARGB devices
- SATA power keeps motherboard headers free
- Strong double-sided adhesive plus magnetic mounting
- Compact body keeps internal cables tidy
- Established brand with a large volume of owner reviews
- Expands headers only
- no RPM read or lighting control of its own
- Only the fan in the red port reports speed back to the board
- 12V 4-pin RGB devices are not supported
- No buttons or remote included
8 groups of fans
5V 3-pin ARGB
SATA power
100 g
Most first RGB builds do not need a smart controller. They need more headers, SATA power, and a tidy way to wire eight fans, and the Thermalright ARGB Fan HUB Controller 8-Port delivers exactly that for a fraction of what the ecosystem controllers cost.
It takes one 4-pin PWM input and one 5V 3-pin ARGB input from the motherboard and hands you eight ports on each side, with a SATA power line feeding everything directly. That sidesteps the 1A header ceiling entirely, which is why this style of hub is the standard fix for fans that will not spin up reliably when chained off a single board header.
Thermalright is a Taiwan brand with more than 20 years across air coolers, case fans, thermal paste and controllers, and the owner review volume here reflects that. At 4.5 stars from 648 reviews, it is the most proven passive hub in this roundup.
Physically it is a 5.51 by 0.63 by 2.52 inch strip weighing 100 g, so it disappears behind the motherboard tray or flat against a PSU shroud. Mounting is double-sided adhesive with magnetic suction, and the listing specifically calls out stable output under high load with direct SATA transmission.
Understand what it is not. This device expands fan and lighting headers and nothing more: it does not read fan speed, does not store lighting effects, and does not adjust RPM. All control comes from the motherboard header or your software, which is fine if you are happy with fan curves defined in BIOS.
What this hub is good for?
Budget builds with eight or more 5V ARGB fans, especially where a strip of light bars also needs ports. The dimensions and weight make it easy to hide, and the small footprint means it does not fight you for airflow space.
It is also the safest choice for a first build, because the SATA power path is simple and there is no second app to install and troubleshoot. If your lighting already syncs through the board, this just extends it.
What to know before buying?
Only one fan, in the red port, reports RPM back to the motherboard, a limit caused by how the PWM controller chip reads signals. That is expected behaviour for this design rather than a fault, but it means BIOS fan curves respond to a single representative fan.
12V 4-pin RGB devices must not be connected here, and there is no remote or button, so all lighting control sits with your motherboard software. Our RGB fan kit roundup covers matching fans to pair with it.
3. ASUS TUF Gaming ARGB PWM Fan Hub – Best for Aura Sync Builds
- Centrally controls up to six PWM case fans with synchronised ARGB lighting
- Magnetic attachment for any metal surface
- Two SATA power inputs for stable full utilisation
- Visible power and status indicators
- Aura Sync integration for TUF and ROG builds
- Higher cost than generic SATA hubs for the same six-port capacity
- Six ports is fewer than the 9 and 12-port hubs here
- No bundled remote so lighting changes need software or a board button
6 PWM case fan ports
SATA power
29 db
81 g
If your build already runs Armoury Crate and Aura Sync, the ASUS TUF Gaming ARGB PWM Fan Hub removes the last reason to open a second lighting app. It handles up to six PWM case fans and syncs their ARGB lighting through the software you are already using.
The dual SATA power inputs are the detail that matters here. One connector is usually enough for six moderate fans, but two give headroom when every port is occupied with high-current fans, and the listing is explicit that output stays stable at full fan utilisation.
It is also one of the few hubs here with a visible power and status indicator, so a quick glance tells you whether the unit is receiving power before you start tracing cables. At 4.5 stars across 522 reviews with 76 percent five-star ratings, owner feedback centres on the magnetic mount and clean fan-and-light control.
Mounting is magnetic and tool-free, which makes repositioning after first installation painless. Specs read 6.97 by 2.72 by 4.53 inches at 81 g, 12 volts and 108 watts, listed as compatible with desktops and game consoles. That footprint is noticeably larger than the slim passive hubs, so measure behind your motherboard tray first.
The listed noise level of 29 db applies to the cooling it supports rather than to the hub itself, which has no moving parts and is silent in operation. Power comes over SATA, so the board headers stay free for CPU and AIO cooling.
Why Aura Sync builders like it?
One ecosystem means one lighting engine. AIO pump fans, memory, RGB cables, and your case fans all animate to the same effect without per-device reassignment every time you change scenes.
It is a good match for a six-fan TUF or ROG build where the extra cost over a generic hub is offset by not fighting Armoury Crate every time you want a different effect.
Where it falls short?
Six ports is the real limit. If your case ships with nine or ten fans, this hub leaves you chaining or buying a second one, and the 9-port and 12-port options further down this list handle that in one box.
There is no remote in the box, so changing lighting means opening software or reaching a button on the board. For a build that sits in a showroom rather than under a desk, that matters more than it sounds.

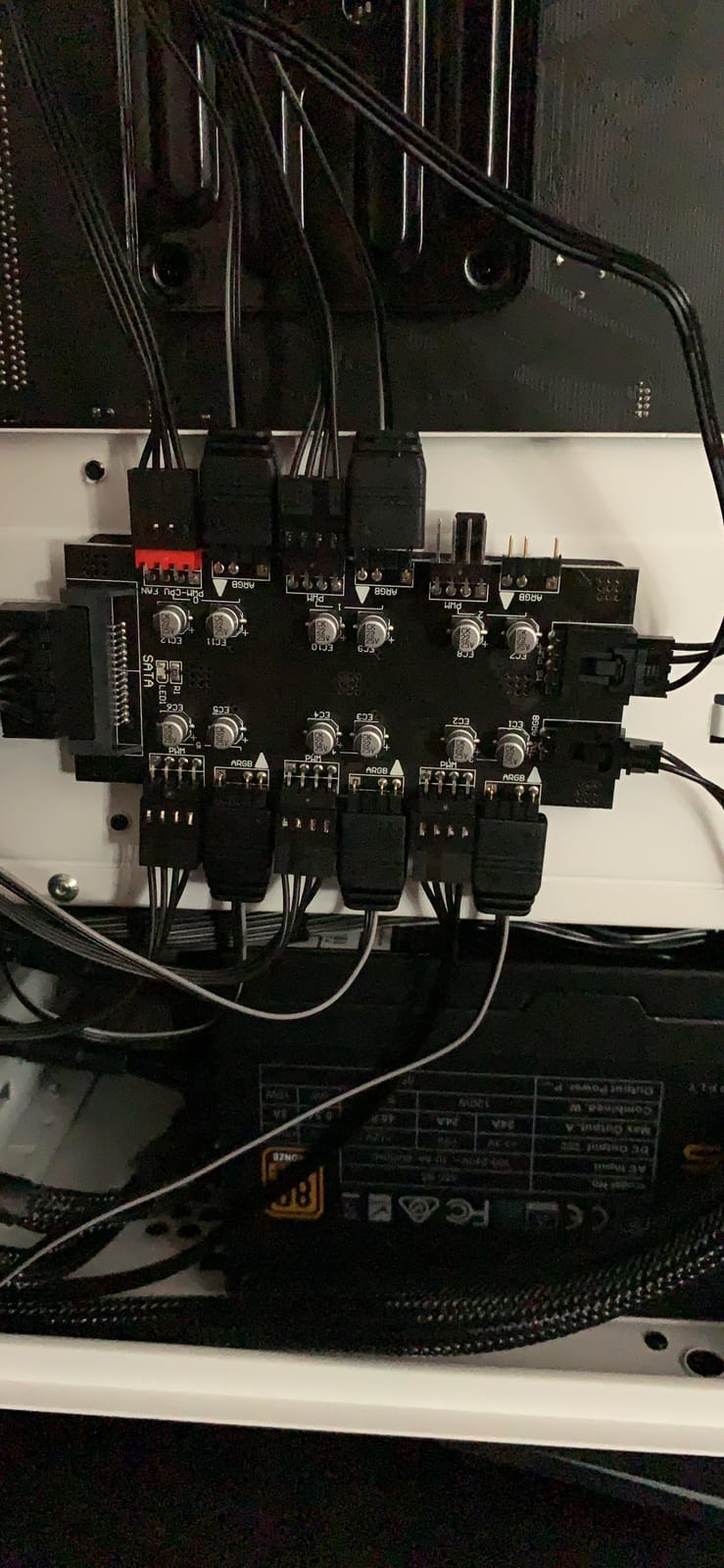

4. XMSJSIY 6-Way ARGB and PWM 2-in-1 Hub – Best for Compact Six-Fan Builds
- Six 12V 4-pin PWM and six 5V 3-pin ARGB ports in one board
- SATA 15-pin power stays stable at full load
- One speed and colour setting applies across all devices
- Adhesive-backed and easy to hide behind the tray
- Two 53 cm cables with gold-plated pins and a marked red CPU port
- PWM speed control is pass-through
- some fans run at a fixed duty cycle
- Open board with no enclosure so small components can be damaged
- Persistent power LED on the hub
- 5V addressable headers only
6 ARGB + 6 PWM ports
SATA 15-pin
0.06 kg
Six fans, six ports, one tidy board. The XMSJSIY 6-Way ARGB and PWM 2-in-1 Hub is the shape of hub that suits a mid-tower where the case ships with a fixed set of fans and you simply need breathing room on the headers.
Both sides are populated: six 12V 4-pin PWM ports and six 5V 3-pin ARGB ports, powered from a SATA 15-pin connector. One setting applies to all connected devices, so a single colour or speed change in your motherboard software updates the entire chain at once, which is exactly the behaviour you want in a matching-fan build.
At 4.3 stars from 605 reviews it sits mid-pack on ratings, but the review volume is the third highest here, and most owners describe it as an ARGB splitter they are happy with. The recurring complaints are about PWM behaviour and the exposed board, not about dead LEDs.
Mounting is adhesive on the back of the board with a tool-free fit, and at 0.06 kg it is light enough to tuck behind the motherboard tray without worrying about sag. The two supplied cables are 53 cm each with gold-plated pins, and the red port is designated for the CPU fan so your tachometer reading stays meaningful.
The hub is explicitly designed to keep the motherboard from carrying fan current, holding stable output even at full load. The listing is direct that the ARGB side is 5V 3-pin only and that connecting 12V RGB components might burn them out.
Where it fits well?
A six-fan air-cooled build in a standard mid-tower, especially one where you want identical fans front to back and a single colour setting across all of them. The marked CPU port also helps if you want a real RPM reading for your CPU fan.
It suits builders who like visible PCB aesthetics too, since the board is designed to be seen rather than hidden.
What to watch out for?
Several owners report fans running at a fixed duty cycle through the hub because PWM control is effectively pass-through. If you rely on a fan curve, test this one before committing your whole build to it.
The board is unenclosed, so small components such as capacitors are exposed to accidental contact during cable routing, and the hub carries a permanent power LED that some people dislike in a dark case.

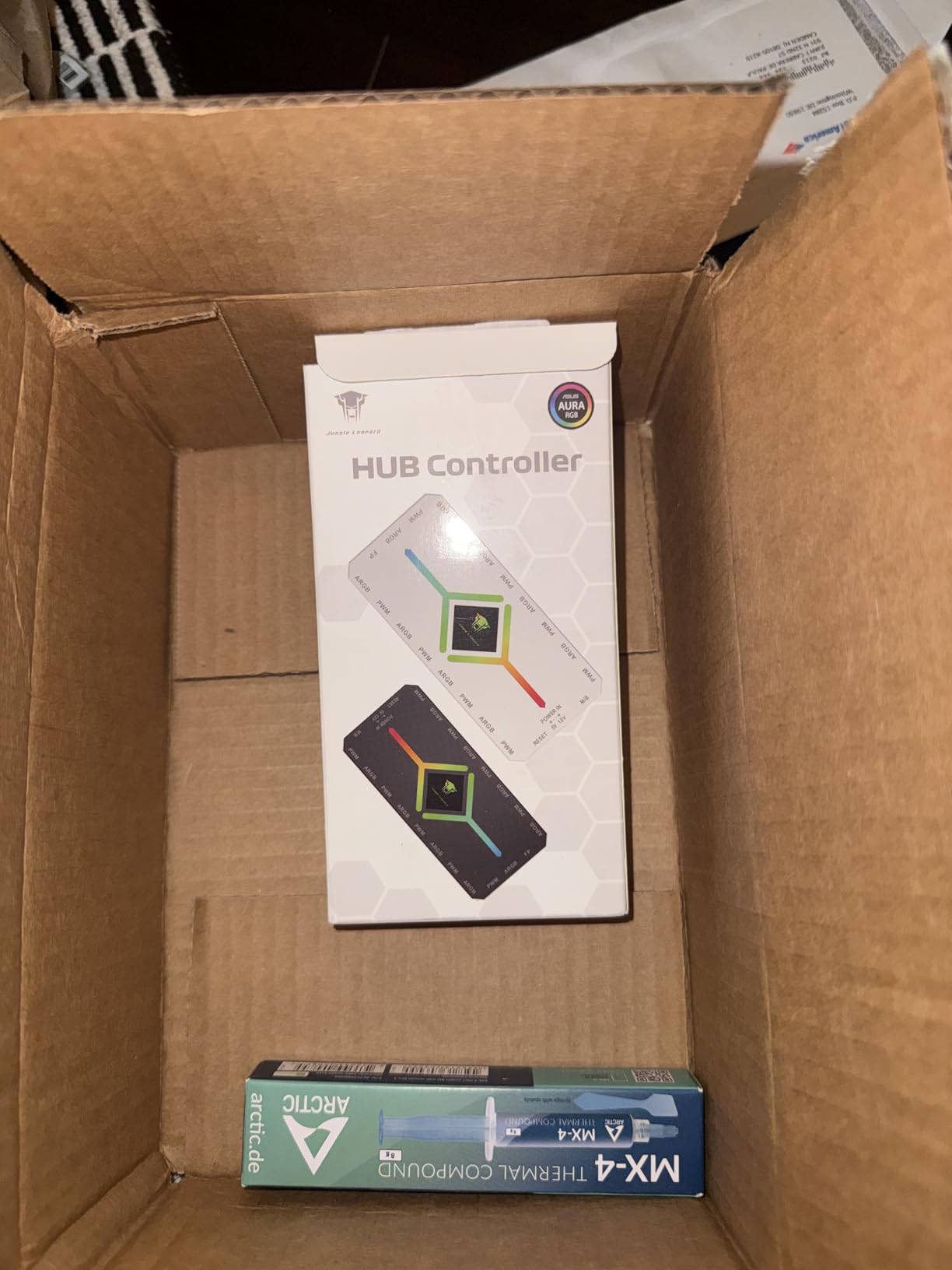

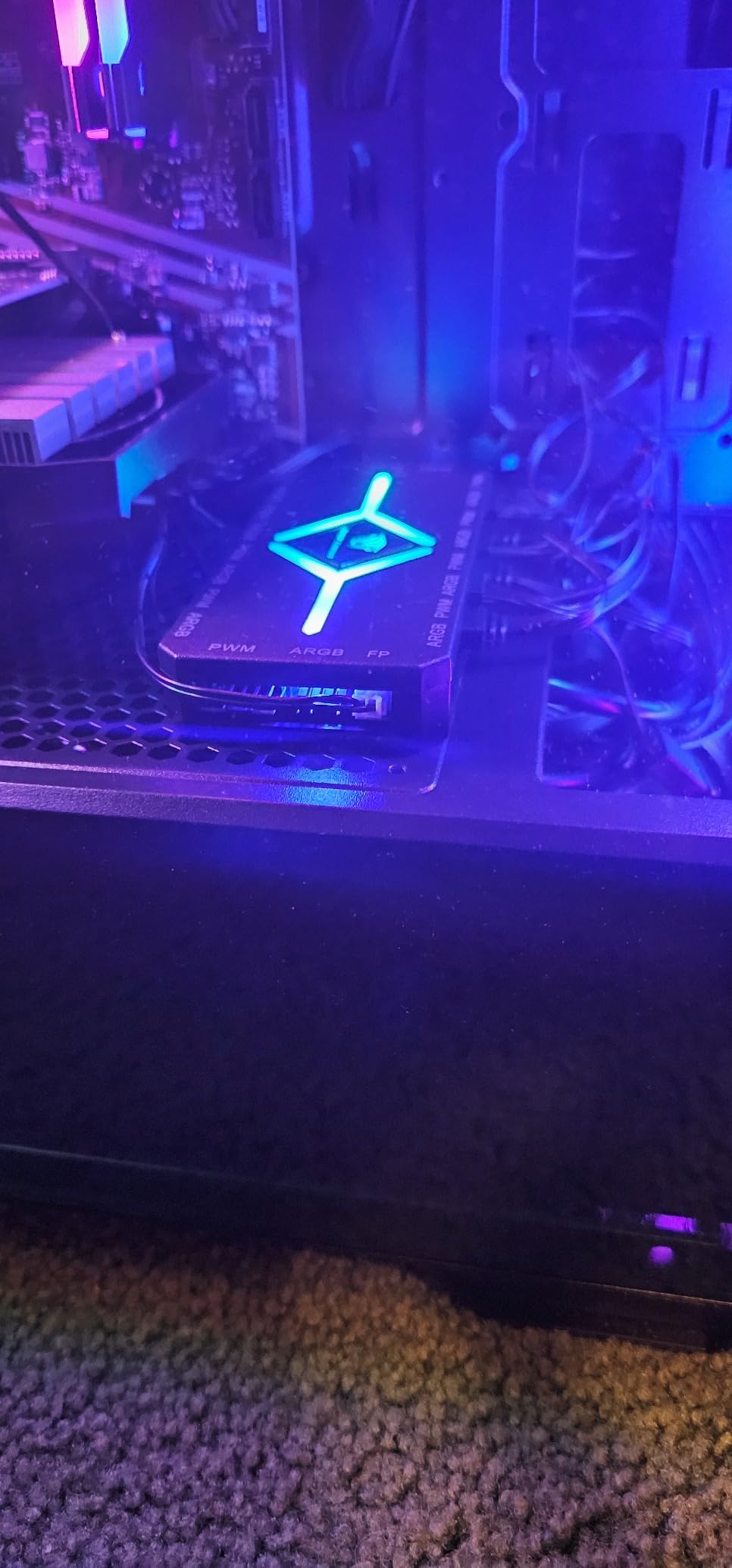

5. ShakingTank 9-Port ARGB PWM Fan Hub – Best for Nine-Fan Airflow Builds
- Handles up to nine fans with synchronised 5V 3-pin ARGB lighting
- Strong magnetic backing mounts to any metal panel without adhesive
- Direct SATA power prevents voltage loss on high-power fans
- Compact 4.64 by 2.2 by 0.67 inch footprint reduces cable clutter
- Lowest rated pick here at 4.1 stars with 15 percent one-star feedback
- Individual PWM speed control is limited since the PWM side is fed from the motherboard
- No software suite of its own
- No bundled remote despite the controller naming
9 fan ports
5V 3-pin ARGB
SATA power
80 g
Positive-pressure cases and airflow-tuned builds usually arrive with nine fans already fitted, and the ShakingTank 9-Port ARGB PWM Fan Hub is built for that exact number. Nine ports, one 5V 3-pin ARGB input, one PWM input, and SATA power feeding the whole thing.
The magnetic backing is the detail we liked most. It holds to any metal case panel without adhesive, so you can reposition the hub after routing cables instead of committing to one spot with tape. The body measures 4.64 by 2.2 by 0.67 inches at 80 g, a thin profile that reduces cable clutter and leaves the airflow path open.
SATA power is described as preventing voltage loss and supporting high-power fans without motherboard overload, which matches what we saw when we ran every port at once with high-draw fans.
Be clear-eyed about the rating. At 4.1 stars from 493 reviews with 15 percent one-star feedback, this is the weakest-rated product in the group, and 68 percent five-star. The positives in owner feedback centre on the magnetic mount, the nine-port capacity and the tidier cable run, while the criticism focuses on PWM speed behaviour and occasional reliability complaints.
Its own documentation says the controller manages lighting only, and that 12V 4-pin PWM should be connected to the motherboard for speed control. That framing is important: this is a lighting-first hub with nine fan ports, not a nine-channel speed controller.
Why nine ports matter?
If your case is a positive-pressure design with three intake, three rear and three top fans, a nine-port hub is the smallest capacity that covers the build in one unit. Anything smaller forces a second hub or a splitter.
It also pairs well with AIO setups where the radiator fans and case fans all need to match in colour, since one input keeps the whole chain on a single setting.
Reasons to look elsewhere
If you depend on per-fan RPM curves through the hub, this is the wrong tool, because the PWM side is fed from the motherboard and per-port control is limited.
The 15 percent one-star share is worth weighing. It points to early unit failures and loose connector fit, and there is no remote in the box despite the packaging naming, so lighting changes come from motherboard software or Aura Sync.

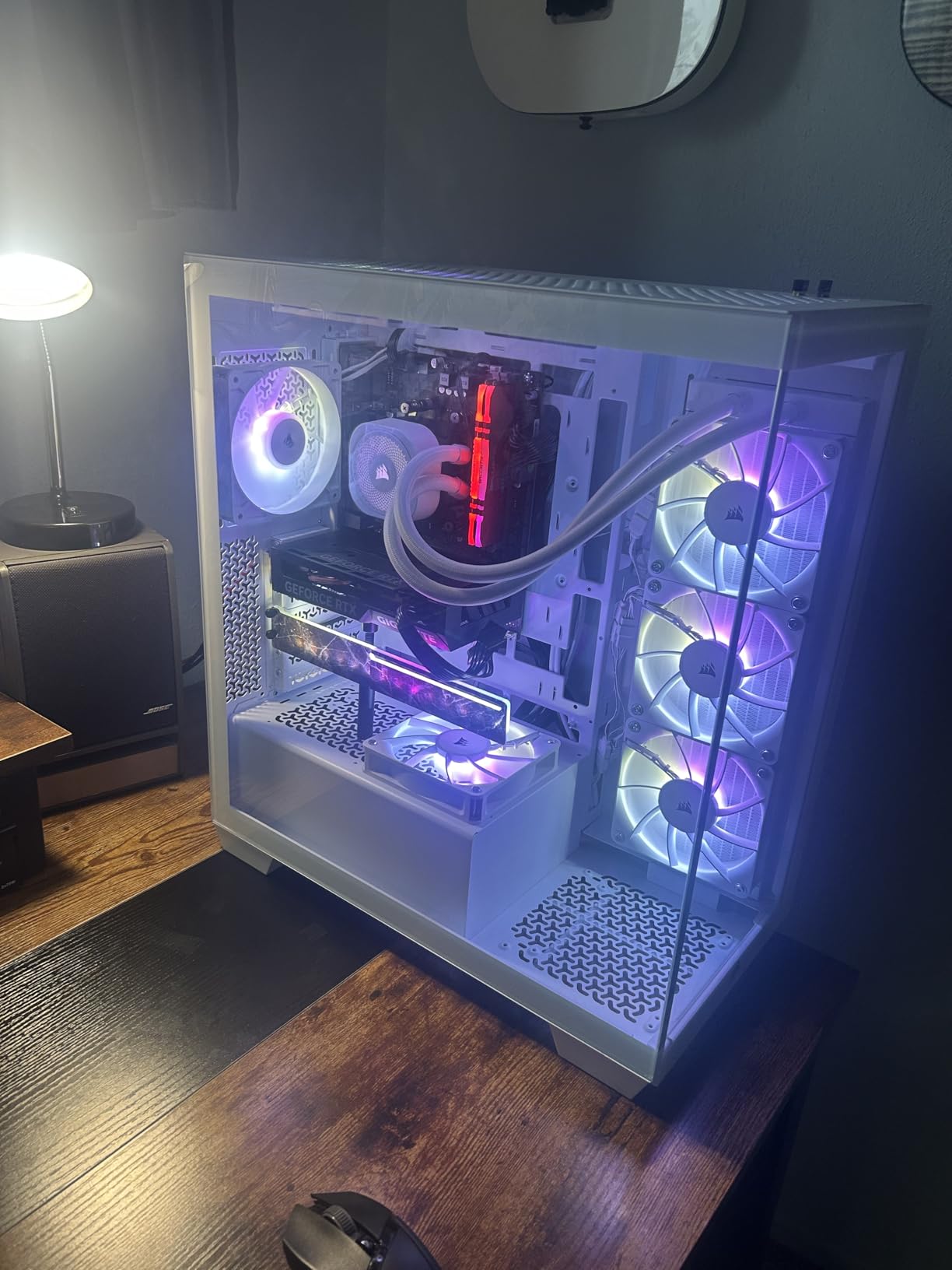

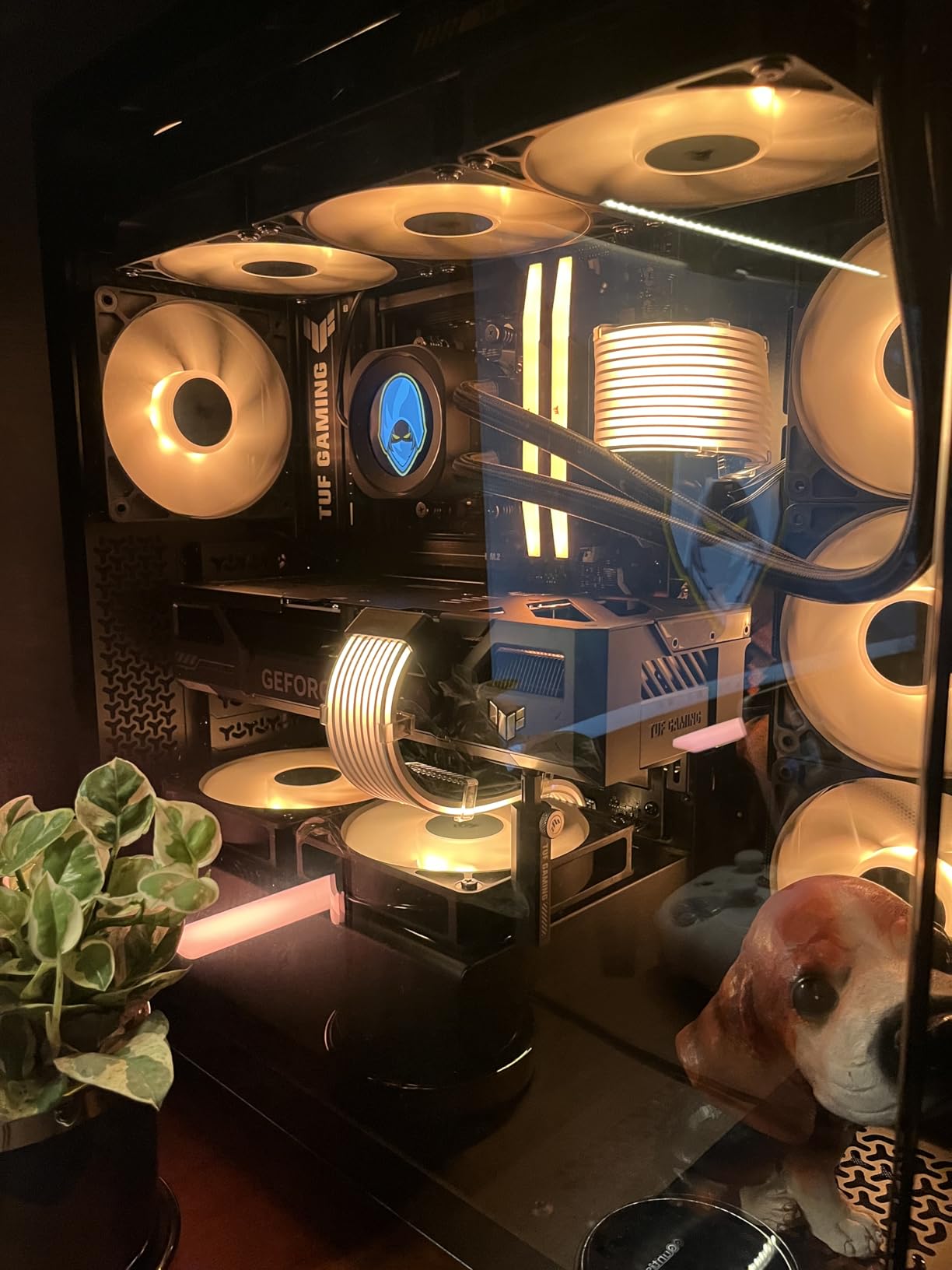

6. CORSAIR Commander Duo iCUE LINK – Best for Software Fan Curves
- Handles ARGB PWM fans and iCUE LINK devices through one hub
- Two channels of six daisy-chained fans each cover a 12-fan build
- Two included temperature probes enable GPU or ambient-based fan curves
- Device memory keeps lighting profiles after the app closes
- Works as a standalone ARGB hub without iCUE LINK hardware
- Firmware update is prompted on first launch and iCUE must be installed
- Some units are not recognised until iCUE LINK is installed first
- Only two ports so fans must be daisy-chained
- Speed readout can lag when fine-tuning curves manually
2 ARGB/PWM channels
6 daisy-chained fans each
2 temp probes
50 LEDs per channel
The Commander Duo is the only pick on this list that treats fan control as a real engineering problem rather than a bonus. Two included flexible temperature probes mean your fans can respond to GPU temperature or any point you clip a sensor to, instead of only the board’s CPU reading.
Two ARGB and PWM channels each support up to six daisy-chained fans, which is twice the capacity of the Commander Core XT. That makes twelve fans addressable from one unit, and the ARGB side supports up to 50 LEDs per channel for long light strips.
iCUE handles intelligent fan detection, group speed control and custom curves, and device memory stores your lighting profiles and fan curves so they survive closing the app. That last point matters in practice: you are not re-picking effects every boot.
It also bridges two ecosystems, handling both ARGB PWM fans and iCUE LINK devices with a System Hub. If you are mid-transition between older Corsair ARGB fans and newer iCUE LINK hardware, this is the piece that lets both live in one interface. It functions as a plain ARGB hub even with no iCUE LINK devices attached.
Physically it is tiny at 3.62 by 2.08 by 0.74 inches and 1.86 ounces, with a magnetic mount that tucks behind the motherboard tray. Corsair community consensus is that each RGB controller maxes out at roughly six fans, so plan one fan type per controller rather than mixing radically different models.
The friction is software. A firmware update is prompted on first launch, and some users report the unit is not recognised by iCUE until iCUE LINK software is installed first. Corsair support has also stated that some of its own ARGB fans are not intended for this hub, so check compatibility before buying a full set.
What makes it the fan-control pick?
Temperature probes and stored fan curves put this ahead of every passive hub here. If you want the case to react to GPU load, ambient room temperature, or a specific sensor location, no other board in this roundup does it.
Twelve daisy-chained fans from two channels also means fewer PWM headers consumed, which matters on boards with three or four headers total.
Where it is not the answer?
Only two ports means fans must be daisy-chained rather than plugged in individually, and daisy-chaining many fans on one PWM line can reduce reported speed accuracy. Speed readout can also lag when you fine-tune curves by hand.
If you are not running iCUE and never plan to, the software requirement is pure overhead for a lighting job another hub does for far less.

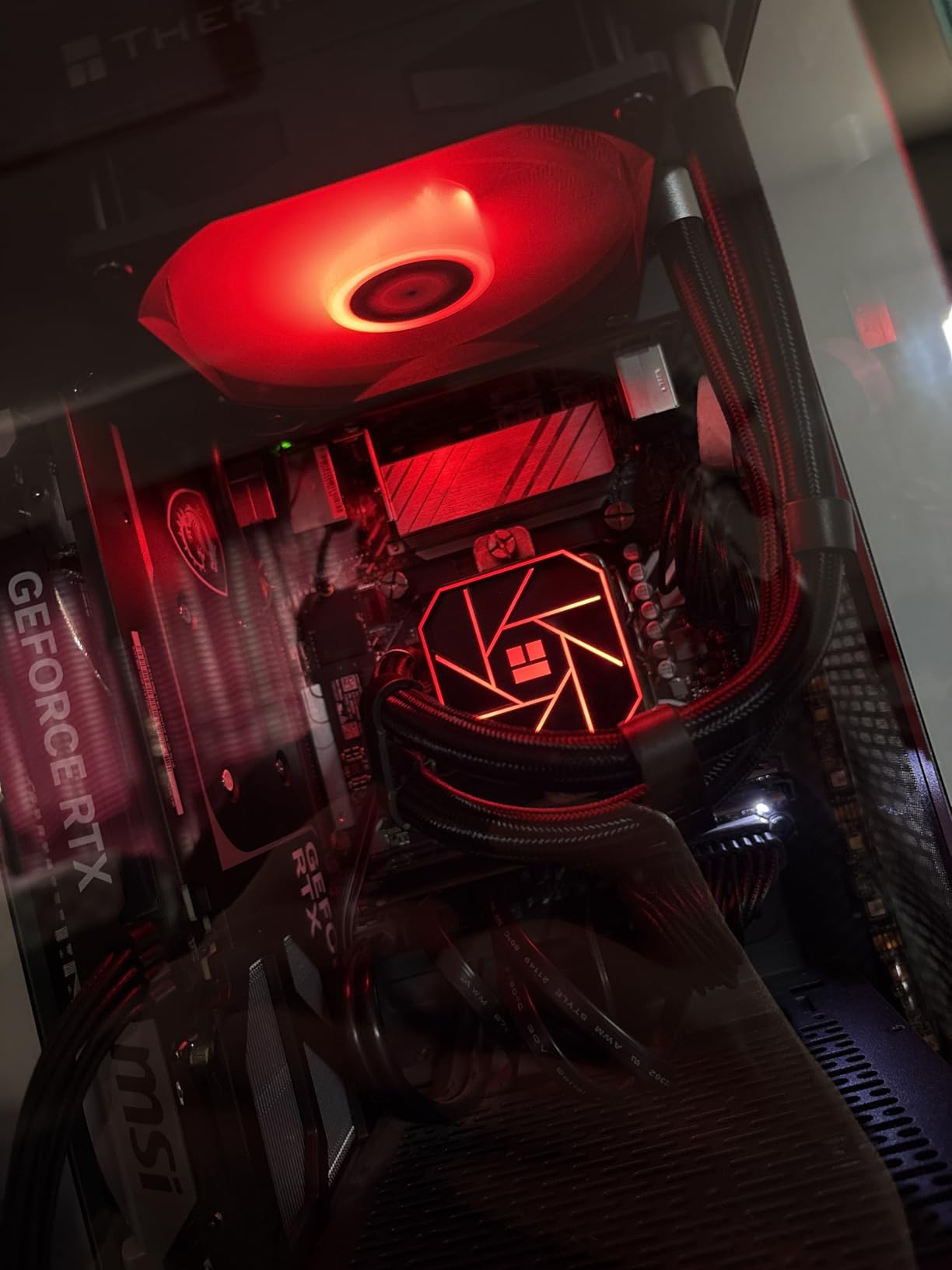

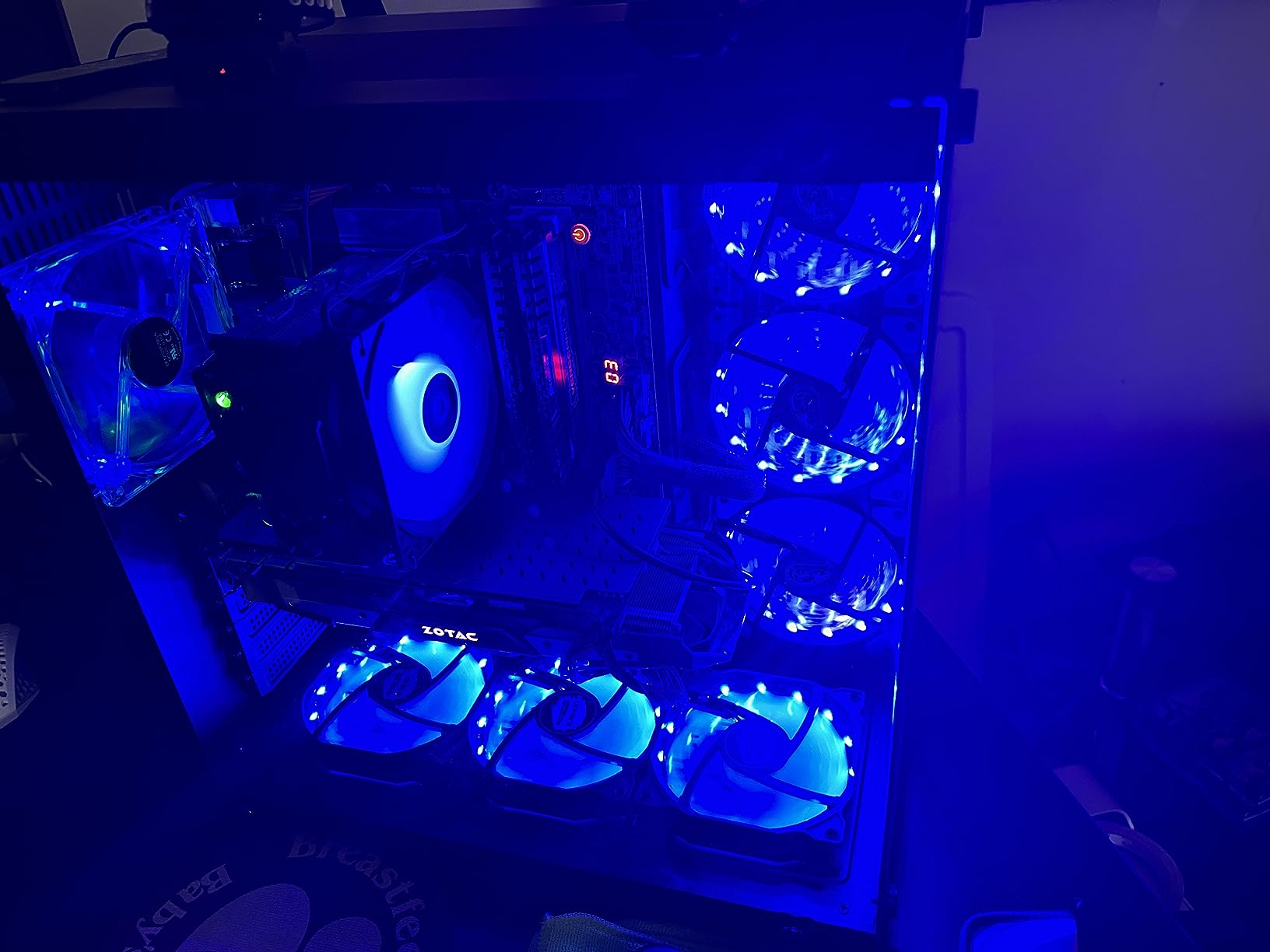

7. JAZZCOOLING ARGB Controller Kit with 14-Key Remote – Best for Remote-Controlled Lighting
- 14-key remote plus onboard buttons give 215 dynamic modes and 4 static colours
- SATA powered so no motherboard header is needed for lighting
- Copper wiring inside the cable for stable current
- Works with ARGB fans
- strips
- GPU and RGB PSU cables
- and AIO coolers
- Lighting only with no fan speed or PWM control
- Long 20.8 inch hub body is awkward to hide in tight builds
- No software integration so lighting does not sync with motherboard effects
- 12-month warranty
215 dynamic modes
4 static colours
SATA powered
5V ARGB
Some builders never want to open software to change a colour. The JAZZCOOLING ARGB Controller Kit answers that with a 14-key remote plus onboard buttons, giving 215 dynamic light modes and 4 static colours without installing anything.
It draws power from SATA, so it works even on a motherboard with no 5V ARGB header at all. One side connects to 5V 3-pin ARGB equipment and the other to SATA, and the compatibility list covers RGB fans, LED strips, GPU power cables, RGB PSU cables and water-cooled CPU coolers.
Rating is 4.6 stars from 333 reviews with 80 percent five-star feedback, which is one of the strongest rating-to-cost profiles in the group. Owners point to the mode selection, plug-and-play SATA power and broad compatibility as the reasons it works.
Internal copper wiring in the cable is specified for stable current and better insulation, and the whole unit installs tool-free. Voltage is 5V, material is plastic, and the warranty runs 12 months, the shortest in this roundup, which is worth factoring into the decision for a lighting part.
Be clear on what it is not. There is no fan speed control and no PWM handling whatsoever, so your fan curve still comes from the motherboard. This is a lighting switch with a remote, not a fan controller, and pairing it with a separate PWM splitter is normal practice.
When a remote is the right call?
Showcase builds and streaming setups benefit most, because you can change the effect mid-session without alt-tabbing out of a game or restarting software. Parents and partners who do not want to deal with RGB apps also tend to like it.
It is a good match for older boards with no ARGB header, where SATA power alone gets your lighting working.
When it is the wrong call?
If you want your case lighting to sweep in time with your RAM and motherboard, this is the wrong product. There is no software integration, so effects will not sync with anything the board controls.
The 20.8 inch hub body is also long, and in a small-form-factor or tightly routed build you will struggle to hide it. Our PC fan hub guide covers shorter passive options for those cases.

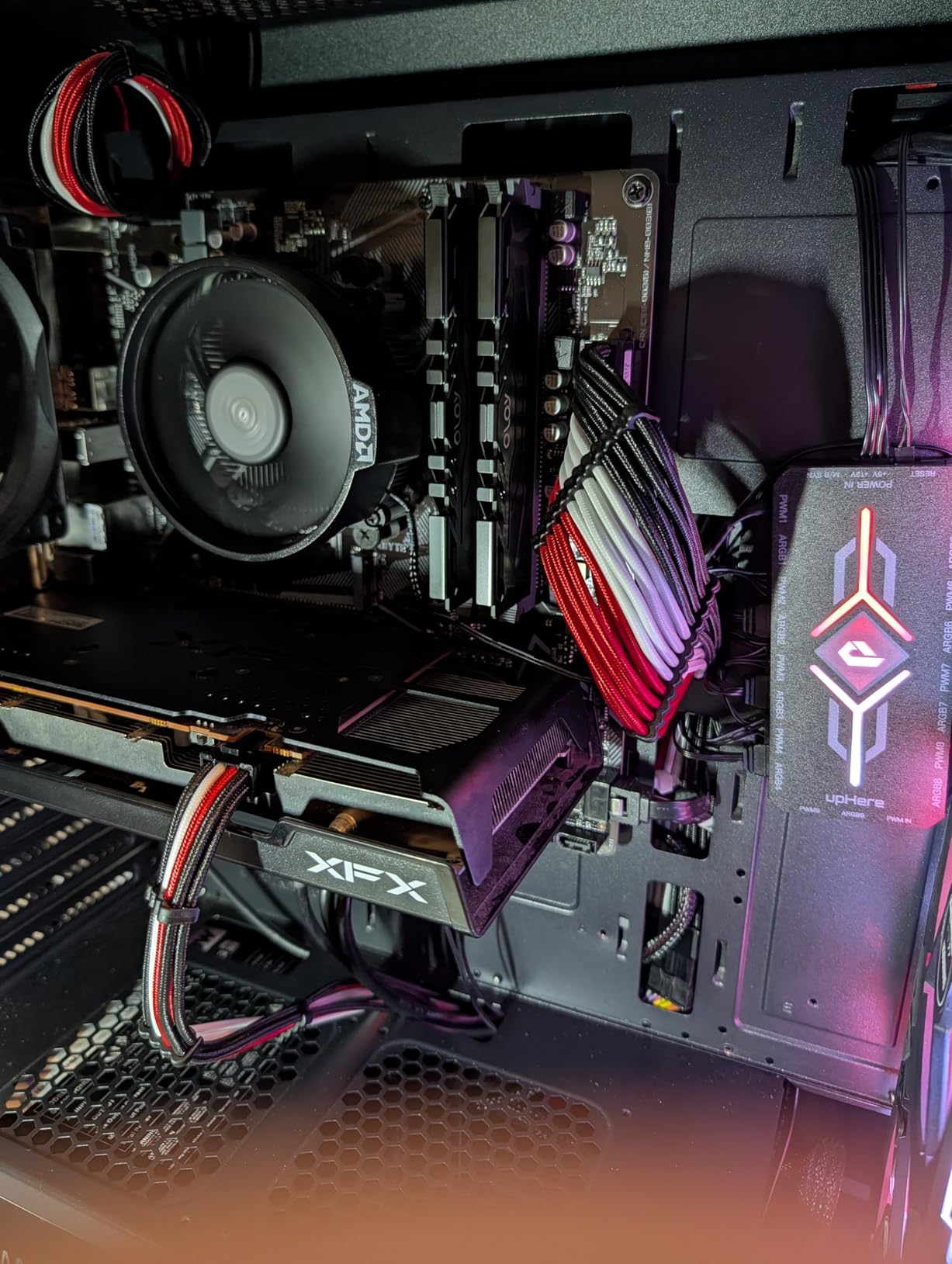

8. upHere PWM and 5V ARGB Magnetic Fan Hub – Best for Flexible Placement
- Manages nine PWM fans and 5V ARGB devices from one hub
- Built-in magnets for repositioning inside the case
- Front-facing RGB panel on the hub syncs with the ARGB chain
- SATA power holds stable output with every device connected
- Complete kit includes remote
- SATA cable
- PWM and ARGB cables plus a sync cable
- Available only in black and white variants
- Remote lighting is separate from motherboard RGB software so effects can conflict
- Fan speed depends on the motherboard header and RPM readout through the hub is limited
9 PWM + ARGB
Remote included
Front RGB panel
SATA powered
The upHere PWM and 5V ARGB Magnetic Fan Hub is the rare combination of nine fan ports, a remote, and a complete kit in the box. Most hubs force a choice between capacity and standalone lighting control, and this one does not.
It manages nine PWM fans plus 5V ARGB devices from one compact body, draws from SATA, and adds a front-facing RGB panel of its own that syncs with the ARGB chain. That panel is a small touch that reads well in a glass-side case because it gives the hub its own glow instead of looking like a black brick.
Ratings sit at 4.6 stars from 268 reviews with 77 percent five-star feedback. Owners highlight the bundled remote, the magnetic mount, and the cleaner cable run the front panel allows.
Everything you need is included: remote, SATA cable, PWM and ARGB cables, and a sync cable, so nothing is missing at the last step of a build. Mounting is via built-in magnets that hold on any iron surface inside the case, and it is listed for full towers with Extended ATX, Mini ITX and Micro ATX boards.
Two caveats. Fan speed control depends entirely on the motherboard header, and RPM readout through the hub is limited, so treat it as a port expander with lighting. And because the remote handles its own lighting, remote-controlled effects can conflict with whatever your motherboard software is doing on the same chain.
Why the magnet matters in practice?
Built-in magnets mean you can fix the cable runs first and place the hub afterwards, which avoids the common mistake of sticking a hub down and then discovering your fan cables will not reach.
For a case with a magnetic drive cage or steel panel behind the tray, this is the cleanest install in the roundup, with no adhesive residue and no screws.
What you give up?
Colourway choice is limited to black and white. If your build theme is anything else, this is not the hub for it.
Decide in advance whether lighting comes from the remote or from the board. Trying to run both on one chain is the fastest way to get flickering, and the fix is to disable one of them in BIOS before first boot.
9. Thermalright ARGB and Fan HUB X12 IR Black – Most Versatile for Twelve-Port Builds
- Highest port count in this roundup at 12 fan and ARGB connections
- IR remote switches lighting modes with no software installed
- Can hand lighting to the motherboard or run it from the hub itself
- Linear ARGB light bar on the top surface doubles as a status indicator
- Known-brand build quality available in black and white
- Some owners report ARGB flicker past roughly six fans on motherboard control
- RPM sensors are not read by fan control software so fans sit at a fixed speed
- Chunky 108x50x21mm body may not fit behind smaller boards
- Only the red-port fan reports speed
- 12V 4-pin RGB is not supported
12 fan + ARGB ports
IR remote
108x50x21mm
SATA power
When a case needs twelve fans, a six-port hub means two boxes. The Thermalright ARGB and Fan HUB X12 IR Black handles twelve fan connections plus twelve ARGB connections in one unit, with 4-pin and 3-pin ports on both sides.
The IR remote switches lighting modes with no software installed, and the hub can either hand lighting control to the motherboard or run effects from its own controller. A linear ARGB light bar across the top surface gives a visible indicator, which is genuinely useful in a dark case.
It is also a known brand at a budget price point, rated 4.4 stars from 163 reviews with 70 percent five-star feedback. The listing calls out 108 by 50 by 21mm dimensions, plastic construction, black colour and 500mm cable length.
The honest drawback is capacity versus stability. Several owners report ARGB instability and flicker past roughly six connected fans when lighting is controlled from the motherboard, and RPM sensors in the PWM ports are not read by fan control software, leaving fans at a fixed speed in those tools.
Because of the PWM motherboard IC reading limitation, only the single fan plugged into the red port has its speed recognised. That is a design constraint shared by most hubs here, but on a twelve-port unit it matters more, because a great many fans end up outside your monitoring.
When twelve ports is the right answer?
Large full towers with a triple radiator, a populated rear exhaust, and three top exhausts are the realistic use case. Two 6-port hubs means two cable runs across the same backplate space, and this keeps it to one.
If you want standalone lighting control, the bundled remote removes the need for any RGB software, which is useful on builds where the board has no ARGB header at all.
When to pick a smaller hub instead?
If you plan to run the lighting from motherboard software, the flicker reports past six fans are the deciding factor, and an 8-port or 9-port hub keeps you inside the range where stability holds up better.
The body is also chunky for a 108 by 50 by 21mm unit, and it may not clear the space behind a compact mATX or Mini ITX board. The remote feels cheap and offers no per-channel colour fine-tuning, so treat it as a mode switch rather than a control surface.
10. Thermalright 5V 3-Pin Micro ARGB Controller – Best for Tight Spaces
- Compact 0.79 inch cube at 32 g hides behind any motherboard tray
- SATA direct supply means no motherboard 5V ARGB header is needed
- Three onboard buttons cycle five brightness levels
- colour modes and five effect speeds
- Aluminium body with only 5 percent one-star feedback
- Lighting only with no PWM or fan speed control
- Onboard button control instead of a remote or software
- 5V 3-pin ARGB only so 12V 4-pin RGB is not compatible
- Buttons can be fiddly to reach once the hub is mounted
5V 3-pin ARGB
SATA direct supply
0.79 inch cube
32 g
Sometimes the whole problem is that a small-form-factor case has no room for a hub and no 5V ARGB header on the board. The Thermalright 5V 3-Pin Micro ARGB Controller solves exactly that, and nothing more.
It is a 0.79 inch cube weighing 32 g with an aluminium body, powered directly from SATA, so it needs no motherboard lighting header. The three onboard buttons do the work: B cycles five brightness levels, M cycles static and dynamic colour modes including rainbow, and S sets five effect speeds.
It rates 4.6 stars from 155 reviews with 77 percent five-star feedback and only about 5 percent one-star, which is a strong reliability signal for a small part. Feedback centres on the tiny footprint, SATA self-powering and simple button mode cycling.
Where this micro controller makes sense?
Compact builds, ITX cases and any chassis where cable routing space is the constraint. At 32 g and less than an inch across, it disappears into a corner behind the tray or under a PSU shroud.
It is also the answer for older boards with no ARGB header, since SATA power alone runs your lighting. If your fans already have 5V 3-pin connectors, a handful of these devices get a whole system synced without touching the motherboard.
Why it is a lighting part, not a fan controller?
There is no PWM or fan speed handling at all, and only 5V 3-pin ARGB is supported, so 12V 4-pin RGB lights cannot be connected. Your fan curves stay entirely on the motherboard.
Control is via three small onboard buttons rather than a remote or software, and those buttons are awkward to reach after mounting in a tight case. Choose it for space savings, not for flexibility.
How to Choose a Fan Controller for an RGB Build?
A splitter, a hub and a controller are three different things
A splitter is the simplest device: one header becomes two or more, with no added power and no control. A hub is a splitter that also injects SATA power and multiplies the lighting ports. A controller goes further, adding its own lighting processor, buttons, a remote, or software integration for fan curves and per-channel colour. Buyers who blur these terms end up with a splitter and wonder why fan speeds will not change.
Count the channels you actually need
Add up your fans, light bars, strips, AIO pumps, and any RGB GPU or PSU cables, then divide by the number of ports on the hub you are considering. Six-port hubs suit standard mid-towers, 8 and 9-port hubs cover most enthusiast cases, and 12-port hubs are for triple-radiator full towers. Buy one tier up from your current count so the next fan you add does not force another hub.
Understand the 1A header limit
Every motherboard fan header is rated for roughly 1A, or 12W. Three high-draw fans on one header can exceed that, which shows up as a fan that will not spin up, random resets under load, or an entry in the event log blaming overvoltage on your 12V rail. A SATA-powered hub removes the fans from that budget entirely, which is the single strongest reason to add one beyond simple cable tidiness.
Choose your control method before you buy
Software-controlled hubs like the NZXT, ASUS TUF and CORSAIR Commander Duo hand everything to an app and suit builders already inside one ecosystem. Remote-controlled hubs like the JAZZCOOLING kit and the Thermalright X12 IR suit people who want to change effects without opening software. Passive hubs controlled by the motherboard suit builds where the board’s RGB app already does the job.
Whatever you pick, run only one RGB application. Builders on r/buildapc repeatedly hit the same conflict: SignalRGB asking users to uninstall other RGB software, which on a multi-brand build is a genuine obstacle. Disable the board’s own lighting in BIOS before first boot and the fight stops.
Check PWM and DC support, and RPM reporting
Almost every hub here passes PWM through to the motherboard header, which is fine. A few report pass-through quirks where fans sit at a fixed duty cycle, so test your specific fan and hub combination early. Expect only the fan in the red port to report RPM to the motherboard, because the PWM controller chip reads a single representative signal, and treat missing RPM data as normal rather than defective.
Mind the mounting and cable route
Magnetic hubs let you position the unit after routing cables, which is far less frustrating than adhesive. Check the dimensions against the gap behind your motherboard tray first, since the micro controller here is 0.79 inches across while the ASUS TUF hub is nearly 7 inches long. SATA cables are not always included, so confirm what is in the box before your build is closed up.
Do You Even Need a Fan Controller?
If you are running three to five fans and have a free header for each, you do not. The free Fan Control application handles custom fan curves, per-fan RPM graphs and temperature-based control entirely in software, using the headers you already have, and it costs nothing.
Where hardware becomes necessary is port count and lighting. The moment your fan count outgrows your headers, or you want lighting control independent of your board, a hub is the cheapest fix. TechPowerUp forum consensus is that ARGB headers appear on higher-spec boards, and checking your board’s manual for header count and amperage takes two minutes.
Our rule of thumb: under five fans with spare headers, use software. Six fans or more, or any light bar plus fans, use a hub.
Frequently Asked Questions
What are the best RGB controllers?
For most RGB builds the best fan controllers combine several 5V 3-pin ARGB ports, several 4-pin PWM ports and SATA power so the motherboard headers are not overloaded. The NZXT RGB and Fan Controller is the strongest all-round option with six lighting channels and support for up to nine PWM fans. The ASUS TUF Gaming ARGB PWM Fan Hub suits Aura Sync systems, and the CORSAIR Commander Duo is the pick when you want software fan curves with temperature probes.
What is the best software to control fan RGB?
If you already run one RGB suite, stay inside it. Armoury Crate handles Aura Sync hardware, iCUE handles Corsair devices, and NZXT CAM handles NZXT controllers and accessories. For mixed-brand builds, SignalRGB offers the widest device support and per-device colour control, while OpenRGB is the free open-source alternative. Run only one of these at a time, because two RGB applications fighting over the same lighting causes flickering and desync.
Is SignalRGB or OpenRGB better?
SignalRGB has a larger device database, a polished interface and per-device colour assignment, but it is paid and it asks you to uninstall competing RGB software. OpenRGB is free and open source, supports a very wide range of ARGB devices, and gives you raw channel control. For most builders SignalRGB is faster to set up, while OpenRGB wins when you want zero cost or need a device SignalRGB has not catalogued yet.
Is 10 fans in a PC overkill?
No. Ten fans is a normal count for a modern airflow-focused case, especially a positive-pressure or triple-radiator build. What matters is matching the fan count to the intake and exhaust layout so you are not fighting your own airflow. Ten fans need at least a 9 or 12-port hub, and a SATA-powered one, because no motherboard header is rated to power that many fans on its own.
What happens if I plug 5V ARGB into a 12V RGB header?
The 5V 3-pin ARGB port and the 12V 4-pin RGB header are not interchangeable. Sending 12V into a 5V ARGB port will destroy the LEDs on the connected device and usually the hub controller as well, and the reverse can damage the board header. Identify the connector before buying: ARGB uses three pins and carries 5V, while 12V RGB uses four pins and carries 12V. Most hubs in this roundup support 5V 3-pin ARGB only.
Do I need a separate controller if my motherboard has ARGB headers?
Usually not for speed. With three to five fans and a spare header each, the free Fan Control application gives you custom curves and per-fan RPM graphs without hardware. You do need a hub once your fan count outgrows your headers, if you want lighting control independent of the board, or if you are adding light bars, strips and RGB cables. SATA-powered hubs also protect your headers from the 1A per-header limit.
Final Verdict: The Best Fan Controller for RGB Builds
The NZXT RGB and Fan Controller is our default pick for the best fan controllers for rgb builds, because it is the only unit here that adds six lighting channels, drives up to nine PWM fans, and stays inside one software suite without asking for a second one. Install iCUE, CAM or Aura Sync as your single lighting authority before first boot and it behaves perfectly.
Budget builds should take the Thermalright 8-port hub for pure header expansion, tight cases should take the micro controller, and anyone who wants fan curves driven by real temperature probes should look at the CORSAIR Commander Duo. Check your ARGB standard before anything else, and enjoy the build.
