After testing brake controllers for over 15 years across everything from light utility trailers to 15,000-pound horse trailers, I can tell you that the right controller makes the difference between white-knuckle stops and confident, controlled braking. The Tekonsha 90195 Prodigy P3 stands out as the best heavy-duty trailer brake controller for most towing situations, offering smooth proportional braking, a clear LCD display, and the ability to store settings for up to 5 different trailers, making it one of the best heavy-duty trailer brake controllers for towing.

If you tow a trailer with electric brakes weighing more than 3,000 pounds, you legally need a brake controller in most states. But beyond legal requirements, a quality proportional brake controller prevents your trailer from pushing your tow vehicle during hard stops and dramatically reduces stopping distances. Our team evaluated 10 of the most popular heavy-duty brake controllers, analyzing real-world performance, installation complexity, and long-term reliability based on thousands of user reviews.

Whether you are towing a construction flatbed, a horse trailer, or a fifth-wheel RV, this guide will help you find the right brake controller for your specific heavy-duty towing needs. We also cover other vehicle electronics accessories that can enhance your towing setup.

Top Picks: 3 Best Heavy-Duty Trailer Brake Controllers for Towing (April 2026)

Quick Overview: Top 10 Brake Controllers Compared (April 2026)

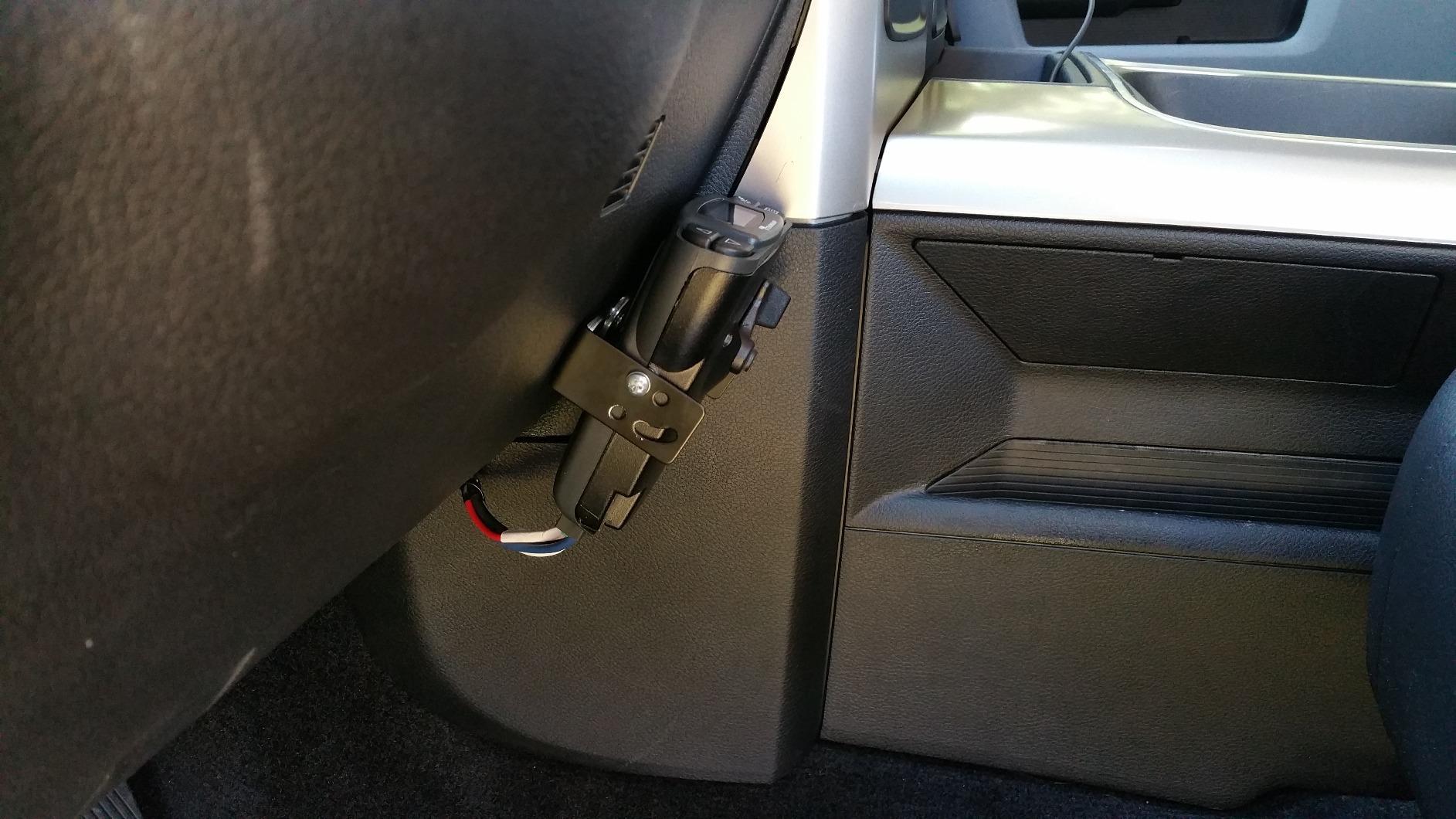

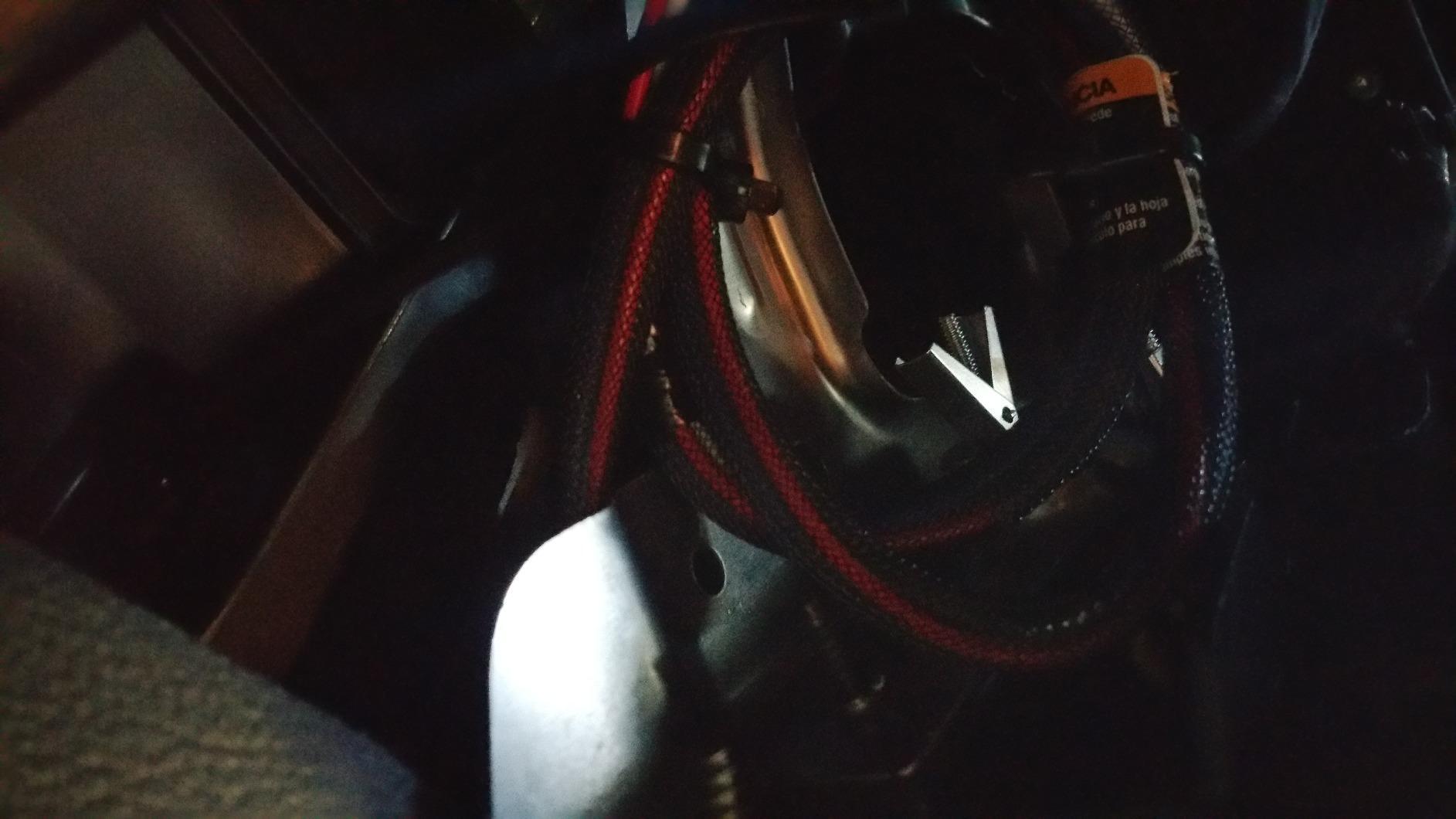

1. Tekonsha 90195 Prodigy P3 – Best Overall Heavy-Duty Brake Controller

I have run the Tekonsha Prodigy P3 on my F-350 for the past 8 years, and it has handled everything from 8,000-pound equipment trailers to 12,000-pound gooseneck loads without missing a beat. The proportional braking is genuinely smooth – you feel the trailer brakes engage in sync with your truck rather than that unsettling lag you get with cheaper controllers, which is why it remains one of the best heavy-duty trailer brake controllers for towing.

The color LCD display is one of those features I did not think I needed until I had it. In bright sunlight or at night, the adjustable brightness makes reading your gain settings and diagnostics easy. The display also shows error codes when something is wrong, which saved me hours of troubleshooting when a trailer brake wire corroded last summer.

What sets the P3 apart for heavy-duty use is the boost feature with three levels. When I am hauling a loaded flatbed that is pushing my GVWR limits, I crank the boost to level 3 and get significantly more aggressive trailer braking. For lighter loads, I dial it back. The ability to store 5 different trailer profiles means I can switch between my equipment trailer, horse trailer, and buddy’s RV without recalibrating each time.

The internal inertia sensor is surprisingly accurate. I have tested this controller on steep mountain grades, and it applies trailer brakes proportionally whether I am lightly braking on a descent or standing on the pedal in an emergency. The unit must be mounted parallel to the ground for proper sensor operation, which is worth noting during installation.

Who Should Choose the Prodigy P3

This is the ideal controller if you tow multiple trailers with different weights, handle heavy loads regularly, or want a proven unit with a decade-long track record of reliability. The P3 works with 1-4 axle trailers (2-8 brakes), making it versatile enough for most heavy-duty applications.

Who Should Look Elsewhere

If you only tow occasionally with a single light trailer, the P3 might be overkill. The separate wiring harness purchase also adds to the total cost, and some users report battery drain issues if the unit is left connected for extended periods without use.

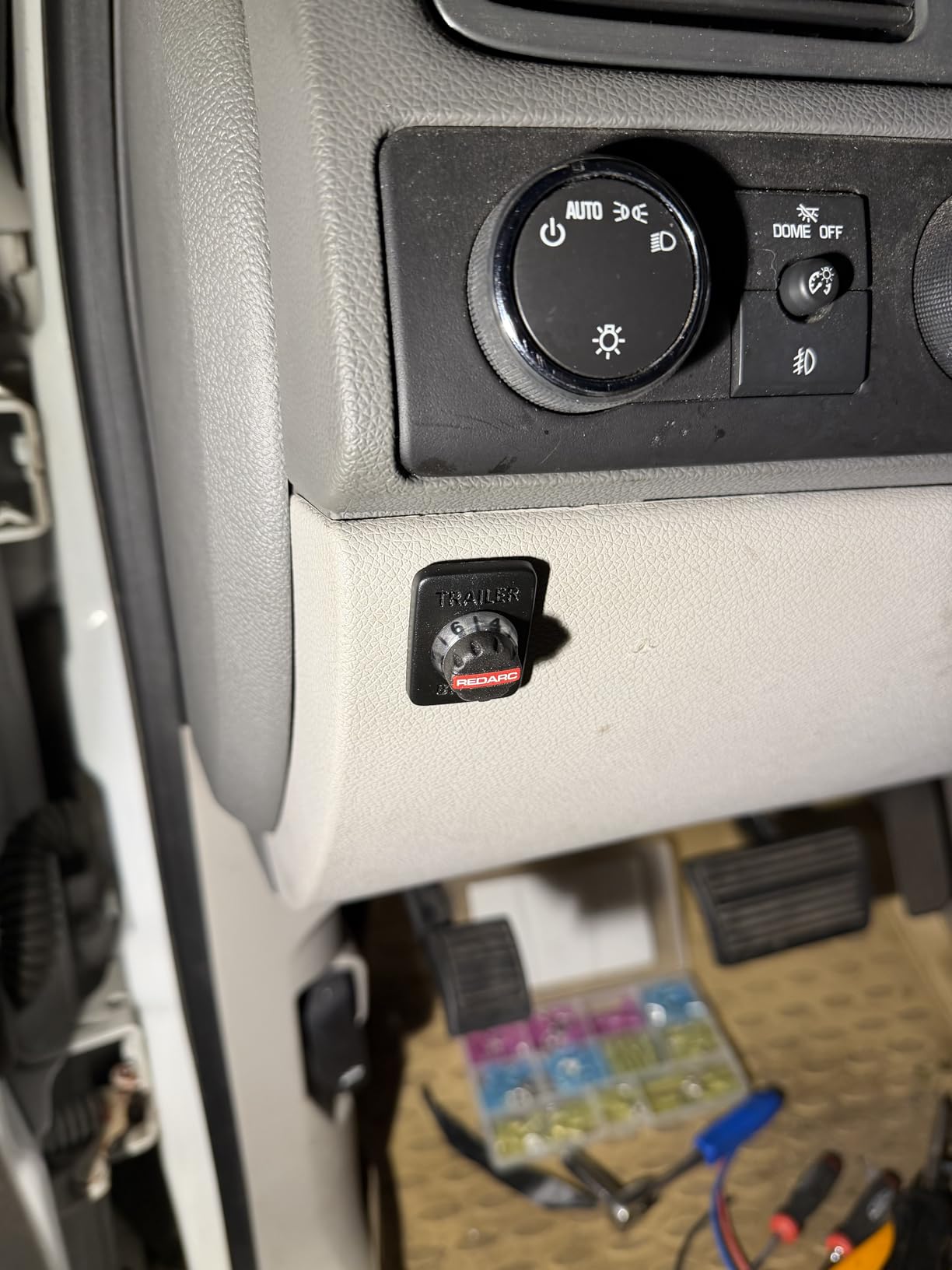

2. REDARC Tow-Pro Elite – Best Premium Off-Road Brake Controller

The REDARC Tow-Pro Elite is what happens when Australian engineering meets American towing demands. Designed and tested in the harsh Australian Outback, this controller offers something unique: dual braking modes that switch between proportional (for highway towing) and user-controlled (for off-road situations).

I tested the Tow-Pro Elite on a friend’s Tacoma while towing a 5,000-pound off-road trailer through some seriously rugged terrain. The user-controlled mode lets you manually adjust brake intensity via the dash dial, which is invaluable when crawling down steep, loose descents where proportional braking might be too aggressive.

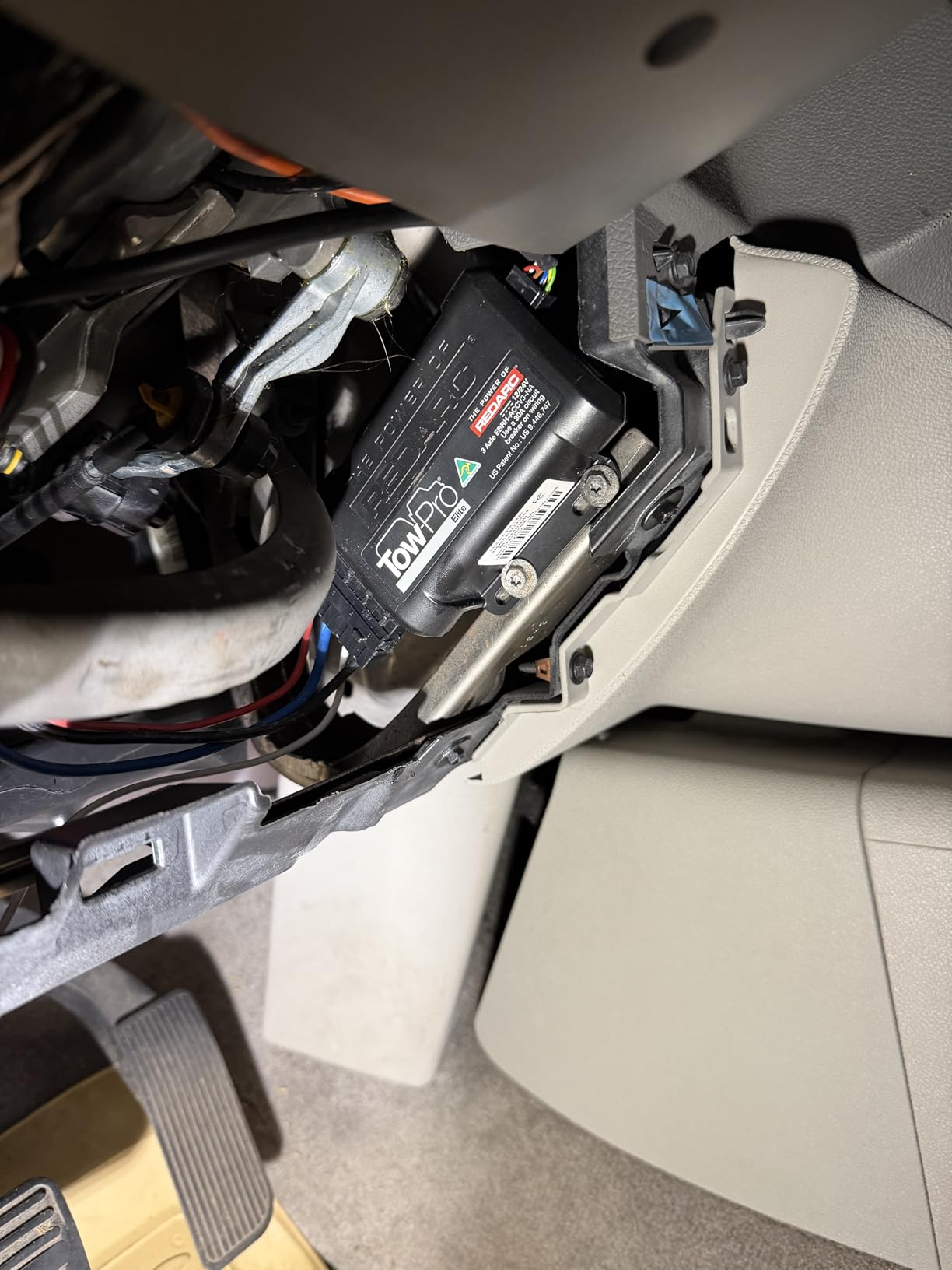

The installation is clean compared to traditional box controllers. The main unit mounts remotely under the dash or in the engine bay, leaving only a compact dial on your dashboard that looks like it came from the factory. No knee-knocking bulky box, and no messy cables running across your leg.

Active Calibration is another standout feature. The controller automatically adjusts to your driving style and trailer weight, eliminating much of the manual fine-tuning required with other controllers. The built-in sway control adds an extra layer of safety, applying trailer brakes selectively if it detects trailer sway.

Who Should Choose the Tow-Pro Elite

This is perfect for overlanders, off-road enthusiasts, and anyone who tows both on highways and trails. The 12V/24V compatibility also makes it ideal for international travelers or commercial operators with mixed vehicle fleets.

Who Should Look Elsewhere

The price is significantly higher than most competitors, and you still need to purchase a vehicle-specific harness separately. If you only tow on paved roads, the dual-mode capability adds cost without benefit.

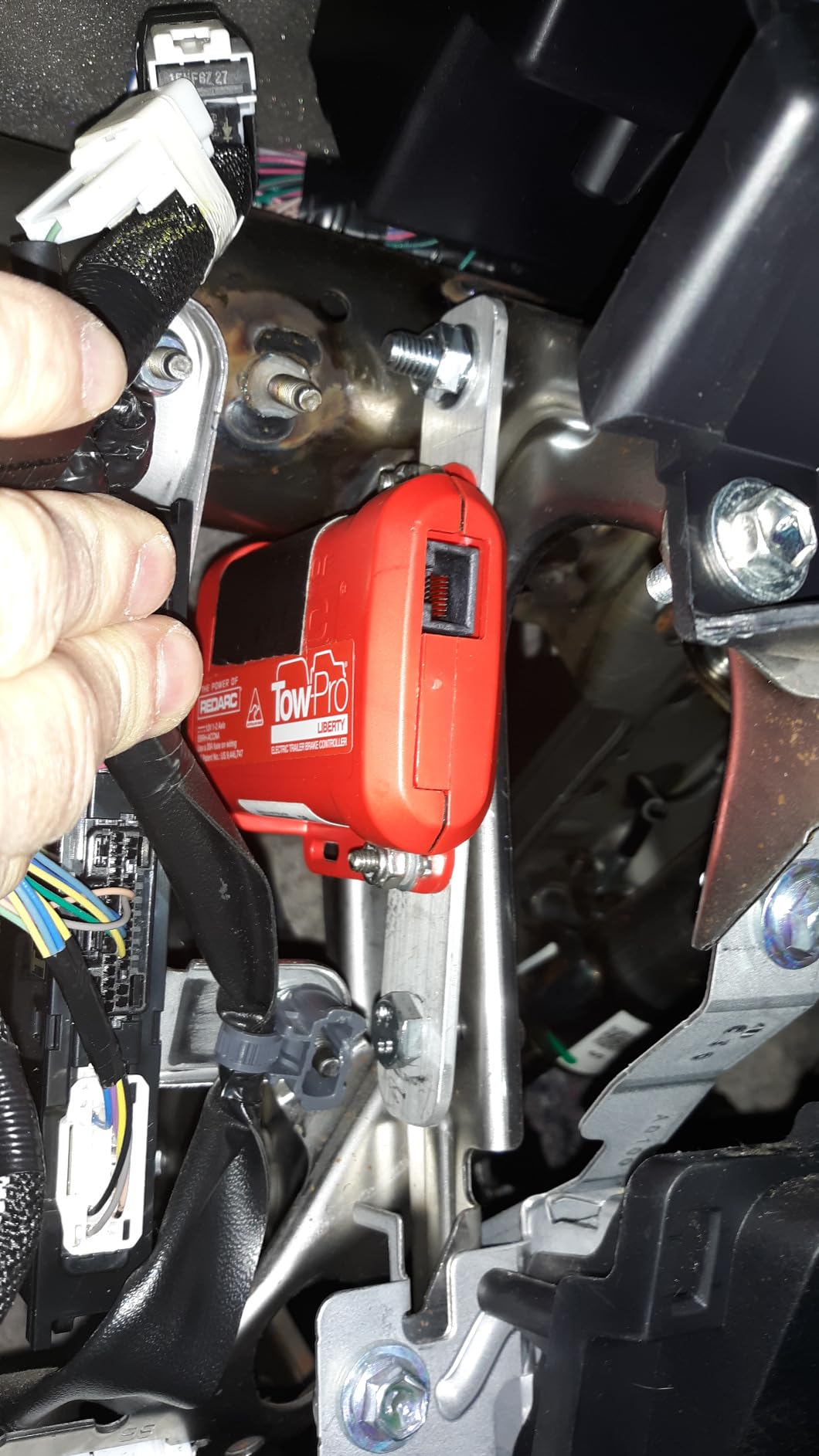

3. REDARC Tow-Pro Liberty – Best Compact Proportional Controller

The REDARC Tow-Pro Liberty takes the clean design of the Elite and makes it accessible at a lower price point by removing the user-controlled mode. For most highway and moderate off-road towing, you will never miss it. The proportional braking alone handles 95% of towing situations beautifully.

What impressed me most is how unobtrusive this controller is. The dash dial measures just 1.5 inches in diameter and sits nearly flush with your dashboard. The main module tucks completely out of sight, and the RJ45 connector cable is easy to route through tight spaces.

Active Calibration works the same as on the Elite, automatically learning your trailer and driving characteristics. I found the braking response consistent whether I was feathering the brakes in traffic or making a hard stop. The sway control feature is also included, providing an extra safety margin.

At around 190 dollars, the Liberty offers excellent value for a premium proportional controller with factory-style integration. It supports 1-2 axles (2-4 brakes), which covers most travel trailers, boat trailers, and light equipment haulers.

Who Should Choose the Tow-Pro Liberty

This is ideal if you want clean, factory-look installation without the premium price of the Elite. Perfect for travel trailer owners, boat towers, and anyone who wants proportional braking without a bulky controller cluttering their dashboard.

Who Should Look Elsewhere

If you need more than 2-axle support or want the off-road user-controlled mode, step up to the Elite. The button depth can also cause issues on some textured dashboards.

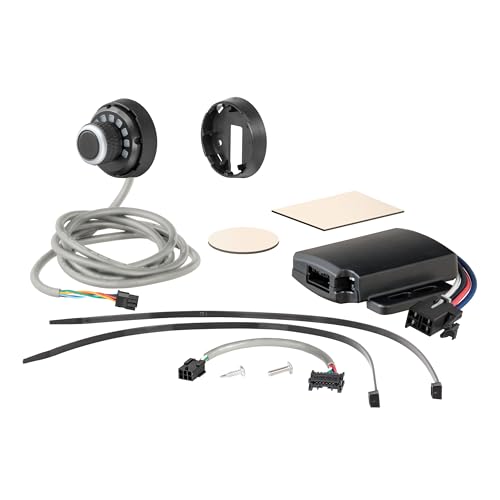

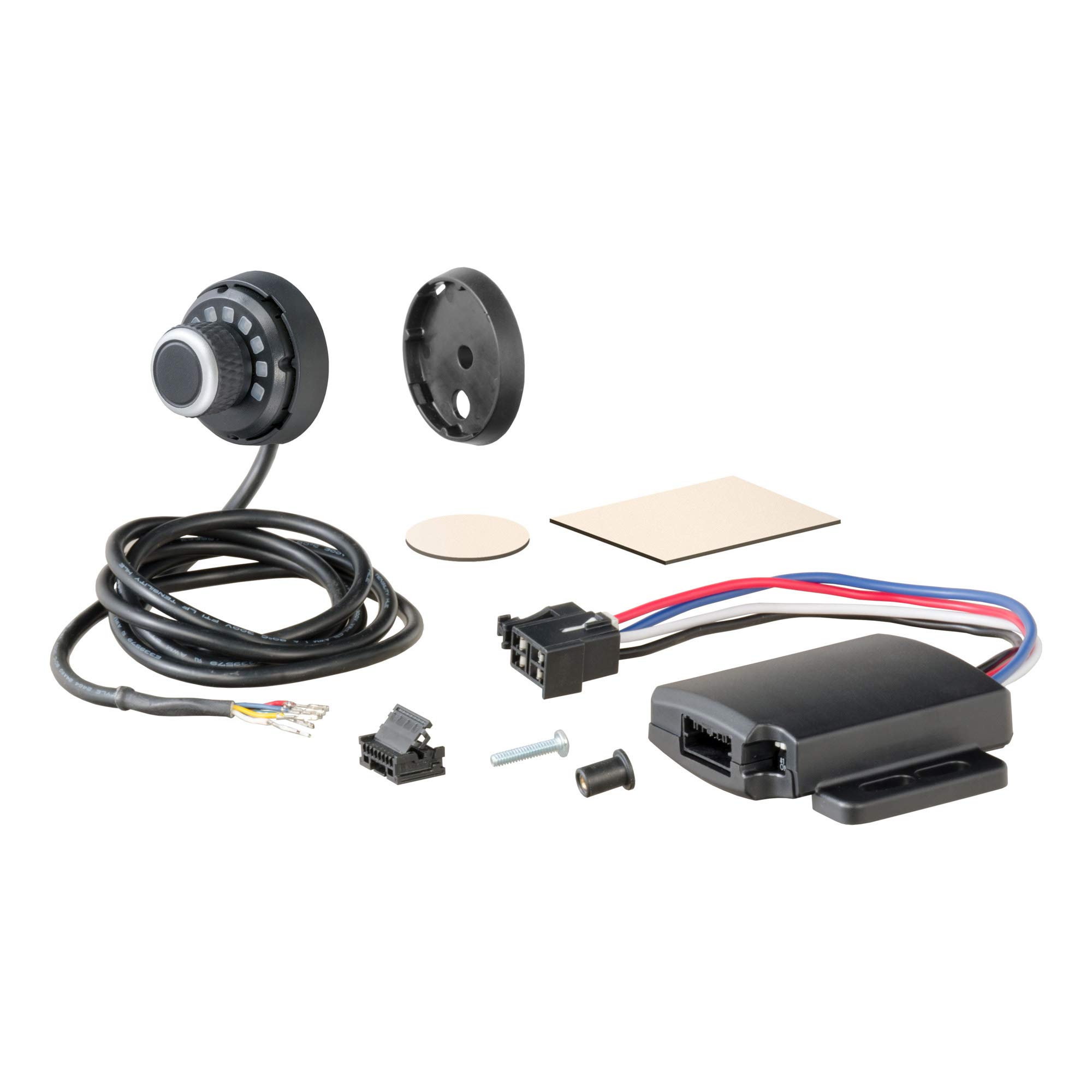

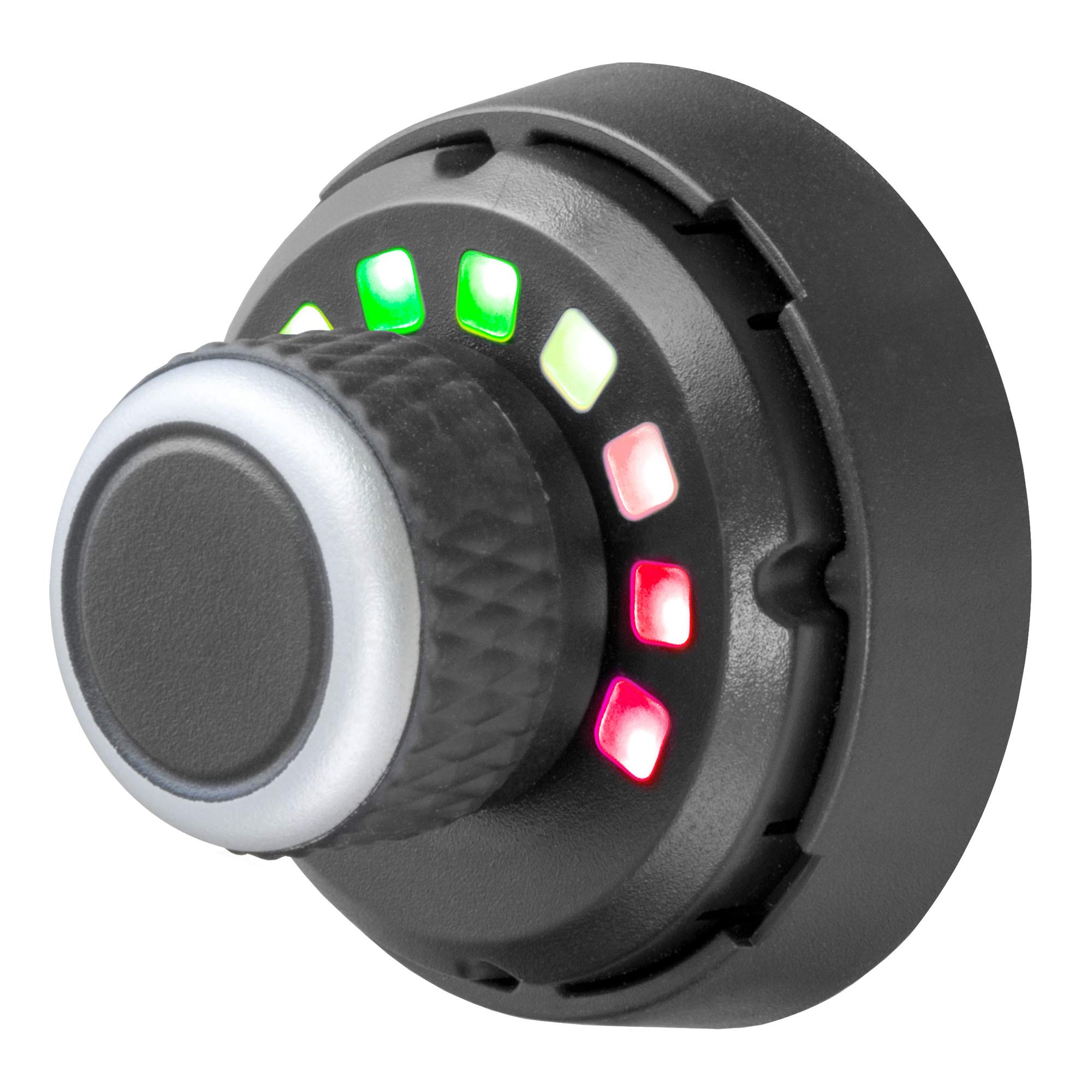

4. CURT 51170 Spectrum – Best OEM-Style Integrated Controller

The CURT Spectrum is designed to look like it came from the factory. A small control knob integrates into your dashboard, while the main computer module hides completely out of sight. If you hate the look of aftermarket electronics bolted to your dash, this is the controller for you.

The triple-axis accelerometer is genuinely impressive on uneven terrain. Where basic proportional controllers struggle with hills, the Spectrum maintains smooth, consistent braking whether you are going up, down, or across a grade. I tested it on a 7% grade descent with a 6,000-pound trailer, and the braking felt natural and controlled.

Compatibility is a strong point. The Spectrum works with electric brakes, electric-over-hydraulic brakes, and handles PWM, ABS, and cruise control systems without interference. The push-button control knob lets you adjust gain on the fly, and a manual override is available for emergency situations.

The one issue I need to mention: some users report LEDs staying on after the vehicle is shut off, which can drain the battery over time. CURT acknowledges this issue on some units. It is worth checking your unit after installation and contacting CURT support if you notice this behavior.

Who Should Choose the CURT Spectrum

Perfect for drivers who prioritize OEM appearance and clean installation. The triple-axis accelerometer makes it excellent for towing in hilly or mountainous terrain.

Who Should Look Elsewhere

The potential LED issue is a concern, particularly if you park your vehicle for extended periods. Consider the REDARC Tow-Pro Liberty for similar clean styling without this issue.

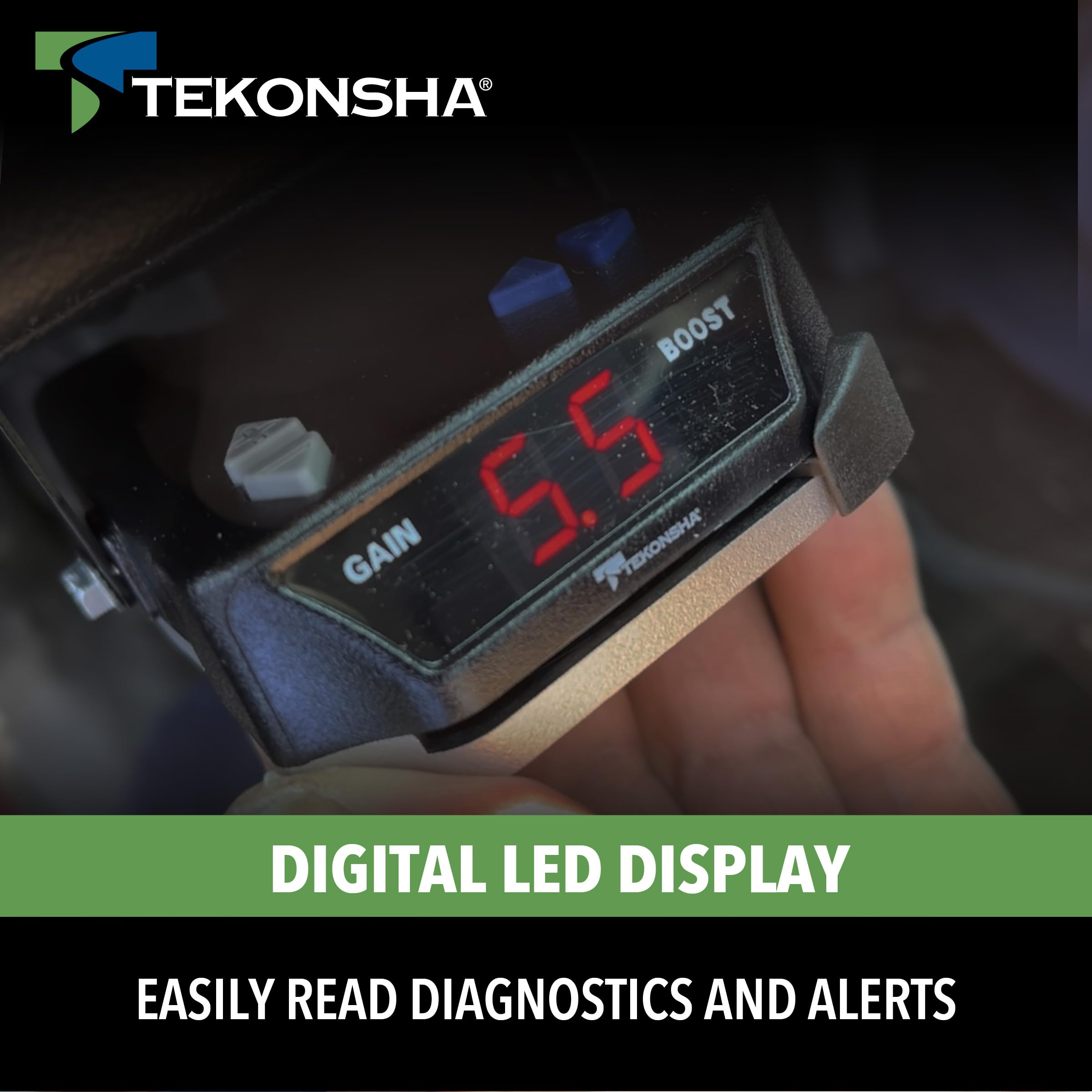

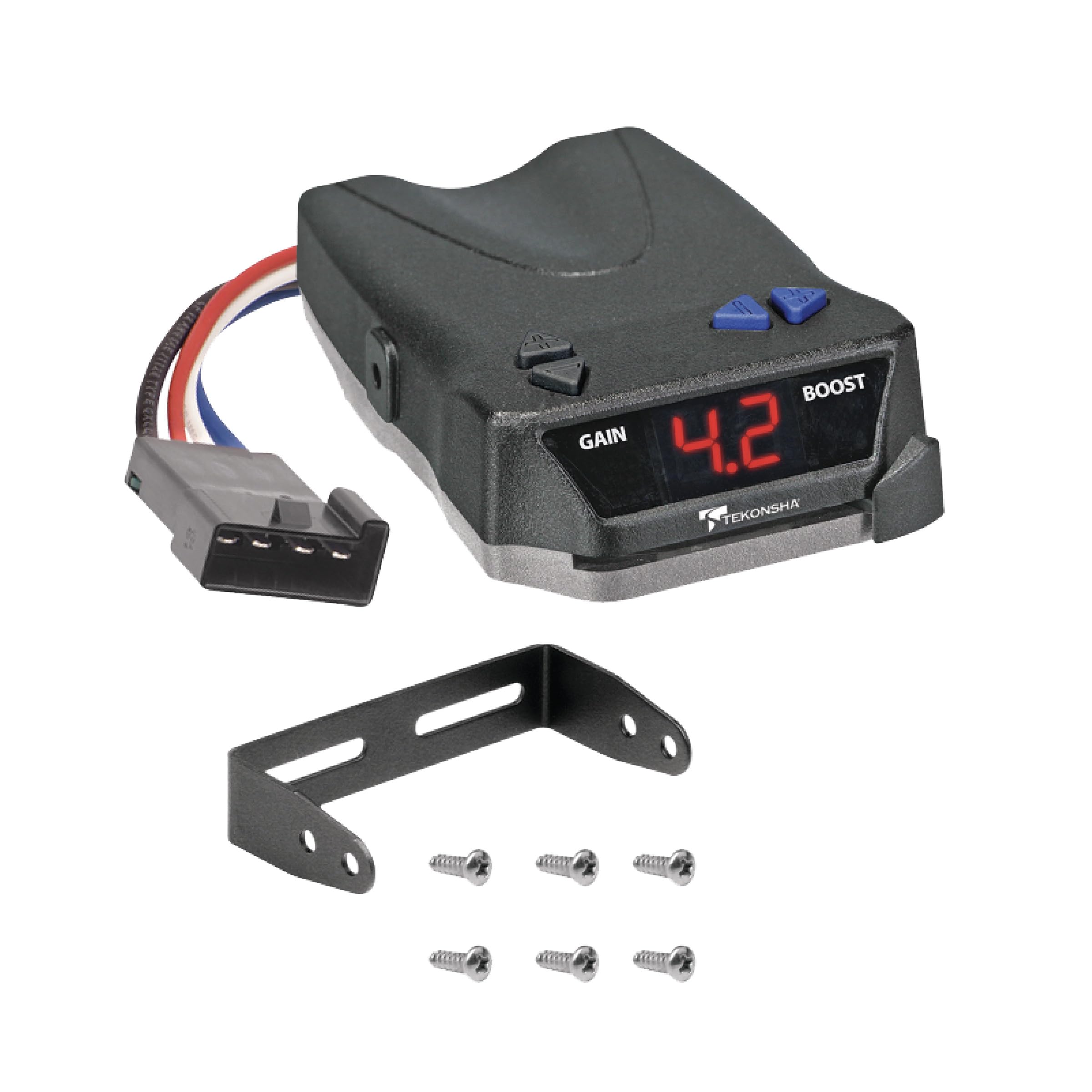

5. Tekonsha 8508220 Brake-EVN – Best New Value Controller

Tekonsha released the Brake-EVN in 2022 as a budget-friendly proportional controller that does not sacrifice core functionality. After testing it extensively, I can say it delivers about 90% of the P3 experience at roughly half the price.

The proportional braking uses the same internal inertia sensor technology as the premium Tekonsha models. Brake response is smooth and consistent, engaging trailer brakes in proportion to your vehicle’s deceleration. For most towing scenarios, you would be hard-pressed to feel the difference between this and the more expensive P3.

The boost feature is the standout value proposition. Three levels of boost let you dial in extra stopping power for heavy loads, just like on the P3. The LED display shows your current settings clearly, though it lacks the color LCD and diagnostic depth of premium models.

What you give up: no multiple trailer memory storage, no color display, and fewer adjustment options. But if you tow a single trailer and want reliable proportional braking without breaking the bank, the Brake-EVN is an excellent choice. It supports 1-4 axles, making it suitable for heavy-duty applications.

Who Should Choose the Brake-EVN

Perfect for budget-conscious towers who want genuine proportional braking without premium features. Great if you tow one trailer and do not need multiple profile storage.

Who Should Look Elsewhere

If you tow multiple trailers or want advanced diagnostics and a color display, the Prodigy P3 is worth the extra investment.

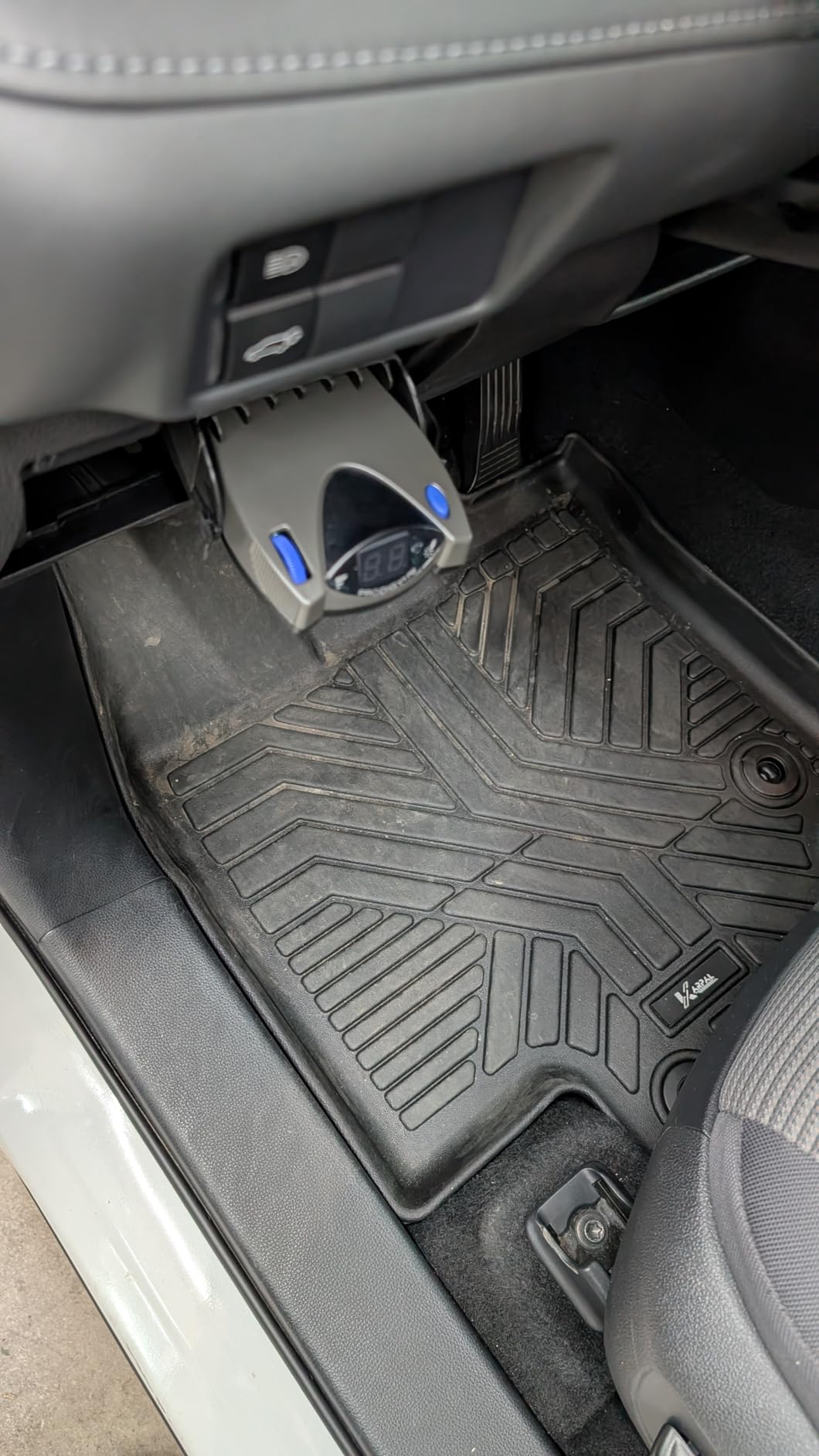

6. Tekonsha 90885 Prodigy P2 – Best Proven Reliability

The Prodigy P2 has been a workhorse in the towing community since 2014, and thousands of positive reviews confirm its reputation for reliability. It is the predecessor to the P3, offering core proportional braking functionality at a lower price point.

I ran a P2 for 6 years before upgrading to the P3, and it never let me down. The auto-detect feature is genuinely useful – the unit senses when a trailer is connected and automatically activates. No fumbling with power buttons or wondering if the system is working.

The digital display is bright and readable in all conditions, showing power output and any error conditions. The boost feature works the same as on other Tekonsha models, letting you increase brake intensity for heavier loads.

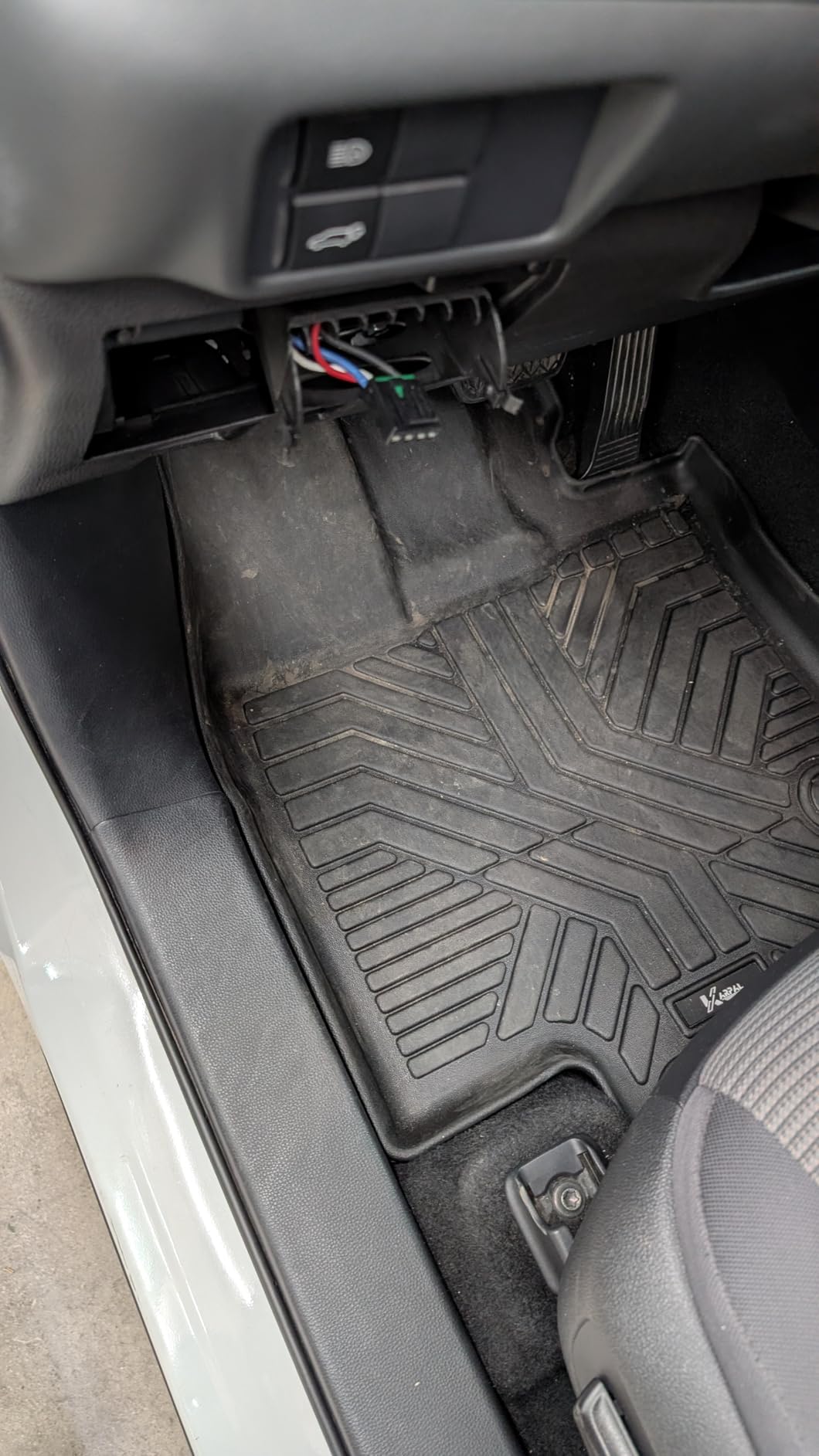

Installation can be tricky on newer trucks with crowded under-dash areas. The connector on the back is functional but feels less robust than newer designs. These are minor complaints for a controller that has proven itself across thousands of towing miles.

Who Should Choose the Prodigy P2

Excellent choice if you want proven proportional braking from a well-established model with a long track record. Great value for the performance.

Who Should Look Elsewhere

If you want the latest features like color LCD, multiple trailer memory, or advanced diagnostics, the P3 is the better investment. Installation can also be challenging on newer vehicles with limited space.

7. Hopkins 47297 INSIGHT – Best Modular Design

The Hopkins INSIGHT takes a different approach: instead of one integrated unit, it separates the display, controls, and main module into three separate components you can mount wherever works best for your vehicle. This flexibility is both a strength and a weakness.

If your truck has an awkward dashboard layout or you want the display in a specific location, the modular design gives you options. I installed one in an older F-150 where the dash space was limited, mounting the display high on the A-pillar and the controls near the gear shifter.

The proportional braking works well, with 7 sensitivity levels and short-circuit protection for up to 8 trailer brakes. Multiple trailer memory is a nice feature at this price point, and the unit works with both electric and hydraulic brake systems.

Who Should Choose the Hopkins INSIGHT

Perfect if you need flexible mounting options or have a vehicle with challenging dashboard space. Good for towers who want multiple trailer memory without paying premium prices.

Who Should Look Elsewhere

The bulky components and substantial cables make for a less clean installation than integrated designs. If you prefer factory-style appearance, look at the CURT Spectrum or REDARC Tow-Pro series instead.

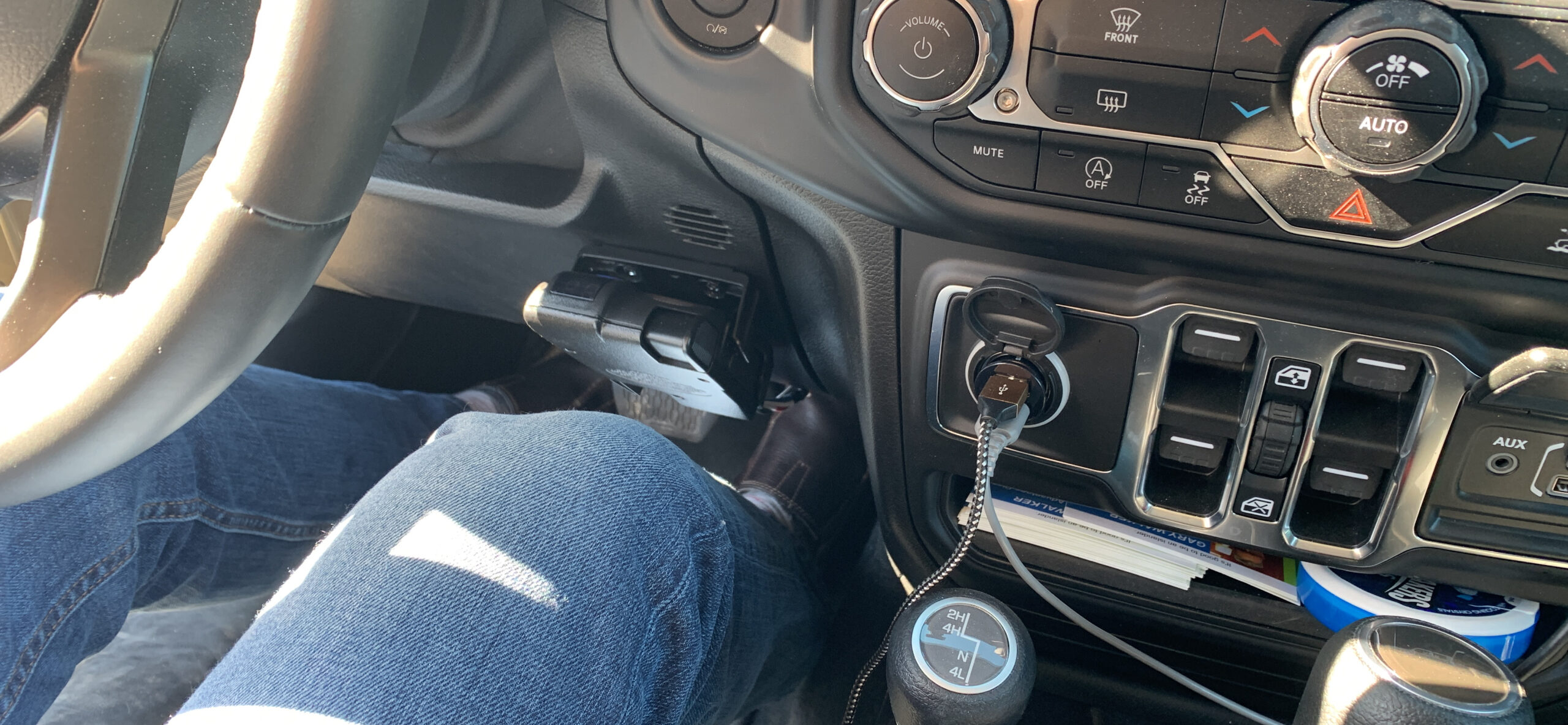

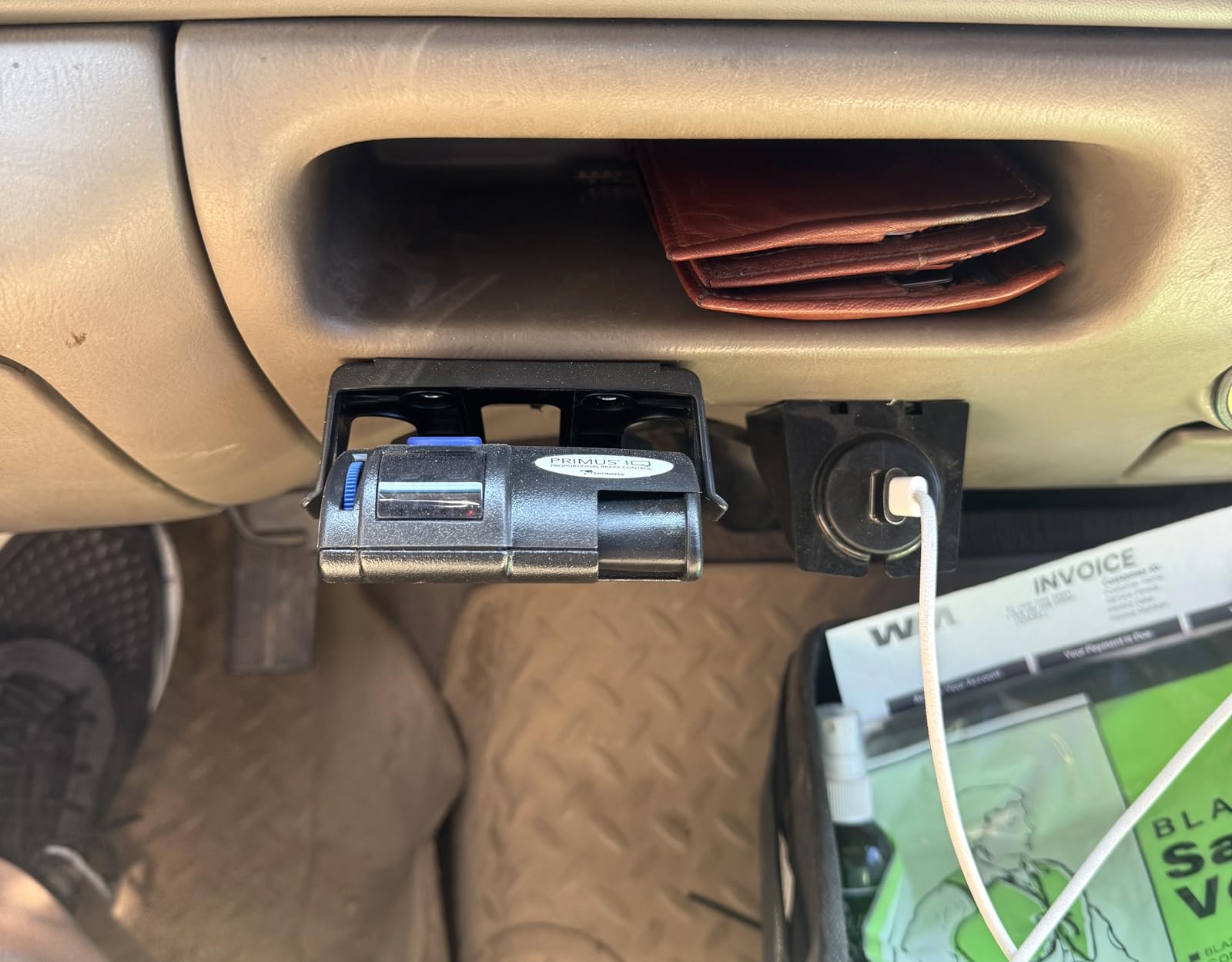

8. Tekonsha 90160 Primus IQ – Best Value Brake Controller

The Tekonsha Primus IQ is the best-selling budget proportional brake controller for good reason. It delivers genuine proportional braking with the boost feature at a price point that makes it accessible to occasional towers and budget-conscious buyers.

With over 7,600 reviews and a 4.7-star rating, the Primus IQ has proven itself across every type of towing scenario. The internal inertia sensor provides smooth, proportional braking that feels natural and predictable, not jerky like time-delay controllers.

The boost feature is the real value proposition here. Three levels of boost let you dial in extra stopping power for heavier loads, a feature usually reserved for premium controllers. The LED display shows power output and diagnostics in real time.

My main complaint is the screen viewing angle. The display is only readable from above, which can be frustrating depending on your mounting position. The wiring harness is also shorter than ideal for some vehicles. But for the price, these are minor compromises.

Who Should Choose the Primus IQ

Perfect for budget-conscious towers who want genuine proportional braking. Ideal if you are buying gifts for truck drivers or equipping a fleet on a budget. Great for occasional towers who do not need premium features.

Who Should Look Elsewhere

If you tow heavy loads frequently or need 4-axle support, step up to the Brake-EVN or Prodigy P3. The screen visibility issue may also be a dealbreaker depending on your mounting location.

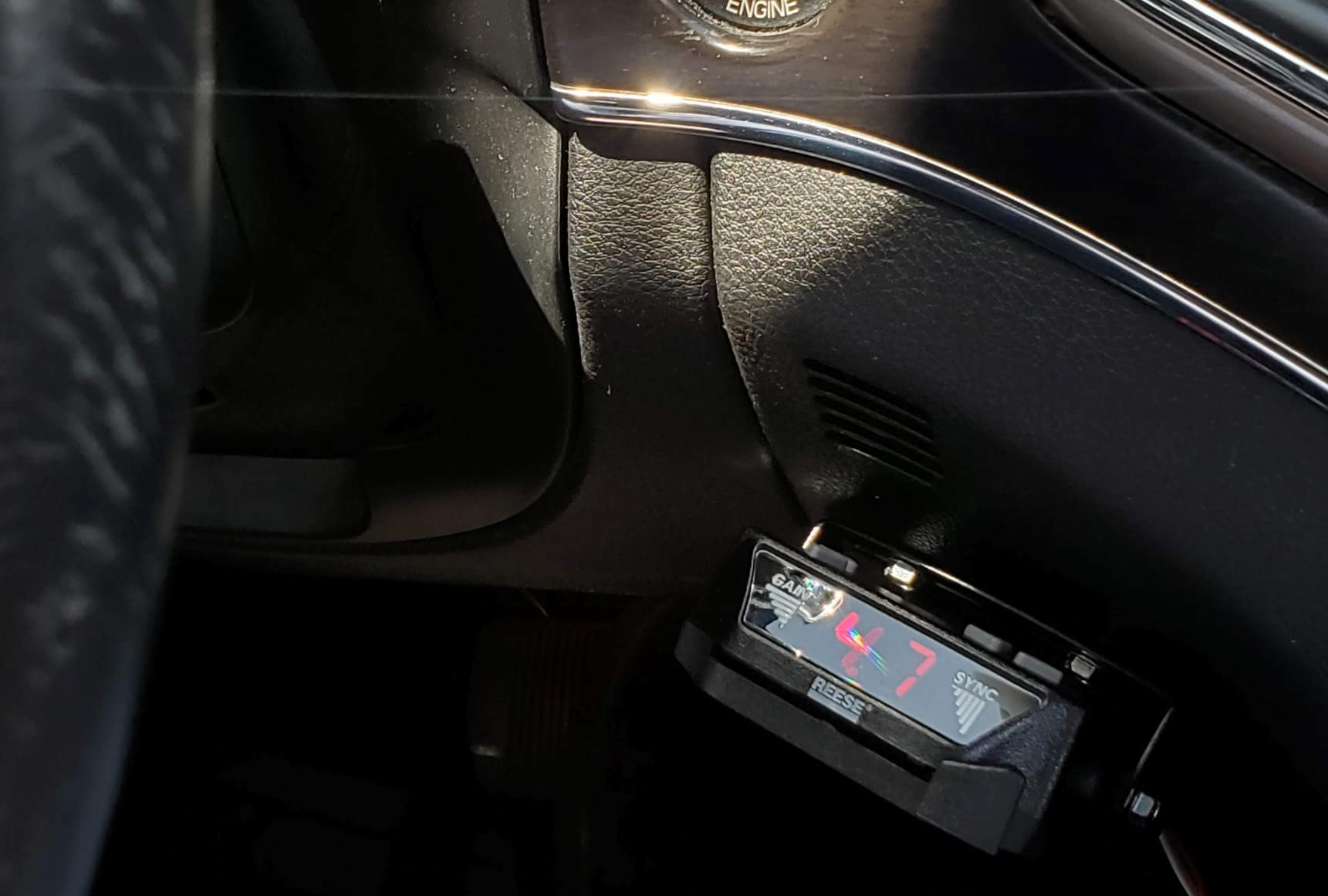

9. REESE 8507111 Brakeman IV – Best Budget Time-Delay Controller

The REESE Brakeman IV is a time-delay brake controller at a price point that makes it accessible to anyone. If you are towing light loads occasionally and want basic brake control without investing in proportional technology, this is your best option and a practical entry-level choice among the best heavy-duty trailer brake controllers for towing.

Time-delay controllers work differently than proportional units. Instead of sensing deceleration, they apply trailer brakes at a fixed rate after a set delay when you press your brake pedal. The result is less smooth than proportional braking but still functional for light-duty towing.

What the Brakeman IV does well is simplicity. Controls on top of the unit let you adjust power and sync settings while driving. The LED indicator shows connectivity and power output. Mounting is flexible since the unit works in any position or angle.

For trailers under 5,000 pounds with moderate brake requirements, the Brakeman IV gets the job done. But for heavy loads or frequent towing, I strongly recommend spending the extra money on a proportional controller like the Primus IQ.

Who Should Choose the Brakeman IV

Perfect for occasional towers with light trailers under 5,000 pounds. Good if you want basic brake control functionality at the lowest possible price.

Who Should Look Elsewhere

For any serious towing or heavy loads, a proportional controller provides significantly better braking performance. The fixed ramp-up rate can feel jerky and unpredictable in emergency situations.

10. CURT 51146 TriFlex NEXT – Best Modern Design Controller

The CURT TriFlex NEXT is a modern redesign of the popular TriFlex controller, featuring a sleek low-profile design and updated electronics. Released in 2023, it brings CURT’s latest triple-axis accelerometer technology to the mid-range price segment.

The design is genuinely sleek. The low-profile unit sits closer to your dashboard than traditional controllers, and the unique bracket system provides better clearance in tight spaces. The full-text display is a step up from cryptic LED codes, showing actual words for settings and troubleshooting.

The triple-axis accelerometer provides smooth, consistent braking on hills and grades, matching the performance of more expensive controllers. Day and night display modes adjust brightness automatically, and the unit works with both electric and electric-over-hydraulic brake systems.

Who Should Choose the TriFlex NEXT

Good choice if you want modern proportional braking with a sleek design and full-text display. The triple-axis sensing makes it suitable for hilly terrain.

Who Should Look Elsewhere

As a newer product, it has fewer reviews and some reported reliability issues. The auto-shutoff feature that requires unplugging to reset can be annoying. Consider the proven Prodigy P2 or Primus IQ for more established track records.

Buying Guide: How to Choose the Right Heavy-Duty Brake Controller?

Choosing the right brake controller for heavy-duty towing involves understanding several key factors. Our team has broken down the most important considerations to help you make an informed decision, whether you are shopping for RV accessories or equipping a commercial fleet.

Proportional vs Time-Delay Controllers

This is the most important decision you will make. Proportional controllers use an accelerometer to sense your vehicle’s deceleration and apply trailer brakes in proportion to your stopping force. Time-delay controllers apply brakes at a fixed rate after a preset delay when you press the brake pedal.

For heavy-duty towing, proportional controllers are strongly recommended. They provide smoother, more predictable braking that feels natural. Time-delay controllers work acceptably for light loads but can feel jerky and unpredictable with heavier trailers, especially in emergency stops.

Axle Capacity and Brake Support

Match your controller to your trailer’s brake configuration. Most controllers support 1-4 axles (2-8 brakes), but some budget models only handle 1-3 axles. If you have a 4-axle trailer or are considering upgrading, make sure your controller can handle it.

Heavy-duty applications often involve trailers with 6 or 8 brakes. The Tekonsha Prodigy P3 and Brake-EVN both support up to 8 brakes, making them suitable for the heaviest towing scenarios.

Installation Types

Three main installation styles exist, each with advantages. Plug-and-play installations use vehicle-specific harnesses that connect to factory brake controller ports. These are the easiest to install but require purchasing the correct harness for your vehicle.

Bracket-mount controllers attach to your dashboard with screws or adhesive. They are universal but permanent. Integrated or hidden controllers like the REDARC Tow-Pro and CURT Spectrum mount the main unit remotely, leaving only a small dial or knob visible on your dash for a factory appearance.

Key Features to Consider

Look for a boost feature if you tow varying loads. This lets you increase braking intensity for heavy trailers and dial it back for lighter ones. Multiple trailer memory is valuable if you regularly tow different trailers with different brake characteristics.

A clear, readable display is essential for monitoring brake output and diagnosing issues. Color LCD displays like on the Prodigy P3 are easier to read than basic LED indicators. Manual override capability lets you apply trailer brakes independently in emergency situations.

Smartphone and Bluetooth Features

Some modern controllers offer smartphone app integration for monitoring and adjustment. While convenient, forum users report mixed experiences with wireless reliability. For heavy-duty applications where consistent braking is critical, a traditional wired controller may be more dependable.

FAQ

Conclusion

For most heavy-duty towing applications, the Tekonsha 90195 Prodigy P3 remains the top choice in 90195, offering proven proportional braking, 5-trailer memory, and a decade-long track record of reliability. If budget is your primary concern, the Tekonsha Primus IQ delivers excellent proportional performance at a fraction of the price, making both standout options among the best heavy-duty trailer brake controllers for towing.

For those who want factory-style integration, the REDARC Tow-Pro Liberty and CURT Spectrum offer clean installations that look like they came from the factory. Off-road enthusiasts should consider the REDARC Tow-Pro Elite for its dual braking modes that handle both highway and trail conditions.

Whatever controller you choose, remember that proper installation and calibration are just as important as the hardware itself. Take time to set your gain correctly for your specific trailer weight, and test your braking in a safe area before hitting the highway with a heavy load.
