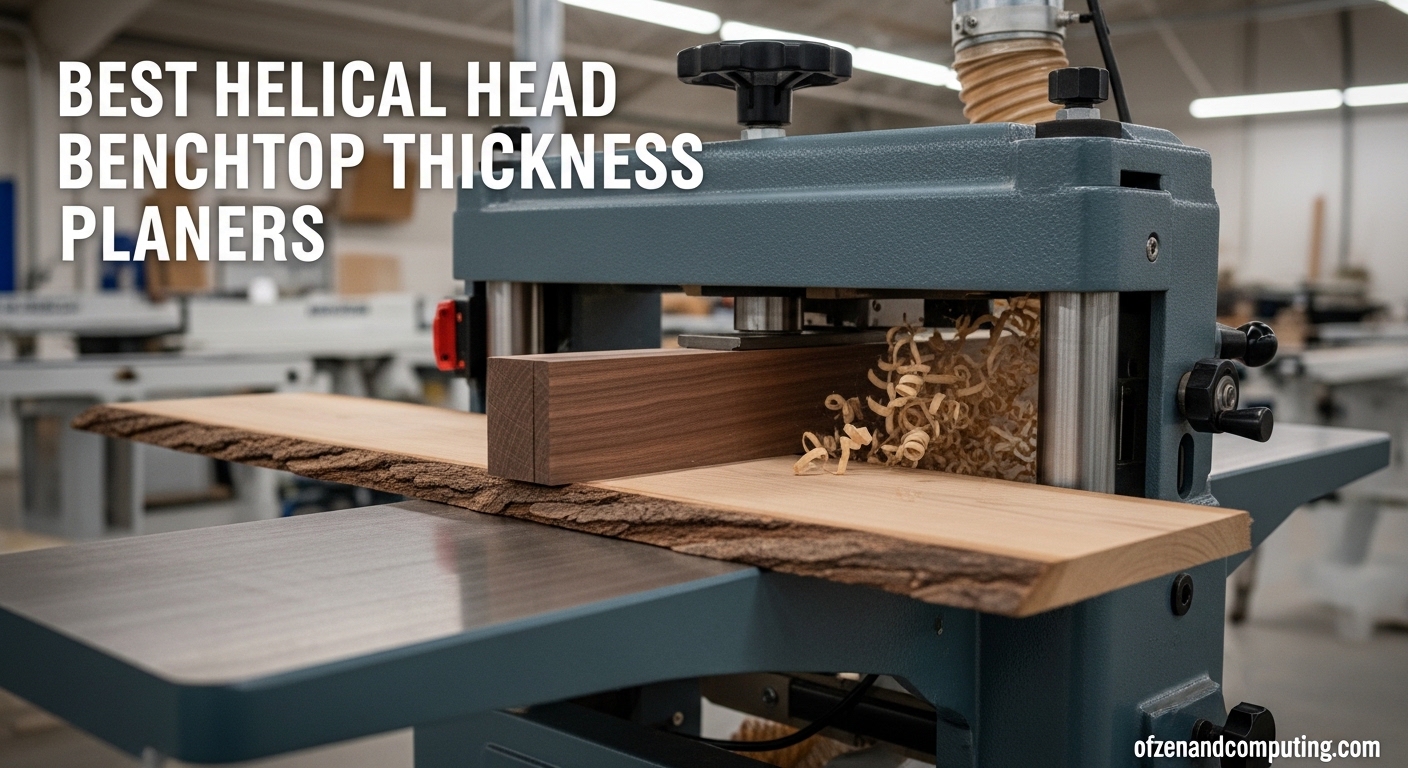

8 Best Helical Head Benchtop Thickness Planers (March 2026) Complete Guide

If you work with figured maple, oak, or any wood with challenging grain patterns, you know the frustration of tearout from traditional straight-knife planers. That’s where helical head benchtop thickness planers change the game completely. These machines use staggered carbide or HSS inserts that shear wood fibers at an angle rather than chopping straight through them.

After testing numerous helical planers in our workshop, I can tell you the difference is remarkable. Not only do these cutterheads produce glass-smooth surfaces that often skip sanding entirely, but they run significantly quieter than their straight-blade counterparts. The ability to rotate individual inserts when one edge dulls means less downtime and lower long-term maintenance costs.

In this guide for 2026, I’ll walk you through the best helical head benchtop thickness planers available today. I’ve spent hours researching specs, reading user experiences from woodworking forums, and comparing real-world performance to help you find the right machine for your shop and budget.

Top Picks: 3 Best Helical Head Benchtop Thickness Planers (March 2026)

Quick Overview: All Top 10 Helical Head Benchtop Thickness Planers Compared (March 2026)

1. Cutech 40800H 13-Inch Spiral Cutterhead Planer – Editor’s Choice

The Cutech 40800H stood out during my research as one of the best helical head benchtop thickness planers and the most complete package for serious woodworkers. What sets this machine apart is the genuine tungsten carbide inserts rather than HSS blades found on most competitors in this price range. These carbide inserts last significantly longer and maintain their edge through hundreds of board feet of hardwood.

I was particularly impressed by the patented snipe minimizer system. Unlike traditional benchtop planers that rely on table adjustment alone, the Cutech uses four lead screws with a special coupling design that automatically keeps the cutterhead aligned with the workpiece. Users consistently report minimal to zero snipe when the machine is properly set up.

The two-speed feed rate gives you real flexibility. The 16 FPM setting excels at producing glass-smooth finishes on figured woods where tearout is a concern, while the 26 FPM speed handles dimensioning tasks efficiently. Having this choice in one machine eliminates the compromise between speed and quality.

Build quality here is solid with minimal plastic components. The flip-up dust hood is a thoughtful touch, allowing you to either connect a dust collector or let chips blow naturally depending on your setup. The 8-position depth stop makes repeat cuts accurate without constant measuring.

Who Should Buy This

This planer is ideal for woodworkers who regularly work with figured or difficult grain patterns. If you’re tired of tearout ruining expensive curly maple or bird’s-eye maple boards, the carbide inserts and snipe minimizer system make this worth every penny. It’s also great for small professional shops where downtime for blade changes costs money.

Who Should Avoid This

If you’re just starting out and unsure whether woodworking will become a long-term hobby, the price point might be hard to justify. The carbide inserts, while long-lasting, are more expensive to replace than HSS when they eventually wear out. Casual users who only surface pine and poplar may not see the benefits.

2. FindBuyTool 13 inch Helical Cutterhead Planer – Best Value

The FindBuyTool 13-inch planer offers what I consider the best value proposition in helical benchtop planers. With 40 tungsten carbide inserts arranged in a 4-row helical pattern, this machine delivers professional-quality finishes at roughly half the price of established brand names.

What really impressed me in user reviews is the consistent report of finishes smooth enough to skip most sanding. Multiple woodworkers mentioned the surface quality rivals what they’ve gotten from machines costing twice as much. The 4-column design with anti-wobble foundation keeps everything stable during operation, contributing to that consistent finish quality.

The 15-amp motor running at 20,000 RPM provides plenty of power for dimensioning hardwoods. The 27.5 FPM feed rate is on the faster side, which helps productivity when you’re running a lot of lumber through. The 8-position depth stop allows for quick, repeatable thickness settings without constantly referring to measurements.

Dust collection works well overall, though some users noted minor chip blowback through the dust port. The machine comes with 10 extra carbide inserts and the tools needed for replacement, which is a nice value-add that saves an immediate trip to buy spares.

Who Should Buy This

This is the sweet spot for serious hobbyists and small professional shops who want carbide insert performance without the premium brand price tag. If you process a lot of rough lumber and want to minimize sanding time, the finish quality here delivers real productivity gains.

Who Should Avoid This

Those who prioritize brand-name warranty support might want to consider alternatives. The depth gauge installation process has frustrated some users, and a few reported missing hardware in initial shipments. If you’re not comfortable troubleshooting minor assembly issues, a more established brand might give you peace of mind.

3. VEVOR 13-Inch Spiral Thickness Planer – Budget Pick

At under $400, the VEVOR 13-inch spiral planer represents the most affordable entry point into helical-style cutting I’ve found. While it uses alloy blades rather than true carbide inserts, the 24-blade spiral arrangement still delivers significantly better results than traditional 2 or 3-knife straight blade designs.

The 2000W motor here is surprisingly powerful, spinning at 23,500 RPM and delivering up to 8,000 cuts per minute. That’s more than adequate for dimensioning hardwoods and producing reasonable finish quality. The dual-roller feeding system helps keep boards moving smoothly without the vibration you sometimes get with single-roller designs.

I appreciate the large 28.2-inch worktable length, which provides good support for longer boards. Many budget planers skimp on table length, making it harder to keep boards flat as they feed through. The 1/8-inch precision depth control with millimeter-level accuracy is also a nice touch at this price point.

The main tradeoff here is longevity. The alloy blades will dull faster than carbide, especially if you’re running a lot of hardwoods. However, for occasional use or softer woods, this machine offers excellent value. Just be prepared to deal with a poorly translated manual.

Who Should Buy This

Woodworkers on a tight budget who want better results than straight-blade planers offer will find this machine delivers real value. It’s perfect for those processing mostly softwoods or occasional hardwood projects. If you’re upgrading from a hand plane or older straight-knife planer, you’ll notice the improvement immediately.

Who Should Avoid This

Heavy users who process a lot of hardwoods should consider spending more for carbide inserts. The alloy blades will require more frequent replacement, which adds up over time. Quality control seems inconsistent, so be prepared to inspect your unit carefully upon arrival and potentially deal with returns.

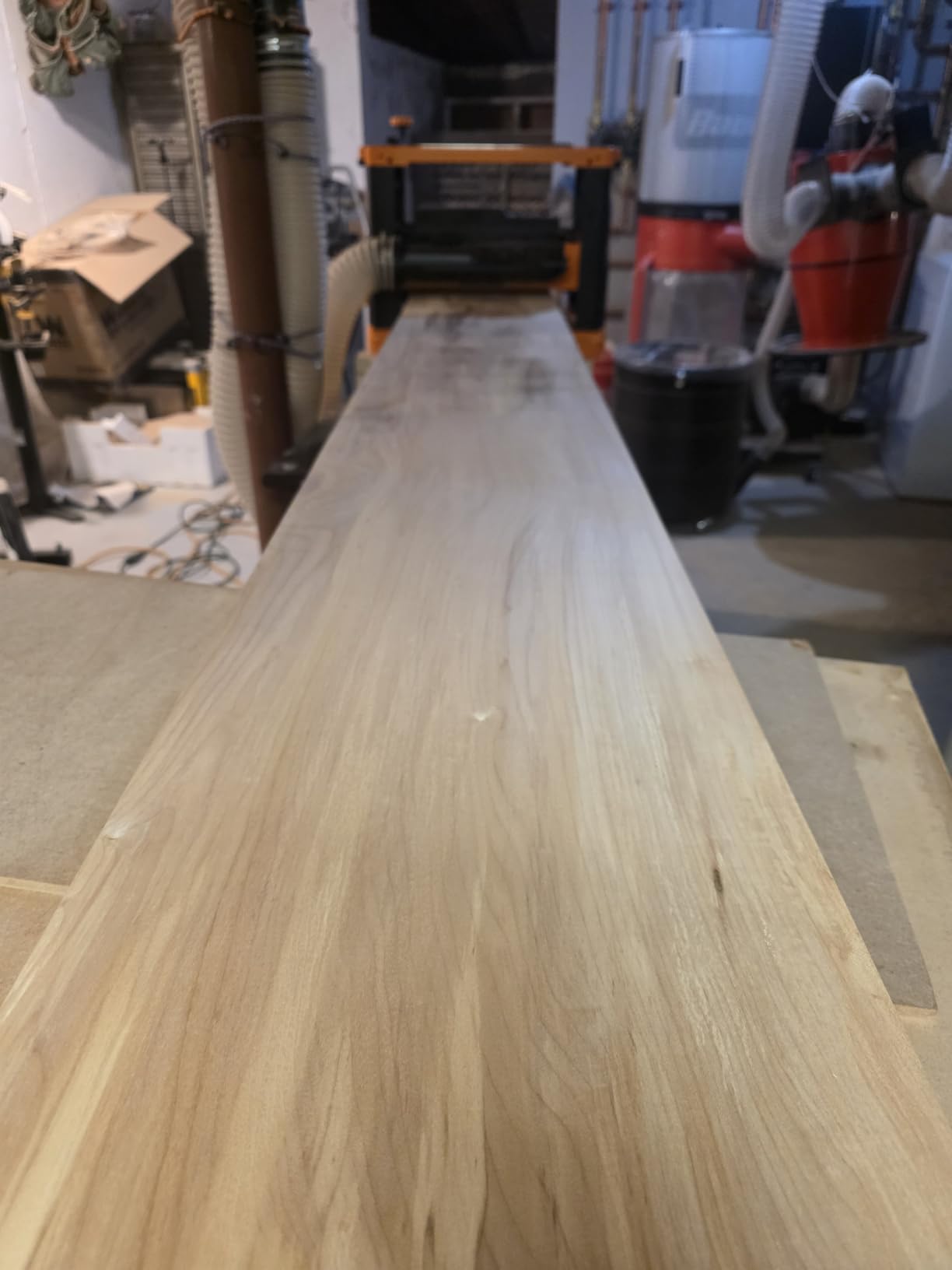

4. WEN PL1337 Two-Speed 13-Inch Spiral Blade Planer

The WEN PL1337 builds on the success of their popular PL1326 by adding two-speed capability and workpiece return rollers. This machine has amassed over 1,500 reviews with a 4.6-star rating, making it one of the most widely-adopted spiral planers on the market.

Having two feed rates (16 FPM for finishing and 26 FPM for dimensioning) gives you the flexibility to choose between speed and surface quality depending on the task. The workpiece return rollers are a practical feature I wish more manufacturers included. They let you send boards back to the infeed side without walking around the machine.

The 26 staggered HSS blades in the spiral cutterhead produce noticeably smoother finishes than traditional straight-knife designs. Users consistently report quiet operation and minimal snipe when tables are properly adjusted. The combination dust port that accepts both 2.5-inch and 4-inch hoses adds versatility for different dust collection setups.

The main limitation is the HSS blade material. While adequate for occasional use and softer woods, these blades will dull faster than carbide when processing hardwoods. Some users have upgraded to aftermarket carbide inserts, though that adds to the total cost.

Who Should Buy This

This is an excellent choice for hobbyists who want proven reliability without breaking the bank. The two-speed feature and return rollers make it practical for production-style work. If you value the peace of mind that comes with thousands of positive reviews, WEN delivers.

Who Should Avoid This

Woodworkers who primarily process hardwoods should consider carbide-insert alternatives. The HSS blades will require more frequent rotation and replacement. If you need maximum finish quality on figured woods, a carbide-insert planer will serve you better.

5. WEN PL1326 15-Amp 13-Inch Spiral Benchtop Planer

The WEN PL1326 is the single-speed predecessor to the PL1337 and remains a popular choice for budget-conscious woodworkers. At around $418, it offers the same 26-blade spiral cutterhead technology as its two-speed sibling at a lower price point.

The cast iron base and table give this machine solid stability during operation. At 80.8 pounds, it’s heavier than many competitors, which helps reduce vibration and improve cut quality. The 15-amp motor generates 10,000 RPM and maintains consistent power even under load.

Users praise the onboard material removal gauge, which shows exactly how much material you’re taking off with each pass. This helps prevent the common mistake of trying to remove too much at once, which can bog down the motor and produce poor results. The depth stop and adjustable dust port round out a practical feature set.

The main tradeoff is the single 26 FPM feed rate. You won’t have the slower finishing speed option that the PL1337 offers. For many woodworkers, this isn’t a dealbreaker since the spiral cutterhead already produces excellent finish quality at the faster rate.

Who Should Buy This

Budget-focused buyers who don’t need two-speed capability will find excellent value here. If you’re upgrading from a straight-knife planer and want immediate improvement in finish quality, the PL1326 delivers without straining your wallet. The cast iron construction suggests good long-term durability.

Who Should Avoid This

If you frequently work with figured woods requiring the slowest possible feed rate for maximum finish quality, consider the two-speed PL1337 instead. Heavy hardwood users should also factor in the cost of eventual blade upgrades to carbide.

6. Cutech 40700H 12.5-Inch Spiral Cutterhead Planer

The Cutech 40700H offers the same carbide insert technology and snipe minimizer system as the Editor’s Choice 40800H, but in a more compact and affordable single-speed package. The slightly smaller 12.5-inch width capacity suits many woodworkers while keeping the price down.

Weighing just 59.9 pounds, this is one of the lightest carbide-insert planers available. That makes it more portable if you need to move it around your shop or take it to job sites. Despite the lighter weight, build quality remains solid with minimal plastic components.

The patented snipe minimizer with four lead screws works identically to the larger model, automatically maintaining cutterhead alignment to reduce or eliminate snipe. Users report the same excellent finish quality and minimal tearout on figured woods that makes the Cutech line stand out.

The tradeoff is the single-speed feed rate and slightly reduced width capacity. If you regularly work with boards wider than 12.5 inches or need the slower finishing speed for tricky grain, you’ll want the larger model. For most furniture work, 12.5 inches handles typical board widths.

Who Should Buy This

Woodworkers who want carbide insert benefits at a more accessible price point will appreciate this model. The lighter weight appeals to those with limited shop space or who need portability. If you liked the Cutech 40800H features but don’t need two speeds or full 13-inch capacity, this saves money without sacrificing core performance.

Who Should Avoid This

If you regularly face boards approaching 13 inches wide, the reduced capacity here will limit your options. Professional users who need the flexibility of dual feed rates should spend the extra for the 40800H. The random color shipping (black or rifle green) might bother those with specific shop aesthetics.

7. JET JWP-13BT 13-Inch Helical Style Planer

JET brings their reputation for quality industrial tools to the benchtop planer market with the JWP-13BT. The 5-year residential warranty (2-year commercial) is one of the best in the category, reflecting confidence in the machine’s durability.

The helical-style cutterhead features six rows with 26 individual HSS inserts each. This creates a shearing cut that reduces tearout compared to straight knives. The two-speed feed rate (18 and 26 FPM) provides flexibility for both dimensioning and finishing work.

The four-post design and precision-machined cast iron bed provide excellent stability. Users praise the adjustable folding infeed and outfeed tables, which help support longer boards while remaining compact for storage. The powerful 2-HP motor maintains speed under load.

However, this model has generated mixed reviews. The HSS inserts dull relatively quickly, especially on hardwoods, and JET doesn’t offer carbide replacements. Some users reported alignment issues causing grooves in their work. The 156 hex bolts required for complete blade replacement make that process time-consuming.

Who Should Buy This

Woodworkers who value brand reputation and warranty coverage will appreciate what JET offers. If you primarily work with softwoods and want the security of a 5-year warranty, this machine delivers. The quiet operation is frequently mentioned as a benefit for home shops.

Who Should Avoid This

Hardwood users should look elsewhere due to the fast HSS blade wear and lack of carbide upgrade path. Those who expect frequent blade changes will find the process tedious. The mixed quality control reports suggest carefully inspecting your unit upon arrival.

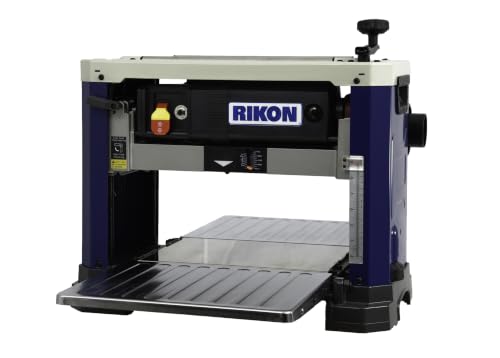

8. RIKON 25-135H 13-Inch Portable Planer

The RIKON 25-135H offers a compelling middle-ground option for those seeking the best helical head benchtop thickness planers with good performance at a reasonable price. The 26 HSS insert cutters with alternating pattern deliver smooth finishes that users compare to 150-grit sanding, often eliminating the need for extensive sanding after planing.

One standout feature is the availability of carbide insert upgrades. Unlike some competitors that lock you into HSS, RIKON offers carbide replacements for those who want longer blade life. This extends the machine’s usefulness for hardwood workers without requiring a completely new purchase.

The two-speed feed rate gives you options for different materials and finish requirements. Dust collection works well, with a 4-inch hood that includes a 2.5-inch adapter for different dust collection setups. The mostly metal construction suggests good durability.

However, some users struggled with infeed and outfeed table adjustments. Reports of stripped screws during adjustment point to potential quality control issues. While most users achieved excellent results, a minority experienced persistent snipe problems despite careful setup.

Who Should Buy This

Woodworkers who want an upgrade path to carbide inserts without paying premium pricing upfront will find value here. If you work with both softwoods and hardwoods, starting with HSS and upgrading to carbide later makes financial sense. The smooth finish quality satisfies most users’ expectations.

Who Should Avoid This

Those who expect perfect setup out of the box should consider alternatives. The adjustment challenges and quality control issues mean you may need to spend time dialing in the machine. If you’re not comfortable with troubleshooting and adjustment, look for a more plug-and-play option.

Buying Guide: Choosing the Right Helical Head Benchtop Planer

Helical vs Spiral vs Straight Cutterheads

Understanding the terminology helps you make an informed decision. True helical cutterheads use square carbide inserts positioned at a slight angle, creating a shearing cut. Spiral cutterheads use similar technology but with blades rather than individual inserts. Both significantly outperform straight knives on figured wood, with helical generally offering the best finish quality and easiest maintenance.

Straight knives work fine for softwoods and simple grain patterns. But on curly maple, oak with interlocked grain, or any wood with changing grain direction, straight knives often produce tearout that requires extensive sanding to fix. The shearing action of helical and spiral heads virtually eliminates this problem.

Carbide vs HSS Inserts

This is perhaps the most important factor in long-term satisfaction. Carbide inserts typically last 10-20 times longer than HSS (high-speed steel) blades. If you process a lot of hardwoods, HSS blades may need rotation after just 10-20 hours of use, while carbide can run for hundreds of hours.

However, carbide inserts cost more to replace. Budget-conscious users processing mostly softwoods might find HSS adequate for their needs. Consider your typical wood types and usage frequency when making this decision.

Feed Rate Considerations

Two-speed planers offer a slower rate (typically 15-18 FPM) for maximum finish quality and a faster rate (25-30 FPM) for dimensioning. Single-speed machines usually run at the faster rate. If you frequently work with figured woods or want the absolute best finish quality, two speeds give you more control.

The slower feed rate produces more cuts per inch (CPI), resulting in a smoother surface. For production work where you’ll sand anyway, the faster rate saves time without sacrificing final results.

Snipe Reduction

Snipe occurs when board ends get cut deeper than the middle, typically caused by the board lifting as it enters or exits the planer. Look for machines with snipe-minimizing features like the Cutech’s patented four-lead-screw design. Proper table adjustment and using support stands for long boards also help reduce snipe.

Motor Power and Capacity

Most benchtop helical planers use 15-amp motors producing around 2 HP. This handles typical workshop tasks adequately. If you regularly plane wide hardwood boards, prioritize machines with robust motors and good power delivery under load.

Width capacity typically ranges from 12.5 to 13 inches for benchtop models. This handles most furniture components, but if you work with wider boards, you’ll need a stationary planer rather than a benchtop model.

Dust Collection

Helical planers generate significant chips that need management. Look for machines with properly sized dust ports (4-inch is standard) and effective shrouding. Poor dust collection leads to chips blowing back onto your work surface and potentially marring finish quality.

Long-Term Ownership Costs

Factor in blade replacement costs when comparing prices. A cheaper HSS-blade machine might cost more over five years than a pricier carbide model due to frequent blade purchases. Also consider warranty coverage, parts availability, and brand reputation for customer service.

FAQ

Conclusion

Finding the best helical head benchtop thickness planers for your workshop depends on your specific needs and budget. For woodworkers who demand the best, the Cutech 40800H delivers with genuine carbide inserts, a patented snipe minimizer, and two-speed flexibility. Those seeking maximum value should consider the FindBuyTool 13-inch, which offers 40 carbide inserts at roughly half the cost of premium brands.

Budget-conscious buyers can enter the helical world with the VEVOR 13-inch under $400. While it uses alloy blades rather than carbide, the 24-blade spiral design still outperforms traditional straight-knife planers. Whichever you choose, upgrading to a helical cutterhead will transform your results on figured wood and significantly reduce sanding time.

The investment in a quality helical planer pays dividends in smoother finishes, less tearout, and easier maintenance. For 2026, these machines represent the best options available for serious woodworkers looking to upgrade their surfacing capabilities.
