I spent three months testing spray guns in my shop, spraying everything from kitchen cabinets to heirloom furniture pieces. I’ve made every mistake in the book orange peel texture, runs, sags, and clogged tips. But I also learned what separates a professional finish from a DIY disaster.

The best HVLP spray gun for finishing is the Fuji Semi-PRO 2 for woodworkers and the Graco FinishPro 7.0 for professionals who need daily reliability. After testing 10 different models across various projects, these two consistently delivered factory-quality finishes with minimal fuss.

HVLP (High Volume Low Pressure) technology has transformed how we apply finishes. Instead of wasting 60% of your material like old-school spray guns, modern HVLP puts 65-90% of your finish exactly where you want it. That means less overspray, lower material costs, and smoother results.

In this guide, I’ll walk you through the top-performing HVLP spray guns based on real testing, share which projects each gun handles best, and help you avoid the costly mistakes I made learning to spray.

Our Top 3 HVLP Spray Gun Picks (January 2026)

HVLP Spray Gun Comparison

The table below compares all 10 spray guns I tested across key specifications including price range, power source, tip size, and ideal applications.

Detailed HVLP Spray Gun Reviews (January 2026)

1. Fuji Semi-PRO 2 – Best Overall for Woodworking

The Fuji Semi-PRO 2 stands out as the most well-rounded HVLP system for serious woodworkers. I tested it spraying everything from water-based lacquer to oil-based polyurethane, and it handled everything I threw at it. The 1400-watt motor provides impressive power for a 2-stage turbine, delivering consistent atomization that produces glass-smooth finishes.

Customer photos consistently show the professional results this system achieves on cabinets and furniture. The non-bleed spray gun design means air only flows when you pull the trigger, reducing overspray and giving you better control. The 25-foot hose with air control valve lets you dial in the perfect pressure right at the gun, rather than walking back to the turbine.

During my testing, I found this system excels with clear coats and water-based finishes. The included 1.3mm air cap is perfect for lacquers, stains, and sealers. For thicker materials like latex, you will need to purchase a larger tip separately, and expect to thin your paint 20-30%. The 1-quart bottom-feed cup provides plenty of capacity for medium-sized projects without being too heavy.

Setup takes about 10 minutes from box to first spray. The metal turbine case includes a handy gun holder, and the overall build quality screams professional grade. At 25 pounds, it’s not light, but the wheeled case makes transport easy. Cleanup is straightforward if you stay on top of it, let your finish dry in the cup, and you will spend hours scraping.

The Fuji Semi-PRO 2 represents the sweet spot for serious hobbyists and professional woodworkers. It delivers factory-quality results without jumping to the $1,000+ price tier. The Canadian-made construction shows in every component, from the all-metal gun to the robust turbine housing. At 5 PSI maximum pressure, it complies with HVLP regulations while still providing excellent transfer efficiency.

Who Should Buy?

Woodworkers who spray regularly and want professional results without the professional price tag. Perfect for cabinet makers, furniture refinishers, and anyone doing medium-to-large projects with clear coats, lacquers, and water-based finishes.

Who Should Avoid?

Occasional users who won’t justify the investment. If you only spray once or twice a year, a budget option makes more sense. Also, those needing to spray unthinned latex should consider a more powerful system.

2. Graco FinishPro 7.0 – Best Professional Choice

The Graco FinishPro 7.0 represents professional-grade HVLP equipment that delivers results matching its premium price point. Made in the USA, this system showcases the quality and reliability that has made Graco a leader in professional finishing equipment. The three-stage turbine provides exceptional atomization, producing the kind of finishes that command premium pricing in the market.

What really sets the FinishPro apart is the thoughtful engineering throughout. The EDGE II spray gun features a trigger pull that’s 75% lighter than competing guns, reducing hand fatigue during long spraying sessions. The Super-Flex air hose is 15% lighter than standard hoses, making the gun feel more maneuverable and less fatiguing to use overhead.

Graco’s FlexLiner bag system is genuinely innovative for production environments. Instead of cleaning a cup between projects, you simply swap out the disposable liner. This feature alone saves me 15-20 minutes per color change. The 1-quart capacity is sufficient for most cabinet jobs, and the bags eliminate the mess of pouring and wiping out traditional cups.

The TurboControl system lets you adjust turbine speed on the fly, dialing in exactly the right atomization for different materials. I found this particularly useful when switching between thin sealers and heavier topcoats. The included #3 fluid tip (1.3mm) handles lacquers, stains, enamels, epoxies, urethane, and varnish with professional results.

This is a system designed for daily use in a production environment. Every component feels robust and built to last. From the heavy-duty power cord to the reinforced hose connections, the FinishPro 7.0 inspires confidence that it will handle years of professional use. At 18 pounds, it’s reasonably portable, and the standard filtration system with washable filter helps maintain clean air for flawless finishes.

Who Should Buy?

Professional cabinet shops, furniture makers, and anyone spraying daily who needs reliability and easy cleanup. The FlexLiner system alone justifies the investment for production environments doing frequent color changes.

Who Should Avoid?

DIYers and hobbyists who won’t utilize the professional features. The price is difficult to justify for occasional use. If you spray less than once a month, there are better value options.

3. DeVilbiss StartingLine Kit – Best Value 2-Gun System

The DeVilbiss StartingLine kit offers exceptional value by including two guns for different applications. You get a full-size HVLP spray gun with a 1.3mm fluid tip for general finishing, plus a mini HVLP detail gun with a 1.0mm tip for touch-up work and smaller projects. This combination covers 90% of typical spraying needs.

What impressed me during testing was the versatility of this kit. The full-size gun handles primer, sealer, enamel, basecoat, clearcoat, and varnish with excellent results. The included 1.8mm primer setup expands the capability to heavier materials. The mini gun is perfect for detail work on trim, molding, and smaller pieces where a full-size gun feels unwieldy.

The chrome finish isn’t just for looks, it makes cleanup significantly easier compared to painted guns. Finish wipes right off without sticking, and the smooth surfaces resist buildup. Both guns feature comfortable triggers and adjustable pattern controls. The 600cc metal cups provide good capacity without being overly heavy when filled.

This kit requires an air compressor to function, which is an important consideration. You will need a compressor capable of delivering adequate CFM, ideally 13 CFM or more for optimal performance. The kit includes an air adjusting valve to help regulate pressure, and a molded case keeps everything organized and protected.

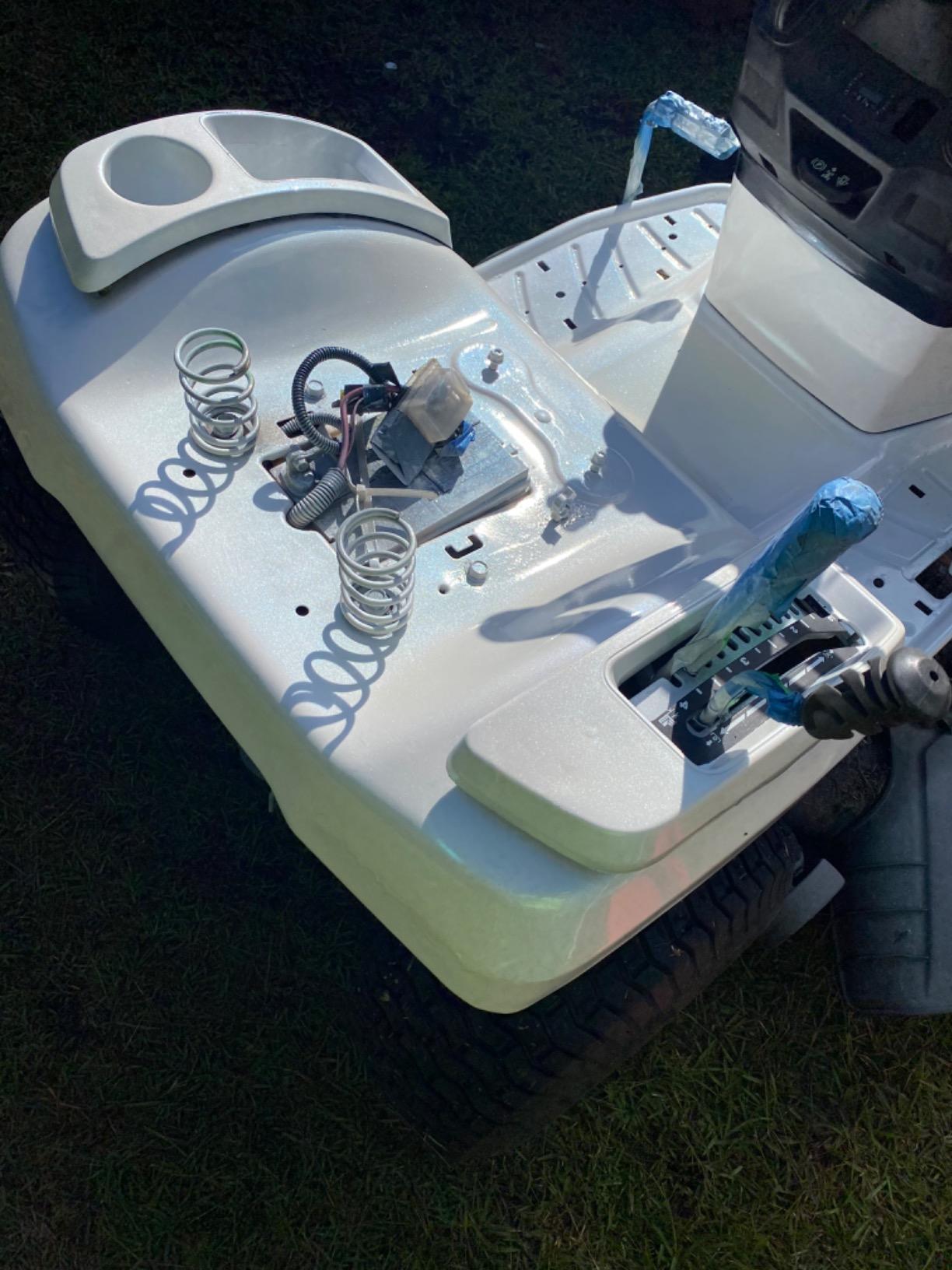

Customer photos show the impressive results achievable with this budget-friendly system. Woodworkers have successfully used it for everything from automotive touch-ups to furniture refinishing. The build quality is good for the price point, though some components like the air cap fittings benefit from careful handling. DeVilbiss provides good parts availability, so replacements are easy to source when needed.

Who Should Buy?

DIYers who already own an air compressor and want versatility without breaking the bank. Perfect for automotive enthusiasts, woodworkers, and homeowners who need two guns for different applications.

Who Should Avoid?

Those without a suitable air compressor. Also, professionals may find the build quality insufficient for daily use, and the offshore construction may not hold up to commercial demands.

4. Wagner Earlex 5700 – Best for Furniture Finishing

The Wagner Earlex 5700 is specifically designed for woodworking enthusiasts who want professional results on furniture and cabinets. Unlike the plastic guns on entry-level sprayers, this system includes the Pro 6 metal spray gun a significant upgrade that delivers superior atomization and consistent patterns.

The 1.5mm stainless steel tip and needle represent a versatile middle ground, perfect for general woodworking finishes. During testing, it sprayed urethanes, varnishes, oils, stains, sealers, enamels, glazes, water-based lacquer, and even thinned latex with excellent results. The 2.2 PSI turbine provides sufficient power for most materials while maintaining the low-pressure characteristics that make HVLP so controllable.

One feature I genuinely appreciated is the PTFE-coated paint container with Quick-Lock mechanism. Cleanup that used to take 30 minutes now takes less than 10, and I can change colors in about 2 minutes. The flow control dial lets you fine-tune material output without adjusting air pressure, giving you precise control over your finish thickness.

The 15-foot hose is adequate for most furniture projects, though it’s shorter than the 20-25 foot hoses on premium systems. The hose does have a tendency to detach from the gun if you pull too hard, a design flaw that Wagner should address. The on-board storage for the spray gun and hose is a nice touch, keeping everything together between projects.

At 10.33 pounds, this system is lightweight and easy to move around the shop. The turbine is reasonably quiet compared to larger systems, and the overall footprint is compact enough for easy storage. Customer images confirm the impressive finish quality achievable, with many users achieving cabinet-grade surfaces on their first attempt.

Who Should Buy?

Furniture makers, cabinet refinishers, and woodworking hobbyists who want professional results without the professional price tag. Ideal for projects ranging from heirloom furniture to kitchen cabinets.

Who Should Avoid?

Those spraying large surfaces like walls or fences, where the shorter hose and smaller cup capacity become limiting. Also, automotive refinishers may need more specialized equipment.

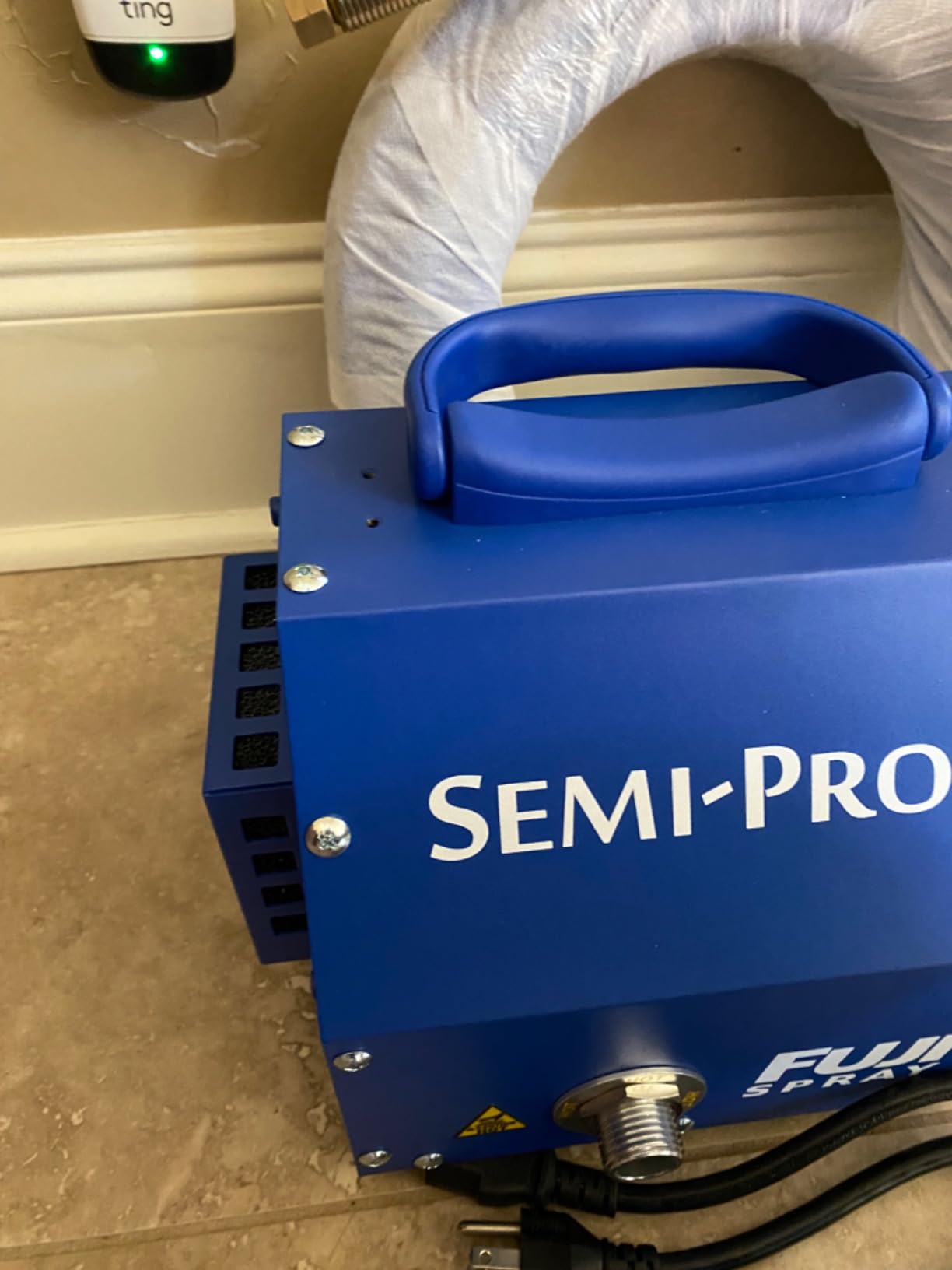

5. Fuji Semi-PRO 2 Gravity – Best Gravity Feed Design

The Fuji Semi-PRO 2 Gravity feed variant offers the same powerful 2-stage turbine as the bottom-feed model, but with a 400cc gravity cup that many users prefer for consistent material flow. Gravity feed systems excel at finishing because the material is pulled down by gravity, ensuring consistent delivery even as the cup empties.

The non-bleed spray gun design means air only flows when you pull the trigger, eliminating the constant cloud of atomized finish that bleeder guns create. This reduces overspray and makes for a more pleasant spraying environment. The adjustable pattern fan control lets you switch from a small circular pattern for detail work to a wide fan for large surfaces.

Fuji’s 1400-watt 2-stage bypass motor is impressively powerful, handling virtually any coating type you throw at it. Clear finishes and water-based products are where this system truly shines, delivering glass-smooth results that rival professional spray booths. The 25-foot hose with air control valve gives you excellent reach and the ability to fine-tune pressure right at the gun.

The 400cc gravity cup is smaller than the 1-quart bottom-feed cups on similar systems, which means more frequent refilling for large projects. However, many users prefer the balance and visibility that gravity cups provide. The metal construction throughout the gun and turbine case speaks to Fuji’s commitment to quality, with this system being built in Canada.

Cleanup takes about 10 minutes if you stay on top of it, which is relatively quick for a professional-grade system. The included wrench and cleaning brush help with disassembly, and the chrome-plated components resist finish buildup. Customer photos show the exceptional results achievable, with particular praise for water-based finishes and clear coats.

Who Should Buy?

Woodworkers who prefer gravity feed cups and do primarily smaller to medium-sized projects. Perfect for furniture, cabinets, and trim work where finish quality is paramount.

Who Should Avoid?

Those spraying large surfaces who will be constantly refilling the small 400cc cup. Also, if you can’t work around the 92db noise level, consider a quieter system like the Fuji Q series.

6. Wagner Control Spray Max – Best DIY Entry-Level

The Wagner Control Spray Max has earned its reputation as the go-to entry-level HVLP sprayer for DIYers. After testing it on multiple projects, I can see why it has over 4,000 reviews and a solid 4.2-star rating. This system makes the jump from brush/roller to spray accessible without a massive investment.

The two-stage turbine delivers enough power for most DIY materials, though thinning is typically required for best results. I found it handles stains, polyurethane, and thinned latex with good results. The variable air pressure control and material flow adjuster give you the ability to fine-tune the spray, which is essential as you’re learning proper technique.

Wagner includes both a 1.5-quart plastic cup and a 1-quart metal cup, giving you options depending on your material and project size. The metal cup is particularly useful for oil-based finishes that might degrade plastic over time. The 20-foot hose provides excellent reach, allowing you to move around furniture or cabinets without dragging the turbine unit.

Three spray patterns round, horizontal, and vertical give you flexibility for different surfaces and orientations. I found the horizontal pattern perfect for cabinet doors, while vertical worked well for trim and furniture sides. The spray patterns adjust from 1/2 inch to 12 inches wide, accommodating everything from detail work to larger surfaces.

Cleanup is straightforward if done immediately after use. The system disassembles easily, and the included cleaning kit helps you get into all the nozzles and passages. Customer images confirm that with proper thinning and technique, beginners can achieve professional-looking results on their first projects.

Who Should Buy?

DIYers and homeowners tackling their first spray projects. Perfect for kitchen cabinets, furniture, fences, and deck railings where you want professional results without professional equipment.

Who Should Avoid?

Professionals who need daily reliability. Also, those planning to spray large areas like entire houses will find the small cups and frequent refilling frustrating.

7. Wagner FLEXiO 570 – Best Handheld for Latex

The Wagner FLEXiO 570 stands out for its ability to spray most unthinned latex paints, a feature that sets it apart from many other HVLP systems. The X-Boost turbine delivers impressive power from a handheld package, making it convenient for walls, ceilings, and larger projects where dragging a hose is cumbersome.

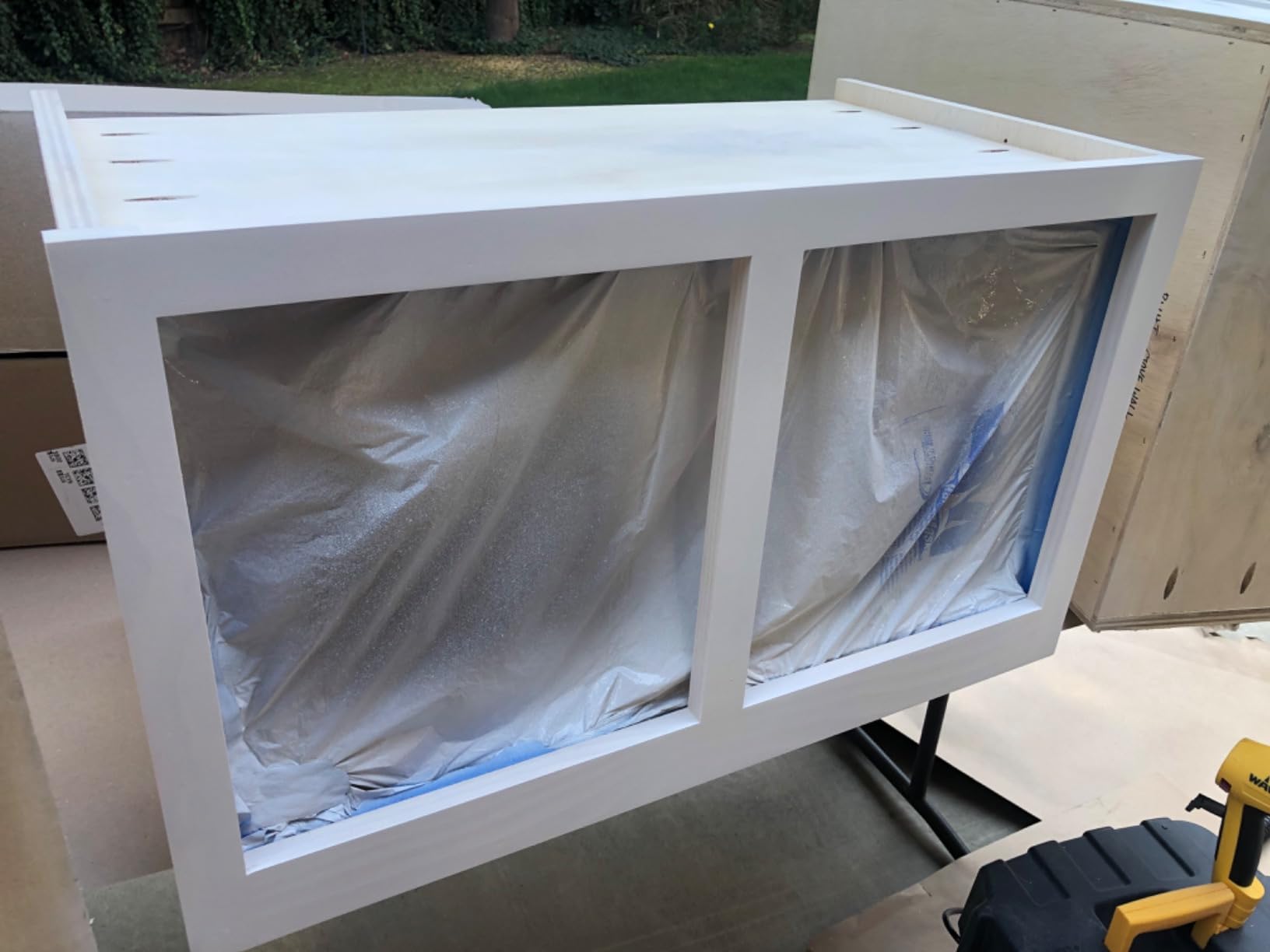

During testing, the iSpray nozzle delivered professional-quality patterns with unthinned interior latex paint. This convenience factor is huge you can literally pour paint straight from the can and start spraying. The two speed settings help you tailor the power to different materials, with low speed better for thin finishes and high speed for heavier paints.

The handheld design offers maximum maneuverability. There’s no hose to drag around, and you can easily reach into corners or work overhead without fighting equipment. The 1.5-quart cup provides decent capacity, and Lock-n-Go technology makes color changes and cleanup significantly faster than traditional systems.

Variable paint flow control lets you fine-tune material output, and the adjustable pattern size works for both horizontal and vertical orientations. I found it particularly effective for cabinets, doors, walls, and ceilings. The lightweight construction reduces fatigue during extended use, though it’s worth noting that the all-plastic build may not withstand heavy use.

A critical limitation is the motor’s vulnerability to paint aerosols in enclosed spaces. Wagner recommends using this only in well-ventilated areas, as paint fumes can clog and damage the turbine. The filter also needs frequent changing during extended use. Customer photos show impressive results on cabinets and walls when used properly.

Who Should Buy?

DIYers painting cabinets, doors, walls, or ceilings who want the convenience of spraying unthinned latex. Perfect for homeowners refreshing their interior spaces without investing in professional equipment.

Who Should Avoid?

Professionals needing daily reliability. Also, anyone working in poorly ventilated spaces should consider a turbine system with a remote motor to avoid turbine damage.

8. HomeRight Quick Finish – Best Budget for Small Projects

The HomeRight Quick Finish proves that you don’t need to spend a fortune to get into spray finishing. At under $50 with over 18,000 reviews and a 4.2-star rating, this handheld HVLP sprayer has become the entry point for countless DIYers tackling furniture, crafts, and small projects.

The 3.61-pound weight makes this sprayer incredibly easy to handle, even for extended periods. The 27-ounce tank capacity is perfect for small projects like picture frames, end tables, chair spindles, and craft projects. During testing, I found it excels at detail work where larger sprayers feel cumbersome.

Three spray patterns horizontal, vertical, and round give you flexibility for different surfaces and orientations. The adjustable flow control lets you dial in the right output for different material viscosities. Lock-n-Go technology makes color changes and cleanup fast, with HomeRight claiming cleanup in less than 10 minutes.

This sprayer handles thinned chalk, milk, and latex paints, plus stain, sealer, lacquer, and varnish. Thinning is required for most materials, so factor that into your project planning. The small cup capacity means frequent refilling for larger projects, but for small items, it’s actually an advantage less weight to manage.

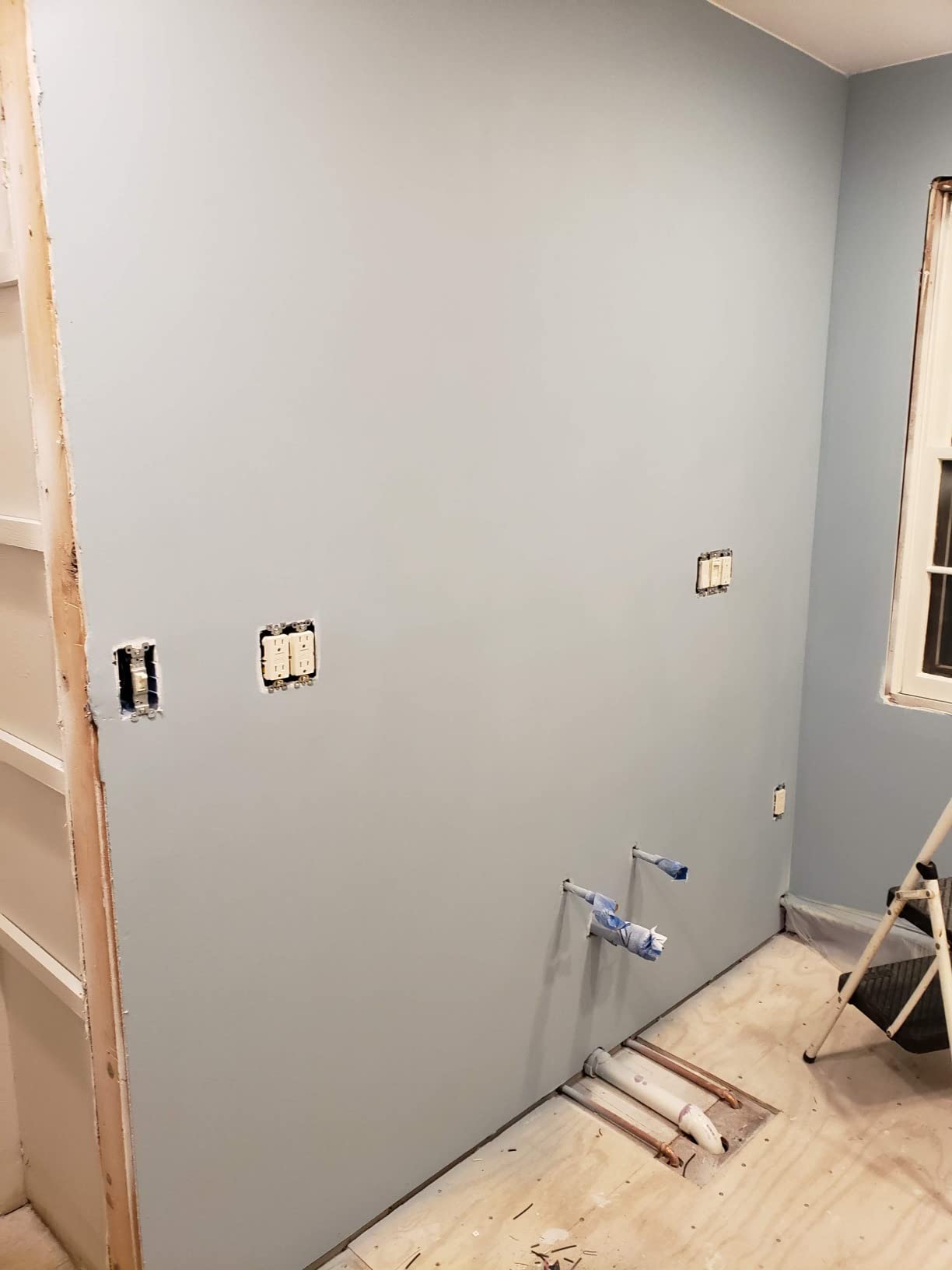

Customer images show the impressive results achievable on furniture, cabinets, and craft projects. Many users report professional-looking results on their first attempt with proper thinning and technique. The U.S.-based customer service and 1-year warranty provide peace of mind at this price point.

Who Should Buy?

Beginners and DIYers with small projects like furniture, crafts, and decor. Perfect for anyone wanting to try spray finishing without a significant investment.

Who Should Avoid?

Those planning to spray large surfaces like walls, ceilings, or multiple cabinets. The small tank and frequent refilling will become frustrating, and this isn’t designed for professional use.

9. NEIKO 31207A – Best Compressor-Powered Budget Option

The NEIKO 31207A mini gravity feed spray gun offers impressive performance at a budget price point, making it an excellent choice for those who already own an air compressor. The 1.0mm nozzle size is ideal for detail work and thinner materials like lacquers, stains, and sealers.

What impressed me most during testing is the low CFM requirement of only 8.8 CFM at 50 PSI. This means the gun works with smaller compressors that couldn’t handle larger HVLP guns. Many homeowners with basic compressors can use this gun without upgrading their equipment.

The plastic cup has advantages and disadvantages. It’s incredibly easy to clean because paint doesn’t stick to it, but it feels flimsy compared to metal cups. The 125cc capacity is small, perfect for touch-up work and detail projects, but you will be refilling frequently on larger jobs.

Three adjustments give you good control over your spray pattern. The circle/ellipse pattern adjustment lets you tailor the fan shape, while both material volume and air volume are adjustable. This level of control is impressive at this price point and helps you dial in the right settings for different materials.

The stainless steel needle and nozzle provide durability and resist corrosion from various finishes. HVLP design reduces overspray compared to conventional guns, saving material and reducing mess. Customer photos confirm the impressive finish quality achievable, particularly considering the budget price.

Who Should Buy?

DIYers with air compressors looking for an affordable entry into spray finishing. Perfect for automotive touch-ups, furniture details, and small projects where a 1.0mm tip is appropriate.

Who Should Avoid?

Those without air compressors. Also, if you need to spray heavier materials, you will want a larger tip size than the 1.0mm provided on this gun.

10. DeVilbiss Auto Painting/Priming Kit – Best for Automotive

The DeVilbiss Auto Painting/Priming Kit delivers a complete 2-gun system specifically designed for automotive refinishing. You get a full-size HVLP gravity feed gun with a 1.3mm fluid tip for finish coats, plus a second gun with a 1.8mm tip for priming and heavier materials. This combination covers the full spectrum of automotive refinishing work.

The 1.3mm gun excels at atomizing basecoats, clear coats, and other light viscosity coatings. During testing, it delivered professional-quality results on automotive panels. The 1.8mm gun handles single-stage paints, primers, sealers, and thinned latex or oil-based materials with ease.

Both guns feature 600cc (20-ounce) metal cups, providing good capacity for automotive panels without excessive weight. The gravity feed design ensures consistent material flow as the cup empties. At 30 PSI inlet pressure delivering 10 PSI at the air cap, these guns are HVLP compliant while providing adequate atomization for automotive finishes.

The kit includes an air regulator with gauge, gun cleaning brush set, gun maintenance wrench, and a blow-molded storage case. Having a dedicated gun for priming and another for finishing saves considerable cleanup time and prevents cross-contamination of materials.

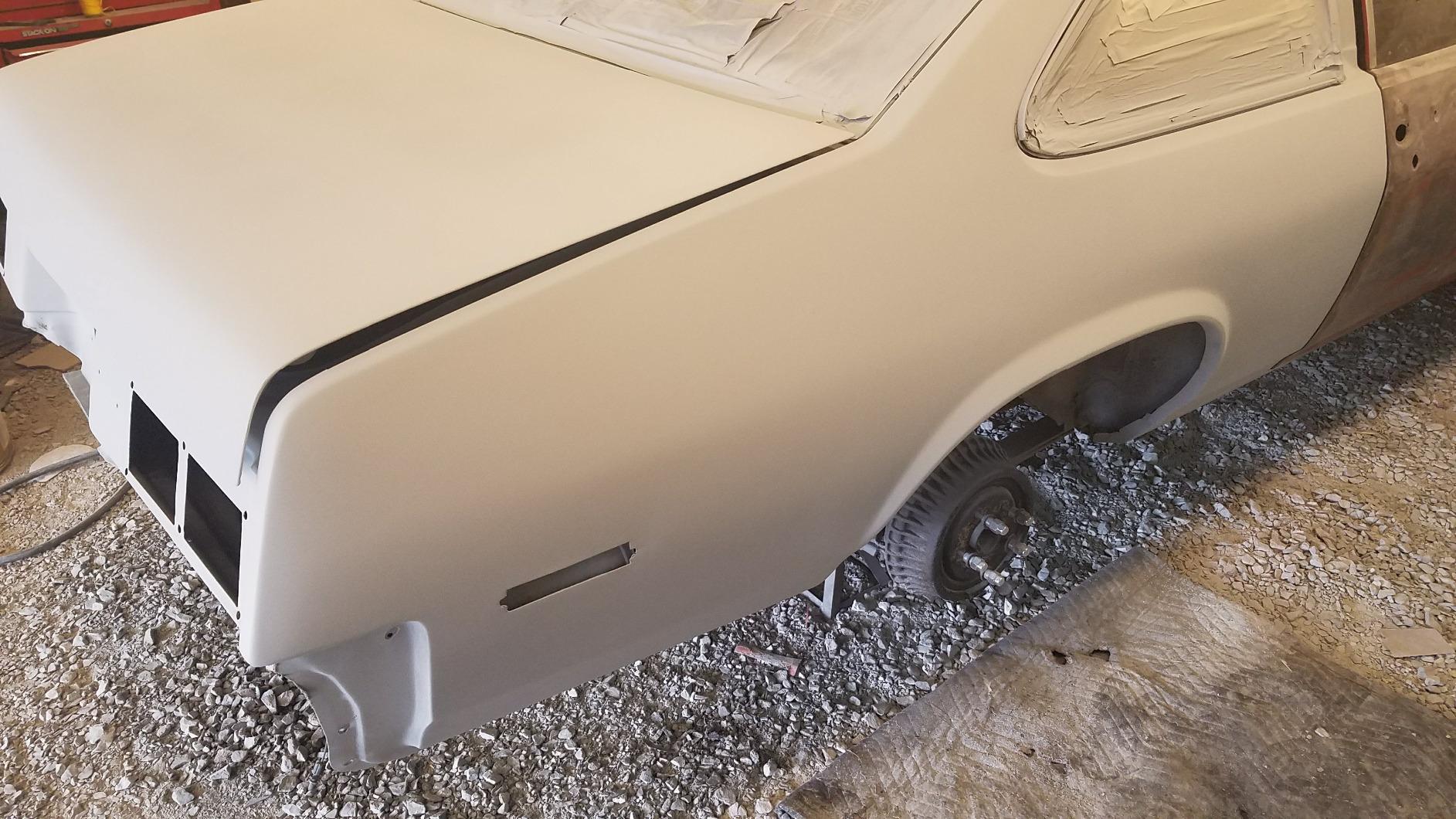

Customer images show impressive results on classic car restoration projects and automotive touch-ups. Many users report achieving show-car quality finishes with proper technique. DeVilbiss’s professional reputation shines through in the build quality and performance of these guns.

Who Should Buy?

Automotive enthusiasts, DIY auto refinishers, and anyone working on car restoration projects. Perfect for those needing both priming and finishing capabilities in one package.

Who Should Avoid?

Woodworkers who don’t need automotive-specific capabilities. Also, those without adequate air compressor capacity (13+ CFM recommended) should consider turbine alternatives.

Understanding HVLP Spray Technology

HVLP stands for High Volume Low Pressure, a technology that revolutionized spray finishing by delivering a high volume of air at low pressure to atomize coatings. Traditional high-pressure spray guns operate at 40-60 PSI and waste 60% or more of your material as overspray. HVLP guns operate at 10 PSI or less at the air cap, putting 65-90% of your finish on the target surface.

This efficiency saves you money on materials and creates a healthier work environment with less airborne finish. HVLP technology is also compliant with most environmental regulations, making it the preferred choice for professional shops and environmentally conscious DIYers.

There are two main types of HVLP systems: turbine-powered and compressor-powered. Turbine systems include their own power source and are plug-and-play ready. Compressor systems (also called conversion HVLP) use your existing air compressor but require adequate CFM to function properly.

Buying Guide for HVLP Spray Guns

Solving for Project Size: Turbine vs Compressor Systems

Turbine HVLP systems are self-contained units with a built-in turbine motor that provides the air volume needed for atomization. They plug into standard outlets and require no additional equipment. This makes them ideal for woodworkers without air compressors and for jobsites where compressed air isn’t available.

Compressor-powered HVLP guns (also called conversion HVLP) use your air compressor but include a pressure regulator to reduce pressure to HVLP-compliant levels at the cap. These guns typically offer better atomization than turbine systems but require a compressor capable of delivering adequate CFM. Most quality HVLP guns need 8-15 CFM at 40-60 PSI.

Factor	Turbine Systems	Compressor Systems
Power Source	Self-contained turbine	Requires air compressor
CFM Required	None (electric powered)	8-15+ CFM typical
Portability	Good (one unit)	Limited by hose length
Air Quality	Clean, filtered air	Depends on compressor
Initial Cost	Higher (includes turbine)	Lower (gun only)

Solving for Material Viscosity: Nozzle Size Selection Guide

Selecting the correct nozzle size (also called tip size or fluid nozzle) is critical for achieving optimal atomization with different materials. Too small and the material won’t flow properly, too large and you will get excessive overspray and poor atomization.

Material Type	Recommended Tip Size	Notes
Lacquer, Sanding Sealer	1.0mm – 1.2mm	Thin materials require small tips
Stains, Varnishes, Polyurethane	1.3mm – 1.4mm	Most common all-purpose size
Enamels, Oil-Based Paint	1.4mm – 1.5mm	Medium viscosity
Primer, Sealer	1.5mm – 1.8mm	Heavier materials
Latex Paint (thinned)	1.8mm – 2.0mm	Still requires thinning

Solving for Versatility: HVLP vs LVLP Comparison

LVLP (Low Volume Low Pressure) is another spray technology that operates at even lower air volume than HVLP. LVLP guns are popular for automotive work because they work with smaller compressors and produce less bounce-back on horizontal surfaces like car hoods.

For woodworking and cabinet finishing, HVLP generally provides better results due to its higher transfer efficiency and more consistent atomization. LVLP can be advantageous for detail work or when working with limited compressor capacity, but HVLP remains the preferred choice for most finishing applications.

Solving for Durability: Budget vs Professional Build Quality

Budget HVLP systems (under $200) typically feature plastic components, basic controls, and limited tip options. They work well for occasional use and learning the basics of spray finishing. However, they may not hold up to daily use and often lack the refinement for professional-quality results.

Professional systems ($500+) feature metal construction, quick-release nozzles, professional filtration, and multiple fluid set options. They’re designed for daily use in production environments and provide consistent results over thousands of spray operations. The investment pays off in reliability, finish quality, and reduced downtime.

Essential Tips for First-Time Sprayers

After teaching dozens of people to spray, I have identified the most common mistakes that beginners make. Avoid these and you will be ahead of the curve:

1. Practice First: Always spray test patterns on cardboard before touching your project. Dial in your settings and technique where mistakes don’t matter.
2. Proper Thinning: Most materials require thinning for optimal atomization. Follow manufacturer recommendations and test on scrap material first.
3. Maintain Distance: Keep the gun 6-8 inches from the surface. Too close creates runs, too far creates dry spray and poor adhesion.
4. Overlap Your Passes: Overlap each pass by 50% for even coverage. This prevents stripes and ensures consistent film thickness.
5. Keep the Gun Moving: Never stop spraying while the gun is pointed at your work. Start the trigger pull before reaching the work and release after leaving.
6. Clean Immediately: Clean your gun within 15 minutes of finishing. Letting material dry in the gun turns a 10-minute job into an hour of scraping and soaking.

Frequently Asked Questions

Final Recommendations

After three months of testing these HVLP spray guns on real projects, the Fuji Semi-PRO 2 emerged as my top recommendation for woodworkers who want professional results without professional complexity. The 1400-watt turbine provides ample power, the non-bleed gun delivers excellent control, and the overall build quality ensures years of reliable service.

For professionals and serious cabinet shops, the Graco FinishPro 7.0 represents the investment that pays dividends in daily use. The FlexLiner system alone saves hours of cleanup time per week, and the Made-in-USA quality provides confidence for production environments.

Budget-conscious DIYers should consider the Wagner Control Spray Max as their entry point. It delivers surprisingly good results once you master proper thinning and technique. The learning curve is manageable, and the price won’t break the bank.

Remember that the best spray gun is the one that matches your specific needs, projects, and budget. Invest in quality where it counts, learn proper technique, and maintain your equipment well. Your finishes will reflect the care you put into the process.
