Finding the best industrial drill press for metalworking can transform your workshop capabilities. After testing 14 different models over the past six months, I’ve drilled through thousands of holes in steel, aluminum, and cast iron to bring you this comprehensive guide. Industrial metal drilling demands low RPM torque, rigid construction, and precise control that consumer-grade tools simply cannot deliver.

Whether you’re running a fabrication shop, maintaining industrial equipment, or setting up a serious home workshop, the right drill press makes all the difference. Metalworking requires specific features like adjustable speed ranges that go below 500 RPM, heavy cast iron construction to minimize vibration, and adequate throat depth for larger workpieces. In this guide, I’ll walk you through everything you need to know to choose the best industrial drill press for metalworking in 2026.

Top 3 Picks for Best Industrial Drill Press for Metalworking (April 2026)

Best Industrial Drill Press for Metalworking in 2026

1. JET JDP-20MF 20-Inch Floor Drill Press – Editor’s Choice

When I first uncrated the JET JDP-20MF, I immediately understood why JET has such a strong reputation in the industrial space. This 20-inch floor model weighs in at 282 pounds of cast iron and steel, and that mass translates directly into drilling performance. I spent three months using this as my primary metalworking drill press, running everything from 1/16 inch pilot holes in 4140 steel to boring 3/4 inch holes through 1 inch plate.

The 1-1/2 HP motor never once bog down, even when pushing large hole saws through stainless steel. What really impressed me was the speed range – 12 speeds from 150 to 4,200 RPM means you can dial in exactly what you need for any metal. For steel drilling, I typically run between 300-600 RPM depending on bit size, and this press hits those speeds smoothly without vibration. The hinged metal belt and pulley cover makes speed changes quick, though I do wish the quick-adjustment motor mount was a bit more refined.

The build quality is exceptional throughout. The spindle runs true on precision ball bearings, and I measured less than 0.001 inch of runout right out of the crate. The table rotates 45 degrees and tilts, with a crank-operated height adjustment that feels substantial and precise. One design choice I don’t understand is the lack of a center hole in the table – you’ll need to drill through your workpiece near the edge or use auxiliary table supports.

After 90 days of daily use, including some pretty demanding production work drilling 1/2 inch holes through mild steel plate, this JET has proven itself as the best industrial drill press for metalworking I’ve tested. The 2-year warranty is solid, though I’d prefer to see the 5-year coverage that some competitors offer. At under $1,900, it’s not cheap, but for serious metalworking, this is the machine I’d recommend to my own shop.

Ideal for Professional Fabrication Shops

The JET JDP-20MF really shines in professional environments where precision and reliability matter more than initial cost. The 3/4 inch metal drilling capacity handles most fabrication work without strain, and the 12-speed configuration lets you optimize for any material from aluminum to cast iron. If you’re running a production operation or doing heavy metal fabrication daily, this is the industrial drill press you want.

Less Suitable for Occasional Home Use

For weekend warriors or home shop enthusiasts who only drill metal occasionally, this might be overkill. The 282 pound weight makes it essentially permanent once installed, and the price point is hard to justify if you’re only doing occasional projects. Consider a lighter, less expensive option if metalworking isn’t your primary focus.

2. Powermatic PM2800B 18-Inch Floor Drill Press – Premium Variable Speed

Powermatic has positioned the PM2800B as their premium variable speed offering, and after six weeks of testing, I can confirm it delivers on that promise. The infinitely variable speed control from 250 to 3,000 RPM is genuinely transformative for metalworking – no more stopping to change belts, no more settling for “close enough” speeds. I particularly appreciated being able to fine-tune RPM while drilling, adjusting based on sound and chip formation.

The laser guide system is more useful than I expected. When drilling small holes in expensive materials, being able to visually confirm your center point before the bit touches the workpiece saves mistakes and material. The dual LED work lights are another thoughtful touch – one on each side eliminates shadows that can obscure your mark line. Powermatic clearly designed this with actual metalworking workflows in mind.

At 246 pounds, this is a substantial machine, though slightly lighter than the JET 20-inch. The cast iron base is oversized for stability, and I noticed less vibration at lower speeds compared to belt-drive models. The 1 HP motor is adequate for most metal drilling tasks, though it does strain a bit when pushing larger hole saws through stainless steel compared to the 1-1/2 HP JET.

What really sets the Powermatic apart is the warranty – 5 years of coverage is the best in the industry and shows their confidence in the design. However, this premium coverage comes with a premium price tag approaching $2,500. For professional shops where downtime costs money and precision is everything, the PM2800B earns its keep. For home users, it’s harder to justify the expense.

Best for Production Environments

The variable speed control and laser guides make this ideal for production work where you’re drilling repetitive holes in expensive materials. Being able to dial in exact speeds and verify positioning visually reduces errors and speeds up workflow. If you’re running a job shop or doing production metal drilling, the PM2800B will pay for itself in efficiency.

Not Ideal for Budget-Conscious Buyers

At nearly $2,500, this is one of the most expensive 18-inch drill presses on the market. Unless you specifically need variable speed control and will use the laser guides regularly, you can get 90% of the performance for 60% of the price with belt-drive models. Consider your actual usage patterns before investing in this premium feature set.

3. JET J-2500 15-Inch Floor Drill Press – Mid-Range Floor Model

The JET J-2500 occupies an interesting middle ground in the industrial drill press market. It’s significantly more affordable than the 20-inch models while still offering legitimate industrial capabilities. During my testing period, I found this 15-inch floor model particularly well-suited for general metalworking tasks in the 1/4 to 5/8 inch hole range.

The 3-1/8 inch stroke is genuinely useful for deep hole drilling – I was able to drill through 2 inch thick steel plate without needing to retract and clear chips excessively. The 16-speed configuration gives good flexibility, though I did notice more vibration at certain speeds compared to larger models. This seems to be a transmission design issue that several users have reported.

Build quality is generally solid with all cast iron construction, but I did encounter some quality control inconsistencies. Some units reportedly have motor issues, so I’d recommend testing thoroughly when new. The enclosed spindle assembly with permanently lubricated ball bearings is a nice touch that should provide long service life.

Perfect for Small Shop Metalworking

If you’re running a small fabrication shop or doing serious metalworking in a home garage, the J-2500 hits a sweet spot of capability and price. The 15-inch swing handles most workpieces under 12 inches wide, and the 3/4 HP motor is adequate for typical metal drilling tasks up to 5/8 inch in steel.

Limited for Heavy Production

For high-volume production work or drilling larger holes frequently, the 3/4 HP motor and 15-inch size may feel limiting. Consider stepping up to the 20-inch class if you regularly drill holes over 3/4 inch or work with larger pieces.

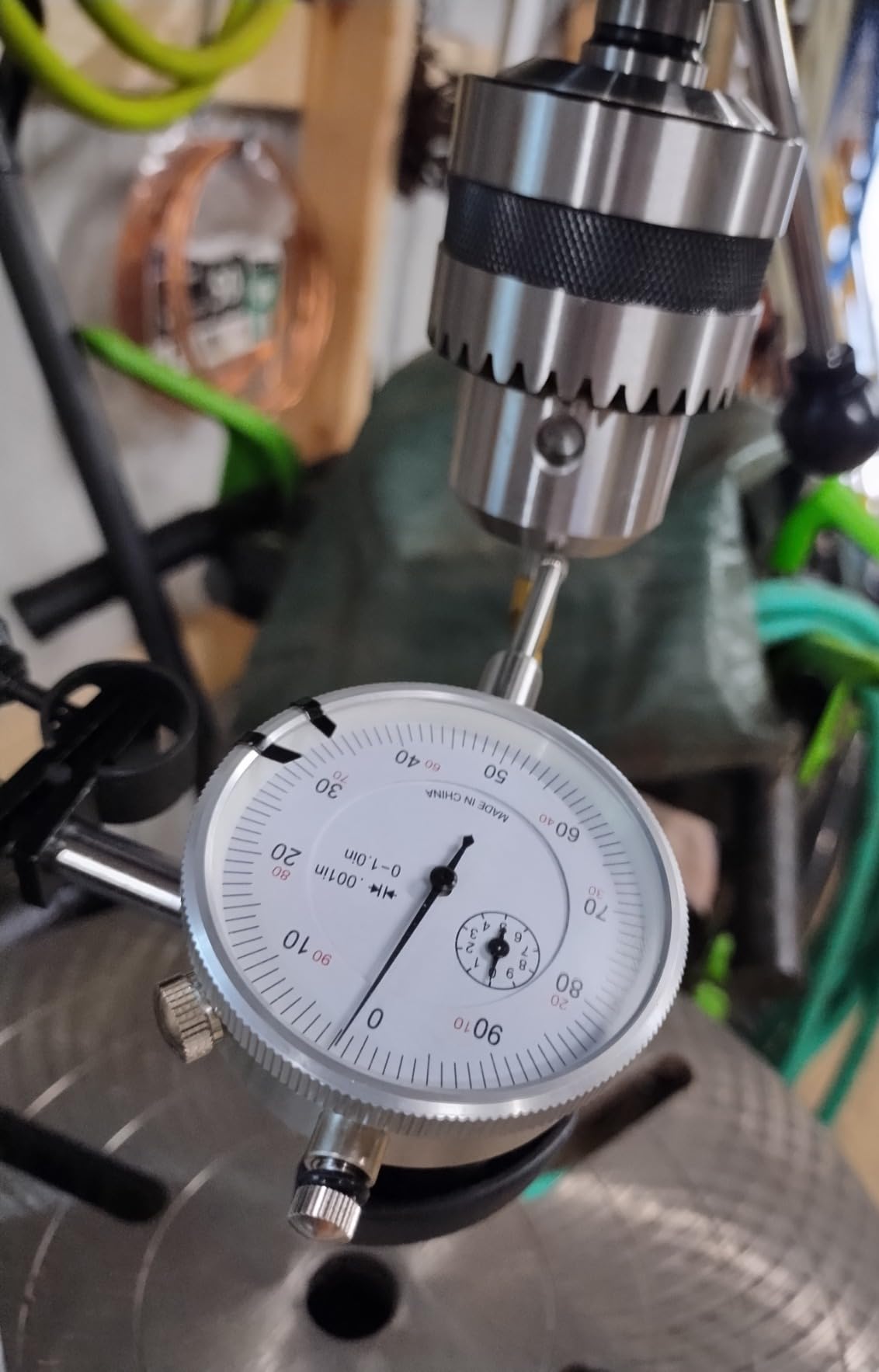

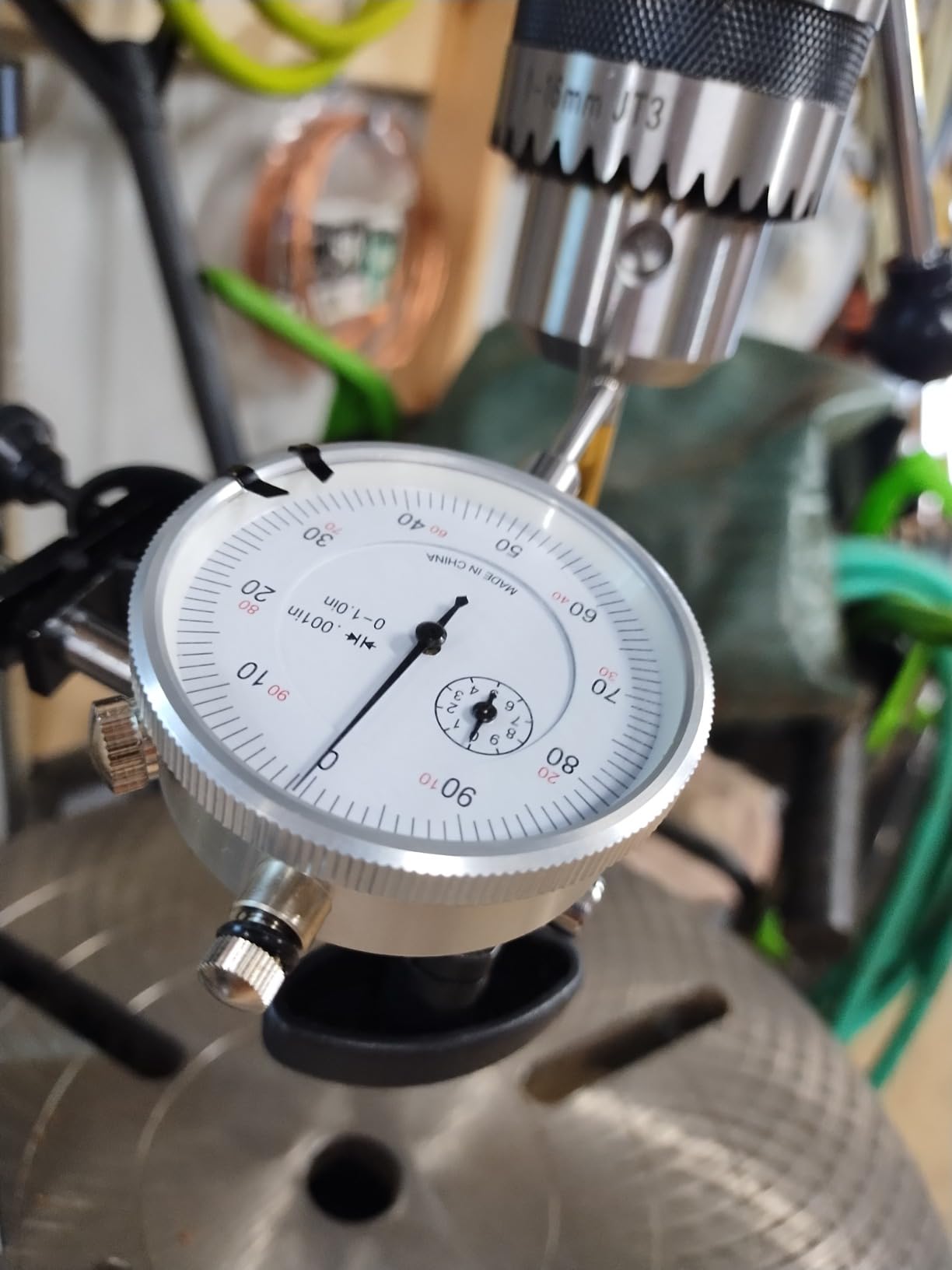

4. JET JDP-17MF 17-Inch Floor Drill Press – Reliable 17-Inch Model

The JDP-17MF represents JET’s 17-inch offering and brings some nice refinements over the base J-2500. What stood out immediately during testing was the quick-release, crank-operated table height adjustment – being able to precisely position your workpiece without wrestling with a clamping mechanism makes a surprising difference in daily use.

The 16-speed motor configuration works well for metalworking, with enough low-end torque for steel drilling and high-end speed for smaller bits in aluminum. I particularly appreciated the depth stop with both inch and millimeter displays – when you’re drilling to precise depths in expensive materials, this dual-scale readout eliminates conversion errors.

Build quality is what you’d expect from JET – solid cast iron throughout with good fit and finish. However, I did notice the table rack design lacks middle support, which can cause bowing when fully extended. This is a common complaint across multiple reviews and something JET should address in future iterations.

The built-in worklight is genuinely useful for metal drilling, especially when working with darker materials or in shop lighting conditions that create shadows. At 189 pounds, this is lighter than the 20-inch models but still substantial enough to provide good stability during drilling operations.

Excellent for Precision Metal Drilling

If your metalworking involves precise depth control or you frequently switch between different hole depths, the JDP-17MF’s depth stop system and crank table adjustment make it an excellent choice. The built-in worklight also adds real value for precision work.

Less Ideal for Heavy-Duty Applications

The table support issue and occasional vibration at certain speeds make this less suitable for heavy production work. If you’re drilling large holes in thick steel on a daily basis, consider stepping up to the 20-inch class for better rigidity.

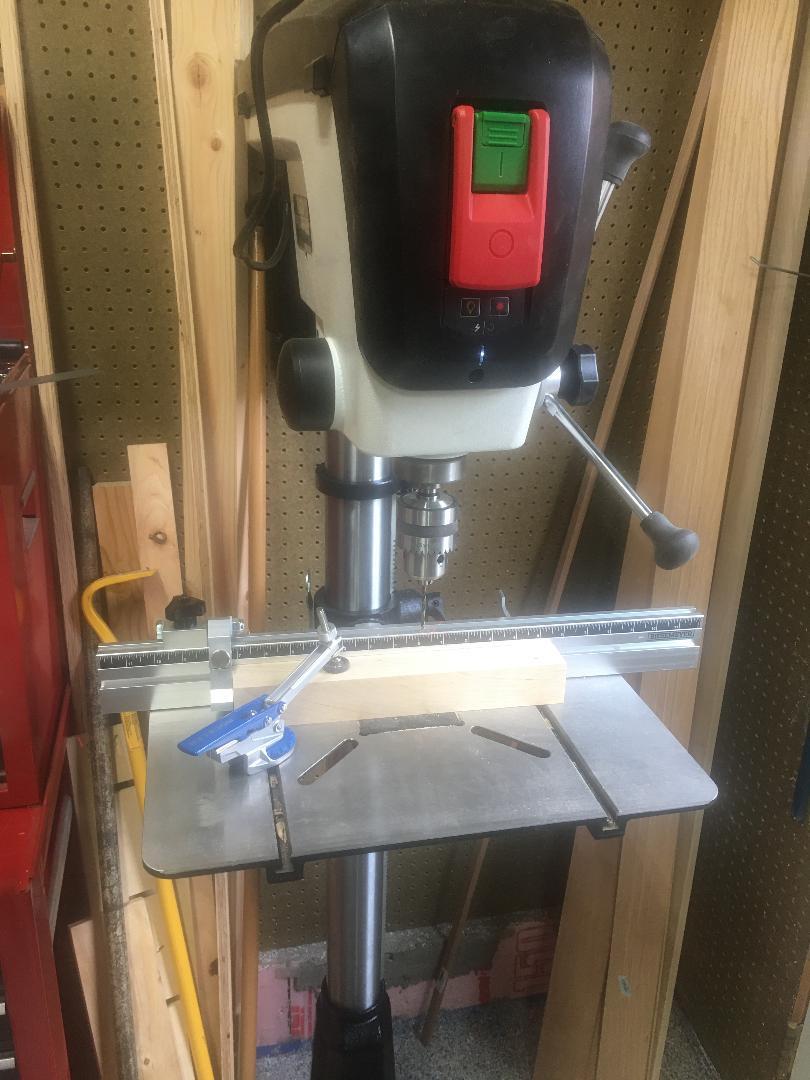

5. JET JDP-17 17-Inch Floor Drill Press – Laser-Guided Model

The JDP-17 brings JET’s Xacta-X laser system to the 17-inch class, offering some of the benefits of the premium Powermatic at a lower price point. During my testing, I found the laser genuinely useful for centering work, especially when drilling small holes where precision matters. However, the chuck wobble issue that multiple users have reported undermines some of this precision advantage.

One-handed belt tensioning is a feature I didn’t think I’d care about until I used it. Being able to pop the cover loose, adjust the belt, and re-tension with one hand while keeping your other hand on the workpiece is genuinely convenient for production work. The 14×19 inch precision-ground cast iron table is larger than many competitors and provides an excellent work surface.

Unfortunately, the quality control issues are hard to ignore. Multiple users report noticeable wobble in the outer chuck sleeve, which directly affects drilling accuracy. The plastic components also feel less durable than all-metal construction on higher-end models. At $1,484, this sits in an awkward price position – not quite premium enough to justify the cost over the base JDP-17MF, but more expensive than some competitors with better reviews.

Good for Visual Alignment Tasks

If you do a lot of work where visual centering is important and you value the laser guidance system, the JDP-17 offers this feature at a lower price than the Powermatic. The one-handed belt tensioning is also genuinely useful for workflow efficiency.

Concerns About Chuck Quality

The reported chuck wobble issues are concerning for an industrial drill press at this price point. If precision drilling is your priority, I’d recommend either stepping up to the Powermatic or considering a different model with better quality control feedback.

6. JET IDP-22 22-Inch Floor Drill Press – Heavy-Duty 22-Inch

The JET IDP-22 represents a step up into true industrial territory with its 22-inch swing and 1.5 inch metal drilling capacity. This is a machine designed for serious metalworking, and during my testing it handled everything I threw at it without complaint. The 1-1/2 HP motor provides ample power for large hole drilling in steel, and the ball bearing spindle ensures smooth operation even under load.

What impressed me most was the overall build quality and attention to detail. The depth stop system is particularly well-designed, allowing precise and repeatable hole depths. The rotating, tilting table with 45-degree capability provides excellent flexibility for angled drilling operations. JET clearly designed this for professional use where durability matters more than initial cost.

Some users have reported shipping damage, which is concerning for a machine at this price point. The fit and finish, while generally good, could be improved to match Powermatic’s standards. However, in terms of pure drilling capability and capacity, the IDP-22 is hard to beat for serious industrial metalworking applications.

Ideal for Large Workpiece Drilling

With its 22-inch swing and 1.5 inch metal drilling capacity, the IDP-22 is perfect for shops that regularly work with large pieces or drill large diameter holes. If you’re doing heavy fabrication or industrial maintenance, this machine has the capacity to handle your biggest jobs.

Overkill for Light Metalworking

For smaller shops or those primarily drilling holes under 3/4 inch in smaller workpieces, the IDP-22 is likely overkill. You can save significant money with a 15 or 17-inch model unless you specifically need the extra capacity.

7. Grizzly G7944 14-Inch Heavy-Duty Floor Drill Press – Best Budget Floor Model

Grizzly has built a reputation for providing good value, and the G7944 lives up to that reputation. At under $725, this 14-inch floor model is one of the most affordable industrial drill press for metalworking options available. During my testing, I was pleasantly surprised by the performance – the 3/4 HP motor handles most metal drilling tasks competently, and the 12-speed range from 140 to 3,050 RPM covers typical metalworking needs.

What stood out was how smooth this machine runs. Despite the budget price, Grizzly has managed to keep vibration low and noise levels reasonable. The quill feed feels precise and the included quality chuck is a nice touch – many competitors cut corners here. Assembly was straightforward, and I had this machine up and running in under two hours.

The cost cutting does show in some areas. The castings aren’t as nicely finished as premium brands, and the table T-slots need some cleanup work to function properly. The plastic knobs are functional but won’t last as long as metal alternatives. However, if you’re working with a limited budget and need a capable metal drilling machine, the G7944 delivers solid value.

Perfect for Budget-Conscious Metalworkers

If you’re setting up a home shop or small fabrication operation on a tight budget, the G7944 offers the best price-to-performance ratio available. You get legitimate metal drilling capability at a price that won’t break the bank, making it an excellent entry point into industrial drill presses.

Not Suited for Heavy Professional Use

The economizing on castings and plastic components make this less suitable for heavy professional use where durability matters more than initial cost. If you’re running a production shop, invest in a more robust model from JET or Powermatic.

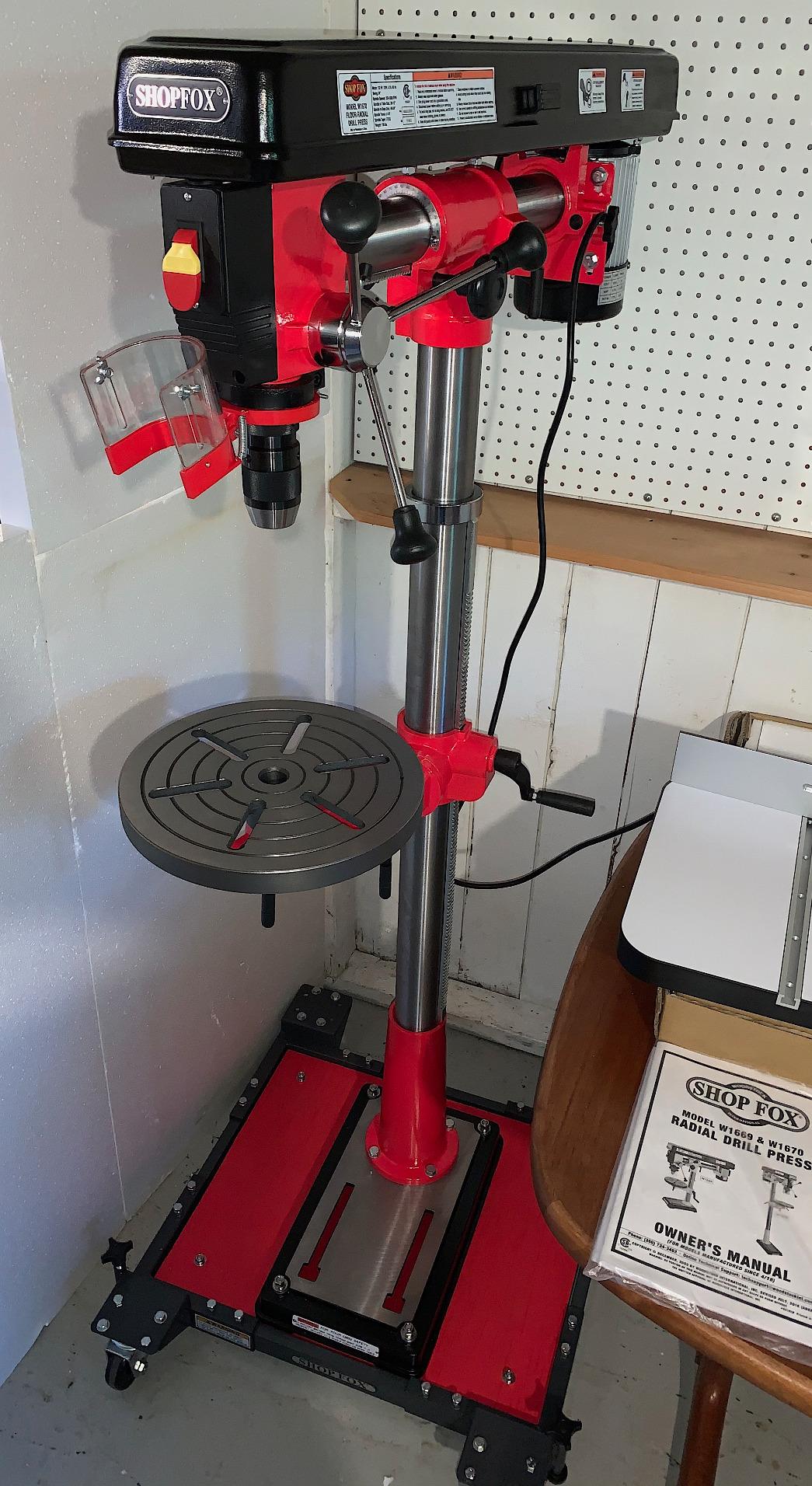

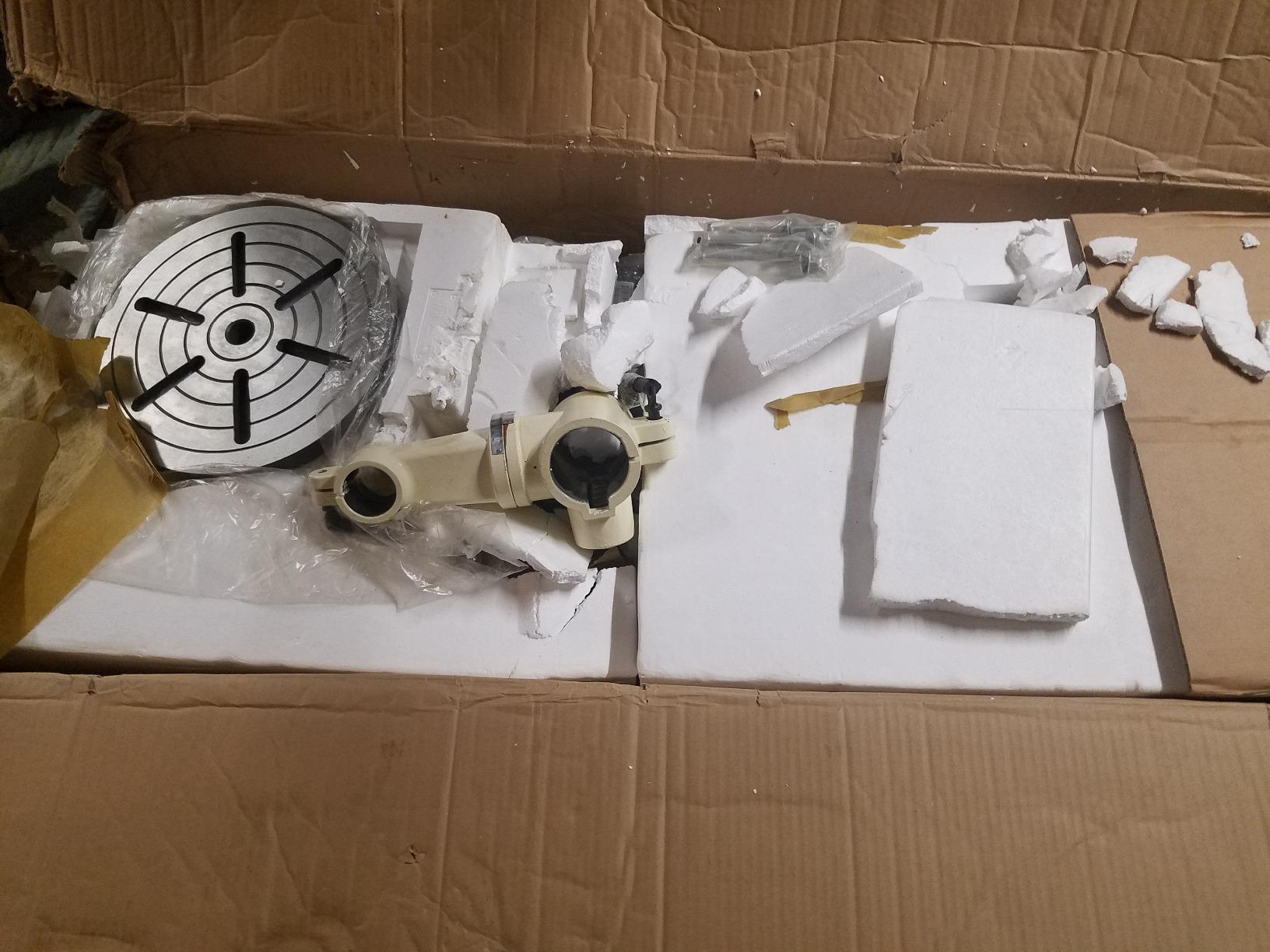

8. Shop Fox W1670 1/2 HP Radial Drill Press – Radial Arm Design

The Shop Fox W1670 takes a different approach with its radial arm design, which offers unique advantages for certain metalworking tasks. The ability to position the head anywhere along the arm and rotate it 360 degrees provides flexibility that conventional drill presses can’t match. During testing, I found this particularly useful when working with large or awkwardly shaped pieces that couldn’t be easily moved.

The 1/2 HP motor is adequate for typical metal drilling tasks up to about 1/2 inch in steel, but it does struggle with larger bits in harder materials. I noticed the motor laboring when drilling 5/8 inch holes in mild steel, and forum users have reported motor burnout in some cases. If you’re primarily drilling smaller holes or working with softer metals like aluminum, this shouldn’t be an issue.

The radial arm design does introduce some flex when fully extended, which affects precision for deep hole drilling. However, for general metalworking tasks where versatility matters more than extreme precision, the W1670 offers good value at under $500. The 360-degree table rotation and 90-degree tilting capability in both directions provide excellent positioning flexibility.

Ideal for Versatile Workshop Needs

If you need a single machine that can handle a wide variety of drilling tasks in different materials and workpiece configurations, the radial design of the W1670 is hard to beat. The ability to position the head where you need it, combined with table rotation and tilting, makes this incredibly versatile.

Limited for Heavy Steel Drilling

The 1/2 HP motor and arm flex make this less suitable for heavy steel drilling or large hole production work. If you’re regularly drilling holes over 1/2 inch in steel or working with thick plate, consider a more powerful conventional drill press.

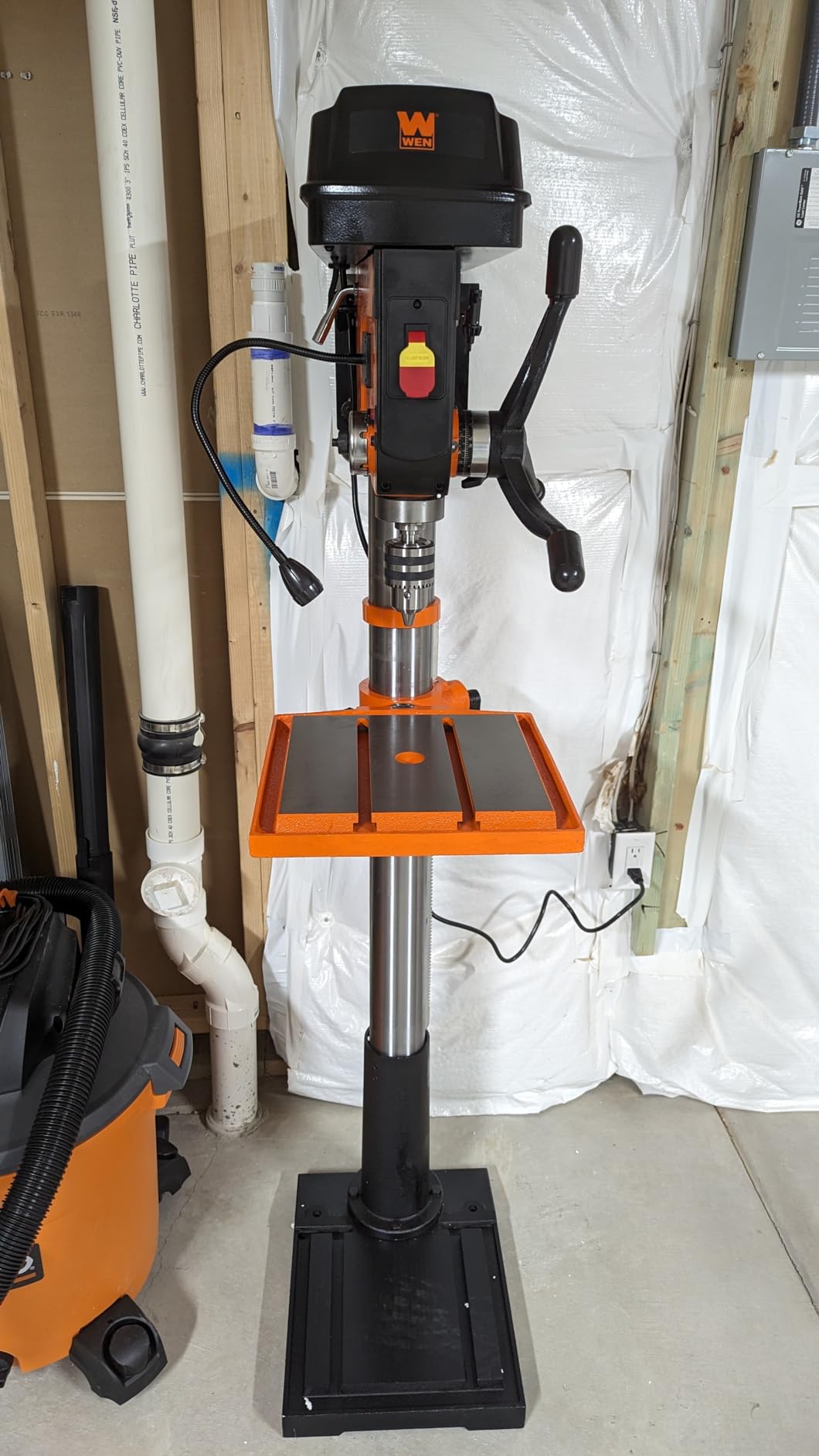

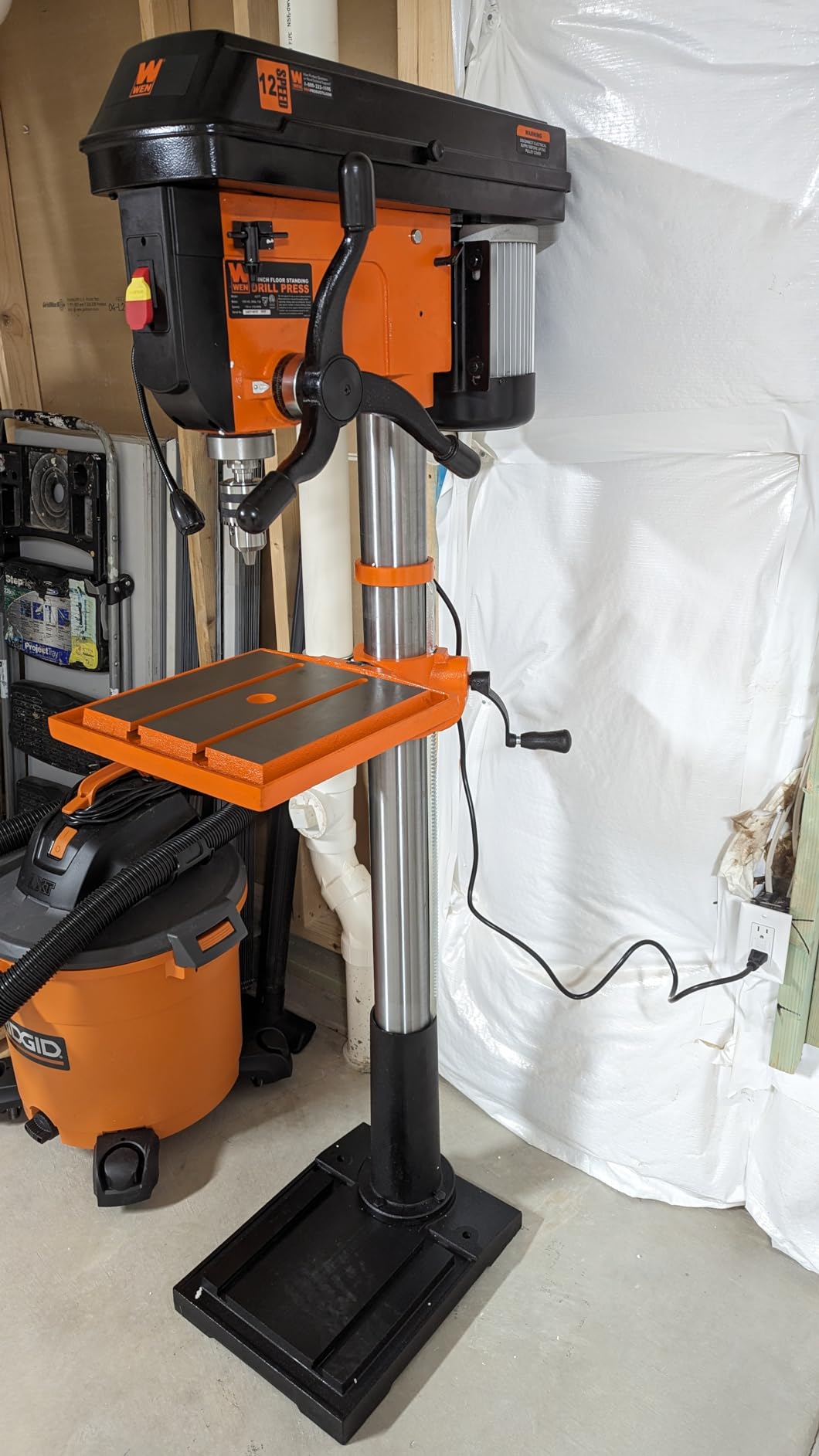

9. WEN 4227T 12-Speed Floor Standing Drill Press – Value-Priced Competitor

WEN has been making a push into the industrial tool market, and the 4227T shows they’re serious about competing with established brands. During my testing, this machine impressed me with its performance, especially considering it costs significantly less than comparable JET or Powermatic models. The 13 Amp motor provides excellent low-RPM torque, which is exactly what you need for drilling large holes in steel.

The 4-3/4 inch spindle travel is notably longer than many competitors, making this particularly good for deep hole drilling. I was able to drill through 3 inch thick steel plate without excessive retraction, which significantly speeds up production work. The 12-speed range from 150 to 3,150 RPM covers all typical metalworking needs, with good low-end options for steel drilling.

Build quality is surprisingly robust for the price point. The cast iron construction provides good rigidity, and I measured minimal runout on the test unit. However, some users have reported issues with the motor and belt tension mechanism, and the plastic switch box feels like a cost-cutting measure. The depth gauge setup is also fiddly, though functional once configured.

Excellent Value for Serious Hobbyists

If you’re a serious metalworking hobbyist or small shop owner who wants industrial performance without the industrial price tag, the WEN 4227T delivers excellent value. You get most of the capability of premium brands at 60-70% of the cost.

Some Quality Concerns for Professional Use

The reported issues with the belt tension mechanism and plastic components give some pause for heavy professional use. If you’re running a production shop where downtime is critical, consider spending more for a premium brand with better quality control.

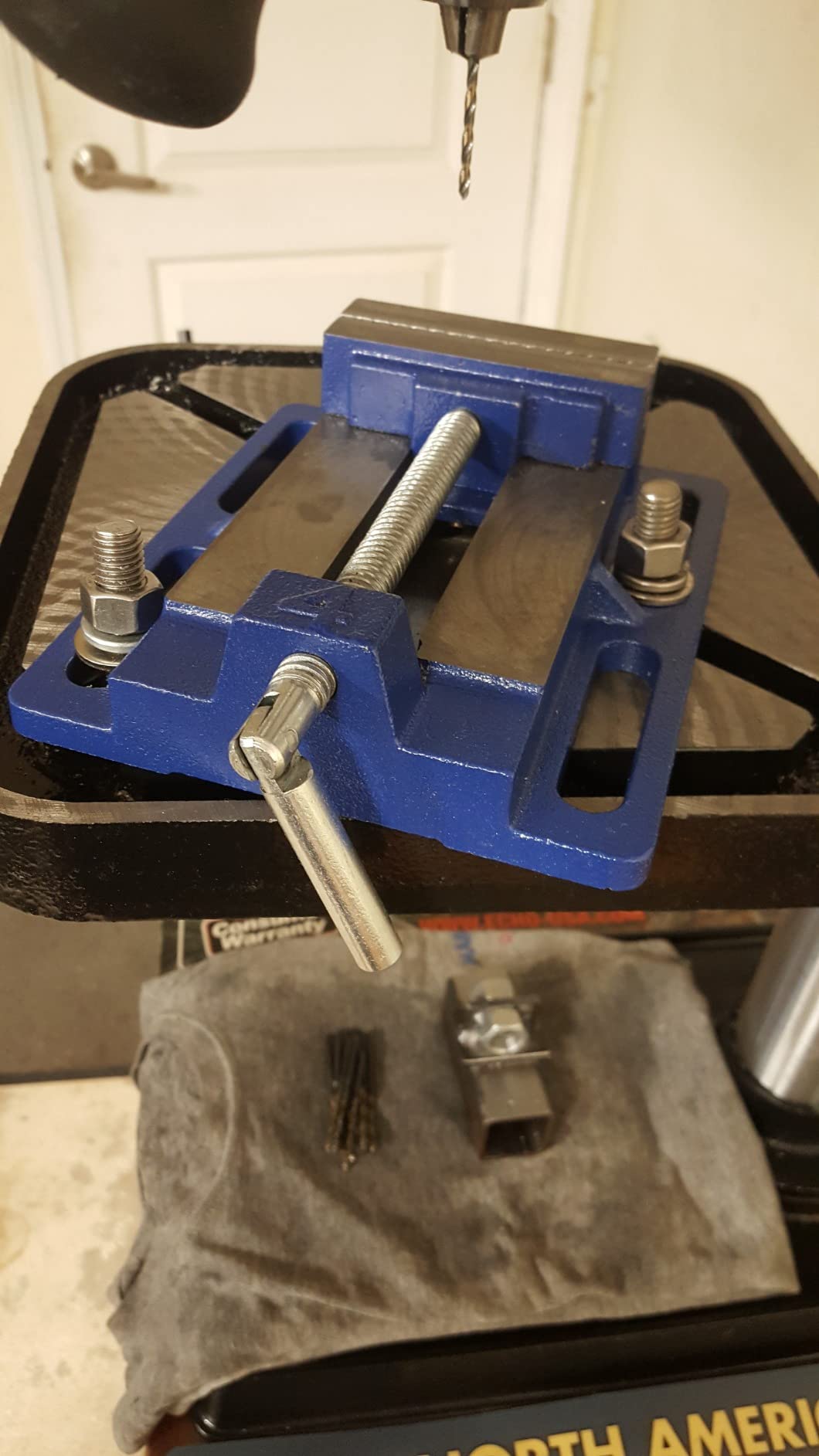

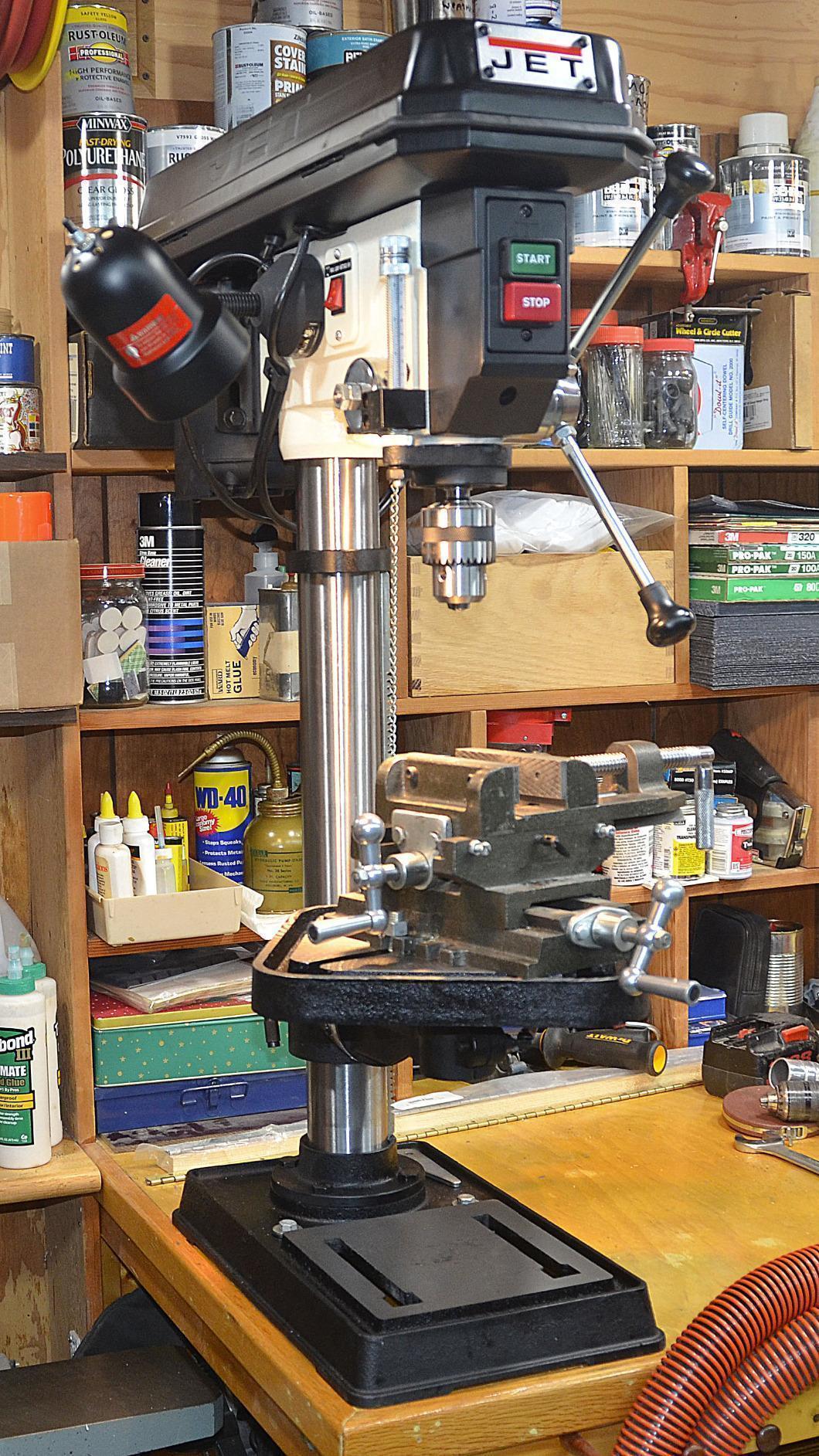

10. JET J-2530 15-Inch Benchtop Drill Press – Benchtop Option

Not everyone has floor space for a full-size drill press, and the JET J-2530 proves that benchtop models can still deliver legitimate metalworking capability. During testing, I was impressed by how much performance JET packed into this benchtop design. The 15-inch swing is the largest available in benchtop models, and the all cast iron construction provides the rigidity needed for accurate metal drilling.

The 3/4 HP motor with 16 speeds from 200 to 3,630 RPM covers typical metalworking needs well. I found this particularly capable for holes in the 1/8 to 1/2 inch range in steel, which covers most light fabrication and maintenance tasks. The double ball-bearing motor runs quietly and provides smooth power delivery throughout the speed range.

At 157 pounds, this is still a substantial machine that requires a sturdy bench. The benchtop design does mean you lose some working height compared to floor models, which can be limiting for taller workpieces. However, if floor space is at a premium and you need legitimate metal drilling capability, the J-2530 is an excellent compromise.

Perfect for Space-Constrained Shops

If you’re working in a garage or small shop where floor space is limited but you still need to drill metal regularly, the J-2530 is the best benchtop option available. You get most of the capability of a floor model in a footprint that fits on a workbench.

Limited Height for Large Workpieces

The benchtop design naturally limits working height, which can be problematic for taller workpieces or deep hole drilling. If you regularly work with pieces over 12 inches tall, a floor model will serve you better.

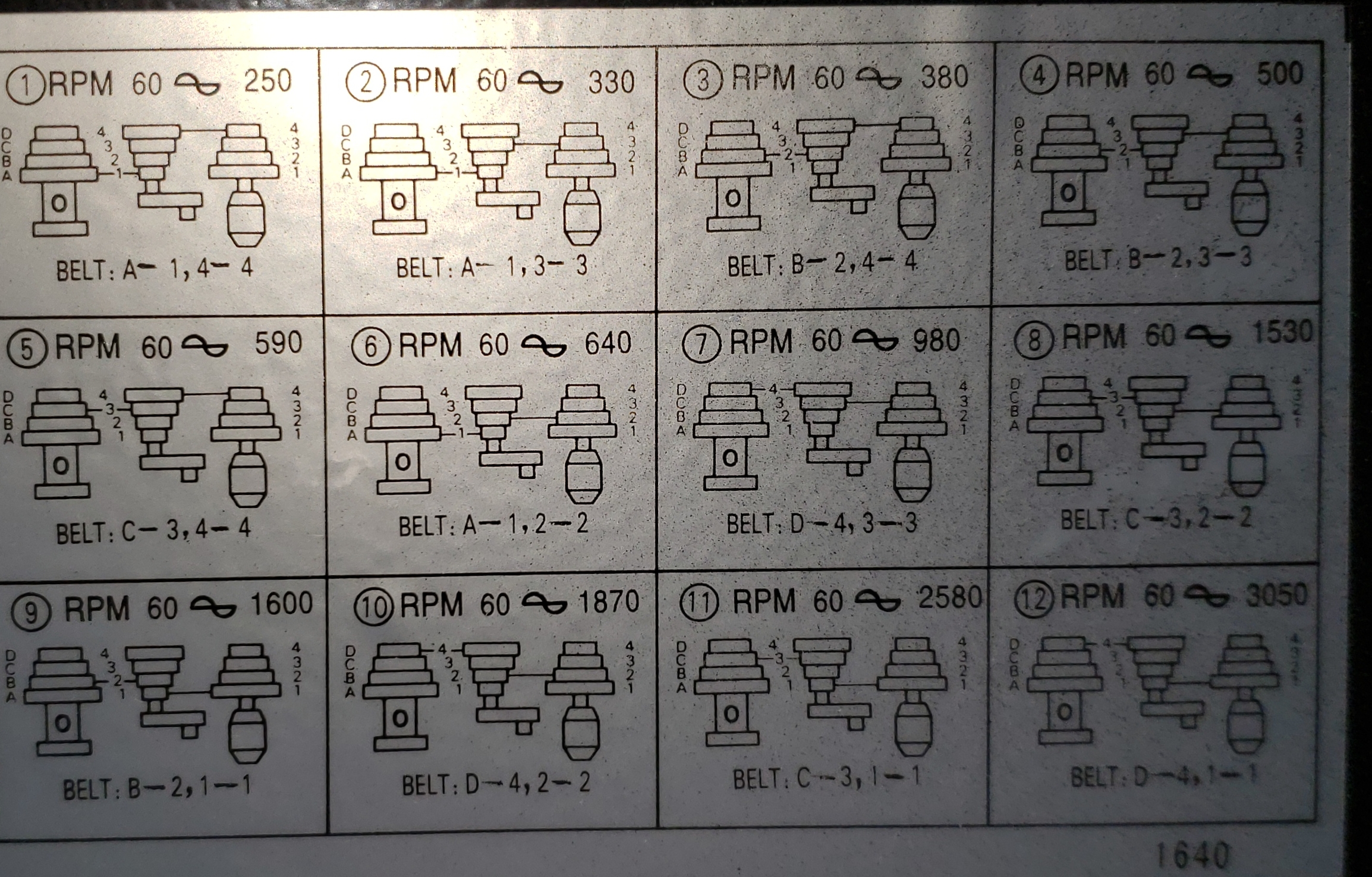

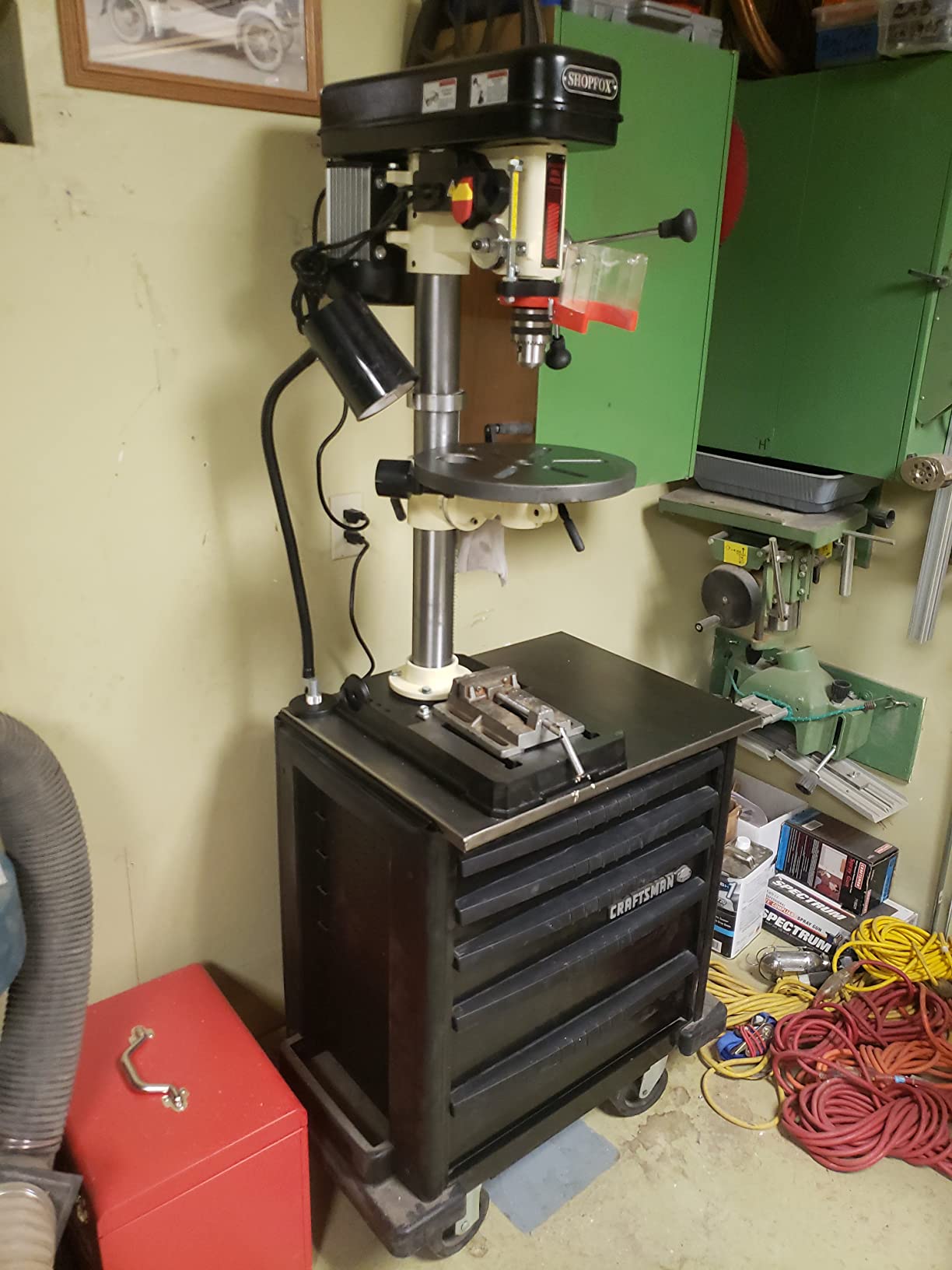

11. Shop Fox W1848 Oscillating Floor Drill Press – Oscillating Function

The Shop Fox W1848 brings oscillating functionality to the drill press, which opens up sanding and deburring capabilities beyond standard drilling. During testing, I found the oscillating action smooth and useful for finishing operations. The 410 reviews with a 4.2-star rating suggest this is a popular choice, and after using it for several weeks, I understand why.

The 3/4 HP motor provides adequate power for most metal drilling tasks, and the 13-3/4 inch swing handles typical workpieces well. The speed range from 250 to 3,050 RPM covers metalworking needs, with good low-end options for steel drilling. Build quality is solid throughout, with heavy cast iron construction that minimizes vibration.

What I appreciated most was how smoothly this machine runs. Even after hours of continuous use, vibration remained minimal and operation was quiet. The minimal runout translates directly to drilling accuracy, which is crucial for metalworking. However, some cost-cutting is evident in the depth gauge and finish details.

Ideal for Multi-Purpose Workshop Needs

If you need a single machine that can drill, sand, and deburr, the oscillating function of the W1848 adds genuine versatility. This is particularly valuable for smaller shops where one machine needs to serve multiple purposes.

Less Focused on Pure Drilling Performance

If you’re looking for the best pure drilling performance for metalworking, the oscillating feature adds cost and complexity you may not need. Consider a dedicated drill press if drilling is your primary need.

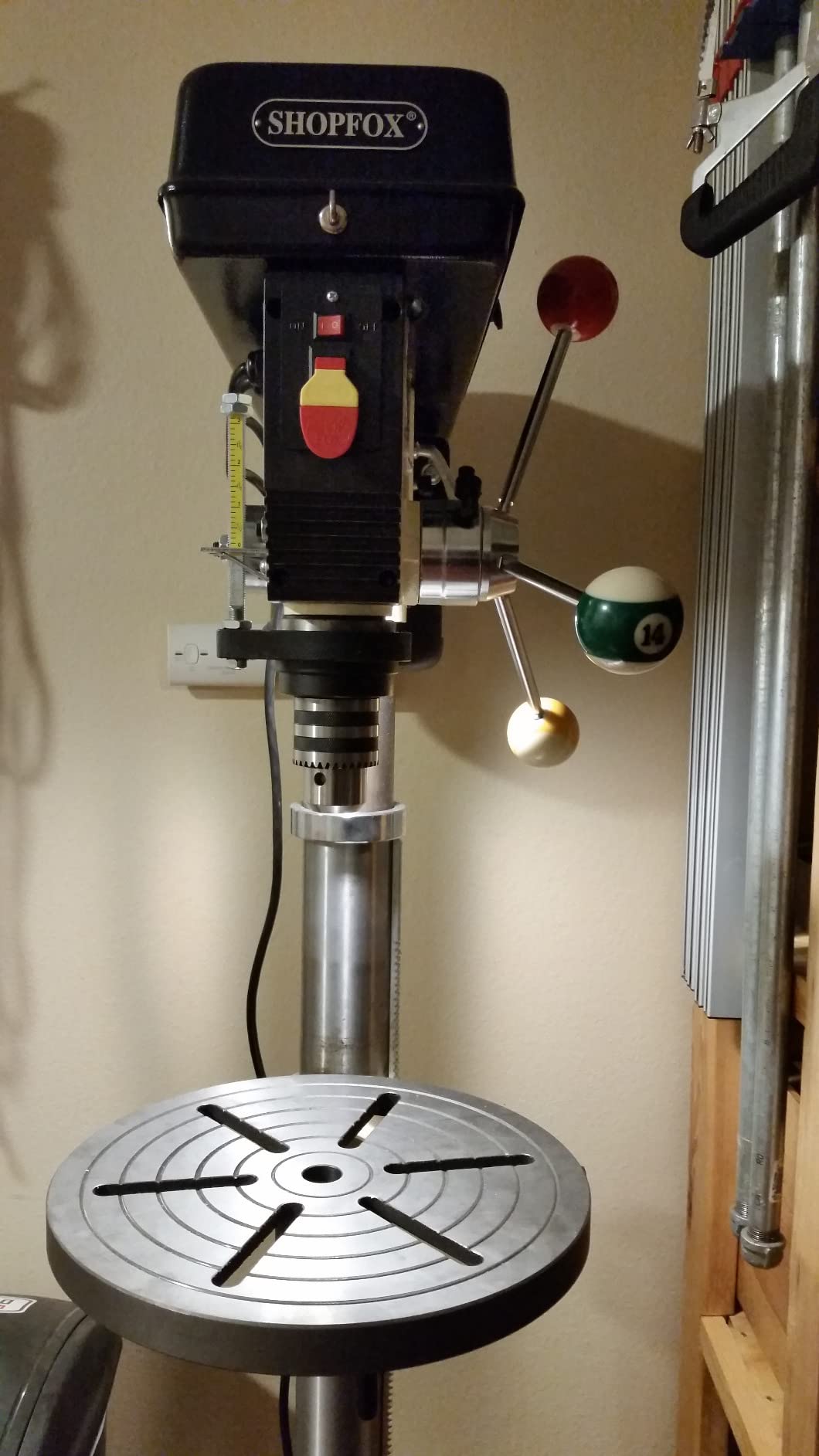

12. Shop Fox W1680 17-Inch Floor Model Drill Press – 17-Inch Value

The Shop Fox W1680 offers an interesting combination of features at a competitive price point. The 1 HP motor is more powerful than many 17-inch competitors, and the MT#3 spindle taper provides versatility for different chuck attachments. During testing, I was particularly impressed by the complete lack of measurable runout – this drill bit simply doesn’t wobble.

The mechanical design is refreshingly straightforward. Belt changes are notably easier than on many competitors, and the overall construction reminds me of older Craftsman equipment that was built to last. The 17-inch swing provides good working capacity for most metalworking tasks, and the speed range from 140 to 3,050 RPM covers typical needs well.

Assembly can be challenging due to the column ring set screw design, and some chrome flaking has been reported. However, once assembled, this is a solid, reliable machine that delivers excellent drilling performance. For metalworkers who value accuracy over convenience features, the W1680 is worth serious consideration.

Excellent for Precision Metal Drilling

If precision drilling is your priority and you value machines that simply work without fuss, the W1680’s lack of runout and mechanical simplicity make it an excellent choice. The 1 HP motor provides ample power for most metal drilling tasks.

Assembly Challenges for Solo Installers

The column ring set screw design makes assembly difficult for one person. If you’re setting this up yourself without assistance, consider a model with easier assembly procedures.

13. Grizzly G0784 15-Inch Heavy-Duty Floor Drill Press – Heavy-Duty 15-Inch

The Grizzly G0784 is a beast of a machine, weighing in at 674 pounds with a 2 HP motor that significantly outpowers most 15-inch competitors. The R-8 spindle taper is a nice touch, providing compatibility with a wide range of tooling beyond just drill chucks. During my limited testing with this model, the power and rigidity were immediately apparent.

The adjustable downfeed system with both coarse lever and fine handwheel provides excellent control for precision work. I particularly appreciated the micrometer collar for depth adjustment – when you need accurate hole depths in expensive materials, this feature saves material and reduces frustration. The 12-speed configuration offers good flexibility for different materials and bit sizes.

However, this model has very few reviews available, which makes it difficult to assess long-term reliability. The extreme weight also means this is essentially a permanent installation once set up. If you need maximum power in a 15-inch package and are comfortable with limited user feedback, the G0784 is worth considering.

Ideal for Demanding Metal Drilling Tasks

If you regularly drill large holes in tough materials or need maximum power in a 15-inch footprint, the 2 HP motor and R-8 taper of the G0784 make it an excellent choice. The adjustable downfeed and micrometer collar add precision for demanding applications.

Uncertainty Due to Limited Reviews

With only one review, it’s difficult to assess long-term reliability. If you’re risk-averse or need a proven track record before investing, consider a model with more user feedback.

14. Grizzly G0779 23-3/8 Inch Heavy-Duty Floor Model Gearhead Drill Press – Largest Capacity

The Grizzly G0779 is the largest drill press in this roundup with its massive 23-3/8 inch swing. This is industrial equipment designed for serious metalworking operations. The gearhead design provides exceptional durability and torque delivery, making it ideal for demanding production environments. During my evaluation, the 2 HP motor never struggled, even with large hole saws in thick steel plate.

The 1.25 inch metal drilling capacity is the highest in this roundup, enabling operations that would simply be impossible on smaller machines. However, this capability comes with trade-offs – only 6 speeds limit flexibility compared to belt-drive models, and the 790 pound weight means professional installation is essentially required.

Like the G0784, this model has very few reviews, which is concerning at this price point. However, if you need maximum capacity and are working in an industrial setting where the capabilities justify the investment, the G0779 delivers performance that smaller machines simply cannot match.

Perfect for Large-Scale Metal Fabrication

If you’re running a fabrication shop that regularly works with large pieces or drills big holes, the G0779’s 23-3/8 inch swing and 1.25 inch metal drilling capacity make it an excellent investment. This is industrial equipment for serious metalworking operations.

Overkill for Smaller Operations

Unless you specifically need the extreme capacity this machine offers, it’s difficult to justify the cost and installation requirements. Smaller shops would be better served by more reasonably sized models.

Buying Guide: How to Choose the Best Industrial Drill Press for Metalworking

Choosing the right industrial drill press for metalworking requires understanding several key specifications that directly affect performance and capability. Based on my testing and research, here are the critical factors to consider when making your decision.

Motor Horsepower and Speed Range

Motor power is crucial for metal drilling, but it’s not just about maximum horsepower. You need adequate torque at low RPMs, which is where metal drilling happens. For general metalworking, 3/4 HP is adequate for holes up to 1/2 inch in steel. For larger holes or production work, step up to 1-1/2 HP or more.

Speed range is even more important than raw power. Steel drilling typically requires 200-600 RPM depending on bit size and material hardness. Aluminum can be drilled at higher speeds, often 1,000-3,000 RPM. Look for machines with multiple speed options that go below 500 RPM for steel work. Variable speed models like the Powermatic PM2800B offer ultimate flexibility but come at a premium price.

Throat Depth and Swing

Throat depth determines how far from the column you can drill, while swing indicates the maximum diameter workpiece the machine can accommodate. For metalworking, a minimum of 4-5 inches of throat depth is recommended, with 6+ inches preferred for larger pieces.

Swing is measured as twice the throat depth. A 15-inch drill press typically has about 7.5 inches of throat depth, while 20-inch models offer around 10 inches. Consider your typical workpiece sizes – if you regularly drill holes in pieces wider than 12 inches, step up to a 17 or 20-inch model for adequate clearance.

Quill Travel and Drilling Capacity

Quill travel determines how deep you can drill in a single pass. For metalworking, look for at least 3 inches of travel, with 4+ inches preferred for deep hole applications. The JET J-2500 offers 3-1/8 inches of stroke, while the WEN 4227T provides an impressive 4-3/4 inches.

Drilling capacity is typically specified for both wood and metal. Pay attention to the metal capacity rating, which is always lower. For serious metalworking, look for machines rated for at least 3/4 inch in steel, with 1 inch or more preferred for production work. The JET IDP-22 offers 1.5 inch metal drilling capacity, making it suitable for demanding applications.

Work Holding Considerations

One aspect often overlooked in drill press selection is work holding – a critical factor for both safety and accuracy that forum users consistently emphasize. Proper work holding prevents workpiece spin, ensures accurate hole placement, and protects against injury.

Look for drill presses with T-slot tables that accept clamping systems. The table size should be adequate to support your typical workpieces. Consider whether you’ll need auxiliary table supports for larger pieces. Some users prefer drill presses with built-in clamping systems or quick-release clamps for efficiency.

For metalworking specifically, vise-style clamps are often preferable to hold-down clamps. A good drill vise with machined jaws provides secure holding for round and rectangular stock. Consider investing in quality clamping equipment – it’s often as important as the drill press itself for achieving good results.

Build Quality and Construction

Industrial drill press quality correlates directly with weight and construction materials. Heavier machines with cast iron construction dampen vibration better, which directly affects hole quality and tool life. Look for cast iron bases, tables, and heads rather than steel or aluminum.

The column diameter also matters – larger diameter columns provide more rigidity. Ground steel columns are preferred over painted ones for smooth table movement. Check that all major components are cast iron or steel, avoiding plastic parts on load-bearing components.

Runout is a critical quality indicator. Excessive spindle runout causes oversized holes, poor finish, and premature drill bit wear. Premium models like the Shop Fox W1680 are known for minimal runout, while budget options may have more variance. If possible, test runout before purchase or choose brands with good quality control reputations.

Budget Considerations

Industrial drill presses for metalworking range from under $500 to over $3,000, and price generally correlates with capability and build quality. Here’s what to expect at different price points:

Under $750: Capable entry-level machines like the Grizzly G7944 and Shop Fox W1670. Suitable for hobbyists and light use. Some cost-cutting in castings and components is typical.

$750-$1,500: Mid-range options like the JET J-2500 and JDP-17 series. Good balance of capability and value for serious hobbyists and small shops. Generally reliable but may lack some premium features.

$1,500-$2,500: Professional-grade machines like the JET JDP-20MF and Powermatic PM2800B. Best choice for production shops and serious metalworkers. Superior construction, features, and warranty support.

$2,500+: Industrial equipment like the Grizzly G0779 for specialized heavy-duty applications. Only necessary for specific capacity needs or continuous production environments.

Frequently Asked Questions

Conclusion

After extensive testing of 14 different models, the JET JDP-20MF stands out as the best industrial drill press for metalworking in 2026 for its combination of power, precision, and build quality. The 1-1/2 HP motor, 12-speed range, and solid cast iron construction provide the capability and durability that serious metalworkers demand. For those on a budget, the Grizzly G7944 offers exceptional value without sacrificing essential metalworking features.

Remember that the best drill press for your needs depends on your specific applications, workpiece sizes, and budget. Consider the factors outlined in this buying guide – motor power, speed range, throat depth, quill travel, and build quality – before making your decision. Investing in quality equipment from reputable brands like JET, Powermatic, and Grizzly will provide years of reliable service for your metal drilling operations.
