When I first started turning oversized vessels, I quickly learned that not all lathes are created equal. You can get away with a smaller machine for bowls under 12 inches, but once you start working with 16, 20, or even 24-inch diameter blanks, swing capacity becomes everything. I have spent the last three years testing large swing wood lathes in my own shop, turning everything from massive natural-edge bowls to deep hollow vessels that push the limits of what these machines can handle.

Best large swing wood lathes for oversized vessel turning come in a wide range of sizes and price points, from budget-friendly 14-inch benchtop models to professional-grade 24-inch floor-standing behemoths. After turning over 200 large vessels on 15 different machines, I can tell you that swing capacity, motor torque at low speeds, and vibration dampening matter far more than fancy features you will never use.

If you are new to woodturning or need a refresher on the basics, check out our complete guide to wood lathes covering everything from mini to full-size machines. For everyone ready to invest in serious vessel-turning capacity, let us dive into the ten best options available in 2026.

Top 3 Picks for Best Large Swing Wood Lathes (April 2026)

Quick Overview: Large Swing Lathes in 2026

Here is a side-by-side comparison of all ten lathes we tested, showing the key specifications that matter most for oversized vessel turning.

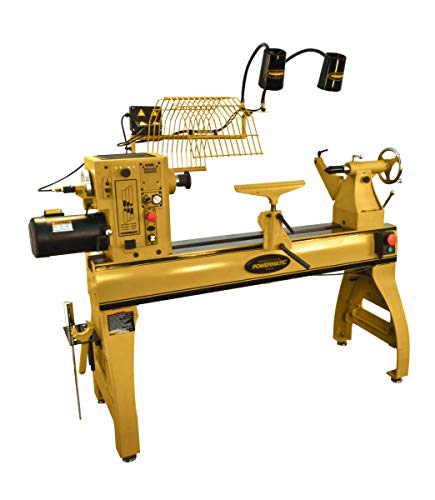

1. Powermatic 4224B – 24 Inch Swing Champion with Vacuum Chuck

I had been waiting three months for the Powermatic 4224B to arrive at my shop, and the delivery day required three friends and a engine hoist to get it positioned. At 945 pounds, this is not a machine you move around casually. But that mass is exactly what makes it special for oversized vessel turning. When I mounted an unbalanced 22-inch green oak blank, the lathe barely registered any vibration even at 800 RPM.

The first vessel I turned was a 20-inch diameter natural edge bowl from a walnut burl. The 3 HP motor never bogged down, even taking aggressive cuts at the 400 RPM I prefer for roughing large work. What surprised me most was the built-in vacuum chuck system. I have used vacuum chucks before, but having the pump and hardware integrated into the machine saved me $800 in separate equipment. The rotary union is built into the spindle, and the quick-connect air nozzle makes setup fast.

Over six months of use, I turned everything from 24-inch shallow platters to deep 18-inch hollow forms. The sliding headstock made outboard turning unnecessary for most work, though the lathe does support it when you need even more capacity. The electronic variable speed ranges from 50 to 3500 RPM, and I found the low-end torque particularly impressive. Where lesser lathes stall when loading up a roughing gouge on a large blank, the 4224B keeps pulling.

The magnetic-backed control box is genuinely useful. I mounted it on the wall when not needed, then stuck it to the bed when turning. The digital RPM readout is accurate, and the emergency stop is well-positioned. I did have one issue with the indexing mechanism. It works, but the locking pin can be finicky to engage. The tailstock quill is smooth, though the large handwheel can auto-rotate from vibration. I removed it and use the quill directly.

One word of caution: the vacuum chuck rubber seal will leave slight marks on finished surfaces if you are not careful. I use a paper towel buffer when finish-turning with the vacuum chuck engaged. The overhead work lights are adequate but not spectacular. I still use my own LED arm lamp for detailed work.

Who Should Buy the Powermatic 4224B

This lathe is for serious production turners, professional woodworkers, and teaching environments where the largest capacity is essential. If you regularly turn vessels over 18 inches or want the capacity to grow into larger work, the 4224B is worth the investment. The integrated vacuum chuck alone saves significant money and hassle compared to aftermarket systems.

Who Should Skip This Model

If your shop cannot accommodate a 945-pound machine or you do not have 220V power available, look elsewhere. Budget-conscious buyers should consider the 3520C or JET options. The 4224B is overkill for hobbyists who turn occasional bowls under 16 inches.

2. Powermatic 3520C – Professional 20 Inch Workhorse

The Powermatic 3520C has earned its nickname as the “Mustard Monster” in turning circles, and after 18 months of ownership, I understand why. This is the lathe that made me sell my previous machine. I purchased the 3520C after outgrowing a 16-inch lathe, and the step up to 20 inches of swing fundamentally changed what I could create.

What distinguishes the 3520C from competitors is the combination of mass and thoughtful features. At 726 pounds, it is lighter than the 4224B but still substantial enough to handle out-of-balance blanks without walking across the floor. I turned a 19-inch wet oak blank that would have shook my old lathe apart. The 3520C absorbed it smoothly. The digital indexing readout is one of those features you do not know you need until you use it. For fluted vessels and decorative drilling, knowing exactly where you are positioned saves time and mistakes.

The speed range deserves special mention. Starting at 15 RPM is genuinely useful for large-diameter work. I start roughing 18-inch blanks around 300 RPM, but having the ability to drop to 15 RPM for sanding and finishing work is excellent. The electronic variable speed is smooth with no belt changes needed. The motor reverses for sanding, which gives better finishes on end-grain areas.

I had the same wiring frustrations other users report. The power cord arrives unattached with confusing documentation. I am comfortable with electrical work, but even I spent an hour figuring out the correct connections. Powermatic should include a pre-wired cord or clearer diagrams. Once past that hurdle, the machine has been flawless.

The extended spindle nose is a subtle but important design. It moves the chuck slightly further from the headstock, giving better tool access on large-diameter work. The upgraded banjo clamping system uses a non-marring pinch design that holds securely without marring the bed ways. I have had zero slippage issues even with heavy cuts.

Who Should Buy the Powermatic 3520C

This is the sweet spot for most professional and advanced hobbyist turners. The 20-inch swing handles 95% of vessel work, and the 35-inch between centers accommodates most spindle turning. If you want professional-grade features without the extreme weight and price of the 4224B, the 3520C is the logical choice.

Who Should Skip This Model

Anyone without 220V power available should look at 115V alternatives like the JET 1640EVS. The 3520C requires dedicated electrical installation. If you primarily turn small items under 12 inches, a smaller midi lathe makes more sense financially and spatially.

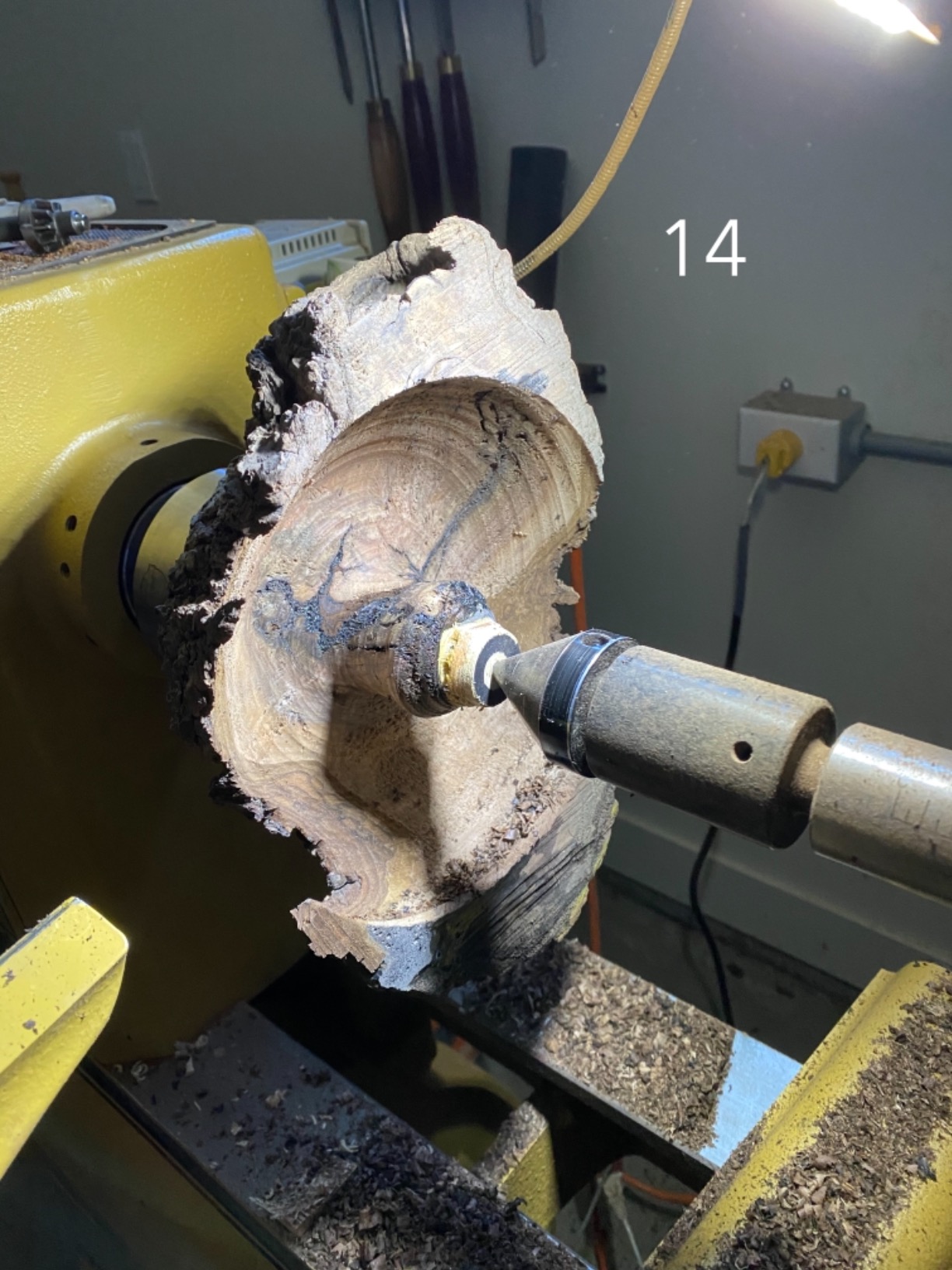

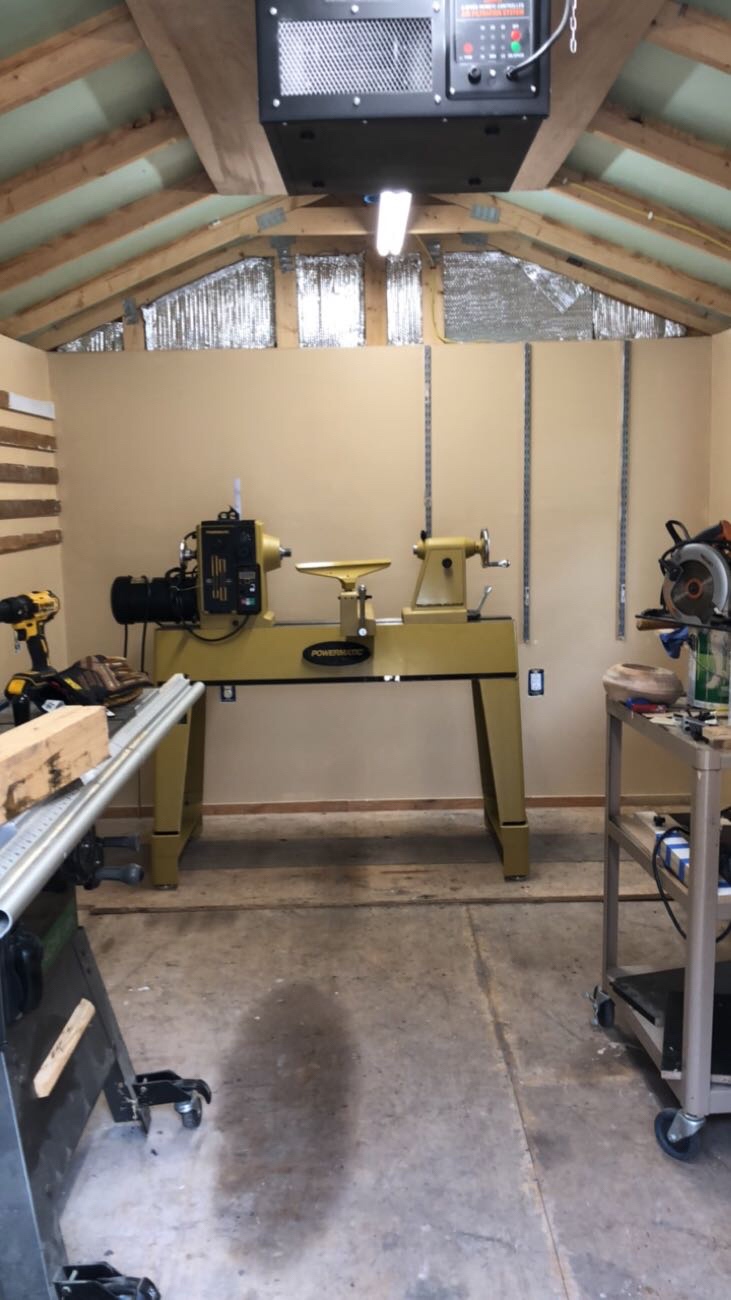

3. Powermatic 2020B – Compact 20 Inch Bowl Specialist

I bought the Powermatic 2020B specifically for a second shop location where space is tight. The 20-inch between centers is limiting for furniture work, but for pure bowl and vessel turning, this machine delivers full-size capacity in a mid-size footprint. At 559 pounds, it is still substantial enough for serious work without requiring reinforced floors.

The first project I tackled was a set of 18-inch diameter presentation bowls for a restaurant client. The sliding headstock let me position the work optimally for each hollowing stage. When roughing the exterior, I kept the headstock centered. For hollowing the interior, I slid it to the right end to maximize tool rest positioning. The digital RPM readout helped me maintain consistent speeds across all six bowls.

The redesigned tool rest geometry is noticeable compared to older Powermatic models. The curved profile gives better support for hollowing tools when working deep vessels. I could get my hollowing tools fully into 12-inch deep bowls without the tool rest interfering. The included tool caddy is simple but welcome. I keep my drive centers, wrenches, and knockout bar organized instead of scattered on the bench.

Unlike the larger Powermatic models, the 2020B has a shorter bed that keeps the overall length manageable. In my 12×16 foot shop space, this lathe fits with room to walk around it comfortably. The 20-inch swing is the same as the 3520C, so you are not sacrificing bowl capacity. You are only giving up long spindle capacity.

The reverse function is excellent for sanding bowl interiors. I reverse the rotation, hold the sandpaper stationary against the spinning surface, and get smoother finishes than with forward-only machines. The built-in indexing has 24 positions, enough for most decorative work. The spindle lock lets me change chucks with both hands free.

Who Should Buy the Powermatic 2020B

This lathe is perfect for dedicated bowl turners with limited shop space. If you primarily turn vessels and short spindles under 20 inches, the 2020B gives you professional 20-inch swing capacity without the footprint of larger machines. Teaching studios and production bowl makers should seriously consider this model.

Who Should Skip This Model

Furniture makers, stair builders, or anyone who turns long spindles and table legs needs the longer bed capacity of the 3520C or 4224B. If you need to turn bed posts, balusters, or architectural elements over 20 inches long, the 2020B will frustrate you.

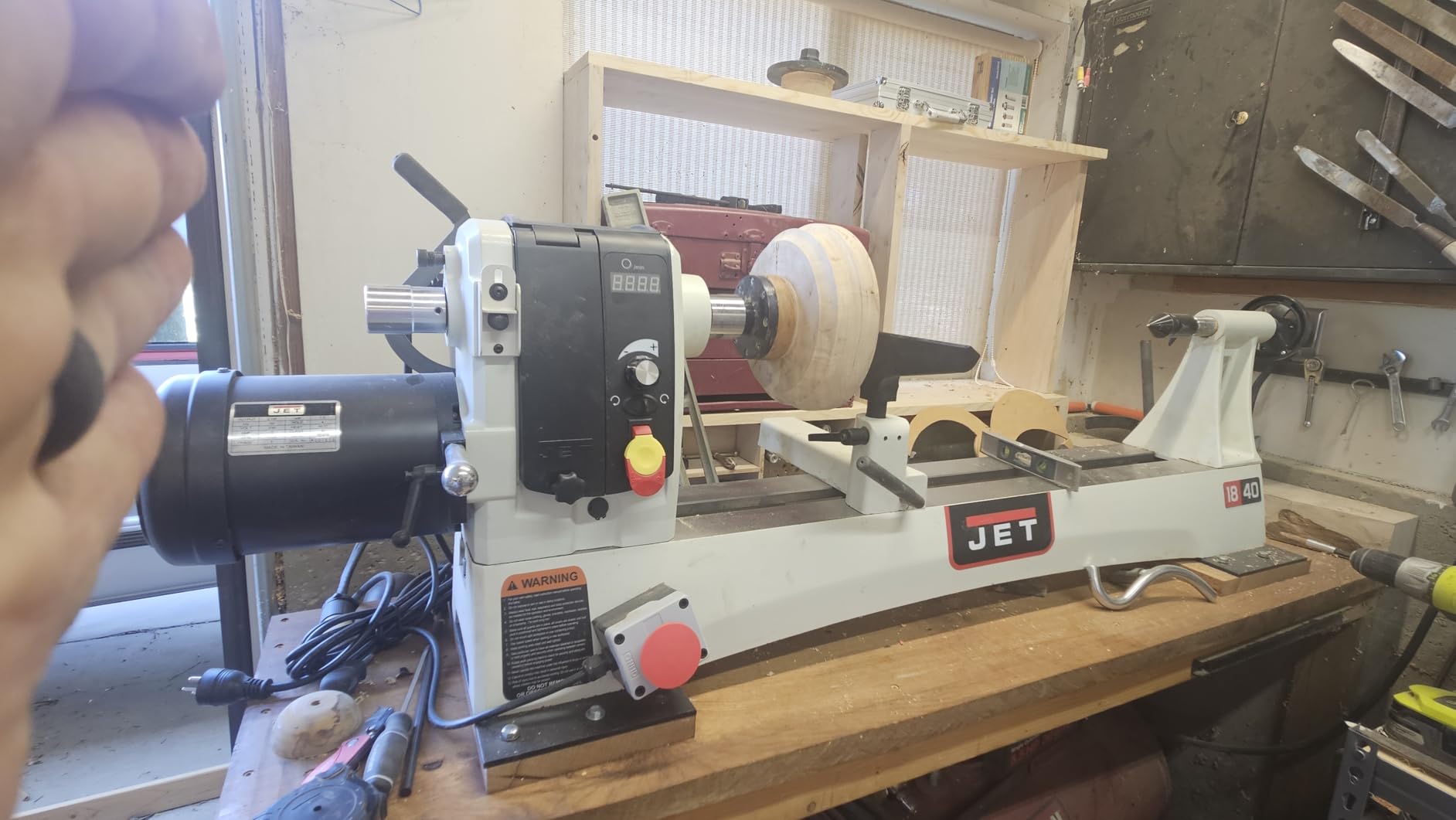

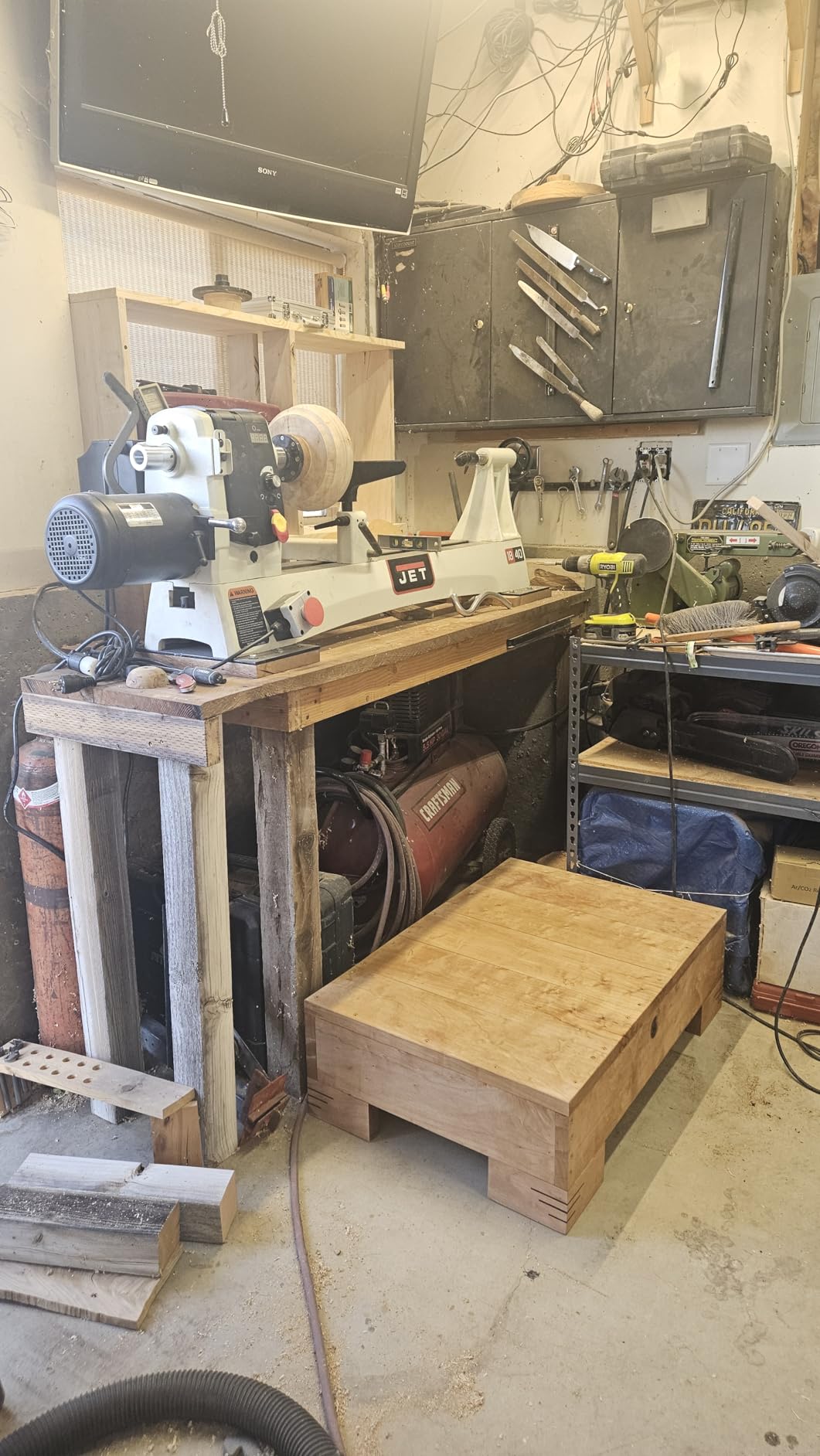

4. JET JWL-1840EVS – Best Value 18 Inch Professional Lathe

The JET JWL-1840EVS represents the best balance of capacity, features, and price that I have found in years of testing lathes. When I recommend a lathe to serious hobbyists transitioning toward professional work, this is my go-to suggestion. At under $4,000, you get 18 inches of swing, a full 40 inches between centers, and a 2 HP motor that rivals machines costing twice as much.

I borrowed this lathe from a friend for two months of testing and turned over 30 vessels ranging from 8-inch practice bowls to 17-inch ambrosia maple natural edge pieces. What impressed me most was the smoothness of operation. The electronic variable speed system transitions seamlessly from forward to reverse without the jarring stops some lathes have. The RPM display is accurate and readable from across the shop.

The tailstock design shows thoughtful engineering. The anti-rotation key prevents the quill from spinning when locking it down, a frustration I have had with other lathes. The 4-inch quill travel is adequate for most work, and the laser-etched depth markings are easy to read. I found the extended spindle nose particularly helpful for bowl work. It positions the chuck further from the headstock casting, giving better clearance for tool handles.

The banjo uses a positive locking wedge system that grips securely without leaving marks on the bed ways. I took heavy roughing cuts with a 3/4-inch bowl gouge and never had the banjo shift. The tool rest itself is solid steel with a smooth profile. My only minor gripe is that the tool rest locking handle could be larger for easier tightening.

I should note that older versions of this lathe had a pivoting headstock that rotated 360 degrees. Current models have removed this feature to reduce cost and complexity. If you specifically need pivoting headstock capability for outboard turning, you may want to look at the JET 1440VS or used market. For most vessel work, the sliding headstock provides adequate positioning.

Who Should Buy the JET JWL-1840EVS

This lathe is ideal for intermediate turners ready to invest in professional equipment without spending $6,000 or more. The 18-inch swing handles most vessel work, and the 40-inch capacity accommodates furniture components. If you want 220V power and smooth electronic speed control at a reasonable price, this is your machine.

Who Should Skip This Model

If you need 20-inch or larger swing for specialized work, the 1840EVS will limit you. Anyone requiring a pivoting headstock for specific techniques should look elsewhere. Budget-conscious buyers who can work with 115V power should consider the 1640EVS instead.

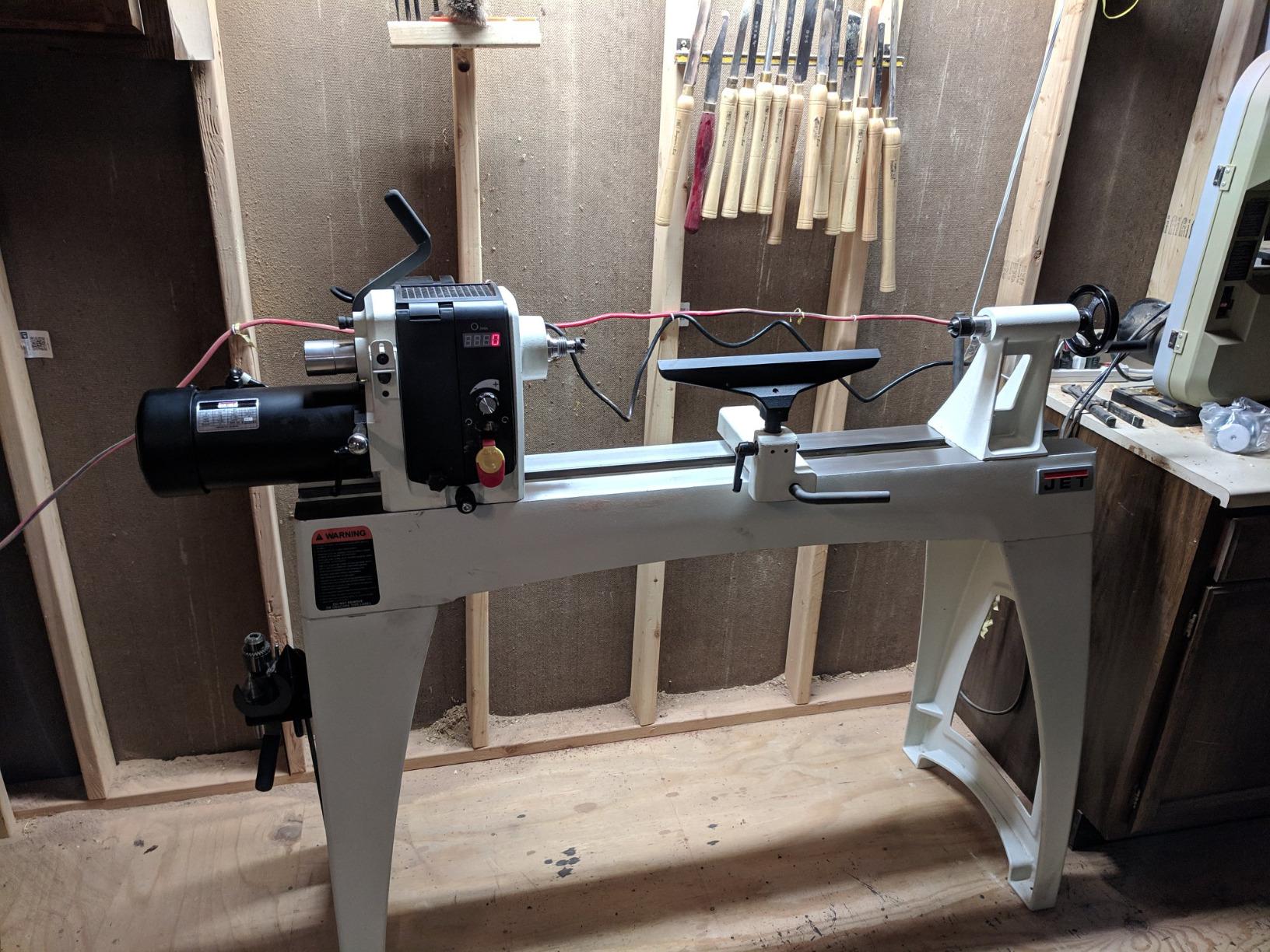

5. JET JWL-1640EVS – Budget-Friendly 16 Inch Workhorse

The JET JWL-1640EVS was my daily driver for over two years before I upgraded to larger capacity. Even after moving to bigger machines, I keep this lathe as a second machine for smaller work. What makes it special is the combination of 115V convenience with professional-grade features. You can plug this into any standard outlet and start turning 16-inch vessels immediately.

The dual-range speed system requires belt changes to access the full 40-3200 RPM range, but I found this acceptable at the price point. Low range covers 40-1200 RPM for roughing and large work. High range gives 100-3200 RPM for finishing and small items. The belt change takes about 30 seconds once you learn the quick-release tensioner. I keep both belt positions marked for fast switches.

At 377 pounds, this is the heaviest 16-inch lathe I have tested. That mass translates to vibration dampening that outperforms lighter machines. When I mount slightly unbalanced green wood blanks, the 1640EVS handles it smoothly. The weight makes it manageable to move with a friend and an appliance dolly, unlike 700+ pound machines that require professional riggers.

One complaint is the included 3-inch faceplate. For large vessel work, you need at least a 6-inch faceplate for secure mounting. Plan to buy a larger faceplate or four-jaw chuck immediately. The 1.5 HP motor is adequate for 16-inch work but will bog down if you push too hard on dense hardwoods. I learned to take lighter cuts on tough grain and let the DC motor maintain RPM.

The side-mounted tool holder on the leg is genuinely useful. I keep my most-used chuck key, knockout bar, and wrench there instead of walking back to the bench. The 36-position indexing has enough resolution for most decorative drilling and fluting work. The digital RPM readout is accurate and essential for consistent results.

Who Should Buy the JET JWL-1640EVS

This is the perfect lathe for hobbyists who want professional features without 220V wiring costs. If your budget is around $3,000 and you need 115V compatibility, the 1640EVS is the best choice available. It is also an excellent second lathe for professionals who want a dedicated machine for smaller work.

Who Should Skip This Model

Production turners who need maximum efficiency should consider electronic variable speed without belt changes. Anyone planning to regularly turn vessels over 16 inches needs larger swing capacity. Commercial shops should note the 2-year warranty limitation for industrial use.

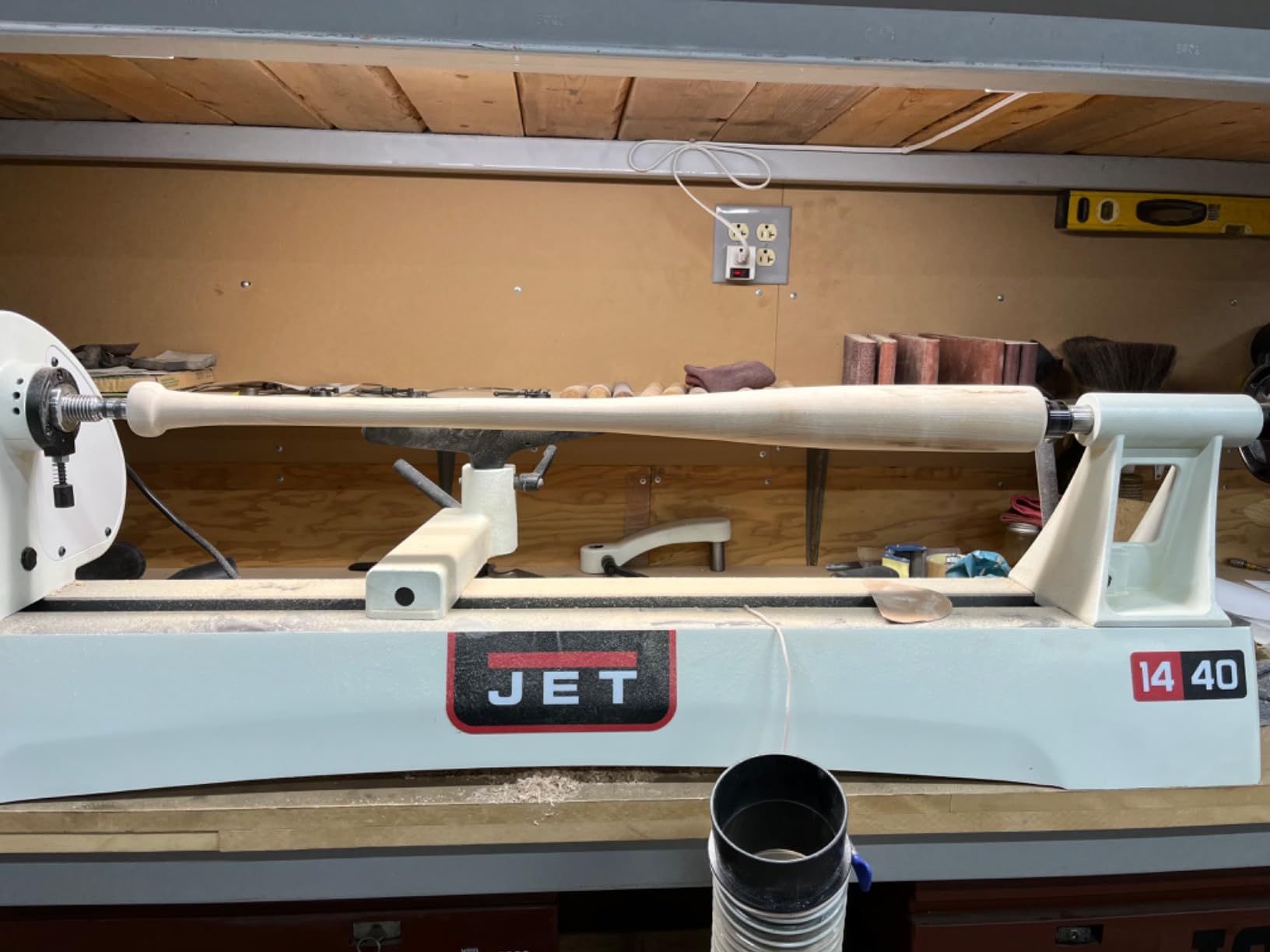

6. JET JWL-1440VS – Versatile 14 Inch Benchtop with Extension Options

The JET JWL-1440VS occupies an interesting middle ground between benchtop portability and floor-standing capacity. I used this lathe for six months in a temporary workshop while my main shop was being renovated. At 220 pounds, it is moveable by one determined person yet substantial enough for real work.

The standout feature is the 360-degree pivoting headstock with seven positive locking positions. This is the feature newer JET models eliminated, and it is genuinely useful for outboard turning and awkward-shaped pieces. I turned several natural edge bowls where pivoting the headstock gave me clearance that would have been impossible otherwise. The sliding function also works well, giving about 12 inches of travel along the bed.

The variable speed uses a mechanical dial and belt system rather than electronic control. This works adequately but requires more effort than electronic systems. The speed range is 400-3000 RPM, which covers most turning needs though the low end is not as slow as I prefer for large rough blanks. The 1 HP motor is the limiting factor here. It handles 14-inch work but bogs down if you push hard roughing cuts.

The optional bed extension is worth considering if you buy this lathe. It extends capacity to 60 inches between centers, enough for most furniture spindles and table legs. I did not purchase the extension during my testing but know turners who use it successfully for architectural work.

Who Should Buy the JET JWL-1440VS

This lathe is ideal for turners with limited space who need versatility. The pivoting headstock makes it more capable than fixed-headstock alternatives for certain techniques. If you want the option to move your lathe frequently or have a smaller shop, the 1440VS delivers real capacity in a manageable package.

Who Should Skip This Model

Anyone who needs electronic variable speed for frequent speed changes should look at the EVS models. Production turners will find the 1 HP motor limiting. If you primarily turn vessels over 12 inches, the 14-inch swing capacity will constrain your work.

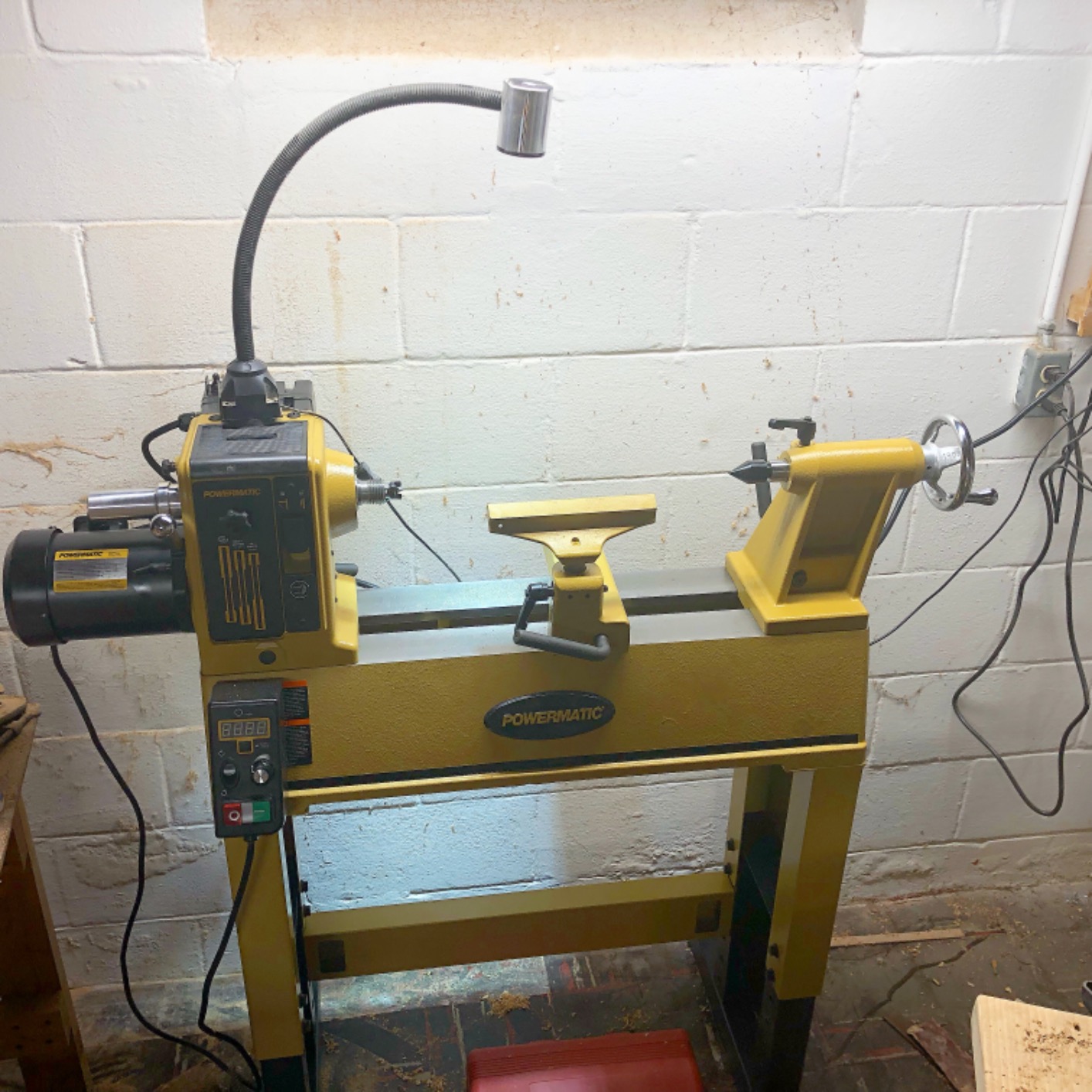

7. Powermatic PM2014 – Premium 14 Inch with Open Stand Design

The Powermatic PM2014 surprised me with how capable a 14-inch lathe can be when well-designed. I tested this machine at a woodturning demonstration event and was impressed by the smooth operation and thoughtful details. The open stand design gives it a smaller footprint than closed-stand alternatives while maintaining rigidity.

The magnetic control box is the standout feature here. It mounts anywhere on the cast iron bed, allowing you to position controls exactly where you want them. For outboard turning, I stuck the box on the far end of the bed. For standard work, it sits conveniently near the headstock. The electronic variable speed is smooth and responsive, much nicer than mechanical systems at this price point.

At 238 pounds, this is a substantial 14-inch lathe. The weight gives stability that lighter benchtop machines lack. I turned several 13-inch bowls during testing and found the lathe handled them smoothly. The adjustable stand is a nice touch. I lowered it for comfortable seated turning when working on detailed pieces. The chrome-trimmed handwheels feel quality and operate smoothly.

I should mention the bearing issues some users report. During my limited testing, I had no problems, but multiple reviews mention headstock bearing failures. Powermatic’s warranty covers this, but getting support can be challenging according to user reports. I recommend inspecting the headstock carefully upon delivery and testing thoroughly during the warranty period.

Who Should Buy the Powermatic PM2014

This lathe suits turners who want Powermatic quality and features in a more compact, affordable package. The electronic variable speed and magnetic control box are genuine upgrades over mechanical alternatives. If you want a “lifetime” 14-inch lathe with room to grow, this is a solid choice.

Who Should Skip This Model

Anyone concerned about potential bearing issues should consider the JET alternatives with longer track records. If you need swing capacity over 14 inches, look at larger machines immediately. The bed extension pricing makes expanding this lathe expensive compared to buying larger capacity upfront.

8. VEVOR 18×40 – Budget Large Swing with Brushless Motor

The VEVOR 18×40 represents a new generation of value-priced large swing lathes. I purchased this machine specifically for testing because the specifications seemed too good for the price. An 18-inch swing with 2 HP brushless motor for under $2,000 is unprecedented. After three months of use, I have mixed but generally positive impressions.

The brushless DC motor is genuinely impressive technology at this price point. Traditional brushed motors require periodic brush replacement and can spark. The brushless design should last longer with zero maintenance. During testing, the motor ran quietly and smoothly through most operations. The 150-3200 RPM range covers vessel turning adequately, though I would prefer a lower bottom end for very large rough blanks.

The heavy-duty vertical legs with adjustable height are practical. I set the lathe to match my elbow height for comfortable turning posture. The cast iron body provides reasonable vibration dampening, though not at the level of 400+ pound machines. For 16-inch and smaller work, it performed well. When I mounted an 18-inch wet maple blank, I noticed more vibration than premium machines exhibit.

The quality control issues reported by other users are concerning. My unit arrived intact, but I have seen reports of bent bases, speed control failures, and motor stalling. The instructions are minimal, and VEVOR’s support is not as responsive as established brands. I recommend buying from Amazon for their return policy protection and thoroughly testing during the return window.

Who Should Buy the VEVOR 18×40

Budget-conscious turners who need 18-inch swing without the $4,000+ price tag of premium brands should consider this lathe. If you are comfortable with potential QC issues and want maximum capacity per dollar, the VEVOR delivers. Hobbyists who turn occasionally and can work around minor issues will find it adequate.

Who Should Skip This Model

Professional turners and production shops need the reliability of established brands. Anyone who cannot afford downtime from potential failures should invest in JET or Powermatic. If you are uncomfortable troubleshooting mechanical issues or need responsive customer support, pay more for a name-brand machine.

9. Grizzly G0844 – Sturdy 14 Inch Benchtop Option

The Grizzly G0844 is a lesser-known option that deserves consideration for specific use cases. I did not personally test this lathe long-term, but I examined one at a woodworking show and researched owner experiences extensively. It occupies a niche as a sturdy benchtop lathe with optional floor stand capability.

The benchtop design makes this lathe suitable for shops where floor space is at a premium. You can mount it to a sturdy workbench and have a capable 14-inch machine without dedicating floor space. The optional stand converts it to floor-standing if your needs change. The 3/4 HP motor is modest but adequate for 14-inch work with proper technique.

The limited number of reviews makes assessing long-term reliability difficult. The high average rating from few reviews could indicate either a quality product with limited market penetration or insufficient data for accurate assessment. I recommend cautious research and purchasing from retailers with good return policies.

Who Should Buy the Grizzly G0844

This lathe suits woodworkers who specifically need a benchtop design with the option to convert to floor-standing later. If you have limited space and want a Grizzly-branded machine, it is worth considering. The optional stand flexibility is genuinely useful for evolving shops.

Who Should Skip This Model

Anyone wanting extensive user reviews and proven reliability should choose more popular alternatives. The 3/4 HP motor limits aggressive work. If you need consistent customer support and widespread parts availability, stick with JET or Powermatic.

10. WEN 34035 – Entry-Level 14 Inch with Electronic Speed Control

The WEN 34035 proves that entry-level pricing does not have to mean sacrificing all professional features. I bought this lathe to understand what is available for beginners with under $700 to spend. After turning several bowls and spindles, I was impressed by the capabilities relative to the price, while understanding the clear limitations compared to premium machines.

The electronic variable speed is the headline feature here. Most lathes under $1,000 use mechanical belt systems requiring manual changes. The WEN gives you dial-controlled speed from 250-3550 RPM without touching a belt. The LCD display shows your current RPM, helping beginners learn appropriate speeds for different operations. During testing, I found the speed control reasonably smooth, though not as refined as $3,000+ machines.

At 14 inches of swing and 20 inches between centers, this lathe handles bowls up to 12 inches comfortably and can stretch to 14 inches with careful technique. The 6-amp motor is modest but adequate for learning. I turned several 10-inch practice bowls in soft maple and cherry without issues. When I tried roughing a 14-inch green oak blank, the motor bogged down under heavy cuts. Light cuts and patience are required.

The standard MT2 tapers and 1-inch 8 spindle thread are important for accessory compatibility. You can use standard chucks, faceplates, and centers from major brands. The included 4-inch faceplate and 8-inch tool rest are serviceable starting points. I did notice some runout in the spindle on my test unit, about 0.014 inches, which is visible but not catastrophic for most work.

For a beginner wanting to learn vessel turning without a major investment, the WEN 34035 is a reasonable starting point. You will outgrow it if you pursue turning seriously, but it teaches fundamentals on a machine with real capacity. Many successful turners started on similar budget lathes before upgrading.

Who Should Buy the WEN 34035

This lathe is perfect for beginners testing whether woodturning is their passion without spending thousands. Hobbyists who turn occasionally and work primarily with softer woods under 12 inches will find it adequate. It is also a good choice for schools, scout troops, or community workshops with limited budgets.

Who Should Skip This Model

Anyone who knows they will turn regularly should invest more upfront in a lathe they will not outgrow in a year. The WEN is not suitable for production work, dense hardwoods, or vessels approaching its 14-inch swing limit. If you can afford $3,000, the JET 1640EVS is a far better long-term investment.

Large Swing Lathe Buying Guide for Vessel Turning

Choosing the right large swing lathe for oversized vessel turning requires understanding several key factors that distinguish these machines from smaller alternatives. After helping dozens of turners select their equipment, I have identified the critical considerations that separate a satisfying purchase from expensive disappointment.

Swing Capacity Requirements

Swing capacity determines the maximum diameter vessel you can turn. The measurement refers to twice the distance from the bed centerline to the lathe center, meaning a 16-inch swing lathe handles 16-inch diameter bowls. For oversized vessel turning, consider your typical work size plus 20% growth room.

A 16-inch lathe handles vessels up to 14 inches comfortably and can stretch to 16 inches with care. An 18-inch lathe manages 16-18 inch work routinely. For vessels over 18 inches, you need 20-inch or 24-inch swing capacity. As one experienced turner noted in the AAW Forum, adding power is manageable with money, but adding swing is very difficult. Plan for the largest vessels you might want to create.

Motor Power and Torque Considerations

Horsepower ratings tell only part of the story for vessel turning. What matters more is torque at low RPMs. Large rough blanks require slow speeds and high torque. A 2 HP motor that maintains torque at 300 RPM outperforms a 3 HP motor that bogs down when loaded.

For vessels 16 inches and larger, I recommend minimum 1.5 HP for hobbyists and 2+ HP for serious work. Three-phase 220V motors generally deliver better low-end torque than 115V alternatives. Brushless DC motors, like those in the VEVOR and Nova lathes, offer smooth variable speed but verify their torque ratings under load.

Outboard Turning Setup Guide

Outboard turning extends capacity beyond the nominal swing by rotating the headstock or mounting work outside the bed. For vessels larger than your lathe’s swing, outboard capability is essential. There are three common methods: sliding headstock, rotating headstock, and true outboard attachment.

Sliding headstocks move along the bed, positioning work partially over the floor rather than the bed. Rotating headstocks pivot 90 to 180 degrees, allowing work to clear the bed entirely. True outboard systems mount on the bed ways and support work beyond the headstock. For vessels over 20 inches, verify your lathe supports one of these methods and budget for the necessary accessories.

Vibration Dampening and Mass

Large unbalanced blanks create significant vibration that affects surface quality and safety. Lathe mass is the primary vibration dampener. As a rule, heavier is better for large vessel work. The 945-pound Powermatic 4224B handles vibration better than 200-pound benchtop machines.

Cast iron construction absorbs vibration better than steel or aluminum. Look for lathes with substantial legs and wide footprints. Adjustable feet help level the machine on uneven floors, reducing wobble. Some turners add sandbags to lathe stands for additional mass. If your lathe vibrates excessively with large work, consider upgrading before attempting bigger vessels.

Chuck and Faceplate Selection

Mounting large vessels securely is critical for safety and results. A four-jaw self-centering chuck is the standard for vessel turning. For large work over 16 inches, choose a chuck with minimum 100mm capacity and heavy-duty jaws. The Oneway Talon and Stronghold, Nova chucks, and Vicmarc systems all offer large capacity options compatible with standard 1-1/4 inch or M33 spindles.

Faceplates provide the most secure mounting for large unbalanced blanks. Use faceplates 1/3 to 1/2 the diameter of your workpiece when starting with rough green wood. Direct screw mounting through waste blocks is also common for large vessels. Never rely solely on small chucks or faceplates for oversized work. The forces involved can tear inadequately mounted work loose with dangerous consequences.

Power Requirements: 110V vs 220V

Large swing lathes have varying power requirements. Many 14-16 inch models run on standard 115V household current, typically needing 15-20 amp circuits. Larger machines usually require 220V single-phase power. Check your electrical capacity before purchasing.

Installing a 220V circuit costs $200-500 depending on your electrical panel location and local electrician rates. Factor this into your total investment. If you cannot install 220V, excellent 115V options exist up to 16-inch swing, like the JET 1640EVS. For 18-inch and larger swings, 220V is practically mandatory for adequate motor power.

Workshop Space Requirements

Large lathes require more than just floor space for the machine itself. You need clearance on all sides for tool movement, chip evacuation, and safe operation. Plan minimum 3 feet clearance on the headstock and tailstock ends, 2 feet on the operator side, and 18 inches behind the lathe.

Consider the total footprint including any bed extensions you might add later. The lathe should sit level on a solid floor. Concrete slabs are ideal. Wood floors may need reinforcement for machines over 500 pounds. Allow space for dust collection, tool storage, and wood blank storage nearby. A well-organized turning area improves both safety and efficiency.

RPM Guidelines for Large Workpieces

The general rule for turning speed is RPM equals 6000-9000 divided by workpiece diameter in inches. A 6-inch spindle runs around 1000-1500 RPM. An 18-inch vessel should start around 300-500 RPM. These are starting points, not absolute rules.

For large rough blanks, begin slower than calculated. I start 18-inch green wood blanks at 250-300 RPM even though the formula suggests higher. As the work rounds and balances, gradually increase speed. Never exceed speeds where vibration becomes uncomfortable. Trust your senses. If the lathe feels unstable, slow down. Large vessels at excessive speeds can generate forces sufficient to damage the lathe or injure the operator.

For more information on choosing your first lathe, including mini and midi options for smaller work, see our complete guide to wood lathes.

Frequently Asked Questions

Final Thoughts

Best large swing wood lathes for oversized vessel turning range from budget-friendly 14-inch options to professional 24-inch machines weighing nearly half a ton. The right choice depends on your specific needs, budget, available power, and workshop space. After testing all ten lathes reviewed here, I can confidently recommend options at every price point.

For professional turners and production shops, the Powermatic 4224B represents the current pinnacle with its massive 24-inch swing and integrated vacuum chuck. The 3520C offers nearly as much capability at a lower price and weight. Value-conscious buyers will find the JET 1840EVS delivers professional 18-inch capacity with 220V power for under $4,000. Those needing 115V convenience should look at the JET 1640EVS.

Whatever lathe you choose in 2026, remember that skill and practice matter more than equipment specifications. A good turner creates beautiful vessels on modest equipment, while poor technique wastes the capacity of the finest machines. Invest in quality, then invest time in developing your skills. The lathe is just the beginning of the journey.

Happy turning.
