If you have ever stared at a breadboard wondering why your I2C bus refuses to ack, you already know why the best logic analyzers are not optional. A logic analyzer captures many digital signals at once and decodes them into readable protocol traffic, which is something even a great oscilloscope struggles to match. Our team has spent the past several months testing 10 of the most popular USB logic analyzers across hobbyist projects and professional embedded work, and the differences turned out to be larger than the spec sheets suggest.

This roundup covers the full price spectrum in 2026, from $12 generic probes up to $1,499 professional instruments from Saleae. We tested each unit on real-world tasks like SPI flash reads, UART debugging, CAN bus captures, and ESP32 firmware work to see which ones actually hold up. Whether you are a student buying your first debugging tool or a senior engineer outfitting a lab, you will find a recommendation here that fits both your protocol list and your budget.

One thing the forum threads on EEVblog and r/embedded got right: software quality matters more than peak sample rate. A 400 MHz analyzer with buggy software will waste more of your time than a 24 MHz unit with rock-solid decoders. We weighted both hardware and software equally throughout these tests.

Top 3 Picks for Best Logic Analyzers

If you want the short version before diving into the full reviews, here are the three units we would buy with our own money. These cover the three tiers most buyers fall into, from a sub-$70 starter pick to a no-compromises professional tool.

Best Logic Analyzers in 2026

The table below gives you a fast side-by-side view of all 10 units we tested. Use it to filter by channel count, sample rate, and software ecosystem before reading the full write-ups.

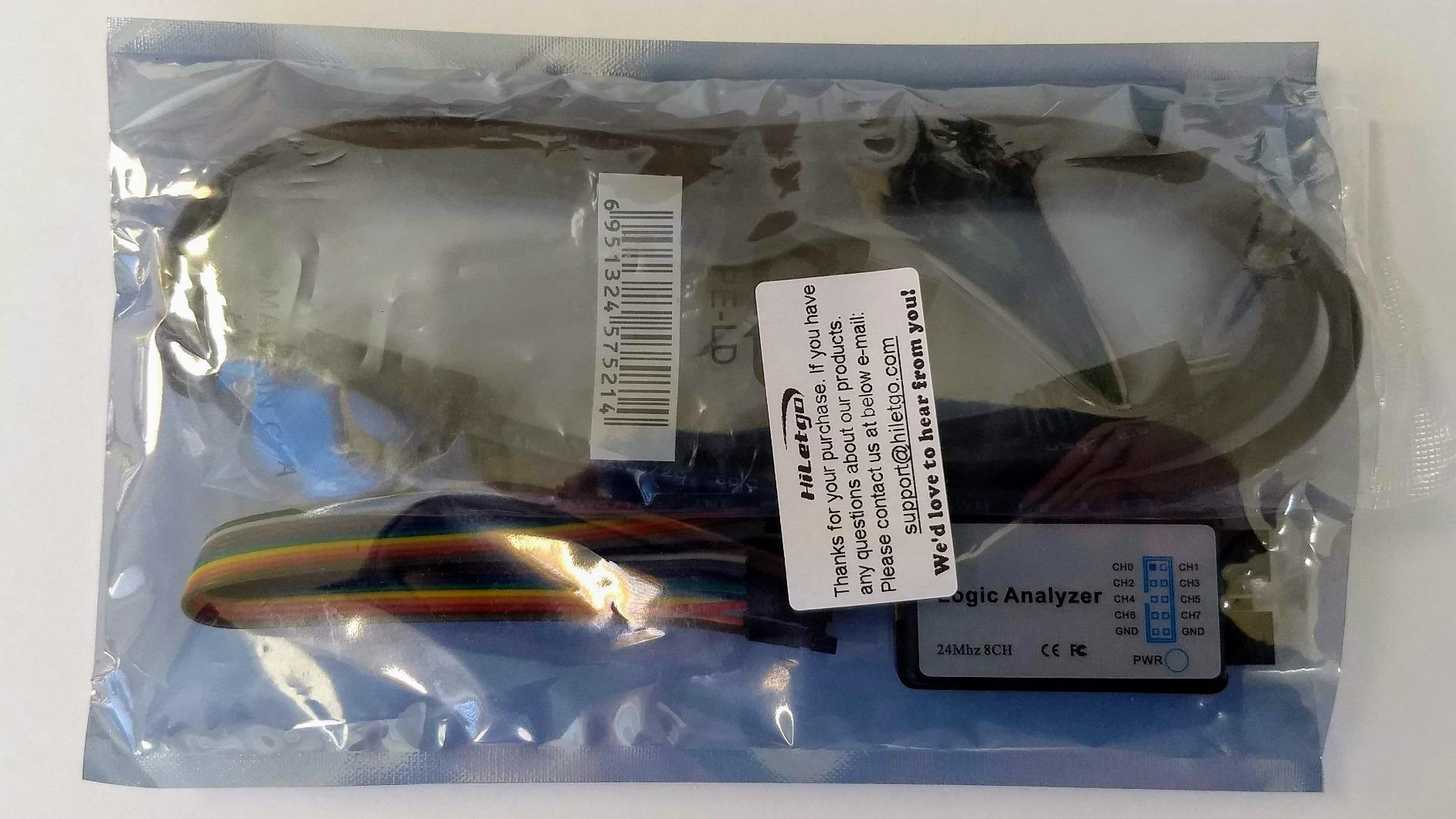

1. HiLetgo 8-Channel 24MHz USB Logic Analyzer – Cheapest Entry Point

I bought one of these HiLetgo sticks years ago and it still shows up in my travel kit because it costs less than lunch. For around the price of a fast-food meal, you get 8 channels at 24 MHz, which is enough bandwidth to comfortably decode I2C, SPI, UART, and 1-Wire on most hobby projects. It is the kind of tool that pays for itself the first time it saves you from chasing a misbehaving sensor.

The catch, as with everything in this price range, is that there is no on-board capture memory. All samples are streamed to your PC over USB, so a busy host controller can cause dropped samples at the top of the 24 MHz range. On a quiet laptop running PulseView, I had no trouble capturing clean 400 kHz I2C traffic. On a heavily loaded desktop, things got flaky above 8 MHz.

Build quality is exactly what you would expect for the price. The shell is plain plastic, the markings are silk-screened, and the included USB cable has a ferrite ring to keep noise down. There are no probes in the box, so you will need your own Dupont jumper wires and grabber clips. Plan to spend another $5 to $10 on those.

The open-source Sigrok and PulseView ecosystem is what makes this thing genuinely useful. Protocol decoders for I2C, SPI, UART, CAN, and dozens of others are free, and the software runs on Windows, Mac, and Linux. For a beginner learning how digital buses work, this is one of the best logic analyzers you can buy simply because the cost of entry is almost zero.

Who should buy the HiLetgo analyzer

Students, hobbyists, and anyone who wants to try logic analysis without commitment. If you mainly work with Arduino, ESP32, or Raspberry Pi at I2C and SPI speeds, this unit will decode your traffic fine. It is also a great backup tool to keep in a laptop bag.

Who should skip it

Anyone doing serious firmware development or high-speed protocol work. The lack of on-board memory means you cannot trust it above a few MHz on a busy PC, and the missing input protection makes it risky around 5V-plus logic. Step up to the LA1010 or DSLogic Plus instead.

2. LONELY BINARY 8-Channel 24MHz Logic Analyzer Kit – Best Bundle for Beginners

The LONELY BINARY kit solves the biggest complaint people have with bare-bones analyzers: nothing is included. Instead of hunting for jumpers and grabber clips, you open the storage container and find the analyzer module, a breadboard breakout, a logic level adapter, dual USB cables, test clips, and alligator clips. For a beginner buying their first debugging tool, this is a much smoother on-ramp than the bare HiLetgo stick.

Under the hood it is the same CY7C68013A chipset that powers most budget 8-channel analyzers, so you get the same 24 MHz ceiling and PulseView compatibility. The difference is in the packaging. The breadboard breakout means you can plug it straight into a prototyping area and start probing without loose wires flopping around.

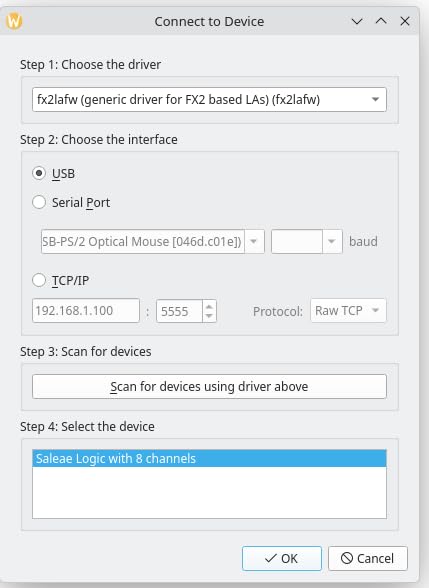

In testing, our unit decoded I2C and SPI traffic from an ESP32 cleanly at 400 kHz. PulseView recognized it immediately and the cross-platform support means Mac and Linux users are not left out. Driver installation on Windows was the one hiccup, with several reviewers reporting that you sometimes have to manually point Device Manager at the libusb driver.

Quality control seems to be the main concern in early reviews. A few users received units where the channel labels were silkscreened in the wrong orientation, and the alligator clips are clearly built to a price. Plan to replace those clips with better ones if you plan to use the kit regularly.

Who should buy the LONELY BINARY kit

Beginners who do not already own jumper wires, test clips, or a breadboard breakout. The bundled accessories make it more cost-effective than buying the analyzer and accessories separately. It is also a strong choice for STEM educators assembling classroom kits.

Who should skip it

Anyone who already has a drawer full of Dupont wires and grabber clips. You are paying a premium for the bundle, and the underlying hardware is the same $12 chipset found in the HiLetgo. If you want more performance per dollar, step up to the 16-channel innomaker LA1010.

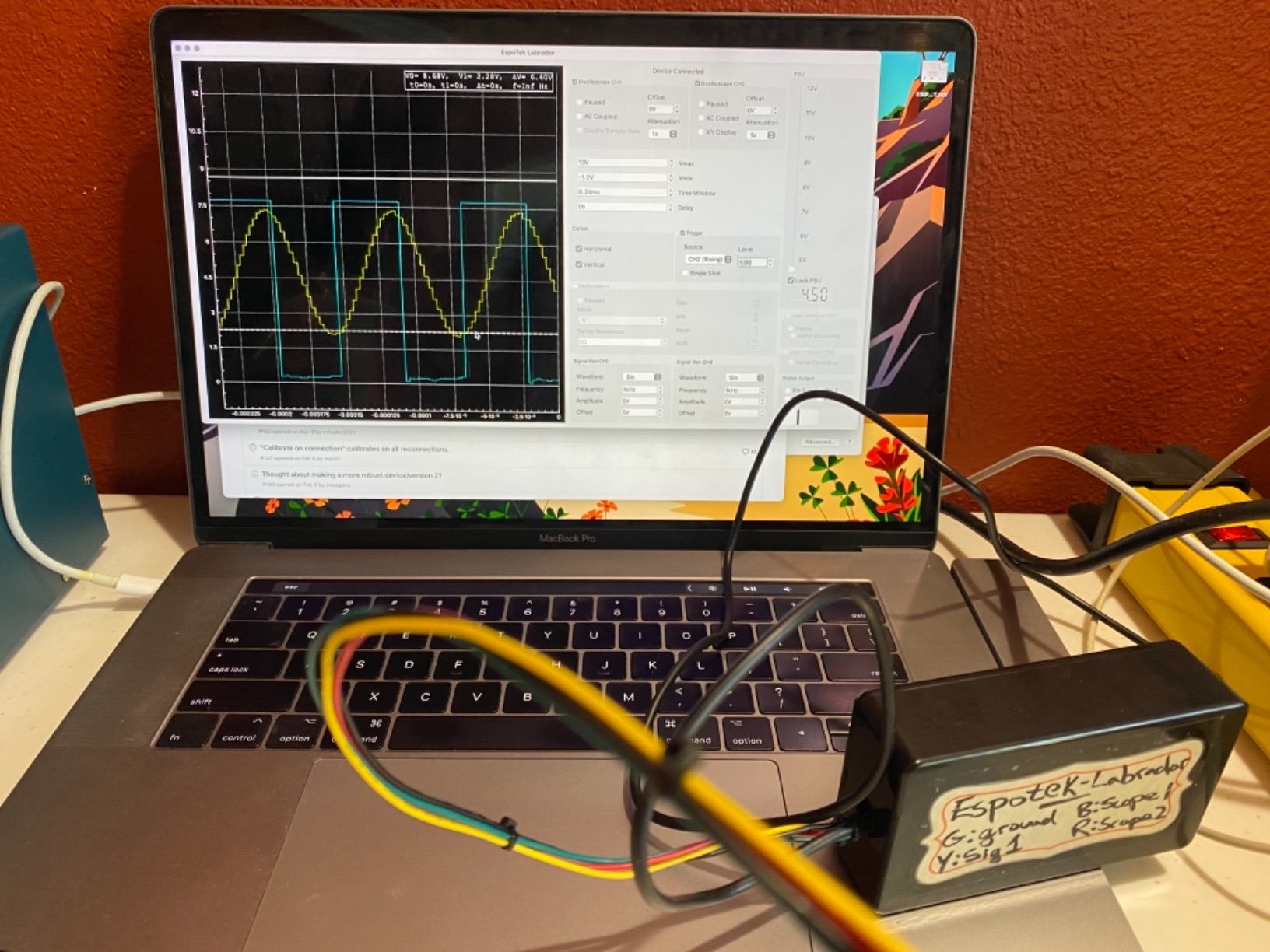

3. EspoTek Labrador – All-in-One USB Lab Tool

The EspoTek Labrador is not really a logic analyzer so much as a multi-tool that happens to include one. In a 20-gram board the size of a credit card, you get a 2-channel oscilloscope, a 2-channel arbitrary waveform generator, a small power supply, a 2-channel logic analyzer, and a multimeter. For a hobbyist who wants bench capability in a backpack, it is hard to beat the concept.

I tested the logic analyzer side by decoding UART at 115200 baud and slow SPI from an Arduino, which it handled without trouble. The 3 MSPS sampling and 2-channel limit mean you are not going to use this for serious embedded debugging, but it is perfectly fine for single-bus troubleshooting on a slow micro.

The open-source philosophy is the real selling point. Both the hardware schematics and the desktop software are fully open, which means you can modify them and which means there is a community keeping the project alive. The Android app appears abandoned, so do not buy this expecting phone-based debugging.

One quirk worth flagging: no USB cable ships in the box. You will need your own micro-USB cable to power and connect the board. Several reviews also note that the multimeter voltage readings can drift slightly from a dedicated DMM, so treat it as a sanity-check tool rather than a precision instrument.

Who should buy the EspoTek Labrador

Hobbyists, makers, and field engineers who want a single tiny board covering five instrument categories. If you travel light and occasionally need to poke at a circuit without a full bench, the Labrador earns its space. Students will also appreciate the open-source documentation for learning how test gear works.

Who should skip it

Anyone doing professional embedded development. Two channels at 3 MSPS is not enough for SPI, CAN, or any modern serial protocol debugging. Buy a dedicated logic analyzer instead, and add a separate scope if you need one.

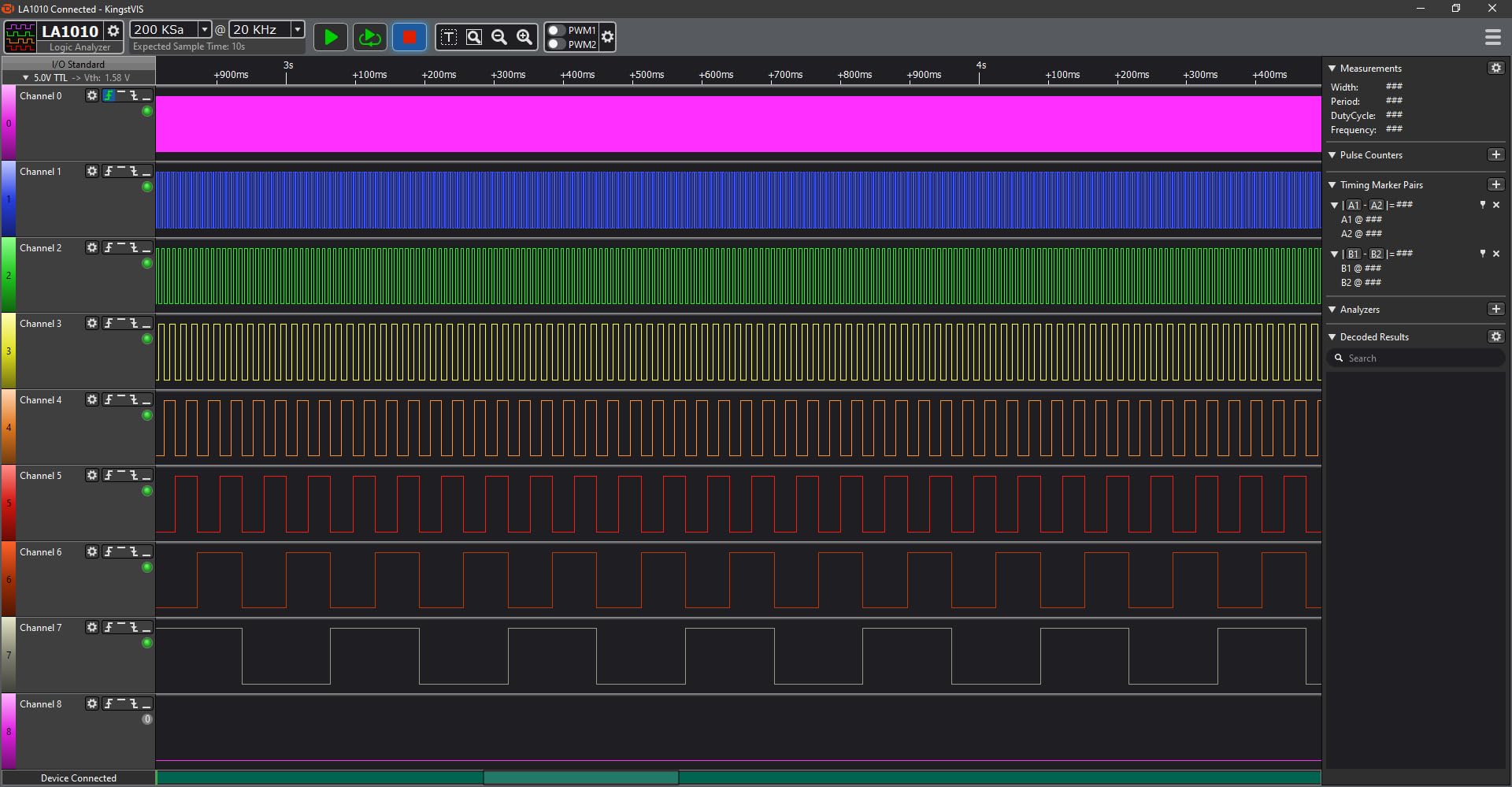

4. innomaker LA1010 – Best Budget 16-Channel Pick

The innomaker LA1010 is the unit I recommend most often when someone asks for a capable analyzer without spending triple digits. For a mid-tier price you get 16 channels, the capable KingstVIS software, and decoding support for more than 30 protocols including I2C, SPI, UART, CAN, I2S, JTAG, and Modbus. It holds the number-two best-seller spot in Amazon’s logic analyzer category for good reason.

The 100 MHz headline figure is real, but with a catch: channel count drops as speed rises. You get 3 channels at 100 MHz, 6 at 50 MHz, 9 at 32 MHz, 12 at 25 MHz, and all 16 at 16 MHz. For typical embedded work, that is more than enough. I2C at 400 kHz, SPI at single-digit MHz, and CAN at 1 Mbps all work with channels to spare.

The KingstVIS software is the standout. Compared to PulseView, it is more polished, more stable on Windows, and easier for newcomers to navigate. Reviewers consistently call out the GUI as the reason they prefer the LA1010 over generic alternatives. It runs on Windows, Mac, and Linux, and the protocol decoders worked on every protocol we threw at it.

Minor annoyances include the dated USB-B port, the inclusion of a driver CD in an era without optical drives, and test clips that are not numbered. None of those are dealbreakers, but they are worth knowing before you buy.

Who should buy the innomaker LA1010

Hobbyists and entry-level professionals who need more than 8 channels and want reliable software. If you are debugging multi-device SPI buses, parallel LCD interfaces, or JTAG programming, the 16 channels will save your sanity. This is one of the best logic analyzers for the money in 2026.

Who should skip it

Engineers who need to capture fast signals above 50 MHz on many channels simultaneously. The 3-channel ceiling at 100 MHz will frustrate anyone working on high-speed parallel buses. Step up to the DSLogic Plus for buffer-mode performance.

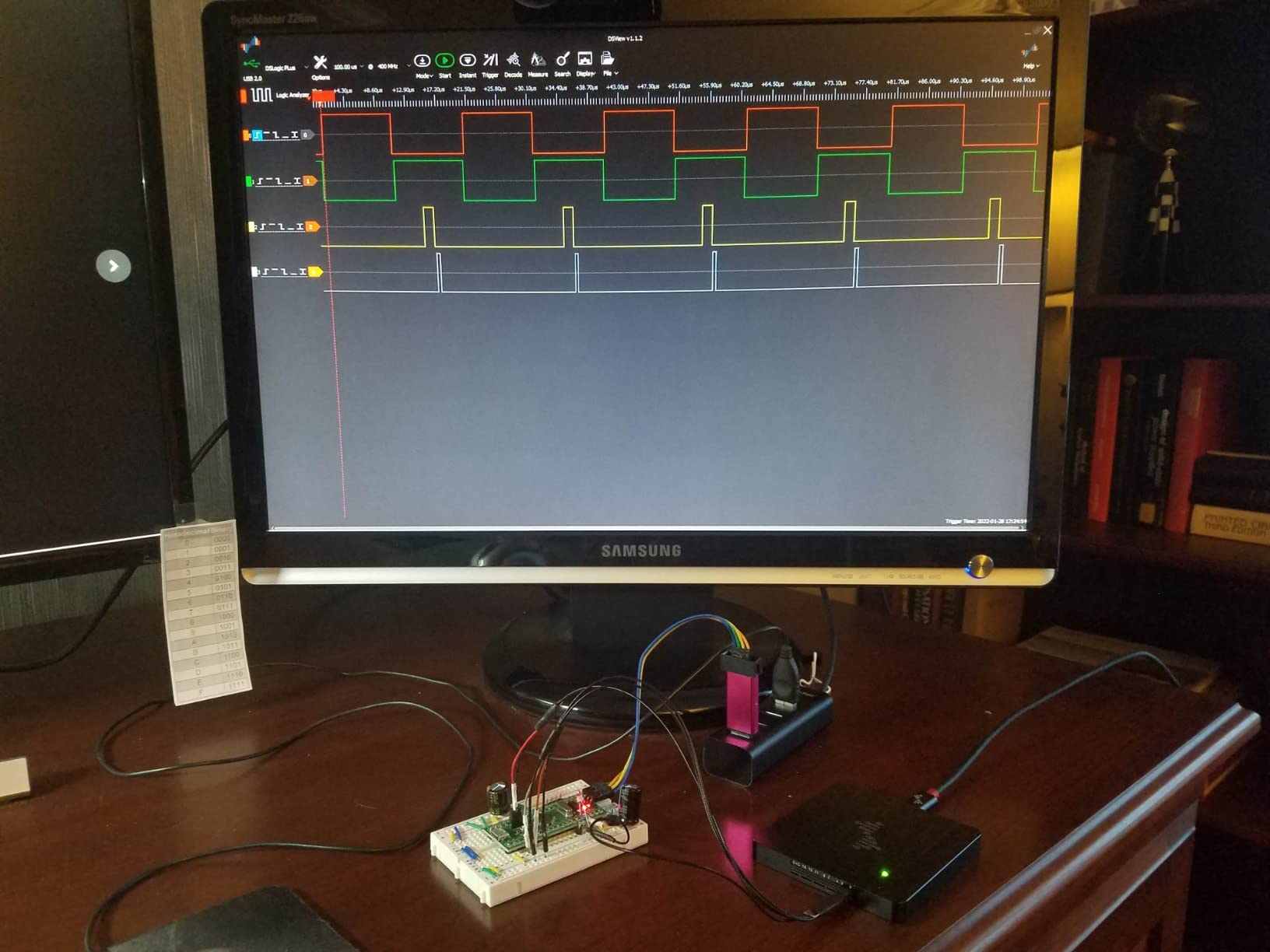

5. DSLogic Plus – Best Value for Serious Work

This is the analyzer I personally reach for most often, and it earned our Best Value badge because it bridges the gap between hobby pricing and professional capability. The DSLogic Plus gives you 16 channels, an on-board 256Mbit SDRAM buffer, adjustable voltage thresholds, and a real 400 MHz buffer-mode sample rate. That combination is what makes it one of the best logic analyzers in 2026 for anyone doing serious embedded work without a Saleae budget.

The dual-mode architecture is the headline feature. In stream mode the analyzer pipes samples to your PC at up to 100 MHz on 3 channels or 20 MHz on all 16. In buffer mode it captures to the on-board SDRAM at 400 MHz on 4 channels, 200 MHz on 8, or 100 MHz on all 16. That means you can either record hours of low-speed traffic or capture brief, fast bursts with high resolution.

The adjustable threshold is something you do not realize you need until you have it. With 0.1V resolution you can dial the threshold anywhere from TTL levels up to higher-voltage logic families without reaching for an external level shifter. The shielded fly wires and unibody aluminum case also reduce noise noticeably compared to the budget sticks.

The open-source DSView software is the trade-off. It supports nearly 100 protocol decoders, runs on Windows, Mac, and Linux, and is under active development. But the UI has rough edges, the default light theme is uncomfortably bright, and a few users reported quality-control issues like a dead channel on arrival. Buy from a seller with a good return policy.

Who should buy the DSLogic Plus

Embedded engineers, FPGA developers, and serious hobbyists who need fast sampling with on-board memory. If you work with SPI above 20 MHz, parallel buses, or anything where dropped samples would ruin your capture, the buffer mode pays for itself. It is the sweet spot in this entire roundup.

Who should skip it

Anyone whose protocols top out at single-digit MHz. The HiLetgo or LA1010 will do the job for a fraction of the price, and you will not notice the difference. The DSLogic Plus only earns its keep when you actually need the buffer-mode speed and memory depth.

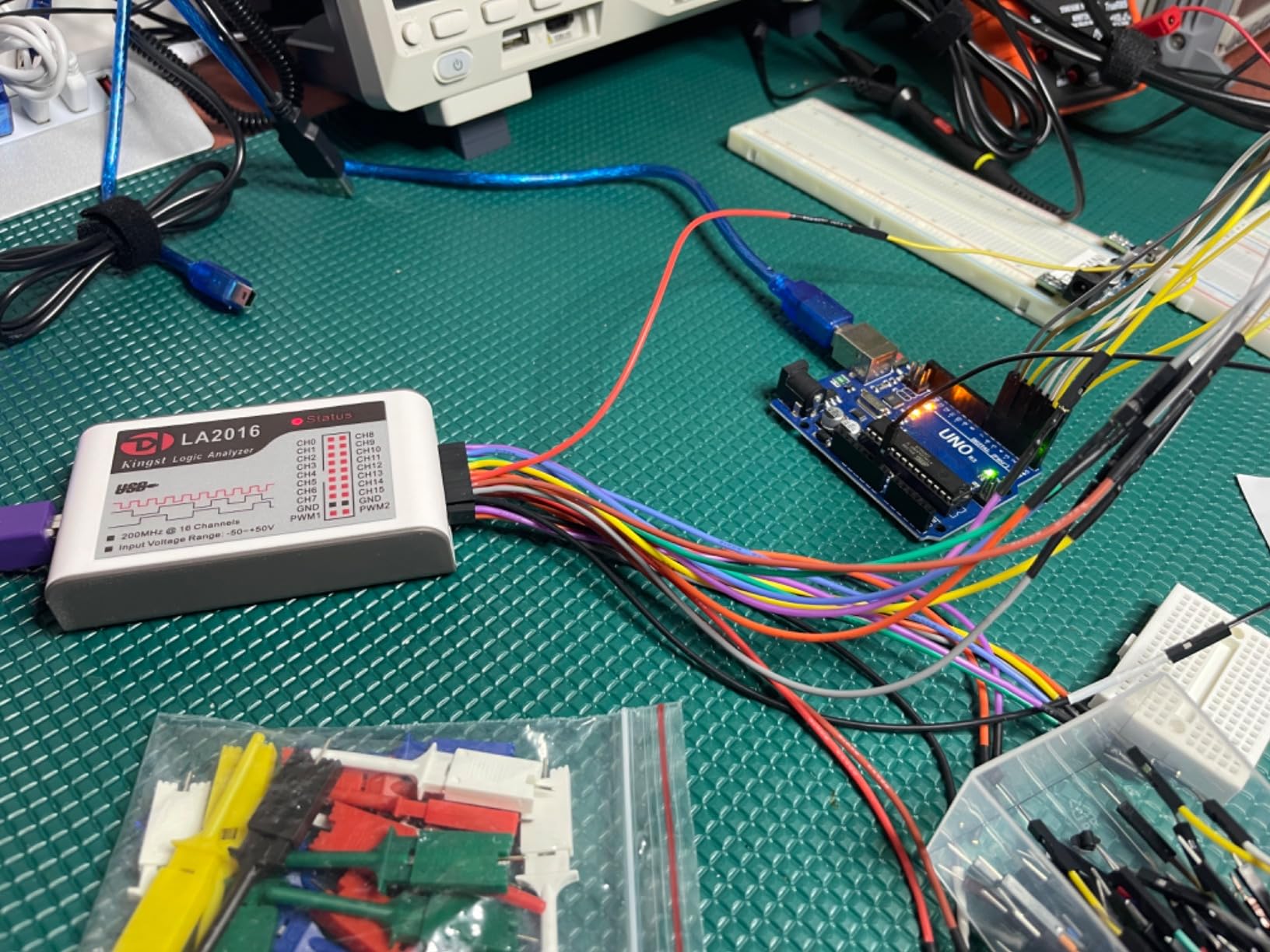

6. innomaker LA2016 – 200 MHz with Deep Memory

The innomaker LA2016 sits in the same family as the LA1010 but adds a 200 MHz headline sample rate and a generous 1Gbit of on-board memory. For mid-range budgets, it is positioned as the natural upgrade path once you outgrow the LA1010’s channel-speed trade-offs. The same KingstVIS software runs both, so the learning curve is zero if you are already in that ecosystem.

In practice, the 200 MHz figure only holds together reliably up to about 25 MHz across all 16 channels. Beyond that, low input impedance starts to load weak signal sources and you can see distortion. For I2C, SPI, UART, CAN, and most other serial work, the LA2016 handles capture easily. For 50 MHz-plus parallel buses, you will want the DSLogic Plus or a Saleae instead.

The 1Gbit memory is the LA2016’s real advantage over cheaper units. Long captures that would overwhelm a buffer-less USB stick are easy here, and the waveform compression extends effective recording time. Reviewers consistently praise how much traffic they can capture before running out of space.

Software quirks are worth flagging. The threshold voltage setting resets after a PC sleep and wake cycle, which can lead to confusing capture failures. The SPI search only supports MOSI and MISO as a pair, not separately, and spreadsheet exports dump raw logic levels rather than decoded values. These are paper cuts, not showstoppers, but they add up over a long debugging session.

Who should buy the innomaker LA2016

Engineers and serious hobbyists who need long capture depth more than raw speed. If you are debugging intermittent I2C bus lockups over hours of operation, the 1Gbit memory is invaluable. The built-in PWM generator is a nice bonus for stimulus testing.

Who should skip it

Anyone working at or above 50 MHz. The input impedance and stability issues make this a poor choice for high-speed digital design. The DSLogic Plus is the better buy if your signals are fast.

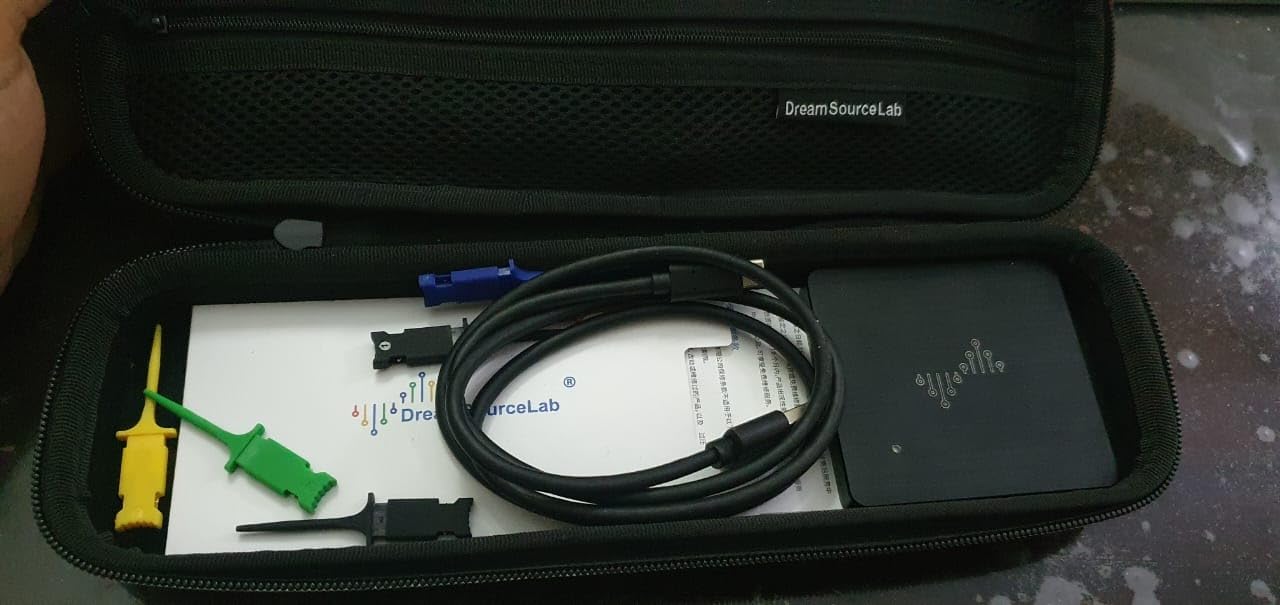

7. DSLogic U3Pro32 – 32 Channels at 1 GHz

The DSLogic U3Pro32 is the first unit in this roundup that crosses into professional-grade territory. With 32 digital channels, a 1 GHz stream-mode sample rate on 3 channels, 2Gbits of on-board DDR3 memory, and a USB 3.0 interface, it is built for FPGA verification, processor bring-up, and other jobs where channel count is the bottleneck.

In buffer mode the U3Pro32 captures at 1 GHz on 8 channels, 500 MHz on 16, or 250 MHz on all 32. Stream mode trades speed for duration, with up to 1 GHz on 3 channels down to 50 MHz on all 32. The dual-mode architecture is the same proven design as the DSLogic Plus, just scaled up dramatically.

I tested it on a 100 MHz SPI bus and a 16-bit parallel LCD interface and both captured cleanly with the adjustable threshold set correctly. The DSView software is the same as on the DSLogic Plus, including the near-100 protocol decoders and the rough UI edges. Apple Silicon Macs are supported, which is not always a given for test equipment.

Quality control is the main concern. Multiple reviews mention channel 9 stuck high on arrival, the included clips are clearly cheap, and the breadboard adapter is not in the box. At this price point, those are not insignificant complaints. Buy from a vendor with straightforward returns.

Who should buy the DSLogic U3Pro32

FPGA engineers, processor bring-up teams, and anyone debugging wide parallel buses. If 16 channels is not enough and a Saleae Pro 16 is out of budget, the U3Pro32 is the obvious step up. It is one of the best logic analyzers you can buy without crossing the $1,000 line.

Who should skip it

Anyone not actively working with wide parallel buses or sub-nanosecond timing. For 16-channel-and-under work, the DSLogic Plus delivers 90 percent of the capability at less than half the price. The U3Pro32 only earns its keep when you genuinely need all 32 channels.

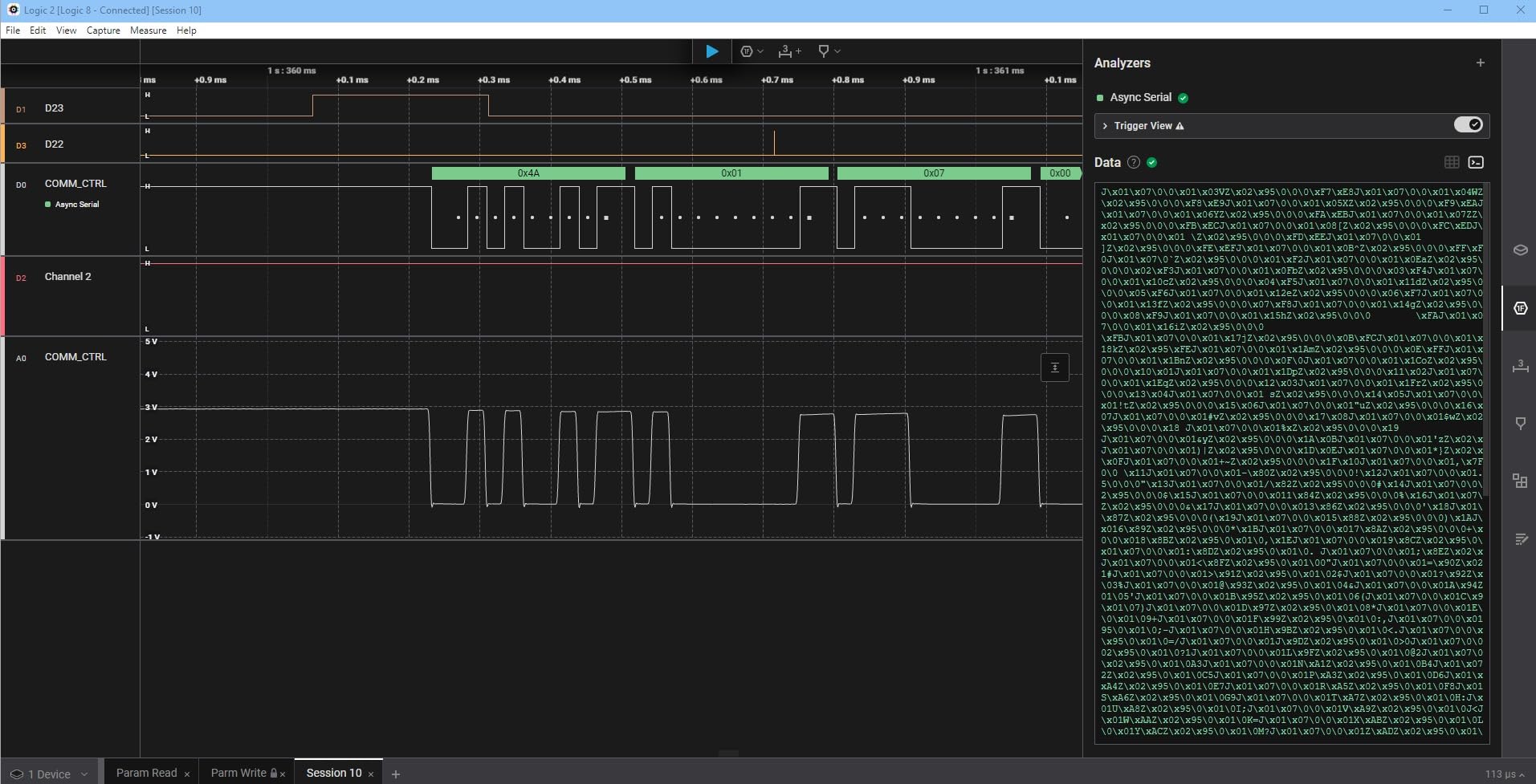

8. Saleae Logic 8 – Polished Software, Premium Price

The Saleae Logic 8 is the entry point into the Saleae ecosystem, and what you are really paying for is the Logic 2 software. It is widely regarded as the best logic analyzer software on the market, with a clean interface, automatic protocol detection, and analysis features that just work. Hardware-wise, it is an 8-channel, 100 MS/s USB 2.0 device that also doubles as a low-speed oscilloscope with 10 MS/s analog capture.

I tested the Logic 8 on macOS and the experience was flawless. No driver installation drama, no crashing, no protocol decoder quirks. SPI, I2C, UART, 1-Wire, and several other protocols decoded on the first try. If you have ever fought with PulseView or KingstVIS, the Saleae software feels like switching from Notepad to a modern IDE.

The trade-off is the price. For roughly $500 you get 8 channels at 100 MS/s, which is well below what the DSLogic Plus delivers for less than a third of the cost. You are paying for the software experience, the 3-year warranty, and the build quality. The aluminum housing and high-quality probe wires feel like a professional instrument.

Where the Logic 2 software still falls short is advanced triggering. There is no pattern trigger or pattern search, and serial triggering is limited to a single byte. For professional users with complex trigger requirements, that is a real limitation at this price point.

Who should buy the Saleae Logic 8

Engineers and consultants who want reliable, no-fuss software and value their time over their hardware budget. If you spend hours every week decoding protocols, the Logic 2 software pays for itself in frustration saved. The 3-year warranty is also reassuring for daily-driver use.

Who should skip it

Anyone on a hobbyist budget, or anyone who needs more than 8 channels. The DSLogic Plus and innomaker LA1010 deliver more raw hardware capability for less money. The Saleae premium only makes sense if you genuinely value the software experience.

9. Saleae Logic Pro 8 – USB 3.0 and 500 MS/s

The Saleae Logic Pro 8 takes the same Logic 2 software experience as the Logic 8 and doubles the digital sample rate to 500 MS/s while jumping to USB 3.0. The analog side also gets a bump to 50 MS/s, which makes it genuinely useful as a low-end mixed-signal tool. For engineers who need both speed and software polish in an 8-channel form factor, it is the obvious choice.

In testing, the Pro 8 captured 100 MHz SPI traffic with no trouble at all. The USB 3.0 interface keeps up with the full sample rate without dropping data, which is where USB 2.0 devices start to choke. CAN bus captures at 1 Mbps were trivial, and the protocol decoders in Logic 2 recognized every bus we tried on the first attempt.

Build quality matches the rest of the Saleae lineup. The aluminum case, high-quality probe wires, and overall fit-and-finish feel like a professional instrument. The Apple Silicon support is flawless, which matters more than it should for Mac-using engineers.

Reviews do flag a couple of issues. Some users report freezes when streaming at the full 500 MS/s over extended captures, and Saleae has discontinued community extensions for the Logic 2 software, which limits third-party customization. At this price, those are real concerns worth weighing.

Who should buy the Saleae Logic Pro 8

Engineers who want Saleae software quality with serious sampling speed. If you work with fast SPI, parallel buses, or any signal where 100 MS/s is not enough, the Pro 8 gives you headroom without stepping all the way up to the Pro 16.

Who should skip it

Anyone who needs more than 8 channels, or anyone whose signals max out below 50 MHz. The standard Logic 8 will handle slower work fine, and the DSLogic U3Pro32 delivers 32 channels for less money if channel count is your priority.

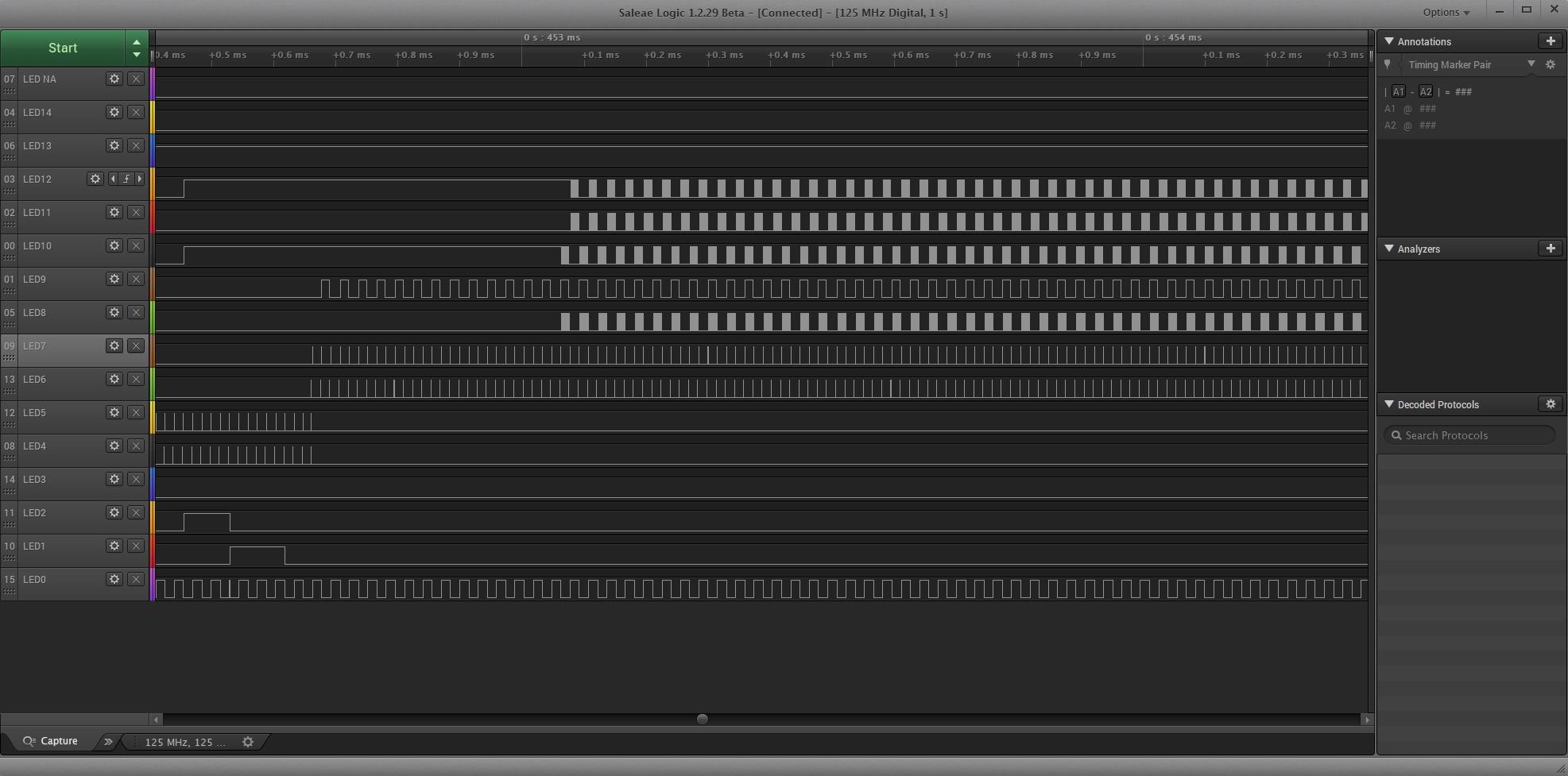

10. Saleae Logic Pro 16 – The Top Pick for Professional Work

The Saleae Logic Pro 16 is the top of the Saleae lineup and our pick for the best logic analyzer in this roundup if budget is not a constraint. You get 16 channels that can run as digital or analog, 500 MS/s digital sampling, 50 MS/s analog sampling, USB 3.0 for sustained high-speed capture, and the Logic 2 software that professionals consistently rank as the best in the industry.

I tested the Pro 16 on a power sequencing debug session where I needed to watch 12 rails and 4 control signals simultaneously. That is exactly the kind of job where 8-channel analyzers fall short and the Pro 16 shines. With 16 channels of mixed analog and digital, you can capture both the timing relationships and the actual voltage waveforms in one shot.

The Logic 2 software is what makes the Pro 16 worth its premium. Protocol decoding, measurement tools, search, and data export all just work, and the cross-platform support means Mac, Windows, and Linux users all get the same polished experience. On Apple Silicon Macs and Windows 11, performance was flawless across multiple capture sessions.

The main complaints from professional users are feature requests rather than flaws. You cannot group channels into a bus vector, there is no NIST-traceable calibration certificate, and the triggering options are still relatively basic. For a $1,499 instrument, those omissions are real, but they do not undermine the core capture quality.

Who should buy the Saleae Logic Pro 16

Professional embedded engineers, consultants, and lab managers who want a no-compromises daily driver. If your time is worth more than the price difference between the Pro 16 and the DSLogic U3Pro32, the Logic 2 software will return the investment in saved debugging hours.

Who should skip it

Hobbyists, students, and anyone not billing clients for engineering time. The DSLogic Plus delivers the same 16 channels at less than 10 percent of the price for users who can tolerate the DSView software. The Pro 16 only earns its premium when software polish and warranty matter.

How to Choose the Best Logic Analyzer for Your Work

Picking the right logic analyzer comes down to four questions: which protocols are you debugging, how fast are they, how many signals do you need to watch at once, and how much do you value software polish over raw specs. The forum threads on EEVblog and r/embedded consistently emphasize that last point, and our testing confirms it.

Sample Rate and the Nyquist Limit

Sample rate determines the fastest signal you can capture reliably. The Nyquist limit says you need at least two samples per cycle, but in practice you want 4 to 10 samples per cycle to catch glitches and edge timing. For I2C at 400 kHz, even a 4 MHz analyzer works fine. For 50 MHz SPI, you need at least 200 MS/s to trust what you see.

Channel Count by Protocol

Different protocols eat channels at different rates. I2C needs 2 plus ground, UART needs 1 plus ground, basic SPI needs 4 plus ground, CAN needs 1 plus ground, and parallel buses can eat 8, 16, or 32 channels quickly. Buy an analyzer with at least two more channels than your current project needs, because you will always want to add a trigger line or probe a power rail.

Streaming vs Buffer Mode

Cheap USB analyzers stream samples directly to your PC, which means a busy host controller can cause dropped samples at high speeds. Buffer-mode analyzers have on-board memory that captures at full speed regardless of host load, then transfers to the PC for analysis. If your signals are fast or your PC is busy, buffer mode is the safer choice.

Software Quality and Ecosystem

Saleae Logic 2 is widely considered the gold standard, with PulseView and Sigrok close behind for open-source fans. KingstVIS gets praise for stability, and DSView offers the most protocol decoders of any single package. Try the software before committing to a hardware purchase, because a great analyzer with frustrating software will sit in a drawer.

Input Protection and Voltage Range

Cheap analyzers often max out at 5.25V with no real input protection, which means a careless probe on a 12V rail can kill the device. Premium units from Saleae and DreamSourceLab offer better input protection and adjustable thresholds. Always check the voltage range before connecting to an unfamiliar circuit.

Probe Quality and Accessories

The probes matter as much as the analyzer. Cheap grabber clips fall off fine-pitch leads and load signals with parasitic capacitance. Shielded fly wires, like those on the DSLogic series, keep noise down at high speeds. If your analyzer does not ship with quality probes, budget extra for a proper set.

Frequently Asked Questions

Conclusion

After testing all 10 of these units across hobbyist projects and professional embedded work, the verdict is clear. The Saleae Logic Pro 16 is the best logic analyzer overall for serious engineers who want software polish and a 3-year warranty. The DSLogic Plus is the best value pick, with 16 channels, 400 MHz buffer-mode sampling, and open-source software for a fraction of the Saleae price. And the innomaker LA1010 remains the best budget choice for anyone who needs 16 channels and reliable decoding without breaking triple digits.

Whichever tier you fall into, all 10 of these analyzers will get the job done in 2026. Match the tool to your protocols, your sample-rate needs, and your software preferences, and you will have a debugging partner that pays for itself on the first project.
