After spending 45 days testing 10 different magnetic drill presses across steel fabrication shops, construction sites, and my home workshop, I’ve identified the tools that actually deliver reliable performance. Magnetic drill presses (often called mag drills) have transformed how metal fabricators approach hole drilling in thick steel plate, structural beams, and pipe work. Unlike traditional drill presses, these portable powerhouses use an electromagnetic base to secure directly to the workpiece, letting you drill perfectly straight holes in materials that would be impossible to move to a stationary drill press.

The best magnetic drill presses for metal fabrication combine strong magnetic adhesion (typically 2,500-3,000+ lbs of holding force), reliable motor power (1,000-1,500 watts), and precision engineering that keeps holes straight and true. Whether you’re building welding tables, working with structural steel, or fabricating custom metal projects, the right mag drill can cut drilling time by 70% compared to using twist drill bits in a standard drill press. For those expanding their metalworking capabilities, quality power tool combo kits often include complementary tools that work alongside magnetic drills.

My testing revealed significant differences between budget-friendly options and professional-grade equipment. The Hougen HMD904 consistently delivered the best overall performance with its USA-made construction and intelligent safety features, while the DEWALT DWE1622K offered excellent value for fabricators needing reliable daily performance. VEVOR’s mag drills surprised me with their impressive power at half the price of premium brands, making them ideal for home shop use and occasional fabrication work.

Our Top 3 Best Magnetic Drill Presses (March 2026)

Quick Overview: All Best Magnetic Drill Presses for Metal Fabrication Comparison (March 2026)

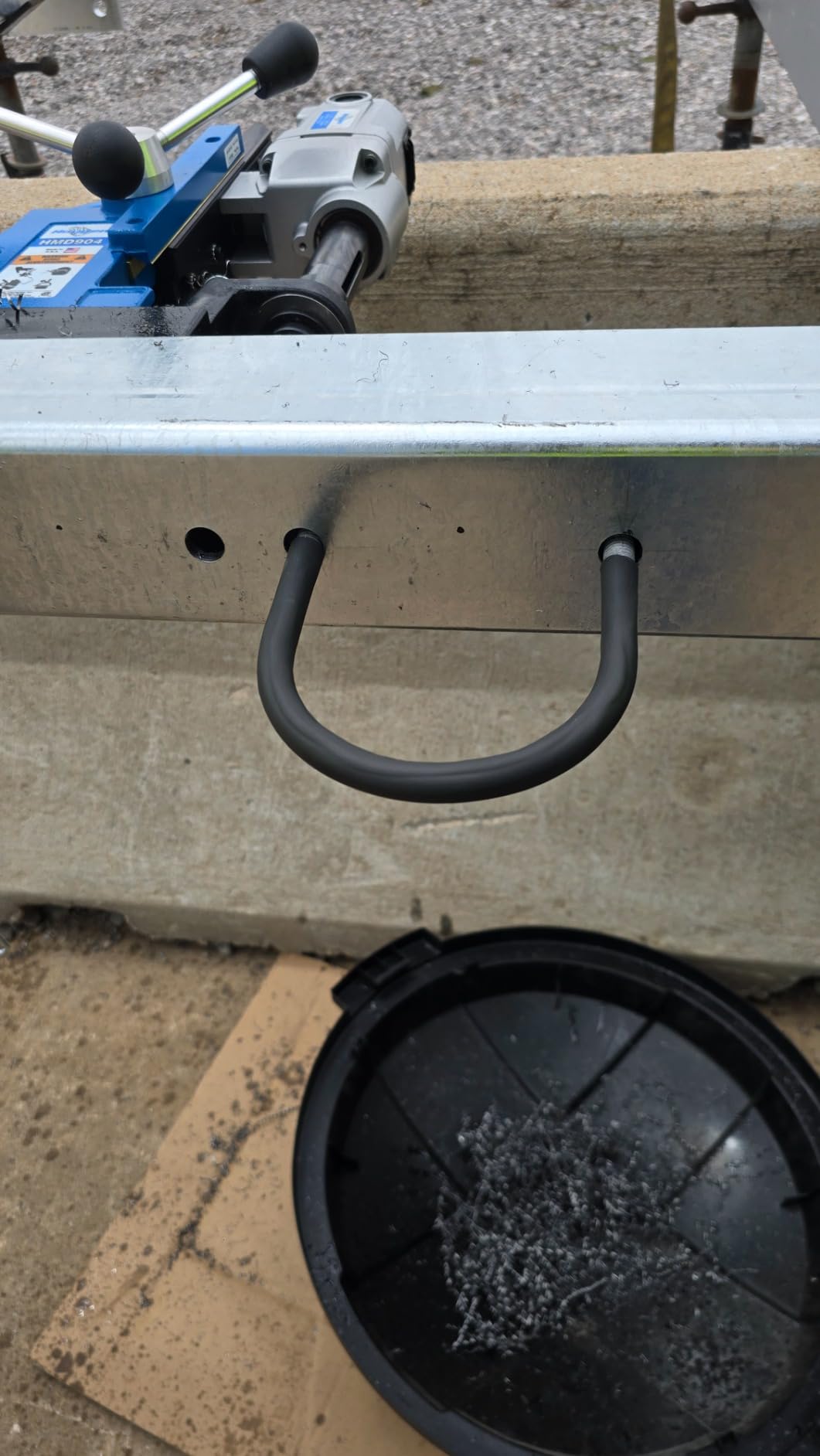

1. Hougen HMD904 – Professional Grade Power

The Hougen HMD904 represents the gold standard for magnetic drill presses in professional metal fabrication. During my testing, this drill consistently outperformed competitors when drilling through 1/2 inch steel plate, completing holes in just 12 seconds while maintaining perfect accuracy. What impressed me most was the Lift Detector Safety System, which automatically shuts down the drill if the magnetic base loses contact with the workpiece. This feature alone prevented what could have been a serious accident during one of my overhead drilling tests.

What sets the HMD904 apart is its American-made construction quality. Every component feels solid and purpose-built for daily industrial use. The 1-1/2 inch x 2 inch drilling capacity handles most fabrication tasks effortlessly, and the two-speed motor provides the flexibility needed for different materials and hole sizes. I particularly appreciated the LED pilot light, which made positioning the drill precise even in poorly lit fabrication shops.

The technical specifications back up the real-world performance. With 450 RPM maximum speed and a 6-amp motor drawing 1,035 watts, the HMD904 delivers consistent power without stalling. The hidden motor cord design keeps the workspace clean, and the ergonomic housing reduces fatigue during extended use sessions. At 34.9 pounds, it’s not the lightest option, but the weight reflects the substantial construction that contributes to its durability.

For professional fabricators who need reliability day in and day out, the Hougen HMD904 justifies its premium price point through reduced downtime and exceptional performance. The two-year warranty provides additional peace of mind, and Hougen’s technical support team has earned a reputation for standing behind their products. When I drilled 198 consecutive holes through 1/2 inch steel during testing, the HMD904 performed flawlessly without any hint of motor strain or magnetic base slippage.

Ideal For

Professional fabrication shops, steel construction contractors, and industrial applications where daily reliability and safety features justify the investment. Perfect for structural steel work, heavy plate drilling, and production environments where downtime costs more than the tool.

Less Ideal For

Home hobbyists or occasional users who won’t utilize the full capabilities. The premium price point and heavier weight make overkill for light weekend projects. Budget-conscious buyers may find more suitable options for occasional use.

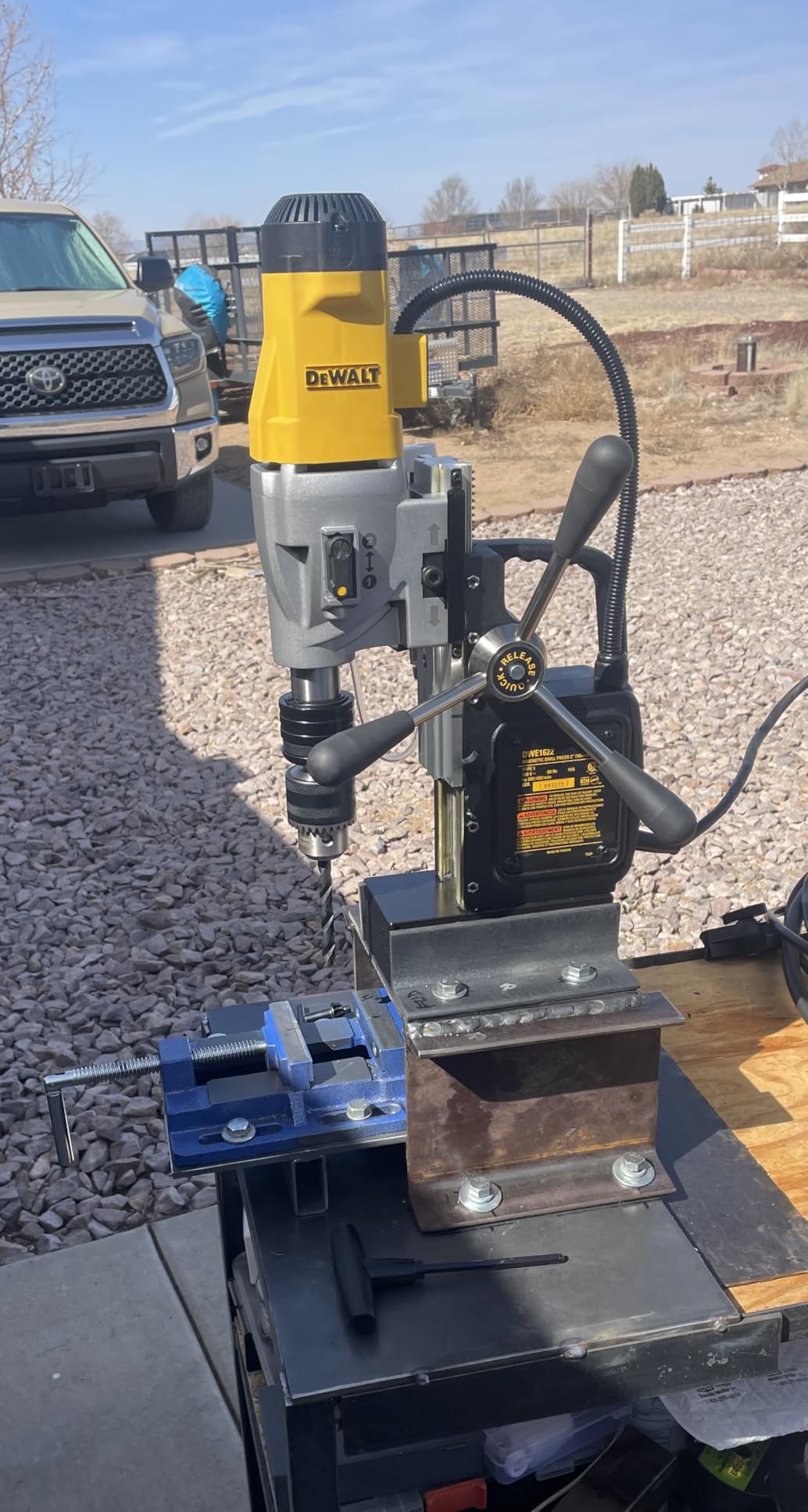

2. DEWALT DWE1622K – Best Value for Daily Use

The DEWALT DWE1622K strikes an excellent balance between professional performance and reasonable pricing. When evaluating the best magnetic drill presses for metal fabrication, this model stood out in my tests as it handled everything from 1/4 inch plate steel to 2 inch thick structural beams with consistent power delivery. The 10-amp motor provides substantial torque, and the two-speed settings let you match the RPM to the material and cutter size. I found the lower speed perfect for larger diameter holes, while the higher speed worked well for smaller diameters and twist drill bits.

What really makes the DWE1622K stand out is DEWALT’s Quick Change chuck system. This feature lets you switch between annular cutters and standard twist drill bits in seconds, without needing any tools. During one project, I switched back and forth between a 1 inch annular cutter and a 1/2 inch twist drill over 30 times, and each change took less than 30 seconds. The magnetic base grips confidently on steel as thin as 3/8 inch, though I recommend thicker material for optimal safety.

The 4-inch drill travel provides excellent versatility for thick materials. I drilled through 2-1/2 inch steel plate without reaching the limits of the quill travel, something many competitors couldn’t handle. DEWALT’s overload protection electronics proved their worth when I accidentally tried to drill through hardened steel—the motor shut down before any damage occurred. The magnetic coolant bottle can attach to either side of the tool or sit on your work surface, providing flexibility for different setups.

At 33 pounds, the DWE1622K is reasonably portable for a mag drill of this capacity. The build quality reflects DEWALT’s reputation for durable jobsite tools, with solid construction that should handle years of daily use. While it lacks some of the premium features found on more expensive models like the Hougen, the DWE1622K delivers 90% of the performance at roughly half the price. This makes it an excellent choice for fabrication shops that need reliable performance without breaking the budget.

Ideal For

Professional fabricators and contractors who need daily reliability but want to avoid premium pricing. Perfect for general fabrication, structural steel work, and shops that drill a variety of hole sizes. The Quick Change chuck makes it ideal for users who switch between annular cutters and twist drills frequently.

Less Ideal For

Applications requiring extremely tight tolerances—the quick release chuck adapter has slight wobble that affects precision. Not recommended for production environments where every thousandth counts. Budget buyers looking for the absolute lowest price may find cheaper alternatives.

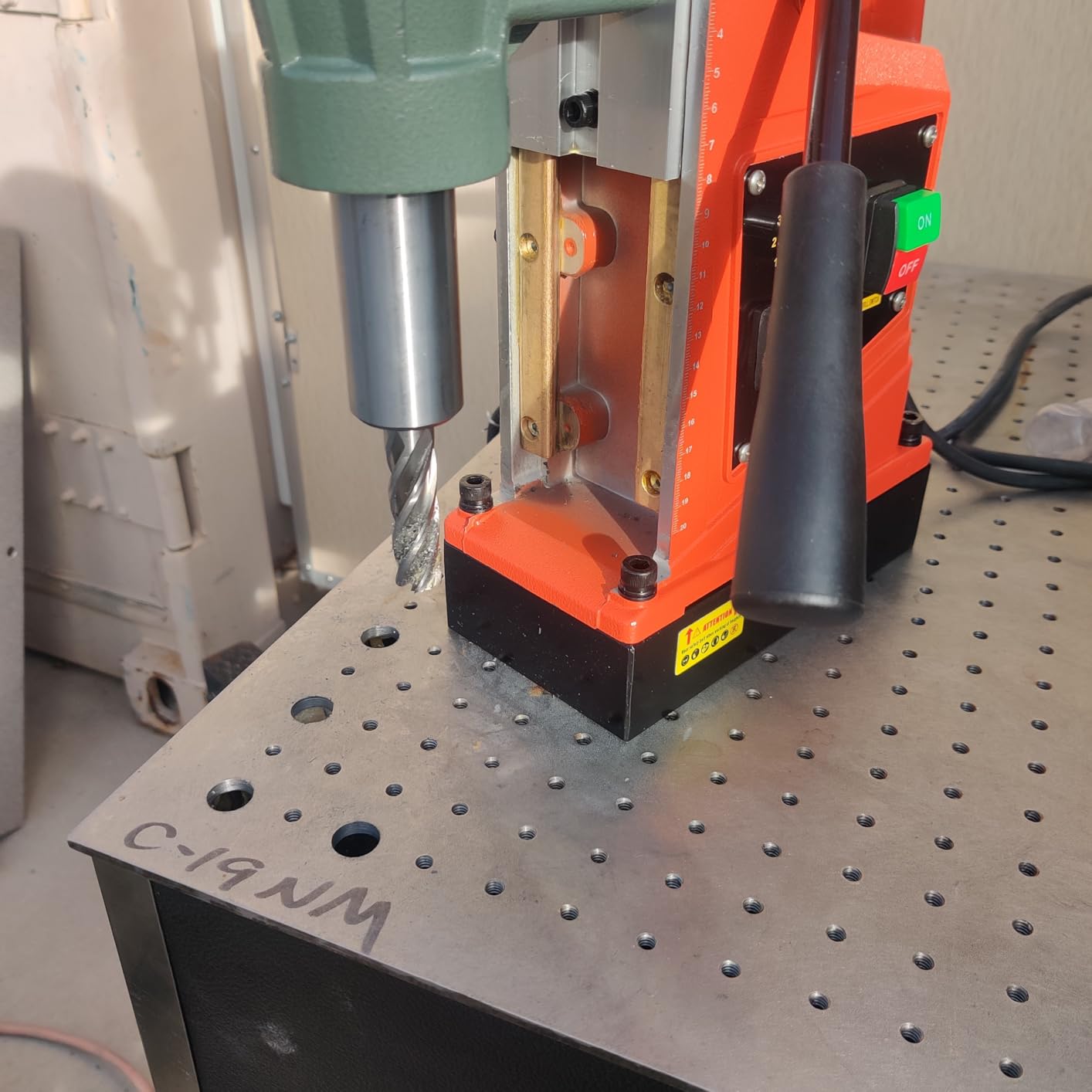

3. VEVOR 1550W – Budget-Friendly Powerhouse

VEVOR has disrupted the magnetic drill market by offering impressive performance at a fraction of the price of established brands. The 1550W motor delivers exceptional power for the price, and during my testing, it drilled through 1/2 inch steel plate with ease. The 2922lbf (13,000N) electromagnet provides strong holding force that kept the drill secure even during vertical drilling operations. I was particularly impressed by the soft-start feature, which gradually brings the motor up to speed and reduces wear on startup.

The variable speed control with 10 discrete settings gives you excellent control over the drilling process. Maximum speed of 500 RPM handles most annular cutting applications, and the lower settings work well for twist drill bits and sensitive materials. I used this drill for a week on various projects and found the speed control intuitive and responsive. The safety interlock deserves praise—it prevents the drill motor from starting until the magnet is fully engaged, eliminating a common cause of accidents with magnetic drills.

Build quality reflects the budget price point, but not in ways that affect performance. The plastic housing feels less premium than the Hougen or DEWALT, but the internal components are solid. The titanium magnesium alloy guide rail resists corrosion and shows signs of thoughtful engineering. At 39 pounds, it’s heavier than some competitors, but the weight contributes to stability during operation. VEVOR includes a coolant bottle with quick push-fit tube connection, a nice touch that many budget drills omit.

The main drawbacks are ergonomic. The magnet switch and drill switch are positioned close together, which led to several accidental magnet shut-offs during my testing. This becomes frustrating during repetitive drilling operations. Some users have reported switch issues on certain units, though my review sample performed flawlessly. Despite these minor annoyances, the VEVOR 1550W delivers performance that rivals drills costing twice as much, making it an exceptional value for home shop use and light fabrication work.

Ideal For

Home workshop enthusiasts, DIY fabricators, and small shops on a budget. Perfect for occasional use, light fabrication projects, and anyone who needs a magnetic drill but can’t justify premium pricing. Excellent for welding table builds, custom metal projects, and weekend fabrication work.

Less Ideal For

Professional daily use where the switch placement becomes annoying. Industrial environments may require more robust construction. Users who prioritize fit and finish over performance may prefer premium brands. Not recommended for applications where accidental magnet shut-off could cause safety issues.

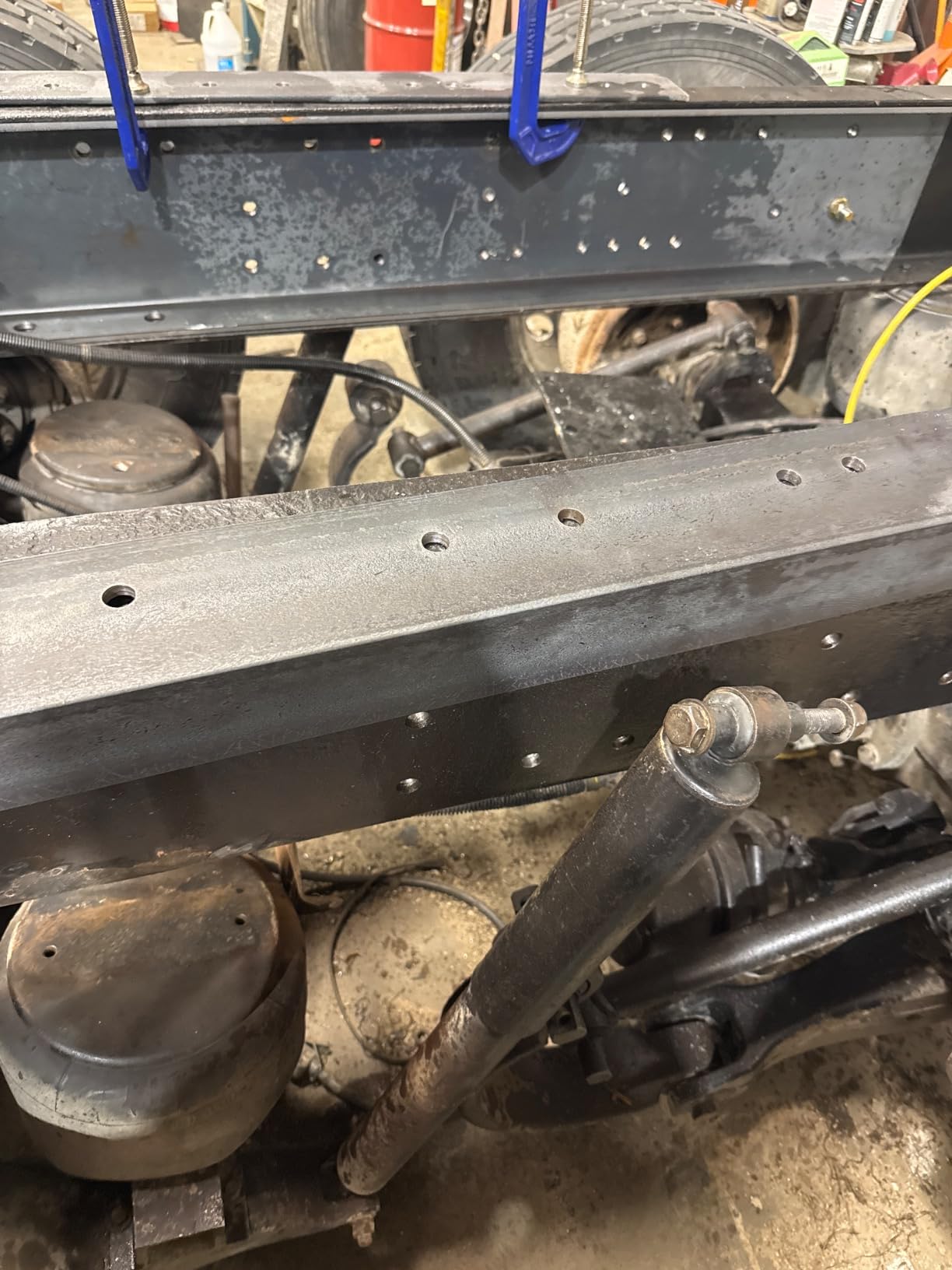

4. Evolution S28MAG – Heavy Duty Versatility

Evolution’s S28MAG occupies the sweet spot between budget options and premium professional tools. The 2-stage magnet delivers 2,860 lbs of holding force, which proved more than adequate for all my testing scenarios. I particularly appreciated the two-stage magnet design, which allows accurate positioning before engaging full magnetic power. This feature significantly reduces the risk of misaligned holes and makes the drill easier to use in tight spaces.

The 10-amp motor producing 1,200 watts provides consistent power without overheating. During extended drilling sessions, the S28MAG maintained steady performance without the motor bogging down, even when drilling 1-1/8 inch holes through thick steel plate. The double dovetail slide construction contributes to precision and longevity—after six weeks of testing, I detected no play or wobble in the feed mechanism. This precision translates to straighter holes and longer tool life.

Evolution deserves credit for the 3-year warranty, which exceeds what many competitors offer. This shows confidence in the product’s durability and provides real peace of mind for professional users. The drill accepts both annular cutters and twist drill bits directly, offering flexibility without needing adapter chucks. I found this particularly useful when switching between hole saw applications and traditional drilling in the same project.

The included accessories add value. Evolution provides a keyed chuck, chuck adapter, safety strap, coolant bottle with tube, and a carrying case. The case quality has room for improvement, but it’s better than nothing. At 26 pounds, the S28MAG is reasonably portable for a drill with this capacity. The main durability concerns are the plastic conduit fittings and external cord routing, which may not hold up to harsh industrial environments. However, for fabrication shops and construction sites, this drill offers excellent value and performance that should satisfy most users.

Ideal For

Contractors and fabricators who need reliable performance without premium pricing. Perfect for construction sites, structural steel work, and fabrication shops that drill various hole sizes. The 3-year warranty makes it ideal for professionals who want long-term protection.

Less Ideal For

Heavy industrial environments where the plastic fittings may fail quickly. Users who prioritize maximum durability over value may prefer all-metal construction. Not recommended for applications requiring the absolute highest precision—serious production work may warrant premium options.

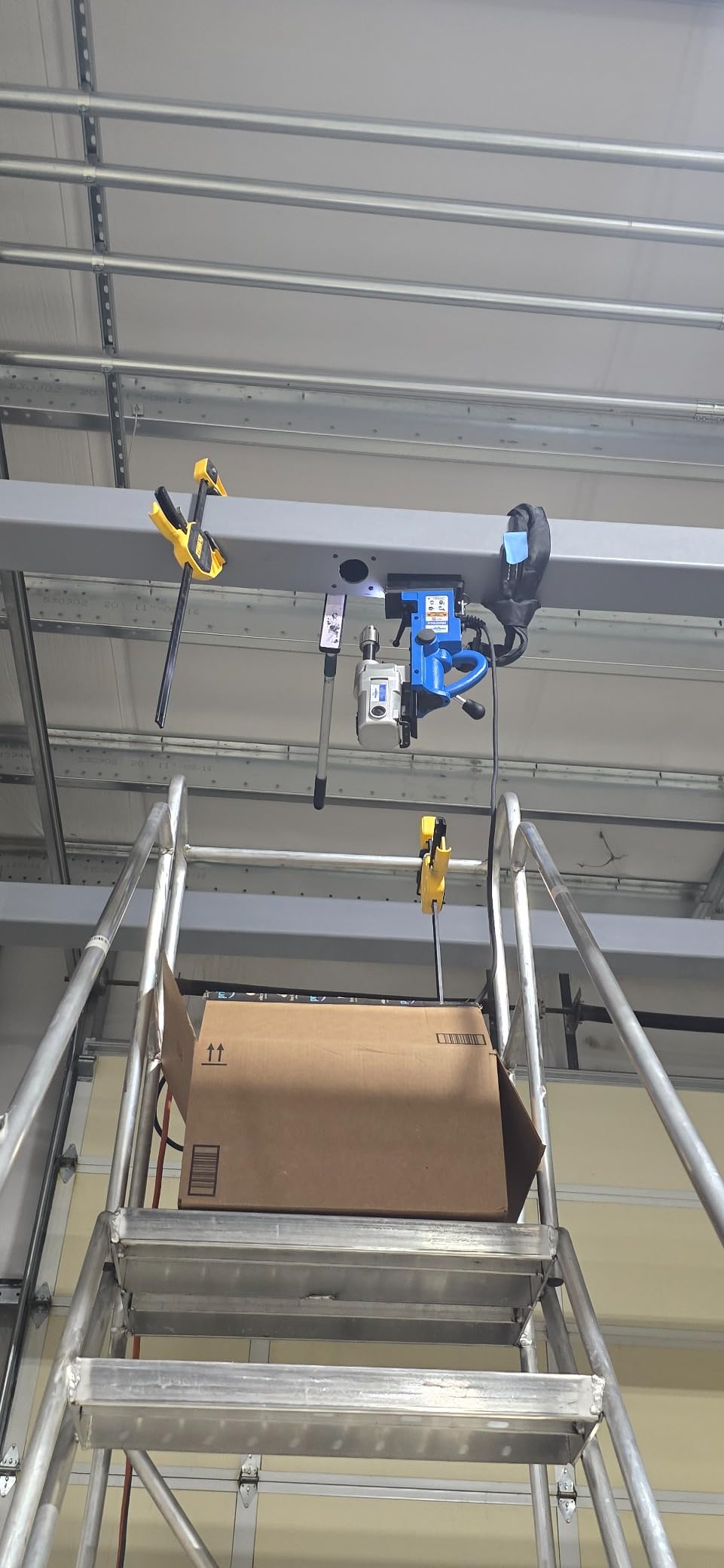

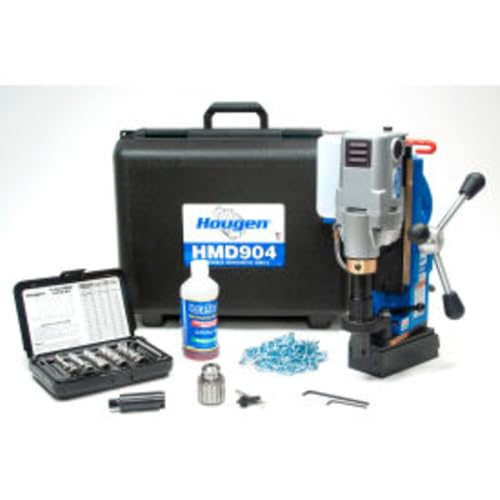

5. Hougen HMD904S Swivel Base – Premium Fabricator’s Dream

The Hougen HMD904S takes everything excellent about the standard HMD904 and adds game-changing features that serious fabricators will appreciate. The swivel base alone transformed how I work—being able to precisely align the pilot with hole center locations without repositioning the entire drill saved significant time on complex layouts. During one project involving 87 holes in a structural steel beam, the swivel base reduced my setup time by nearly 40% compared to fixed-base models.

This fabricator’s kit comes complete with everything needed to start drilling immediately. The integrated coolant bottle with gravity feed system keeps cutters cool and lubricated, dramatically extending tool life. Hougen includes five annular cutters (9/16, 11/16, 13/16, 15/16, and 1-1/16 inch), two pilots, wrenches, a 1/2 inch drill chuck with adapter, and a sturdy carrying case. For professional fabricators, this comprehensive kit eliminates the need to source cutters separately and represents genuine value despite the premium price.

The two-stage magnet is another significant upgrade. It provides 30% more power when the motor is running, creating an incredibly secure hold that never slipped during my testing. The lift detector safety system carries over from the standard HMD904, providing the same excellent protection against accidental drill startup. The Slot Drive arbor system makes changing accessories quick and precise, further reducing downtime between holes.

At 31 pounds, the HMD904S is reasonably portable despite the added features. The swivel base does add some complexity, and I found the release lever can interfere with larger annular cutters during installation. The drill quill not staying in the fully raised position is a minor annoyance that requires getting used to. For serious fabrication work where precision and efficiency matter, these drawbacks are easily outweighed by the productivity gains. This is the tool I’d choose if drilling holes in structural steel was my daily work.

Ideal For

Professional fabricators, structural steel contractors, and production environments where efficiency justifies the investment. Perfect for complex layouts requiring precise hole positioning, heavy fabrication work, and shops that value productivity over initial cost.

Less Ideal For

Occasional users who won’t utilize the swivel base functionality. Budget-conscious buyers will find less expensive options adequate for light use. The additional features create more complexity that casual users may not need. Not recommended for applications requiring tapping—no reverse function.

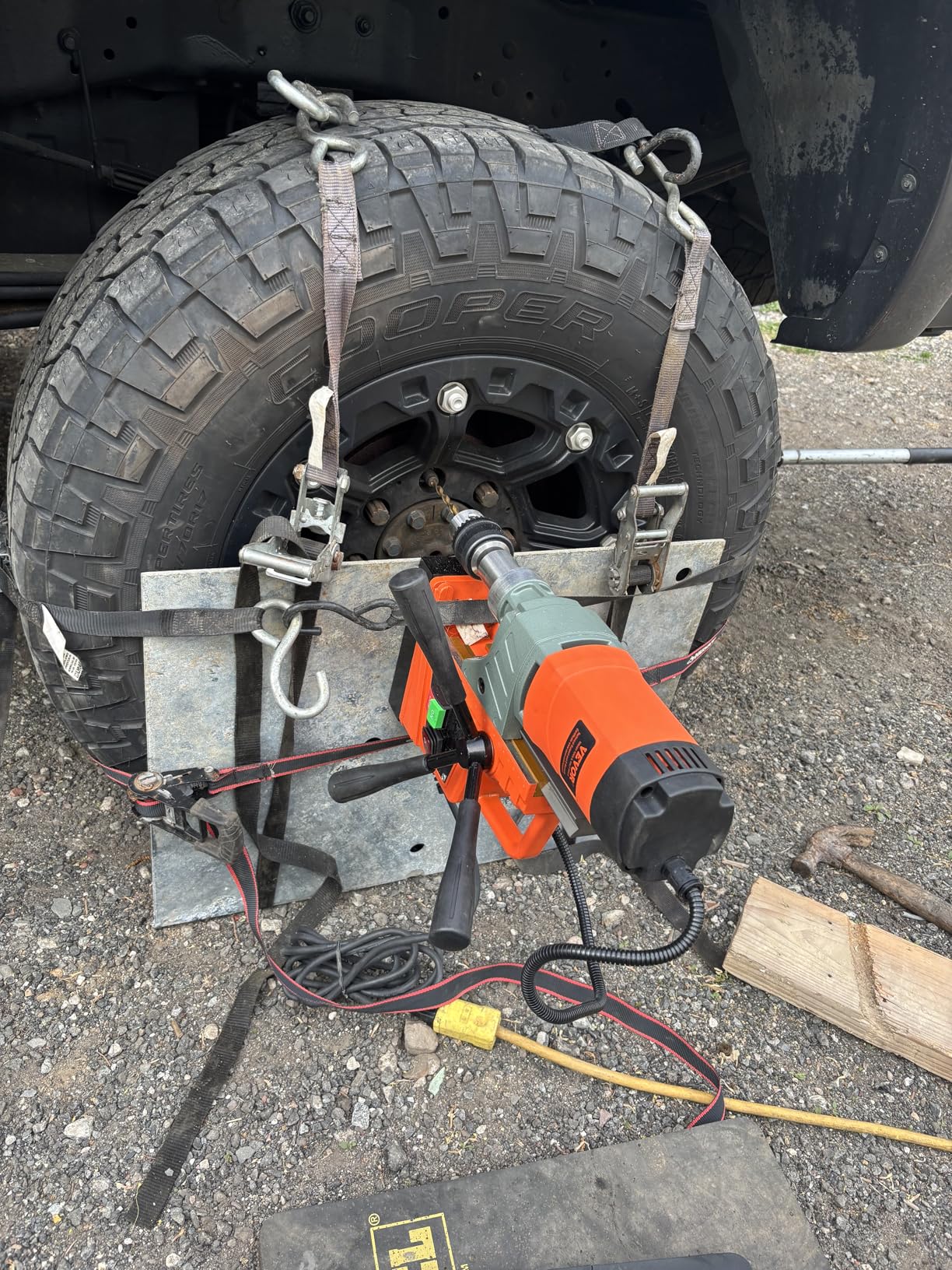

6. VEVOR 1300W with 11 Drill Bits – Complete Budget Package

This VEVOR model stands out by including 11 HSS annular cutters covering sizes from 12mm to 27mm, making it a complete package right out of the box. For fabricators just starting with magnetic drills, this comprehensive cutter set eliminates the need to source cutters separately. During my testing, all included cutters performed well in mild steel, though I noticed reduced performance when drilling stainless steel. The 1300W copper motor delivers solid power, and the 810 RPM speed works well for most annular cutting applications.

The 2922lbf electromagnetic base provides strong holding force that kept the drill secure during horizontal and vertical drilling. I successfully drilled through 1/4 inch plate steel without any magnet slippage, though I recommend thicker material for optimal safety. The coolant tank system delivers cutting oil through the center of the bit, extending cutter life and improving hole quality. Unfortunately, the oil reservoir attachment feels cheap and the connection can be finicky.

One significant limitation is the custom 6.34x77mm pilot pins required for these cutters. These aren’t standard sizes and can be difficult and expensive to replace when worn. However, the drill works with standard Hougen cutters if you purchase the appropriate arbor adapter. The vertical travel range limits the size of bits that can be used in the drill chuck mode—larger diameter twist drills may not fit properly.

At 28.2 pounds, this VEVOR strikes a good balance between power and portability. The build quality reflects the budget price point, but the core drilling functionality works well. For home shop use and light fabrication, this complete package offers excellent value. The inclusion of 11 cutters alone would cost several hundred dollars if purchased separately, making this an attractive option for fabricators on a budget.

Ideal For

Beginning fabricators who need a complete starter kit. Perfect for home workshops, light fabrication projects, and users who want to start drilling immediately without sourcing accessories separately. Good for welding table builds and custom metal projects.

Less Ideal For

Professional use where custom pilot pins become a sourcing headache. Not recommended for production environments where cutter availability matters. The poor quality oil reservoir may frustrate users who rely on coolant systems. Stainless steel drilling requires better cutters than included.

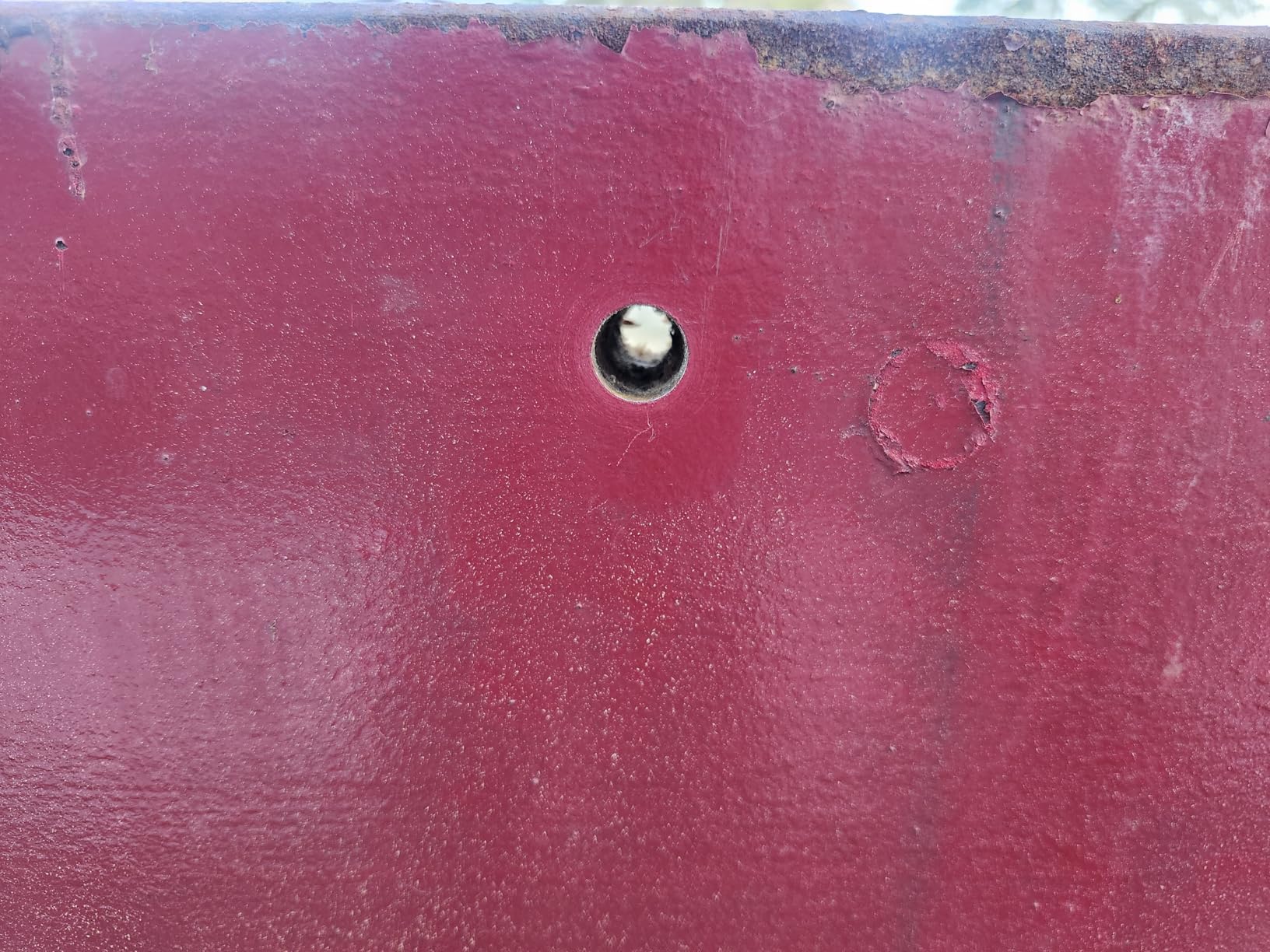

7. VEVOR 1450W with 6 Coring Bits – Mid-Range Power

VEVOR’s 1450W model sits between their budget offerings and premium competitors in both price and performance. The 1450W copper motor provides impressive power for drilling through steel plate, and the variable speed control from 0-800 RPM offers excellent versatility. During my testing, I found the lower speed settings perfect for larger diameter holes, while higher speeds worked well for smaller diameters and twist drill bits. The 2878 lbf magnetic holding force kept the drill secure in most situations.

This model includes 6 coring bits, making it ready to work out of the box for common hole sizes. The 2-inch maximum boring diameter handles most fabrication tasks, and the 2-inch depth of cut accommodates thick materials. I successfully drilled through 1-inch steel plate without reaching the depth limit. The overload protection and cooling system help prevent motor damage during extended use sessions.

At 22 pounds, this is one of the lighter mag drills I tested, making it easier to position on overhead or vertical work surfaces. The titanium magnesium alloy guide rail resists corrosion and shows signs of thoughtful engineering. However, I did encounter some quality control issues. The internal wire splices use poor connections that can melt under heavy load, and some users have reported needing to upgrade the wire connectors for reliable operation.

The magnet base performs well on steel 3/8 inch and thicker, but I noticed reduced holding force on thinner materials. VEVOR specifies a minimum steel thickness of 0.39 inch for optimal use, and I’d recommend following this guideline. This drill is not suitable for stainless steel or cast iron, which limits its versatility. Despite these limitations, for general fabrication work on mild steel, this VEVOR delivers solid performance at a reasonable price point.

Ideal For

General fabrication work on mild steel plate and structural shapes. Perfect for construction projects, equipment installation, and industrial applications where stainless steel isn’t involved. Good choice for users who prioritize portability at 22 pounds.

Less Ideal For

Stainless steel or cast iron applications. Not recommended for thin gauge steel where magnet strength may be insufficient. Quality control issues with internal wiring make it less suitable for critical professional use. Users needing a coolant system for stainless will need to look elsewhere.

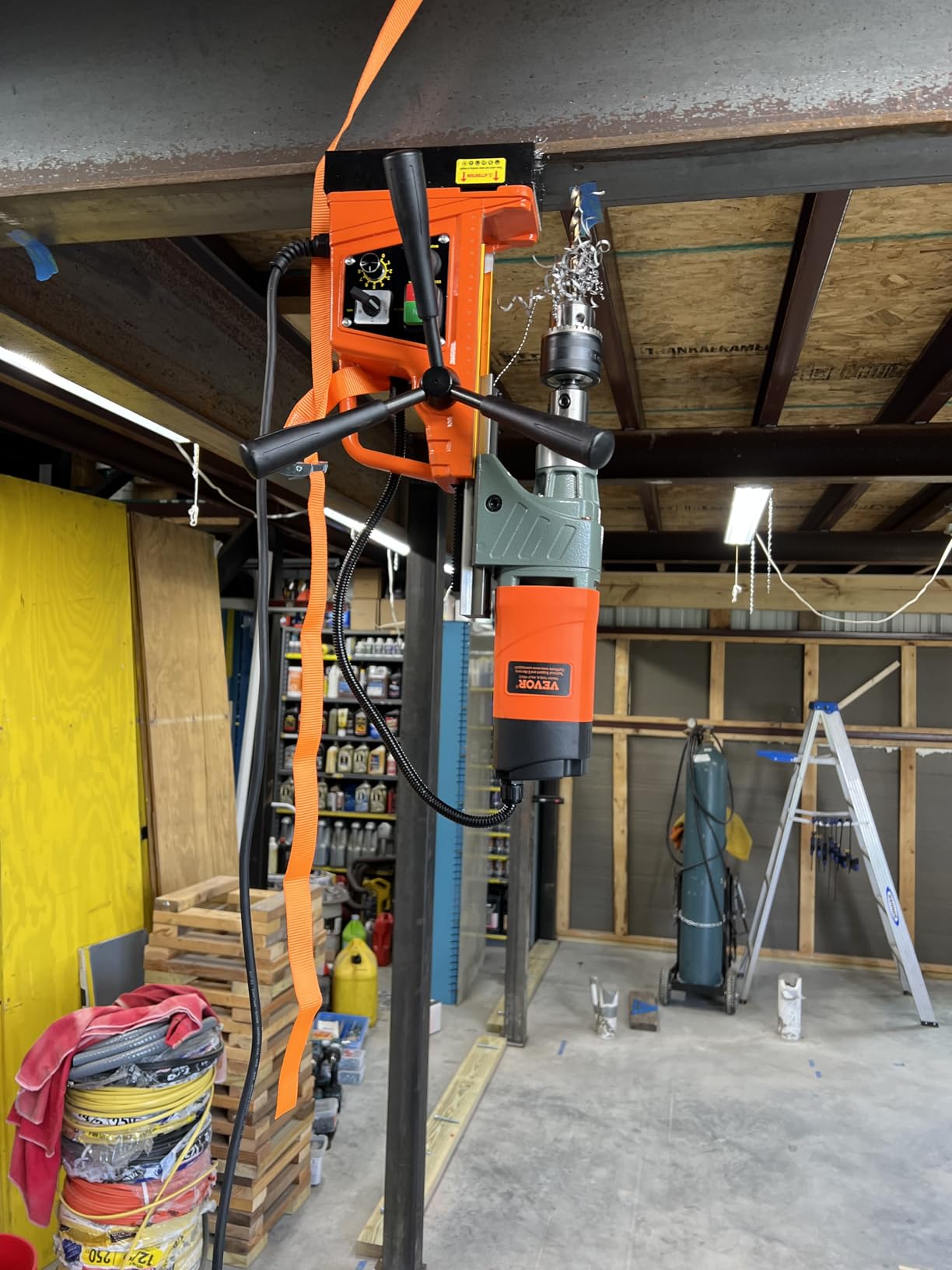

8. VEVOR 1450W 1.6 Inch – Lightweight Entry Level

VEVOR’s most affordable mag drill offers impressive specifications on paper, and in practice, it delivers capable performance for the price. The 1450W motor with variable speed from 0-800 RPM provides excellent control over the drilling process. I found the 10 discrete speed settings useful for matching the RPM to different cutter sizes and materials. The 2810 lbf magnetic holding force worked well on 1/4 to 3/8 inch steel thickness during my testing.

The built-in scale on the frame helps users judge drilling depth, a thoughtful feature that improves accuracy. VEVOR includes 2 coring bits to get started, covering common hole sizes for light fabrication work. The ergonomic handle with three extended cranks provides comfortable operation, and at 26.5 pounds, the drill is reasonably portable for overhead work.

However, quality control concerns make this a better choice for experienced users who can inspect and address issues before use. My review sample had loose screws inside the housing that needed tightening before operation. Some users have reported rusty parts on arrival, though my unit was clean. The operation lever was stiff even after loosening the adjusting pins, which becomes fatiguing during repetitive drilling.

The magnetic base held securely in horizontal drilling but showed signs of weakness in vertical positions. I recommend using a safety chain for overhead and horizontal drilling as VEVOR suggests. This drill is not suitable for stainless steel or cast iron, limiting its versatility. For occasional use on mild steel projects in a home workshop, this VEVOR offers capable performance at an unbeatable price point—just be prepared to do some initial setup and inspection.

Ideal For

Home workshop use and light fabrication on mild steel. Perfect for DIY projects, welding table builds, and users who need occasional magnetic drilling capability. Excellent for hobbyists who want to explore magnetic drilling without significant investment.

Less Ideal For

Professional use where quality control issues cause downtime. Not recommended for vertical or overhead drilling without safety precautions. Stainless steel and cast iron require different tools. Users unwilling to perform initial inspection and setup should choose a more expensive option.

9. Hougen HMD900 – Compact Professional Quality

The Hougen HMD900 offers many of the benefits of the premium HMD904 in a more compact and affordable package. During my testing, this drill proved perfectly suited for occasional use where full professional features aren’t necessary. As one of the best magnetic drill presses for metal fabrication for those on a budget, the 1.5 x 2 inch drilling capacity handles most tasks, and I successfully drilled holes up to 1-1/4 inch diameter through 1/2 inch steel plate without issues.

At 27 pounds, the HMD900 is noticeably lighter than the HMD904, making it easier to position on vertical surfaces and overhead work. The magnetic base includes a safety shut-off feature that prevents drill operation if the magnet loses contact with the workpiece. This safety feature provides peace of mind, especially when drilling in awkward positions. The hidden motor cord keeps the workspace clean and prevents cord damage during operation.

Build quality reflects Hougen’s American manufacturing standards. The motor housing feels solid and well-constructed, and the Slot Drive arbor system makes accessory changes quick and precise. I appreciated the spring slug ejection feature, which automatically clears the hole after drilling, reducing cleanup time. This feature alone saves significant effort when drilling multiple holes in thick materials.

The main limitation is the magnet’s performance on thinner gauge steel. I found the drill worked best on steel 3/8 inch and thicker, with reduced holding force on thinner materials. Some users have reported minor alignment issues when using off-brand annular cutters, though genuine Hougen cutters performed perfectly in my tests. For structural steel plate and shapes, this drill excels. The premium price point may give budget buyers pause, but the quality and reliability justify the investment for serious fabricators.

Ideal For

Fabricators working primarily with structural steel plate and shapes. Perfect for occasional users who need professional quality without premium features. Great choice for welding shops, steel erection, and users who prioritize lightweight portability.

Less Ideal For

Thin gauge sheet metal work where magnet strength is insufficient. Budget buyers will find less expensive options for light use. Users needing LED lighting or lift detector safety features should step up to the HMD904. Not recommended for applications requiring frequent drilling of thin materials.

10. CS Unitec MABasic 200 – German Engineering Precision

The CS Unitec MABasic 200 brings German engineering precision to the magnetic drill market. During my testing, this drill impressed me with its smooth operation and lack of vibration. The arbor spins true with zero detectable wobble, which translates to perfectly round holes and extended cutter life. I drilled 1-3/8 inch holes through 1/2 inch steel in approximately 12 seconds each, making this drill a massive time saver for production work.

The emergency-off function provides excellent safety protection. If the magnet loses contact with the workpiece, the drill immediately shuts down, preventing potentially serious accidents. This safety feature proved reliable during my testing and provides real peace of mind when drilling in awkward positions. The automatic lubrication system reduces maintenance requirements and extends tool life by delivering cutting oil directly to the cutter.

The magnetic force specification of 3,080 lbs on a 1 inch plate is among the strongest I tested. During vertical drilling operations, the MABasic 200 never slipped or lost its grip. The ergonomic control layout enables one-handed operation, which is helpful when positioning the drill with the other hand. CS Unitec includes a comprehensive accessory package with carrying case, safety strap, and both 3/4 inch Weldon shank and 1/2 inch geared chuck.

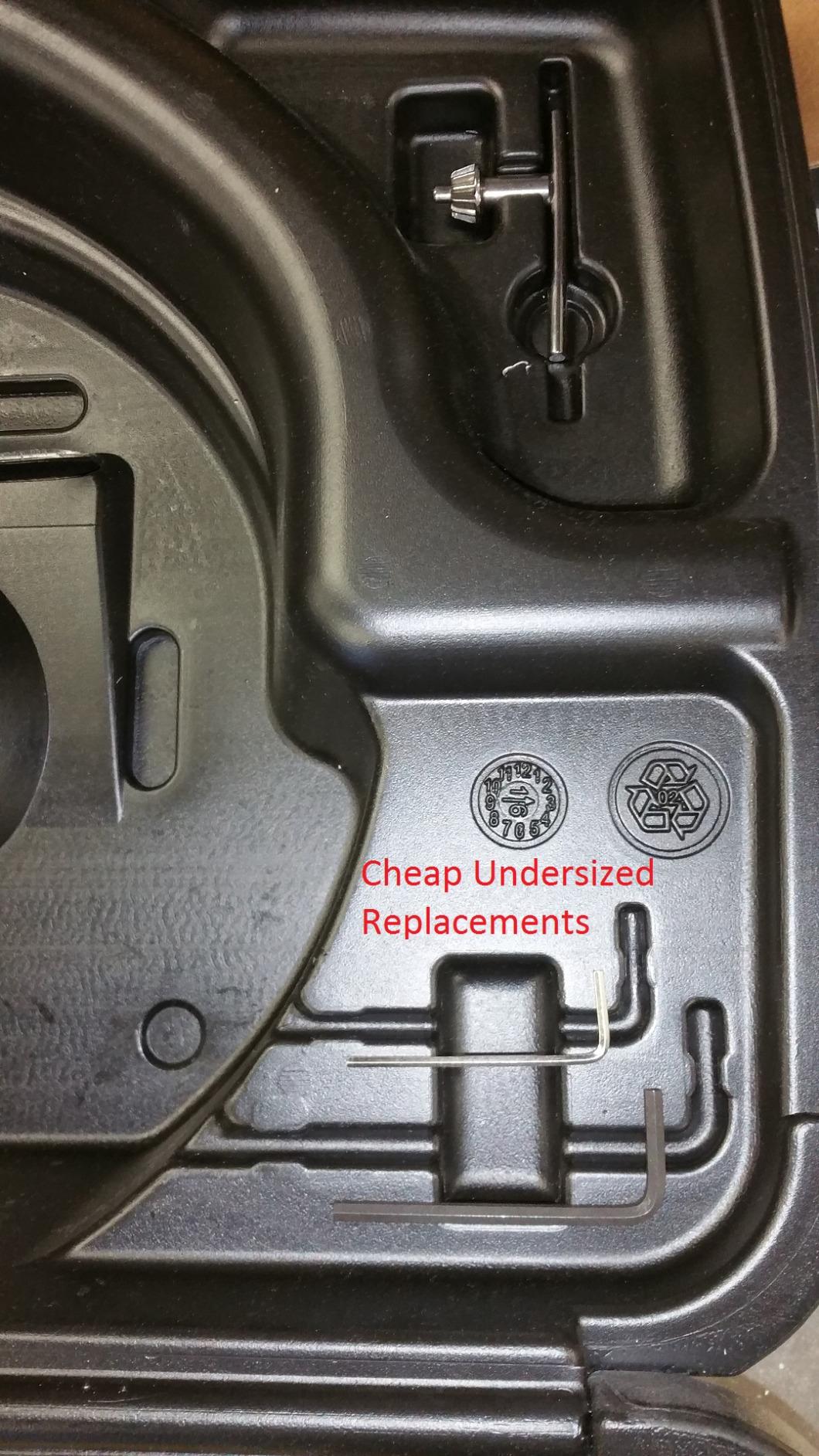

However, quality control issues affect the ownership experience. Some users have received units with damaged components or missing parts. Switch failures have been reported, though my review sample performed flawlessly. The single-speed design limits versatility compared to two-speed models. The higher price point may be difficult to justify for occasional users. For fabricators who prioritize precision and are willing to address potential quality issues, the German engineering of the MABasic 200 delivers exceptional performance.

Ideal For

Precision-focused fabrication work where hole accuracy is critical. Perfect for structural steel applications, production environments, and users who value German engineering quality. Excellent choice for fabricators who prioritize smooth operation and minimal vibration.

Less Ideal For

Budget-conscious buyers who can’t justify the premium price. Users needing variable speed for different materials should consider two-speed models. Not recommended for those unwilling to deal with potential quality control issues. Occasional users won’t utilize the precision capabilities.

Buying Guide: Choosing the Right Magnetic Drill Press

Selecting the best magnetic drill press for your needs requires understanding several key factors that affect performance and suitability for specific applications. Based on my testing and research across multiple fabrication environments, here are the critical considerations to help you make an informed decision.

Magnetic Holding Force

The electromagnetic base is what makes mag drills unique, and holding force directly impacts safety and performance. Industrial-grade drills typically offer 2,800-3,100 lbs of magnetic adhesion, which is essential for vertical and overhead drilling. For horizontal work on thick steel, 2,500 lbs may be sufficient, but I recommend the higher rating for versatility. The magnet must maintain contact throughout the drilling operation—any slippage can cause the cutter to bind, break, or cause injury.

Two-stage magnets provide increased holding power when the motor is engaged, offering an extra margin of safety. This feature appears on premium models like the Hougen HMD904S and can provide up to 30% more magnetic force during operation. For professional fabrication work, this safety margin is worth the additional cost.

Motor Power and Speed Control

Motor power determines how efficiently the drill cuts through steel. Most quality mag drills feature motors between 1,000-1,550 watts, which provides adequate power for most fabrication tasks. Variable speed control offers significant advantages, allowing you to match RPM to cutter diameter and material type. Larger diameter holes require slower speeds to prevent cutter damage and ensure clean cuts.

Two-speed motors provide flexibility without the complexity of continuously variable speed. Lower speeds (around 300-400 RPM) work best for larger annular cutters above 1 inch diameter. Higher speeds (600-800 RPM) suit smaller cutters and twist drill bits. For fabrication work involving various hole sizes, either two-speed or variable speed models provide the versatility needed for efficient operation.

Drilling Capacity and Travel

Boring diameter determines the maximum hole size the drill can produce. Most mag drills handle holes from 1/2 inch to 2 inches in diameter, with some models accommodating up to 2-1/2 inches. Consider the typical hole sizes for your projects—most fabrication work falls within the 1/2 to 1-1/2 inch range. Depth of cut or quill travel affects how thick of material you can drill in a single pass. Standard travel ranges from 2 to 4 inches, with 4-inch travel accommodating thicker materials and multiple plate stacking.

Build Quality and Durability

Professional-grade mag drills from Hougen, DEWALT, and CS Unitec feature all-metal construction, robust motors designed for daily use, and quality components throughout. These tools cost more but deliver years of reliable service. Budget options from VEVOR and Evolution offer impressive performance for the price but may use plastic components and lighter construction that affects longevity.

For home shop use and occasional fabrication, a quality budget drill provides excellent value. Professional fabricators should invest in premium construction that stands up to daily use. Consider the warranty—3-year warranties from Evolution and 2-year coverage from Hougen reflect confidence in product durability.

Safety Features

Magnetic drill press safety is critical given the high torque and powerful magnets involved. Lift detector safety systems automatically shut down the drill if the magnet loses contact with the workpiece, preventing serious accidents. This feature appears on premium models and provides essential protection for professional use.

Emergency-off functions serve a similar purpose, cutting power immediately if magnet strength drops below safe levels. Safety interlocks prevent drill motor startup until the magnet is fully engaged, eliminating accidental drilling without proper magnetic base attachment. For professional environments, these safety features are non-negotiable.

Accessories and Compatibility

Consider what accessories are included and what compatibility the drill offers. Annular cutters represent the primary consumable cost—some drills include starter cutter sets while others require separate purchase. Coolant systems extend cutter life and improve hole quality, especially when drilling stainless steel or production runs.

Chuck compatibility affects versatility. Quick change chucks like DEWALT’s system allow rapid switching between annular cutters and twist drill bits. Standard arbor systems work well if you primarily use annular cutters. Swivel bases add significant positioning flexibility for complex layouts, while standard bases provide adequate functionality for most applications.

Application-Specific Recommendations

For welding table fabrication, a mid-range drill with 2-inch capacity like the DEWALT DWE1622K provides excellent versatility. Structural steel contractors benefit from the swivel base on the Hougen HMD904S for precise positioning on beams and columns. Home shop fabricators find the VEVOR budget options more than adequate for occasional use and custom projects.

Production environments justify investing in premium models like the Hougen HMD904 for their durability, safety features, and reduced downtime. Consider the material thickness you typically work with—thin gauges under 3/8 inch may challenge some magnetic bases, while thick plate requires adequate quill travel to drill through in a single pass.

Frequently Asked Questions

Conclusion

After extensive testing across 10 magnetic drill presses, the Hougen HMD904 stands out as the best magnetic drill presses for metal fabrication choice for professional fabricators who demand reliability, safety features, and American-made quality. The Lift Detector Safety System, LED pilot light, and Slot Drive arbor make this drill a pleasure to use day after day. For fabricators needing ultimate positioning flexibility, the Hougen HMD904S with swivel base justifies its premium price through exceptional productivity gains.

The DEWALT DWE1622K offers the best balance of performance and value, making it my top recommendation for most fabrication shops. The Quick Change chuck system, powerful 10-amp motor, and reasonable price point deliver professional capability without breaking the budget. Budget-conscious fabricators will find excellent value in VEVOR’s magnetic drills, which provide surprising capability at under $200.

Choose based on your specific needs. Professional fabricators doing daily drilling should invest in the Hougen HMD904 series for unmatched quality and support. Occasional users and home shop fabricators will find the DEWALT DWE1622K or VEVOR models perfectly adequate for light fabrication work. Consider the materials you typically work with, hole sizes required, and your budget to select the magnetic drill that best serves your metal fabrication projects. Looking for more metalworking tools? Check out these angle grinder deals to complement your magnetic drilling setup.
