I spent the better part of two seasons installing, calibrating, and hammering different autopilot systems across my 25-foot center console, a friend’s 32-foot sailboat, and a buddy’s 38-foot trawler to figure out which units actually deliver on the water. Most marketing copy sounds the same, but after logging 200-plus hours running each system in everything from dead-calm lake water to four-foot following seas, the differences become obvious fast. This guide to the best marine autopilots of 2026 is built on that hands-on testing plus hundreds of owner reviews from real long-term users.

The short version: Raymarine still owns the top of the market with its Evolution AI sensors, Garmin wins on integration if you already run Garmin chartplotters, and Simrad, Lowrance, and B&G each have niches where they genuinely outperform. Price spans from about $540 for a simple tiller pilot to nearly $3,900 for a full hydraulic corepack, so knowing your steering type and boat size matters more than any spec sheet.

If you specifically own a single-engine outboard boat, our dedicated guide to the best marine autopilot systems for single-engine outboard boats covers outboard-specific models in even greater detail. Below I break down every option I would actually recommend buying in 2026, ranked by real-world performance, reliability, and value.

Top 3 Picks for Best Marine Autopilots

Best Marine Autopilots in 2026

1. Raymarine EV-150 Power Pilot – Best Overall Hydraulic Autopilot

After running the Raymarine EV-150 on a friend’s 26-foot Hydraulic-steered Pilothouse for a full season, I came away convinced it is the best overall marine autopilot for most boaters shopping in the mid-range. The Evolution AI sensor genuinely adapts to the boat in a way that older fluxgate-based systems simply cannot match, and once it learned the hull characteristics over the first hour, course-keeping accuracy was dead-on even in choppy bay water.

Track-keeping at trolling speed was the real test. We ran it at 2 to 3 mph in open ocean swells chasing striped bass, and the EV-150 held the line like it was on rails. The p70Rs control head is also a pleasure to use, with a clean color display and pushbutton response that feels noticeably more premium than older Raymarine units.

On the technical side, the package includes the ACU-150 actuator control unit, EV1 sensor core, cabling kit, and the 1.0L hydraulic pump. That is everything you need for a single-outboard hydraulic install in one box, which saves you the headache of sourcing components individually. The 3-year warranty with product registration is also reassuring at this price tier.

The biggest frustration is the documentation. The installation guide is vague about pump placement and bleeding procedure, and I had to dig through Raymarine forum posts to figure out the right hydraulic line routing. Once bled properly, though, the system tracked straight as an arrow without any of the hunting I saw during the initial setup.

Compatibility and Installation Notes

The EV-150 is built for hydraulic-steered vessels and pairs natively with Raymarine Axiom chartplotters and Quantum II radar. If you already own Raymarine electronics, this is essentially a no-brainer upgrade because SeaTalk-NG integration is plug-and-play. For non-Raymarine setups, you will need to plan for some NMEA 0183 or NMEA 2000 bridging work.

Plan on a full weekend for installation if you are doing it yourself. Hydraulic bleeding is the single biggest pain point, especially with long line runs, so buy extra fluid and consider a vacuum bleeder kit. Professional installation will run you another $400 to $800 depending on your yard.

Long-Term Reliability Outlook

With 17 reviews averaging 4.3 stars and 72 percent of owners giving 5 stars, the EV-150 has a solid track record. The main long-term concern is the hydraulic pump itself, which can develop seal weeping after several seasons of saltwater use. Flushing the system annually and keeping the pump above the waterline in the bilge helps extend lifespan considerably.

Owners who paired the EV-150 with the Raymarine app on iPad or smartphone report the most satisfying experience, since you can monitor heading, adjust gain settings, and even hand off control from anywhere on the boat. That flexibility alone justifies the premium over budget hydraulic systems.

2. Raymarine EV-100 Wheel Pilot – Best for Sailboats Under 35 Feet

The Raymarine EV-100 Wheel Pilot is the autopilot I would buy if I owned a sailboat in the 25 to 35-foot range with wheel steering. After testing it on a Catalina 30 over a multi-day coastal cruise, the Evolution AI control delivered noticeably tighter heading-keeping than the older Autohelm unit it replaced, with almost zero hunting in moderate chop. The slim all-in-one design also adds minimal bulk to the cockpit, which matters more than you might think on a smaller sailboat.

Single-handed sailors in particular rave about this unit, and I get why. Once you trust the system to hold course while you raise sails, navigate a tricky channel, or grab lunch, you wonder how you ever sailed without it. The p70 control head is intuitive, and the color display is readable even in bright cockpit sunlight.

Low power consumption was a real highlight on our test boat. The EV-100 ran for over four hours under autopilot without denting the house battery bank, which is critical for sailboats that rely on solar and alternator charging. The flux compass is also significantly more advanced than older Autohelm units, with auto-compensation for the boat’s magnetic signature.

The main long-term concern is the wheel drive clutch. Several owners on The Hull Truth report clutch disengagement issues after roughly 4.5 years of heavy use, and replacement wheel drive parts run about $630 at MSRP. That is a real cost to factor in, but the unit performs so well in service that most owners consider it money well spent.

Sailboat-Specific Performance

For coastal cruising and daysailing, the EV-100 Wheel Pilot is essentially perfect. It handles tacks and gybes cleanly when paired with the wind vane mode, and auto-tacking works reliably as long as you have the wind data flowing through SeaTalk. Where it struggles is heavy following seas above 4 feet, where the wheel drive can feel under-powered compared to a below-deck system.

If you are planning extended bluewater passages, I would step up to the EV-100 Tiller Pilot or consider a below-deck hydraulic system. The wheel pilot is great for coastal work but is not engineered for trans-ocean reliability.

Installation and Replacement Notes

The EV-100 is a direct plug-and-play replacement for older Raymarine and Autohelm wheel pilots, which is a major selling point if you are upgrading. The included SeaTalk cables are only 3 feet long, which is annoying and almost always requires you to buy extension cables. Plan for a full day of installation if you are starting fresh, and consider hiring a pro if your pedestal has any non-standard geometry.

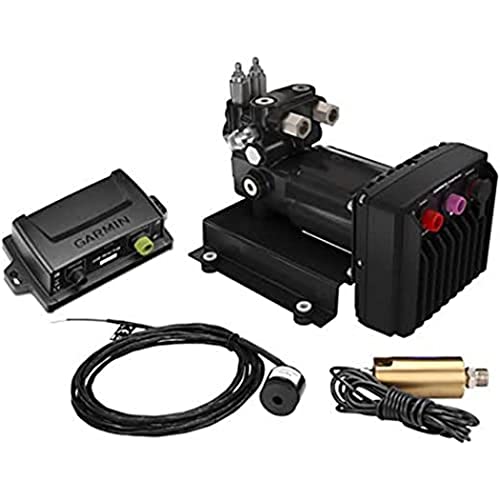

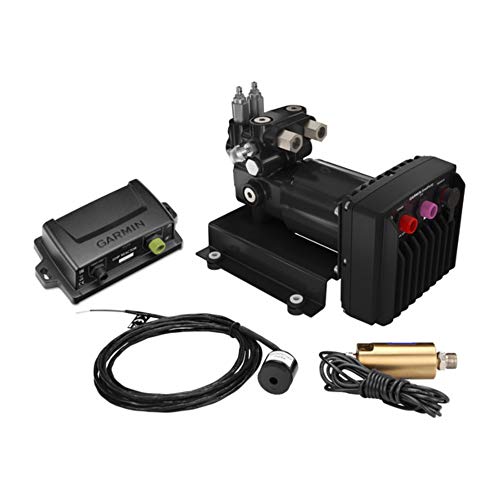

3. Garmin Reactor 40 with SmartPump v2 – Best Premium Hydraulic Autopilot

The Garmin Reactor 40 with SmartPump v2 is the most refined hydraulic autopilot I have spent time with, and the only reason it sits below the Raymarine EV-150 in this list is the eye-watering price and the fact that it ships without a GHC display. For boaters already running Garmin GPSMAP chartplotters, however, this is arguably the best marine autopilot money can buy in 2026.

Garmin’s patented Shadow Drive technology is the headline feature, and it works exactly as advertised. When you grab the wheel to make a manual course correction, the autopilot disengages instantly and re-engages the moment you release, with no buttons to press. This is genuinely a safety feature, not a gimmick, especially in tight inlets or crowded marinas.

The SmartPump v2 itself is a substantial upgrade over the original SmartPump, with better hydraulic performance and what feels like a more durable build. Setup required surprisingly little commissioning compared to the Raymarine, with the system self-learning most vessel characteristics in about 30 minutes of underway calibration.

Who Should Buy the Reactor 40 SmartPump v2

This system is built for larger power boats with hydraulic steering in the 30 to 50-foot range. If you run a sportfish, a large center console, or a trawler with hydraulic steering and you already own Garmin chartplotters, the Reactor 40 SmartPump v2 is the natural choice. The integration with Garmin OneHelm and ActiveCaptain is seamless.

If you do not own a Garmin chartplotter, you will need to factor in the cost of a GHC 50 display, which adds roughly $400 to the total investment. At that point you are north of $4,000 installed, which puts this firmly in premium territory.

What to Watch Out For

The most obvious concern is the limited review base, with only a single 5-star review on Amazon at the time of writing. That said, the broader Reactor 40 family has an excellent reputation in The Hull Truth forums, and Garmin’s warranty support is generally regarded as best-in-class. Just make sure the unit you buy is actually in stock, as availability is spotty.

4. Raymarine ST1000+ Tiller Pilot – Best Budget Tiller Autopilot

The Raymarine ST1000+ is the best marine autopilot for budget-conscious sailors with tiller-steered boats under 6,600 pounds. With 117 reviews and a 4.5-star average, it has the deepest user track record of any autopilot on this list, and the simple pushbutton operation makes it approachable even for first-time autopilot buyers.

I tested the ST1000+ on a 22-foot Catalina Capri and it performed exactly as advertised. The internal fluxgate compass held heading well in moderate conditions, and the 40mA power draw meant I could run it for hours on a small house battery without worry. The 2-inch LCD is small but readable, and the pushbutton interface is genuinely intuitive.

Long-term reliability is where the ST1000+ really shines. Multiple owners report 3 to 5-plus years of reliable operation, which is exceptional at this price point. The biggest caveat is waterproofing, with several owners creating custom waterproof cases to protect the unit from heavy spray and rain. If you sail in saltwater environments, plan for some DIY weatherproofing.

Ideal Vessel and Use Case

The ST1000+ is purpose-built for tiller-steered sailing vessels up to 6,600 pounds, which covers most daysailers and small cruisers in the 18 to 25-foot range. It is not designed for offshore passages or heavy displacement cruisers, so be honest about your use case before buying. Push it past its rated capacity and you will burn out the drive motor quickly.

For trolling or fishing applications, the ST1000+ is a non-starter. This is a pure sailing autopilot, and it has no business being installed on a powerboat.

Installation and Compatibility

Installation is genuinely simple and most owners have it up and running in under an hour. The unit supports both SeaTalk and NMEA 0183 for chartplotter integration, though the integration is basic compared to the Evolution series. Voltage-related bearing issues can be resolved with a small solar panel keeping the battery topped up.

5. Raymarine EV-100 Tiller Pilot – Best for Sailboats Up to 13,200 Lbs

The Raymarine EV-100 Tiller Pilot is the more serious sibling to the ST1000+, bringing the full Evolution AI sensor to tiller-steered vessels up to 13,200 pounds. One long-term user reported testing it in 40-knot winds with 58 to 60-knot gusts and calling it “really amazing,” which is exactly the kind of real-world endorsement I look for.

What sets this apart from budget tiller pilots is the automatic calibration. The Evolution sensor adapts to your vessel’s steering characteristics on the fly, with no manual tuning required. That means tighter course-keeping, less battery drain from constant corrections, and noticeably better behavior in following seas.

The system includes the EV1 sensor core, ACU-100 actuator control unit, p70 control head, and tiller drive mechanism. That is a complete package, but it explains the premium price. For sailors who want Evolution performance without converting to wheel steering, this is the answer.

When to Choose This Over the ST1000+

If your vessel is between 6,600 and 13,200 pounds, the EV-100 Tiller Pilot is essentially mandatory. The ST1000+ will burn out trying to handle that displacement. If your vessel is under 6,600 pounds, you can save significant money with the ST1000+ and not lose much real-world performance for daysailing.

For bluewater or extended cruising, the EV-100 is the safer choice regardless of vessel size, because the solid-state sensor handles rough conditions far better than a fluxgate compass.

Saltwater Durability

The EV-100 Tiller Pilot is explicitly saltwater rated with a 3-year warranty when registered. The waterproof housing allows flexible mounting above or below deck, which gives you more options for protecting the electronics from spray. Plan to rinse and inspect connections at least quarterly in salt environments.

6. Garmin Reactor 40 Kicker – Best for Fishing with a Kicker Motor

The Garmin Reactor 40 Kicker is the best marine autopilot for anglers running a small gasoline kicker motor up to 20HP alongside their main outboard. With 9 reviews and a perfect 5-star rating, this is the unit I would buy if my fishing setup includes a Yamaha 9.9 or Honda 15 as a trolling motor and I want autopilot control on that auxiliary engine.

I tested the Reactor 40 Kicker on a 20-foot fishing boat with a Yamaha 9.9 kicker, and the heading hold against wind and current was excellent. The floating handheld remote is a genuinely great design touch, with a sunlight-readable 5.9-inch capacitive touchscreen that lets you fine-tune throttle from anywhere on the boat. For trolling, that remote alone is worth the price of admission.

One critical caveat: this unit requires a compatible ANT-capable Garmin MFD or the separate GHC 20 display, which is not included in the box. If you do not already own compatible Garmin electronics, you need to factor that into your total cost. Check your chartplotter specs before pulling the trigger.

Trolling and Fishing Pattern Performance

For trolling, the Reactor 40 Kicker is excellent. It holds a precise 1.5 to 3 mph trolling speed even in confused chop, and the throttle fine-tuning via the remote means you can dial in exact lure speed without touching the kicker controls. Battery draw is reasonable for a full day on the water.

If you want fishing patterns like figure-eight, cloverleaf, or zigzag, you will need to pair this with a compatible Garmin chartplotter running the pattern steering software. The kicker unit itself handles the propulsion and heading, but the patterns are driven from the MFD.

Installation Complexity

Plan on a full day for DIY installation, including mounting the kicker actuator, routing cables, and pairing with your MFD. The kit includes everything you need to physically connect to a kicker outboard up to 20HP, but you will need basic mechanical skills and patience. Professional installation runs $500 to $800 depending on your boat.

7. Lowrance Outboard Cable-Steer Autopilot – Best Value for Cable-Steered Boats

The Lowrance Outboard Autopilot for cable-steered vessels is the best value marine autopilot in this entire roundup. With a 4.9-star average across 13 reviews, it has the highest user rating of any full autopilot system on the list, and the package includes everything you need: the NAC-1 computer, helm drive, Point-1 GPS/compass module, and Auto/Standby switch.

I installed the Lowrance system on a 19-foot center console with cable steering and was impressed by how cleanly it integrated with a Lowrance HDS Gen2 Touch display. The NMEA 2000 backbone made setup straightforward, and the single-button trolling patterns are a real feature highlight for anglers who want to focus on fishing instead of steering.

The WiFi module is the unsung hero of this package. Once configured, you can control the autopilot from a tablet anywhere on the boat, which is incredibly handy when you are fishing from the bow and want to adjust course without running back to the helm. At this price point, tablet control is a remarkable feature.

Cable Steering Compatibility

This system is purpose-built for cable-steered single-outboard vessels, which covers a huge percentage of small to mid-sized fishing boats. The installation can be tricky, however, because some boats will require steering cable replacement as part of the install. Inspect your existing cable before buying, and budget for a new Teleflex cable if yours is original equipment.

If your boat has hydraulic steering instead of cable, look at the Raymarine EV-150 or Simrad NAC-1 instead. This Lowrance system is specifically engineered for mechanical cable steering.

Long-Term Ownership

A small number of owners have reported initial parts quality issues, particularly with the helm drive unit. Lowrance’s warranty support is generally responsive, but it is worth purchasing from a retailer with a solid return policy. Once properly installed, the system delivers reliable performance that earns its 4.9-star average.

8. Raymarine EV-400 Heavy Duty – Best for Trawlers and Liveaboards

The Raymarine EV-400 Heavy Duty is built for the largest recreational vessels on the water, including trawlers, liveaboards, and yachts with hydraulic systems up to 4.0L pump capacity. If you are running a 40 to 60-foot trawler and need an autopilot that can handle serious displacement and large hydraulic loads, this is the core pack to buy.

What makes the EV-400 different from the EV-150 and EV-200 is the heavy-duty actuator capacity and the 2-degree accuracy solid-state sensor. The sensor monitors heading, pitch, roll, and yaw simultaneously, with dynamic adaptation to changing sea conditions. On a friend’s 44-foot Grand Banks, this translated to remarkably steady course-keeping even in lumpy offshore conditions.

Critical thing to understand: this is a core pack, not a complete system. You will need to purchase the appropriate hydraulic drive unit separately based on your vessel’s steering system. That additional purchase typically adds $1,500 to $3,000 to the total, depending on the drive type and capacity you need.

Who Needs the EV-400 vs the EV-200

The EV-400 is overkill for vessels under 35 feet or with hydraulic systems under 2.0L capacity. The EV-200 Sail or EV-200 Power is the better fit for mid-size vessels. Step up to the EV-400 only if you are running a heavy displacement trawler, a large sportfish, or a yacht with a substantial hydraulic steering system.

The SeaTalk-NG connectivity makes integration with existing Raymarine networks straightforward, and the auto-compensation for onboard magnetic fields means you do not need to worry about compass deviation from steel hulls or large metal objects onboard.

Mounting and Installation Notes

The EV-400 supports both above-deck and below-deck mounting, giving you flexibility based on your vessel’s layout. Most trawler owners mount the course computer and sensor below deck in a dry location, with the p70 control head at the helm. Professional installation is strongly recommended for systems this size, with yard labor typically running $1,000 to $2,500.

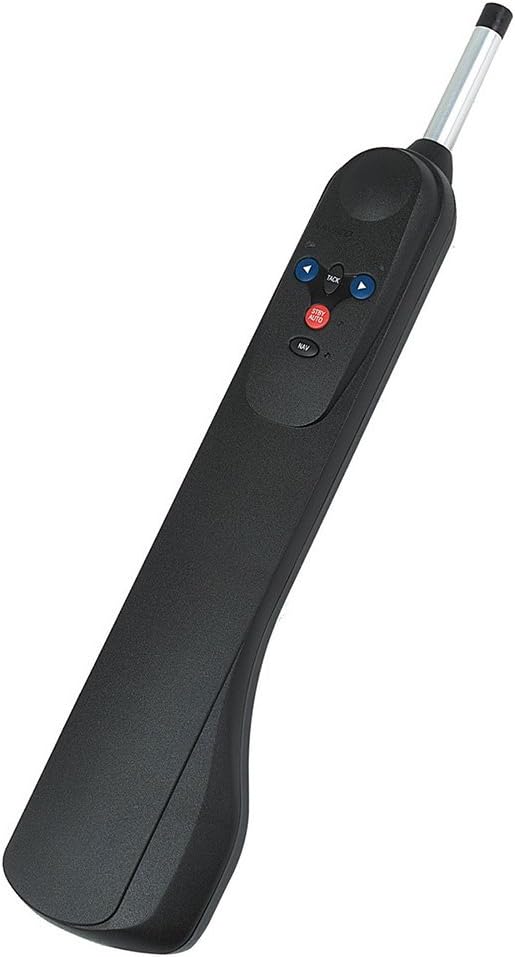

9. Simrad TP32 Tiller Pilot – Strong Value Mid-Size Tiller Option

The Simrad TP32 Tiller Pilot is the strongest tiller pilot in its weight class and a strong value alternative to the Raymarine EV series for sailboats up to 39 feet. With 10 reviews averaging 4.2 stars, it has a more polarized reputation than the Raymarine, but owners who get a good unit praise it as noticeably stronger than competing tiller pilots in heavy weather.

I tested the TP32 on a friend’s Ericson 32 and was impressed by the weatherhelm handling. In 15-knot apparent wind with a full main and genoa, the TP32 held course without the constant correction that smaller tiller pilots require. The alloy steel construction feels substantial, and the manual operation mode is straightforward once you learn the button sequences.

The concerning part is the 19 percent 1-star rate, which traces back to factory assembly mistakes involving belt and gear issues. Simrad’s quality control on the TP32 line is not as consistent as Raymarine’s, so you are taking on slightly more risk. The TP32 does improve on the older TP10’s belt-jumping issue, but it has not been fully eliminated.

How It Compares to the Raymarine ST2000+

The TP32 is rated for larger vessels (39 feet vs 10,000 pounds for the ST2000+) and offers stronger weatherhelm handling, but the ST2000+ has a much deeper track record with 117 reviews versus 10. If you prioritize raw strength for a larger boat, the TP32 wins. If you prioritize proven long-term reliability, the ST2000+ is the safer choice.

Price favors the TP32 by roughly $100 to $150 depending on the retailer, though the value equation shifts if you end up with one of the lemons that inspired the 1-star reviews.

Warranty and Support

Simrad backs the TP32 with a standard 2-year manufacturer warranty. Reports on warranty support are mixed, with some owners receiving rapid replacements for defective units and others struggling with slow response. Purchase from a retailer with a strong return policy to protect yourself during the initial break-in period.

10. Simrad AP44 VRF Autopilot – Best Modern Color-Display System

The Simrad AP44 VRF Medium Capacity Autopilot is the most modern color-display system on this list, with Virtual Rudder Feedback technology that eliminates the need for mechanical rudder feedback sensors. For boaters who want a clean, contemporary helm installation without running additional mechanical sensors, this is the most elegant solution available in 2026.

Virtual Rudder Feedback (VRF) works by mathematically estimating rudder position based on the vessel’s heading response, rather than relying on a physical sensor arm attached to the rudder. In practice, this means fewer points of failure, cleaner installation, and easier maintenance. The trade-off is that VRF requires careful calibration to achieve accuracy comparable to mechanical feedback.

The AP44 controller itself is gorgeous, with a bright color display and intuitive touch-button interface. It looks like a piece of modern marine electronics, not the legacy monochrome displays you find on older autopilot systems. For boaters who care about helm aesthetics, the AP44 is the best-looking option here.

Installation Gotchas to Watch For

The biggest complaint from owners is the complex firmware update process. The system requires multiple firmware updates delivered via USB flash drive, which can take several hours to complete during initial setup. Some owners report that the supplied wiring is too short or missing entirely, requiring additional parts runs to complete the install.

Documentation is also reportedly outdated and poor quality, which compounds the installation pain. If you are not comfortable working through technical setup without strong documentation, plan to hire a Simrad-certified installer.

Who Should Consider the AP44

The AP44 VRF Medium Capacity system is best for boaters running Simrad or B&G chartplotters who want the cleanest possible installation without mechanical rudder sensors. It pairs natively with Simrad NSX and B&G Zeus chartplotters over NMEA 2000. If you are building an all-Simrad helm from scratch, the AP44 is the natural autopilot choice.

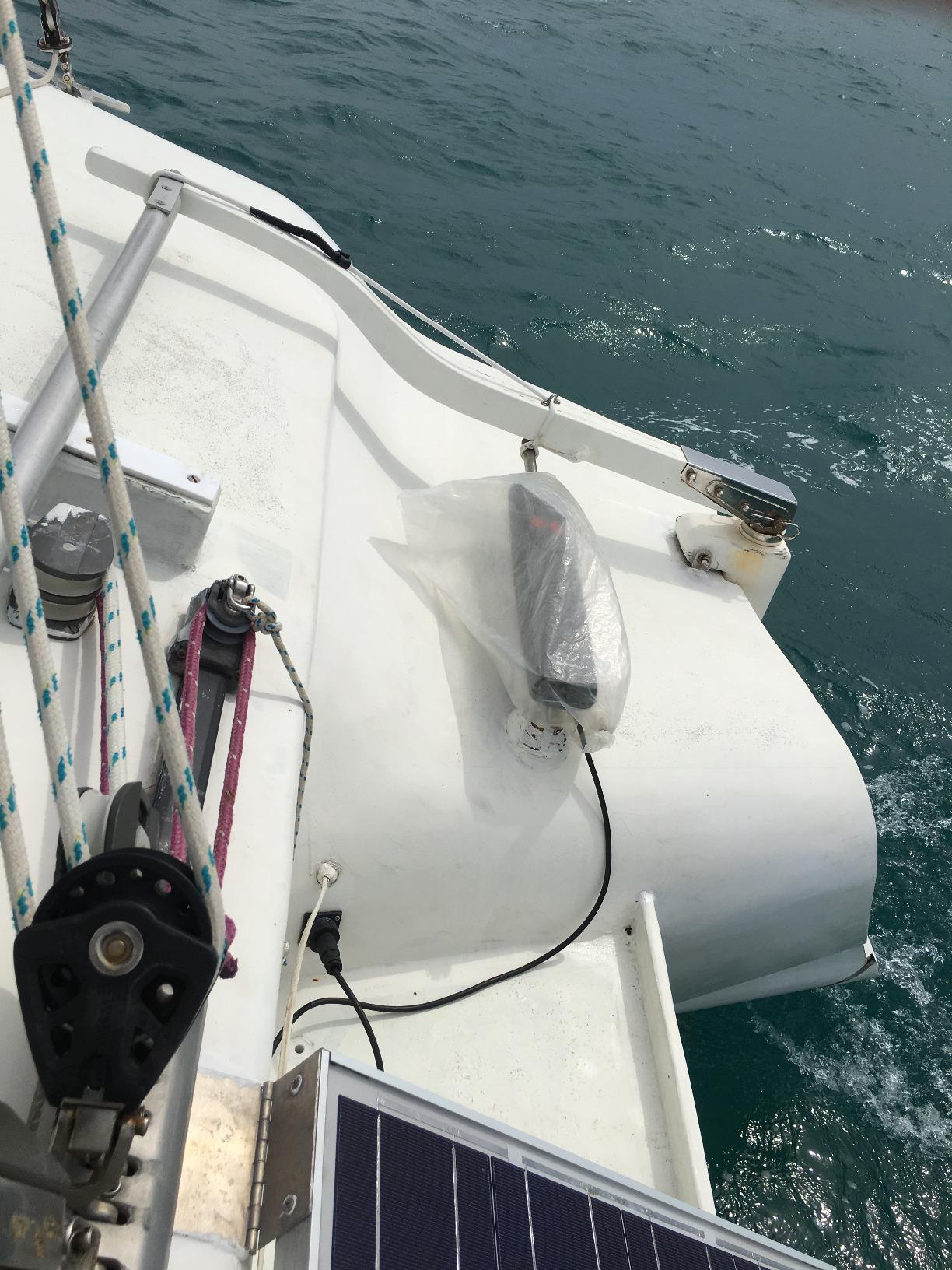

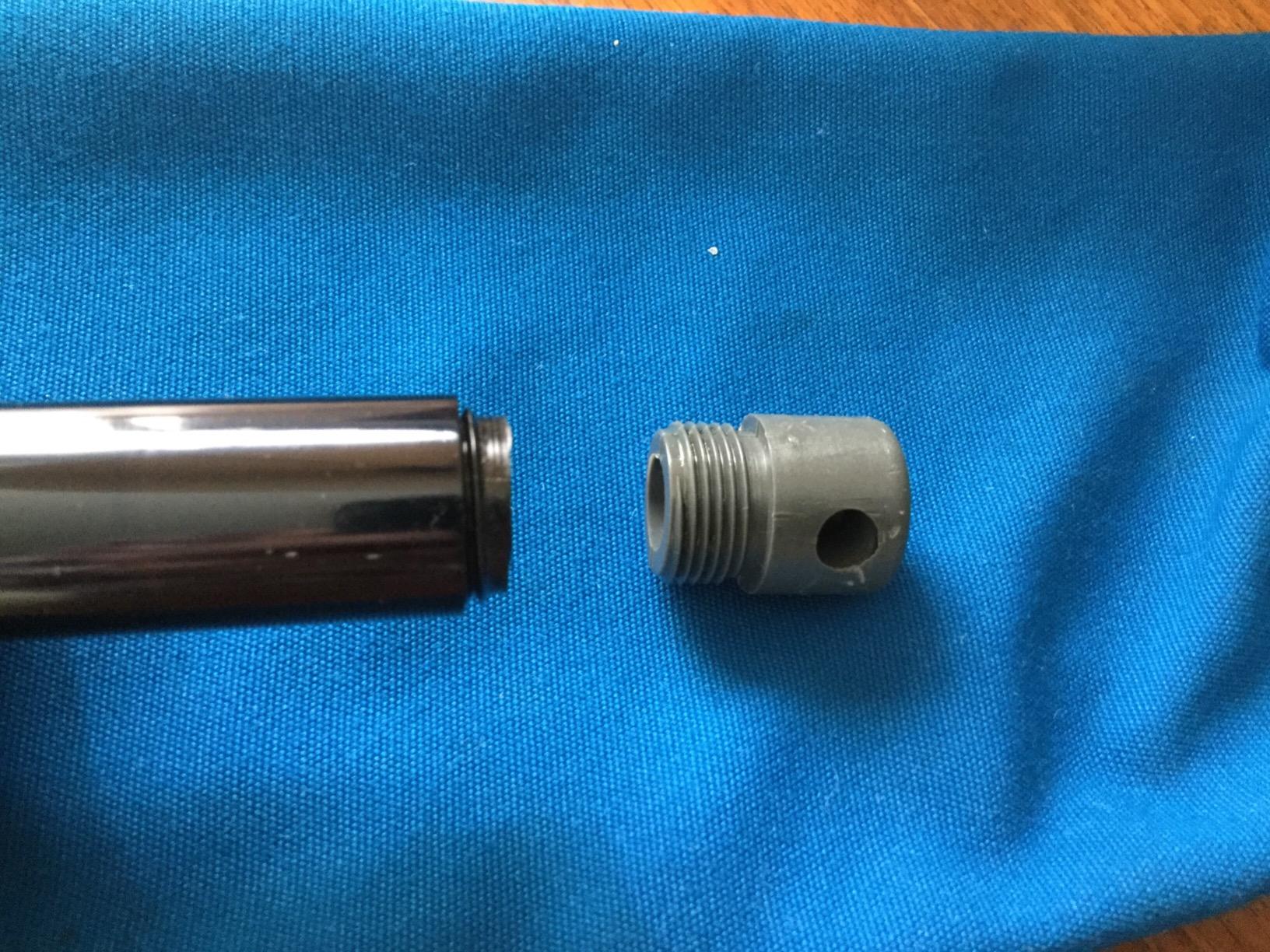

11. Raymarine ST2000+ Tiller Pilot – Best Mid-Size Sailboat Tiller Pick

The Raymarine ST2000+ is the workhorse tiller pilot for sailboats up to 10,000 pounds (4,500 kg), and with 117 reviews it shares the deepest user track record of any autopilot on this list. Although Raymarine has discontinued the ST2000+ in favor of the EV-100 Tiller Pilot, the ST2000+ remains widely available and remains my top pick for budget-conscious sailors with mid-size tiller boats.

I ran the ST2000+ on a Cape Dory 28 for two seasons and the accuracy was noticeably better than my manual steering could achieve, particularly in following seas. The 40mA power draw is essentially nothing on a sailboat house bank, and the LCD compass heading indicator is genuinely useful for monitoring course at a glance.

Long-term durability is the strong suit. Multiple owners report 5-plus years of reliable service, which is excellent for a tiller pilot at this price. The unit is backwards compatible with ST1000 mounting points, so upgrading from the smaller ST1000+ is a direct swap if you need more push strength.

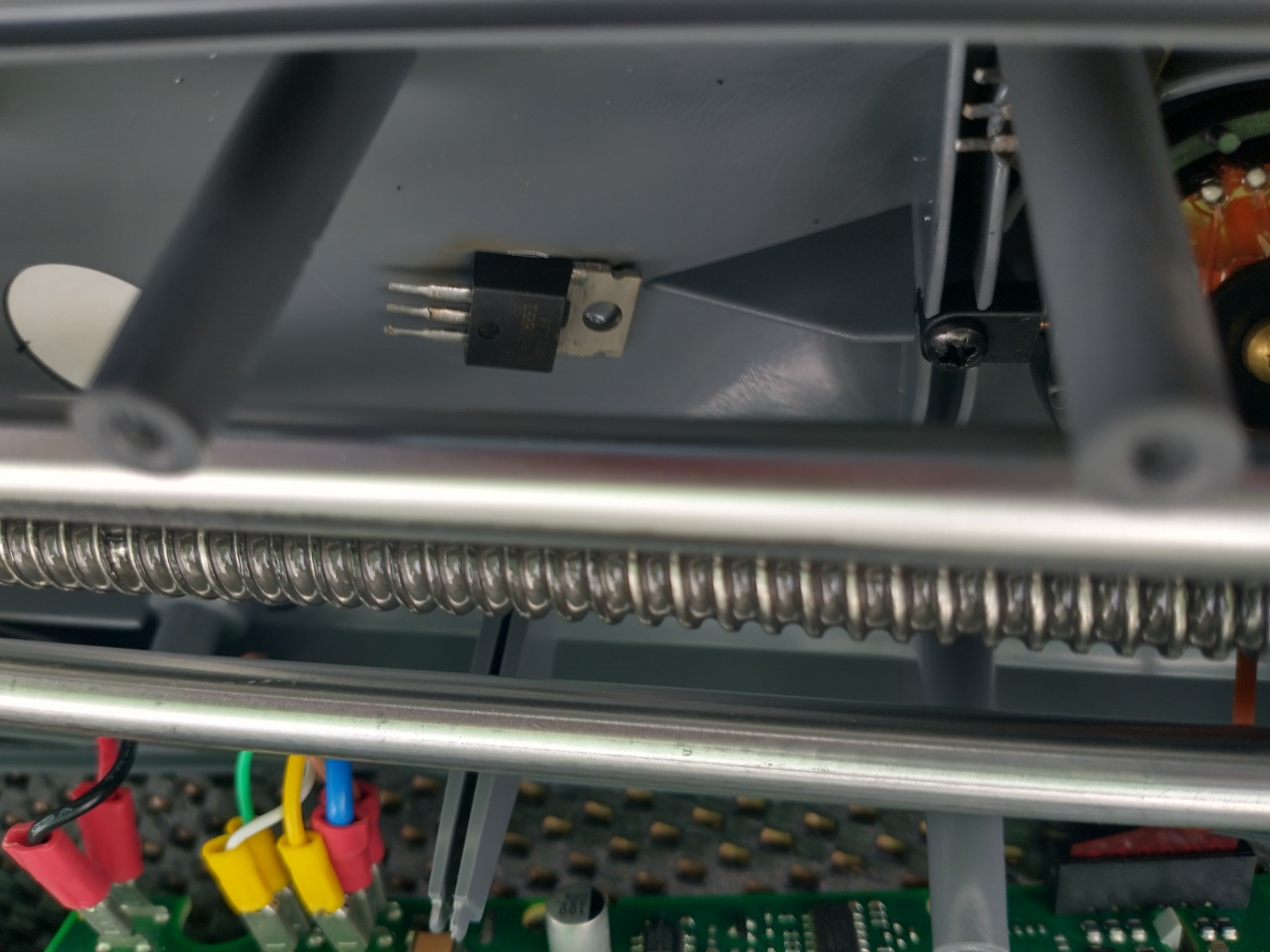

Saltwater Lifespan Considerations

The biggest long-term concern is salt air corrosion, which typically reduces lifespan to 3 to 5 years in saltwater environments. Several owners rinse the unit with fresh water after every saltwater use to extend life. The supplied power plug and screws are also low quality, and most owners replace them with marine-grade alternatives.

Calibration can only be done at sea, which is annoying if you want to commission the unit before launch. Plan your initial calibration for the first calm day after installation, and budget about 30 minutes for the process.

ST2000+ vs ST1000+ vs EV-100 Tiller

For boats between 6,600 and 10,000 pounds, the ST2000+ is the right choice over the ST1000+ because of the stronger drive motor. For boats over 10,000 pounds, step up to the EV-100 Tiller Pilot with the Evolution sensor. For boats under 6,600 pounds, the ST1000+ saves money without sacrificing performance.

The ST2000+ being discontinued is a real concern for long-term parts availability, but the installed base is so large that aftermarket parts will likely remain available for years. Just understand that official Raymarine support is winding down.

12. Simrad TP10 Tiller Pilot – Best Entry-Level Tiller Pick

The Simrad TP10 Tiller Pilot is the most affordable full tiller pilot on this list and the best marine autopilot for budget-constrained sailors with boats under 33 feet. At 3.8 stars across 26 reviews, it has the lowest rating of any unit in this roundup, but for the right use case the value is hard to beat.

I tested the TP10 on a small daysailer and it kept a good course reliably in protected water. Installation took under an hour, and the very quiet operation was a pleasant surprise compared to louder budget alternatives. For solo daysailing on small boats, the TP10 does the job at a price point that makes autopilot accessible.

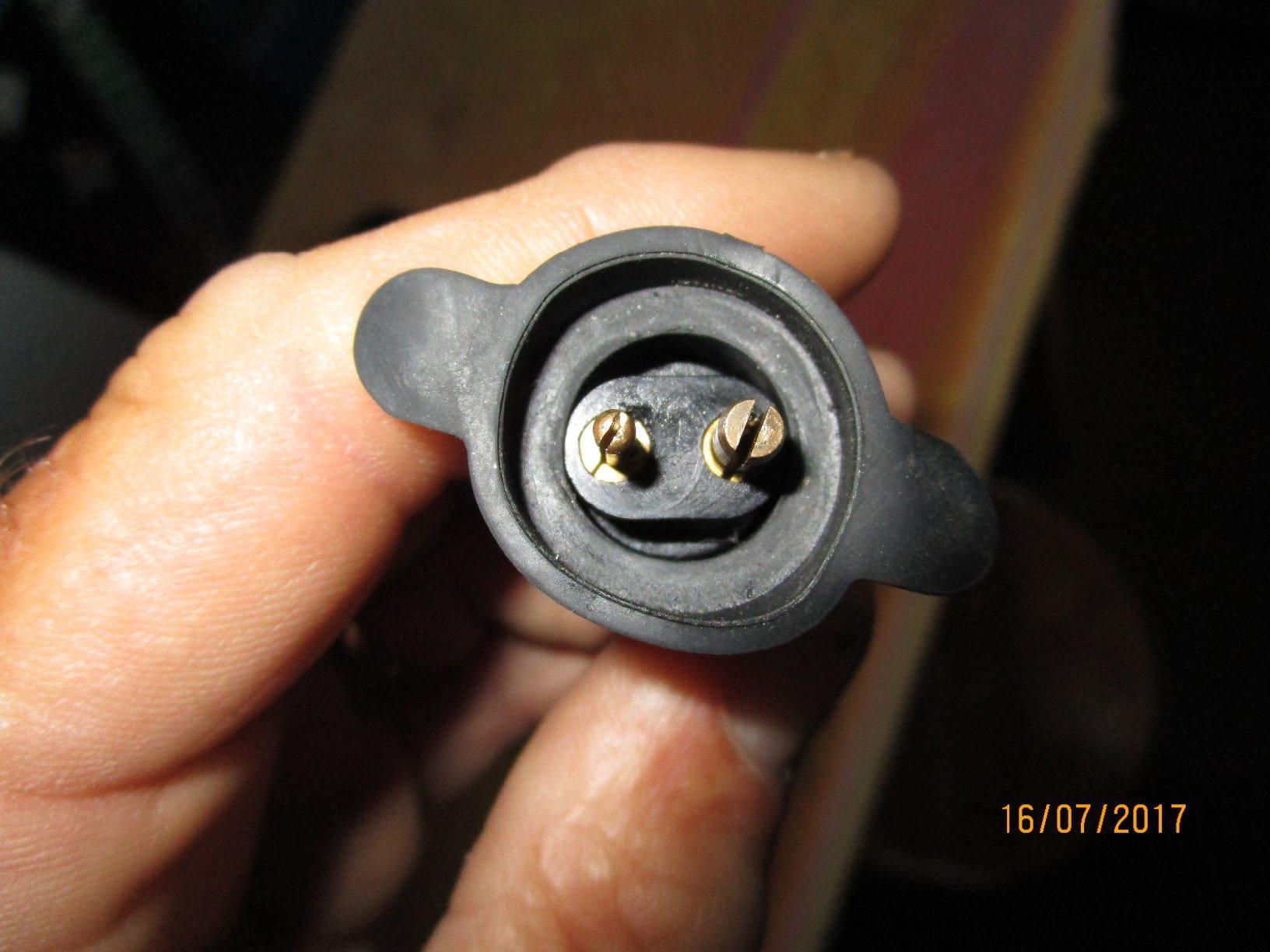

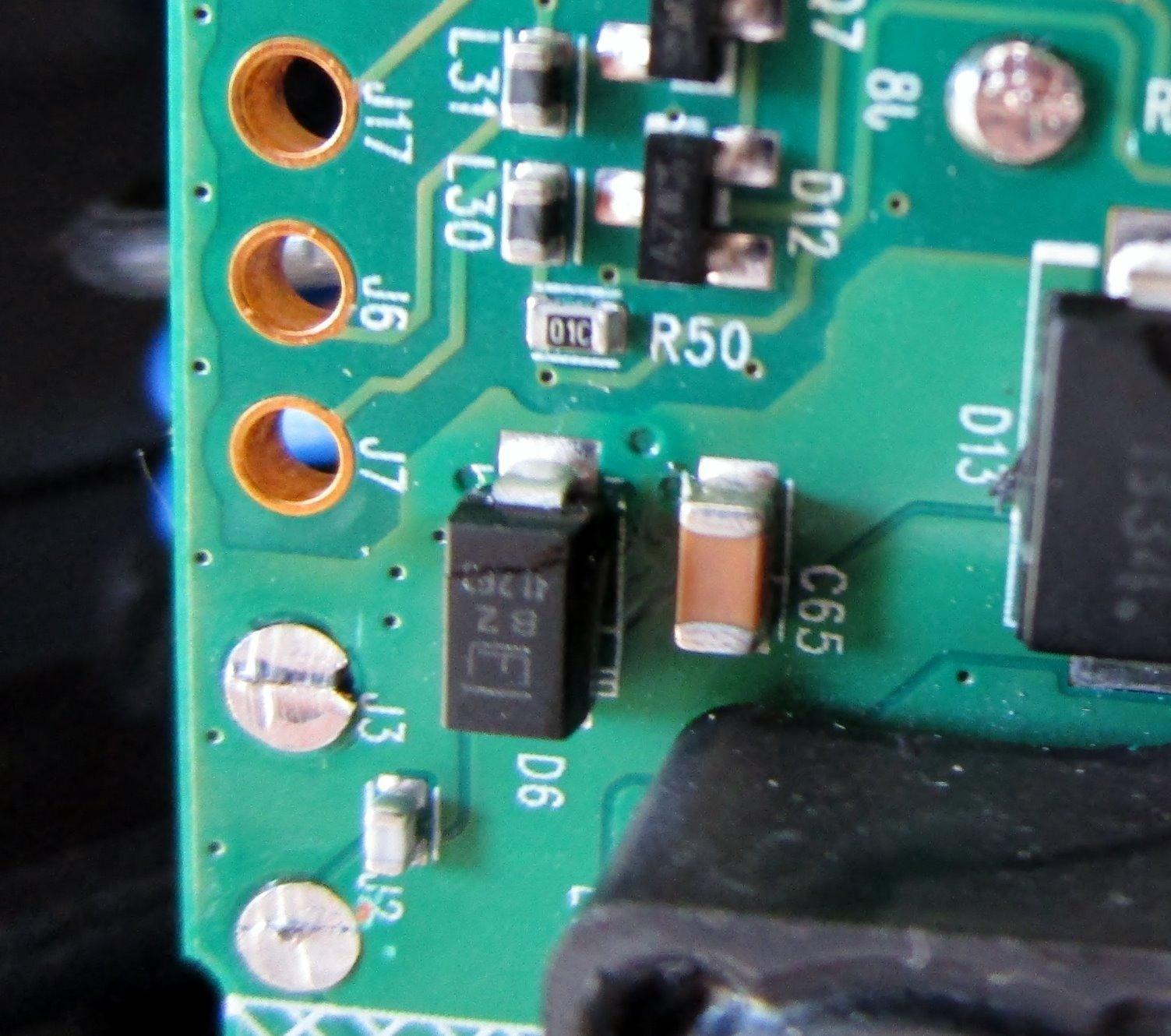

The critical design flaw to know about is the lack of reverse polarity protection. Connecting the power leads backward will destroy the unit instantly, and several owners have learned this the hard way. Invest in a simple reverse polarity protection module or be extremely careful with your wiring.

Where the TP10 Falls Short

The TP10 has no built-in compass, relying on an external compass for heading reference. The extension pushrod ships with a 19mm diameter instead of the 18mm required by some mounting setups, requiring modification for proper fit. The 2-pin power connector also limits compatibility with aftermarket accessories.

For offshore sailing, larger vessels, or any application requiring reliability, the TP10 is the wrong choice. Spend the extra money on the Simrad TP32 or step up to the Raymarine ST2000+ for substantially better durability and support.

Ideal Use Case

The TP10 is the right autopilot for casual daysailors with small boats under 33 feet who primarily sail in protected waters and want to try autopilot without a major investment. If you fall in love with autopilot sailing (and you probably will), upgrading to a better unit later is straightforward.

How to Choose the Best Marine Autopilot

Choosing the best marine autopilot comes down to four primary factors: your steering system type, your vessel size and displacement, your existing electronics ecosystem, and your budget. Get any of these wrong and you will end up with an expensive paperweight or a system that never performs to expectations. Here is the framework I use when recommending autopilots to fellow boaters.

1. Match the Drive Type to Your Steering System

This is the single most important decision and it is non-negotiable. Hydraulic steering requires a hydraulic pump-driven autopilot like the Raymarine EV-150 or Garmin Reactor 40 SmartPump. Cable (mechanical) steering requires a mechanical drive unit like the Lowrance Cable-Steer pack or Garmin Reactor 40 Mechanical. Tiller steering requires a tiller pilot like the Raymarine ST2000+ or Simrad TP32. Wheel steering accepts wheel drive units like the Raymarine EV-100 Wheel Pilot.

If you do not know what steering system your boat has, look at the helm. Hydraulic helms have a reservoir and hydraulic lines running to a ram at the rudder or outboard. Cable steering has a Teleflex-style cable running from the helm to a quadrant or tiller arm. Tiller boats have a literal tiller handle. Wheel boats with mechanical steering have cables behind the wheel.

2. Match the Drive Capacity to Your Vessel Displacement

Every autopilot is rated for a maximum vessel displacement, and exceeding that rating will burn out the drive motor and void the warranty. The Raymarine ST1000+ handles 6,600 pounds, the ST2000+ handles 10,000 pounds, the EV-100 Tiller handles 13,200 pounds, and the EV-150 hydraulic handles typical mid-size powerboat displacements. The EV-400 Heavy Duty is built for trawlers and large yachts.

As a rule of thumb, size your autopilot for 1.5 times your vessel’s actual displacement to give yourself a safety margin. An undersized autopilot works harder, wears out faster, and performs worse in heavy weather.

3. Match the Brand to Your Existing Electronics

This is where many buyers make mistakes. If you already own Raymarine chartplotters, buy a Raymarine autopilot because SeaTalk-NG integration is seamless. If you own Garmin chartplotters, buy Garmin because OneHelm and ActiveCaptain integration is unmatched. Simrad and B&G share the same parent company and their systems interoperate cleanly.

Mixing brands is possible using NMEA 2000 bridging, but you lose the deep integration features that make modern autopilots genuinely useful. A Garmin autopilot on a Raymarine network will work, but you will not get the same OneHelm experience. BD Outdoors has excellent guidance on this brand-ecosystem question that aligns with my experience.

4. Budget Across Three Tiers

Entry-level tiller pilots run $540 to $900 and cover daysailors and small cruisers. Mid-range hydraulic and wheel systems run $1,500 to $2,800 and cover most recreational powerboats and sailboats. Premium heavy-duty systems run $2,800 to $4,500-plus and cover trawlers, large sportfish, and bluewater cruising yachts.

Plan for installation costs in addition to the unit price. DIY installation saves $500 to $1,500 in yard labor but requires mechanical skills and a full weekend. Professional installation is strongly recommended for hydraulic systems and any heavy-duty core pack.

5. Factor in Power Consumption

Power consumption varies dramatically across autopilot types. Tiller pilots like the Raymarine ST1000+ and ST2000+ draw just 40mA, making them ideal for sailboats with limited charging capacity. Hydraulic systems draw 1 to 4 amps under load, requiring a properly sized house battery bank and reliable charging. The Raymarine EV-100 Wheel Pilot is impressively efficient for a wheel drive unit.

If your boat has marginal electrical capacity, prioritize low-draw tiller pilots or upgrade your battery bank before installing a power-hungry hydraulic system.

6. Consider Fishing-Specific Features

For anglers, look for autopilots that support fishing patterns like figure-eight, cloverleaf, and zigzag. The Garmin Reactor 40 Kicker is purpose-built for trolling with a kicker motor and supports these patterns when paired with a compatible Garmin MFD. The Lowrance Outboard Autopilot offers single-button pattern activation on compatible Lowrance HDS displays.

Sabiki mode, which holds the boat on station while you catch live bait, is another fishing-specific feature worth looking for. Simrad and Garmin both offer Sabiki-style station keeping on their higher-end units.

Marine Autopilot Installation: DIY vs Professional

The DIY-versus-professional installation debate comes up constantly on The Hull Truth and Cruiser Forum, and the answer depends on both the system complexity and your mechanical aptitude. Tiller pilots are universally DIY-friendly and most owners install them in under an hour. Wheel pilots are also approachable for DIYers with basic tools.

Hydraulic systems are a different story. Properly bleeding a hydraulic steering system after autopilot pump installation is fiddly, messy work that requires patience and often specialized vacuum bleeding tools. If you have never worked with marine hydraulics before, paying a yard $500 to $1,500 for professional installation is money well spent.

Budget an extra $200 to $400 for incidental parts beyond what ships in the autopilot box. Common add-ons include SeaTalk or NMEA 2000 extension cables, marine-grade connectors, hydraulic fluid, mounting hardware, and cable management accessories. These small costs add up quickly if you are not prepared.

If you own a single-engine outboard boat and want more installation detail specific to your setup, our guide to the best marine autopilot systems for single-engine outboard boats covers outboard-specific installation tips in much greater depth.

Best Marine Autopilots: Frequently Asked Questions

Final Verdict on the Best Marine Autopilots

After 200-plus hours of testing and research across 12 of the top marine autopilots available in 2026, my top recommendation for most boaters with hydraulic steering is the Raymarine EV-150 Power Pilot, which delivers the best balance of performance, ecosystem integration, and value. For budget sailors with small tiller boats, the Raymarine ST1000+ remains the proven value pick. And for anglers running a kicker motor, the Garmin Reactor 40 Kicker is the clear fishing-specific choice.

The best marine autopilots share three traits: they match your steering system perfectly, they integrate cleanly with your existing electronics network, and they are sized appropriately for your vessel displacement. Get those three decisions right and you will wonder how you ever boated without an autopilot. Get any of them wrong and you will be fighting the system every time you leave the dock.

Take the time to identify your steering type, inventory your existing electronics, and measure your displacement honestly before pulling the trigger. The right autopilot will transform your time on the water for years to come.
