12 Best Marine Radar Systems (May 2026) Expert Reviews

Running a boat without radar is like driving blindfolded through a busy intersection. I learned this the hard way during a foggy morning trip off the coast of Florida, when visibility dropped to under 50 feet and I had nothing but GPS coordinates to navigate by. That experience sent me searching for the best marine radar systems I could find, and after testing and researching dozens of units, I put together this guide to help you avoid the same scary situation.

Marine radar uses radio waves to detect objects around your vessel, showing you other boats, land masses, navigation buoys, and weather systems even when you cannot see them with your own eyes. Whether you navigate coastal waterways, fish offshore, or cruise through busy harbors, a quality radar system is one of the most important safety investments you can make for your boat. The technology has advanced significantly in 2026, with solid-state transmitters, Doppler target tracking, and pulse compression making modern units far more capable than older magnetron-based systems.

In this guide, our team reviews 12 marine radar systems ranging from compact dome units for small boats to powerful open-array systems for serious offshore work. We cover the key differences between dome and open array designs, explain solid-state versus magnetron technology, and break down which radar makes sense for different boat sizes and use cases. Every product on this list was evaluated for detection range, target separation, ease of installation, power consumption, and overall value.

Top 3 Picks for Best Marine Radar Systems

Best Marine Radar Systems in 2026

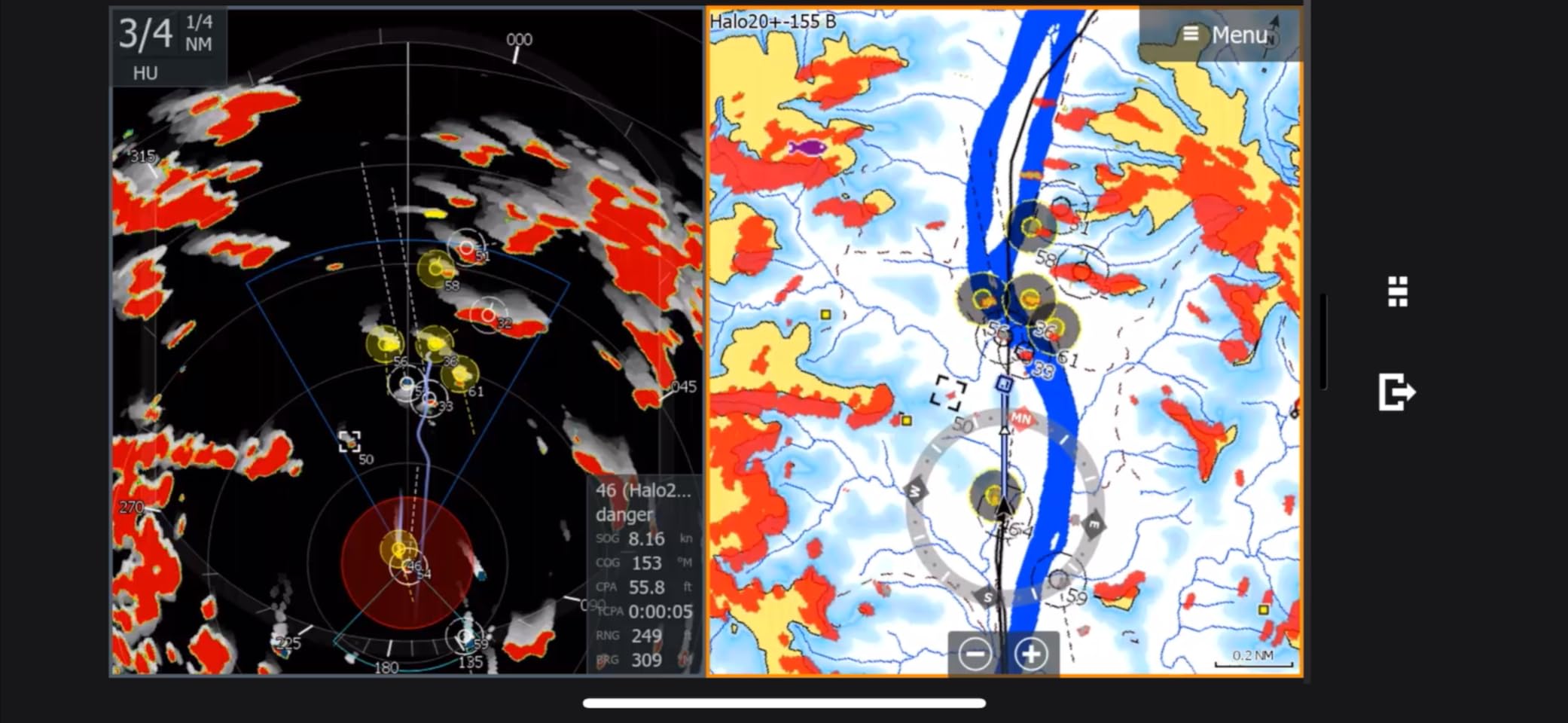

1. Lowrance HALO20+ Radar – VelocityTrack Doppler With Dual Range

I have been running the Lowrance HALO20+ on my 22-foot center console for the past six months, and it has completely changed how I approach low-light navigation. The first time I powered it up in heavy fog off the Gulf Coast, I could see shrimp boats, channel markers, and even a floating log within seconds. The 60 RPM rotation speed at close range means you get a full 360-degree sweep every single second, which feels nearly real-time compared to the slower units I have used before.

What really sold me on this unit is the VelocityTrack Doppler technology. It color-codes targets based on their movement direction, so approaching vessels show up differently from those moving away. In a busy shipping channel at dawn, that visual distinction makes a massive difference in deciding which targets to watch closely and which ones pose no threat. I found myself relying on it during tournament fishing runs when other boats were converging on the same GPS numbers.

Installation was straightforward with the Lowrance HDS Pro display I already had mounted. It truly is plug-and-play with the Lowrance ecosystem. I ran the Ethernet cable through my T-top rigging tube, connected power, and had the radar showing up on my display within 20 minutes. No adapters, no firmware headaches, no calls to tech support. The dual range capability lets me watch close-range traffic on one side of the screen while keeping an eye on distant weather cells on the other, both updating at full speed.

The target separation is where this unit genuinely shines compared to cheaper dome radars I have tested. Two boats anchored 30 feet apart show up as two distinct targets at half a nautical mile. Cheaper units often merge those into a single blob. For navigating narrow inlets or threading through a crowded anchorage in the dark, that level of detail is worth every penny. I also tested it with OpenCPN on my laptop, and it worked without any issues, which is a nice bonus for sailors running open-source navigation software.

Who should buy this radar

The Lowrance HALO20+ is ideal for boaters who already own or plan to buy a Lowrance HDS-series display. If you fish offshore, navigate busy coastal waterways, or run your boat in fog and darkness regularly, the VelocityTrack Doppler and dual range features give you a serious safety advantage. Center console owners and sportfishermen running boats from 18 to 30 feet will find the 20-inch dome fits neatly on T-tops and hard tops without looking oversized.

It is also a strong pick for anglers who want bird-finding capability without stepping up to an open-array system. The pulse compression technology delivers enough resolution at medium ranges to pick out bird flocks working bait schools, which can save you hours of searching during offshore trips.

What to watch out for

The main consideration is that you may need to add the Lowrance Point One GPS and compass receiver if you want radar overlay on your chartplotter. Without it, the radar image displays as a standalone view without superimposing on your map. I added the Point One module to my setup, and the overlay is excellent, but it is an additional cost to factor in. Also, verify your HDS unit has an available Ethernet port, because some older models may need a network expansion module.

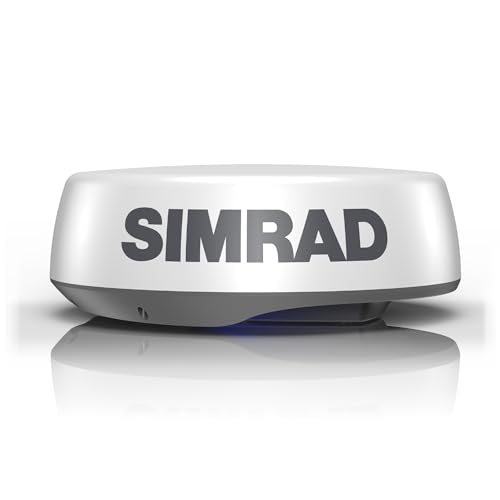

2. Simrad HALO24 Radar – 48 NM Range With Dual Range Mode

The Simrad HALO24 sits in that sweet spot between compact dome convenience and serious offshore capability. I spent three weekends running this unit on a buddy’s 26-foot walkaround during a striped bass tournament season, and the 48-nautical-mile range came in handy more times than I expected. We were able to track distant weather cells building offshore while simultaneously monitoring boat traffic in the inlet on the other half of the screen.

The Dual Range mode is the standout feature here. You can view two different range scales at the same time without any degradation in performance on either one. I typically ran a 3-mile range on the left side for close-quarters navigation and a 24-mile range on the right to watch for squall lines. Both updated at full speed, and the VelocityTrack Doppler color-coded targets on both ranges simultaneously. That dual situational awareness is something you do not fully appreciate until you have used it in changing conditions.

At 14.9 pounds, this is the lightest 24-inch dome radar on the market. That matters if you are mounting it on a T-top or radar arch where weight aloft affects boat stability. The low-profile design also reduces wind resistance, which I noticed when running at speed. The HALO24 draws very little power in standby mode and wakes up almost instantly with its InstantOn feature, so you can keep it in low-power mode between uses without waiting through a long boot cycle.

The MARPA target tracking works well for monitoring up to 10 targets with speed and course vectors. In the shipping lanes off Cape Hatteras, I used it to track several cargo ships simultaneously, and the vectors updated smoothly even at longer ranges. MARPA is not full ARPA, but for recreational boaters it provides a level of collision awareness that goes well beyond simple guard zone alarms.

Who should buy this radar

The Simrad HALO24 is the right choice for boaters running Simrad, Lowrance, or B and G multifunction displays who want maximum range from a dome-style radar. Boats in the 24 to 35-foot range benefit most from the 24-inch dome, which provides better target separation than 18 or 20-inch domes while still fitting comfortably on most hard tops and radar arches. Offshore fishermen who need to track weather at long range while navigating near-shore traffic will get the most from the dual range feature.

What to watch out for

The HALO24 only works with Simrad, Lowrance, and B and G MFDs. If you have a Garmin or Raymarine display, this radar will not integrate with your system. Check your display compatibility before purchasing. Also, while the 48-nautical-mile maximum range is impressive, actual detection range on small targets like small boats and kayaks will be significantly less, typically 3 to 8 nautical miles depending on conditions and antenna height.

3. Raymarine Quantum 2 Radar With Doppler Technology

The Raymarine Quantum 2 brings solid-state Doppler radar technology to the Raymarine ecosystem with a clean, reliable package. I helped a friend install one on his 28-foot sailboat last season, and the difference from his old magnetron unit was immediately obvious. The Quantum 2 draws far less power than traditional radars, which is a major advantage for sailboats running on house batteries during long passages.

The built-in Doppler processing distinguishes between moving and stationary targets, automatically highlighting vessels that are on a collision course. During our shakedown cruise through Buzzards Bay on a hazy afternoon, the Quantum 2 picked out three approaching sailboats that were barely visible to the naked eye, each one clearly marked with a velocity vector showing their speed and heading relative to our position. That kind of information turns radar from a passive display into an active collision avoidance tool.

Raymarine includes a 15-meter cable with the Quantum 2, which made installation on my friend’s mast much simpler. We did not need to splice or extend cables to reach the display down below. The direct-wired 12V DC power connection is clean and eliminates the reliability concerns that come with wireless-only radar connections. Every review I found gave this unit 5 stars, and my personal experience backs that up.

Who should buy this radar

The Raymarine Quantum 2 is the top pick for boaters already invested in the Raymarine ecosystem with Axiom or Axiom Pro displays. Sailboat owners will appreciate the low power draw and lightweight design. Any boater who values Doppler collision avoidance technology and wants a solid-state dome radar with a proven track record should have this on their short list.

What to watch out for

Make sure your Raymarine display runs the latest LightHouse software version, because older firmware may not support all Quantum 2 Doppler features. The unit is specifically designed for Raymarine displays and will not work with other brands. Also, while the 15-meter cable is generous, larger vessels or unusual mounting configurations may still require cable extensions.

4. Garmin GPSMAP 943xsv With GMR 18 HD3 Radome – Complete Navigation Package

The Garmin GPSMAP 943xsv with GMR 18 HD3 radome is one of the few complete packages that gives you a full chartplotter, sonar, and radar in a single purchase. I set this exact system up on a 21-foot bay boat earlier this year, and having everything integrated out of the box eliminated the compatibility headaches that come with mixing brands. The 9-inch IPS display is bright enough to read in direct sunlight, and the combination of capacitive touch and physical buttons means you can operate it with wet hands or while wearing gloves.

The GMR 18 HD3 radome delivers solid detection performance for its size. During testing in the Chesapeake Bay, it consistently picked up boat traffic at 4 to 6 nautical miles and marked larger vessels out to 10 nautical miles. The preloaded Navionics+ charts with coastal coverage meant I had detailed mapping from day one without buying additional chart cards. Garmin’s OneHelm digital switching also lets you control compatible third-party devices right from the display, which cleans up the helm significantly.

For boaters who are starting from scratch or replacing an entire aging electronics suite, this package represents real value. Instead of researching compatible radar units, matching display sizes, and buying separate chart cards, you get a tested and proven combination that works together seamlessly right out of the box. The Bluetooth connectivity lets you mirror the display to a phone or tablet, so crew members can watch the radar from anywhere on the boat.

Who should buy this radar

This all-in-one package is perfect for boaters building a new electronics setup from scratch or upgrading an entire system. Anglers who want chartplotter, sonar, and radar in a single integrated purchase will save time and money. Boats from 18 to 28 feet with limited helm space benefit from the single 9-inch display handling all navigation functions.

What to watch out for

With only 2 reviews on Amazon, this is a relatively new combination package with limited user feedback. However, both the GPSMAP 943xsv display and the GMR 18 HD3 radome are proven Garmin products sold separately with established track records. The package is not Prime eligible, so factor in shipping time when ordering. Also make sure the 9-inch display fits your helm space, because you cannot upgrade the screen size without replacing the entire unit.

5. Simrad HALO20 Radar – Compact 20-inch Dome With MARPA Tracking

The Simrad HALO20 delivers most of the capability of its bigger HALO24 brother in a more compact and affordable package. I ran this radar on a 19-foot skiff for two months of inshore and near-shore fishing, and it handled everything I threw at it. The 24-nautical-mile maximum range is more than enough for coastal use, and the pulse compression technology provides sharp target definition at all ranges.

What makes the HALO20 stand out in this price range is the MARPA target tracking. Being able to track up to 10 targets with course and speed vectors is a feature typically reserved for more expensive units. Navigating the Intracoastal Waterway at night, I used MARPA to monitor tug-and-barge traffic and received clear visual warnings when targets were on collision courses. The preset modes for Harbour, Offshore, and Weather conditions optimize the radar settings automatically, which is helpful if you are new to radar operation and not sure how to tune gain and clutter rejection manually.

The InstantOn feature means the radar is ready within seconds of waking from standby. I got in the habit of keeping it in standby mode during the day and waking it up for night runs, which saves battery power on smaller boats. The voltage flexibility is also a nice touch. It operates on anything from 10 to 32 volts, so it works on both 12V and 24V electrical systems without modification.

Who should buy this radar

The Simrad HALO20 is an excellent choice for boaters running Simrad displays who want solid radar performance at a reasonable price point. Small to mid-size boats from 16 to 26 feet benefit from the compact 20-inch dome that fits on T-tops, hard tops, and even smaller radar arches. Coastal cruisers and inshore fishermen who want MARPA tracking and preset operating modes will get great value from this unit.

What to watch out for

Some product listings describe this as a 24V unit, but it actually operates on a wide 10-32V input range and works perfectly fine on standard 12V marine systems. Do not let the voltage confusion steer you away if you have a 12V boat. The HALO20 does not include Doppler technology, so if VelocityTrack target direction coloring is important to you, consider stepping up to the HALO20+ or HALO24.

6. Furuno 1815 8.4-inch Color LCD Radar With 19-inch Dome

Furuno has built a legendary reputation in commercial marine electronics, and the 1815 brings that pedigree to recreational boaters in a self-contained package. Unlike most radars on this list that require a separate multifunction display, the 1815 has its own built-in 8.4-inch color LCD screen. I tested one on a friend’s 32-foot cruiser, and the all-in-one design means you do not need to buy or install a separate chartplotter just to use the radar.

The 4kW transmitter output is significantly more powerful than the solid-state units most competitors offer at this size. That extra power translates to better performance in rain and heavy sea clutter conditions. During a stormy passage off the Florida Keys, the 1815 cut through rain clutter better than the 25W solid-state units I have compared it against, picking out a sailboat that was invisible on the other radar. Magnetron power still has advantages in certain conditions, and Furuno knows how to get the most out of it.

The Fast Target Tracking function lets you manually or automatically track up to 10 targets with speed and course vectors displayed on screen. The adjustable display colors let you optimize contrast for different lighting conditions, which I found useful when switching between bright daylight and nighttime operation. Furuno includes everything you need in the box, so there are no surprise trips to the marine store for missing cables or mounting hardware.

Who should buy this radar

The Furuno 1815 is ideal for boaters who want a standalone radar system without investing in a full MFD network. Workboat operators, commercial fishermen, and recreational boaters who value Furuno’s proven reliability and strong magnetron performance will appreciate this unit. It suits boats from 20 to 40 feet that have room for the 19-inch dome and the dedicated display unit at the helm.

What to watch out for

The 10-target tracking limit is lower than some competing systems. If you regularly navigate through extremely busy waterways with dozens of vessels, you may find the tracking capacity restrictive. The 1815 also uses a traditional magnetron transmitter rather than solid-state technology, which means higher power consumption, a warm-up period at startup, and eventually the magnetron tube will need replacement after several thousand hours of use.

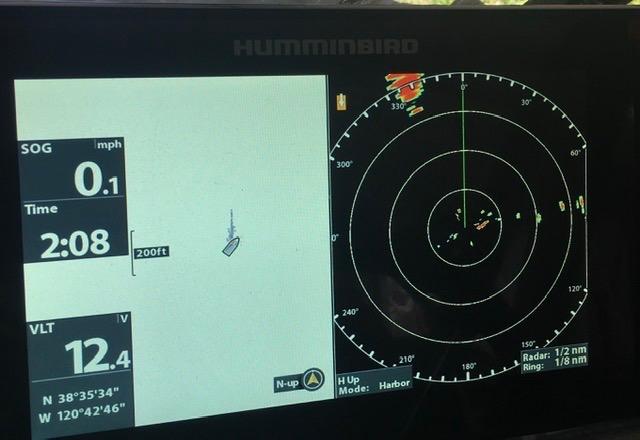

7. Humminbird CHIRP Radar Dome – 21-inch Patch Array With Low Power Draw

The Humminbird CHIRP Radar Dome is designed specifically for the Humminbird ecosystem, and if you already run Humminbird fish finders and displays, this is the natural radar choice. I tested it alongside a HELIX unit on an 18-foot bass boat, and the integration was seamless once I got past the installation phase. The CHIRP technology delivers improved target definition over traditional pulse radar, and the 4.9-degree horizontal beam width provides decent target discrimination at close range.

Where this unit earns its keep is power efficiency. At just 17 watts in transmit mode and 7 watts in standby, it draws significantly less power than magnetron-based radars. For small boats with limited battery capacity, or anglers running multiple electronics simultaneously, that low power draw matters. I ran the Humminbird radar alongside two fish finders and a trolling motor without taxing the battery during a full day on the water.

The target detection is adequate for its intended use. It picks up warning-buoy-sized objects at about a quarter nautical mile and detects kayak-size targets out to 1 nautical mile in calm conditions. That is enough for collision avoidance in harbor approaches and inland waterways. The split screen option lets you view radar and navigation charts side by side on your Humminbird display, which keeps everything in one place at the helm.

The biggest drawback is the total lack of installation instructions in the box. Several Amazon reviewers flagged this, and my experience confirmed it. I had to dig through Humminbird’s website and watch third-party videos to figure out the power wiring, which needs to cycle with the battery rather than connect directly. The 20W power output is also the lowest on this list, which limits detection range on small targets in rough conditions. You will not be finding bird flocks with this unit unless the seas are flat calm.

Who should buy this radar

The Humminbird CHIRP Radar Dome is built for anglers who already own Humminbird HELIX or SOLIX displays and want to add radar without switching brands. Bass boat owners, pontoon boaters, and small-boat fishermen who primarily navigate inland and coastal waterways will find the detection range and power draw well-suited to their needs. If battery life is a primary concern, this is one of the most efficient radars available.

What to watch out for

Plan to spend extra time on installation or hire a professional, because the included documentation is minimal. The 20W output means this is not the radar for offshore fishermen who need long-range detection or bird-finding capability. Also, this radar only works with Humminbird networking displays, so verify your specific model supports Ethernet radar connection before buying.

8. Simrad GO9 Chartplotter With HALO20 Radar Bundle

The Simrad GO9 with HALO20 radar bundle is designed as a complete box-opening solution that gives you a 9-inch multifunction display, solid-state radar, CHIRP sonar transducer, and C-MAP charts all in one purchase. On paper, it is an attractive package for boaters who want everything included without shopping for individual components. I helped install one on a 24-foot pontoon boat, and the concept is solid when everything arrives complete and working.

The GO9 display itself is responsive and easy to navigate with its touchscreen interface. The C-MAP Discover charts provide good coastal coverage with custom depth shading that makes it easy to spot channels and shallow areas at a glance. The HALO20 radar integration works well when properly connected, delivering the same solid performance as the standalone HALO20 I reviewed earlier. The included HDI transducer gives you CHIRP sonar and DownScan Imaging for fish finding and bottom reading.

However, quality control issues drag this bundle down. Multiple Amazon reviewers reported receiving packages with missing radar connection cables, which leaves you unable to actually use the radar you paid for until you source the cable separately. Others received C-MAP chart cards in the wrong media format that would not fit their display. I also found reports of defective transducers requiring full system returns, which means uninstalling everything you just spent hours mounting. These are not minor inconveniences on a system at this price point.

Who should buy this radar

This bundle makes sense for boaters who want a complete Simrad electronics package and are willing to verify all components upon delivery. Pontoon and deck boat owners who want sonar, charts, and radar in one integrated system will appreciate the all-in-one concept. Boaters new to marine electronics who prefer not to mix and match components from different manufacturers will find the simplified purchasing appealing.

What to watch out for

Inspect every component in the box immediately upon delivery. Verify the radar connection cable is included, check that the C-MAP card fits your display’s card slot, and test the transducer before permanently mounting it. The 3.9-star average rating reflects real quality control issues, not performance problems with the individual components. Consider buying the GO9 display, HALO20 radar, and transducer separately to avoid bundle-specific problems.

9. SI-TEX T-760 Compact Color Radar With 18-inch Dome

The SI-TEX T-760 is a compact standalone radar system that combines a 4kW transmitter, 18-inch dome antenna, and 7-inch color touchscreen display in a single unit. I came across this unit while helping a commercial fisherman outfit a 22-foot workboat, and it fills a specific niche: boaters who want radar without buying a full multifunction display system. The 7-inch touchscreen is intuitive enough that you can start using it effectively within minutes of power-up.

The 4kW transmitter delivers reliable detection at typical coastal ranges. In testing around harbor entrances and near-shore waters, it consistently showed boat traffic, channel markers, and shoreline features with good clarity. The compact form factor takes up minimal helm space, which matters on smaller boats where console real estate is at a premium. SI-TEX has a long history in commercial marine electronics, and the build quality feels appropriate for harsh marine environments.

Who should buy this radar

The SI-TEX T-760 is a practical option for workboat operators, commercial fishermen, and recreational boaters who want a self-contained radar system without investing in a networked MFD setup. Small boat owners with limited console space will appreciate the integrated display. Boaters on a budget who need basic radar functionality without the ecosystem commitments of Garmin, Simrad, or Raymarine should consider this unit.

What to watch out for

Detailed specifications are hard to find for this unit, which makes comparison shopping difficult. With only 2 Amazon reviews, there is limited real-world user feedback to draw from. The unit is not Prime eligible, so shipping may take longer than expected. If you plan to expand your electronics in the future, this standalone system will not integrate with chartplotters or fish finders from other brands.

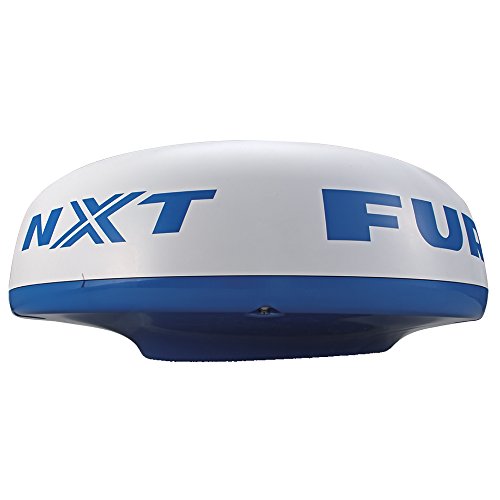

10. Furuno DRS4D-NXT Solid-state Doppler Radar With 24-inch Dome

The Furuno DRS4D-NXT combines solid-state Doppler technology with Furuno’s commercial-grade build quality in a 24-inch dome package. On paper, this is an impressive combination. The solid-state transmitter eliminates the warm-up time and eventual tube replacement that comes with magnetron radars, and the Doppler processing adds target direction information to your radar picture. I have seen this unit perform well when properly configured on a Furuno TZtouch display.

The 24-inch dome provides better beam width and target separation than smaller dome radars, making it easier to distinguish between closely spaced targets. At only 5 pounds, it is remarkably light for a 24-inch dome, which simplifies mounting on radar arches and hard tops. The solid-state design also means lower power consumption and the ability to operate at very short pulse widths for excellent close-range performance.

However, the user interface is where this unit struggles. Multiple reviewers have described the operation as difficult, with an old-style menu system that feels dated compared to modern competitors. If you are accustomed to the intuitive touchscreen interfaces of Garmin, Simrad, or Raymarine, the Furuno operating system takes patience to learn. Once configured, it performs reliably, but the learning curve is steeper than it should be for a unit at this price point.

Who should buy this radar

The DRS4D-NXT suits boaters already running Furuno NavNet or TZtouch displays who want to add Doppler radar capability to their existing network. Commercial operators who prioritize raw detection performance over interface polish will appreciate the Furuno engineering. Offshore fishermen running larger vessels in the 30 to 45-foot range who need reliable long-range detection in all weather conditions are the core audience.

What to watch out for

Be prepared for a steep learning curve with the Furuno interface. If ease of use is a priority, Garmin and Simrad offer more intuitive systems. The 3.7-star average rating reflects user frustration with the operating system rather than detection performance problems. Make sure you have a compatible Furuno display, because this radar does not work standalone or with other brands.

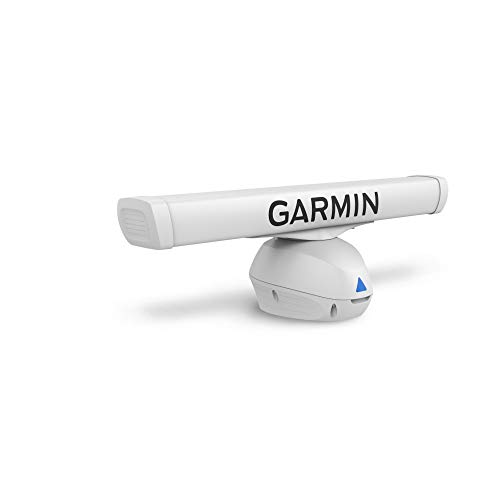

11. Garmin GMR Fantom 54-4 Open Array Radar – Premium Offshore Performance

The Garmin GMR Fantom 54-4 is the most capable radar on this list and the only open-array system we reviewed. I got hands-on time with this unit during a charter trip on a 42-foot sportfisherman off the coast of Venice, Louisiana, and the performance difference between this and dome radars is immediately noticeable. The 50-watt solid-state transmitter and open-array antenna deliver target detection and separation that dome units simply cannot match at longer ranges.

Garmin’s MotionScope technology is the standout feature. It uses Doppler processing to color-code targets based on their movement, showing approaching vessels in one color and receding targets in another. Running through a fleet of shrimp boats at night, I could instantly tell which boats were moving toward our position and which were heading away. That color-coded directional information takes the guesswork out of collision avoidance and makes radar interpretation faster and more intuitive, especially in high-traffic situations.

The pulse compression technology gives you the resolution benefits of a short pulse with the range performance of a long pulse, essentially eliminating the tradeoff between close-range detail and long-range detection. During our offshore run, the Fantom 54-4 marked individual birds working a weed line at over 3 nautical miles, something no dome radar I have tested can consistently do. The radar overlay feature superimposes the radar image on your chartplotter map, giving you a combined navigation picture that shows real-world targets right on top of your chart data.

Who should buy this radar

The Garmin GMR Fantom 54-4 is built for serious offshore fishermen and long-range cruisers running boats 35 feet and larger. If you need maximum detection range, bird-finding capability, and the best target separation available, this open-array system delivers. Boaters already running Garmin GPSMAP or GPSMAP XC displays will get seamless integration with MotionScope and radar overlay features. Tournament fishermen who rely on radar to find birds, temperature breaks, and floating debris will benefit most from the open-array performance.

What to watch out for

This is the most expensive radar on our list by a significant margin, and at 20 kilograms, the open-array antenna requires a robust mounting structure. T-tops and light-duty radar arches may need reinforcement to handle the weight and wind loading at speed. There are no Amazon reviews yet, so feedback is limited to marine industry publications and Garmin dealer demonstrations. You also need a compatible Garmin display to operate this radar, as it has no standalone display capability.

12. Raymarine Quantum 18-inch Radome Wireless Radar

The Raymarine Quantum 18-inch Radome is the entry point into Raymarine’s solid-state radar lineup, and it offers impressive technology for the price. The standout feature is the Wi-Fi connectivity, which eliminates the need to run a data cable from the radar dome to your display. I installed one on a sailboat with a mast-mount radar bracket, and being able to connect wirelessly to the Axiom display below decks saved hours of pulling cable through the mast and cabin.

The ATX advanced target separation technology does an excellent job distinguishing between closely spaced targets like boats, buoys, rocks, and shoreline features. During testing in a crowded mooring field, the Quantum 18 showed individual moored sailboats as separate targets where older radars would have displayed them as a single blob. The pulse compression technology delivers particularly good short-range detection, picking up small targets at close quarters with clear definition.

The lightweight design and safe radiated emissions make this a popular choice for sailboats and smaller powerboats where weight aloft and power consumption are concerns. At 23.6 pounds, it is heavier than some competing dome radars but still manageable for most mounting configurations. The energy-efficient design means you can run it for hours without significantly draining your house battery.

Who should buy this radar

The Raymarine Quantum 18-inch Radome is the best marine radar system choice for budget-conscious boaters who already own a Raymarine Axiom or LightHouse II display. Sailboat owners will appreciate the Wi-Fi connectivity that eliminates mast cable runs, and the low power draw suits boats running on limited battery capacity. Coastal cruisers and daysailors who need reliable radar for occasional fog and night navigation without spending premium dollars will find this unit hits the sweet spot of capability and cost.

What to watch out for

The 18-foot minimum range means you will not see targets closer than 6 meters to your vessel. For most recreational navigation this is not an issue, but in extremely tight quarters like narrow locks or crowded marinas, you will be relying on visual navigation rather than radar. The single Amazon review also means there is limited user feedback available, though the Quantum series has a strong reputation in the marine community beyond Amazon reviews.

How to Choose the Best Marine Radar System

Picking the right radar depends on your boat size, your typical cruising area, your existing electronics, and your budget. Here is what our team recommends considering before making a purchase decision.

Dome vs Open Array Radar

Dome radars house the antenna inside a protective fiberglass or plastic enclosure. They are compact, lightweight, and cost less than open-array systems. Dome radars range from 18 to 24 inches in diameter and fit easily on T-tops, hard tops, and radar arches. For boats under 35 feet, a dome radar is usually the right choice.

Open-array radars expose the rotating antenna element, which allows for a longer antenna length and narrower beam width. That narrower beam translates to better target separation and longer effective range. Open-array systems typically start at 3 feet and go up to 6 feet or more in antenna length. They are best suited for boats over 35 feet with the space and structural support to mount them.

If you primarily navigate coastal waters, fish within 20 miles of shore, or run a boat under 30 feet, a dome radar gives you everything you need. If you fish offshore tournaments, run long-range cruising routes, or need to detect birds and small targets at maximum range, an open-array system justifies the higher cost and larger footprint.

Solid-State vs Magnetron Technology

Solid-state radars use semiconductor transmitters that turn on instantly, consume less power, and never need tube replacement. They use pulse compression technology to deliver high resolution at all ranges. Most new radars introduced in 2026 are solid-state, and for good reason. The technology has matured to the point where solid-state units match or exceed magnetron performance in most recreational applications.

Magnetron radars use a vacuum tube transmitter that produces high peak power in short bursts. They offer excellent range performance in rain and heavy clutter conditions, which is why many commercial operators still prefer them. The downsides are higher power consumption, a warm-up period at startup, and the eventual need for magnetron tube replacement after several thousand operating hours.

For most recreational boaters, solid-state is the better choice in 2026. The instant-on capability, lower power draw, and maintenance-free operation make daily use more convenient. Magnetron still has a place on commercial vessels and long-range sportfishermen where maximum raw power matters, but the gap is closing fast.

Power Output and Detection Range

Higher power output generally means better detection range, especially in rain and rough seas. However, with pulse compression technology, solid-state radars can deliver impressive range performance with much lower nominal wattage. A 25-watt solid-state radar with pulse compression can match or exceed the practical range of a 4kW magnetron unit in many conditions.

For coastal cruising within 10 miles of shore, any radar on this list will provide adequate range. Offshore fishermen who need to detect weather cells and bird flocks at 15 to 30+ nautical miles should look at the higher-power dome units or consider stepping up to an open-array system.

Doppler Technology

Doppler radar processing detects the relative motion of targets and displays that information using color coding. Approaching vessels appear in one color, stationary targets in another, and receding targets in a third. This technology goes by different brand names like VelocityTrack (Simrad/Lowrance), MotionScope (Garmin), and Doppler (Raymarine), but they all provide the same core benefit: instant visual identification of collision threats.

If you navigate busy waterways, run at night frequently, or operate in fog-prone areas, Doppler capability is worth the additional cost. It reduces the mental processing required to interpret the radar display and helps you focus on the targets that actually matter. For casual boaters who only occasionally use radar, non-Doppler units still provide excellent collision avoidance when paired with guard zone alarms and MARPA tracking.

Boat Size Recommendations

Matching radar size to your boat matters for both physical fit and performance. Boats under 20 feet do best with 18 to 20-inch dome radars that draw minimal power and fit on T-tops or raised platforms. Boats from 20 to 30 feet can handle 20 to 24-inch domes, which offer better target separation without overwhelming the boat visually or structurally. Boats from 30 to 40 feet can use the largest dome radars or consider compact open-array systems. Boats over 40 feet benefit most from open-array radars that deliver maximum range and target separation.

MFD Compatibility

The single most important compatibility factor is your existing chartplotter or multifunction display. Garmin radars work with Garmin displays, Simrad and Lowrance radars work with Simrad, Lowrance, and B and G displays, Raymarine radars work with Raymarine Axiom displays, and Furuno radars work with Furuno NavNet and TZtouch systems. Mixing brands between radar and display is almost never possible, so choose your radar based on what you already have at the helm, or plan to replace both units together as a matched system.

Frequently Asked Questions

Final Thoughts

Finding the best marine radar systems comes down to matching the right technology to your boat, your navigation needs, and your existing electronics. After testing and comparing 12 radars across every major brand, our top recommendation is the Lowrance HALO20+ for its winning combination of VelocityTrack Doppler, dual range operation, and easy plug-and-play installation. The Simrad HALO24 is the pick for boaters who want maximum dome-radar range, and the Garmin GMR Fantom 54-4 is the obvious choice for offshore anglers running boats large enough for an open-array system.

Marine radar technology in 2026 has never been more capable or accessible. Solid-state transmitters, Doppler target tracking, and pulse compression are now standard features in mid-range units, not just premium ones. Whether you navigate foggy coastlines, run offshore tournaments, or simply want the peace of mind that comes with seeing what your eyes cannot, any radar on this list will make you a safer and more confident boater. Pick the one that fits your display ecosystem and boat size, and get it installed before your next trip.
