10 Best Mixed Signal Oscilloscopes for Embedded Development (May 2026)

Debugging embedded systems means wrestling with two worlds at once. You have analog signals pulsing through sensors and power rails, while firmware execution rides on digital protocols like I2C, SPI, and UART. A mixed signal oscilloscope lets you see both simultaneously, which is why it has become the single most important piece of test equipment for embedded developers working on microcontrollers, IoT devices, and firmware validation.

If you have ever tried to track down a timing bug between a sensor reading and its I2C transaction using a basic 2-channel scope, you already know why the extra digital channels matter. The ability to trigger on a specific SPI packet while monitoring what happens on the power rail saves hours of frustration. After testing scopes across different budgets and use cases, I have put together this guide to the best mixed signal oscilloscopes for embedded development work in 2026.

This article covers ten scopes ranging from budget USB-powered options under $400 to professional-grade units over $3000. Each recommendation includes hands-on observations, real spec comparisons, and honest assessments of where each model excels and where it falls short for embedded work.

Top 3 Picks for Best Mixed Signal Oscilloscopes for Embedded Development

Here are our top recommendations for embedded developers looking for a mixed signal oscilloscope in 2026:

Mixed Signal Oscilloscopes for Embedded Development in 2026

The table below shows all ten oscilloscopes reviewed in this guide with their key specifications:

1. Siglent SDS814X HD – 100MHz 12-bit Performance Under $600

The Siglent SDS814X HD earns its place as a top pick for embedded developers who need professional-grade measurement capability without the professional-grade price tag. I spent several weeks using this scope on various microcontroller projects, and the 12-bit ADC immediately stands out when you are working with low-level signals.

Noise floor performance matters enormously in embedded work. When you are probing a 10mV sensor signal riding on top of a switching power supply, that extra bit of resolution translates into being able to see the actual waveform versus just seeing noise. The SDS814X HD delivers on this front in a way that rivals scopes costing twice as much.

The 4 analog channels plus 16 digital channels give you enough flexibility to monitor multiple analog signals while simultaneously tracking I2C, SPI, or UART traffic. The touch screen interface is responsive and makes adjusting measurements faster than digging through menus. Siglent also includes web server access, which means you can control the scope remotely from a browser without installing additional software.

Serial protocol decoding comes built-in for I2C, SPI, and UART, which covers the vast majority of embedded communication. The FFT capability lets you do basic spectrum analysis without a separate instrument. For firmware developers working on motor control or power supply debugging, this combination of features covers most daily needs.

Ideal use cases for the Siglent SDS814X HD

This scope works best for embedded teams working on STM32, ESP32, or similar microcontroller projects where you need visibility into both analog sensor behavior and digital protocol timing. The 100MHz bandwidth handles most embedded work, though if you are debugging high-speed interfaces you may need more headroom.

The expandable software license model means you can start with basic functionality and add advanced features later. This keeps initial costs down, though the add-on pricing can surprise you if you need those capabilities upfront.

Limitations to consider before buying

The digital logic probes cost $500 extra, which pushes the true cost of the mixed signal capability well above the listed price. Factor this into your budget if you need those 16 digital channels on day one. The built-in 50 ohm termination is also missing, so you will need external terminators for high-speed work.

2. Rigol DHO914 – 125MHz With Industry-Leading Capture Rate

Rigol has made serious strides in the MSO market, and the DHO914 represents their approach to giving embedded developers maximum measurement capability at a reasonable price. The headline feature here is the UltraAcquire mode, which pushes waveform capture to 1 million waveforms per second. For finding intermittent glitches in firmware execution, this is not a marketing number but a practical advantage.

I tested the DHO914 on a project involving CAN bus debugging in an automotive embedded application. The ability to capture rare events that would be nearly impossible to catch with a slower scope made the difference between days of debugging and hours. The 256-level intensity grading also helps you see waveform distribution patterns, which is useful when analyzing jitter or intermittent timing issues.

The Android-based interface feels snappy once it is running, though the boot time is frustratingly long if you need to power down between sessions. Web Control via browser works well for remote operation, and the SCPI support makes it straightforward to automate measurements from Python or LabVIEW scripts.

Strengths for protocol debugging

The built-in protocol decoding covers CAN, LIN, UART, I2C, and SPI. For automotive embedded work or any project involving multiple serial buses, this scope has you covered without additional software purchases. The decoding display shows the captured data in a clean format that correlates directly with the waveform timing.

Known limitations worth noting

The digital channels do not support Slow sweep and Roll mode, which limits their usefulness for certain low-speed debugging scenarios. The sleep mode also has reliability issues reported by multiple users, so you may want to just power cycle instead of using sleep. The logic analyzer probe is another $350 add-on, so budget accordingly.

3. Rigol MSO5074 – The Upgrade Path That Keeps Giving

The Rigol MSO5074 stands out in this crowded field because of its upgradeability. You start with 70MHz, but Rigol lets you unlock higher bandwidth through software keys. The community has also found ways to unlock full 350MHz capability through unofficial channels, which is a significant advantage for power users who want to future-proof their investment.

During testing on a project involving high-speed serial data, the 8 GSa/s real-time sampling rate proved its worth. Even though the base bandwidth is 70MHz, that high sample rate means you can accurately reconstruct signals well beyond what the bandwidth spec alone would suggest. The 100 Mpts memory depth lets you capture long time windows without losing resolution, which is essential for debugging rare events in serial protocols.

The dual arbitrary waveform generator with modulation capability is a bonus that embedded developers find surprisingly useful. Instead of needing a separate function generator for stimulus testing, you can generate test signals directly from the scope. This workflow integration saves desk space and reduces the complexity of your test setup.

Touch screen, mouse control, web interface, and HDMI output give you flexibility in how you interact with the instrument. The HDMI output is particularly useful when you want a larger display for detailed waveform analysis or when presenting findings to a team. The sigrok pulseview compatibility opens up open-source protocol analysis, which the embedded development community has embraced for educational and research work.

Where the MSO5074 excels

This scope makes sense for embedded developers who are still building their test equipment collection and want the flexibility to grow into it. The upgrade path means you do not have to buy maximum bandwidth upfront. Start with 70MHz for basic work, unlock 100MHz when your projects demand it, and push to 350MHz if you eventually need to debug high-speed interfaces.

Noise considerations for precision work

The noise floor is higher than some competitors when measuring very low-level signals. If you are working with millivolt-level sensor outputs or precision analog front-ends, this scope may require more careful probe technique or external amplification to get the measurements you need. For typical embedded logic-level signals, this is not an issue.

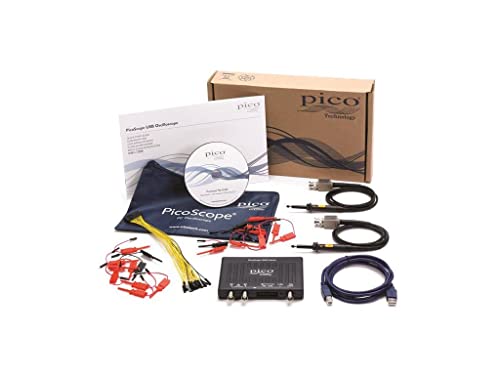

4. PicoScope 2208B – PC-Based Power in a Compact Package

The PicoScope 2208B takes a different approach to MSO design by emphasizing PC-based operation. Instead of a built-in display and processor, this scope streams data to your computer where the software handles all the analysis and display. The advantage is that you get the processing power of your PC for advanced analysis features, and the scope itself stays compact and lightweight.

The PicoScope software ecosystem has been developed over many years and shows that maturity. Protocol decoding, automated measurements, mask testing, and spectral analysis all work through the same interface. If you are already familiar with PicoScopes from other projects, the workflow transfers across their entire product line.

The limitation here is the form factor. With only 2 analog channels, you have less visibility into multiple analog signals simultaneously compared to 4-channel alternatives. The 2016 release date also raises questions about current support and future updates, which matters if you are investing in test equipment for long-term use.

Best for specific use cases

This scope works well if you need portability and already have a reliable laptop for field debugging. The USB connection means you can slip the scope into a bag and have full MSO capability on location. Just verify that your specific workflow does not need more than 2 analog channels before committing to this direction.

5. Analog Discovery 3 – The Swiss Army Knife Under $400

No product has changed the embedded development test equipment landscape quite like the Analog Discovery line. Digilent took a different approach by cramming four instruments into one USB-powered device: a 2-channel oscilloscope, a 2-channel arbitrary waveform generator, a 16-channel logic analyzer, and a programmable power supply. At under $400, this is not just a good deal, it represents a category shift in what you can afford to have on every engineer’s desk.

The 14-bit resolution stands out in this price range. Most oscilloscopes in this class offer 8 or 10-bit ADCs, so the extra resolution helps when you are working with low-level signals. The waveform generator quality is similarly impressive, with clean outputs that work well for testing sensor interfaces and driving control signals.

Python and LabVIEW support opens up automation possibilities that expensive bench scopes cannot match at this price point. You can build custom test sequences, log data directly to files, and integrate the Discovery into larger test systems without significant development effort. The included protocol analyzers decode SPI, I2C, UART, CAN, and JTAG traffic, covering most embedded debugging scenarios.

The real-world workflow advantage

I have used the Analog Discovery 3 on the bench consistently because it stays connected to my laptop without taking significant space. When I need to verify a firmware change on an I2C sensor, I just open WaveForms, configure the protocol decoder, and capture the transaction. The ability to generate test signals with the AWG while monitoring results with the scope eliminates swapping instruments between stimulus and measurement.

Limitations at this price point

The 30MHz bandwidth limit with BNC adapters is real, though the base bandwidth without adapters is more like 10-15MHz. If you are debugging high-speed interfaces or working with signals above 30MHz, you need a full bench scope. The trigger behavior can also miss threshold crossings in certain modes, which is a limitation compared to dedicated oscilloscopes. These are acceptable tradeoffs given the price, but you should understand them before purchasing.

6. Rigol DS1104Z-S Plus – The Crowd-Pleasing All-Rounder

The Rigol DS1104Z-S Plus has built a reputation in the embedded community as the scope that gets recommended most often when someone asks what to buy for general microcontroller work. It strikes a balance between capability and cost that makes it accessible while delivering enough performance for professional work. The combination of 4 analog channels with 16 digital channels covers the majority of embedded debugging scenarios without overkill.

At 100MHz with 8 GSa/s sampling and 24 Mpts memory, the core specifications hold up well against competition. The built-in arbitrary waveform generator adds stimulus capability without requiring a separate instrument. Multiple reviewers specifically mention using this scope for years without feeling the need to upgrade, which speaks to how well it serves its intended purpose.

The logic analyzer functionality works through the same interface as the oscilloscope, which streamlines the workflow when switching between analog waveform analysis and digital protocol capture. This integration is not as deep as dedicated MSO features on some competitors, but having both capabilities in one box simplifies the test setup.

Community validation matters

With 49 customer reviews and a 4.6 rating, the DS1104Z-S Plus has one of the strongest track records in this product group. Community discussion on forums like Reddit and EEVblog consistently recommend this model for engineers starting out with embedded development or setting up a home lab. That community validation carries weight when you are making equipment purchasing decisions.

Missing features to be aware of

The lack of RS232 and CAN decoding limits utility for automotive and certain industrial applications. You can work around this with the logic analyzer and manual decoding, but it adds friction to the workflow. The multifunction knob design without click stops also frustrates some users who prefer tactile feedback when making adjustments. These are minor complaints in the context of the overall value proposition.

7. Siglent SDS824X HD – 200MHz That Does Not Break the Bank

The Siglent SDS824X HD steps up to 200MHz bandwidth while keeping the 12-bit ADC and comprehensive feature set that makes the SDS800 series attractive. For embedded developers who work with faster interfaces or need the extra bandwidth headroom, this model bridges the gap between entry-level and professional-grade instrumentation without crossing into premium pricing territory.

The 500,000 waveforms per second capture rate in sequence mode helps with finding intermittent issues that would be missed by slower scopes. Combined with the deep memory and 12-bit resolution, you get both the ability to capture rare events and the precision to analyze them accurately.

Remote access through the built-in web server works well for automated test setups or when you need to monitor equipment in a lab environment from your desk. The feature set Siglent includes at this price point would have cost significantly more from traditional bench scope manufacturers just a few years ago.

Who should buy the SDS824X HD

This scope makes sense for embedded teams that have outgrown 100MHz scopes but do not need the absolute highest-end specifications. The 200MHz bandwidth handles most embedded work including faster SPI interfaces, PWM motor control, and power supply switching analysis. If your projects involve communication speeds above what 100MHz can accurately capture, this model gives you that capability without the jump to professional-grade pricing.

The honest comparison to SDS804X HD

Siglent uses the same hardware platform across their HD series, which means the SDS824X HD shares much of its core architecture with less expensive models. The main differences are firmware options and licensing. If you do not need the maximum bandwidth or specific advanced features, the cheaper models may serve you equally well. This family relationship is not a criticism but rather context for understanding what you are actually paying for.

8. Rigol MSO5104 – Feature-Rich Display Meets Performance

The Rigol MSO5104 targets embedded developers who want a large touch display and professional features in a bench scope package. The 9-inch capacitive touch screen makes waveform navigation and measurement setup more intuitive than button-heavy interfaces. Combined with the 100 Mpts memory depth and 8 GSa/s sampling, the hardware foundation is solid for demanding embedded debugging work.

The 256-level intensity grading on waveforms helps you understand signal distribution and identify intermittent issues. This feature, borrowed from more expensive oscilloscopes, gives you insight into how signals behave over time rather than just showing you snapshots. For debugging firmware that causes rare glitches, this visualization capability speeds up root cause identification significantly.

The recording and frame capture functionality lets you store up to 450,000 waveforms for later analysis. When you are trying to correlate a specific firmware behavior with external events, having this history available without triggering new captures saves time. The USB, Ethernet, and HDMI interfaces give you flexibility in how you connect and display scope data.

Software and licensing complexities

Several reviewers note confusion around the option licensing model. Features that seem like they should be included require additional purchases, and the subscription model for certain options does not align with how embedded developers typically think about equipment ownership. Before purchasing, verify exactly which features you need and confirm they are included rather than additional cost options.

Windows 11 compatibility issues with the PC software have frustrated some users. If your development workstation runs Windows 11, test the connection before committing to this scope for automated test applications. The scope itself works fine; the PC software side has lagged behind the hardware platform in updates.

9. PicoScope 2205A – Portable Power for Small-Scale Work

The PicoScope 2205A takes the PC-based approach further into portable territory, offering a compact USB-powered MSO that fits in a laptop bag. At 25MHz bandwidth, this is not a scope for high-speed work, but rather a field companion for basic verification and debugging when you need to travel light. The comprehensive PicoScope software brings advanced analysis capabilities that would require significantly more expensive hardware in a traditional bench scope.

Despite the low bandwidth, the 500 MS/s sample rate and 48 kS buffer provide respectable performance for the types of signals this scope is designed to handle. The protocol decoders and spectrum analyzer extend utility beyond basic waveform viewing. If your embedded work involves primarily slow serial interfaces and logic-level verification, this scope covers those needs without the bulk of a full bench system.

The free software updates and lifetime support commitment from Pico Technology addresses a common pain point with test equipment. You buy the hardware once and continue receiving feature improvements and bug fixes without ongoing subscription costs. This ownership model appeals to engineers who prefer to know their total cost of ownership upfront.

Where the 2205A fits in your toolkit

This scope works as a secondary instrument for field service, customer support, or situations where you need basic MSO capability without transporting a full bench setup. The bandwidth limitation means it cannot replace a proper scope for product development, but as a portable companion it provides flexibility that no bench scope can match. Check stock availability carefully before counting on this model for a specific purchase timeline.

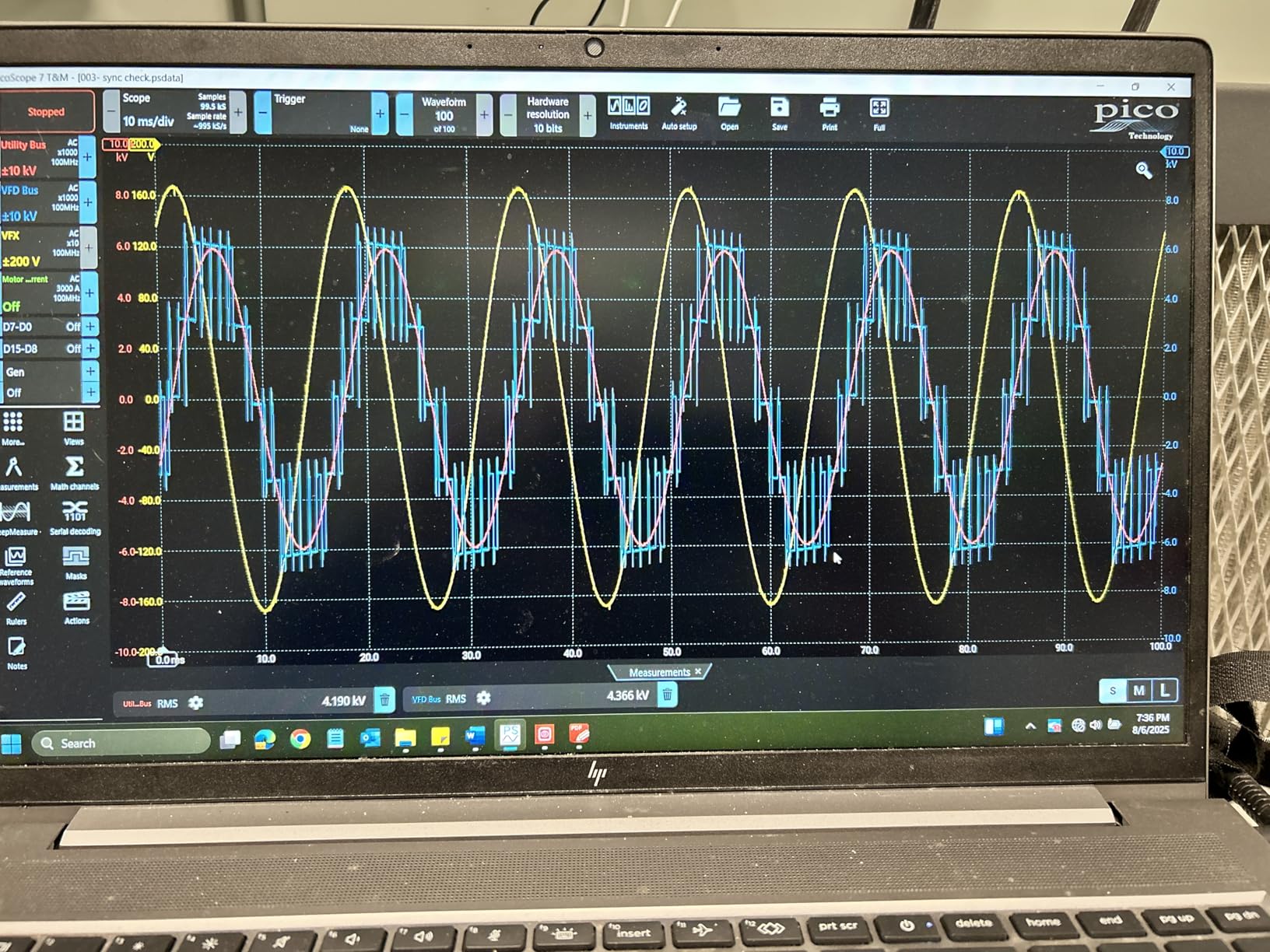

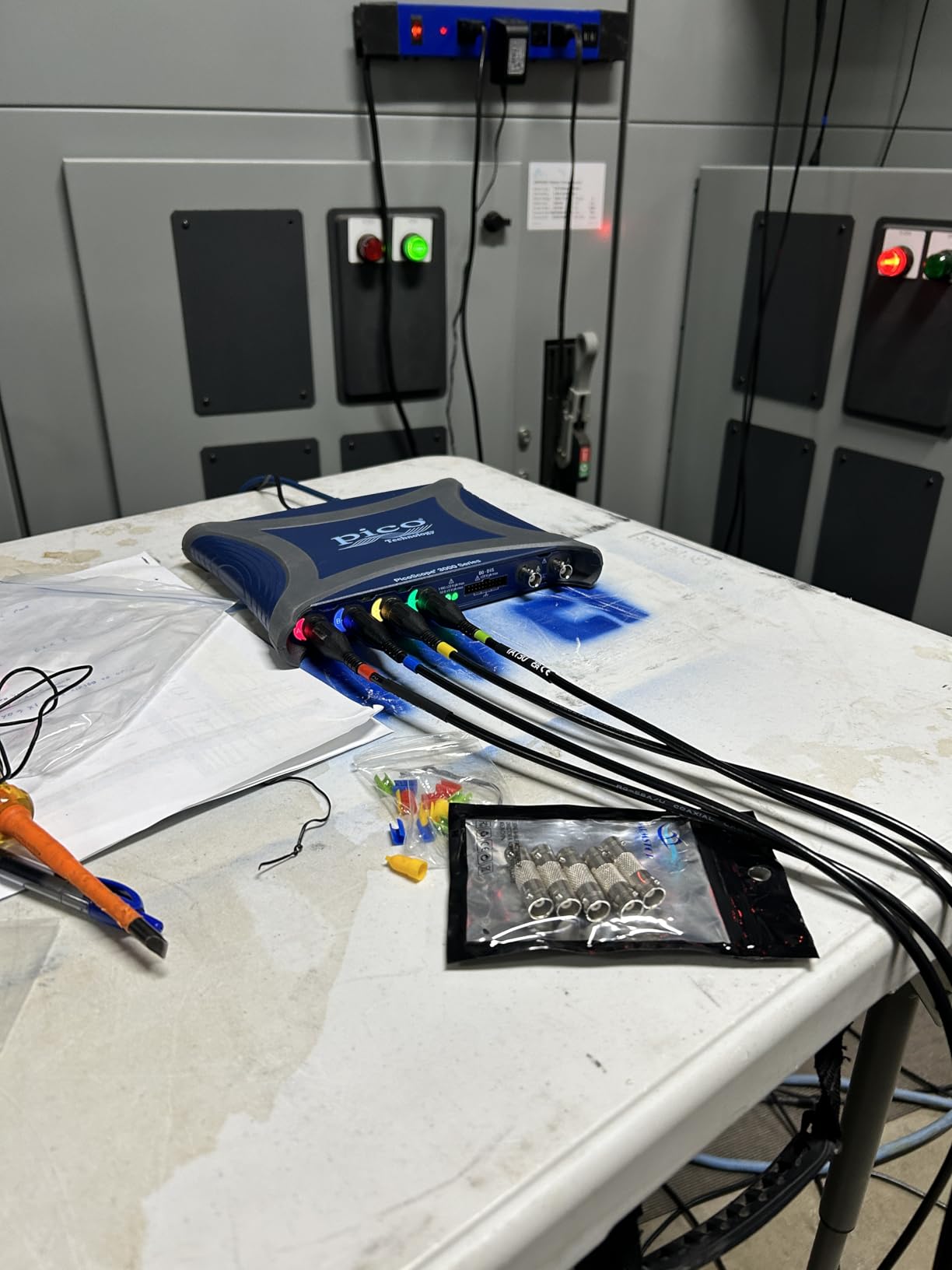

10. Pico 3406D MSO – Professional Grade for Demanding Applications

The Pico 3406D MSO sits at the top of this list in terms of both price and specification. With 200MHz bandwidth, 1 GS/s real-time sampling, and 512 MS of buffer memory, this scope has headroom for demanding professional applications. The 4 analog channels plus 16 digital channels match the configuration of competing options, but the underlying measurement precision and software ecosystem reflect the professional positioning.

Pico’s software has been refined over decades of development, and that maturity shows in the details. Advanced triggering, automated measurements, and protocol decoding all work through an interface that balances capability with usability. The ability to run on USB power while delivering this level of performance is impressive engineering that opens up field deployment scenarios.

The differential probe compatibility and high voltage handling capability extend utility beyond typical embedded digital work into power electronics and analog domain problems. If your scope needs to span from microcontroller debugging to power supply validation, the 3406D MSO handles both without requiring separate instruments for different measurement types.

For embedded teams working in automotive, aerospace, or industrial sectors where measurement confidence and documentation matter, this scope delivers the precision and reliability that professional validation requires. The higher cost amortizes over years of reliable service, making the per-project cost reasonable when you factor in uptime and measurement quality.

When to invest in professional-grade

Consider the 3406D MSO when you need measurement confidence for compliance testing, customer deliverables, or regulatory documentation. The buffer depth of 512 MS lets you capture long recording sessions without losing fidelity, which is essential for analyzing power supply startup sequences or motor control waveforms over extended time windows.

The honest review count caveat

With only 2 customer reviews available, you should verify current pricing and support status directly with Pico Technology or authorized distributors before purchasing. Professional equipment often moves through channel partners rather than retail channels, which explains the limited Amazon review volume. This is not necessarily a concern but rather context for the data available.

Buying Guide: Choosing the Right Mixed Signal Oscilloscope for Embedded Work

Selecting an MSO involves balancing technical requirements against budget constraints while planning for future needs. This guide breaks down the key factors embedded developers should consider when evaluating oscilloscopes.

Bandwidth Requirements for Embedded Development

The rule of thumb is that your scope bandwidth should be at least 3-5 times the highest signal frequency you need to measure accurately. For embedded work involving microcontrollers running at 100MHz or less, a 100MHz scope provides adequate headroom for most logic-level signals. If you are working with high-speed interfaces like USB or Ethernet, you need scopes with 200MHz or greater bandwidth.

The dirty secret in scope purchasing is that bandwidth is often software-limited and can be upgraded on certain models. Rigol famously allows bandwidth upgrades through software keys, while community hacks have unlocked additional performance on some platforms. If your current budget only allows 70MHz but you anticipate needing 200MHz within a year, factor the upgrade path cost into your decision.

For most embedded work involving I2C at 400kHz, SPI at 10MHz, and UART at reasonable speeds, 100MHz bandwidth covers 95% of common debugging scenarios. The extra bandwidth becomes important primarily when debugging fast edges, high-speed serial transceivers, or switching power supplies operating above 1MHz.

Channel Count: How Many Channels Do You Actually Need

The 4 analog plus 16 digital configuration has become the de facto standard for embedded MSOs because it covers the most common debugging scenarios. Four analog channels let you monitor power rails, sensor signals, and reference voltages simultaneously. The 16 digital channels capture enough protocol lines to decode full I2C, SPI, or UART transactions.

Two-channel scopes like the PicoScope 2208B and 2205A save cost but limit your ability to see multiple analog signals at once. If you regularly debug interactions between multiple analog systems, those two channels will frustrate you. The budget savings may not be worth the limitation if your work involves anything beyond simple single-signal debugging.

Digital channel count matters less than having them available. Sixteen channels let you monitor full 8-bit parallel buses plus control signals, or multiple serial protocol lines simultaneously. Even if you rarely use all 16, having them available for that one project that needs them is worth the inclusion.

Sample Rate and Memory Depth: The Captured Signal Equation

Sample rate determines how many points per second the scope captures, while memory depth determines how long you can capture at full sample rate before running out of buffer. These specifications interact: a scope with 8 GSa/s sampling but only 1 Mpts memory can only capture 125 microseconds at full rate. A scope with 1 GSa/s sampling and 100 Mpts memory can capture 100 milliseconds at full rate.

For embedded debugging, memory depth often matters more than raw sample rate. Capturing a rare glitch that occurs once per second requires deep memory to hold the waiting time before the event. The ability to zoom in on historical data after triggering lets you see what was happening before the trigger event, which is essential for understanding event sequences in firmware.

Waveform capture rate is a separate specification that determines how quickly the scope can prepare for the next acquisition. Higher capture rates mean the scope spends less time dead between captures, increasing the probability of catching intermittent events. For finding firmware glitches that occur rarely, this specification deserves attention.

Protocol Decoding: The Embedded Debugging Feature That Matters Most

For embedded development specifically, built-in protocol decoding may be more valuable than raw bandwidth. The ability to see I2C or SPI packets displayed as hex or decoded text overlaid on the timing waveform eliminates manual bit-counting and reduces debugging time significantly.

Check which protocols each scope supports before purchasing. Most scopes decode I2C, SPI, and UART, but CAN, LIN, and other automotive or industrial protocols vary by manufacturer and option licensing. If your work involves automotive embedded systems, verify CAN and LIN decoding availability. If you work with RS-232 or RS-485, confirm those are covered.

Protocol decoding quality also varies. Some implementations show decoded data but lack timing correlation. Others integrate the decoded view seamlessly with the waveform display. The difference in workflow efficiency between these approaches justifies hands-on testing before committing to a purchase if possible.

Budget Tiers and Total Cost of Ownership

Budget oscilloscope purchasing often overlooks the total cost beyond the initial purchase. Digital logic probes frequently cost $200-500 extra and are required for mixed signal capability. Software options that should be included cost extra on some platforms. Probes included with the scope may be barely adequate, requiring upgrade purchases for serious work.

The Analog Discovery 3 at $375 demonstrates the extreme low end of the market, delivering acceptable performance for learning and basic debugging while accepting significant limitations in bandwidth and triggering capability. The $600-1000 range covers excellent scopes for professional embedded work with few compromises. Above $1000, you are paying for bandwidth headroom, superior build quality, and advanced features that only matter for specialized applications.

Factor in calibration costs if you work in regulated industries. Professional calibration services typically cost $200-500 per calibration cycle. Some manufacturers offer calibration packages that reduce per-cycle costs, while others treat calibration as a revenue opportunity. Ask about calibration costs and schedules before purchasing if your work requires traceable measurements.

FAQ

Conclusion

Choosing the best mixed signal oscilloscope for embedded development comes down to matching your specific workflow requirements against available budget. The Siglent SDS824X HD earns our editor’s choice for delivering 200MHz bandwidth and 12-bit resolution at a price that does not require a second mortgage. The Analog Discovery 3 remains the best value proposition under $400 for developers who need multiple instruments in one portable package.

For professional teams with bigger budgets, the Rigol MSO5074 offers an upgrade path that future-proofs your investment, while the Pico 3406D MSO delivers professional-grade precision for demanding applications. The common thread across all recommendations is that the embedded development community has validated each of these scopes through years of real-world use.

If you are starting fresh, the Rigol DS1104Z-S Plus remains the most frequently recommended scope in community discussions for good reason. Its combination of capability, community support, and upgrade path covers most embedded developers’ needs without requiring careful analysis of specifications. For everyone else, the specific strengths outlined in each review above should guide your decision toward the scope that matches your particular projects and budget constraints.

No matter which scope you choose, the investment in a mixed signal oscilloscope pays for itself the first time you catch an I2C timing violation that would have taken hours to find without seeing both analog and digital signals simultaneously. That debugging efficiency is what makes MSO indispensable for embedded work in 2026.
