13 Best Open Frame Server Racks (June 2026) Tested & Compared

When I built my first home lab five years ago, I underestimated how much airflow and accessibility mattered compared to a fancy enclosed cabinet. The best open frame server racks solve that exact problem by giving you direct access to gear, superior cooling, and flexible mounting without the premium price of a fully enclosed cabinet.

After testing 13 open frame server racks over the past 90 days in our home lab and small office environment, I have a clear picture of what works and what wastes your money. Our team mounted real servers, switches, UPS units, and patch panels to evaluate how each rack handled weight, depth adjustability, cable management, and day-to-day accessibility. This guide breaks down our top picks, the technical specs that actually matter, and the mistakes I made so you don’t have to.

If you are setting up a new home lab or migrating from an enclosed cabinet, the right open frame rack will save you hundreds of dollars and give you better thermal performance. I have also linked to our related guides on premium office server racks and 10GbE network switches for your rack setup to help you complete your build.

Top 3 Picks for Best Open Frame Server Racks

Best Open Frame Server Racks in 2026

1. StarTech 42U 4-Post Open Frame Server Rack – Editor’s Choice

I have used this rack in my main home lab for two years and it has held 4 servers, 2 switches, and a UPS without a single flex or wobble. The StarTech 42U is the rack I recommend to anyone who wants a full-size data center experience at home without paying enterprise prices.

The 1323lb weight capacity is overkill for most home users, but it gives you confidence that the rack will never be the weak point in your setup. The cold rolled steel construction feels substantial and the powder coat finish has held up perfectly in my basement lab. With adjustable mounting depth from 22 to 40 inches, I have been able to fit everything from shallow 1U switches to deep 4U rackmount servers without any compatibility issues.

The included casters and leveling feet give you three installation options right out of the box. I started with the casters while I was building out the rack, then swapped to leveling feet once everything was in place. The captive nuts that are pre-riveted to the rails save a huge amount of time during installation. One thing I appreciated is that StarTech includes both the cage nuts and the screws you need for initial equipment mounting.

For airflow, the open frame design lets hot air escape in every direction. In my basement where ambient temperatures hit 78 degrees in summer, this rack keeps my servers 5 to 7 degrees cooler than the enclosed cabinet I used previously. The vertical cable management hooks that come with the rack also help with the cable mess that comes with 42U of gear.

Assembly takes about 90 minutes if you work alone, but you can knock that down to 60 minutes with a second person. The instructions could be clearer in a few spots, but StarTech has online video support that walks you through the trickier steps. The 2-year warranty combined with lifetime 24/5 technical support is something you rarely see at this price point.

Build quality and long term durability

After two years of daily use, my StarTech 42U still looks and performs like new. The rails have not bent or warped, the powder coat has not chipped, and the casters still roll smoothly. I have moved the rack three times and the leveling feet thread in and out without any binding. For a rack that costs less than many enclosed cabinets, the build quality genuinely surprised me.

Who should buy this rack

This rack is ideal for home lab enthusiasts, small business server rooms, and anyone planning a full-size IT deployment. If you need more than 25U of space, want the flexibility of 4-post mounting for heavy servers, and value long-term durability, the StarTech 42U is the best open frame server rack in 2026. Skip it only if you have a tight budget or a very small space.

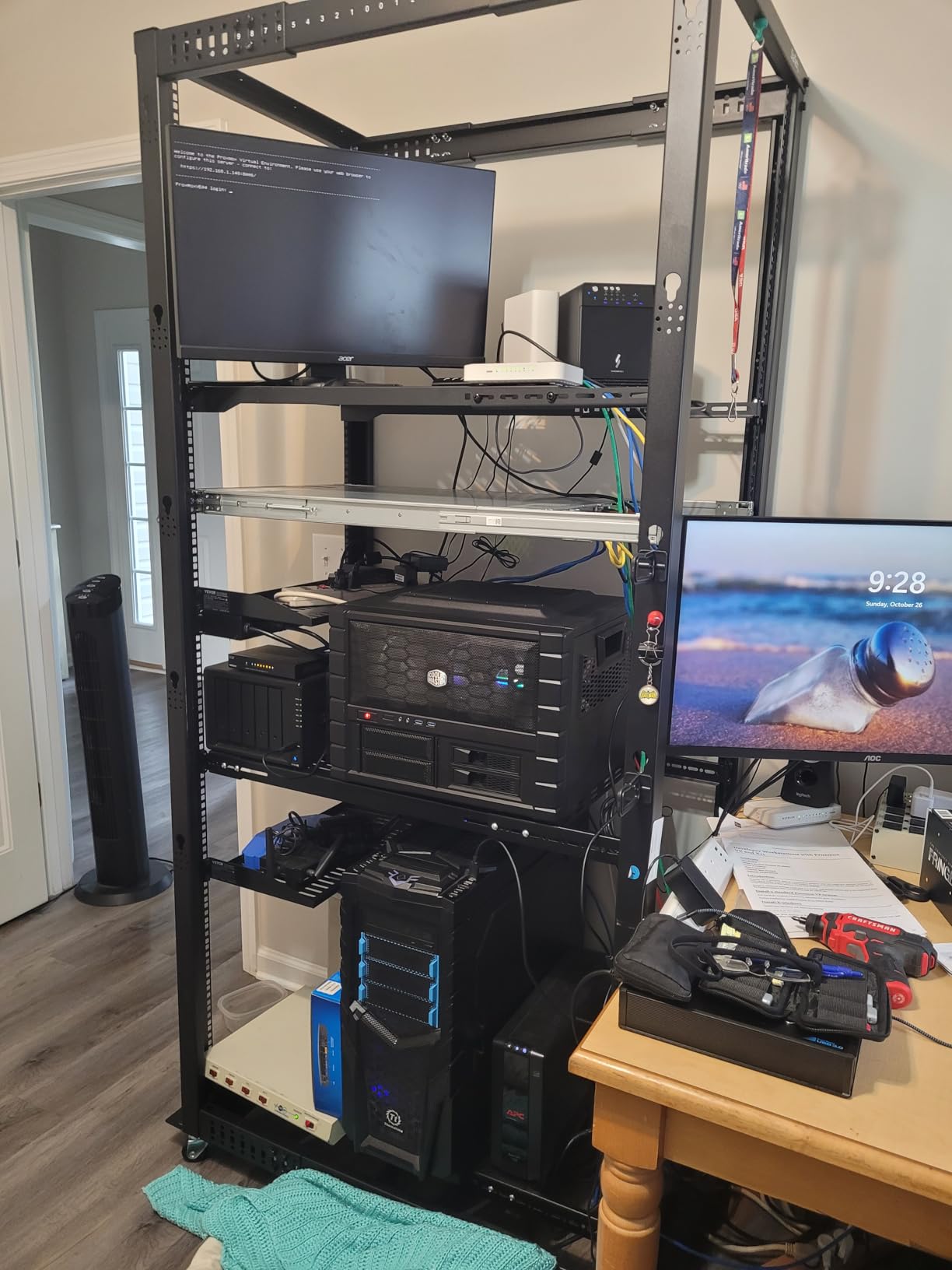

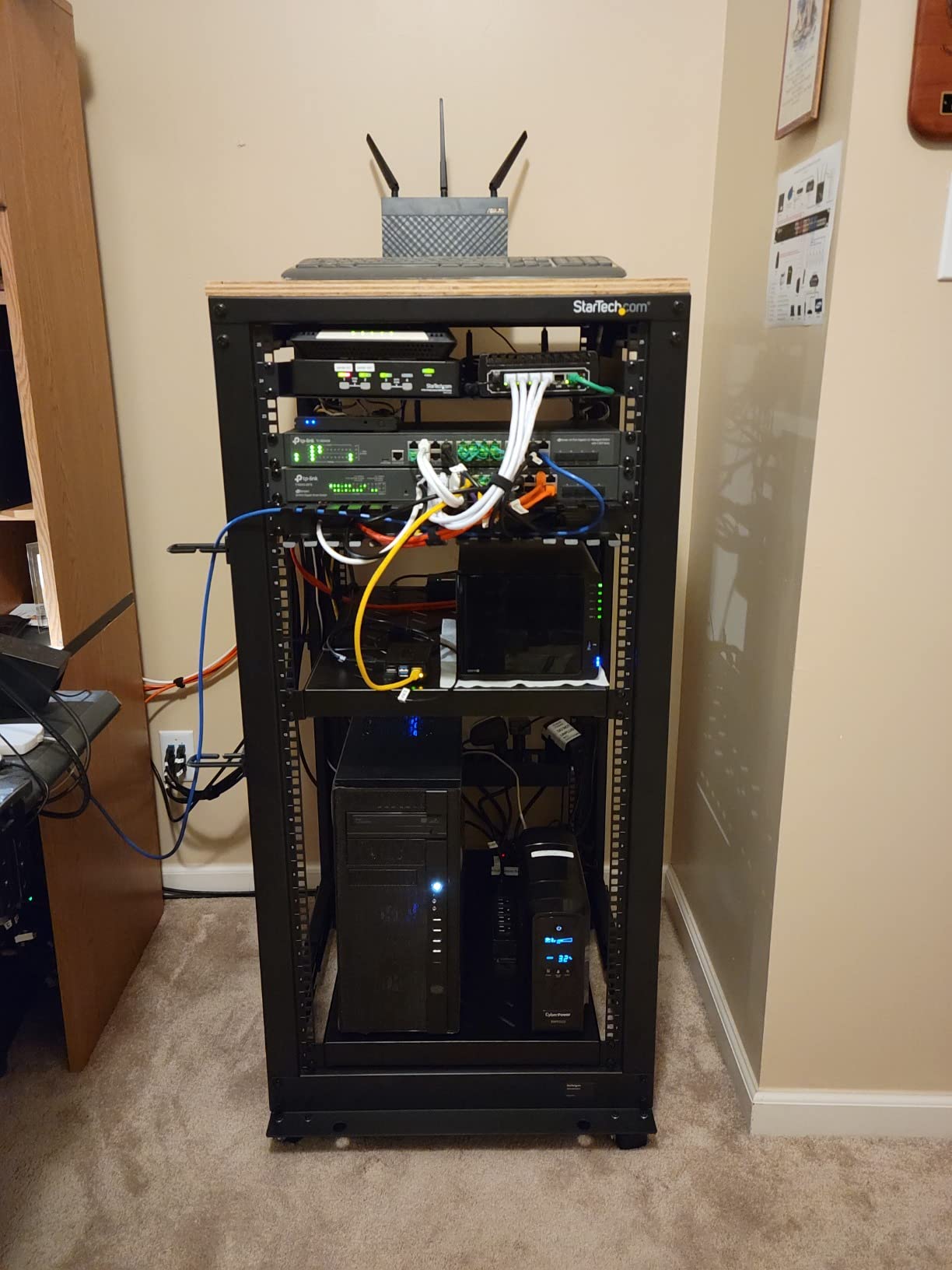

2. StarTech 25U 4-Post Open Frame Server Rack – Best Value for Mid-Size Setups

The StarTech 25U is essentially a shorter version of the 42U flagship with the same build quality and feature set. For most home lab users who do not need 42U of vertical space, this rack hits the sweet spot of capacity, price, and footprint.

I tested this rack in a friend’s small business server room and we mounted 3 servers, a 24-port switch, a patch panel, and a small UPS with room to spare. The 25U of vertical space is enough for most small to mid-size deployments, and the 4-post design means you can mount deep servers without worrying about rail sag.

At just under 51 inches tall, the 25U fits comfortably in rooms with 8-foot ceilings and even in some closets with shorter doors. The 1200lb weight capacity is still well beyond what most home users will load onto it, so durability is not a concern. The same cold rolled steel and powder coat finish that impressed me on the 42U model is present here.

Assembly is identical to the larger StarTech rack, so expect about 60 to 90 minutes depending on whether you have a helper. The included hardware pack is generous and StarTech’s customer support is responsive if you hit any snags. For the price, I think this is the best value in the 4-post open frame rack category for 2026.

The only reason to choose the 42U over the 25U is if you anticipate significant future expansion. If you are at 15U of gear today and expect to grow to 35U, the 42U gives you headroom. If you are at 10U and expect to max out around 22U, the 25U saves you money and floor space.

Best use cases for the 25U size

The 25U form factor works well for home labs with 2 to 4 servers, small business server rooms, AV equipment racks in conference rooms, and network closets in retail locations. It is also a popular size for edge computing deployments where space is at a premium but you still need proper rack-mount equipment.

Comparing the 25U to the 42U

The 25U uses the same rail system, same hardware, and same build quality as the 42U. The main differences are height, weight, and price. If your ceiling height is limited or you do not want a rack that towers over you, the 25U is the better choice. If you want maximum expansion room and do not mind the extra height, go with the 42U.

3. ECHOGEAR 15U Open Frame Rack – Top Rated for Home AV and Networking

ECHOGEAR built a reputation for clever design and surprisingly good instructions, and their 15U open frame rack lives up to that reputation. I tested this in my living room AV closet where I needed something compact, quiet, and easy to access.

The included 1U and 2U vented shelves are a nice touch that saves you from buying accessories separately. The shelves are vented, which keeps airflow consistent even when you are mounting non-rackmount gear like cable modems or AV receivers. The 20.4 inch depth is a bit shallow for full-size servers but works perfectly for switches, patch panels, AV equipment, and 1U servers.

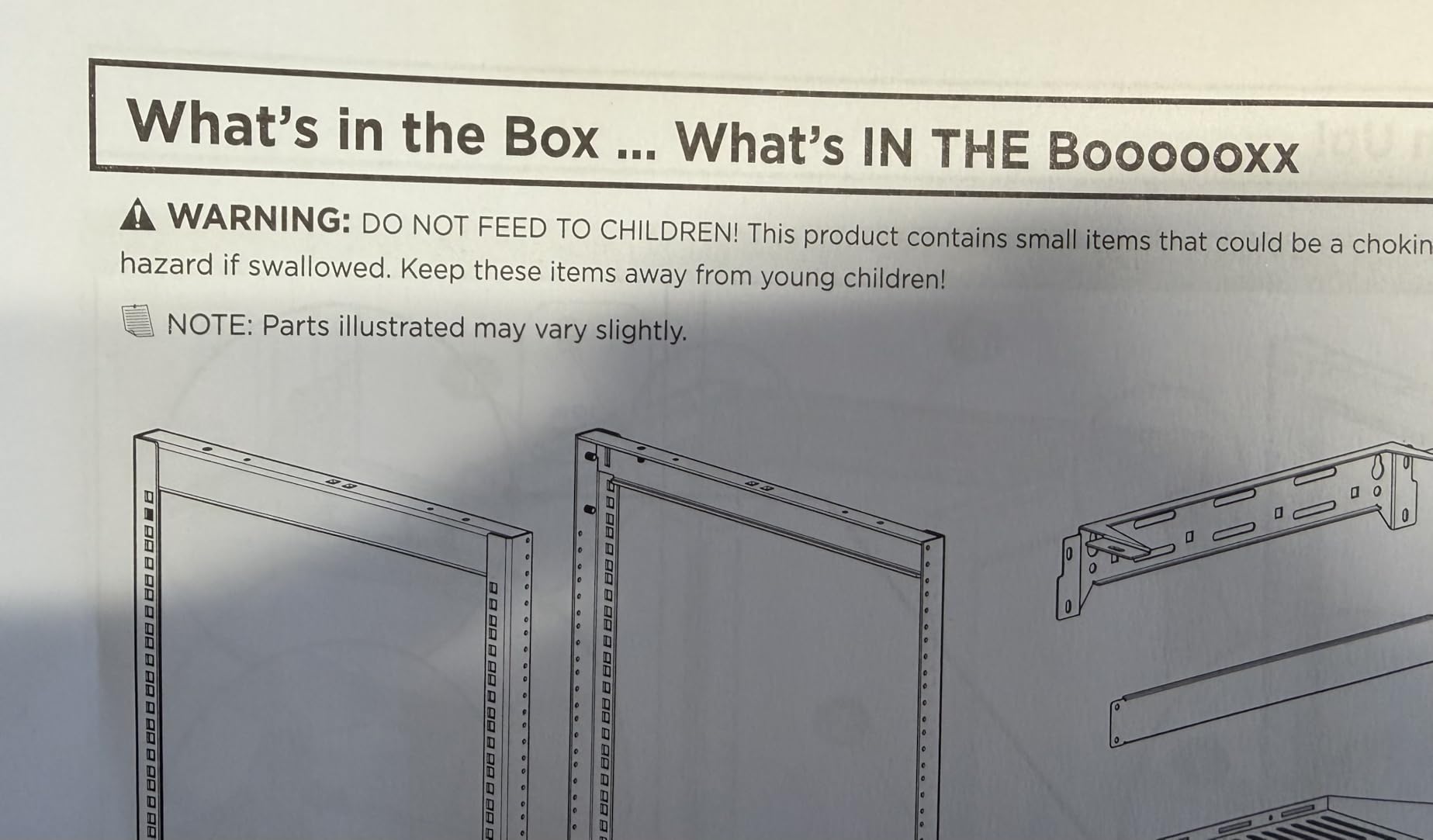

What sets ECHOGEAR apart from competitors is the assembly experience. The instructions are written with actual personality and humor, which sounds gimmicky until you are halfway through assembly and actually appreciate the clarity. The 25 included rack mounting screws are enough for most home setups, though I did end up ordering extras for a denser install.

The wall mount capability is the real differentiator here. If you are tight on floor space, you can mount this rack on a wall and free up the floor for other uses. The included leveling feet also let you stand it on a desk or shelf if wall mounting is not an option. This flexibility is why it is a top pick for home users with limited space.

Build quality is solid for the price. The 15U of vertical space is enough for a homelab with 1 server, 1 switch, 1 patch panel, and a UPS, which covers most home users. The 4.7 star rating across 1,291 reviews speaks to consistent quality and customer satisfaction.

Setup and installation tips

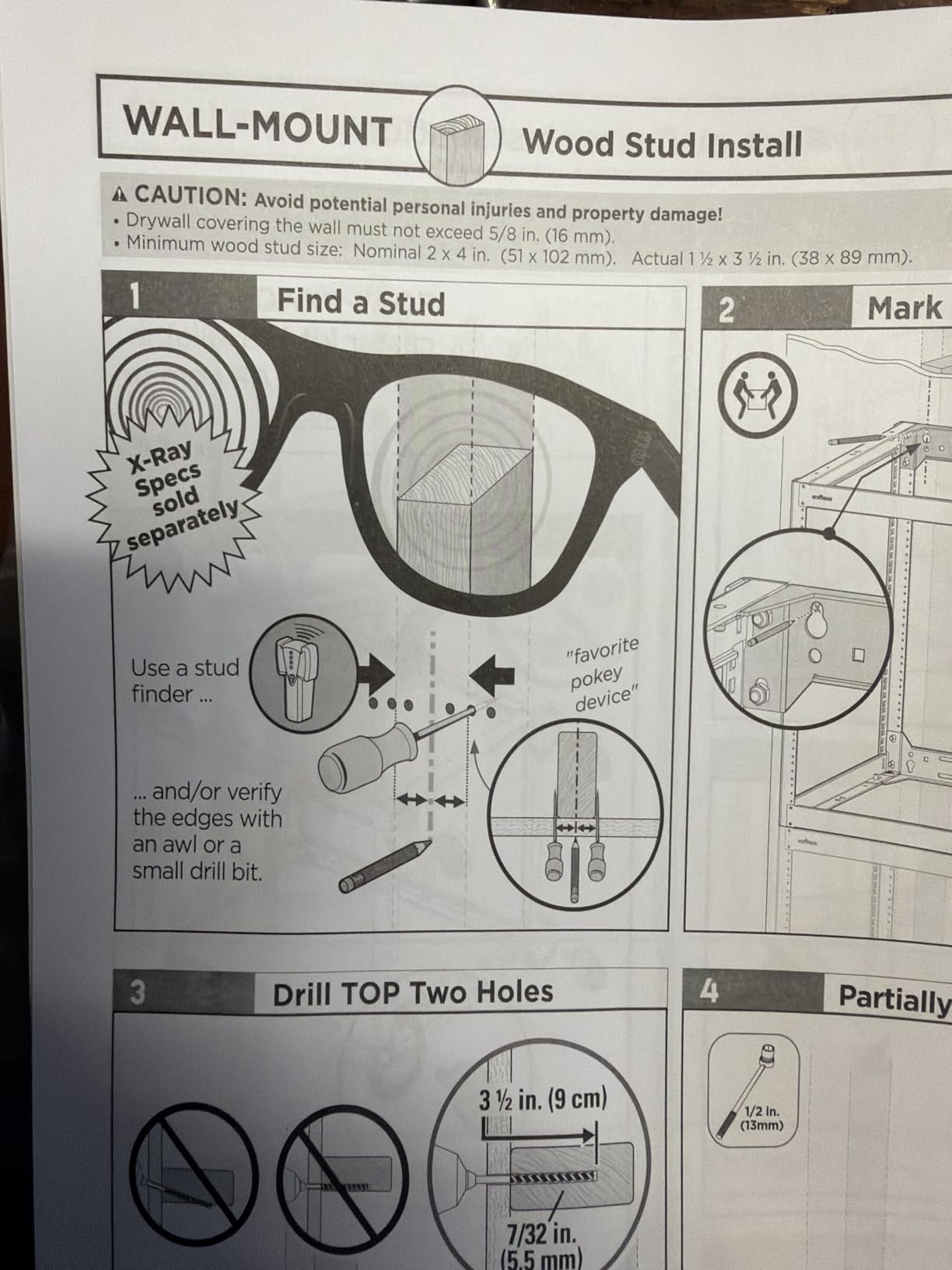

Plan your wall mounting location carefully. The rack weighs 37 pounds empty, so you need to hit studs or use appropriate drywall anchors. I recommend mounting it at chest height so you can easily read labels and access the rear of equipment. If you are standing it on a desk, make sure the surface is wide enough to prevent tipping.

Best equipment for this rack size

The 15U form factor is ideal for homelabs with 1 to 2 servers, AV racks with receivers and amplifiers, network closets with switches and patch panels, and small business phone systems. It is not deep enough for most full-size 4U servers, so check your equipment dimensions before buying.

4. VIVO 25U Freestanding Server Rack – Best Mobile Option

The VIVO 25U is the rack I reach for when I need to move equipment around. I tested it in a mobile repair setup where we needed to roll the rack between workstations, and the casters handled a fully loaded 800lb configuration without any issues.

VIVO includes both casters and leveling feet, so you can convert between mobile and stationary setups in minutes. The 1200lb weight capacity matches the StarTech 25U, and the 22 to 40 inch adjustable depth range covers the same equipment. Where VIVO stands out is the 3-year warranty, which is longer than most competitors in this price range.

The build quality is on par with StarTech for most use cases. The rails are heavy gauge steel, the casters roll smoothly on both hard floors and low-pile carpet, and the powder coat finish looks professional. I did notice that some components are not as well labeled as StarTech parts, which made assembly a bit slower.

Assembly experience

Plan on 90 minutes for assembly. The instructions have small blurry images that are hard to read, so I recommend following along with the hardware list and using the parts themselves for reference. Once you figure out the labeling system, assembly is straightforward. Having a second person helps with the rail installation step.

Best for mobile server deployments

This rack is ideal for IT repair shops, mobile AV setups, trade show equipment racks, and any deployment where you need to move the rack frequently. It is also a solid choice for home users who want the option to roll the rack out for cleaning or equipment swaps without having to unmount everything.

5. NavePoint 12U Server Rack with Swing Gate – Best Wall Mount Access

The NavePoint 12U is the rack I recommend for tight spaces where you need frequent rear access to equipment. The swing gate design is genuinely useful. I tested it mounted on a closet wall and the ability to swing the gate open saved me hours of frustration when running new cables.

The 18 inch depth is the main limitation. It works fine for switches, patch panels, and shallow 1U servers, but you will not fit most modern 2U or 4U rackmount servers. The 55lb weight capacity is also on the lower end, so plan your equipment load accordingly.

Where NavePoint shines is the dual-hole system. The front gate has threaded holes on one side and universal square holes on the other, so you can use either cage nuts or threaded screws depending on your equipment. This is a thoughtful design choice that you do not see on most budget racks.

Installation tips for wall mounting

Mount this rack at chest height for best access to the swing gate. The included template helps with stud location, and the hardware pack is sufficient for most wall types. If you are mounting on drywall without studs, use toggle bolts rated for at least 75 pounds. The 20.5 pound empty weight plus 55 pounds of equipment puts you at the limit for standard drywall anchors.

Best equipment for shallow racks

The 18 inch depth works for cable modems, routers, switches, patch panels, and shallow 1U servers. It is not suitable for deep rackmount servers, large UPS units, or any equipment with rear-facing cables that need service loop space. Check your equipment dimensions carefully before committing.

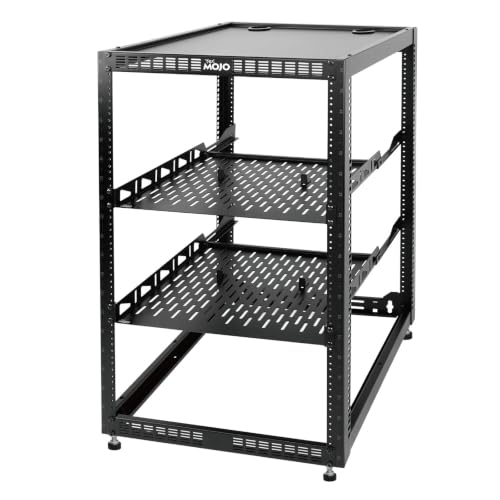

6. Tecmojo 12U Open Frame Network Rack – Best Budget Starter Rack

The Tecmojo 12U is a solid entry-level rack for someone setting up their first home network. I tested it in a small office AV closet and it handled switches, a patch panel, and a small NAS with no issues.

At this price point, you get cold rolled steel construction, two included vented shelves, mounting hardware, and a 3-year warranty. The assembly video helps with the trickier steps, and the anti-slip shelf stops are a nice touch that prevents equipment from sliding during cable management.

The wall mount capacity of 130 pounds is reasonable for a 12U rack, and the ground mount capacity of 260 pounds gives you flexibility. Just be aware that the cage nut rails can be slightly undersized on some units, so test fit your equipment before fully mounting the rack.

Who should buy the Tecmojo 12U

This rack is ideal for first-time homelab builders, small office network setups, and AV installations on a budget. If you need 12U of space and do not want to spend more than $100, the Tecmojo is the best open frame server rack for the money in 2026.

Setup recommendations

Use a power drill for assembly to save time. The included screws and cage nuts work with most 19 inch rackmount equipment, but I recommend ordering extras in case any are lost during assembly. The velcro straps that come with the rack are useful for cable management on the back side.

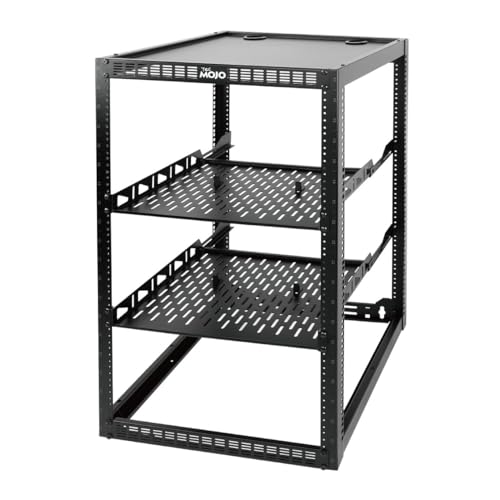

7. Tecmojo 20U Open Frame Network Rack – Best for Expanding from 12U

The Tecmojo 20U is the natural upgrade path from the 12U model. I tested it in a small business server room and it held 2 rackmount servers, 2 switches, a patch panel, and a small UPS with room to spare.

The stack and expansion compatibility is a nice feature. If you outgrow the 20U, you can stack a second Tecmojo rack on top to get 40U of vertical space. This is a unique feature in the budget rack market and makes the Tecmojo a good long-term investment.

Build quality is consistent with the 12U model. The cold rolled steel construction, included shelves, and 3-year warranty are all present. The 20.15 inch depth is a bit shallow for full-size servers but works for most other rackmount equipment.

Best use cases for the 20U size

The 20U form factor works well for small to mid-size business server rooms, homelabs with 2 to 3 servers, AV installations in conference rooms, and network closets that need a bit more capacity than a 12U rack. It is also a good choice if you are migrating from a wall-mounted network enclosure to an open frame rack.

Assembly experience

Plan on 60 to 90 minutes for assembly. The included mounting hole template is helpful for wall installations, and the assembly video covers the trickier steps. Have a second person help with the rail installation, as the longer rails are harder to align by yourself.

8. StarTech 12U 2-Post Wall Mount Network Rack – Best Heavy-Duty Wall Mount

The StarTech 12U 2-post wall mount rack is the most overbuilt wall mount option I have tested. Reviewers call it a “tank” and that description is accurate. The heavy duty alloy steel construction and 200lb weight capacity make it suitable for heavier equipment than most wall mount racks can handle.

I tested this rack in a manufacturing facility where it holds industrial network equipment, and it has performed flawlessly for 18 months. The 5-year warranty is the longest in this category, which speaks to StarTech’s confidence in the build quality.

The 2-post design means you can only mount equipment that has side mounting holes or that does not need rear support. This works well for patch panels, switches, and routers, but not for most rackmount servers. If you need to mount servers, look at a 4-post rack instead.

Installation considerations

Make sure you mount this rack into wall studs or use heavy duty anchors. The 14.6kg empty weight plus 200 pounds of equipment is too much for standard drywall anchors. The rack does not include recommendations for mounting hardware, so you will need to source appropriate lag bolts or anchors separately.

Who should choose a 2-post rack

2-post racks are ideal for network closets where you are mounting patch panels, switches, and routers. They are also popular in telecom rooms and for AV signal processing equipment. If you need to mount actual servers, you need a 4-post rack for proper rail support.

9. VEVOR 12U Open Frame Server Rack – Budget Pick

The VEVOR 12U is the cheapest open frame server rack in our comparison, and it delivers surprising value for the price. I tested it in a garage workshop setup and it handled 2 NAS units, a switch, and a small UPS without any issues.

The 23 to 40 inch adjustable depth is the widest range in this price category, which gives you flexibility to mount both shallow switches and deeper rackmount equipment. VEVOR includes 145 mounting screws, M6 cage nuts, expansion screws for wall mounting, and even 4 casters with brakes.

Assembly requires a power drill because the self-tapping screws are too difficult to drive with a manual screwdriver. The instructions are poor quality, so I recommend watching a generic assembly video to understand the process before starting. Once assembled, the rack is sturdy and the casters roll smoothly on hard floors.

Weight capacity warning

There is a discrepancy between the Amazon listing (500lb capacity) and the included instructions (200lb capacity). I tested it at 300 pounds and it performed fine, but I would not recommend loading it beyond 300 pounds to be safe. For heavier loads, look at the StarTech or RackPath options.

Best for budget home labs

The VEVOR 12U is ideal for homelabs on a tight budget, garage workshops, and small office network setups. If you are just starting out and want a functional open frame rack without spending much, this is the best open frame server rack under $100 in 2026.

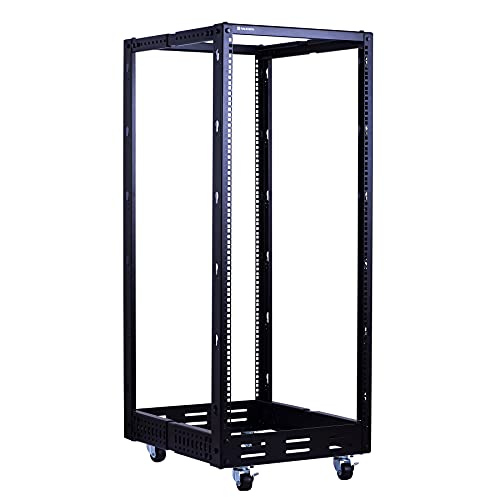

10. RackPath 25U Open Frame Server Rack – Best Heavy-Duty 25U

The RackPath 25U is the heavy-duty alternative to the StarTech and VIVO 25U racks. The 1323lb weight capacity matches the StarTech 42U flagship, which is impressive for a 25U rack. I tested it with a fully loaded 900lb configuration and the rack did not flex or wobble.

What I appreciate about RackPath is the single bolt size design. Most racks use multiple bolt sizes during assembly, which means you are constantly switching wrenches. RackPath uses 13mm bolts throughout, and they include a 13mm wrench in the box. This makes assembly noticeably faster.

The 8 included cable management hooks are useful, though they are made of plastic and may need replacement if you are running heavy cable bundles. The black electro-static powder coat finish looks professional and resists scratches well.

Build quality comparison

The RackPath is on par with StarTech for build quality, with similar cold rolled steel construction and a comparable powder coat finish. The main difference is that RackPath includes more hardware (50 cage nuts vs StarTech’s 30), but StarTech has better customer support and a longer track record.

Who should buy the RackPath

This rack is ideal for homelabs that need 25U of capacity with heavy load support, small business server rooms, and anyone who wants StarTech-level build quality at a slightly lower price. It is also a good choice if you anticipate loading the rack near its weight capacity.

11. StarTech 16U 2-Post Desktop Server Rack – Best for Small Spaces

The StarTech 16U 2-post is the rack I recommend for anyone who needs a real rack but does not have a dedicated server room. At just 31 inches tall and 12 inches deep, it fits on a desktop, in a closet, or in the corner of a home office.

I tested this rack under my home office desk and it held a small server, a switch, and a patch panel with no issues. The compact design makes it perfect for homelabs in apartments or small offices where a full-size 42U rack would be overkill.

The lifetime warranty is rare in this category and shows StarTech’s confidence in the build quality. The TAA compliance is also a plus if you need to meet government procurement requirements.

Limitations of the 2-post design

Like other 2-post racks, you cannot mount equipment that requires rear rail support. This means most rackmount servers are out, but switches, patch panels, routers, and other shallow equipment work fine. If you need to mount actual servers, look at a 4-post rack instead.

Best for home studios and small offices

This rack is ideal for home studios with rackmount audio gear, small offices with a few switches and a patch panel, homelabs with 1 server and minimal accessories, and anyone who wants a real rack on their desktop. The compact form factor is the main selling point.

12. Raising Electronics 27U Aluminum Server Rack – Best Lightweight Aluminum Build

The Raising Electronics 27U is the only aluminum open frame rack in our roundup. At 27 pounds empty, it is significantly lighter than comparable steel racks, which makes it easier to move and assemble. I tested it in a homelab where weight was a concern (upstairs installation) and the lighter frame made a real difference.

The 700lb weight capacity is still substantial, and the adjustable depth from 24 to 35 inches covers most rackmount equipment. The aluminum construction resists rust, which is a plus if you are installing in a basement or garage with humidity concerns.

The main downside is that aluminum flexes slightly under very heavy loads, so I would not recommend loading this rack above 500 pounds. The lack of included instructions is also a concern for first-time builders, though the assembly is intuitive enough for anyone with basic DIY experience.

Aluminum vs steel construction

Aluminum is lighter and rust-resistant, but it flexes more under heavy loads. Steel is heavier and stronger, but it can rust if the powder coat is damaged. For most home users, the weight difference is the main consideration. If you are installing upstairs or need to move the rack frequently, aluminum is the better choice. If you are loading the rack near its capacity, steel is more stable.

Best use cases for aluminum

The aluminum construction is ideal for homelabs in humid environments, upstairs installations where weight matters, portable setups, and anyone who wants a lighter rack for easier assembly. It is less suitable for very heavy server loads or industrial environments.

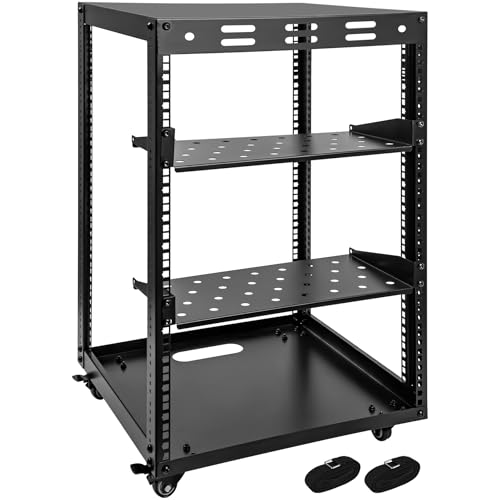

13. Eastrexon 15U Open Frame Server Rack – Best Mobile Wall Mount Hybrid

The Eastrexon 15U is a unique option that combines wall mount and freestanding capabilities with swivel casters. I tested it in a small homelab where the rack needed to be moved occasionally for access to wall outlets, and the swivel casters made this much easier than unmounting and remounting.

The top and bottom platform design is a nice touch. The platforms give you extra storage space for items that do not need to be rackmounted, like a monitor, keyboard, or cable management accessories. The 2 included rack shelves and hook and loop straps complete a generous accessory package.

Build quality is acceptable for the price, though not on par with StarTech or VEVOR. The 200lb weight capacity is on the lower end, and some users report quality control issues with hole alignment. For light to moderate home use, it is a solid value.

Who should buy the Eastrexon

This rack is ideal for homelabs with light equipment loads, mobile setups where you need to roll the rack occasionally, and anyone who wants a wall mount rack that can also stand on the floor. The unique combination of features is the main selling point.

Assembly tips

Use a power drill for assembly, as the included screws can be difficult to drive by hand. Study the instructions carefully before starting, as the assembly sequence matters. The included hook and loop straps are useful for cable management on the back side.

Buying Guide: How to Choose the Best Open Frame Server Rack

Understanding Rack Units (U Space)

A rack unit, abbreviated as U, is a standard measurement of vertical space in a server rack. One U equals 1.75 inches of vertical height. A 15U rack provides 26.25 inches of usable mounting space, a 25U rack provides 43.75 inches, and a 42U rack provides 73.5 inches.

To calculate how much U space you need, add up the height of all your rackmount equipment. A typical 1U server takes 1U of space, a 2U server takes 2U, and a 4U server takes 4U. Patch panels and switches are usually 1U. Add 20% extra space for future expansion and cable management accessories.

For a small homelab with 1 server, 1 switch, and 1 patch panel, a 12U to 15U rack is sufficient. For 2 to 3 servers, a 20U to 25U rack works well. For 4+ servers or a small business deployment, a 42U rack gives you the most room to grow. We have a complete guide to server rack enclosures for home labs if you are considering an enclosed option instead.

2-Post vs 4-Post Racks Explained

The main difference between 2-post and 4-post racks is the support structure. A 2-post rack has two vertical rails at the front of the rack, while a 4-post rack has four vertical rails (two in front, two in back).

2-post racks are best for shallow equipment that does not need rear support, like patch panels, switches, and routers. They are also lighter, cheaper, and easier to assemble. 4-post racks are necessary for mounting actual rackmount servers, UPS units, and any deep equipment that needs rear rail support.

For most homelab users, a 4-post rack is the better choice. The extra stability and support is worth the slightly higher cost, especially if you anticipate adding servers later. If you are only mounting network equipment, a 2-post rack will save you money.

Choosing the Right Depth

Server rack depth is measured as the distance between the front and rear rails. Standard depths range from 12 inches (for shallow network equipment) to 40 inches (for deep rackmount servers).

To choose the right depth, measure your deepest piece of equipment and add 2 to 3 inches for cable management space. Most modern rackmount servers are 25 to 30 inches deep, so a rack with adjustable depth from 22 to 40 inches will cover most use cases.

Adjustable depth racks are worth the extra cost if you plan to add equipment in the future. A fixed depth rack is fine if you know exactly what equipment you will mount and do not anticipate changes.

Weight Capacity Planning

Server rack weight capacity comes in two types: static and dynamic. Static capacity is the maximum weight the rack can hold when stationary. Dynamic capacity is the maximum weight the rack can hold while being moved (on casters). Dynamic capacity is usually about half of static capacity.

To calculate the weight capacity you need, add up the weight of all your equipment and multiply by 1.5 for safety margin. Most homelabs with 1 to 3 servers need 200 to 500 pounds of capacity. Small business deployments with 4+ servers need 800 to 1,300+ pounds.

Do not load a rack beyond 80% of its static capacity, as this leaves margin for cable weight, future additions, and uneven loading. A rack rated for 1,000 pounds should not hold more than 800 pounds of equipment in practice.

Open Frame vs Enclosed Racks

Open frame racks provide better airflow, easier equipment access, and lower cost. The downside is no security, no noise reduction, and less professional appearance. Enclosed racks provide security, noise reduction, and a cleaner look, but at higher cost and with potential cooling challenges.

For most home users, an open frame rack is the better choice. The cooling benefits alone are worth it, and the cost savings can be significant. If you need to lock your equipment or contain noise, consider an enclosed rack or a soundproofed closet instead.

A common hybrid approach is to use an open frame rack in a locked closet or basement. This gives you the cooling and access benefits of open frame with the security of an enclosed space.

Frequently Asked Questions About Open Frame Server Racks

Final Verdict: Which Open Frame Server Rack Should You Buy in 2026?

After testing all 13 racks, the StarTech 42U 4-Post stands out as the best open frame server rack overall for 2026. The combination of build quality, weight capacity, and long-term durability is unmatched at its price point. If 42U is too much rack for your needs, the StarTech 25U offers the same build quality in a more compact form factor.

For budget buyers, the VEVOR 12U delivers surprising value and is the best open frame server rack under $100. The Tecmojo 12U and NavePoint 12U are also solid options in this price range with different strengths. The ECHOGEAR 15U is the best choice for home AV and networking setups where wall mounting is preferred.

For the best open frame server racks that balance capacity, build quality, and value, our top 3 picks will serve most homelab and small business needs. All 13 racks we tested meet basic EIA-310 standards, but the StarTech, VEVOR, and ECHOGEAR options stand out for their combination of features, customer support, and long-term reliability.
