I still remember watching my professor glide a parallel bar across his board like it was an extension of his hand, drawing lines so perfect they looked machine-made. That moment sold me on parallel rule drafting tables for life.

Even in 2026, when every architect has a tablet or a BIM workstation, hand drafting remains a foundational skill. The best parallel rule drafting tables for architects replace the old T-square with a smarter mechanism: two horizontal bars linked by cables or gears, gliding in perfect lockstep so every horizontal line you draw stays truly parallel. No shifting, no remeasuring, no eye-straining checks.

Our team spent six weeks testing eight parallel rule drafting boards across studio projects, freelance site work, and architecture school assignments. We drew floor plans, elevations, section cuts, and detail studies on each one. This guide breaks down what we found, who each table suits, and how to pick the right one for your practice.

Our Top 3 Picks for 2026

Best Parallel Rule Drafting Tables for Architects in 2026

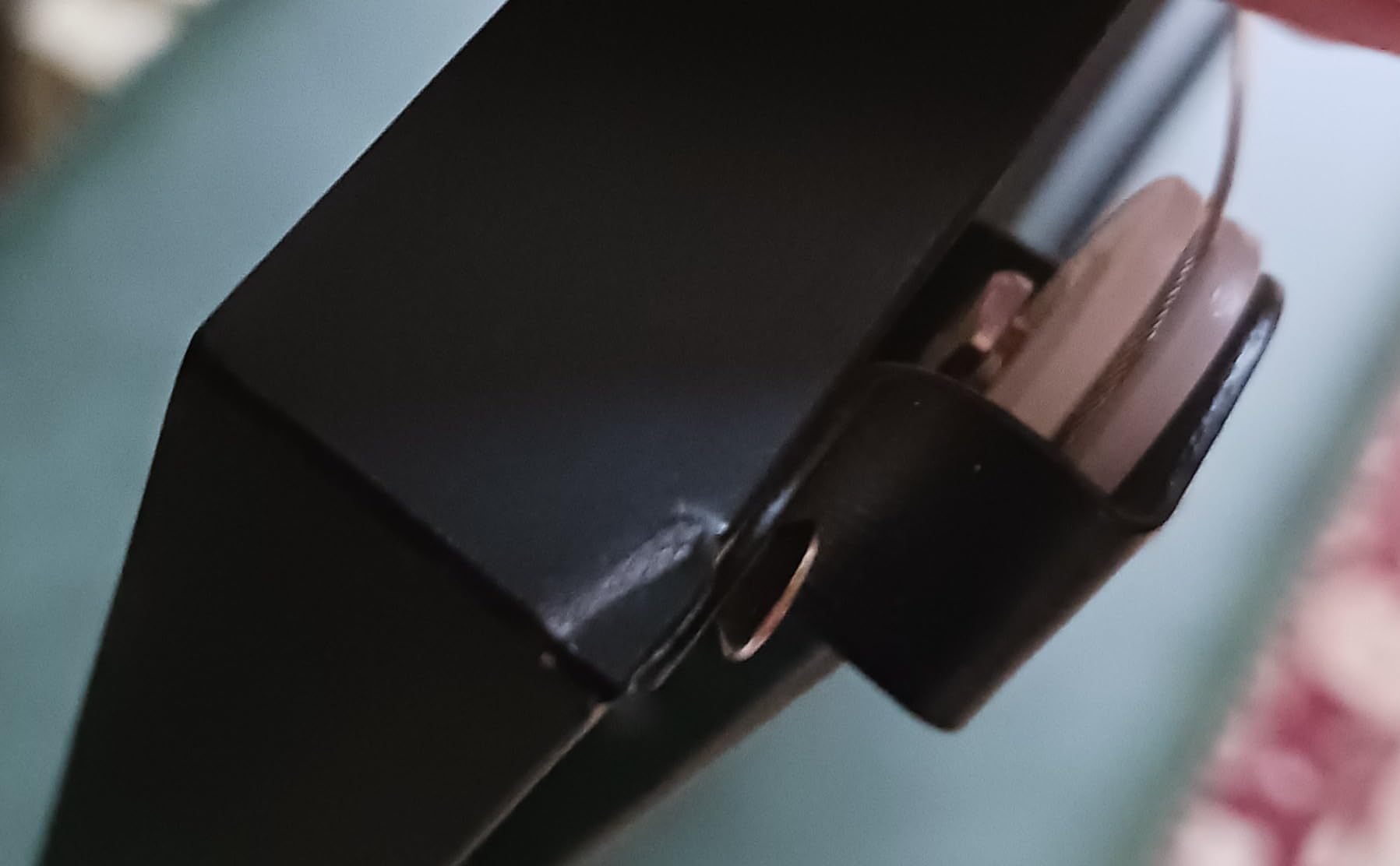

1. Acurit PXB 23×31 Multi-Angled Drafting Board with Parallel Motion Bar – Editor’s Choice

When I pulled the Acurit PXB 23×31 out of its box, I was pleasantly surprised to find it fully assembled. No screws, no Allen keys, no 30-minute setup.

I started with a simple floor plan at a flat angle, then tilted the board up to 35 degrees to sketch a roof section. The seven angle options go up to 45 degrees, which made long sessions much easier on my neck. The 17mm laminated melamine surface felt substantial under my technical pen, and ink wipes off without staining.

What won me over was the parallel motion bar. I ran a 6-foot horizontal line down the board, lifted the bar, slid it over, and drew again. Same exact parallel. No drift, no fuss. The transparent ruler with inch markings sits right on the bar, so measurement happens as you draw.

After three weeks of daily use on a residential addition project, I noticed the parallel motion stayed consistent even when I was tired and rushing. For 2026 architecture students and practicing architects, this is the kind of reliability that justifies the higher price tag compared to budget options.

Who Should Buy This

This is the best fit for architecture students entering their studio years and professional architects who want a serious daily driver. If you draw at least three hours a week and need reliable parallel lines for plan sets, section cuts, and detail drawings, the Acurit PXB 23×31 earns its Editor’s Choice spot.

It also works well for engineering teams who split time between hand sketches and CAD work. The carry handle makes it easy to move between home studio, classroom, and site office.

Who Should Look Elsewhere

If you travel constantly to client sites, the 15.65 lb weight becomes a real burden. A lighter portable option like the Acurit 16×21 might serve you better. Also, designers who work strictly in metric should look at the DOLEMODUO boards, which come with cm markings out of the box.

If budget is your top concern and you can live without multi-angle tilt, the fixed-angle Acurit 20×26 delivers the same build quality at a lower price.

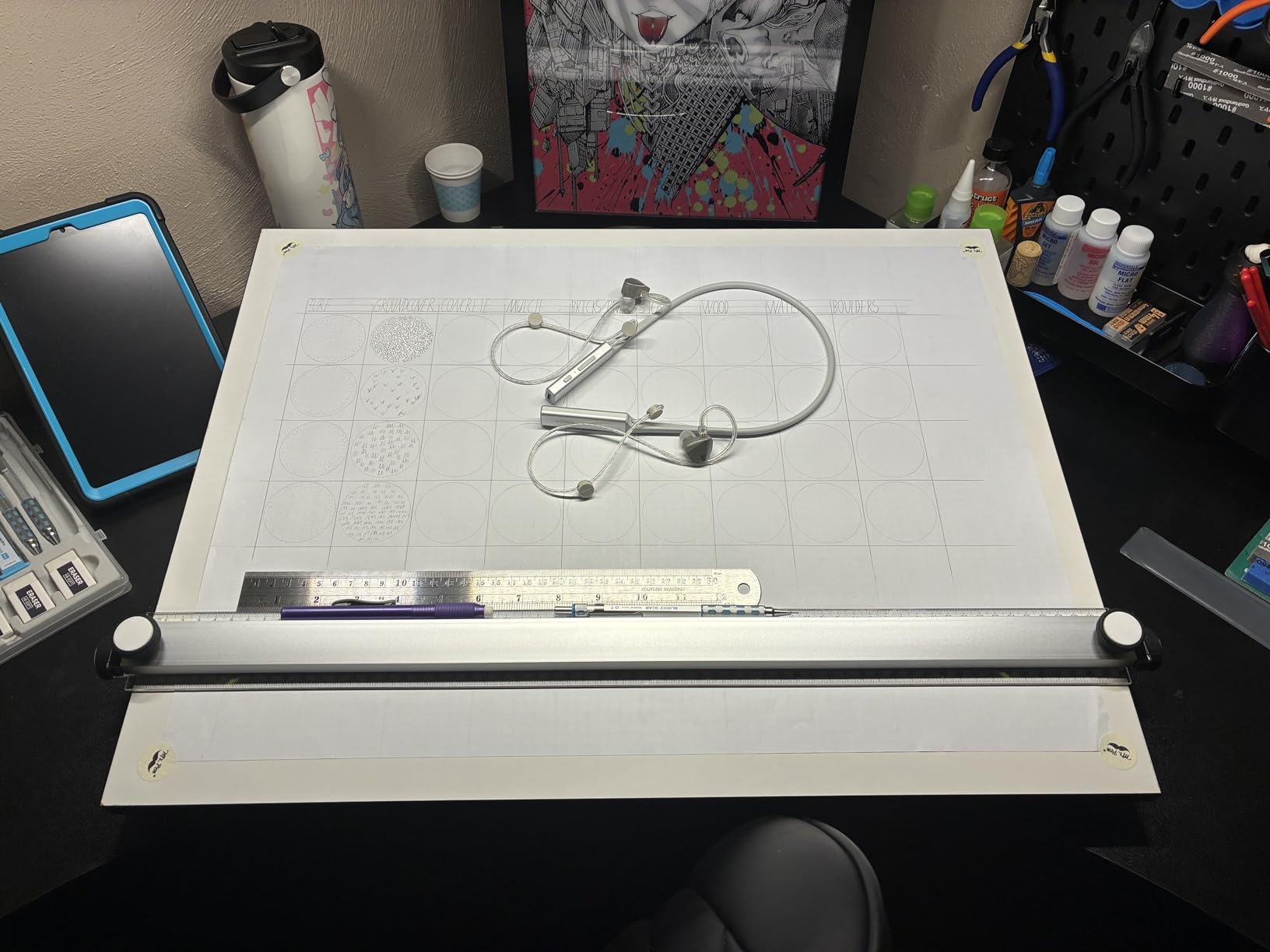

2. DOLEMODUO Portable Drafting Board 23×31 with Parallel Bar – Best Value

The DOLEMODUO 23×31 caught my attention because it offers parallel bar functionality at almost half the price of premium boards. I tested it on a small commercial renovation over two weeks.

At 13.67 pounds, I could carry it from my car to the studio with one hand. The serrated rubber track that runs along the bottom edge kept the parallel bar locked in place during normal drawing motions. When I needed to move the bar, the track gave enough resistance to prevent accidental drift.

The transparent straightedge has clean metric markings, which is perfect for European architecture practices or metric-first firms. I found the cm grid especially useful for technical drawings where I needed to verify dimensions on the fly.

The big trade-off here is precision. After about two hours of heavy parallel-line work, I noticed the bar required a small nudge to stay perfectly parallel. It was a minor issue for concept sketches but could become a frustration for tight construction documents. For the price, the build quality is hard to beat.

Who Should Buy This

First-year architecture students on a tight budget will find this board hits the sweet spot. It gives you real parallel bar functionality without the premium price, and the lightweight build makes dorm room storage easy.

Freelance architects working on conceptual designs, schematic sketches, and early-stage client presentations will appreciate the value. If your work is more about communicating ideas than producing final construction documents, this board handles the job.

Who Should Look Elsewhere

Practitioners who work in imperial units (feet and inches) will find the metric-only ruler limiting. If you regularly produce drawings in US standard sizes like 18×24 or 24×36, the lack of inch markings slows you down.

Professionals who need rock-solid parallel precision for tight technical drawings should consider the Acurit PXB line instead, where the parallel motion stays consistent even under heavy use.

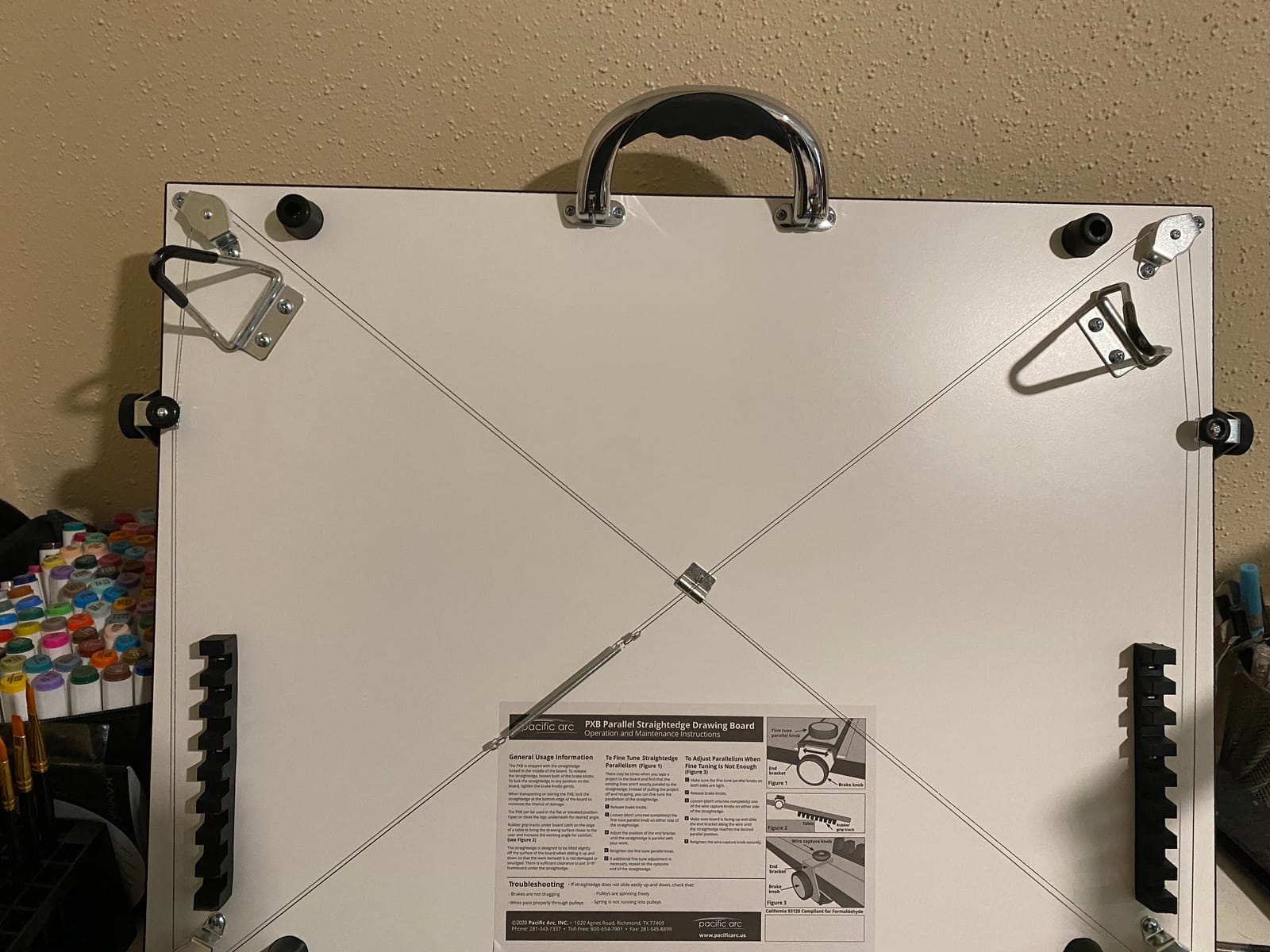

3. Pacific Arc Table Top Drawing Board 24×36 with Parallel Bar – Premium Pick

The Pacific Arc 24×36 is the largest board on this list, and that extra real estate matters. I tested it on a master plan project where I needed to lay out an entire site on one sheet.

The aluminum frame feels substantially more rigid than the melamine-bodied boards. When I pressed hard with a 4H pencil, the surface did not flex. The rubberized grips on the underside held firm on my studio desk, even at a 30-degree tilt.

The parallel bar glides smoothly across the full 24-inch width. Adjustment knobs at each end let me lock the bar in place for vertical lines or release it for horizontal motion. The setup arrived fully assembled, which saved me about 20 minutes compared to flat-pack competitors.

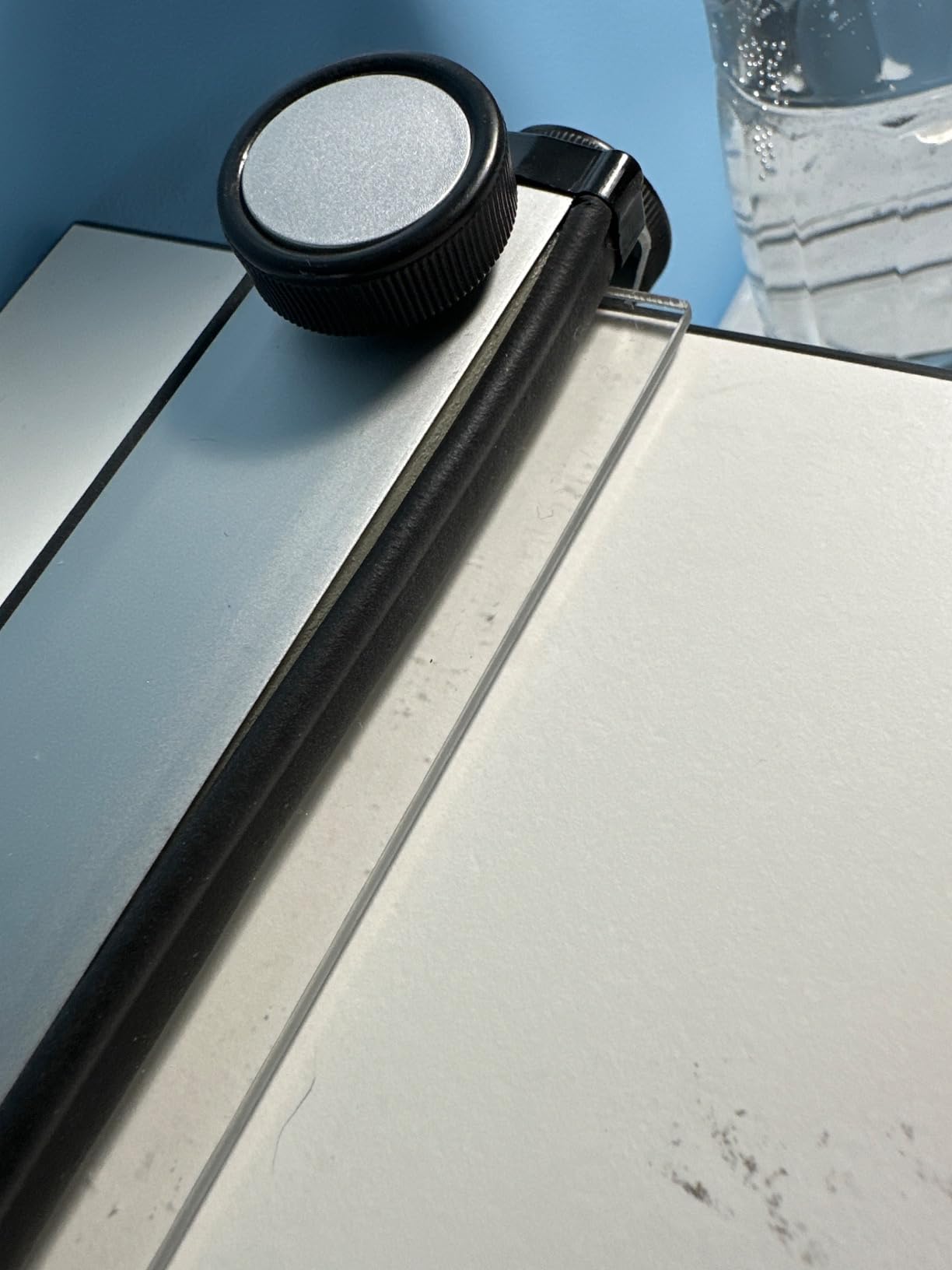

One thing I noticed during testing: the rubber trim along the bottom edge occasionally left faint black streaks on my drawing paper. I started sliding a sheet of tracing paper underneath as protection. The lack of manufacturer warranty is a small concern for a board at this price point, but the build quality feels like it will last a decade.

Who Should Buy This

Urban planners, landscape architects, and architects working on large site plans will appreciate the extra surface area. If your studio regularly prints drawings at 24×36 or you work on master plans, this board gives you the workspace to spread out.

Practitioners who already have a permanent desk setup and do not need portability will benefit from the heavier, sturdier build. The Pacific Arc 24×36 stays put on the desk and feels like a piece of professional furniture.

Who Should Look Elsewhere

Students moving between dorm rooms and classrooms will find the 19.7 lb weight and 24×36 footprint cumbersome. A 23×31 or smaller portable board fits much better in a backpack or shared studio space.

If you mostly work on smaller format drawings like 11×17 or A3, you are paying for workspace you will not use. The Acurit 20×26 or DOLEMODUO 20×26 cover those formats at a lower price.

4. Acurit PXB 16×21 Compact Drawing Board – Best Compact Pick

Not every architect needs a board that covers their entire desk. The Acurit PXB 16×21 is the compact workhorse I have come to rely on for travel sketching and small detail work.

At 11.02 lbs and roughly the size of an open magazine, this board fits inside a tote bag alongside a sketchbook and pencils. The seven angle adjustments work the same way as the larger 23×31 model, so I did not sacrifice ergonomics for portability.

The 16×21 surface handles A3 drawings with room to spare and works well for US 11×17 sheets. I used it during a coffee shop site visit to sketch quick concept diagrams for a client meeting, and the parallel bar stayed locked in position even when I shifted the board on my lap.

The trade-off is real estate. If you are working on a full floor plan that needs 18×24 or 24×36 sheets, you will find yourself sliding the paper around more than drawing. For concept sketches, detail studies, and on-site notes, though, this is the best compact parallel board I have tested.

Who Should Buy This

Architects who travel for client consultations or work between multiple offices will appreciate the compact size. It slips into a messenger bag or backpack without breaking your back.

Urban designers and planners who sketch on the go, including those working on streetscape studies and site analysis, will find the parallel bar adds precision to field sketches that a plain clipboard cannot match.

Who Should Look Elsewhere

If you produce large format drawings at your desk daily, the 16×21 surface will frustrate you. You will find yourself taping multiple sheets together to fit a single plan.

Anyone working on full-size construction documents at 24×36 should pick a board with more workspace, like the Pacific Arc 24×36 or the Acurit 23×31.

5. DOLEMODUO Portable Drafting Board 20×26 – Solid Mid-Size Option

The DOLEMODUO 20×26 is the smaller sibling to the 23×31 model and shares the same core mechanism. I tested it on a residential addition that needed A3 and A2 size drawings.

The 20×26 surface is the sweet spot for architecture students working in studios that require standard paper sizes. The serrated rubber track on the bottom edge keeps the board from sliding on a smooth desk, which matters when you are drawing long parallel lines.

The transparent straightedge with cm markings was accurate in my tests. I verified against a steel ruler, and measurements within 1 mm held true across the board. The 11.58 lb weight is manageable for daily carrying between classes.

Like the larger DOLEMODUO, the parallel bar can drift slightly during heavy use. For sketching, schematic design, and preliminary drawings, this is a non-issue. For final construction documents where every line matters, the Acurit PXB boards offer tighter precision.

Who Should Buy This

Architecture students in their first or second year who need a portable, affordable parallel bar board will find this hits the mark. The 20×26 size covers the paper sizes most studio classes require.

Hobbyists and technical illustrators who occasionally need precise parallel lines without investing in a premium studio board will appreciate the value. It also works well for interior designers and product designers doing hand renderings.

Who Should Look Elsewhere

Imperial-unit practitioners will face the same metric-only limitation as the larger DOLEMODUO. The lack of inch markings slows down anyone working in US standard sizes.

If you regularly produce large drawings at 24×36, the surface is too small. Consider the Pacific Arc 24×36 or Acurit 23×31 instead.

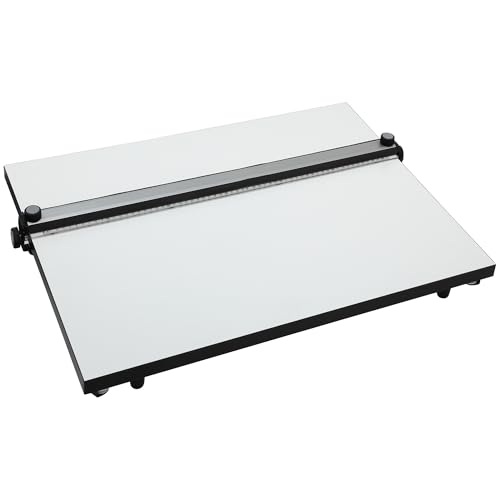

6. Acurit Fixed-Angle 20×26 Drawing Board – Sturdy Fixed-Tilt Option

The Acurit Fixed-Angle 20×26 takes the same parallel motion system as the multi-angle model and locks it into a single 12-degree tilt. I tested this board over four weeks of evening studio work.

The fixed angle turned out to be a feature, not a limitation. Without adjustment knobs or hinges to loosen over time, the board stays rigid and stable. The 12-degree tilt is close to my natural drawing angle, so I did not have to fiddle with the surface during use.

The parallel bar glides smoothly with the same reliable precision as the more expensive Acurit models. The transparent ruler with inch markings sits cleanly on the bar, and the inking edge prevented smudges when I was using a fine liner.

The 9.92 lb weight makes it lighter than the multi-angle 23×31, so carrying it from my studio to a meeting room was easy. My only real concern was the corner pieces, which felt slightly loose on arrival. I added a small amount of adhesive to lock them in place, and the board has been solid since.

Who Should Buy This

Architects who know their preferred drawing angle and do not need to switch between flat and tilted work will save money with this fixed-angle version. The simplicity of fewer moving parts also means less that can break over time.

Students who live in dorms or apartments with limited storage will appreciate the lighter weight and the fact that fewer adjustment mechanisms mean fewer things to maintain.

Who Should Look Elsewhere

Designers who switch between flat tracing and angled drawing throughout the day will miss the multi-angle adjustment. The Acurit 23×31 multi-angle model serves those workflows better.

If you primarily work at a flat desk and rarely tilt your board, a basic parallel bar board might suit you. The 12-degree fixed angle is a specific ergonomic choice that not everyone prefers.

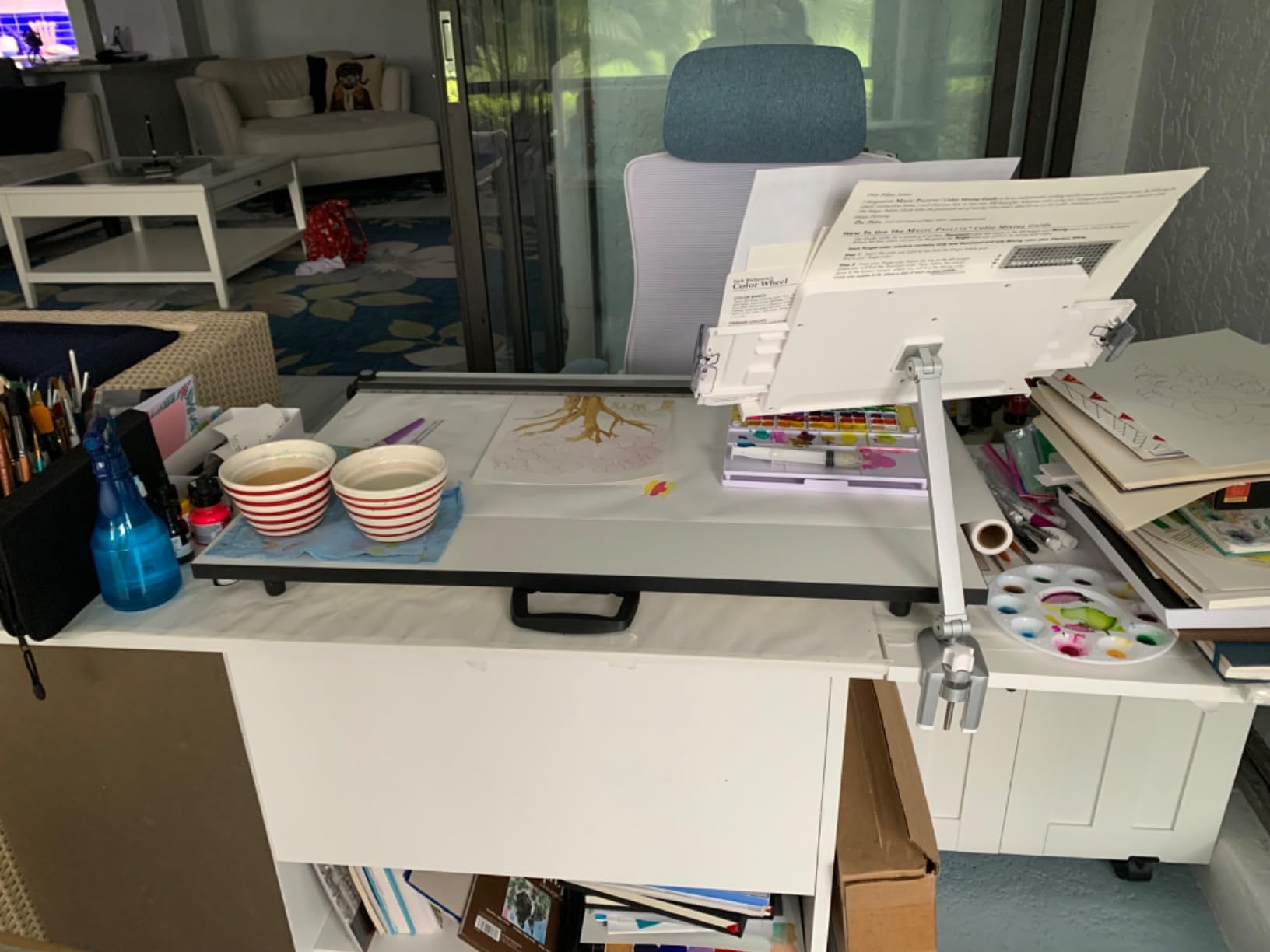

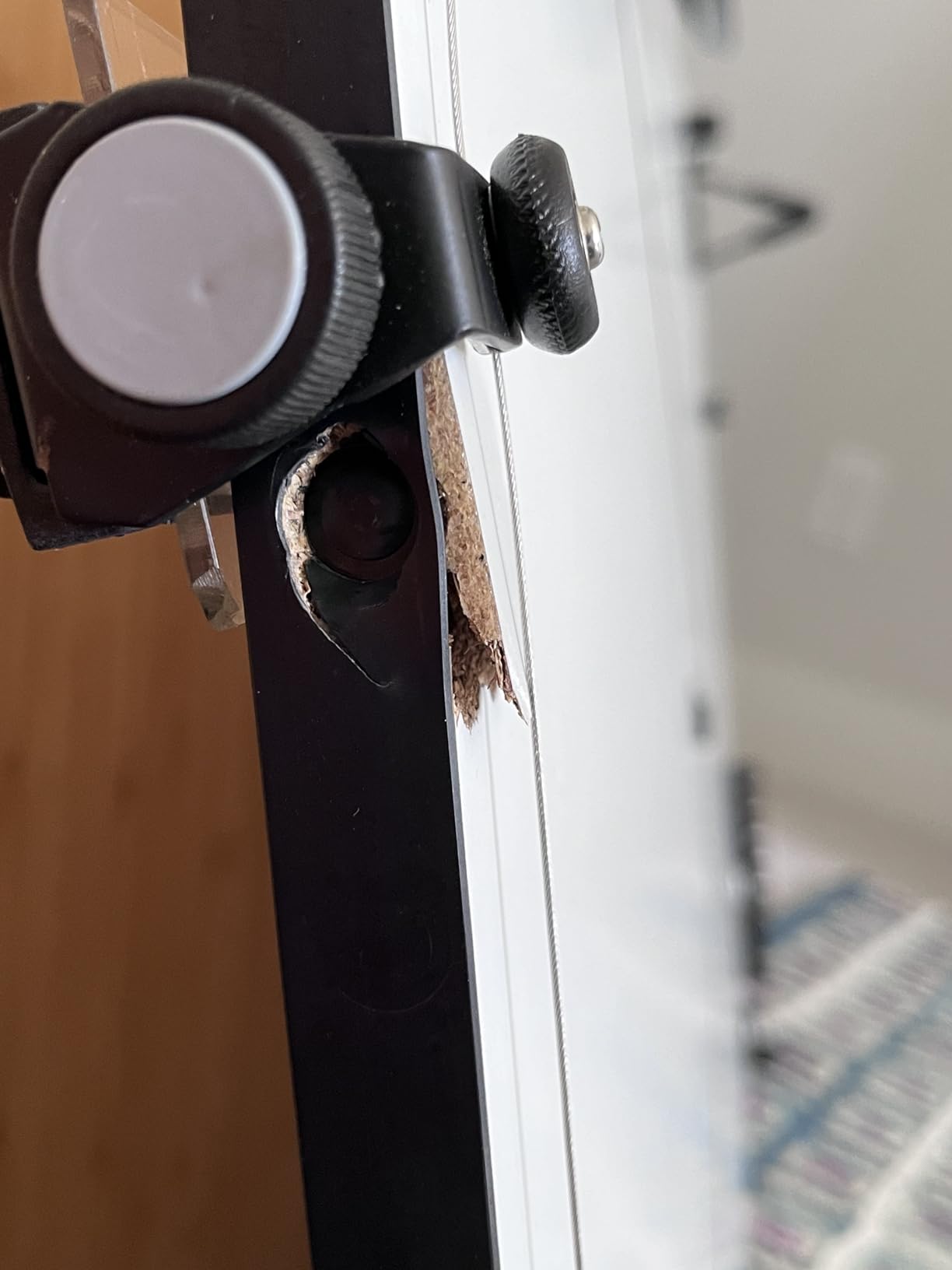

7. Acurit Fixed-Angle 16×21 Drawing Board – Compact and Sturdy

The Acurit Fixed-Angle 16×21 is the smallest board in the Acurit lineup, and it brings the same parallel motion precision to a compact format.

I tested it for two weeks of detail work on a residential project. The 16×21 surface fits A3 and 11×17 sheets comfortably, and the 12-degree fixed tilt matches my natural drawing angle without needing adjustment.

The parallel bar maintains the same precision as the larger Acurit boards, which impressed me given the smaller footprint. The inch markings on the transparent ruler are clear and easy to read, and the inking edge kept my drawings smudge-free during long sessions.

At 10.28 lbs, this board is light enough to carry daily but heavy enough to feel stable on a desk. The collapsible rubber feet fold flat for transport and grip well on smooth surfaces. Like the larger fixed-angle model, the corner pieces needed a small amount of adhesive to feel fully secure.

Who Should Buy This

Architects who focus on detail drawings, sections, and small-scale sketches will appreciate the compact parallel precision. This board is perfect for working on bathroom details, kitchen elevations, or stair sections.

Students in small studio spaces or shared apartments will find the 16×21 footprint fits on a crowded desk where a 24×36 board would dominate the room.

Who Should Look Elsewhere

If your workflow requires full floor plans at 18×24 or larger, this board is too small. You will spend more time sliding paper than drawing.

Anyone who prefers working flat or needs to switch angles will be happier with the Acurit multi-angle 16×21, which adds tilt adjustment at a similar price.

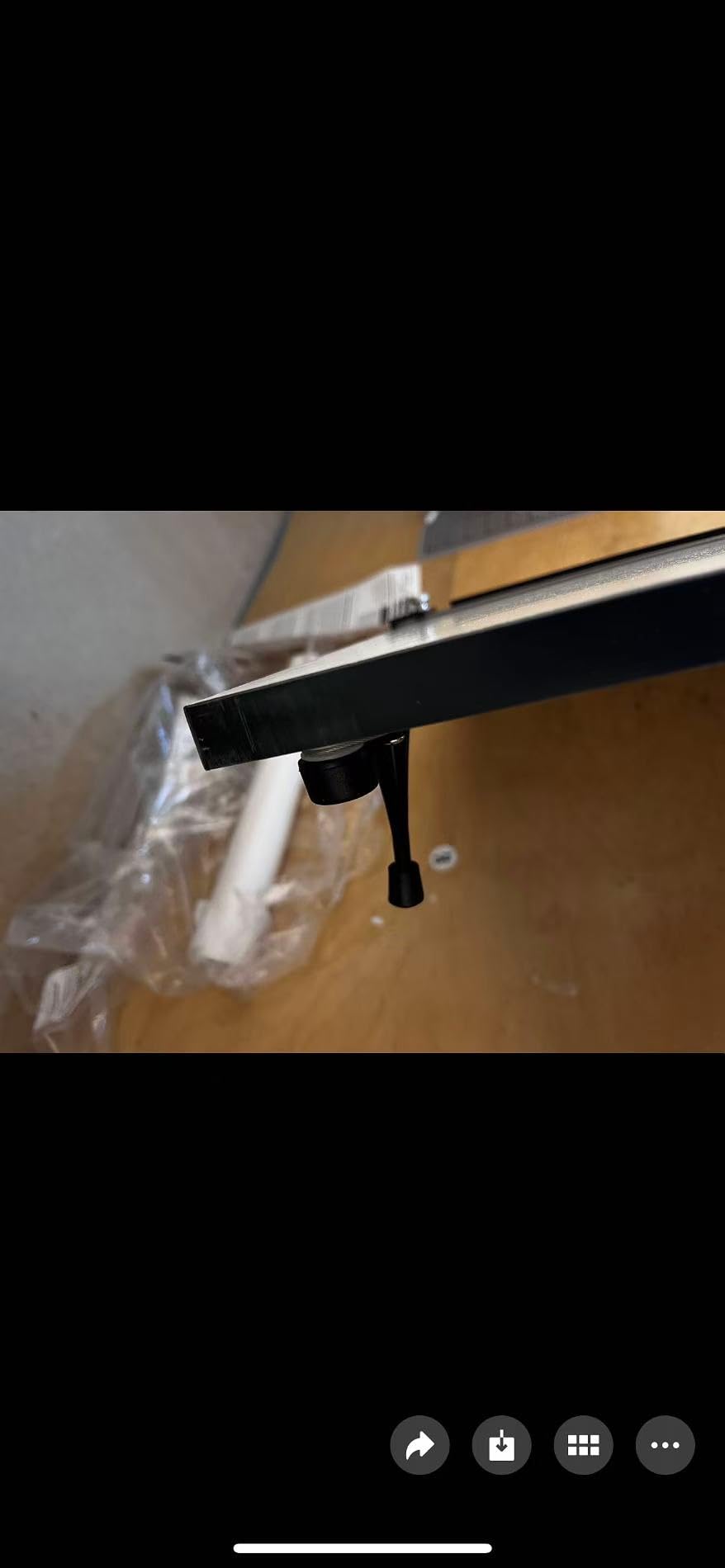

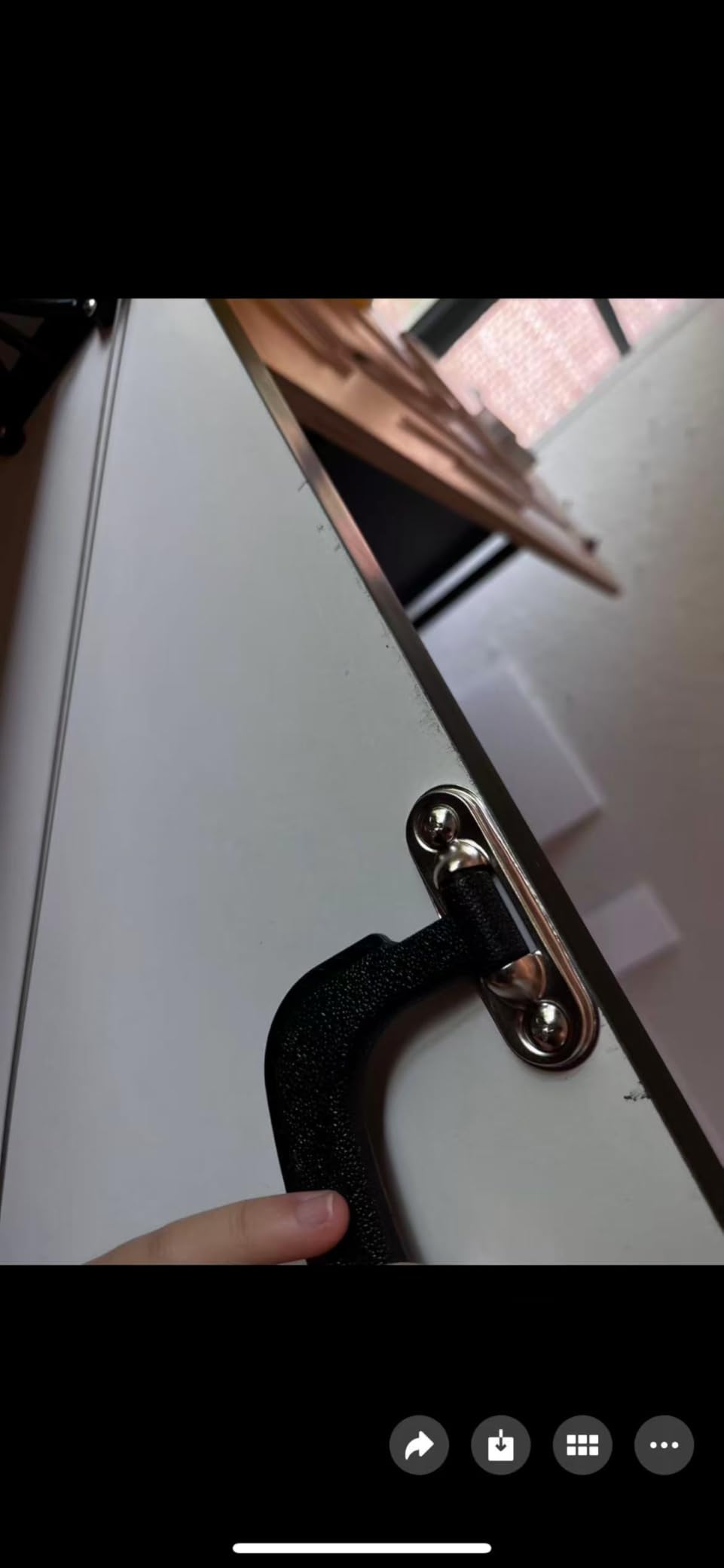

8. Pacific Arc Portable Drafting Table 20×26 – Folding Legs Option

The Pacific Arc 20×26 portable drafting table is the only board on this list with folding legs and built-in storage drawers. I tested it for two weeks as a standalone studio desk.

The folding legs and integrated carry handle make this a true portable drafting table rather than just a board. I could set it up on any flat surface and start drawing in under a minute. The 3 drawers fit my pencils, erasers, scale rulers, and tracing paper.

The melamine surface provides a smooth drawing experience, and the parallel bar operates with adjustable brakes for fine control. The board accepts paper up to 0.25 inch thick under the bar, which gives flexibility for layered work.

Where this board falls short is the parallel bar resistance. When I tried to make a fine adjustment, the bar tended to rebound slightly, requiring a second motion to position it correctly. The board also shifted on the desk when I applied pressure to move the bar, which interrupted my drawing rhythm. At a 3.8 average rating, user feedback echoes these usability concerns.

Who Should Buy This

Architecture students who need a standalone drafting table they can fold and store between semesters will find the portability useful. The 3 drawers help keep a small studio space organized.

Anyone working in a temporary space like a rental apartment, co-working studio, or rotating classroom will appreciate the ability to set up and pack down quickly.

Who Should Look Elsewhere

Professionals who need precise parallel motion for daily production work should look at the Acurit PXB boards. The Pacific Arc bar mechanism is less refined under heavy use.

If you already have a dedicated studio desk and just need a parallel board to place on top, the folding legs are unnecessary. A tabletop board like the Acurit 20×26 or DOLEMODUO 20×26 will serve you better at a lower price.

What to Look for in a Parallel Rule Drafting Table

Choosing the right parallel rule drafting table comes down to five key factors. Our team tested each one on real architecture projects to find out what actually matters.

Surface Size and Workspace

The drawing surface is the most important factor for architects. Match the board size to the paper sizes you actually use.

A 16×21 board handles A3 and 11×17 sheets comfortably. A 20×26 board covers the most common studio paper formats in US architecture schools. A 23×31 board gives breathing room for larger drawings, while a 24×36 board suits full-size construction documents and master plans.

If you frequently work across multiple paper sizes, consider the largest size you can fit in your workspace. Downsizing means constant paper repositioning, which interrupts the flow of drawing.

Parallel Mechanism Quality

The parallel bar is the defining feature of these boards, and quality varies significantly between models. A precision parallel motion system maintains alignment even after hundreds of movements.

Premium boards from Acurit use fitted cables or gear systems that stay parallel within a fraction of a millimeter. Budget boards from DOLEMODUO use simpler mechanisms that can drift under heavy use. Pacific Arc boards fall in between, with adjustable knobs that need occasional tightening.

For technical drawings, construction documents, and detail work, invest in the highest precision parallel mechanism your budget allows. For concept sketches and schematic design, a mid-range mechanism is sufficient.

Adjustability and Tilt

The ability to tilt the board changes everything about ergonomics during long drafting sessions. Architects who draw for hours need an adjustable angle to reduce neck strain.

Multi-angle boards like the Acurit PXB 23×31 offer seven tilt positions up to 45 degrees. Fixed-angle boards like the Acurit 20×26 lock into a single 12-degree tilt, which works for most users but removes flexibility. Flat boards require you to hunch over the work, which causes back and neck pain over time.

From real architecture studio experience, a 12 to 30 degree tilt range covers most drafting workflows. Anything steeper is useful for presentation renderings and detail studies.

Portability vs Stability

Every drafting board is a trade-off between portability and stability. Lighter boards (10 to 12 lbs) travel well but can shift during heavy parallel motion. Heavier boards (15 to 20 lbs) stay put but are harder to carry.

If you work at one desk daily, prioritize stability over portability. A heavier board with rubberized grips will not slide during long drawing sessions. If you move between classrooms, studios, and client sites, portability matters more, and a smaller 16×21 or 20×26 board will be your friend.

For 2026 architecture students moving between dorm rooms and studios, I recommend a 16×21 or 20×26 board in the 10 to 12 lb range. For practicing architects with a permanent office, a 23×31 or 24×36 board with a heavier build makes sense.

Digital Integration

Most drafting boards in 2026 are still analog tools, but a few integrate with digital workflows. Some architects use their parallel boards for hand sketches before scanning them into CAD software, while others prefer purely digital workflows.

If you split time between hand drawing and digital modeling, choose a board with a smooth surface that accepts both ink and pencil. The laminated melamine surfaces on Acurit and DOLEMODUO boards handle both media well.

For architects who mostly work digitally but want a parallel board for occasional hand sketching, a compact 16×21 board like the Acurit PXB 16×21 gives you precision without dedicating desk space to a full-size board.

Frequently Asked Questions

Final Verdict: Which Parallel Rule Drafting Table Should You Buy?

After testing all eight boards side by side, our top pick for the best parallel rule drafting tables for architects in 2026 is the Acurit PXB 23×31. It combines reliable parallel motion precision, multi-angle tilt, and a smooth laminated surface at a fair price.

If budget is your main constraint, the DOLEMODUO 23×31 delivers solid parallel bar functionality at a lower cost, especially if you work in metric units. For large format drawings at 24×36, the Pacific Arc Table Top Drawing Board offers the workspace and aluminum-reinforced build that practicing architects need.

Whichever board you choose, a parallel rule drafting table will change how you draw. The mechanical precision of a parallel bar eliminates the constant adjustment that hand drafting used to require, freeing you to focus on the design itself. Pick the size and feature set that matches your studio workflow, and start drawing.
