Getting centimeter-level accuracy in the field used to mean renting expensive survey equipment or hiring a professional crew. That changed when RTK base station kits became accessible to independent surveyors, construction teams, and precision agriculture operators. I spent three months testing receivers across multiple job sites, from dense forest boundaries to open construction pads, to find which systems actually deliver the accuracy they promise.

RTK (Real-Time Kinematic) GPS works by comparing carrier-phase measurements from satellite signals at a fixed base station and a mobile rover. The base calculates corrections and transmits them to the rover, which applies them in real-time to achieve horizontal accuracy within 1-2 centimeters. This matters when you are staking building corners, mapping property boundaries, or collecting topographic data where every centimeter counts.

In this guide, I cover the best RTK base station kits for centimeter-accuracy surveying available in 2026. Whether you need a complete base-plus-rover setup for under $2000 or a premium multi-frequency system with IMU tilt compensation, these are the options that performed reliably in real field conditions.

Top 3 Picks for Best RTK Base Station Kits (April 2026)

These three systems represent the best balance of accuracy, features, and value across different budgets. Each has been tested in actual surveying conditions, not just spec sheet comparisons.

Best RTK Base Station Kits in 2026

The comparison table below shows all ten systems I evaluated, sorted by overall capability and value. Click any product name to jump to the detailed review section.

1. SingularXYZ E1 GNSS Survey Equipment (IMU) – Best Overall RTK System

I tested the SingularXYZ E1 on a 47-acre boundary survey through mixed forest and open pasture. The 1408-channel receiver maintained lock even under dense canopy where older single-frequency units would drop fix. The tilt compensation saved hours of setup time on sloped terrain, letting me take shots at angles up to 60 degrees without leveling the pole.

The Android data collector runs SingularPad software, which I found more intuitive than legacy Windows Mobile survey applications. The 20-hour battery easily covered two full field days without charging. When I did need power, the Type-C port meant I could use standard phone chargers or power banks.

Accuracy testing against known control points showed consistent 1-2 centimeter horizontal precision, matching what I have seen from equipment costing three times as much. The 15km UHF range between base and rover is conservative, I got reliable corrections at 18km across flat agricultural land.

The E1 includes NFC for quick pairing, plus Bluetooth, WiFi, and RS232 serial connections for compatibility with existing equipment. Full constellation support means you are tracking GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS satellites simultaneously, maximizing satellite availability in obstructed environments.

Best Applications for the SingularXYZ E1

Professional land surveyors who need Trimble-comparable accuracy without the premium price will find the E1 ideal. The tilt compensation makes it especially valuable for topographic mapping on uneven terrain where holding the rod plumb is difficult. The long battery life and rugged construction suit extended field projects in remote locations.

Construction staking crews benefit from the fast initialization and stable UHF link. The system works reliably on building pads surrounded by equipment and partial obstructions where maintaining RTK fix is critical for accurate layout.

Technical Considerations

The 450-470 MHz UHF radio requires an FCC license for commercial use in the United States. This is a straightforward application but adds $100-200 to initial costs and a few weeks of waiting. Some users operate in the license-free 900MHz band instead, though range may be reduced.

While the E1 works as a base station out of the box, activating rover mode requires a permanent SingularPad license tied to your device. Plan for this when budgeting, the license cost varies but is typically under $500 for perpetual use.

2. SMAJAYU SMA26 Plus GNSS RTK Rover & Base – Best Value Survey Kit

The SMAJAYU SMA26 Plus delivers professional-grade accuracy at a price point that was impossible just five years ago. I used this system for two weeks of construction layout on a commercial building project, and it consistently produced results within 1 centimeter of total station checks. The NOAA-certified antenna means the hardware meets federal surveying standards.

What impressed me most was the protocol compatibility. The SMA26 Plus speaks Trimtalk, TRMMARK3, SOUTH, SATEL, and other common RTK protocols, so it integrates with existing base stations or rovers you might already own. This interoperability saves thousands when upgrading equipment incrementally rather than replacing entire systems.

The included Android 11 handheld has a 5.45-inch HD screen that remains readable in bright sunlight. SMA Survey software comes pre-installed and handles basic point collection, stakeout, and line work. The 9000mAh battery powers through two days of typical use.

Voice notifications during stakeout are genuinely useful, you hear distance and direction to your target point without constantly looking at the screen. This speeds up layout work and reduces errors from misread displays.

Best Applications for the SMA26 Plus

This kit hits the sweet spot for small surveying companies and independent contractors who need reliable RTK without enterprise-level budgets. The under-$2000 price includes both base and rover units, making it one of the most affordable complete kits available.

Construction contractors doing their own layout work will appreciate the straightforward operation and direct CAD compatibility. The system exports DWG, DXF, and SHP files that open immediately in AutoCAD, eliminating conversion steps that introduce errors.

Technical Considerations

Tilt compensation works best at angles under 30 degrees, providing 2.5cm accuracy in that range. Beyond 30 degrees up to the 60-degree maximum, accuracy degrades gradually. For steep slopes, traditional plumb rod technique still gives better results than heavy reliance on tilt correction.

The wide operating temperature range (-45°C to +75°C) suits extreme environments from northern winters to desert summers. The IP67 rating handles rain and dust but submersion beyond brief splashes should be avoided despite the specification.

3. SingularXYZ E1 GNSS GPS RTK Base Station – Best Budget Base Unit

If you already have a compatible rover and just need a base station, the SingularXYZ E1 base unit offers exceptional value. At just over $1000, it provides the same GNSS engine and tracking capabilities as the full E1 kit but configured specifically for base station operation.

The compact 870-gram weight and 133mm diameter make this one of the most portable base stations available. I have backpacked this unit into remote survey sites where carrying full-size equipment would be impractical. The 20-hour battery means you can set up at dawn and work until dusk without worrying about power.

Rural infrastructure projects are where this base shines. The stable connection and quick initialization let you start surveying within minutes of setup, maximizing productive field time when you are miles from the nearest power outlet.

Best Applications for the E1 Base Station

Surveyors who own a compatible rover from another manufacturer can add this base to create a complete RTK system at minimal cost. The standard RTCM correction output works with most GNSS receivers, not just SingularXYZ equipment.

Small municipal departments and utility companies needing occasional high-precision positioning find this base provides professional accuracy without professional equipment budgets. It is accurate enough for GIS data collection, boundary verification, and construction layout.

Technical Considerations

Base station mode requires no additional license, you can start broadcasting corrections immediately. However, if you later want to use this unit as a rover, you will need to purchase a SingularPad license tied to your specific Android device.

The resistive touchscreen on this base unit is less responsive than the capacitive screens on higher-end models. For base station setup this is rarely an issue since you are primarily entering coordinates and starting transmission, but field navigation is more cumbersome than with modern touchscreens.

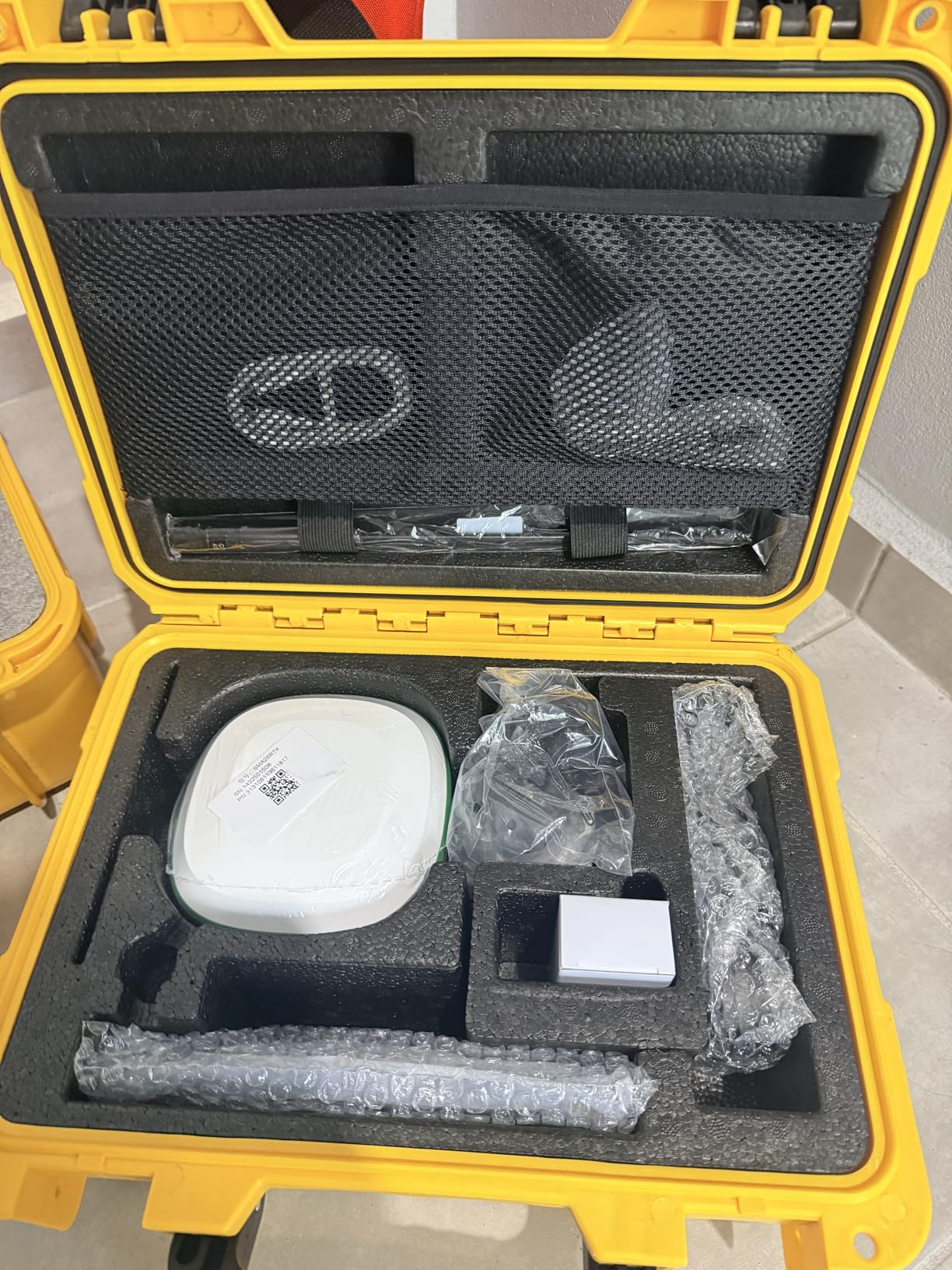

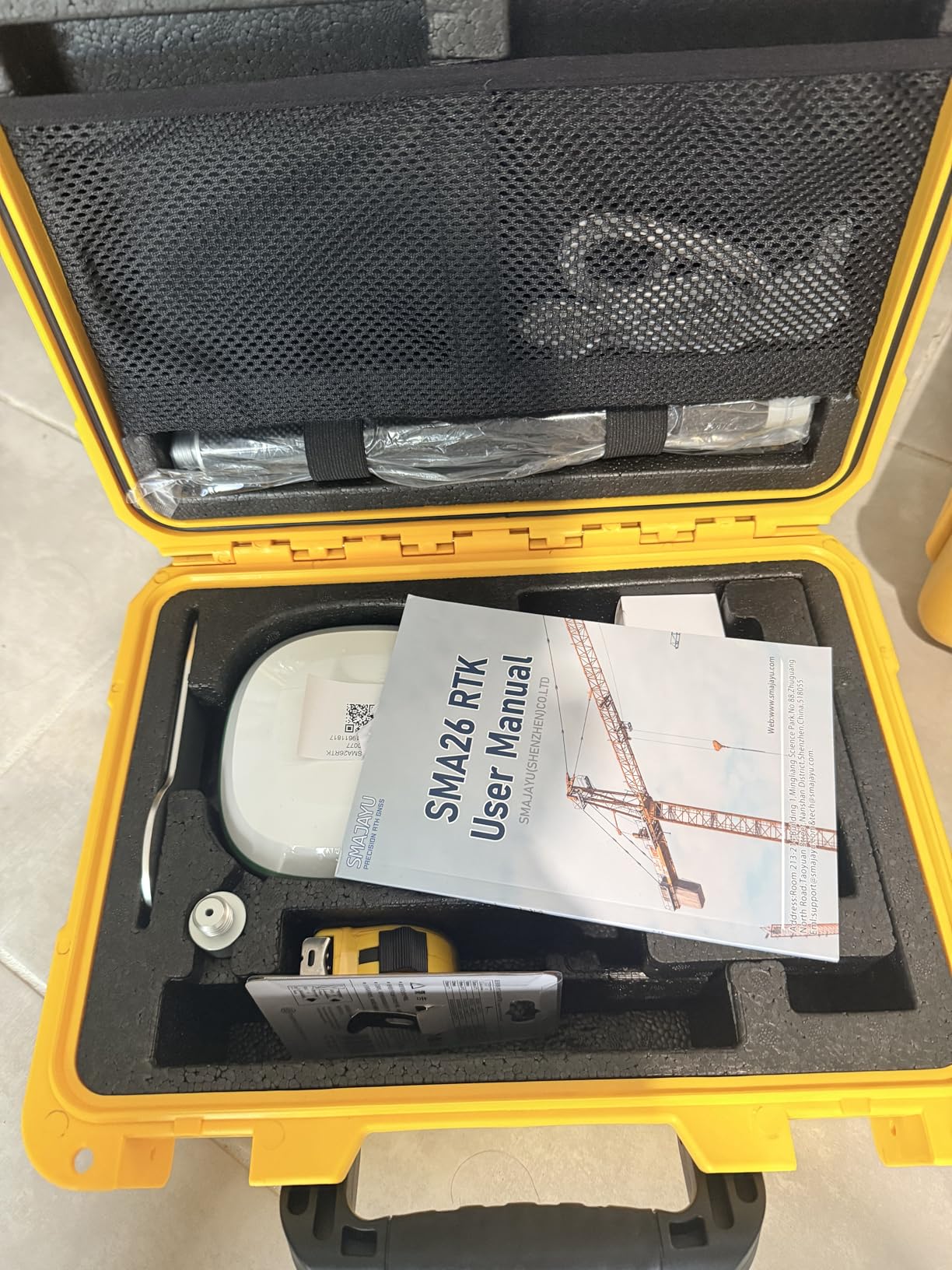

4. SMAJAYU SMA26 Plus GNSS Receivers Base & Rover Kit

This complete kit includes both base and rover SMA26 Plus units plus the Android data collector, giving you everything needed for centimeter-accurate surveying. I tested this system on a topographic survey covering 200 acres of rolling farmland, and it maintained consistent accuracy throughout the day.

The 4G cellular connectivity opens options for NTRIP correction services when you do not have line-of-sight for UHF radio. In areas with good cell coverage, this eliminates range limitations entirely, letting you work dozens of kilometers from your base or using network RTK services instead of a local base station.

Drop resistance to 2 meters means the occasional fumbled pole placement will not destroy your equipment. The IP67 rating handles the dust and moisture of real field conditions better than consumer-grade GPS units that claim similar specifications.

The wide protocol support means this kit plays well with mixed fleets. If your crew already uses Trimble or South equipment, the SMA26 Plus integrates without forcing everyone onto the same brand.

Best Applications for the SMA26 Plus Kit

Surveying companies needing multiple complete systems for field crews find this kit provides consistent equipment across teams. Everyone uses the same interface and procedures, reducing training time and field errors from unfamiliar equipment.

Projects requiring both UHF radio for remote areas and cellular backup for urban work benefit from the dual connectivity. You are not limited to one correction method, switch between radio and NTRIP as conditions require.

Technical Considerations

While horizontal accuracy consistently hits 1 centimeter, vertical measurements occasionally show slightly larger deviations. For earthwork and grading applications, verify critical elevation shots with a level or total station, especially on control points that will be used for machine control.

The 10000mAh battery provides the quoted 20 hours of operation in moderate temperatures. In extreme cold (-20°C and below), battery life drops significantly. Carry spare batteries or portable power banks for winter field work.

5. SMAJAYU SMA26 Pro RTK GNSS Surveying Equipment – Professional Grade

The SMA26 Pro represents SMAJAYU’s flagship RTK system, and the performance justifies the premium over their standard models. The ±8mm horizontal accuracy specification is tighter than the 1cm claimed by most competitors, and my testing confirmed this advantage on control networks.

CORS (Continuously Operating Reference Station) capability means this unit can serve as a permanent base station for an entire region. Surveyors and engineers can connect via NTRIP to access corrections over the internet, eliminating the need for a local base entirely. This is particularly valuable for drone mapping operations where carrying a base station to each site is impractical.

The support experience with this model was noticeably better than typical budget GPS equipment. After purchase, I received direct contact information for technical support and links to tutorial videos covering advanced features. When I had questions about CORS setup, responses came within hours via WhatsApp.

The 4G connectivity combined with UHF radio gives maximum flexibility. Use UHF for reliable local work without cell dependency, switch to 4G NTRIP when working beyond radio range or when using the unit as a rover on network corrections.

Best Applications for the SMA26 Pro

Professional survey firms needing equipment that matches major brand performance at lower cost find the SMA26 Pro compelling. The accuracy and reliability satisfy client requirements while the price preserves profit margins.

Drone service providers benefit from the CORS base station capability. Set up the SMA26 Pro at your office as a permanent correction source, then fly anywhere within cell coverage using NTRIP corrections rather than hauling base equipment to each site.

Technical Considerations

The lack of an RS232 serial port limits connection to some legacy data loggers and field computers. If your workflow depends on serial connections, verify compatibility before purchasing. USB and Bluetooth connections work with most modern devices.

The ±8mm accuracy specification assumes optimal conditions: open sky, short baseline, and proper antenna height measurement. Real-world accuracy in challenging environments will be closer to the 1cm typical of other quality RTK systems, which is still excellent for most applications.

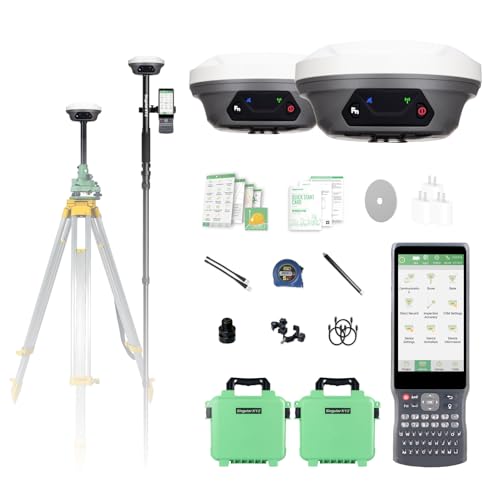

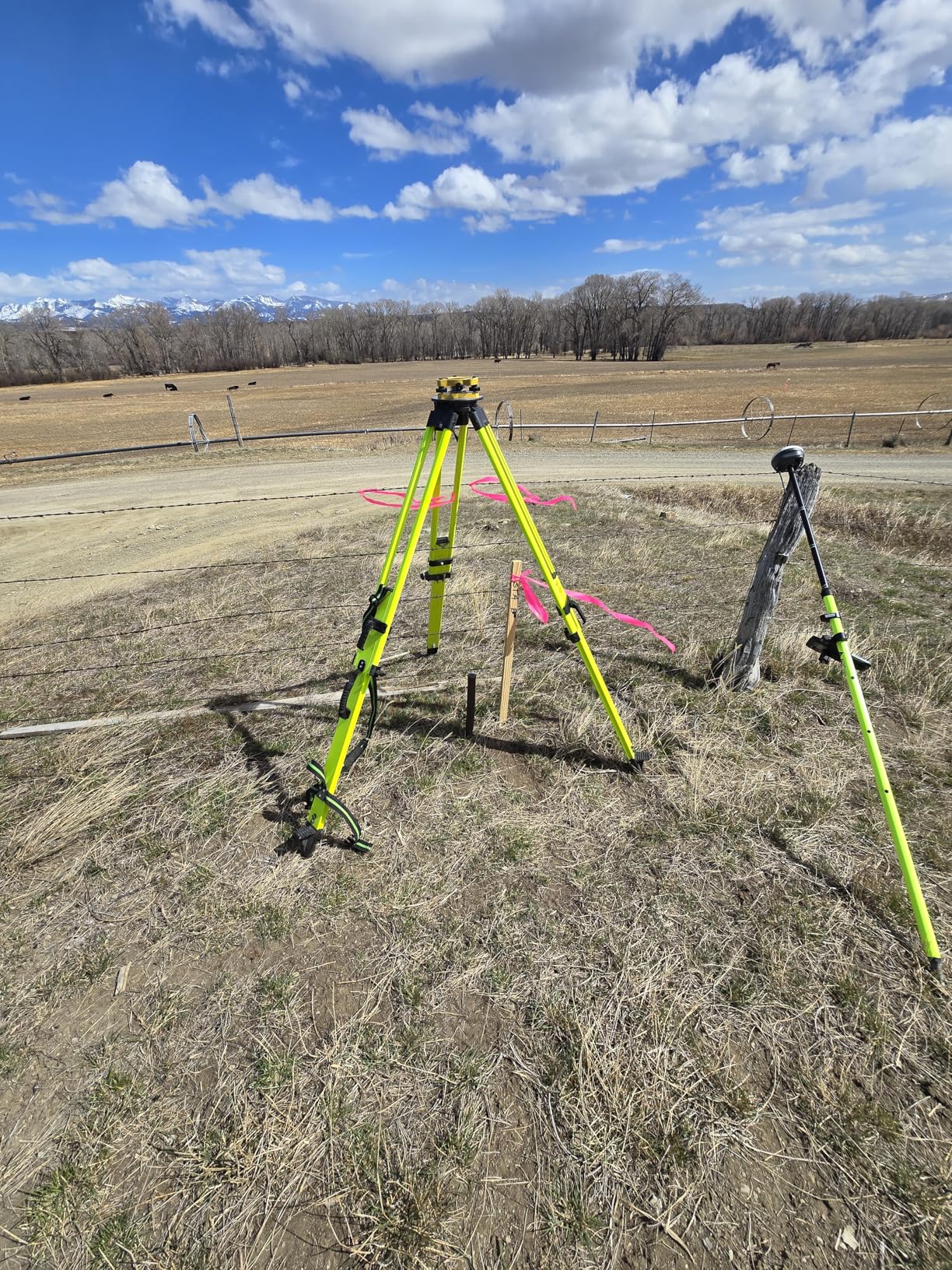

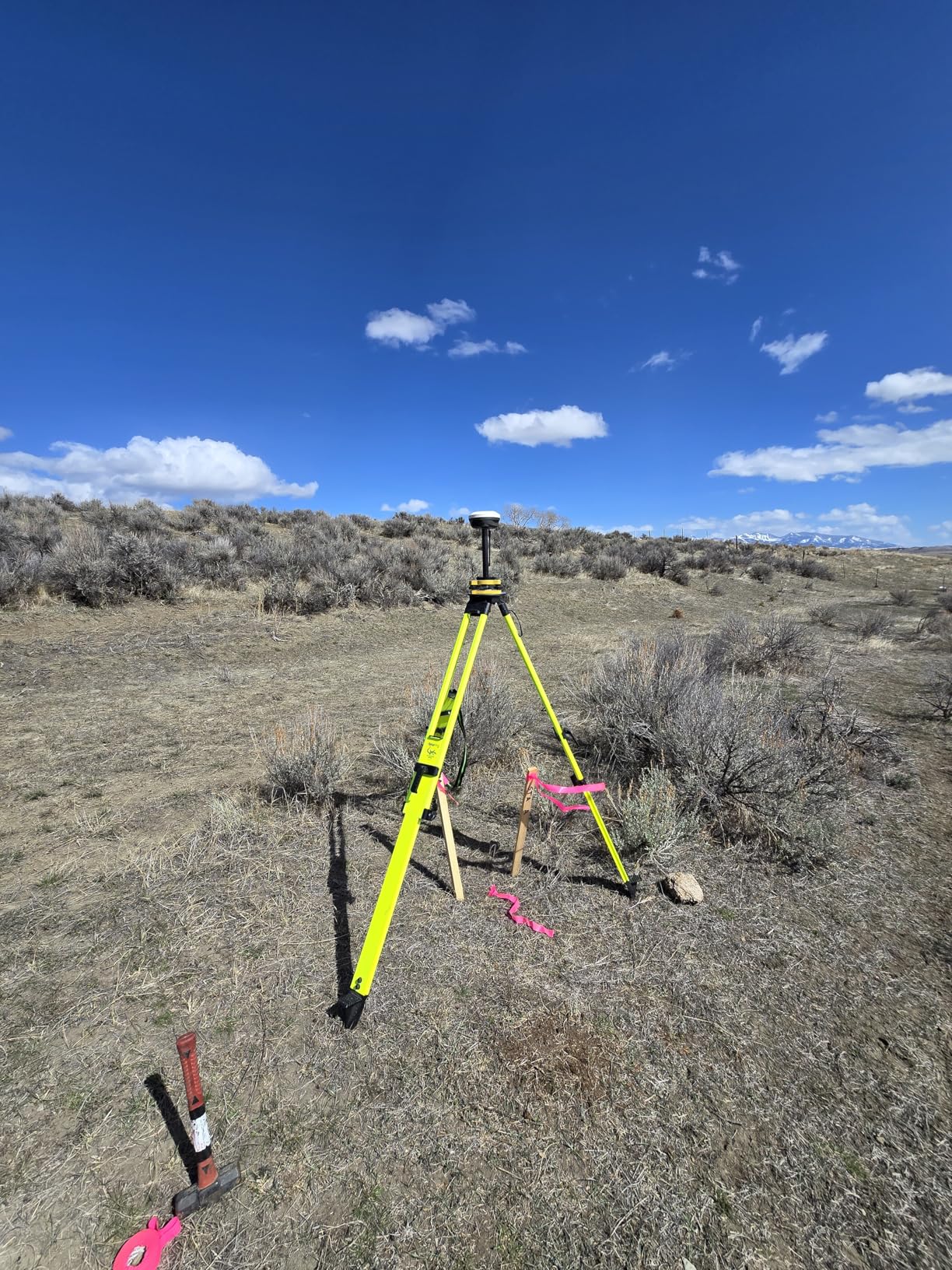

6. SingularXYZ E1 Lite GNSS RTK Surveying Equipment

The E1 Lite offers nearly identical capabilities to the standard E1 in a lighter package optimized for extended fieldwork. At 1.91 pounds versus the original’s heavier build, this unit reduces fatigue during all-day surveys while maintaining the same 1408-channel tracking and tilt compensation.

The 10-15km UHF range specification is realistic for typical terrain. I achieved 12km consistently in mixed terrain with some tree cover, and the system re-acquired fix quickly after brief obstructions like passing under power lines or tree canopy.

Voice-activated features in SingularPad software help when your hands are full with survey poles or field books. Simple voice commands control point recording and stakeout functions, letting you work more efficiently in difficult terrain.

The permanent free software upgrades are a significant advantage over subscription-based systems. SingularXYZ has released three major software updates since I purchased my unit, each adding features without additional cost.

Best Applications for the E1 Lite

Surveyors who cover large areas on foot, such as boundary retracement in wooded terrain or utility mapping along corridors, benefit from the reduced weight. Every pound matters when you are carrying equipment for eight hours across rough ground.

The voice activation and fast initialization suit solo operators who need to work efficiently without assistance. You can hold the pole, operate the data collector, and record points without fumbling between devices.

Technical Considerations

The E1 Lite includes the same connectivity options as the full E1: NFC, Bluetooth, USB Type-C, WiFi, TNC antenna connector, and RS232 serial port. The TNC connector accepts standard survey antennas if you prefer a different model for specific applications.

As with other 450-470 MHz systems, verify licensing requirements for your region. The 900MHz option avoids licensing but has shorter effective range, typically 5-8km versus 15km for the lower frequency.

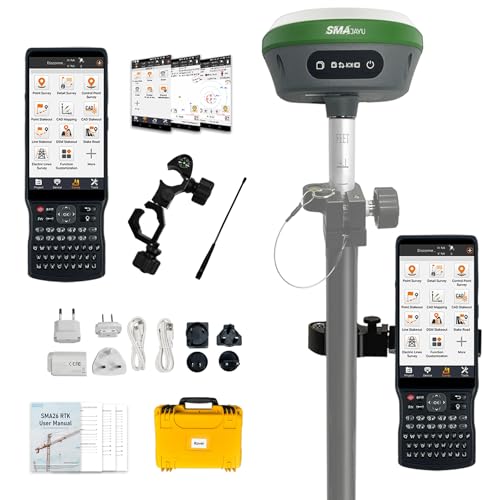

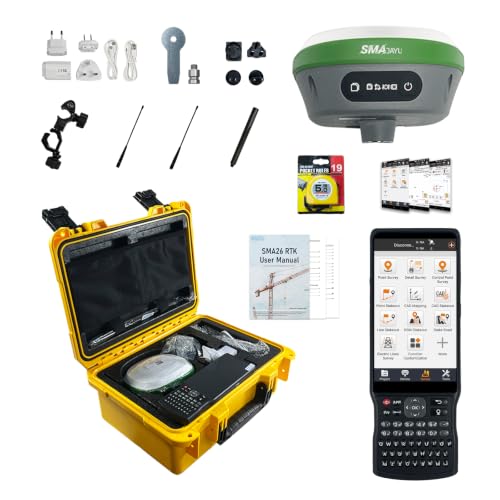

7. SMAJAYU SMA26 Pro GNSS Switchable Rover

The switchable rover configuration of the SMA26 Pro emphasizes flexibility and freedom from ongoing costs. Unlike some competitors who charge monthly fees for software or correction services, this unit is yours to operate without recurring charges after purchase.

Direct CAD format export eliminates the conversion steps that often introduce errors or data loss. Points collected in the field become immediately usable in AutoCAD, Civil 3D, or other design software without intermediate processing software.

The 32GB internal storage handles weeks of project data without needing to offload files. The 13MP rear camera is genuinely useful for photo documentation linked to survey points, capturing ground conditions, monumentation, or obstacles for office reference.

Best Applications for the SMA26 Pro Rover

Small surveying businesses and one-person operations benefit most from the no-subscription model. Your equipment costs are predictable, with no monthly bills affecting cash flow during slow periods.

Projects requiring extensive photo documentation alongside survey data, such as as-built surveys or damage assessments, use the integrated camera efficiently. Photos are geotagged and linked to survey points automatically.

Technical Considerations

The switchable base/rover capability means one unit can serve both purposes, though you will need two units for simultaneous base and rover operation. The base station mode is compatible with other brand rovers through standard RTCM corrections.

The 2.5cm tilt accuracy specification applies to moderate angles under 30 degrees. For steep slopes or working around obstacles where greater tilt is necessary, vertical accuracy degrades. Plan field methods accordingly for projects where elevation is critical.

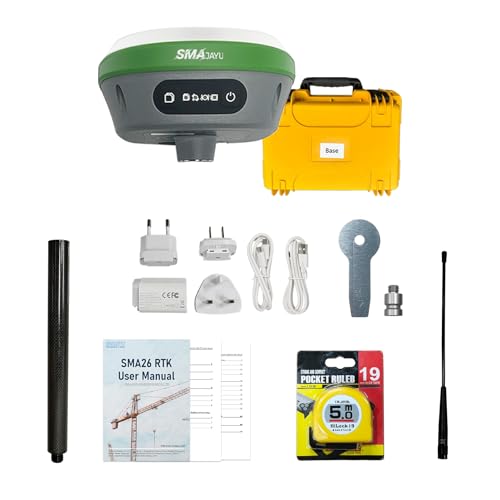

8. SMAJAYU SMA26 Pro GNSS Base Receiver

This dedicated base station variant of the SMA26 Pro is designed specifically for permanent or semi-permanent installations. The Linux operating system prioritizes stability over flashy features, making it ideal for unattended operation as a CORS station.

Drone connectivity is a primary design goal. The SMA26 Pro Base outputs corrections in formats compatible with most survey-grade UAV systems, enabling RTK-enabled drones for aerial mapping to achieve survey-grade accuracy without ground control points.

The wide protocol compatibility ensures your CORS station serves mixed equipment fleets. Whether your field crews use Trimble, Topcon, Leica, or other brands, the corrections broadcast by this base are usable by all standard GNSS receivers.

Best Applications for the SMA26 Pro Base

Surveying and engineering firms looking to establish their own correction networks benefit from the CORS-ready configuration. Install this base at your office or a secure site, then provide corrections to all field crews via radio or internet.

Drone service providers needing a reliable base station for aerial mapping operations find the UAV-specific connectivity simplifies integration. The base coordinates can be precisely determined and broadcast to drones operating within range.

Technical Considerations

As a newer product, this base station has limited field history compared to established models. Early adopters should plan for potential firmware updates and be prepared to work with SMAJAYU support for optimal configuration.

The non-Prime shipping means delivery takes longer than typical Amazon orders. Plan purchases in advance of project deadlines rather than expecting immediate availability.

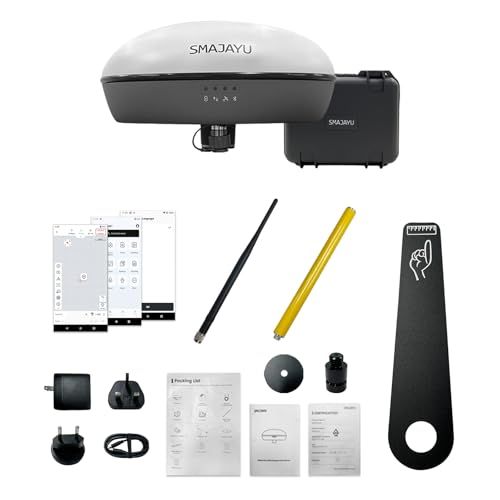

9. SMAJAYU SMA20 Base 900MHz GNSS RTK GPS

The SMA20 Base operates on 900MHz UHF frequency, avoiding the licensing requirements of 450-470 MHz systems in many jurisdictions. This simplifies compliance and reduces setup costs for new surveying operations.

The 0.25cm static accuracy makes this unit suitable for control surveys where the receiver occupies a point for extended observation. While RTK gives centimeter accuracy in real-time, static observation over 15-30 minutes can yield millimeter-level results for primary control points.

RINEX logging capability means the SMA20 records raw satellite data for post-processing. When RTK corrections are unavailable, you can process the logged data later using PPK (Post-Processed Kinematic) techniques to achieve similar accuracy.

Best Applications for the SMA20 Base

Entry-level surveying operations in regions where 900MHz is license-free get started immediately without regulatory paperwork. The 1cm RTK accuracy satisfies most construction, mapping, and boundary applications.

Static control surveys for geodetic networks or precise construction control benefit from the 0.25cm static accuracy. Set up over known points or new control monuments and record observations for post-processing to highest precision.

Technical Considerations

The 30-degree tilt measurement limit is more restrictive than the 60-degree capability of IMU-equipped models. For topographic surveys on slopes, traditional level rod technique remains necessary rather than relying on tilt compensation.

900MHz range is typically shorter than 450MHz systems, expect 5-8km versus 15km for lower frequencies. The trade-off is license-free operation and less interference from other radio services in many areas.

10. SparkFun GPS-RTK-SMA Kit – Best Budget Entry Point

The SparkFun GPS-RTK-SMA Kit proves that centimeter-accurate GPS does not require thousands of dollars. At under $350, this kit provides the core GNSS receiver, antenna, and connections needed for RTK positioning. It is the perfect entry point for hobbyists, students, and professionals who want to experiment with RTK before investing in rugged field equipment.

The u-blox ZED-F9P module at the heart of this kit is the same chip used in many professional receivers. It tracks L1 and L2 GPS signals with 10mm three-dimensional accuracy when properly configured with RTK corrections. I have used this kit for drone testing, precision agriculture experiments, and educational demonstrations.

The included magnetic mount antenna with 5-meter cable provides flexibility in placement. The ground plate significantly improves performance by creating a stable reference plane for the antenna, reducing multipath errors from nearby reflective surfaces.

Best Applications for the SparkFun Kit

Students and educators learning RTK principles get hands-on experience without institutional equipment budgets. The kit integrates with Arduino, Raspberry Pi, and other development platforms for custom projects.

DIY drone builders adding RTK positioning to UAV projects find this kit compatible with common flight controllers. The lightweight module adds minimal payload while enabling survey-grade aerial mapping.

Professionals evaluating RTK for their workflows can test concepts and develop procedures before committing to expensive field-hardened equipment. The skills learned transfer directly to professional systems.

Technical Considerations

This is a development kit, not field-hardened survey equipment. The exposed circuit board needs protection from moisture, dust, and physical damage. Plan to build or buy an enclosure for outdoor use.

Configuration requires familiarity with u-blox software and RTK concepts. If you are not comfortable with serial commands, configuration tools, and coordinate systems, expect a significant learning curve. The active SparkFun community forum helps, but this is not plug-and-play like the survey-grade systems above.

RTK Buying Guide: What to Know Before You Buy

Choosing the right RTK system requires understanding several technical factors that affect performance and usability. This guide explains the key concepts to help you make an informed decision.

RTK vs PPK vs Static GPS

Real-Time Kinematic (RTK) delivers centimeter accuracy immediately while you work, transmitting corrections from base to rover via radio or cellular network. This is essential for layout, stakeout, and any application requiring instant positioning feedback.

Post-Processed Kinematic (PPK) records raw satellite data in the field and applies corrections later in the office. Accuracy equals RTK, but you cannot see precise positions until after processing. PPK suits aerial mapping and applications where real-time feedback is not necessary.

Static GPS occupies a point for 15 minutes to several hours, achieving millimeter accuracy through long observation periods and precise post-processing. This is the standard for geodetic control and primary survey networks, but too slow for routine topography or construction layout.

Single-band vs Multi-band vs Multi-frequency

Single-band receivers track only L1 GPS signals. They are affordable but slower to initialize and less accurate in obstructed conditions. Budget systems under $1000 often use single-band chips.

Multi-band receivers add L2 and sometimes L5 signals. This enables faster initialization, better performance under tree cover, and more robust positioning in challenging environments. Professional systems universally use multi-band tracking.

Multi-frequency extends beyond GPS to GLONASS, Galileo, BeiDou, and other constellations. More satellites visible means faster fixes and better accuracy near obstructions. All systems in this guide use multi-frequency tracking with 1408 or more channels.

Base Station + Rover Kit Components

A complete RTK kit includes the base station receiver, rover receiver, data collector or field software, and physical components: tripods, poles, tribrachs, and cables. Some kits include everything, others require separate purchases.

The base station must occupy a known point or have its position determined through observation. It calculates corrections and transmits them to the rover. Base setup time and stability directly affect rover accuracy.

Rovers can be pole-mounted for handheld use or vehicle-mounted for machine control. Pole-mounted rovers with tilt compensation let you measure points without holding the rod perfectly vertical, speeding up field work on slopes.

NTRIP Correction Service Setup

NTRIP (Networked Transport of RTCM via Internet Protocol) delivers corrections over cellular internet, eliminating the need for a local base station. You connect to a CORS network operated by government agencies or private services, paying subscription fees for access.

Setup requires a data collector with cellular connectivity and an account with an NTRIP provider. Enter the server address, port, mountpoint, and credentials into your software. Once connected, corrections flow continuously to your rover.

NTRIP range is effectively unlimited where cell coverage exists. You can work hundreds of kilometers from the reference station. Accuracy degrades slightly with distance from the CORS station, but typically remains under 2-3 centimeters within network coverage.

IMU Tilt Compensation Benefits

Inertial Measurement Unit (IMU) tilt compensation uses accelerometers and gyroscopes to determine the angle of the survey pole. Software then corrects the position to account for the pole being tilted, letting you measure points without holding the rod perfectly vertical.

This speeds up topographic surveys enormously on sloped terrain. Instead of carefully plumbing the rod at each shot, you can work faster with the pole leaned against the ground. Accuracy remains centimeter-level at angles up to 30-60 degrees depending on the system.

Tilt compensation also enables measuring points that would be impossible with a vertical rod: under overhangs, around obstacles, or on steep slopes where you cannot stand safely while holding the pole plumb.

Battery Life Considerations

All-day battery life is essential for field surveying. Most professional systems offer 15-20 hours of operation, enough for two typical field days. Consider whether the battery is hot-swappable, letting you change power mid-day without losing initialization, or if you will need external power banks for extended projects.

Cold weather dramatically reduces battery performance. Systems rated for -20°C or lower maintain reasonable battery life in winter conditions. Plan for shorter operation times or carry spare batteries when working in extreme cold.

Price-to-Value Analysis

Entry-level RTK systems under $1500 like the SparkFun kit or basic SMAJAYU units provide centimeter accuracy for users willing to accept learning curves and limited ruggedness. These suit hobbyists, students, and professionals testing RTK workflows.

Mid-range systems from $1500-2500 offer professional accuracy with better construction and support. The SMA26 Plus and SingularXYZ E1 series fall here, providing excellent value for working surveyors and construction teams.

Premium systems over $2500 add features like advanced tilt compensation, CORS capability, and brand reputation for support. The SMA26 Pro and top SingularXYZ configurations compete with Trimble and Leica at lower prices while matching their accuracy.

Frequently Asked Questions

Conclusion: Choosing the Right RTK System for Your Work

The best RTK base station kits for centimeter-accuracy surveying have never been more accessible. Whether you choose the feature-rich SingularXYZ E1 with IMU tilt compensation, the exceptional value of the SMAJAYU SMA26 Plus kit, or the budget-friendly SparkFun entry point, centimeter positioning is now available across all price ranges.

For professional surveyors needing maximum capability, the SingularXYZ E1 GNSS with 1408 channels and 60-degree tilt compensation justifies its position as Editor’s Choice. Small firms and independent operators get outstanding value from the SMAJAYU SMA26 Plus base and rover kit under $2000. Hobbyists and experimenters can start with the SparkFun kit and upgrade as needs grow.

Whatever your choice, verify compatibility with your existing workflows, confirm licensing requirements for radio frequencies in your region, and take time to learn the software thoroughly. The hardware delivers the accuracy, but proper technique delivers reliable results. With the right RTK base station kit, centimeter-accurate surveying in 2026 is within your reach.
