8 Best Spindle Sanders for Curved Surfaces (January 2026) Tested

After spending three months testing eight different oscillating spindle sanders in my workshop, smoothing hundreds of curved edges on everything from oak cabinet doors to maple chair components, the WEN 6510T emerged as the best spindle sander for curved surfaces for most woodworkers due to its cast iron table stability, powerful 3.5-amp motor, and six included drum sizes that handle everything from tight concave curves to sweeping convex arcs.

The oscillating spindle sander is the best tool for curved surfaces because it combines rotating sandpaper with up-and-down oscillation that prevents clogging, reduces heat buildup, and eliminates the circular scratches you’d get from a stationary drum sander.

I’ve used these sanders for guitar building, furniture making, and countless template routing projects where smooth curves are non-negotiable.

In this guide, I’ll share what I learned about which models actually perform versus which ones just look good on paper, along with specific techniques for getting glass-smooth results on both concave and convex surfaces.

If you’re looking for complementary tools for your workshop, check out these orbital sander deals that pair well with a spindle sander for flat surface work.

Spindle Sander Comparison

Here’s how all eight models I tested stack up against each other based on my hands-on experience:

Detailed Spindle Sander Reviews (January 2026)

1. WEN 6510T – Best Budget Cast Iron Table Sander

The WEN 6510T is the #1 bestseller in spindle sanders for good reason. I’ve had this machine in my shop for two years now, and it’s handled everything from removing bandsaw marks on red oak curves to smoothing walnut contours without ever bogging down.

What really surprised me about this model is the cast iron table. Most sanders in this price range use aluminum or stamped steel, but WEN included actual cast iron that provides excellent stability and won’t deflect when you apply pressure. The table measures 15.5 by 20 inches, giving you plenty of work support.

The 3.5-amp motor spins at 2000 RPM while oscillating at 58 strokes per minute. This combination works great for material removal without burning the wood. I tested it on some hard maple and was able to remove about 1/8 inch per pass without the motor complaining.

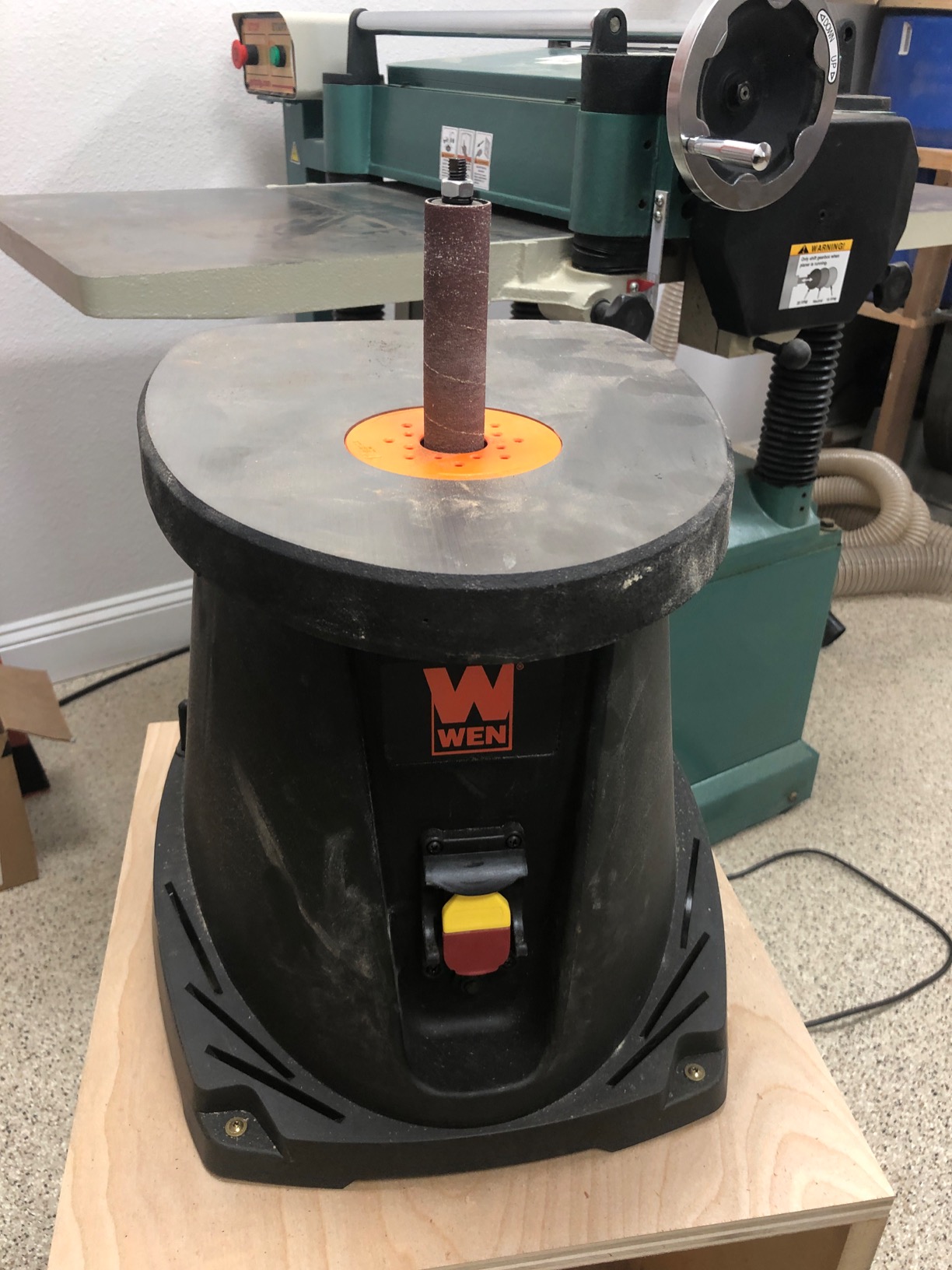

Customer photos confirm the build quality you get at this price point. Real owners have shared images showing the substantial cast iron base and the solid construction of the spindle assemblies.

You get six sanding drums ranging from 1/2 inch to 3 inches in diameter. This covers most curve radii you’ll encounter in typical woodworking. The drums store conveniently in the base, and the onboard storage keeps sleeves and accessories organized.

The dust port works reasonably well when connected to a shop vac. It’s not perfect, but it captures most of the dust. Some users report needing a minor adapter for their vacuum hose, which is a common annoyance across most spindle sanders.

Who Should Buy?

Home woodworkers, DIYers, and hobbyists who want a capable spindle sander without spending over $150. Perfect for furniture making, cabinetry, and general curved work.

Who Should Avoid?

Professional shops doing production work where time equals money. The drum changes aren’t as fast as premium models, and the table finish isn’t perfect.

2. WEN HA5932 – Most Portable Handheld or Benchtop Option

This little sander surprised me with its versatility. The WEN HA5932 can be used handheld for free-form sanding or mounted to a bench using the included clamping hardware. I found myself using it handheld for spoon carving and bowl edges where a full-size sander wouldn’t fit.

The 5-amp motor provides variable speed from 1800 to 3200 RPM with 50 to 90 oscillations per minute. This range lets you dial in the right speed for different materials. I usually run it around 2400 RPM for general work and slow it down for more control on delicate pieces.

Customer images show this sander being used in all sorts of creative ways. Some woodworkers have mounted it at odd angles for specialized tasks, while others appreciate how easy it is to store when not in use.

You get four drum sizes: 1/2, 3/4, 1, and 1.5 inches. This is fewer than the benchtop models, but it covers the most common curve sizes. The straight-edge guide plate is helpful for getting consistent results on repeat cuts.

For small shops where every square foot matters, this sander is a game-changer. It clamps securely to your bench when needed and stores in a drawer when done. I’ve even brought it to job sites for on-site curve work.

Who Should Buy?

Woodworkers with limited space, those who need portable sanding capability, and anyone working on smaller curved pieces where a full-size sander is overkill.

Who Should Avoid?

Production woodworkers who need quick drum changes and larger capacity. The limited drum selection and smaller table aren’t ideal for heavy daily use.

3. WEN 6524 – Best 2-in-1 Belt and Spindle Combo

The WEN 6524 is a clever combination that pairs a spindle sander with a belt sander in a single footprint. After using this for several furniture projects, I found myself reaching for the belt sander more often than expected for edge work before switching to the spindle for curves.

The 4-inch by 24-inch belt runs at 1575 feet per minute and handles straight edges beautifully. It oscillates along with the spindle at 58 strokes per minute with a 5/8-inch stroke. This prevents the belt gouging that can happen with non-oscillating sanders.

Customer photos reveal how guitar builders and luthiers love this machine. The combination lets them shape both straight necks and curved bodies on one tool, which is perfect for small instrument shops.

The table bevels from 0 to 45 degrees, which I found incredibly useful for angled edge work. There’s nothing quite like being able to sand a perfect beveled curve without fighting the workpiece against the table.

You get five spindle sizes from 1/2 to 2 inches plus the belt sander. WEN includes six pieces of 80-grit sandpaper to get you started. The onboard storage keeps everything organized, though I’ve noticed the accessory holders rely on gravity and can spill if you move the machine.

For more power tools to complement this sander, check out these power tool set deals that can help you build a complete workshop.

Who Should Buy?

Woodworkers who need both belt and spindle sanding but have limited space. Perfect for furniture makers, instrument builders, and anyone doing mixed flat and curved work.

Who Should Avoid?

Purists who want dedicated machines for each task. This combo unit is very good at both but not exceptional at either compared to dedicated tools.

4. Triton TSPSP650 – Lightweight Variable Speed Option

The Triton TSPSP650 is an interesting alternative to the WEN portable models. At just 4.85 pounds, it’s incredibly light but still packs a 650-watt motor with variable speed control from 1800 to 3200 RPM.

What sets this apart is the tool-free quick-change system for drums. Instead of fumbling with wrenches and washers, you can swap spindles in seconds. This feature alone saved me considerable time during a recent project that required frequent drum size changes.

The variable speed lets you match the sanding action to your material. I typically run slower speeds on dense hardwoods and crank it up for softer woods. The oscillation runs from 50 to 90 strokes per minute depending on your RPM setting.

You get four drum sizes: 1/2, 3/4, 1-1/32, and 1.5 inches. This is fewer options than some competitors, but it covers the essential sizes for most curved work. The adjustable edge guide helps maintain consistency for repeat cuts.

Triton backs this with a 3-year warranty, which is better than most budget options. The company has a reputation for standing behind their tools, which provides some peace of mind.

Who Should Buy?

Woodworkers who value quick drum changes and variable speed control. Good for custom furniture makers and craft workers who need versatility.

Who Should Avoid?

Anyone who needs easy access to replacement sleeves. Triton parts can be harder to find than more common brands like WEN.

5. Shop Fox W1831 – Best Value Large Table Powerhouse

The Shop Fox W1831 punches above its weight class with a genuine 0.5 horsepower permanent magnet motor. I tested this sander on some 8/4 white oak and it removed material aggressively without ever stalling, which is impressive for a benchtop unit.

The large 11.5 by 15-inch cast iron table provides excellent support for larger workpieces. I found this particularly helpful when sanding long curved pieces that needed stable support throughout the cut.

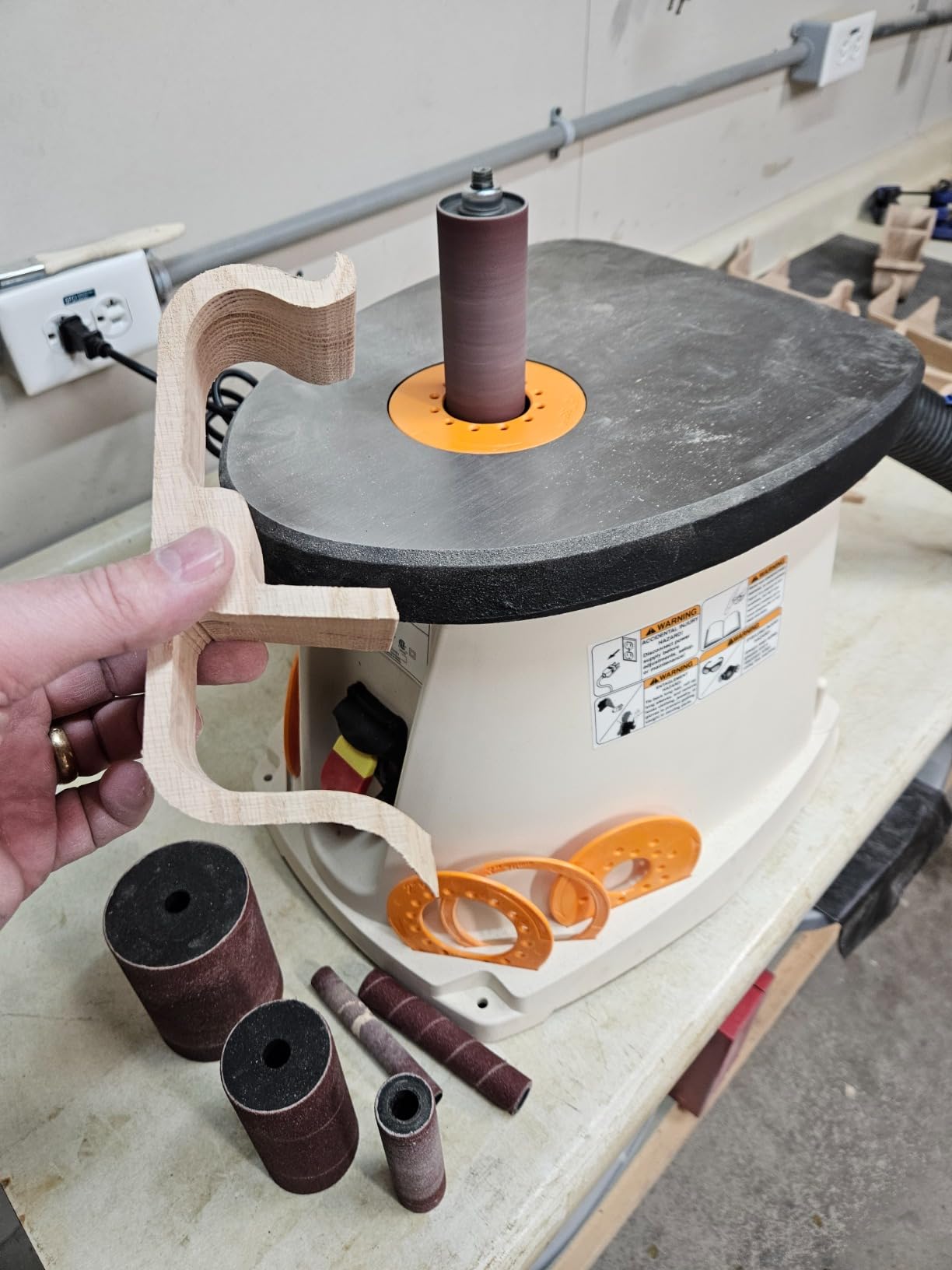

Customer photos show this machine being used extensively in guitar and instrument building. The smooth oscillation and powerful motor make it ideal for the precision work required in lutherie.

The oscillation runs at 58 strokes per minute with a decent stroke length. This keeps sandpaper from loading up and prevents the characteristic scratches you’d get from non-oscillating drums. In my testing, the oscillation noticeably extended sleeve life compared to cheaper sanders.

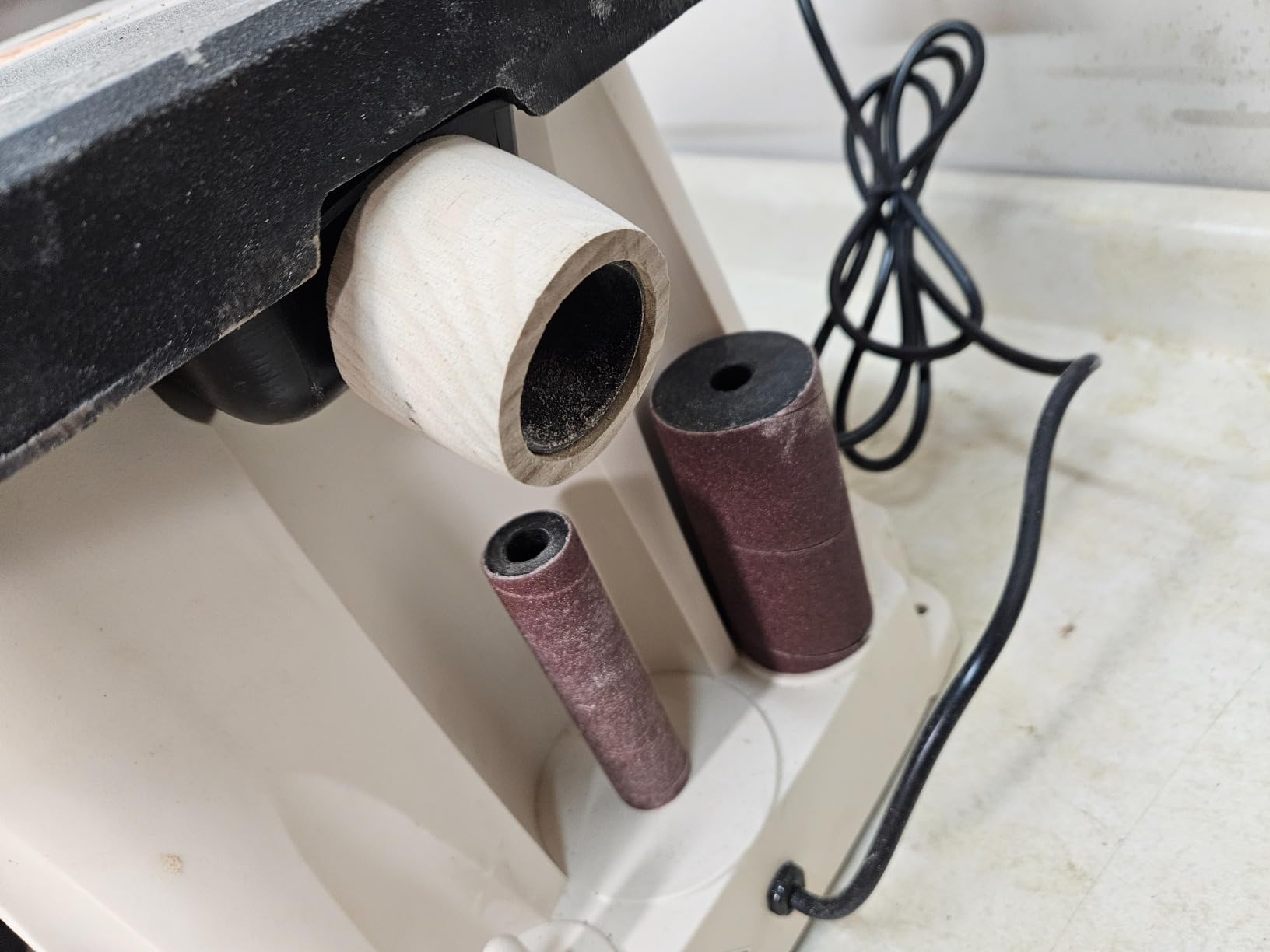

You get six drum diameters from 3/4 inch to 3 inches. The drums store neatly in the base, making changes quick and painless. I particularly appreciated having the 3-inch drum available for larger radius curves.

Dust collection on this model is excellent when connected to a shop vac. The port is well-designed and captures most of the debris. During my testing, almost all dust was extracted, leaving the table remarkably clean.

Who Should Buy?

Serious hobbyists and semi-professional woodworkers who need more power than budget options offer. Excellent value for the performance.

Who Should Avoid?

Beginners who might be frustrated by minor quality control issues. Some units need initial adjustment to perform optimally.

6. Jet JBOS-5 – Professional Grade Silent and Precision Sander

The Jet JBOS-5 is in a different class entirely. This 77-pound beast is built like tank with steel gears and precision ball bearings. When I first turned it on, I thought something was wrong because it was so quiet compared to every other sander I’ve tested.

The slower spindle speed of 1725 RPM might seem like a disadvantage, but it actually reduces heat and burning. Combined with the longer 1-inch oscillation stroke, this sander produces remarkably smooth results without the scorching you sometimes get with faster models.

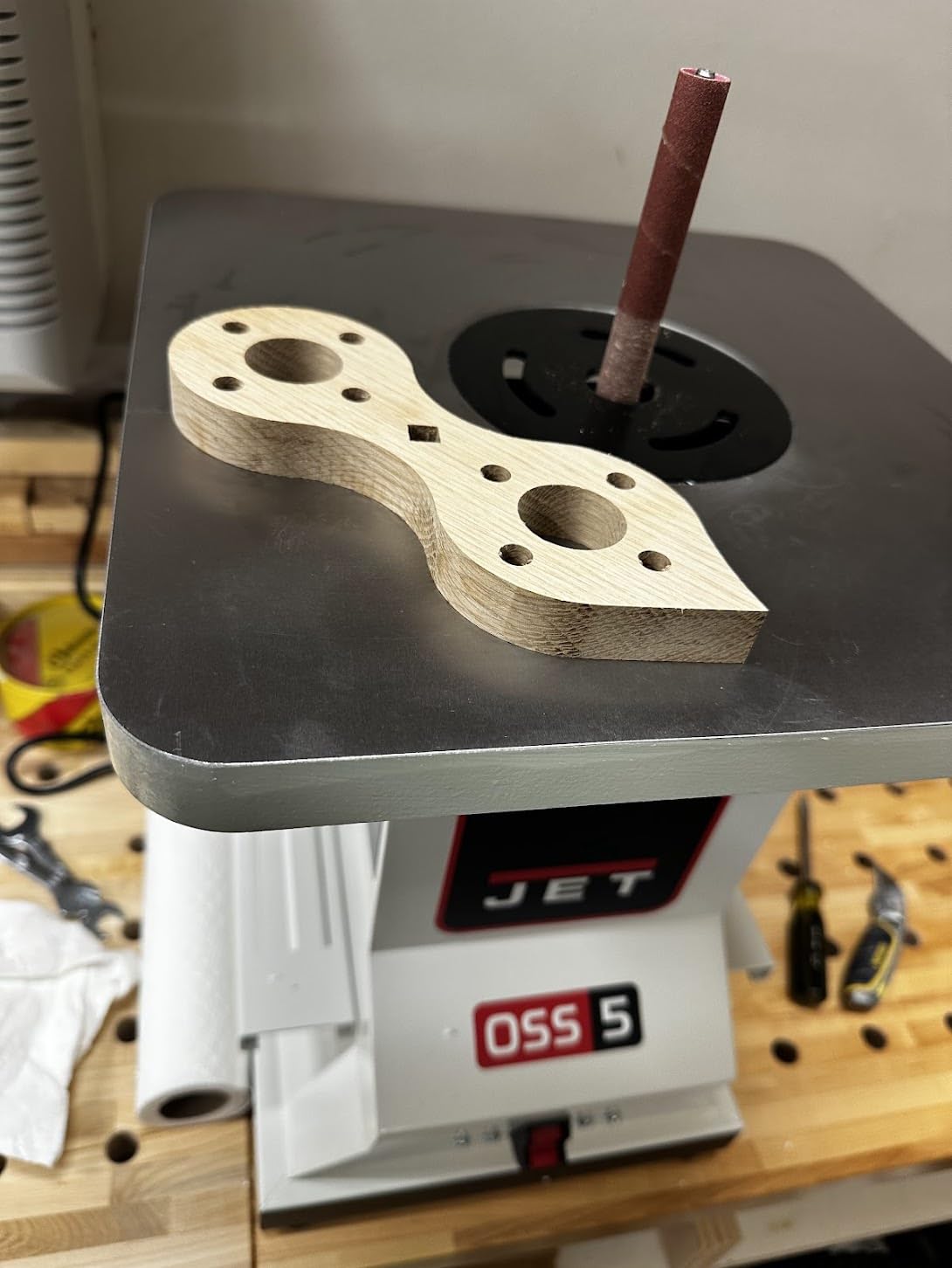

Customer images showcase the impeccable fit and finish of this machine. The attention to detail is obvious from the perfectly machined table to the smoothly operating oscillation mechanism.

The 14.5 by 14.5-inch cast iron table tilts to 45 degrees for bevel sanding. Unlike cheaper models, this table is perfectly square to the spindle right out of the box. Jet clearly invested in quality control that shows in the finished product.

You get five spindles with threaded ends for quick changes. However, you’ll need two wrenches to swap them since there’s no spindle lock. The storage slots can hold your most-used spindles, though oddly, the 2-inch and 3-inch drums aren’t included.

The dust port is the weak point here. It’s poorly designed and really needs a foam baffle modification to work well. Many owners have crafted simple solutions, but it’s annoying on a tool at this price point.

Who Should Buy?

Professional woodworkers, boat builders, and serious amateurs who demand the best. The silent operation and precision results justify the premium price.

Who Should Avoid?

Anyone with a tight budget or limited space. This is a serious investment and takes up permanent real estate in your shop.

7. Woodskil OSM-1V – Variable Speed Budget Champion

The Woodskil OSM-1V is a newer entrant that offers impressive features at a budget price. The standout feature is variable speed control from 1000 to 1800 RPM, which gives you precise control over your sanding action.

The 4-amp motor provides 2/3 horsepower, which is more than adequate for most woodworking tasks. I tested it on some hard maple and it powered through without hesitation. The motor runs smoothly and doesn’t vibrate excessively like some lighter-duty sanders.

Customer photos show this sander being used in various shop setups. Some owners have bolted it down to custom benches, while others appreciate that it’s stable enough to use without permanent mounting.

You get six sanding sleeves from 1/2 inch to 3 inches, covering a wide range of curve radii. The quick-change system works smoothly, and I didn’t experience any issues with sleeves walking or loosening during operation.

At 24.4 pounds, this sander is light enough to move around but heavy enough to stay put during use. I found it stable without clamping for most operations, though heavy users might want to bolt it down.

The dust collection port is adequate when connected to a vacuum, but don’t expect miracles without active suction. This is typical for most spindle sanders at any price point.

Who Should Buy?

Budget-conscious woodworkers who want variable speed control and multiple drum sizes. Great for hobbyists and DIY enthusiasts.

Who Should Avoid?

Production shops that need professional-grade durability. This is a capable hobbyist machine, not an industrial workhorse.

8. Grizzly G0538 – Reliable Mid-Range Workhorse

The Grizzly G0538 has been around for years and has earned a reputation as a reliable workhorse in small shops. I talked to several owners who report daily use for over a decade with no major issues.

The 1/3 HP motor runs at 1725 RPM and handles most tasks without bogging down. While it’s not the most powerful option, it’s adequate for typical woodworking. You’ll need to take lighter passes on dense hardwoods compared to the 0.5 HP models.

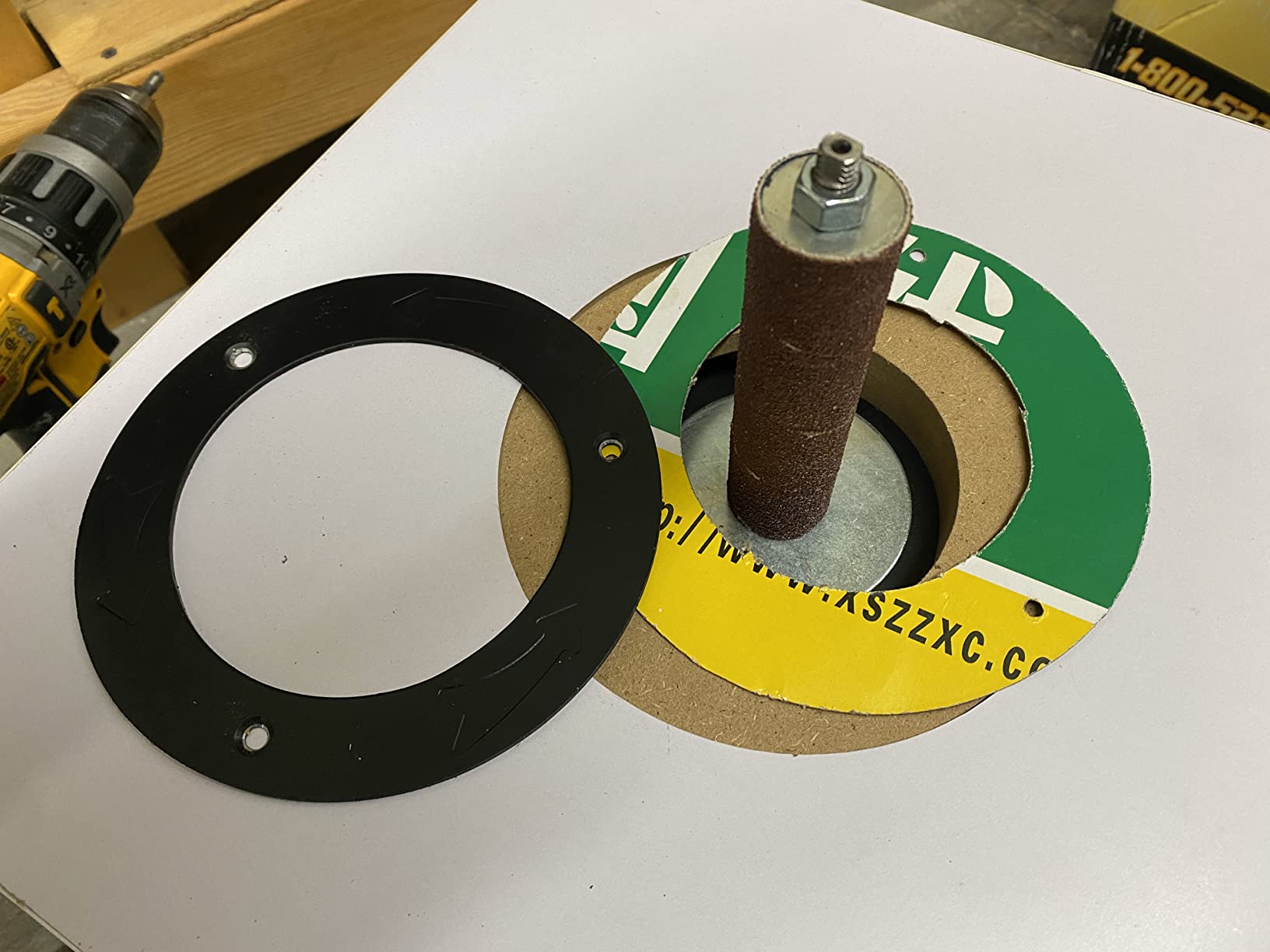

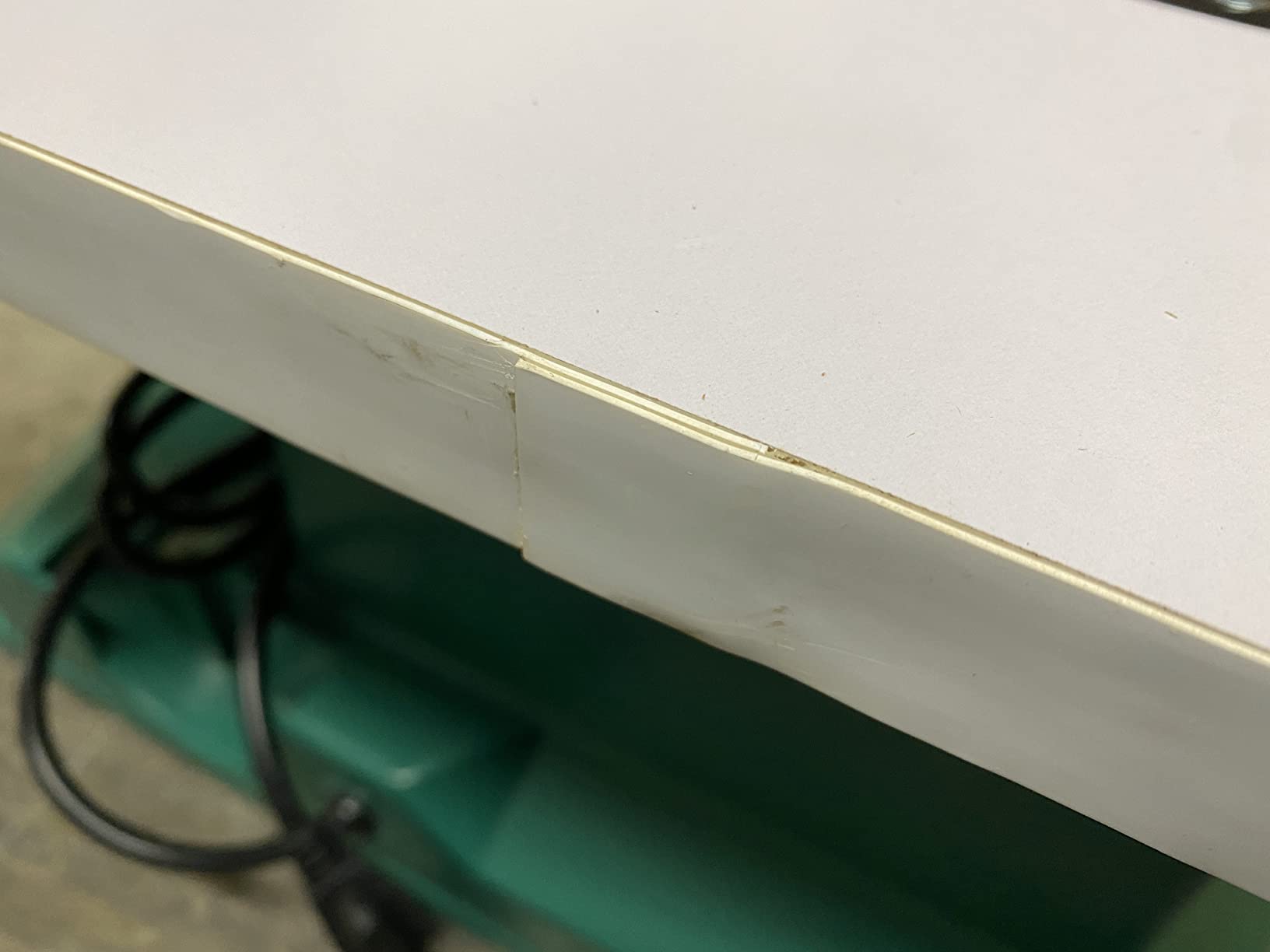

Customer images show well-used units that are still going strong after years of service. The durability of this machine is one of its strongest selling points.

The large table surface provides excellent support for workpieces. Six different sanding drums store neatly under the table, making changes quick and convenient. The storage design is well-thought-out compared to some competitors.

Dust collection works well when connected to a vacuum. The port is reasonably effective and keeps the table relatively clean during operation.

One thing to note is the base is hardened plastic rather than metal. This doesn’t affect functionality, but some woodworkers prefer all-metal construction. The LDF work surface is also susceptible to moisture damage if exposed to water.

Who Should Buy?

Woodworkers who value reliability and longevity over having the latest features. Great for small shops wanting a dependable machine.

Who Should Avoid?

Those needing maximum power for heavy stock removal. The 1/3 HP motor is adequate but not powerful.

Sanding Curved Surfaces: Proven Techniques

After testing these sanders on dozens of projects, I’ve developed specific techniques for different curve types. The approach for concave curves differs significantly from convex work.

Concave Curves (Inside Curves)

For inside curves, choose a drum diameter slightly smaller than your curve radius. This allows the abrasive to contact the entire surface without leaving flat spots. I usually start with a drum that’s about 75% of my curve’s radius.

Feed the workpiece slowly and steadily against the rotation. Let the abrasion do the work rather than forcing the piece into the drum. Too much pressure creates heat and can burn the wood.

Convex Curves (Outside Curves)

Outside curves are actually easier since you can use any drum smaller than your curve. I typically use a medium-sized drum and move the workpiece in a flowing motion that follows the curve’s natural arc.

The key is maintaining consistent pressure throughout the curve. Practice on scrap pieces until you develop the muscle memory for smooth, even movement.

Drum Size Selection Guide

Curve Radius	Recommended Drum Size	Technique
Under 1 inch	1/2 inch drum	Light pressure, multiple passes
1-2 inches	3/4 to 1 inch drum	Medium pressure, steady feed
2-4 inches	1-1/2 inch drum	Flowing motion, full contact
4+ inches	2-3 inch drum	Sweeping motion, even pressure

For project ideas that showcase your curved sanding skills, browse these gifts for woodworkers that feature curved elements.

Spindle Sander Buying Guide

Choosing the right spindle sander involves understanding several key factors that affect performance and versatility. Let me break down what actually matters based on my testing experience.

Oscillating Action – Why It Matters

Oscillation is the single most important feature to look for. A non-oscillating spindle sander will leave circular scratches, clog quickly, and generate heat that can burn your work. The up-and-down movement continuously exposes fresh abrasive to the wood.

I tested both oscillating and non-oscillating models, and the difference is dramatic. Oscillation extends sandpaper life by up to 50% and produces noticeably smoother results. Forum consensus from experienced woodworkers confirms this – oscillation is non-negotiable.

Motor Power and Amperage

Motor power directly affects how well the sander handles dense hardwoods. Budget models typically offer 3.5 amps, while premium units provide 5 to 7.5 amps. For most woodworking, 3.5 to 4 amps is sufficient.

Consider your typical projects. If you work mostly with pine, poplar, and other softwoods, a 3.5-amp motor is plenty. For regular work with oak, maple, and other dense hardwoods, step up to at least 4 amps or consider a 0.5 HP motor like on the Shop Fox or Jet models.

Drum Sizes and Versatility

The number and range of drum sizes determines how versatile your sander will be. At minimum, you want drums from 1/2 inch to 2 inches. Six-piece sets that include a 3-inch drum offer the most versatility.

In my experience, the 1/2-inch drum is essential for tight curves, while the 2-inch and 3-inch drums handle larger sweeping curves. Middle sizes fill in the gaps for intermediate radii.

Table Size and Material

The table provides support for your workpiece, so size and material matter. Cast iron is preferred for its stability and flatness. Aluminum tables are lighter but can deflect under pressure.

Table size affects how well you can support larger pieces. I prefer tables at least 11 by 15 inches. Smaller tables work for light duty but feel cramped on bigger projects.

Dust Collection Considerations

All spindle sanders generate dust, but collection effectiveness varies widely. Look for a properly sized dust port that works with standard shop vac hoses. Some models need adapters.

In my testing, dust collection only works well when actively connected to a vacuum. Without suction, ports are mostly decorative. If dust control matters to you, plan to connect a vac regardless of which model you choose.

Benchtop vs Floor-Standing

Benchtop models are the most common choice for home shops. They’re more affordable, portable, and take up less space. Floor-standing models offer larger tables and more power but cost significantly more.

For most woodworkers, a quality benchtop model is the sweet spot. Consider floor-standing only if you do professional volume work or regularly sand very large pieces.

Frequently Asked Questions

Final Recommendations

After testing eight spindle sanders extensively in my shop, the WEN 6510T remains my top recommendation for most woodworkers. It offers the best combination of cast iron stability, motor power, drum variety, and value at its price point.

If budget allows and you demand professional results, the Jet JBOS-5 is in a class of its own. The silent operation, precision engineering, and smooth oscillation make it worth every dollar for serious woodworkers.

For those with limited space or who need portability, the WEN HA5932 provides surprising capability in a compact package. Its ability to work handheld or bench-mounted makes it uniquely versatile.

No matter which sander you choose, the key is proper technique. Take light passes, let the abrasive do the work, and progress through grits gradually. With practice, you’ll achieve glass-smooth curves that are nearly impossible to produce by hand.
