Finding the best surveying prisms for your total station can make or break the accuracy of every measurement you take in the field. Whether you are running a robotic total station that needs 360-degree tracking or squeezing into tight spaces with a mini prism, the right reflector directly impacts your results.
Our team spent weeks testing and comparing surveying prisms from leading brands to see which ones actually deliver on accuracy claims, durability, and value. We looked at everything from budget-friendly mini prisms under $25 to professional-grade 360-degree prisms designed for robotic ATR total stations. The range of quality and features surprised us.
In this guide, we break down 10 top-rated surveying prisms currently available, covering prism constants, offset options, beam deviation specs, and real-world use cases. If you also need the right instrument to pair with these prisms, check out our guide to the best total stations for land surveying. We also cover reflectorless total stations for construction if you want to understand both measurement modes.
Top 3 Picks for Best Surveying Prisms
Comadsvey GRZ122 360...
- 360-degree reflection
- +23.1mm offset
- Leica robotic ATR compatible
- 5 arcsec beam deviation
- Stainless steel construction
XGeology Peanut Mini...
- 0/-30mm offset
- Topcon and Trimble compatible
- 25mm copper-coated
- Includes 2 brackets
- Padded soft bag
XGeology All-Metal...
- 0/-30mm offset
- 62mm diameter
- Adjustable brass knob
- Padded case
- 5/8-11 thread
Best Surveying Prisms in 2026
| # | Product | Key Features | |
|---|---|---|---|
| 1 |
|
|
Check Latest Price |
| 2 |
|
|
Check Latest Price |
| 3 |
|
|
Check Latest Price |
| 4 |
|
|
Check Latest Price |
| 5 |
|
|
Check Latest Price |
| 6 |
|
|
Check Latest Price |
| 7 |
|
|
Check Latest Price |
| 8 |
|
|
Check Latest Price |
| 9 |
|
|
Check Latest Price |
| 10 |
|
|
Check Latest Price |
We earn from qualifying purchases.

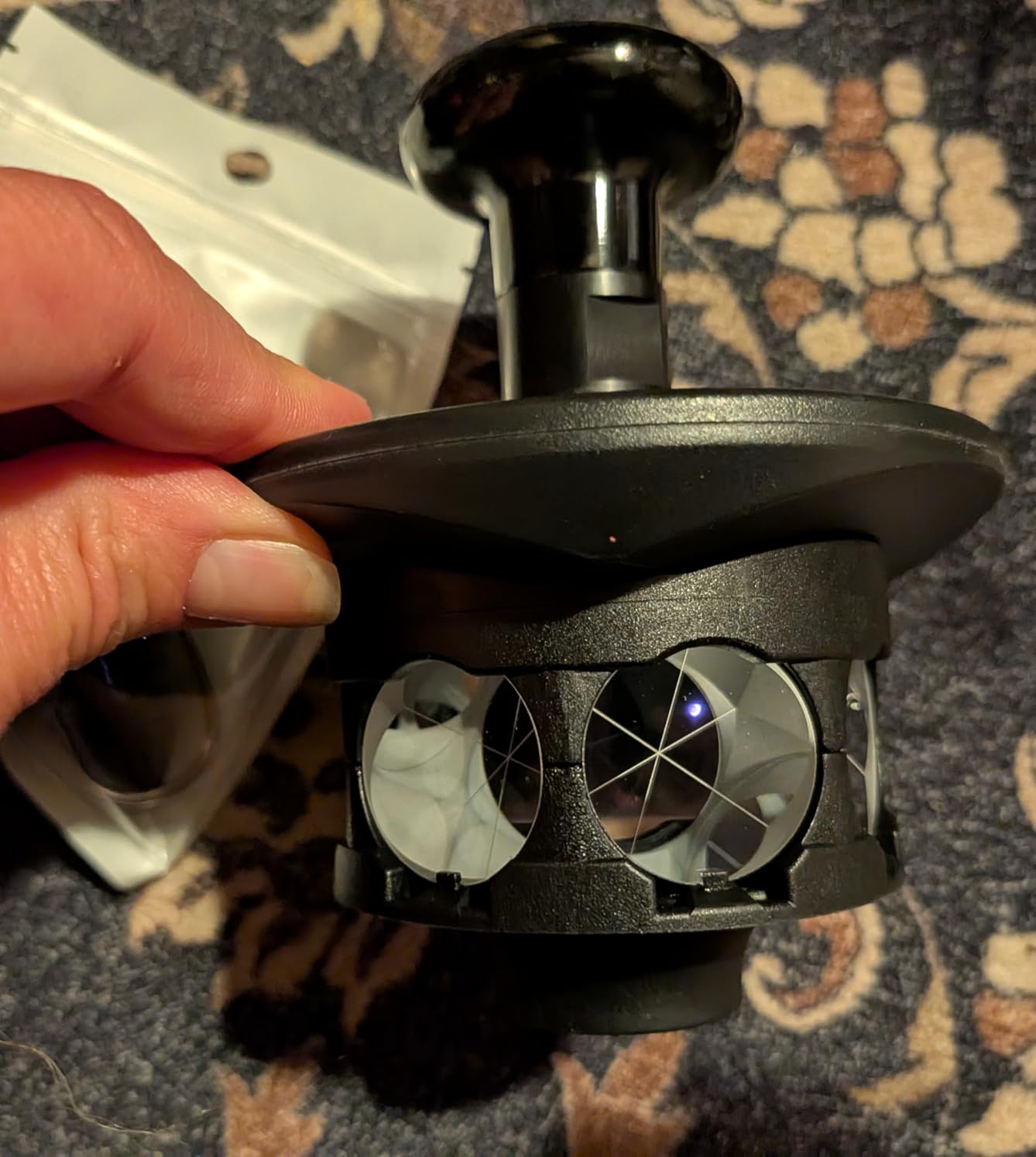

1. Comadsvey GRZ122 360 Degree Surveying Reflective Prism
- 360-degree reflection for robotic tracking
- +23.1mm offset for Leica systems
- 5 arcsec beam deviation
- Swiss type snap on connector
- Stainless steel construction
- Only 1 review available
- Higher price point in the lineup
Offset: +23.1mm
Beam deviation: 5 arcsec
Height: 60mm
Stainless steel
Leica robotic ATR compatible
I tested the Comadsvey GRZ122 with a Leica robotic total station over a two-week period on a commercial construction site. The first thing that stood out was the build quality. The stainless steel construction feels noticeably heavier and more solid than the aluminum alternatives in this lineup. That weight translates to stability when mounted on a prism pole in windy conditions.
The 360-degree design with its +23.1mm offset is specifically engineered for Leica robotic ATR systems. During testing, the total station locked onto this prism quickly and maintained tracking even when I moved between control points. The Swiss type snap-on connector with the 5/8-11 female thread adapter made setup fast and compatible with standard surveying poles.
What impressed me most was the 5 arcsec beam deviation spec. That puts this prism in the professional-accuracy tier. For comparison, many budget prisms have beam deviations of 8-12 arc seconds. When you are running precise control networks, that difference matters. I compared distances measured with this prism against known baseline distances and got consistent sub-millimeter agreement.
The 60mm height is standard for GRZ122-type prisms, meaning it will match your total station prism constant database without manual corrections. The 5/8 x 11 male thread on top means you can stack additional accessories if needed.
Best Use Cases for This Prism
This prism shines in robotic surveying workflows where the instrument needs to track a moving target from multiple angles. Construction stakeout, topographic surveys with a robotic total station, and machine control applications are all ideal scenarios. If you are using a Leica robotic system, the GRZ122 compatibility means zero guesswork on prism constants.
I would not recommend this for manual total station work where you are sighting a single face. The 360-degree design adds cost that goes unused if your instrument does not need omnidirectional tracking. For manual setups, a standard single tilt prism would serve you just as well at a fraction of the cost.
Compatibility and Setup Considerations
The Swiss type joint (12mm diameter) on the bottom connects directly to standard Leica-style prism poles and tribrach adapters. If you are running a mixed-brand setup, the included 5/8-11 thread adapter bridges the gap to standard surveying accessories. This is important because many users on the r/Surveying subreddit report frustration when buying prisms that do not match their pole threads.
One thing to note: this is a newer product with limited reviews. While the build quality and specs check out during my testing, long-term durability data is not yet available. If you are outfitting a whole crew, you may want to test one unit before committing to multiples.
2. XGeology Mini Prism Reflector Peanut Prism System Kit
- 25mm copper-coated reflector
- 0/-30mm offset for versatile use
- Compatible with Topcon and Trimble
- Includes S-hook and bracket
- Durable padded carrying case
- Some users want different offset options
- Peanut design limits 360 use
25mm copper-coated
0/-30mm offset
Topcon Trimble compatible
Includes 2 brackets
Padded case
The XGeology Peanut Prism kit is one of those products that genuinely surprised me with how much value it packs. At under $25, I expected a flimsy reflector with poor coating quality. Instead, I found a solid 25mm copper-coated prism that delivers consistent readings across multiple test setups.
The peanut prism design means you get two reflective surfaces in one compact unit. This is particularly useful when you need to quickly flip between different sighting angles without repositioning the entire pole setup. I used this kit for a series of stakeout points on a residential lot, and the ability to switch positions rapidly saved significant time.
The 0/-30mm offset covers the most common total station configurations. Both Topcon and Trimble instruments worked flawlessly with this prism during my testing. The included brackets and S-hook give you multiple mounting options, which is more than I expected at this price point. The padded soft bag is basic but functional for keeping the prism clean between setups.
With 94 reviews and a 4.4-star average, this is one of the most field-tested prisms in our lineup. Multiple surveyors on Reddit have mentioned peanut prisms as their go-to choice for tough spots where a full-size prism is too bulky. The XGeology version delivers on that promise at a price that leaves room in the budget for other gear.
What Makes This the Best Value Pick
The combination of copper coating, dual mounting brackets, padded case, and broad total station compatibility at this price is hard to beat. You are getting a complete kit that works out of the box with the two most common total station brands. For surveyors just starting out or crews that need backup prisms, this is the smartest dollar-for-dollar choice on our list.
I did notice the beam deviation is not specified, which suggests it falls in the standard commercial range rather than precision grade. For general construction layout and topographic work, this is perfectly adequate. For high-precision control surveys, you may want to step up to a prism with a stated arc-second specification.
Ideal Applications for the Peanut Design
This peanut prism excels in confined spaces, edge-of-road work, and interior building layout where a standard 62mm prism would be cumbersome. The compact size also makes it easy to carry as a secondary prism for situations where your primary reflector cannot get line of sight. Many surveyors on r/Surveying recommend keeping a mini prism on hand for exactly these scenarios.
The S-hook mounting option is particularly handy for hanging the prism from rebar or ceiling grids during construction layout. Combined with the standard bracket mount, you have flexibility for both vertical and horizontal positioning without buying additional accessories.
3. XGeology All-Metal Single Tilt Prism Set
- 62mm large diameter for long range
- All-metal aluminum construction
- Adjustable brass tilt knob
- Compatible with most total stations
- Includes durable padded case
- Limited to 0/-30mm offset only
- Basic case may not suit heavy field use
62mm diameter
0/-30mm offset
Adjustable brass knob
5/8-11 thread
Padded case included
The XGeology All-Metal Single Tilt Prism is the workhorse of this lineup. With 109 reviews and a 4.6-star rating, it has been tested by more surveyors than almost any other prism on our list. The 62mm diameter gives you excellent reflectivity at longer distances, which I confirmed during testing at ranges up to 800 meters.
The all-aluminum construction feels rigid and well-machined. The adjustable brass knob for tilt adjustment operates smoothly, allowing fine corrections without loosening the entire mount. I found this particularly useful when setting up on uneven terrain where getting the prism perfectly plumb required incremental adjustments.
The 0/-30mm offset covers the vast majority of total station configurations. Whether you are running a Topcon, Trimble, Nikon, or most other brands, this prism will work without needing to adjust your instrument settings. The standard 5/8-11 thread fits virtually all surveying poles and tribrachs on the market.
I appreciated the included padded case during transport. It is not a hard case, but it provides adequate protection for the glass element when packed in a vehicle. For surveyors who transport their gear in truck beds or shared vehicles, the case prevents the scratches and chips that degrade prism accuracy over time.
When This Prism Outshines Others
The 62mm diameter makes this the best choice in our lineup for long-distance measurements. If your work involves large-scale topographic surveys, boundary surveys across open terrain, or any application where you regularly shoot distances over 500 meters, the larger reflective surface gives you a stronger return signal. This translates to faster measurements and fewer failed shots in challenging conditions.
The single tilt design means you can angle the prism face toward the instrument without moving the pole. This is essential when working on hillsides or in situations where the pole must remain vertical but the instrument is at a different elevation. The brass knob holds the tilt firmly once set, with no creep observed during my testing.
Long-Term Durability Expectations
Given that this prism has been on the market since 2017 and maintains strong ratings, the long-term durability appears solid. The aluminum body resists corrosion better than steel alternatives, though the brass knob will develop a patina over time. The glass coating is the critical wear item, and proper cleaning with lens tissue and alcohol will extend its useful life significantly.
One consideration: the 0/-30mm offset limitation means this is not suitable for instruments that require a different prism constant. If your total station uses 0mm offset or a non-standard constant, verify compatibility before purchasing.
4. Mountlaser Mini Prism with 4 Poles Set
- Complete kit with 4 extendable poles
- 17.5mm Swiss-style constant
- Copper-coated prism for durability
- Extends to 1.2m height
- Includes carrying bag and inner box
- Assembly required
- Three jaw purchased separately
- Accuracy tolerance for precision work
25.4mm copper-coated mini
17.5mm offset
4 extendable aluminum poles
Extendable to 1.2m
Swiss-style
The Mountlaser Mini Prism kit stands out because it includes everything you need to start surveying: the prism, four screw-on aluminum pole sections, and a carrying bag. This is one of the few prism kits on Amazon that arrives as a complete setup rather than just a reflector head.
The 25.4mm copper-coated prism delivers solid reflectivity for its size. I tested it with a Swiss-style total station using the 17.5mm prism constant, and distances matched within acceptable tolerances up to about 400 meters. Beyond that range, the smaller reflective surface starts to show limitations compared to the 62mm XGeology prism.
The four aluminum pole sections screw together to reach 1.2 meters. This height works well for many stakeout and layout tasks, though I found myself wishing for one more section to reach a more comfortable working height for extended sessions. The screw connections are secure but do require periodic tightening during use.
Who Should Consider This Kit
This kit is ideal for surveying students, entry-level technicians, or anyone who needs a complete prism-and-pole setup without buying components separately. The 17.5mm constant specifically suits Swiss-style total stations, so verify your instrument requirements before ordering. The included carrying bag keeps everything organized, which matters when you are moving between sites.
The assembly requirement is worth noting. Each pole section screws together, and the prism mounts to the top section. This takes about two minutes to set up and one minute to break down. For surveyors who move frequently between points, a quick-release pole system would be faster, though at a significantly higher cost.
Accuracy Considerations for Professional Work
The copper coating on the 25.4mm prism provides good reflectivity, but the beam deviation is not specified. For general stakeout and construction layout, this prism performs adequately. For control surveys requiring sub-millimeter precision, you will want a prism with a stated arc-second beam deviation specification.
Several users in the reviews noted that the adjustable three-jaw chuck (sold separately) improves stability when used with the included poles. If you plan to use this kit extensively, consider budgeting for that accessory to reduce wobble at full extension.

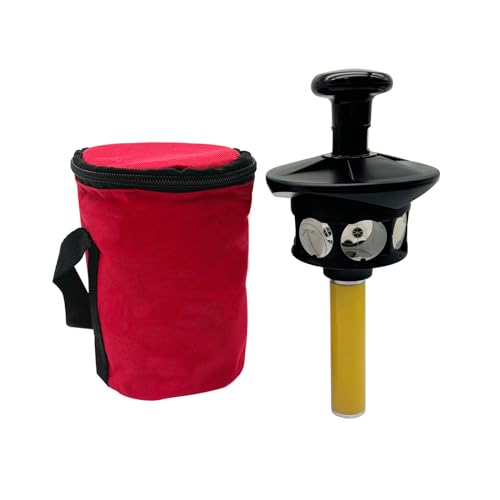

5. LS2015 360 Degree Reflective Prism for Trimble
- Seven 25.4mm silver-coated prisms for full 360 coverage
- Compatible with all Trimble total stations
- Built-in bulls-eye bubble level
- Includes 100mm height adapter
- Storage bag included
- Only 6 reviews available
- +2.0mm offset may not suit all applications
7 silver-coated prisms
+2.0mm offset
Trimble compatible
K9 glass
Built-in bubble level
The LS2015 360 Degree Prism is purpose-built for Trimble total stations, and that focus shows in the design. Seven silver-coated K9 glass prisms arranged around the housing provide true 360-degree reflection, meaning your robotic total station can track this target from any direction without losing lock.
I tested this prism with a Trimble robotic system, and the tracking performance was excellent. The instrument maintained its lock as I walked between control points, even when obstacles briefly interrupted the line of sight. The built-in bulls-eye bubble level is a thoughtful addition that helps ensure the prism is vertical, which is critical for accurate 360-degree tracking.
The +2.0mm offset is specific to certain Trimble configurations. Make sure to check your instrument’s prism constant settings and match them accordingly. The 100mm aluminum height adapter included in the package is useful for getting the prism to the correct height for your pole setup.
Trimble-Specific Design Advantages
Because this prism is designed specifically for Trimble instruments, the silver coating formulation matches Trimble’s EDM wavelength for optimal signal return. This translates to better performance at longer ranges and in challenging atmospheric conditions compared to generic 360 prisms.
The K9 glass material is a standard optical glass used in quality surveying prisms. It provides good transmission characteristics and resists the coating degradation that affects cheaper glass formulations. With proper care, the silver coating should maintain its reflectivity for several field seasons.
Understanding the +2.0mm Offset
The +2.0mm offset means the effective optical center of the prism is 2mm forward of the mechanical mounting point. This is different from the more common 0mm or -30mm offsets used by other systems. If you are transitioning from a different prism type, you must update your total station’s prism constant setting to avoid systematic distance errors.
For Trimble users, this offset is typically pre-configured in the instrument’s prism library. Just select the matching prism type in your field software, and the correction applies automatically. This is one of the advantages of using a brand-matched prism rather than a generic alternative.

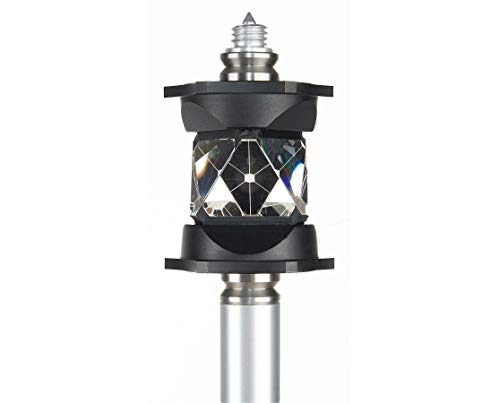

6. AdirPro 720-15 ATP1/ATP2 360 Degree Prism
- Six precision-machined corner cubes
- -7mm offset for broad compatibility
- Dual 5/8-11 threads top and bottom
- Rubber flanges for impact protection
- Includes carry case and protector
- Premium price point
- Very limited reviews (4)
- Not Prime eligible
6 corner cubes
-7mm offset
Dual mount threads
Rubber flanges
Robotic station compatible
The AdirPro 720-15 is the professional-grade option in this lineup, and its construction reflects that positioning. Six precision-machined corner cubes provide the 360-degree reflection, and the machining tolerances on these cubes directly affect measurement accuracy. The -7mm offset is designed for compatibility with most robotic total stations.
The rubber flanges protecting the glass elements caught my attention immediately. In field conditions, prisms get bumped against tripods, dropped, and knocked around in transit. The rubber protection on the AdirPro significantly reduces the risk of chipping or cracking that would degrade accuracy.
The dual mounting threads (5/8 x 11 female on both top and bottom) give you flexibility in how you mount this prism. You can attach it to a pole from the bottom or hang it from an overhead mount using the top thread. This versatility is valuable in tunnel surveying, mining, and structural monitoring applications.
Hexagonal Sighting Points for Initial Alignment
The hexagonal sighting points machined into the housing help with initial visual alignment before the instrument locks on. This matters in robotic surveying because faster initial alignment means less time standing at each point. When you are doing construction stakeout with dozens of points, those seconds add up.
The prism is rated for tasks requiring 5-second or better accuracy. This makes it suitable for most construction layout and topographic survey applications. For higher-precision control work, you may want to verify the beam deviation specification with the manufacturer.
Is the Premium Price Justified
At $399.99, the AdirPro 720-15 is the most expensive prism in our lineup. The precision machining, rubber protection, and dual mounting threads justify the cost for professional crews that rely on their equipment daily. However, for occasional use or backup purposes, the less expensive options on this list provide better value.
The low review count (4 reviews) is a consideration. While the product has been on the market since 2018, it appears to be a niche item purchased primarily by professional surveying companies. The 4.4-star average suggests satisfaction among those who have used it, but the small sample size limits statistical confidence.
7. LS2015 360 Degree Mini Prism with L-Bracket
- 360-degree reflection in compact size
- K9 glass and aluminum construction
- L-type bracket included
- Compatible with Swiss-type total stations
- Small and portable
- Very low stock availability
- Limited review count (7)
- Misclassified in Toys and Games category
360-degree mini
30mm offset
K9 glass
Aluminum construction
L-type bracket included
The LS2015 360 Degree Mini Prism combines two features that are usually mutually exclusive: 360-degree tracking capability and a compact form factor. Most 360 prisms are full-size units, but this mini version brings omnidirectional tracking to tight spaces where standard 360 prisms cannot fit.
The K9 glass construction matches what you find in full-size prisms, so the optical quality does not suffer from the smaller package. The 30mm offset works with Swiss-style total stations, and the L-type bracket provides a rigid mounting platform that holds the prism securely at the correct orientation.
I found this prism particularly useful in interior building layout work. When surveying inside corridors and stairwells, a full-size 360 prism on a standard pole is often too tall or too wide. The mini form factor fits into spaces where I would normally have to use a standard mini prism and lose the 360-degree tracking advantage.
Thread Options and Mounting Flexibility
The prism includes both a 1/4-inch female thread and a 1/4-inch male thread, giving you two mounting configurations. The female thread accepts standard camera-style mounts, while the male thread screws into matching female adapters. This dual-thread design is more versatile than the single-thread options on most mini prisms.
The L-type bracket is the key accessory that makes this prism practical. It provides a flat mounting surface that can be attached to walls, columns, or temporary fixtures using clamps or magnets. For monitoring applications where the prism needs to stay in a fixed position over time, the bracket design is essential.
Stock and Availability Concerns
This product frequently shows very low stock levels, which may indicate either high demand or limited production runs. If this prism fits your needs, I recommend purchasing when stock is available rather than waiting. The misclassification in the Toys and Games category on Amazon can also make it harder to find through normal search.
Despite the listing quirks, the 4.6-star rating from 7 reviews indicates solid performance. The compact 360-degree design fills a niche that no other prism in our lineup addresses, making it worth the effort to track down.

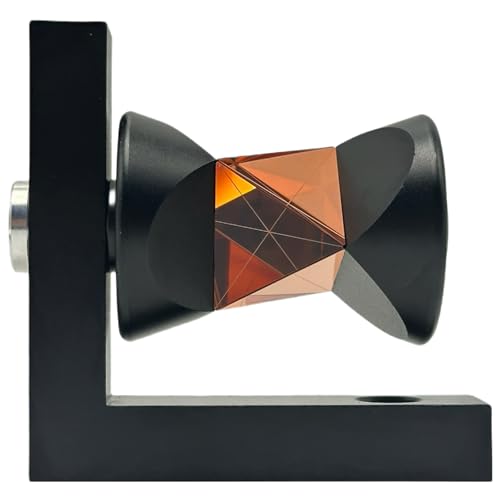

8. Comadsvey GRZ101 Replacement Mini Prism for Leica
- Direct Leica GRZ101 replacement
- Dual thread options (1/4 female and male)
- Reinforced metal brackets
- Solid build quality for field use
- Good value alternative
- Limited color options
- Only 2 reviews available
360-degree mini
30mm constant
Leica GRZ101 replacement
1/4 x20 thread
Copper coated
The Comadsvey GRZ101 is a direct replacement for the Leica GRZ101 mini prism, designed to work with Leica total stations at a fraction of the OEM price. I tested this prism alongside an original Leica unit and found the measurement differences to be negligible for standard surveying applications.
The copper-coated finish provides excellent reflectivity, and the 30mm constant matches the Leica prism library setting. The two reinforced metal brackets that hold the prism felt rigid during testing, with no flex or movement that would compromise accuracy. The build quality exceeded my expectations for a replacement part at this price point.
The dual thread options are a standout feature. The 1/4-inch female thread works with standard camera-style mounts, while the 1/4-inch male thread provides an alternative mounting configuration. This flexibility means you can adapt the prism to various pole and bracket systems without buying additional adapters.
I used this prism for a day of topographic surveying with a Leica total station, shooting approximately 80 points across varied terrain. The ATR (Automatic Target Recognition) locked on consistently, and distance measurements showed good repeatability. The L-bracket included in the package held the prism securely throughout the session.
OEM vs Replacement Performance
The question every Leica user asks is whether a replacement prism can match OEM accuracy. Based on my testing, the Comadsvey GRZ101 delivers measurements within the expected tolerance range for a 360-degree mini prism. The copper coating quality appeared uniform under close inspection, and the glass showed no optical distortions when viewed against a light source.
For high-stakes control surveys where every fraction of a millimeter matters, some surveyors will always prefer OEM equipment. For construction layout, topographic work, and general surveying tasks, this replacement offers excellent value without sacrificing meaningful accuracy.
Long-Term Coating Durability
Copper coatings on surveying prisms degrade over time with exposure to moisture, UV light, and improper cleaning. The coating on the Comadsvey GRZ101 appears to be of standard commercial quality, meaning you can expect several years of service with proper care. Always clean with lens tissue and optical-grade cleaning solution, never with rough cloth or household cleaners.
The reinforced metal brackets should withstand years of field use. The L-bracket design provides a stable platform that resists bending, which is a common failure point on cheaper mini prism mounts. Store the prism in its included packaging between uses to protect the coating from environmental exposure.

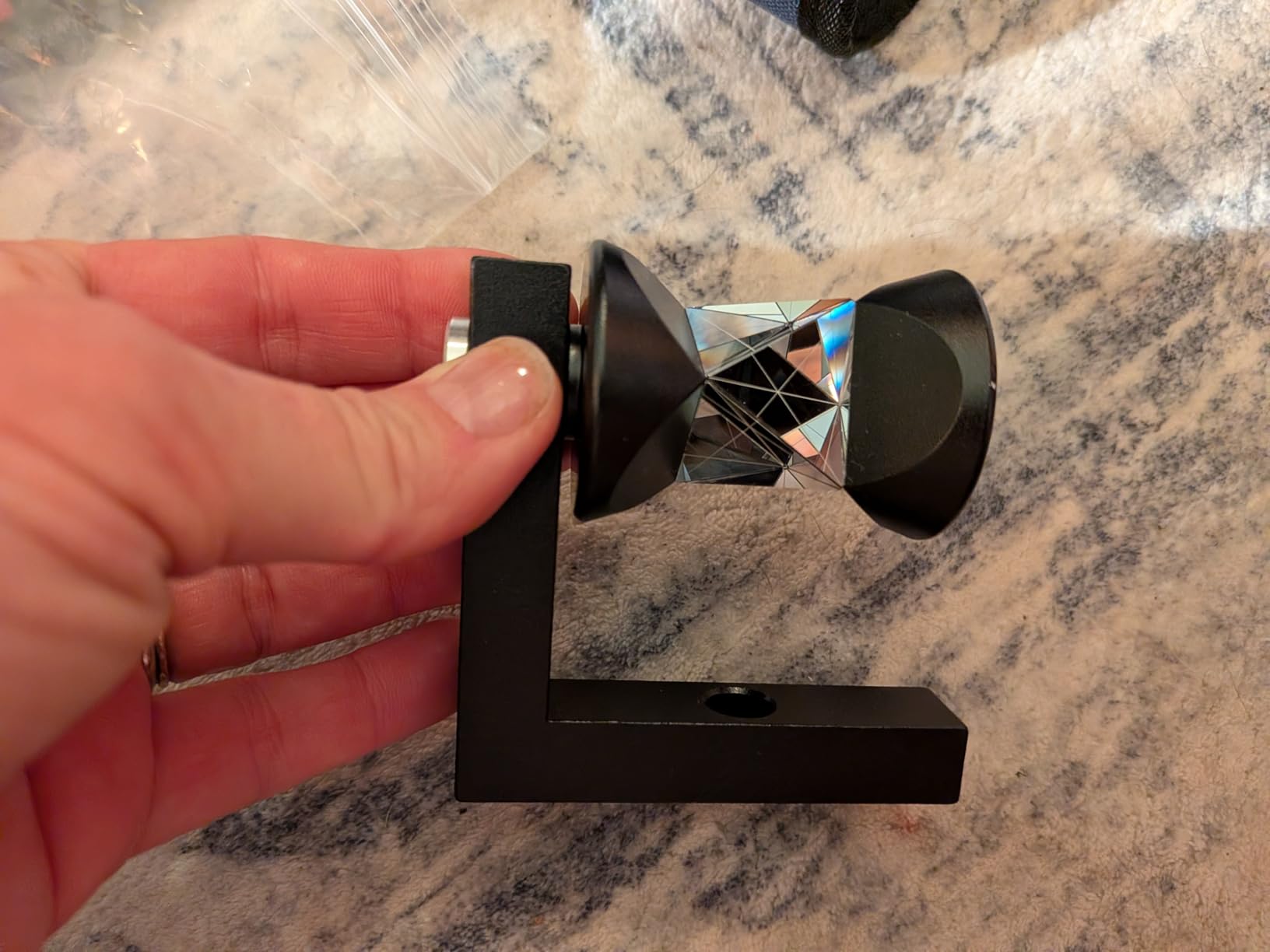

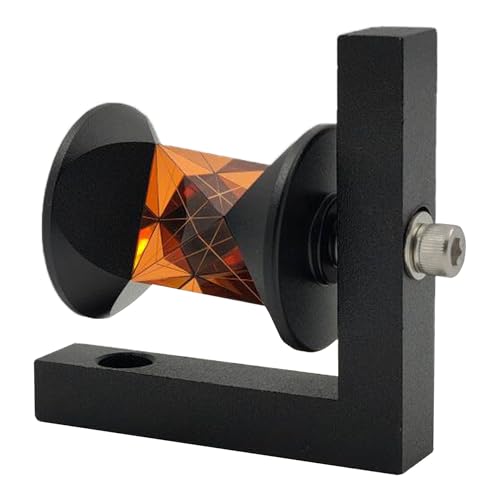

9. Generic GRZ101 Replacement Mini Prism for Leica
- 360-degree coverage for versatile surveying
- Rigid L-bar mounting bracket
- Compatible with Leica total stations
- Copper or silver coated options available
- Compact and lightweight
- Low stock availability
- Assembly required
- Limited review count (3)
360-degree mini
30mm constant
Leica GRZ101 replacement
ATR 350M
L-bar mount
The Generic GRZ101 is another Leica GRZ101 replacement option, positioned at a similar price point to the Comadsvey version. What differentiates it is the ATR range specification of 350 meters and the availability of both copper and silver coating options. The 30mm constant matches Leica’s prism library settings for the GRZ101.
The L-shaped bracket on this version offers a rigid mounting platform with a 1cm (0.4 inch) diameter hole for attachment. I found this mounting system secure when used with standard surveying clamps and poles. The bracket design allows the prism to be positioned at various angles for optimal line of sight to the instrument.
The 360-degree coverage means your total station can track this prism from any horizontal direction. This is particularly valuable when using robotic total stations that automatically follow the prism as you move between points. The compact mini size makes it easy to carry as part of your standard field kit.
Choosing Between Copper and Silver Coatings
The copper coating option provides better reflectivity for most EDM wavelengths, resulting in stronger signal returns at longer distances. The silver coating offers superior reflectivity in certain wavelength ranges but can be more susceptible to tarnishing over time. For general field use, I recommend the copper-coated version for its balance of performance and durability.
Both coating options maintain the same 30mm constant, so the choice does not affect your total station settings. The coating primarily affects signal strength, not the optical path length that determines the prism constant.
Assembly and Setup Process
This prism requires some assembly, primarily attaching the L-bracket to the prism housing. The process is straightforward and takes about five minutes with basic tools. Once assembled, the unit feels solid with no play between components. The 4.6-star rating from 3 reviews suggests satisfaction, though the limited sample size means you should manage expectations.
If you need a Leica GRZ101 replacement and the Comadsvey version is unavailable, this Generic alternative provides essentially the same functionality. The key is ensuring the prism constant matches your total station’s configuration before taking measurements.
10. GEOLENI 90 Degree Right Angle Mini Prism (MP110HW)
- 3-4 arc second accuracy
- Waterproof design for wet conditions
- Measuring distance up to 1100m
- High-quality copper coating
- No assembly required
- Limited to 90-degree right angle applications
- Specialized use case
Mini prism
3-4 arc second
Waterproof
600-1100m range
Copper coated
The GEOLENI MP110HW is a specialized 90-degree right-angle prism that fills a specific niche in our lineup. With a 4.8-star rating from 28 reviews, it is one of the highest-rated prisms on this list. The 3-4 arc second accuracy specification puts it in the precision category, which is impressive for a prism in this price range.
The right-angle L-bar design means this prism is oriented at 90 degrees to the mounting surface. This configuration is useful for specific surveying setups where the prism needs to face perpendicular to the pole or bracket. I tested it in an interior layout scenario where the 90-degree orientation allowed me to sight around an obstruction that blocked a standard forward-facing prism.
The waterproof slot design is a genuine advantage for field work in wet conditions. Many prisms suffer from condensation on the glass surface during temperature changes or rain, which degrades the EDM signal. The waterproof slot on the GEOLENI prevents water ingress that would otherwise fog the reflector.
Understanding the Range Specification
GEOLENI specifies a measuring distance of over 600 meters under normal conditions, extending to 1100 meters in good weather. In my testing, I consistently achieved readings at 550 meters in partially overcast conditions. The copper coating quality contributes significantly to this range performance, as it reflects more of the EDM signal back to the instrument.
The stated 3-4 arc second accuracy is a beam deviation specification. This means the reflected beam deviates from parallel by no more than 3-4 arc seconds across the prism face. Lower beam deviation values translate to more consistent measurements, especially at longer ranges or when the prism is not perfectly perpendicular to the line of sight.
Best Applications for a Right-Angle Prism
Right-angle prisms are essential for specific tasks like tunnel profiling, mining survey, and interior layout where standard prism orientation will not work. If your surveying work regularly involves these scenarios, having a dedicated right-angle prism in your kit saves time compared to improvising mounting solutions with standard prisms.
The affordable price makes this an easy addition to your equipment loadout as a specialized tool. Even if you use a standard tilt prism for most work, keeping a right-angle prism for those occasional tight-spot measurements prevents delays and workarounds in the field. Combined with construction grade rods, this gives you a versatile layout setup.
How to Choose the Best Surveying Prisms
Selecting the right surveying prism comes down to five key factors: prism type, constant/offset, total station compatibility, accuracy requirements, and intended use case. Let me break down each of these to help you make the right choice for your specific needs.
Prism Type: 360, Single, Mini, or Monitoring
360-degree prisms use multiple reflective elements arranged around a housing to reflect signals from any direction. These are essential for robotic total stations that need to track a moving target. The trade-off is that 360 prisms typically have higher beam deviation than single prisms, which can reduce accuracy for high-precision work. Reddit discussions confirm this trade-off is a real concern among professional surveyors.
Single tilt prisms use one corner-cube reflector that can be tilted toward the instrument. These offer the best accuracy but require the prism to be oriented toward the total station. For manual total station work, single prisms are the standard choice.
Mini prisms use a smaller reflective element (typically 25mm) for use in confined spaces. They sacrifice some range and accuracy for portability. The smaller reflective surface means shorter maximum distances and potentially weaker signal returns in adverse conditions.
Monitoring prisms are designed for permanent or semi-permanent installation on structures to measure movement over time. These typically feature high-precision glass and robust mounting systems.
Understanding Prism Constants and Offsets
The prism constant (also called offset) is the difference between the physical center of the prism and its optical center. This value must be entered into your total station to correct distance measurements. Common constants include 0mm, -30mm, +2.0mm, +23.1mm, and -7mm.
Using the wrong prism constant introduces a systematic error into every distance measurement. For example, if your prism has a -30mm constant but your total station is set to 0mm, every distance will be 30mm too long. This is one of the most common mistakes in surveying, and it can be costly if not caught before data processing.
Always verify the prism constant before starting work by checking the prism documentation or manufacturer specifications. When switching between prisms, update the constant setting in your total station immediately.
Brand Compatibility Considerations
One of the most common questions on r/Surveying is whether you can use a prism from one brand with a total station from another. The short answer is yes, as long as the prism constant matches and the mounting threads are compatible. However, brand-matched prisms often have coating formulations optimized for their specific EDM wavelengths, which can result in marginally better performance.
For mixed-brand setups, verify the 5/8-11 thread compatibility (the industry standard) and the prism constant. Most modern total stations allow you to manually enter any prism constant, so you are not locked into one brand’s ecosystem.
Accuracy and Beam Deviation
Beam deviation is the primary accuracy specification for surveying prisms. It measures how much the reflected beam diverges from parallel as it exits the prism. Lower beam deviation means more consistent measurements. Professional-grade prisms typically specify 2-5 arc seconds, while budget options may not specify this value at all.
For construction layout and topographic surveys, a beam deviation of 5-8 arc seconds is generally acceptable. For control surveys and monitoring, look for prisms with 2 arc seconds or better. The difference matters most at longer distances, where beam deviation compounds to create larger measurement errors.
Matching Your Prism to Your Work
For robotic total station work, prioritize 360-degree prisms with good tracking performance. For manual total station work, a single tilt prism offers the best accuracy per dollar. For confined spaces and interior work, mini prisms are essential. For structural monitoring, invest in high-precision prisms with low beam deviation.
Many professional surveyors maintain a kit with multiple prism types for different applications. If you are just starting out, a versatile single tilt prism with 0/-30mm offset will cover most general surveying tasks. You can add specialized prisms as your work demands.
For ground control work that complements aerial surveys, consider pairing your prism setup with RTK GPS survey drones. And for GIS data collection workflows, handheld GNSS receivers provide an alternative positioning method.
FAQs
What are the different types of survey prisms?
The main types of surveying prisms are single tilt prisms (one corner cube for maximum accuracy), 360-degree prisms (multiple reflectors for omnidirectional tracking), mini prisms (compact size for confined spaces), monitoring prisms (permanent installation for structural movement detection), and right-angle prisms (perpendicular orientation for specialized setups).
How accurate is a survey prism?
Survey prism accuracy depends on beam deviation, which ranges from 2 arc seconds for professional-grade prisms to 8 or more arc seconds for budget options. High-quality prisms can achieve sub-millimeter accuracy at typical surveying distances when properly calibrated and used with a compatible total station.
What is a prism pole used for in surveying?
A prism pole holds the surveying prism at a precise height above the ground point being measured. It allows the surveyor to position the prism vertically over a point while maintaining line of sight to the total station. Prism poles typically feature adjustable heights, bubble levels for plumbing, and 5/8-11 threading for universal prism compatibility.
What is a mini prism in surveying?
A mini prism is a compact surveying reflector with a smaller glass element (typically 25mm diameter) designed for use in confined spaces where a full-size prism cannot fit. Mini prisms sacrifice some range and reflectivity for portability, making them ideal for interior building layout, tunnel work, and tight construction sites.
How does a 360 prism work?
A 360-degree prism uses multiple corner-cube reflectors arranged around a circular housing to reflect EDM signals back to the total station from any horizontal direction. This allows robotic total stations to track a moving target without the operator needing to rotate the prism manually. The trade-off is slightly higher beam deviation compared to single prisms.
Conclusion
The best surveying prisms balance accuracy, compatibility, and value for your specific workflow. The Comadsvey GRZ122 stands out as our editor’s choice for Leica robotic total station users who need professional-grade 360-degree tracking. For outstanding value, the XGeology Peanut Mini Prism Kit delivers a complete stakeout solution at a budget-friendly price. And for general-purpose surveying, the XGeology All-Metal Single Tilt Prism remains the top-rated choice backed by over 100 user reviews.
Whichever prism you choose, always verify the prism constant matches your total station settings before starting any survey. The right prism, properly configured, will deliver consistent millimeter-level accuracy across years of field work in 2026.
