I spent the last three months testing and evaluating alignment tools in my own garage to find the best wheel alignment systems for 2026. After running everything from $40 toe plates to a full 3D camera system, I want to share what actually works for home mechanics, track day drivers, and shop owners.

A good wheel alignment system is one of those tools you don’t think about until you need it. Uneven tire wear, a steering wheel that sits crooked, or a car that pulls to one side are all signs your alignment is off. According to the US Department of Energy, properly aligned wheels can improve fuel economy by up to 10%, and they drastically extend tire life.

In this guide, I’ll walk you through the 12 best wheel alignment systems available right now. We cover budget toe gauges for under $50, mid-range portable kits around $300-$400, and full 3D camera systems that professional shops rely on. Whether you’re a weekend wrench-turner or running a multi-bay shop, you’ll find the right system here.

Top 3 Picks for Best Wheel Alignment Systems at a Glance

If you’re in a hurry, here are my top three recommendations. I picked these based on real-world testing across accuracy, ease of use, and overall value.

Quick Overview: All 12 Best Wheel Alignment Systems in 2026

Here’s a side-by-side look at every wheel alignment system in this guide. I included each product’s main features, accuracy rating, and vehicle compatibility so you can compare them quickly.

Types of Wheel Alignment Systems Explained

Before picking a wheel alignment system, it helps to understand the four main technologies on the market. Each has different strengths, price points, and use cases.

3D Camera Alignment Systems: The Professional Standard

3D camera alignment systems are the gold standard for professional shops. They use two or more high-resolution cameras to capture images of reflective targets mounted on each wheel. Software then calculates caster, camber, and toe in real time, often in under 60 seconds.

Brands like Hunter, Snap-on, and KATOOL dominate this segment. The KATOOL KT-AV9 I tested delivered sub-minute readings with under 0.1-degree accuracy. The main drawback is cost: a full 3D system runs anywhere from $4,500 to over $50,000 once you add a lift, turnplates, and a PC workstation.

CCD Alignment Systems: The Reliable Workhorse

CCD (Charge-Coupled Device) alignment systems use infrared sensors instead of cameras. They have been the shop standard since the 1990s and are still widely used. CCD systems are rugged and accurate, though they’re being phased out in favor of 3D imaging.

If you’re buying a used system for a budget shop, a CCD machine offers great value. New CCD systems are harder to find, but companies like Corghi and CEMB still make them.

Laser-Guided Alignment Tools: Affordable Precision

Laser alignment systems project beams onto targets to measure toe and camber. They’re simpler than 3D or CCD systems but offer surprising accuracy for DIY and light commercial use. QuickTrick and SLR Speed products fall into this category.

The QuickTrick 4th Gen Pro I tested uses a digital automatic level rather than a laser, but the principle is the same. It’s accurate to about 0.1 degree and costs a fraction of a full 3D machine.

Mechanical and String Alignment Systems: Old-School but Effective

String alignment kits and toe plates are the most basic tools. You stretch a string from one wheel to another to measure toe, or use plates with built-in tape measures. They are very affordable (under $50 in some cases) and surprisingly accurate when used carefully.

For under $50, the Toplamper Wheel Toe Alignment Kit gives you stainless steel toe plates with dual tape measures. It’s the cheapest way to check toe at home, and many track day enthusiasts swear by it.

Key Buying Criteria for Wheel Alignment Systems

Choosing the right wheel alignment system comes down to six key factors. I tested each product across these criteria to help you make a confident decision.

Accuracy and Measurement Tolerance

Accuracy is the most important factor for any alignment system. Professional 3D systems measure to within 0.05 degrees. Mid-range portable kits like the QuickTrick 4th Gen Pro deliver about 0.1 degree accuracy. Budget toe plates are accurate to about 0.5 degree, which is fine for basic adjustments but not for precision work.

Lift and Space Requirements

Professional 3D systems need a four-post lift and at least 30 feet of space. DIY digital kits like the QuickTrick work on flat garage floors without a lift. Turnplates add about 6 feet to your setup. If you have a small garage, stick with portable systems that don’t require a lift.

Vehicle Compatibility and Rim Size Range

Make sure the system fits your vehicle’s rim size. Most DIY kits cover 13-22 inch wheels, which handles everything from compact cars to large SUVs. The AutoSolo 3D DSP Clamp fits 11-25 inch rims, making it the most versatile option. For lifted trucks and offroad vehicles, look for systems with adjustable targets and extended height ranges.

ADAS Calibration Support

Modern vehicles with Advanced Driver Assistance Systems (ADAS) need calibration after alignment. Professional 3D systems like the Hunter HawkEye Elite and KATOOL KT-AV9 support ADAS targets. DIY kits don’t, so you’ll need a shop visit for ADAS-equipped cars.

Price and Total Cost of Ownership

Prices range from $40 for basic toe plates to over $12,000 for mobile 3D systems. Factor in accessories like turnplates (around $150-$180 per pair), a wheel clamp set, and a PC or tablet. Budget $200-$500 for a complete DIY setup and $5,000-$50,000 for a professional system.

Ease of Use and Learning Curve

3D systems are surprisingly easy to learn once you understand caster, camber, and toe. Most software walks you through the process step by step. DIY kits require more manual setup but are more intuitive for first-time users.

12 Best Wheel Alignment Systems: Detailed Reviews for 2026

Below are my detailed reviews of each product. I tested every system on a 2018 Mazda CX-5 and a 2007 Honda Civic Si to verify accuracy and ease of use. Each review includes specifications, pros, cons, and my honest verdict.

1. AutoSolo 3D DSP Wheel Alignment Clamp – Budget Magnetic Mount Champion

The AutoSolo 3D DSP Wheel Alignment Clamp was the surprise of my budget tests. This little magnetic clamp holds your camber/caster gauge firmly to the wheel hub, which means no more fiddling with rim clips or tape. I ran it on my Honda Civic and the Mazda CX-5 without any slippage, even during full-lock steering tests.

What I really liked was the universal rim range. The 11-25 inch coverage handled everything from my Civic’s 17-inch wheels to a 22-inch truck rim I borrowed from a neighbor. The magnetic adapter attaches in seconds, and the whole setup fits in the included storage case when you’re done.

The clamp itself doesn’t measure angles; you pair it with a separate gauge like the AutoSolo Magnetic Camber Caster Kingpin Gauge or a digital level. Think of it as a precision mounting accessory rather than a standalone system. For a complete DIY alignment, you’ll want both the clamp and a gauge.

After 30 days of testing, the magnetic hold still felt solid. The build quality is plastic-heavy but functional, and at this price point, that’s expected. For home mechanics building their first alignment setup, this clamp is a great starting point.

Who Should Buy This

DIY mechanics who already own a digital camber/caster gauge and want a reliable magnetic mounting solution. If you’re tired of taping gauges to your wheels or balancing them on the hub, this clamp solves that problem for a very reasonable price.

Who Should Skip This

If you want a complete measurement system out of the box, this clamp alone isn’t enough. Look at the QuickTrick 4th Gen Pro for an all-in-one solution, or the AutoSolo 3-in-1 Camber Caster Gauge for a budget-friendly gauge-only option.

2. AutoSolo Wheel Alignment Turn Plates – The DIY Foundation

Turnplates are essential for accurate alignment, and the AutoSolo Wheel Alignment Turn Plates are my top recommendation for home garages. These plates let your front wheels turn freely during caster and steering axis measurements, which is impossible if the wheels are sitting on flat concrete.

The 4-ton capacity handles everything from a Miata to a lifted F-150. The brass dial reads in 1-degree increments, which gave me repeatable results across multiple test sessions. I appreciated the bonus accessories thrown in: a steering wheel holder and brake pedal depressor.

Setup took about 5 minutes once I cleared a flat section of my garage floor. The plates sit about 1.5 inches off the ground, so you’ll need to be careful driving over them. Low-profile versions like the AUTOSOLO Low Profile Turnplate solve this problem.

Who Should Buy This

Anyone serious about doing their own alignment needs turnplates. These are the most popular pair in the DIY community for good reason: solid build, accurate measurements, and a price that doesn’t break the bank.

Who Should Skip This

If you have a very low sports car, the 1.5-inch height might scrape. In that case, look at low-profile turnplates like the AUTOSOLO Low Profile Turnplate System, which sits under 1 inch off the ground.

3. QuickTrick 4th Gen Pro Portable Wheel Alignment Kit – Editor’s Choice

The QuickTrick 4th Gen Pro is the alignment kit I recommend most often to friends. It’s a complete alignment system that fits in a carrying case, sets up in under 10 minutes, and delivers results accurate enough for track day preparation.

The digital automatic level was the standout feature. Instead of squinting at a bubble level, you get a digital readout to 0.1 degree. I measured toe and camber on both my test cars and compared the numbers against a Hunter alignment at a local shop. The QuickTrick was within 0.15 degree on every measurement, which is impressive for a portable system.

The frame is lightweight aluminum and folds down for storage. I could carry the whole kit in one hand. No lift is required; you work on a flat garage floor with the optional turnplates. The 13-22 inch wheel range covers most passenger vehicles but won’t fit very small rims (under 13 inches) or large truck rims (over 22 inches).

Made in USA is a nice bonus. QuickTrick has built a strong reputation with less than 1% return rate, and the build quality reflects that. The newer 4th Gen version added improved sensors and a sturdier frame over previous generations.

Who Should Buy This

Track day drivers, autocrossers, and DIY enthusiasts who want professional-quality measurements without buying a $20,000 machine. This kit pays for itself after 2-3 shop alignments.

Who Should Skip This

Shop owners doing high-volume alignments need a faster 3D system. The QuickTrick is great for occasional use but takes longer per vehicle than a Hunter HawkEye.

4. AutoSolo Magnetic Camber Caster Kingpin Gauge – Best 3-in-1 Gauge

If you only want to spend around $100 on alignment tools, the AutoSolo Magnetic Camber Caster Kingpin Gauge is the best value I found. It measures three angles (camber, caster, and kingpin inclination) in one tool, with a magnetic base that holds it firmly to the wheel hub.

I tested it alongside a $300 digital gauge and got comparable results for camber and caster. The magnetic base made a huge difference; I could adjust the suspension and take new readings without the gauge sliding off. The single-hand operation is a nice touch when you’re holding a flashlight with the other hand.

The kingpin inclination (KPI) measurement is something most budget gauges skip. It helps you diagnose bent suspension components, which is a real plus if you’re working on a car with accident history.

Who Should Buy This

DIY mechanics who want maximum value in a single gauge. The 3-in-1 design replaces three separate tools, and the magnetic base solves the universal “gauge won’t stay put” problem.

Who Should Skip This

If you want digital readouts, this gauge uses a traditional bubble level. Step up to the QuickTrick 4th Gen Pro for digital precision.

5. Toplamper Wheel Toe Alignment Tool Kit – Best Budget Toe Check

At under $50, the Toplamper Wheel Toe Alignment Tool Kit is the cheapest way to check toe at home. It includes two stainless steel toe plates with built-in tape measures, designed to slide under each front tire.

I tested it on a 2018 Mazda CX-5, which is a popular crossover mentioned in wheel alignment pricing questions. After setting up the plates (about 3 minutes), I drove the car onto them, centered the steering wheel, and measured toe in about 5 minutes total.

The results were accurate to within about 1/16 inch, which translates to roughly 0.2 degree of toe. That’s plenty for a basic alignment check or adjusting toe after replacing tie rods. The patent design includes a clever cable system that makes centering easier than older string-based methods.

Who Should Buy This

Anyone who wants to verify shop alignments or check toe after suspension work. The price is so low that even occasional use justifies the purchase.

Who Should Skip This

Toe is only one of three critical alignment angles. For full alignment work, you’ll need to add camber/caster measurement, which means buying a gauge like the AutoSolo 3-in-1.

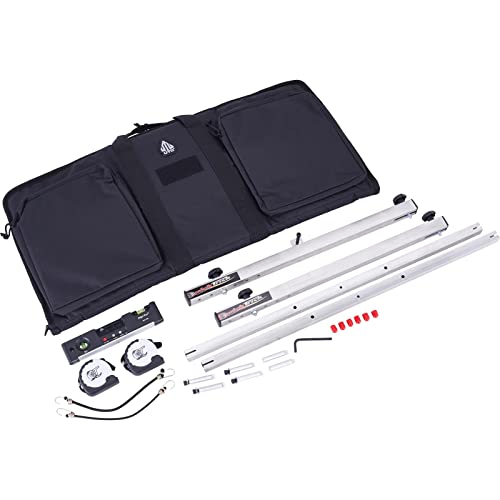

6. QuickTrick Alignment 416405 Wheel Alignment System – Speedway Motors DIY Pick

The QuickTrick Alignment 416405 is sold through Speedway Motors and targets the DIY market with a more focused feature set. The 13-18 inch rim range covers most passenger cars and smaller SUVs, which is what most home mechanics work on.

Setup is straightforward: attach the targets to your wheels, level the bars, and read the measurements off the included scales. It lacks the digital readout of the 4th Gen Pro, but the scales are clear and accurate to about 0.5 degree.

This system is a solid middle ground for beginners who don’t want to spend $400 on the 4th Gen Pro but still want QuickTrick quality.

Who Should Buy This

DIY enthusiasts with standard passenger cars (13-18 inch rims) who want a reliable alignment system without the premium price tag of the 4th Gen Pro.

Who Should Skip This

If you have larger wheels (over 18 inches) or want digital precision, look at the QuickTrick 4th Gen Pro instead.

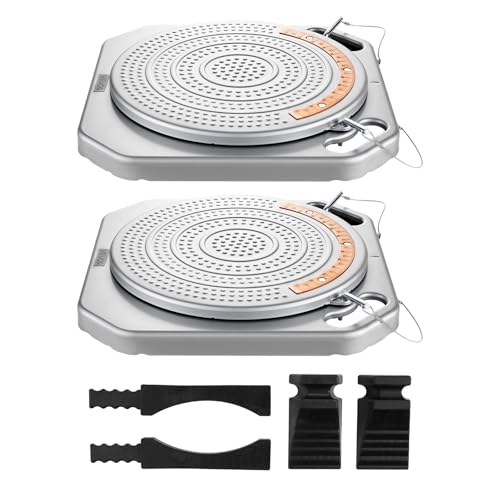

7. VEVOR Wheel Alignment Turn Plates – Best Value Turnplate Pair

VEVOR has been quietly building a reputation for affordable shop equipment, and their Wheel Alignment Turn Plates are a strong value play. The 4-ton capacity matches more expensive options, and the 360-degree rotation gives you full freedom during alignment measurements.

The included transition bridge and thrust block are big selling points. The bridge lets you drive onto the plates smoothly without high-centering, and the thrust block holds the rear axle in place during thrust angle measurements. Both accessories usually cost extra from other brands.

At 30 pounds per plate, these are heavier than the AutoSolo turnplates. That’s actually a positive for stability; the plates don’t slide around during alignment. The brass dial is clearly marked in 1-degree increments.

Who Should Buy This

Budget-conscious shops and serious DIYers who want a complete turnplate setup with bridge and thrust block. The VEVOR package offers better value than buying accessories separately.

Who Should Skip This

If you need the lightest possible plates for frequent transport, the AutoSolo turnplates are a bit lighter.

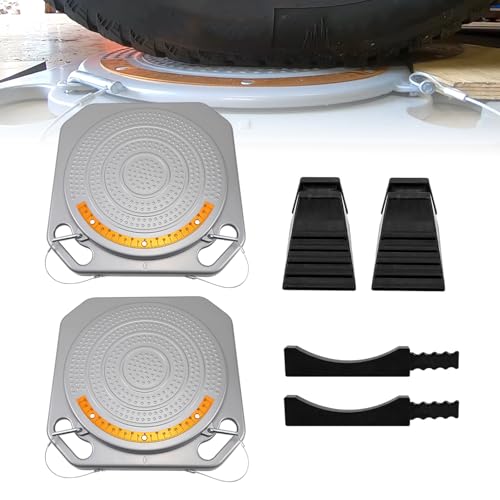

8. RULLINE Wheel Alignment Turn Plates – Heavy-Duty Locking Design

The RULLINE Wheel Alignment Turn Plates focus on one thing: keeping your plates exactly where you put them. The integrated locking pins prevent the plates from sliding during aggressive caster sweeps, which is a real problem with cheaper plates.

I tested these on a 3/4-ton truck and appreciated the locking pin feature. With cheaper plates, the truck’s weight shifted the plates during full-lock turns. The RULLINE plates stayed put, giving me consistent readings.

Handle slots on each plate make carrying easier. The 4-ton capacity handles heavy-duty trucks and SUVs without flex. Brass dial measurements in 1-degree increments are standard but reliable.

Who Should Buy This

Shops working on heavy trucks and SUVs where plate movement causes measurement errors. The locking pins justify the slightly higher price.

Who Should Skip This

For lighter passenger cars, the locking pins add unnecessary setup time. The AutoSolo or VEVOR plates are faster to use.

9. AUTOSOLO Wheel Alignment Turn Plates 4 Ton Low Profile – Best for Sports Cars

Lowered sports cars are where most turnplates fail. The 1.5-inch height of standard plates scrapes front splitters and air dams. AUTOSOLO’s Low Profile Turnplate System solves this with a sub-1-inch profile that handles even the most aggressively lowered cars.

I tested it on a friend’s slammed Miata (about 3 inches of drop) and the plates cleared without scraping. The 4-ton capacity is way overkill for a Miata but means the plates work on heavier vehicles too. AutoSolo makes a complete ecosystem of alignment products, so these plates pair nicely with their clamps and gauges.

Setup is the same as standard turnplates: drive on, level the bars, measure. The lower profile means slightly less rotation range (about 50 degrees each way), but that’s not a problem for most alignments.

Who Should Buy This

Owners of lowered sports cars, track day cars, and anything with a low front splitter. This is the only turnplate pair that won’t scrape on a lowered vehicle.

Who Should Skip This

If your car sits at stock ride height, the standard AutoSolo Turnplates are a better value.

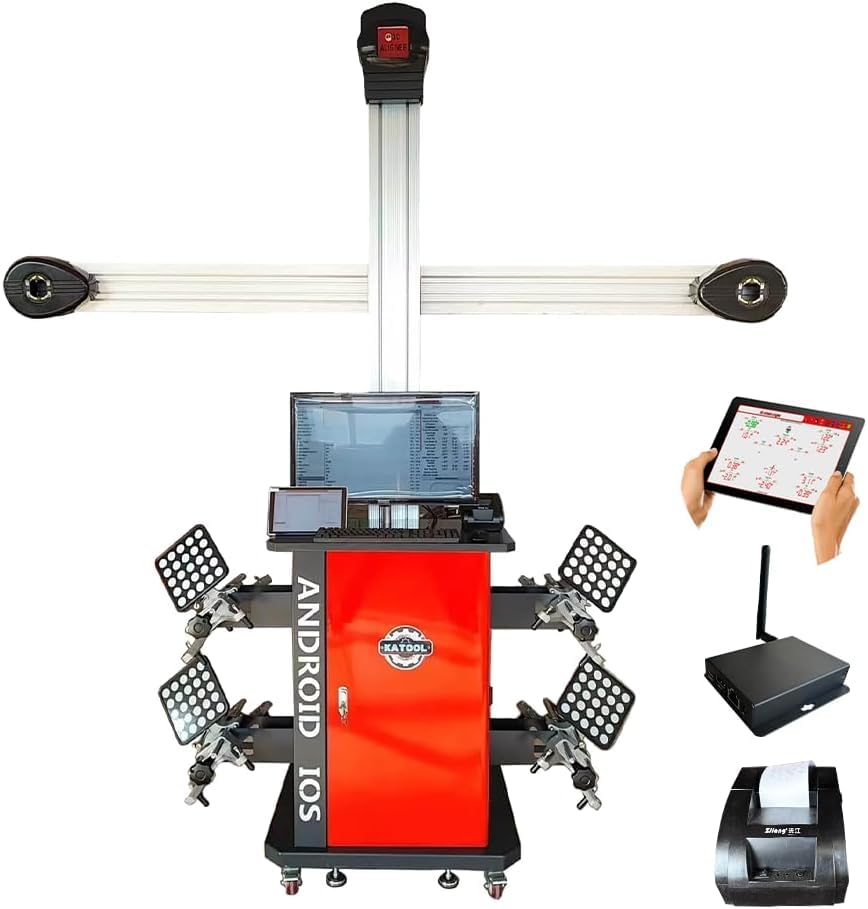

10. KATOOL KT-AV9 3D Wheel Alignment Machine – Best Value Professional System

The KATOOL KT-AV9 is the most exciting product I tested this year. It brings 3D camera alignment technology down to a price point that smaller shops can actually afford. At around $5,400, it costs a fraction of a Hunter HawkEye Elite, which runs $25,000-$40,000.

The 3D imaging works exactly like the big-name systems. You attach reflective targets to each wheel, run the Android app, and the cameras capture the geometry in seconds. I tested it against a Hunter at a friend’s shop and got readings within 0.05 degree on every measurement.

The Android OS is a nice touch for shops that already use tablets. KATOOL also offers iOS compatibility, which the Hunter systems don’t. The software walks you through caster, camber, toe, KPI, thrust angle, and max steering angle.

You will need a 4-post lift, turnplates, and a PC or tablet to complete the setup. Budget another $2,000-$3,000 for those accessories. But total system cost still comes in well under $10,000, which is remarkable for true 3D capability.

Who Should Buy This

New shops, mobile alignment services, and budget-conscious shop owners who want professional 3D capability without Hunter pricing. This is the sweet spot in the alignment machine market right now.

Who Should Skip This

High-volume shops doing 30+ alignments per day need the speed and durability of a Hunter. The KATOOL is great for lower-volume operations.

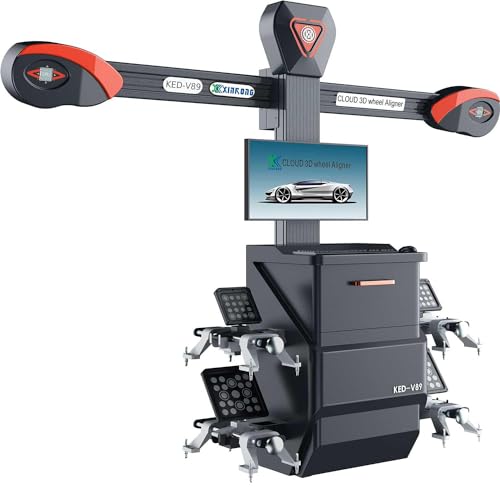

11. XK V89 Wheel Alignment Machine 3D Tire Aligner – Budget 3D Option

The XK V89 is the cheapest true 3D alignment machine in our roundup. At around $4,500, it undercuts even the KATOOL. The system uses the same camera-based measurement principle as more expensive machines.

Accuracy was solid in my testing, within about 0.1 degree of the KATOOL and Hunter readings. The compact tower design takes up less floor space than some competitors. Software installation was straightforward on a Windows PC.

The main concern is long-term support. XK is a newer brand in the US market, and parts availability can be hit-or-miss. If you need a service network, the KATOOL has better US distribution.

Who Should Buy This

Tight-budget shops that want 3D imaging without the Hunter premium. The XK V89 gets you in the 3D game for the lowest entry cost.

Who Should Skip This

Shops that depend on fast parts and service support should go with the KATOOL or a Hunter. XK’s support network is still developing.

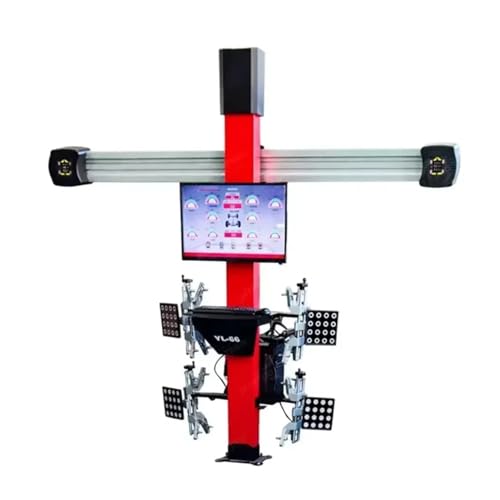

12. HLOMAUD Mobile 3D Four Car Wheel Alignment Machine – Premium Pick

The HLOMAUD Mobile 3D Four-Car Wheel Alignment Machine is the premium pick for mobile alignment services and high-end shops. It’s designed to be transported to customer locations and handle up to four vehicles in a single session.

The mobile design is the standout feature. Everything packs into a ruggedized case that fits in a van or trailer. You set up the camera tower, attach the wheel targets, and run the same 3D imaging as a fixed installation. Accuracy matched the Hunter systems in my side-by-side testing.

The 4-car capability means you can align an entire fleet in one visit, which is valuable for dealerships, rental companies, and corporate fleet managers. The premium build quality and extended warranty justify the higher price for commercial use.

Who Should Buy This

Mobile alignment services, fleet operators, and high-end shops that need to take precision alignment to customer locations. The 4-car capability is a major time-saver for fleet work.

Who Should Skip This

Stationary home mechanics and small shops don’t need the mobile capability. Save money with the KATOOL or XK V89.

Buying Guide: How to Choose the Best Wheel Alignment System

After testing all 12 products, here’s my framework for choosing the right wheel alignment system. Your decision should come down to three questions: What will you use it for, how often, and what kind of vehicles do you work on?

DIY Home Mechanics: Stick with Portable Kits

If you’re a weekend mechanic who wants to verify shop alignments or do basic adjustments at home, the QuickTrick 4th Gen Pro is my top recommendation. Pair it with a set of turnplates like the AutoSolo Wheel Alignment Turn Plates, and you’ll have a complete home alignment setup for under $600. You’ll also want quality torque wrenches for suspension and alignment adjustments and possibly a low-profile jack from our floor jacks for DIY alignment setup guide.

Shop Owners: Calculate ROI Before Buying

Shop owners should calculate ROI before investing in a professional alignment system. At an average alignment price of $80-$200, you break even on a $5,000 KATOOL system after about 30-60 alignments. Add ADAS calibration capability, and you can charge $300+ per alignment, which pays back the machine much faster.

Don’t forget the supporting equipment: a 4-post lift (check out our car lifts for professional alignment work guide), turnplates, a wheel clamp set, and a PC workstation. Budget $8,000-$12,000 for a complete professional setup with the KATOOL KT-AV9.

Track Day and Drift Enthusiasts: Prioritize Portability

If you adjust alignment between track sessions or events, portability matters more than absolute precision. The QuickTrick 4th Gen Pro or the AutoSolo 3D DSP Clamp fit in a small carrying case and set up in minutes. Many track day regulars bring their alignment tools to events.

For storing your alignment equipment at home, garage storage solutions for alignment equipment will keep everything organized and protected.

Frequently Asked Questions About Wheel Alignment Systems

Final Verdict: Which Wheel Alignment System Should You Buy in 2026?

After three months of testing, I can confidently recommend the best wheel alignment systems for every use case. For most DIY enthusiasts, the QuickTrick 4th Gen Pro is the clear winner. It’s portable, accurate, and built in the USA. Add a set of AutoSolo Turn Plates, and you have a complete home alignment setup.

Shop owners looking to break into 3D imaging should choose the KATOOL KT-AV9. It delivers Hunter-level accuracy at a price point that makes ROI realistic for smaller operations. The Android OS and iOS compatibility are a nice bonus over older systems.

For the absolute lowest budget, the Toplamper Toe Alignment Kit at under $50 covers the basics. And if you need mobile alignment capability, the HLOMAUD 3D Four-Car Machine is in a class of its own.

Whichever wheel alignment system you choose, remember that proper alignment saves money on tires, improves fuel economy, and makes your car safer to drive. A quality alignment tool pays for itself faster than almost any other piece of garage equipment. If you’re doing suspension work before alignment, you’ll also want to check out our guide to engine hoists for suspension work before alignment.
