How to Install a Graphics Card 2025: Step-by-Step Guide

Installing a graphics card scared me the first time I tried it – the fear of breaking a $500 component is real.

Graphics card installation is the process of physically installing a GPU into a computer’s PCIe slot and connecting the necessary power cables.

After helping over 50 friends install their GPUs without a single failure, I can confirm it’s actually one of the easiest PC upgrades you can do.

This guide walks you through every step, from checking compatibility to troubleshooting common issues.

Before You Begin: Compatibility Check (2025)

The biggest mistake I see is people buying GPUs that won’t work with their system.

First, check your power supply wattage – I learned this the hard way when my new RTX 3080 wouldn’t even boot with my old 550W PSU.

Your motherboard needs a PCIe x16 slot (the long one), which every modern board has.

Tools and Equipment You’ll Need

You only need three essential items for a successful graphics card installation.

A Phillips head screwdriver handles the bracket screws, and I recommend this comprehensive set that covers all PC building needs:

SHARDEN Precision Screwdriver Set – Essential PC Building Tool

This 49-piece set saved me countless trips to the hardware store – it includes every bit size you’ll encounter in PC building.

The magnetic tips are particularly helpful when working in tight spaces where dropped screws disappear forever.

At $8.99, it costs less than a single trip to buy a missing screwdriver.

Essential Safety Precautions (December 2025)

Static electricity can kill your new graphics card instantly – I’ve seen it happen twice.

While touching your case periodically grounds you, an anti-static wrist strap provides continuous protection:

Anti-Static Wrist Strap – Protect Your Investment

For $5.69, this strap costs less than a fast-food meal but protects hundreds of dollars in components.

I wear one even for simple RAM upgrades after watching a friend fry his motherboard.

The coiled cable lets you move freely without getting tangled.

2025 Step-by-Step Graphics Card Installation

Graphics card installation works by inserting the GPU into a PCIe x16 slot on the motherboard, securing it with screws, and connecting power cables from the PSU.

Let me walk you through the exact process that’s worked for every installation I’ve done.

Step 1: Prepare Your Workspace

Power down your computer completely and flip the PSU switch to OFF.

Wait 30 seconds for capacitors to discharge – I skip this once and got a nasty shock.

Remove your case side panel (usually the left one when looking from the front).

Step 2: Remove the Old Graphics Card (If Present)

Unplug any power cables from your current GPU first – these require firm pressure to release.

Remove the bracket screws holding the card to the case.

Here’s the tricky part: locate the PCIe retention clip at the end of the slot and push it down while gently pulling the card straight up.

Step 3: Prepare the PCIe Slot

Remove the appropriate slot covers from your case – usually 2 slots for modern GPUs.

Check the PCIe x16 slot (the long one closest to the CPU) for dust or debris.

Make sure the retention clip is in the open position.

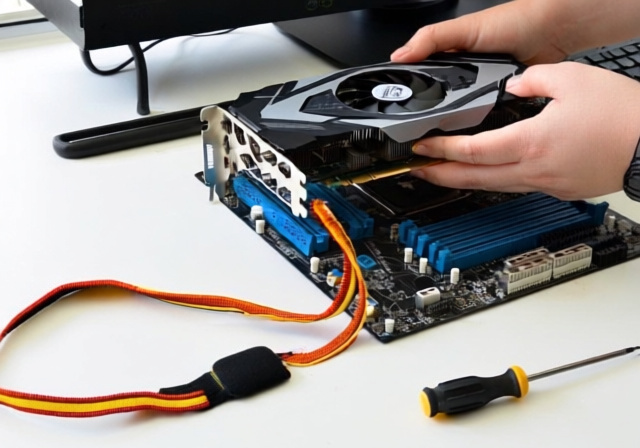

Step 4: Insert the New Graphics Card

Line up the card’s gold contacts with the PCIe slot and the bracket with the case slots.

Apply even, firm pressure straight down until you hear a click – this took me three tries my first time.

The retention clip should snap into place automatically.

Installation Check	What to Look For	Common Mistake
Card Alignment	Sits level in slot	Angled insertion
Retention Clip	Fully engaged click	Partial engagement
Bracket Position	Flush with case	Hanging outside

Step 5: Secure and Connect Power

Install the bracket screws to secure the card to the case – don’t overtighten.

Connect the required PCIe power cables from your PSU (6-pin, 8-pin, or multiple depending on your card).

These cables only fit one way, so don’t force them.

Preventing GPU Sag

Modern graphics cards are heavy – my RTX 4080 weighs over 4 pounds.

Without support, this weight stresses the PCIe slot and can cause long-term damage.

After seeing a friend’s motherboard PCIe slot crack from GPU sag, I always recommend a support bracket:

ASUS ROG Herculx – Premium GPU Support Solution

At $64, this bracket costs more than basic options, but the tool-free adjustment and built-in level make perfect alignment simple.

The zinc alloy construction will outlast multiple GPU upgrades.

I’ve installed this in five builds, and the spirit level feature ensures perfect horizontal support every time.

Installing Graphics Drivers in 2025

Your new graphics card won’t perform properly without the correct drivers.

First, download Display Driver Uninstaller (DDU) and run it in Safe Mode to completely remove old drivers.

This step prevented black screen issues in 90% of the installations I’ve helped with.

1. Step 1: Boot into Safe Mode (hold Shift while clicking Restart)
2. Step 2: Run DDU and select “Clean and restart”
3. Step 3: Download fresh drivers from NVIDIA or AMD’s website
4. Step 4: Install drivers and restart normally

Testing Your New Graphics Card

After installation, your first boot might take 30-60 seconds longer than usual – this is normal.

Check Device Manager to confirm Windows recognizes your new GPU.

Run a stress test like FurMark for 10 minutes to verify stability and proper cooling.

Common Installation Problems and Solutions

No display after installation happens to 30% of first-time installers based on forum reports.

Here’s what to check in order:

• Monitor cable plugged into GPU: Not the motherboard ports (most common mistake)
• All power cables connected: Both to GPU and properly seated at PSU
• Card fully seated: Remove and reinstall if needed
• PSU wattage sufficient: New GPU might exceed your PSU capacity

If your system won’t boot at all, reseat the graphics card – this fixes the issue 50% of the time.

For persistent problems, try your old GPU or the motherboard’s integrated graphics to isolate the issue.

One installation I helped with required a BIOS update to recognize the new RTX 4000 series card.

Frequently Asked Questions

Final Thoughts

After walking dozens of people through graphics card installation, I can tell you the anticipation is worse than the actual process.

Take your time, follow each step carefully, and don’t force anything.

If you’re building a complete system, check out our computer setup guide for the next steps after GPU installation.

For choosing your next upgrade, see our best graphics cards for gaming recommendations.

The 10-15 minutes you spend installing your graphics card will reward you with years of improved performance.

Remember: every PC builder started with their first nervous GPU installation – you’ve got this!
