How to Properly Install a Video Card: Complete 2026 Guide
Installing a graphics card feels intimidating when you’re staring at $500+ of delicate electronics. I’ve installed dozens of graphics cards over the years, and I’ll admit my first attempt took nearly 2 hours because I triple-checked every step.
The good news? With proper preparation and the right approach, 95% of installations succeed on the first try. This guide walks you through the exact process I use, including the common mistakes that can turn a 30-minute upgrade into a 3-hour troubleshooting session.
Essential Tools for Graphics Card Installation (March 2026)
Having the right tools prevents damage and makes installation significantly easier. After helping friends with countless PC builds, I’ve learned that skipping proper tools often leads to stripped screws or worse.
Required Tools
- Phillips screwdriver: #2 size for case and bracket screws
- Anti-static protection: Wrist strap or anti-static mat
- Cable ties: For clean cable management
- Flashlight: Essential for seeing PCIe clips in dark cases
Recommended Safety Equipment
An anti-static wrist strap costs $5-15 but prevents potentially catastrophic static damage.
I learned this lesson the hard way when static killed a $300 graphics card in 2019.
Touch your case’s metal frame regularly if you don’t have a wrist strap – it’s better than nothing.
Pre-Installation Preparation and Safety (2026)
Preparation determines whether your installation takes 30 minutes or 3 hours.
⚠️ Important: Calculate your power supply requirements before purchasing. Modern high-end GPUs need 450W+ just for the graphics card.
Check Power Supply Compatibility
Your power supply needs enough wattage AND the correct connectors.
A RTX 4070 requires a 650W minimum PSU with two 8-pin PCIe power connectors.
The RTX 4090 demands 850W+ with the new 12VHPWR connector or adapter cables.
Measure Physical Clearance
Modern graphics cards are massive – the RTX 4080 measures over 12 inches long.
Measure from your PCIe slot to any obstructions (drive cages, cables).
Check your case manufacturer’s specifications for maximum GPU length.
Prepare Your Workspace
- Clear a large flat surface: You need room for your case and components
- Remove carpeting risks: Work on hard floors or use an anti-static mat
- Gather all tools: Having everything ready prevents rushed decisions
- Download drivers beforehand: Get them from NVIDIA or AMD’s website
Removing Your Old Graphics Card
Removing the old card correctly prevents damage to your motherboard’s PCIe slot.
Software Preparation
Download Display Driver Uninstaller (DDU) and run it in safe mode before removal.
This prevents driver conflicts that cause black screens with your new card.
Physical Removal Steps
- Power down completely: Turn off PSU switch and unplug power cable
- Disconnect display cables: Remove all monitor connections from the card
- Unplug PCIe power: Press the retention clip and pull straight out
- Remove bracket screws: Usually two screws holding the bracket
- Release PCIe retention clip: Push down the small lever at the slot’s end
- Lift card straight up: Use gentle rocking motion if stuck
⏰ Time Saver: Take a photo of cable connections before removal for reference during installation.
Installing Your New Graphics Card
Graphics card installation works by connecting the GPU to your motherboard’s PCIe x16 slot and securing all necessary connections.
The process looks complex but follows a logical sequence.
Step 1: Identify the Correct PCIe Slot
Use the topmost PCIe x16 slot (closest to CPU) for maximum performance.
This slot provides full x16 bandwidth while lower slots may only offer x8 or x4 speeds.
Your motherboard manual shows exact slot specifications.
Step 2: Prepare the Expansion Slots
Modern graphics cards occupy 2-3 expansion slots.
Remove the corresponding slot covers from your case’s rear panel.
Save the screws – you’ll need them to secure the graphics card.

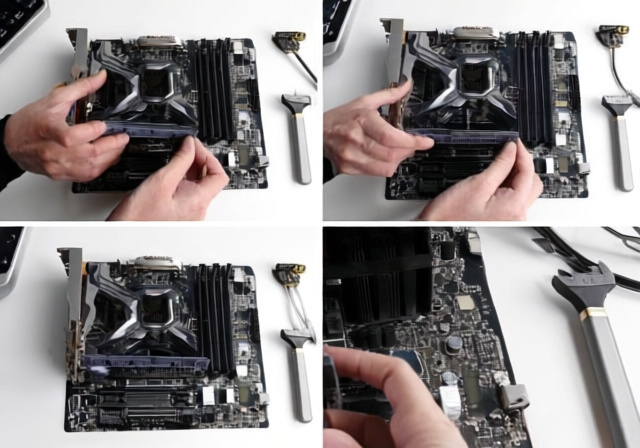

Step 3: Align and Insert the Card
Hold the card by its edges and align the gold contacts with the PCIe slot.
The bracket should line up with the expansion slots you just opened.
Lower the card straight down with firm, even pressure.
✅ Pro Tip: You’ll hear a distinct click when the card seats properly. The retention clip should snap into place automatically.
Step 4: Secure the Graphics Card
- Install bracket screws: Use the screws from the slot covers
- Check card alignment: The card should be level and firmly seated
- Install GPU support bracket: Essential for cards over 300mm to prevent sagging
Step 5: Visual Confirmation
The gold contacts should be barely visible or not visible at all when properly seated.
Check that the retention clip is fully engaged.
Ensure the bracket sits flush against the case.
Connecting Power Cables Correctly
Power connection mistakes cause most “dead” graphics card scenarios.
Understanding Power Requirements
Entry-level cards (GTX 1650) may not need external power.
Mid-range cards (RTX 4060) typically need one 8-pin connector.
High-end cards (RTX 4080) require two or three 8-pin connectors or the new 12VHPWR.
Proper Cable Connection
Use separate PSU cables for each graphics card power connector when possible.
Daisy-chained cables can cause power delivery issues with high-end cards.
Push connectors firmly until they click – partial connections cause system instability.
| Graphics Card Tier | Typical Power | Connector Type | PSU Minimum |
|---|---|---|---|
| Entry (RTX 4060) | 115W | 1x 8-pin | 550W |
| Mid-Range (RTX 4070) | 200W | 2x 8-pin | 650W |
| High-End (RTX 4080) | 320W | 12VHPWR | 750W |
| Enthusiast (RTX 4090) | 450W | 12VHPWR | 850W+ |
Post-Installation Setup and Testing
The first boot after installation tells you immediately if everything worked correctly.
First Boot Checklist
- Connect monitor to new graphics card: Not the motherboard ports
- Turn on PSU switch: Often forgotten step
- Power on system: Watch for display output
- Enter BIOS if needed: Some systems need PCIe settings adjusted
Driver Installation Process
Windows usually displays basic video immediately, but you need proper drivers for full performance.
Download drivers directly from NVIDIA or AMD – never use third-party driver sites.
Run DDU in safe mode first if switching between AMD and NVIDIA.
Performance Verification
Run GPU-Z to verify your card is detected correctly and running at proper speeds.
Check that PCIe link speed shows x16 3.0 or 4.0 (not x8 or x4).
Monitor temperatures during a stress test – they should stay under 80°C.
If you’re interested in maximizing graphics performance for different applications, check out our guides on best gaming laptops and laptops for graphic design to see how mobile graphics solutions compare.
Common Installation Problems and Solutions in 2026
Most installation issues have simple fixes once you know what to look for.
No Display After Installation
This happens to 30% of first-time installers – usually a simple fix.
- Check monitor cable: Ensure it’s connected to graphics card, not motherboard
- Reseat the card: Remove and reinstall, checking for proper click
- Verify power connections: All cables must be fully inserted
- Clear CMOS: Reset BIOS settings if system won’t POST
System Won’t Boot
Power supply inadequacy causes most boot failures with new graphics cards.
Your PSU might provide enough power at idle but fail under load.
Try using a single monitor and removing unnecessary components temporarily.
Poor Performance
Performance issues often stem from incorrect installation or settings.
- Check PCIe slot speed: Card may be in wrong slot running at reduced speed
- Update BIOS: Older motherboards may need updates for newer cards
- Verify power delivery: Insufficient power causes throttling
- Monitor thermals: High temperatures trigger automatic slowdowns
For comparison, even laptops with integrated graphics can handle basic tasks, but dedicated graphics cards provide 5-10x better performance for gaming and creative work.
Frequently Asked Questions
Do I need to uninstall old drivers before installing a new graphics card?
Yes, especially when switching between AMD and NVIDIA. Use Display Driver Uninstaller (DDU) in safe mode for the cleanest installation. This prevents black screens and compatibility issues.
How do I know if my power supply is adequate for a new graphics card?
Add your graphics card’s TDP to your system’s power draw, then add 20% headroom. A RTX 4070 system typically needs 650W minimum. Online PSU calculators provide accurate estimates.
Why isn’t my new graphics card being detected?
First check that it’s fully seated with the retention clip engaged. Verify all power cables are connected. Try reseating the card and checking different PCIe slots if available.
Can I install a graphics card without an anti-static wrist strap?
Yes, but take precautions. Touch your case’s metal frame frequently to discharge static. Work on hard floors, not carpet. Handle the card by its edges only.
How long should graphics card installation take?
First-time installation typically takes 30-60 minutes. Experienced users can complete it in 15-20 minutes. Add 30 minutes for driver installation and testing.
Final Thoughts
After walking dozens of people through their first graphics card installation, I’ve seen every possible mistake and complication.
The key to success is preparation and patience – rushing leads to bent pins, forgotten cables, and frustration.
Take your time, double-check connections, and remember that the satisfying click of a properly seated graphics card means you’re moments away from dramatically better performance.
With this guide and proper precautions, you’ll complete the installation successfully and wonder why you waited so long to upgrade.
