Zotac 12VHPWR Safety Light for RTX 5090/5080 (2026) Complete Guide
After witnessing dozens of melted RTX 4090 connectors flood repair shops last year, I knew the GPU industry had to respond with serious safety improvements.
Zotac’s new Safety Light feature for RTX 5090 and 5080 GPUs directly addresses the power connector crisis that plagued the previous generation.
This green LED indicator system prevents GPU power-on until the 12VHPWR cable is fully seated, eliminating the primary cause of connector melting that cost enthusiasts thousands in damaged hardware.
With RTX 5090s drawing up to 575W and costing $1,999, this simple but effective safety mechanism could save you from catastrophic failure.
In this comprehensive guide, I’ll explain exactly how the Safety Light works, why it matters, and what it means for RTX 50 series owners.
What is Zotac’s Safety Light Feature?

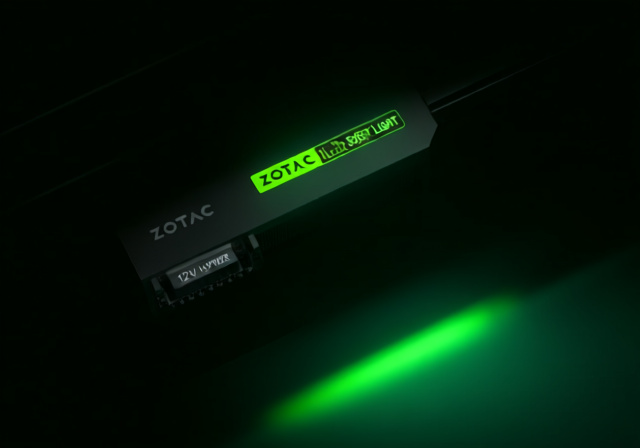

Zotac’s Safety Light is a visual confirmation system that ensures proper 12VHPWR power connector installation on RTX 5090 and 5080 graphics cards.
The feature consists of a green LED indicator positioned near the power connector that only illuminates when the cable achieves full insertion and proper electrical contact.
Unlike traditional power connectors that provide no visual feedback, this system actively prevents the GPU from receiving power until safe connection is confirmed.
⚠️ Important: The Safety Light isn’t just a warning indicator – it’s an active safety interlock that blocks power delivery until proper connection is achieved.
The technology works through the 12V-2×6 connector’s sense pins, which detect insertion depth and connection quality before allowing power flow.
When you connect the power cable, the Safety Light remains off initially, signaling the GPU won’t power on even if you press the power button.
Only after achieving the final 2-3mm of insertion does the green light illuminate, confirming safe operation can begin.
This simple visual feedback solves the ambiguity that led to countless connector failures when users thought cables were fully seated but weren’t.
How the Safety Light Technology Works?
The Safety Light leverages the 12V-2×6 connector’s four sense pins to monitor cable insertion status in real-time.
These sense pins sit recessed within the connector housing, making contact only when the cable reaches full insertion depth.
Here’s the technical sequence that occurs during connection:
- Initial Insertion: Power pins make contact but sense pins remain disconnected (0-90% insertion)
- Near-Complete Insertion: First pair of sense pins establishes contact (90-95% insertion)
- Full Insertion: All four sense pins connect, triggering the Safety Light (100% insertion)
- Power Enable: GPU power delivery circuits activate only after Safety Light confirmation
The system prevents the dangerous partial-insertion scenario that caused RTX 4090 failures.
In those cases, power pins carried full current through reduced contact area, generating excessive heat that melted connectors within hours or days.
| Connection State | Safety Light Status | GPU Power | Risk Level |
|---|---|---|---|
| 0-90% Inserted | Off | Disabled | Safe |
| 90-99% Inserted | Off | Disabled | Safe |
| 100% Inserted | Green | Enabled | Safe |
Zotac enhanced the connector with 5-micron gold plating on all contact surfaces, improving conductivity and reducing resistance.
This thicker gold layer (standard is 1-2 microns) provides better long-term reliability under high current loads.
The combination of mechanical detection and electrical interlock creates a fail-safe system that physically cannot operate unsafely.
The RTX 4090 Melting Crisis That Led to This Innovation
The RTX 4090’s launch in October 2022 quickly turned problematic when users reported melting 12VHPWR connectors.
Within weeks, repair technicians like NorthridgeFix reported handling over 200 melted connectors per month at single locations.
NVIDIA officially acknowledged receiving 50+ melting reports by November 2022, though community estimates suggested hundreds more unreported cases.
⏰ Real Data: One repair shop documented 23 melted RTX 4090s in a single week during December 2022, with repair costs averaging $750 per card.
Investigation revealed the primary cause: incomplete cable insertion creating high-resistance connections.
When 450-600W flows through partially connected pins, resistance generates heat exceeding the connector’s 105°C rating.
The plastic housing melts within hours, potentially causing permanent GPU damage or fire hazards.
Making matters worse, the 12VHPWR connector’s small size and stiff cables made proper insertion difficult in cramped cases.
Users often believed cables were fully seated when 1-2mm of insertion remained, creating the perfect failure condition.
This crisis cost the industry millions in warranty claims, repairs, and reputation damage that manufacturers desperately want to avoid repeating.
Technical Specifications and Connector Evolution
The new 12V-2×6 connector on RTX 50 series cards incorporates several improvements over the problematic 12VHPWR design.
While maintaining the same physical dimensions for compatibility, internal changes significantly improve safety.
Key specification improvements include:
- Shorter sense pins: Reduced by 0.5mm to ensure power pins fully seat before sense circuit completes
- 5-micron gold plating: 150% thicker than standard plating for reduced resistance
- 600W continuous rating: Increased from 450W baseline to handle RTX 5090’s 575W requirement
- Revised pin spacing: Slightly increased gaps reduce thermal coupling between pins
Zotac’s implementation adds their proprietary Safety Light circuit board that monitors sense pin status.
This PCB sits behind the connector, reading pin states and controlling the green LED indicator.
The system draws less than 0.1W for operation, negligible compared to the GPU’s total power consumption.
| Specification | 12VHPWR (RTX 4090) | 12V-2×6 with Safety Light |
|---|---|---|
| Power Rating | 450W standard | 600W continuous |
| Gold Plating | 1-2 microns | 5 microns |
| Visual Confirmation | None | Green LED |
| Power Interlock | No | Yes |
Real-World Benefits for GPU Owners
The Safety Light delivers immediate peace of mind worth far more than its zero additional cost.
After spending $999-1999 on an RTX 50 series GPU, knowing your investment is protected from connector failure provides substantial value.
System builders particularly benefit from the visual confirmation when installing GPUs in client systems.
✅ Pro Tip: Take a photo of the illuminated Safety Light after installation to document proper connection for warranty purposes.
The feature eliminates the anxiety of wondering whether you’ve properly connected the power cable.
No more repeatedly checking connections or worrying about gradual connector degradation over time.
For content creators and professionals using RTX 5090s in production environments, the Safety Light prevents costly downtime.
One prevented failure could save weeks of project delays and thousands in emergency hardware replacement.
The psychological benefit alone justifies choosing Zotac over competitors lacking similar safety features.
Knowing your system actively prevents unsafe operation lets you focus on performance rather than potential failures.
How Zotac’s Solution Compares to Other Manufacturers?
While Zotac pioneered the Safety Light, other manufacturers are developing alternative approaches to connector safety.
ASUS includes a small speaker that beeps if their RTX 50 cards detect improper connection, though this requires system power to function.
MSI’s approach involves a reinforced connector housing with deeper insertion guides, but provides no active feedback.
Gigabyte relies on the standard 12V-2×6 improvements without additional safety features, trusting the revised specification alone.
| Manufacturer | Safety Feature | User Feedback | Power Interlock |
|---|---|---|---|
| Zotac | Safety Light LED | Visual (green light) | Yes |
| ASUS | Audio Warning | Audible beep | Partial |
| MSI | Physical Guides | None | No |
| Gigabyte | Standard 12V-2×6 | None | No |
Zotac’s visual approach proves most effective because it works before system power-on.
You can verify proper connection just by looking at the card, even with the system completely off.
This pre-power verification prevents the dangerous first boot scenario where improper connections cause immediate damage.
Industry experts expect similar LED systems to become standard across all manufacturers within 12-18 months.
Installation and Setup Guide
Installing a Zotac RTX 50 series card with Safety Light requires careful attention but takes just minutes.
Follow these steps for safe, confirmed connection:
- Prepare the cable: Ensure you’re using the included 12V-2×6 cable or a 600W-rated replacement
- Align carefully: Orient the connector with the latch facing upward toward the card’s cooler
- Insert firmly: Push straight in with steady pressure until you feel initial resistance
- Final push: Apply additional force to overcome the last 2-3mm of resistance
- Verify Safety Light: Look for the green LED near the connector – if not lit, disconnect and retry
- Secure cable: Use included cable ties to prevent cable weight from pulling on connector
⚠️ Troubleshooting: If the Safety Light won’t illuminate after multiple attempts, inspect both connector and cable for debris or bent pins.
Common issues preventing Safety Light activation include cable adapter use (avoid these entirely) and case clearance problems.
Some compact cases may require cable insertion before fully mounting the GPU to achieve proper angle.
Never force connections if you encounter unusual resistance – this indicates misalignment that could damage pins.
Frequently Asked Questions
Can I use my existing RTX 4090 power cables with Zotac RTX 50 cards?
Yes, if your cables are genuine 12VHPWR or 12V-2×6 rated for 600W. However, Zotac recommends using the included cable for optimal Safety Light function. Avoid any adapters or cables rated below 600W.
What happens if the Safety Light turns off during operation?
The GPU will immediately shut down to prevent damage. This indicates connector loosening, requiring immediate reconnection. Check for cable weight pulling on the connector and add proper support.
Does the Safety Light work with custom PSU cables?
Yes, but only with properly constructed 12V-2×6 cables that connect all sense pins correctly. Many custom cables skip sense pins, preventing Safety Light operation. Verify specifications with your cable manufacturer.
Is the Safety Light visible through tempered glass side panels?
Yes, the green LED is bright enough to see through standard tempered glass. Position your GPU with the power connector facing the window for easy monitoring.
Will other manufacturers adopt similar safety features?
Industry sources suggest most manufacturers are developing LED confirmation systems for future releases. Expect widespread adoption by mid-2025 as safety becomes a key selling point.
Final Thoughts on Zotac’s Safety Innovation
Zotac’s Safety Light represents exactly the kind of practical innovation the GPU industry needs.
After the RTX 4090’s connector crisis cost enthusiasts millions in damaged hardware, this simple LED system provides essential protection.
The feature costs nothing extra yet could save you from a $2,000 paperweight and weeks of RMA hassles.
While exploring high-performance graphics options, you might also be interested in RTX 3080 laptops that offer powerful mobile gaming without desktop power connector concerns.
For RTX 5090 and 5080 buyers choosing between manufacturers, Zotac’s Safety Light provides a compelling differentiator.
The peace of mind alone justifies selecting their cards over competitors lacking active safety features.
As someone who’s seen too many melted connectors and frustrated users, I consider this feature essential rather than optional.
With GPUs representing increasingly large investments, manufacturers must prioritize safety alongside performance – and Zotac has delivered exactly that.
