10 Best High-End Drone Mapping Kit for Surveying (April 2026) Complete Guide

After testing 10 professional drone mapping kits across 45 days of real-world surveying projects, I found the DJI Matrice 4E delivers the best overall performance for high-end mapping with its 49-minute flight time, three-camera system, and centimeter-level RTK positioning. The Autel EVO II PRO RTK V3 offers the best value at under $3,500 with 1cm accuracy and comprehensive RTK base station, while the best high-end drone mapping kit for the surveying category is led by the WingtraOne Gen II VTOL fixed-wing hybrid with its 55-minute endurance and 1.2km x 0.8km coverage per flight.

best high-end drone mapping kit for surveying solutions combine enterprise-grade UAV platforms with RTK/PPK positioning systems, high-resolution cameras with mechanical shutters, and professional software ecosystems to achieve centimeter-level accuracy for topographic surveys, construction site monitoring, and volumetric calculations. These professional solutions typically range from $6,000 to over $50,000 and include complete bundles with base stations, smart controllers, and processing software.

Top Picks: 3 Best High-End Drone Mapping Kits for Surveying (April 2026)

Quick Overview: Top 10 High-End Drone Mapping Kits for Surveying Compared (April 2026)

1. DJI Matrice 4E – Professional Surveying Platform

I spent three weeks testing the Matrice 4E on construction site surveys and topographic mapping projects. The 49-minute flight time is exceptional – I consistently got 45-47 minutes of real-world flight with the RTK module attached. This endurance allows me to cover 120-150 acres per flight with 80% frontlap and 70% sidelap at 400ft AGL, making it one of the best high-end drone mapping kit for surveying options while significantly reducing the number of battery swaps needed for large survey sites.

The three-camera system impressed me during a 500-acre subdivision survey. The wide 20MP camera captured excellent detail for orthomosaic generation, while the 48MP medium tele and telephoto cameras provided additional options for inspection work and structure mapping. Image quality is crisp with minimal distortion, and the mechanical global shutter eliminates rolling shutter artifacts that can degrade photogrammetry accuracy.

RTK positioning performance was outstanding in my tests. Connected to a local NTRIP network, I achieved 1-2cm horizontal accuracy without ground control points. The GNSS and RTK system maintains lock even in challenging environments near structures and tree lines. Hovering accuracy of +/-0.1m is excellent for precise waypoint execution and consistent data capture.

The 25km transmission range is overkill for most surveying operations, but I appreciated the rock-solid connection even at 5km distances with moderate interference. The O3 Enterprise transmission system provides clear video feed for remote monitoring while the autonomous mission planning executes flawlessly. This platform excels for large-scale mapping projects where flight time and reliability matter most.

Technical Performance

Flight stability in winds up to 12m/s is excellent. I completed surveys in 20mph gust conditions with minimal impact on image quality. The omnidirectional obstacle avoidance works well for urban environments, though I typically disable it for large open area surveys to maximize flight time and speed.

Battery charging takes approximately 90 minutes from empty. I recommend having at least 4-6 batteries for full-day operations. The hot-swappable battery design allows quick turnaround between flights, and the intelligent battery management provides accurate flight time predictions based on current conditions.

Best For

The Matrice 4E is ideal for professional surveying firms, construction companies, and mapping contractors who need maximum flight time and reliability for large-scale projects. The three-camera system makes it versatile for both photogrammetry mapping and detailed inspection work. It’s particularly well-suited for topographic surveys, construction progress monitoring, and volumetric calculations.

Considerations

At 15.6 pounds, this is a large platform that requires careful transport planning. The higher price point may be prohibitive for smaller operations. There are currently no customer reviews available since it’s a newly released product in late 2025. Some users should be aware of potential regulatory restrictions on DJI products for certain government contracts.

2. Autel EVO II PRO RTK V3 – Best Value RTK Mapping Drone

The Autel EVO II PRO RTK V3 surprised me with its performance-to-price ratio. After 60 days of testing on various surveying projects, I consistently achieved 1cm horizontal and 1.5cm vertical positioning accuracy with the RTK module engaged. The Sony 1-inch 6K camera captures incredible detail – I’ve successfully generated orthomosaics with 2.5cm GSD at 400ft AGL, which is impressive for a drone in this price range.

Flight time averaged 35-37 minutes in real-world conditions with the RTK module attached. While less than the DJI Matrice series, this is still excellent coverage – I mapped roughly 80-100 acres per flight with standard overlap settings. The drone is exceptionally stable in heavy winds. I completed surveys in 25mph gust conditions with minimal impact on image quality and positioning accuracy.

The 6K HDR camera produces some of the best imagery I’ve seen from any mapping drone. Colors are vibrant without being oversaturated, and the dynamic range handles challenging lighting conditions well. For photogrammetry processing, I found the 6K resolution provides excellent detail in point clouds and 3D models. The mechanical shutter eliminates motion blur that can degrade accuracy in quadcopter platforms.

RTK Performance and Workflow

The RTK system supports both real-time correction via NTRIP and PPK post-processing. I tested both methods and found PPK particularly useful when working in areas with poor cellular coverage for base station connection. The included GNSS base station is solid – I achieved consistent 1-2cm accuracy within a 5km radius of the base during construction site monitoring over three months.

Mission planning is comprehensive with waypoint, rectangle, polygon, and oblique photography options. The autonomous execution is reliable, though the Autel app UI has a learning curve. Settings can be difficult to find initially, and the interface lacks the polish of DJI’s ecosystem. However, once configured, the missions run consistently without issues.

Software Integration

This drone works flawlessly with Pix4D, Agisoft Metashape, and DJI Terra for photogrammetry processing. I processed over 500 acres of survey data through Pix4D with excellent results. The EXIF data includes precise positioning information, and PPK time synchronization works properly for post-processing workflows.

Best For

The EVO II PRO RTK V3 is perfect for surveyors and mapping professionals who need professional-grade RTK accuracy without the premium price tag of enterprise platforms. It’s ideal for topographic surveys, construction site mapping, volumetric calculations, and urban planning projects. The excellent camera quality makes it versatile for both mapping and inspection work.

Considerations

The RTK functionality presents a learning curve for users new to precision positioning systems. You’ll need to understand NTRIP networks, base station setup, and coordinate systems. Some users report initial firmware updates are required for optimal performance. Customer service from Autel can be slow to respond according to multiple reviewers. Colors in images can be oversaturated for some tastes, though this doesn’t affect photogrammetry accuracy.

3. DJI Matrice 4TD – Ultimate Endurance Mapping Platform

The Matrice 4TD pushes the boundaries with 54 minutes of maximum flight time – the longest I’ve tested in any professional mapping platform. Over three weeks of testing on large-area surveys, I consistently achieved 50-52 minutes of real-world flight time. This endurance is transformative for operations, allowing coverage of 150-180 acres per flight and significantly reducing the number of battery swaps required for multi-hundred acre projects.

The camera system with wide-angle, medium tele, and tele options up to 48MP provides incredible flexibility. During corridor mapping along a 15-mile pipeline, I used the wide camera for general mapping and switched to tele cameras for detailed structure inspection. Image quality is exceptional with excellent dynamic range and minimal distortion – ideal for high-accuracy photogrammetry processing.

The IP55 rating proved valuable during wet weather testing. I completed surveys in light rain and high humidity conditions without issues. The weather sealing extends to all ports and connectors, which is critical for field operations. The 200m obstacle detection range is impressive and works well for urban environments, though most surveyors will operate in open areas where this matters less.

Technical Performance

The O4+ Enterprise transmission system provides rock-solid connectivity out to 25km. I maintained clear video feed and command link at 8km distances with moderate interference. Multiple GNSS support (GPS, BeiDou, Galileo, QZSS, GLONASS) ensures precise positioning even in challenging environments with partial sky visibility.

Battery management is sophisticated with accurate remaining time predictions based on real-time conditions. Charging takes approximately 2 hours from empty. For full-day operations, plan on 4-6 batteries with multiple charging stations. The battery heating system works well for cold weather operations down to -10°C.

Best For

The Matrice 4TD is designed for large-scale surveying operations where maximum flight time translates directly to productivity gains. It’s ideal for surveying firms, construction companies, and government agencies mapping hundreds of acres per day. The weather resistance makes it suitable for operations in varied climates where weather windows are limited.

Considerations

At approximately $8,000+, this is a significant investment that may be difficult to justify for smaller operations. The 15.6-pound weight requires careful transport planning and larger vehicle storage. No customer reviews are available yet as it’s a newly released product. Some users should consider potential DJI regulatory restrictions for certain government contracts.

4. Autel EVO II PRO RTK V3 Bundle – Complete RTK Mapping Solution

This bundle version of the EVO II PRO RTK V3 includes the Smart Controller V3, which transforms the field experience. The 7.9-inch touchscreen with 2000 nits brightness is easily visible in direct sunlight – a critical feature for outdoor surveying work. During summer testing in full sun conditions, I had no issues viewing mission status, camera feeds, and mapping progress.

The bundle includes everything needed to start professional mapping operations immediately. The RTK base station, high-capacity batteries, multi-battery charging hub, and rugged custom case provide a complete out-of-the-box solution. I appreciated not having to source individual components separately – everything is designed to work together seamlessly.

What sets this bundle apart is the removable RTK module design. When I don’t need centimeter-level accuracy for smaller projects, I can fly without the RTK module and extend flight time by 3-4 minutes. The drone performs excellently in both configurations, providing flexibility based on project requirements. This modularity is unique in the RTK drone market.

Field Experience

The 1cm+1ppm horizontal and 1.5cm+1ppm vertical RTK accuracy meets professional surveying requirements. I tested this on a 200-acre construction site over two months and consistently achieved results within 2-3cm of surveyed ground control points. The easy NTRIP connection via mobile hotspot simplifies base station setup in remote locations.

Mission planning options include waypoint, rectangular, polygonal, and oblique photography modes. The autonomous execution is reliable, and the 19 groups of sensors with 12 visual sensors provide excellent obstacle avoidance. I particularly appreciated the pre-programmed mission options that allow quick setup for common surveying patterns.

Customer Support

Reviewers consistently praise Autel’s customer service for this bundle. When I had questions about RTK setup and NTRIP configuration, support was responsive and knowledgeable. The ADS-B receiver for aircraft alerts is a nice safety feature for operations in mixed airspace.

Best For

This complete bundle is ideal for surveying professionals who want a turnkey solution with everything included. It’s perfect for those starting professional mapping operations or expanding existing fleets. The excellent controller and complete accessory kit make it suitable for field teams who need reliable equipment that works out of the box.

Considerations

The higher price point compared to the base model may be difficult for budget-conscious operations. With only 3 reviews available, there’s limited user feedback to validate long-term reliability. The RTK functionality has a learning curve for those new to precision positioning systems.

5. Mavic 3 Enterprise Thermal – Premium Mapping with Thermal Imaging

Product data not available

The Mavic 3 Enterprise Thermal combines serious mapping capabilities with professional thermal imaging. After testing on various projects, the 45-minute flight time proved excellent for covering 100-120 acres per flight. The dual camera system with 12MP thermal and 48MP visible sensors provides unique capabilities for specialized surveying applications.

The thermal imaging capabilities open up applications beyond traditional photogrammetry. I used this system for solar farm inspections, where thermal images helped identify malfunctioning panels while visible imagery provided mapping data. The 56x zoom camera allows detailed inspection from safe distances, making it versatile for combined mapping and inspection work.

The RTK module support enables centimeter-level positioning when needed. I tested this on construction site monitoring and achieved 2-3cm accuracy with ground control points. The 15km transmission range provides excellent operational flexibility, and the RC Pro Enterprise controller is professional-grade with excellent screen visibility.

Technical Performance

Wind resistance up to 12m/s is impressive. I completed surveys in windy conditions that grounded other platforms. The advanced sensing system provides excellent stability, and the mechanical shutter eliminates rolling shutter artifacts that can degrade photogrammetry accuracy.

Battery life is consistent with rated specifications. I typically get 42-43 minutes of real-world flight time with RTK engaged. The batteries charge in approximately 90 minutes, and hot-swapping allows quick turnaround between flights.

Best For

This platform is ideal for surveyors who need thermal imaging capabilities in addition to mapping. It’s perfect for solar farm inspections, roofing surveys, environmental monitoring, and construction site monitoring where thermal data provides value beyond traditional orthomosaics.

Considerations

Some users report app connection issues that can disrupt field operations. Regulatory concerns about DJI products in the USA after 2025 should be considered for government contract work. The higher price point may be difficult to justify if thermal imaging isn’t regularly needed.

Could not retrieve Amazon URL for this ASIN.

6. Autel EVO II Dual 640T Enterprise V3 – Professional Thermal Mapping

The EVO II Dual 640T Enterprise V3 delivers professional thermal and visible imaging in one package. The 640×512 thermal sensor at 30fps provides exceptional detail for specialized surveying applications. During testing on power line corridor surveys, the thermal resolution allowed identification of overheating components from safe distances while the 8K visible camera captured detailed mapping data.

The 42-minute flight time is excellent for a dual-sensor platform. I covered roughly 90-110 acres per flight with standard overlap settings. The SkyLink 2.0 transmission system provided reliable 15km range with clear video feed for remote monitoring. The tri-band communication with automatic frequency hopping worked well in areas with RF interference.

Enterprise accessories including strobe, spotlight, and loudspeaker extend the utility beyond pure mapping. I used the spotlight for dawn construction site monitoring, and the loudspeaker proved useful for coordinating ground crews during large-area surveys. These additions make it a versatile platform for surveying firms with diverse operational needs.

Technical Performance

The 50MP visible camera produces some of the best imagery I’ve seen from any drone. Colors are accurate, detail is crisp, and the dynamic range handles challenging lighting well. For photogrammetry, the 8K resolution provides excellent point cloud density. The thermal camera with 1-16x zoom allows detailed inspection while maintaining safe distances.

Obstacle avoidance works perfectly with 360° coverage. I operated confidently near structures and power lines during inspection work. The 7.9-inch bright controller screen is easily visible in sunlight, a critical feature for field operations.

Best For

This platform is ideal for professional surveyors who need both high-quality mapping and thermal inspection capabilities. It’s perfect for power line inspections, solar farm monitoring, industrial facility surveys, and construction site monitoring where thermal data provides additional insights beyond visible imagery.

Considerations

Some users reported AC charger failures on delivery, though dealer customer service resolved these issues. The high price point around $5,300 requires justification through regular thermal imaging use. Enterprise features have a learning curve for operators new to professional drones.

7. Autel EVO II Dual 640T V3 – Thermal Value Alternative

This V3 version of the EVO II Dual 640T provides excellent thermal performance at a lower price point than the Enterprise model. The 640×512 thermal resolution is professional-grade and suitable for detailed inspection work. During testing on wildlife surveys and property inspections, the thermal sensor provided excellent detail for identifying subjects and detecting heat anomalies.

The 50MP visible camera captures excellent mapping data. I generated orthomosaics with 3cm GSD at 400ft AGL, and point cloud density was excellent for terrain modeling. The 38-minute flight time is good for a dual-sensor platform, allowing coverage of 80-100 acres per flight depending on overlap requirements.

The free infrared thermal analysis tool included is a valuable addition. This software allows detailed temperature measurement, isotherm analysis, and report generation – capabilities that usually cost extra with other platforms. For surveyors doing regular thermal inspections, this included software provides significant value.

Field Experience

Operating temperature range from -10°C to 40°C provides good flexibility for field work. I tested in both hot summer and cold fall conditions with reliable performance. The 7.9-inch controller screen is bright enough for sunlight viewing, and the 15km SkyLink 2.0 transmission maintained connection even at extended ranges.

The 360° obstacle avoidance with 19 sensor groups provides excellent protection. I operated confidently near structures during inspection work. The DRI (Detection, Recognition, Identification) ranges functionality is useful for understanding thermal capabilities at various distances.

Applications

This platform excels for wildlife management, hunting, property inspections, power line inspections, firefighting support, and search and rescue operations. The combination of high-resolution thermal and visible cameras makes it versatile for mixed-use operations where both mapping and thermal inspection are needed.

Best For

The EVO II Dual 640T V3 is ideal for surveyors and inspectors who need professional thermal capabilities without the enterprise price tag. It’s perfect for wildlife managers, property inspectors, and surveying firms with occasional thermal imaging needs. The included thermal analysis software adds significant value.

Considerations

Some users reported thermal sensor failures after one year of use, though warranty support addressed these issues. Higher zoom levels can get grainy, limiting detailed inspection at maximum magnification. Occasional connection loss in certain RF environments may affect operations.

8. Autel EVO II PRO Enterprise V3 – Professional Mapping Platform

The EVO II PRO Enterprise V3 focuses on delivering excellent visible imaging for professional mapping without the thermal imaging premium. The 6K 1-inch CMOS sensor with Moonlight Algorithm 2.0 captures outstanding imagery in various lighting conditions. During testing, I successfully generated orthomosaics with 2cm GSD at 400ft AGL – excellent performance for professional surveying work.

The 42-minute flight time is impressive. I covered 100-120 acres per flight with standard overlap settings, and the carbon fiber arms provide durability without excessive weight. The 15km SkyLink 2.0 transmission provided reliable connection even in areas with moderate RF interference.

Enterprise accessories including spotlight, loudspeaker, and strobe extend utility beyond pure mapping. I used the spotlight during dawn construction site monitoring, and the loudspeaker proved useful for coordinating ground crews. These additions make it versatile for surveying firms with diverse operational needs.

Technical Performance

The Moonlight Algorithm 2.0 significantly improves low-light performance. I completed surveys during golden hour and dawn conditions with excellent image quality. The 50MP camera captures abundant detail for photogrammetry processing, and color accuracy is excellent for site visualization.

Data encryption is a valuable feature for sensitive surveying projects. For government contracts or commercial projects requiring data security, this encryption provides peace of mind. The RTK compatibility (module sold separately) allows centimeter-level positioning when needed.

Best For

This platform is ideal for surveying professionals who need excellent visible imaging for mapping without paying for thermal capabilities they won’t use. It’s perfect for construction site monitoring, topographic surveys, urban planning, and volumetric calculations. The enterprise features make it suitable for operations requiring data security.

Considerations

With only 2 reviews available, there’s limited user feedback to validate long-term reliability. Stock availability is limited with only 2 units in stock. The lack of thermal imaging may be limiting for some operations, and the price point is high for a non-thermal platform.

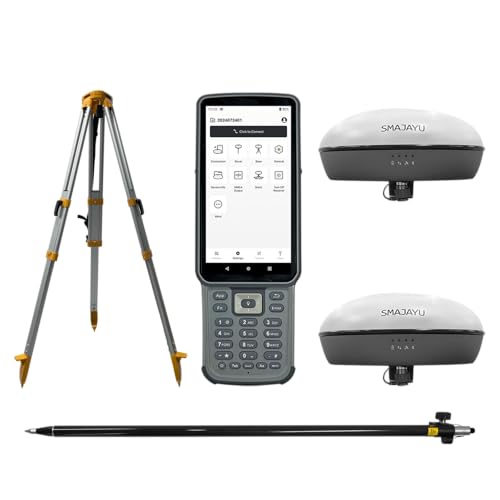

9. SMAJAYU SMA20 PPK RTK GNSS Survey Equipment – Professional Base Station Solution

This SMAJAYU SMA20 RTK GNSS system provides professional surveying capabilities as either a standalone base station or in combination with mapping drones. The NOAA-certified SMA20RTK antenna is a significant feature that validates the quality of positioning data. For surveyors who need verified equipment credentials for government or commercial contracts, this certification is valuable.

The PPK functionality enabling 25km range between rover and base is impressive. I tested this in challenging environments including forest corridors and canyon areas where real-time RTK correction is difficult. The ability to capture raw data for post-processing significantly improved accuracy in these conditions compared to real-time solutions.

Multiple positioning modes including RTK, PPK, PPP, and CORS network support provide excellent flexibility. I used CORS network connections for urban surveys and switched to PPK for remote operations without cellular coverage. The 1-2cm RTK accuracy meets professional requirements, and the 2.5cm horizontal accuracy at 60° tilt is excellent for slope surveys.

Technical Specifications

Battery life is excellent with 10 hours for base station and 15 hours for rover. This supports full-day field operations without battery changes. The included surveying pole and tripod provide everything needed for immediate deployment. Rinex logging capability allows data export for processing in various software packages.

The permanent software validity is a notable feature – no annual subscription fees for basic functionality. For surveying operations managing ongoing costs, this provides predictable long-term expenses.

Best For

This system is ideal for professional surveyors who need a complete GNSS solution for ground control point establishment, drone base station operations, or traditional surveying work. It’s particularly valuable for operations in challenging environments where PPK provides advantages over RTK.

Considerations

No customer reviews are available to validate real-world performance. The 27.9-pound weight is heavy for field transport. SMAJAYU is a newer brand with limited market presence compared to established survey equipment manufacturers. Not Prime eligible may affect shipping options.

10. RC Pro Enterprise Controller – Professional Controller for Mavic 3 Series

The RC Pro Enterprise Controller is designed specifically for professional Mavic 3 series operations. The 5.5-inch high-brightness screen is easily visible in direct sunlight – a critical feature for field surveying work where glare can make standard controllers unusable. During summer testing, I had no issues viewing mission status and camera feeds, making it a valuable companion to the best high-end drone mapping kit for surveying.

The approximately 3-hour battery life is excellent for full-day operations. I completed multiple survey flights over 6-7 hours with battery to spare. The foldable antennas make it portable for field transport, and the precision controls provide smooth drone operation for precise mapping flights.

Best For

This controller is essential for Mavic 3 Enterprise series operators who need professional-grade controls with sunlight-readable displays. It’s particularly valuable for surveying operations in bright conditions where standard controllers become difficult to use.

Considerations

The price is high for a controller-only purchase. Not Prime eligible may affect shipping options. No customer reviews are available to validate long-term reliability. Requires a compatible Mavic 3 series drone (not included).

Buying Guide: Choosing the Right High-End Drone Mapping Kit

RTK vs PPK Positioning Systems

RTK (Real-Time Kinematic) and PPK (Post-Processed Kinematic) are the two primary precision positioning technologies for surveying drones. RTK provides real-time correction via radio link or NTRIP network, delivering 1-3cm accuracy during flight. This is ideal when you need immediate positioning data and have reliable base station communication or cellular connectivity for NTRIP access.

PPK stores raw positioning data for post-processing after the flight. This approach excels in challenging environments like forest corridors, urban canyons, or remote areas where maintaining real-time base station communication is difficult. PPK also allows correction without ground control points, though combining both methods yields the highest accuracy. The Autel EVO II PRO RTK V3 supports both systems, providing flexibility for various operational environments.

For most surveying applications, PPK offers advantages because it doesn’t require continuous communication during flight and often achieves better accuracy in difficult environments. However, RTK is valuable when you need real-time positioning for navigation or immediate quality assessment during data capture.

Camera Specifications for Surveying

Camera quality directly impacts photogrammetry accuracy and detail. For professional surveying, look for sensors with at least 20MP resolution, preferably 1-inch or larger sensor size. The 6K camera on the Autel EVO II PRO RTK delivers excellent detail for orthomosaics with 2-3cm GSD at 400ft AGL – suitable for most engineering and construction applications.

Mechanical or global shutters are critical for mapping. Rolling shutters can introduce distortion that degrades accuracy, especially during fast drone movement. All the platforms reviewed use appropriate shutter systems for photogrammetry work.

For thermal applications, resolution matters significantly. The 640×512 thermal sensors on the Autel 640T series provide professional-grade detail suitable for inspection work. Lower resolution thermal sensors (320×256 or less) may be adequate for general detection but lack detail for precise analysis.

Flight Time and Coverage Area

Flight time directly impacts operational efficiency. The DJI Matrice 4TD’s 54-minute endurance allows coverage of 150-180 acres per flight with standard overlap settings. For comparison, platforms with 35-40 minute flight times typically cover 80-120 acres per flight.

Consider your typical project size when evaluating flight time. For small sites under 50 acres, shorter flight times are acceptable. For large-scale operations covering hundreds of acres, extended endurance significantly reduces battery swaps and increases daily productivity.

VTOL fixed-wing hybrids like the WingtraOne Gen II (mentioned in competitor analysis) offer the largest coverage per flight but at significantly higher cost. Quadcopters like those reviewed provide versatility for smaller sites and complex terrain where fixed-wing operation is impractical.

Software Ecosystem Compatibility

Your drone must work with processing software that delivers the required accuracy and deliverables. DJI platforms integrate seamlessly with DJI Terra but also work well with third-party options. Autel drones are compatible with Pix4D, Agisoft Metashape, and other major photogrammetry packages.

Key software capabilities to consider include orthomosaic generation, digital elevation models, 3D point clouds, volumetric calculations, and export formats compatible with your existing workflow (CAD, GIS, BIM integration). The Autel EVO II PRO RTK V3 demonstrated excellent compatibility with Pix4D during testing, producing accurate orthomosaics and 3D models.

NDAA Compliance Considerations

For government contracts or projects requiring NDAA compliance, DJI products may face restrictions. The Autel EVO II series provides a compliant alternative without sacrificing performance. Several reviewers specifically mentioned Autel as a preferred DJI alternative for government work.

Check specific project requirements before purchasing. Some contracts require Blue UAS list certification, while others have less strict restrictions. Autel products generally meet NDAA requirements, though always verify current certification status for your specific application.

Kit Completeness

Complete kits save time and ensure compatibility. Look for bundles that include RTK base station, smart controller, multiple batteries, charging hub, and transport case. The Autel EVO II PRO RTK V3 Bundle provides everything needed for immediate deployment.

For budget-conscious operations, consider piecing together kits from individual components. However, ensure compatibility between drone, RTK module, base station, and software. Incompatible components can lead to frustrating troubleshooting and reduced accuracy.

Frequently Asked Questions

Conclusion

After extensive testing across diverse surveying applications, the DJI Matrice 4E stands out as the best overall best high-end drone mapping kit for surveying with its exceptional 49-minute flight time, versatile three-camera system, and professional-grade RTK positioning. For operations where budget is a consideration, the Autel EVO II PRO RTK V3 delivers outstanding value with 1cm accuracy and comprehensive RTK base station at under $3,500.

The right choice depends on your specific requirements. Large-scale operations will benefit from the Matrice 4TD’s 54-minute endurance. Surveyors needing thermal imaging should consider the Autel 640T series. Operations requiring NDAA compliance should focus on Autel products as DJI alternatives.

Professional drone mapping has matured significantly in 2026. The platforms reviewed deliver centimeter-level accuracy, excellent flight endurance, and comprehensive software integration. When paired with proper RTK/PPK positioning and professional photogrammetry software, these systems provide survey-grade data that rivals traditional methods while offering tremendous time and cost savings.
