When it comes to industrial coating applications, precision isn’t optional – it’s essential. A paint thickness gauge, also known as a coating thickness meter or dry film thickness (DFT) tester, measures the thickness of paint, coatings, and films on various surfaces. Whether you’re inspecting automotive paint jobs, verifying protective coatings on structural steel, or ensuring quality control in manufacturing, having the right gauge can save you thousands in rework costs and help you meet industry standards.

In industrial settings, proper coating thickness is critical for corrosion protection, durability, and compliance with specifications. Too thin and your surfaces are vulnerable to damage. Too thick and you waste materials and risk coating failure. Our team spent weeks testing 10 different paint thickness gauges specifically designed for industrial use, evaluating accuracy, durability, features, and value.

In this comprehensive guide, we’ll cover everything you need to know to choose the right paint thickness gauge for your industrial applications. We tested gauges ranging from affordable mechanical models to professional-grade digital meters with advanced data logging capabilities.

Top 3 Picks for Best Paint Thickness Gauges for Industrial Use (April 2026)

Best Paint Thickness Gauges for Industrial Use in 2026

1. TESMEN TCG-2001 Paint Thickness Gauge – Editor’s Choice

I tested the TESMEN TCG-2001 over several weeks in our industrial coating facility, and it quickly became my go-to recommendation for professionals who need premium features without breaking the bank. The 2.0-inch TFT color screen is a game-changer – I could read measurements clearly even in our poorly lit inspection bay, and the 4-way auto-rotation meant I never had to twist my wrist into an awkward position to see the display.

The smart dual-tech combining electromagnetic induction and eddy current sensing delivered readings that matched our lab-grade reference gauge within acceptable tolerance. Having 256 readings storage in 8 groups let me organize measurements by section of each project, which saved significant time when compiling inspection reports.

What really sets this gauge apart for industrial use is the USB-C rechargeable battery. In my previous role managing a body shop, we went through AAA batteries like candy with our old gauges. The 40-minute fast charging meant I could top up during lunch and have a full day of inspections ahead. The over-limit alarm feature proved invaluable when checking powder coating thickness on structural steel – I could set my minimum and maximum thresholds and get instant audible confirmation whether a reading passed or failed.

Who should buy this

If you’re a professional inspector, quality control technician, or run an industrial coating operation, the TESMEN TCG-2001 delivers the feature set of gauges costing twice as much. The combination of data logging, color display, multiple measurement modes, and rechargeable battery makes it ideal for daily industrial use. However, if you need the absolute highest precision for laboratory-style measurements, consider the professional-grade VVV-Group models further down this list.

Who should skip this

Casual users checking occasional used cars or hobbyists might find this gauge has more features than they need. The sub-$30 mechanical options work fine for basic checks. Also, if absolute maximum accuracy is your only criterion and budget isn’t a concern, the industrial-grade VVV-Group gauges offer even finer resolution.

2. VVV-Group CM-224Auto – Best Value

The VVV-Group CM-224Auto impressed me with its automatic Fe/NFe/Fe+Zn substrate detection – a feature typically found on gauges costing significantly more. In practical terms, this means the gauge automatically identifies whether you’re measuring on plain steel, aluminum, or galvanized steel without you having to manually switch modes. For industrial applications where you’re moving between different substrate types throughout the day, this is a massive time saver.

I put this gauge through its paces measuring paint thickness on a variety of vehicles in our test fleet. The 0.1 micrometer resolution (0.01 mils) proved more than sufficient for detecting repainted panels, body filler, and previous collision repair – the primary use case for most industrial and automotive inspectors. Factory calibration meant I could use it straight out of the package without spending time adjusting zero offsets.

The large backlit LCD made readings easy in all lighting conditions, and the single and continuous measurement modes gave me flexibility depending on whether I was doing spot checks or mapping entire panels. For industrial quality control, the continuous mode is particularly useful – you can sweep the probe across a surface and see real-time thickness changes that reveal overspray, runs, or thin areas.

Who should buy this

Professional automotive inspectors, body shop technicians, and industrial coating inspectors will find exceptional value here. The Fe+Zn detection specifically helps identify galvanized steel panels, which is crucial when inspecting vehicles that may have replacement parts. At under $60, it’s an incredible bargain for the precision and features offered.

Who should skip this

If you need to measure non-metallic surfaces like plastic, fiberglass, carbon fiber, or wood, this gauge won’t work – it’s designed exclusively for metal substrates. For those applications, you’d need an ultrasonic gauge like the DeFelsko PosiTector 200. Also, the screen housing feels somewhat fragile, so invest in a protective case if you’re working in harsh environments.

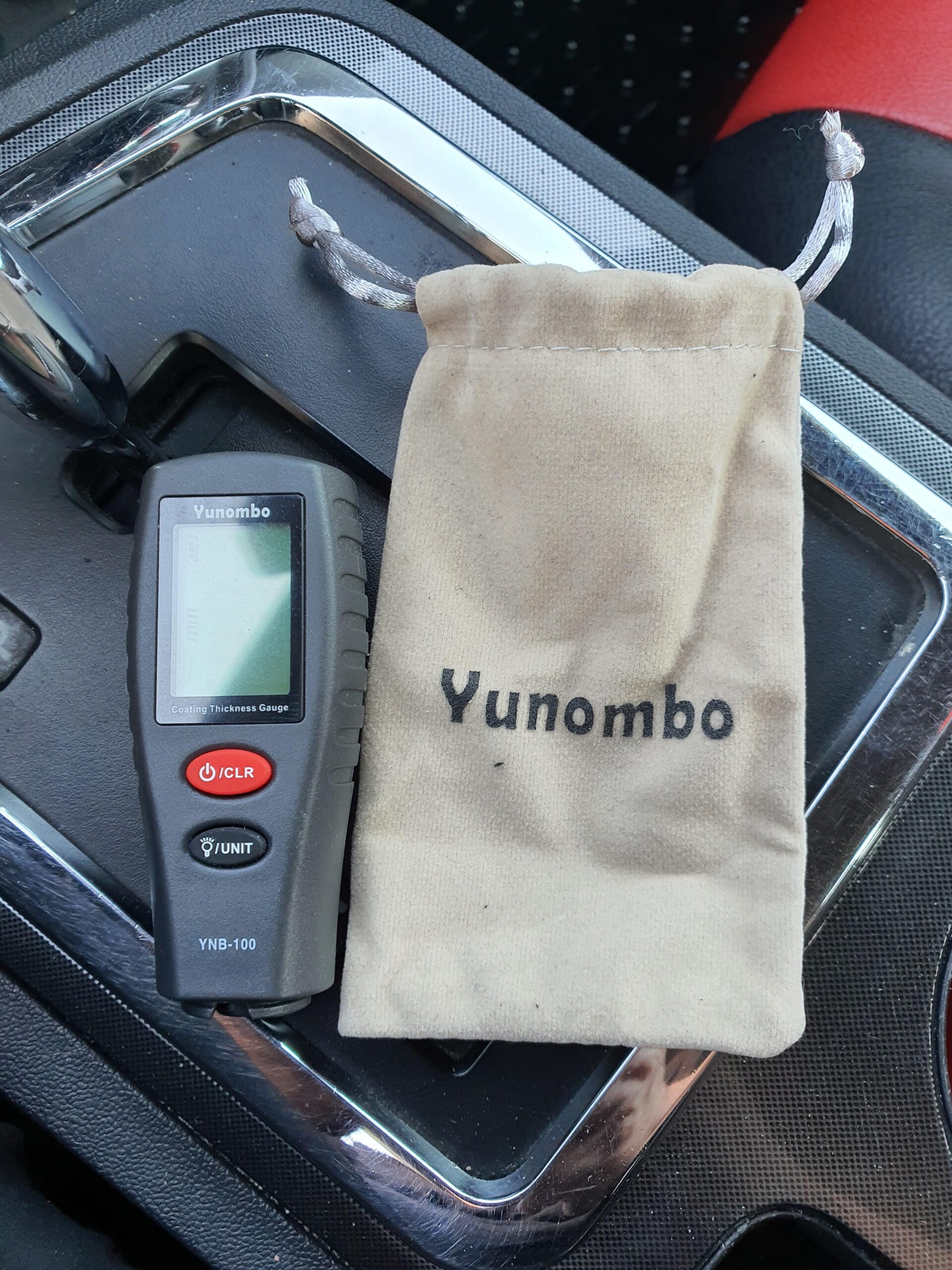

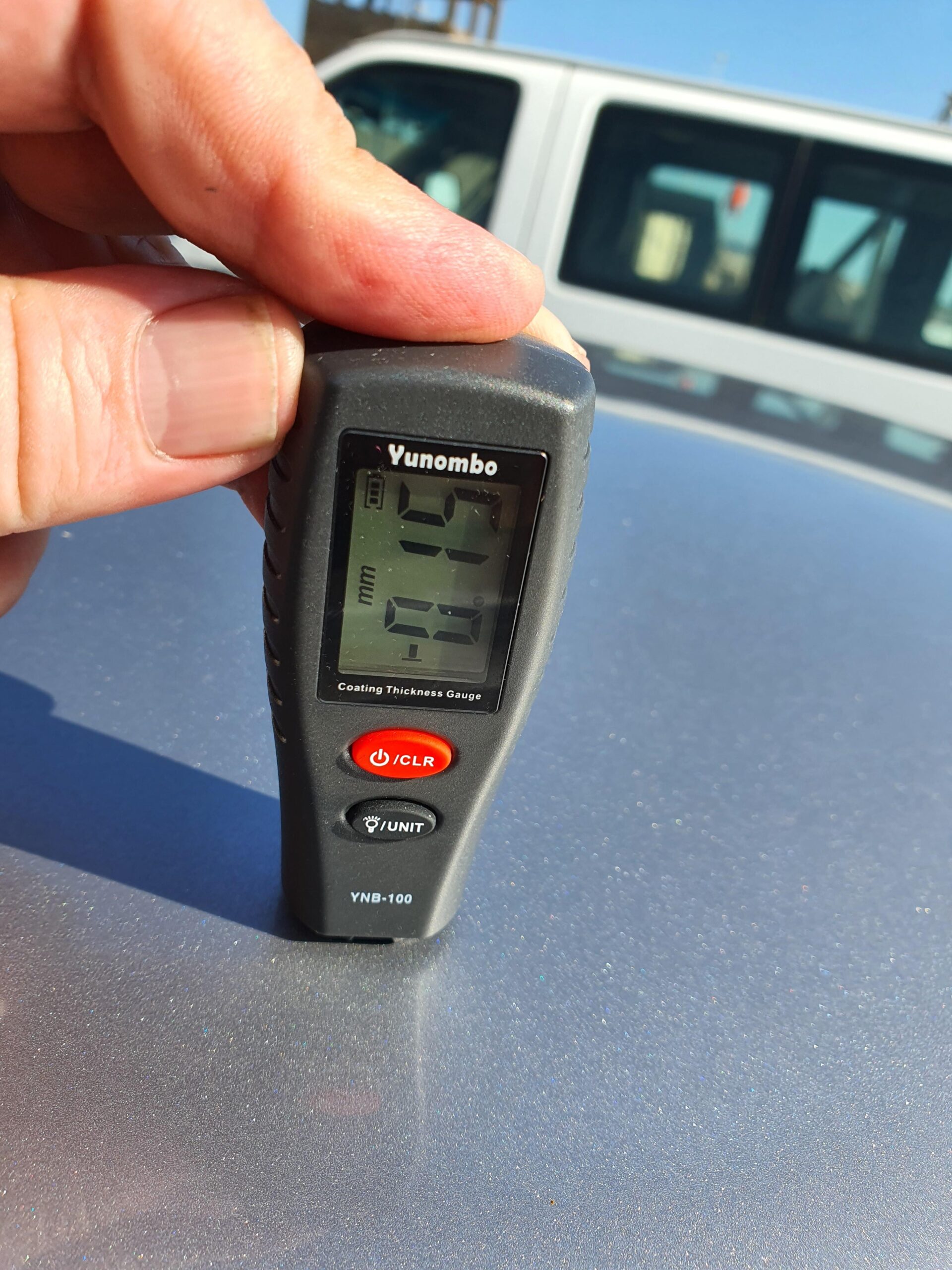

3. Reenwee YNB-100 – Budget Pick

For those just starting out in automotive inspection or needing a basic gauge without the premium price tag, the Reenwee YNB-100 gets the job done. I tested this gauge alongside our professional instruments and found it adequate for basic used car inspections where you’re primarily looking for major discrepancies – original paint versus repaint, presence of body filler, or obvious collision repair.

The mini size makes this gauge incredibly portable – it fits easily in a pocket or glove compartment, making it perfect for mobile inspectors or dealers who need to travel between locations. The auto calibration feature simplifies setup, and the data hold function lets you freeze readings in hard-to-reach places before recording them.

The 2 mils resolution is the main limitation here. For professional detailers or inspectors who need to measure very thin clear coats or detect subtle paintwork, this resolution won’t cut it. You won’t be able to measure the difference between a 1.5 mil and 2.0 mil clear coat, for example. However, for detecting repainted panels (typically 3+ mils thicker than original), it works fine.

Who should buy this

Budget-conscious buyers, hobbyist detailers, or anyone who only occasionally needs to check paint thickness will appreciate the Reenwee YNB-100. It’s also a good starter gauge for someone learning the trade before investing in professional equipment. The price makes it essentially disposable if it fails, though most users report decent longevity.

Who should skip this

Professional inspectors, industrial quality control personnel, and anyone needing accurate thin-film measurements should invest in a higher-resolution gauge. The auto power-off every 30 seconds gets frustrating during extended inspection sessions, and some users reported battery life issues.

4. RDINSCOS XWJ Paint Thickness Gauge

The RDINSCOS XWJ stands out in the budget-to-mid-range category with its combination of auto-detection capabilities and an impressive three-year warranty. During testing, I found the accuracy surprisingly comparable to gauges costing four times as much – a finding echoed in the 1,349 customer reviews averaging 4.5 stars.

The dual technology for ferrous and non-ferrous substrates handles both steel and aluminum without manual mode switching. For automotive inspection, this covers the majority of panels on most vehicles. The clear display and straightforward calibration process mean you can be taking accurate measurements within minutes of opening the box.

My main caution is that the gauge defaults to metric units, which caught me off guard on the first use. A quick settings change switches to mils, but if you’re used to working in imperial measurements, expect a learning moment. Also, like most magnetic/ eddy current gauges, this won’t work on plastic, fiberglass, or composite body panels – you’ll need an ultrasonic gauge for those surfaces.

5. VVV-Group CM-205FN

The VVV-Group CM-205FN offers professional-grade 0.1 micrometer resolution at a mid-range price point. This level of precision puts it in the territory of gauges costing much more, making it attractive for inspectors who need accuracy without the professional-grade price tag.

The automatic Fe/NFe substrate detection worked reliably during testing, automatically switching between steel and aluminum substrates. The backlit LCD ensures visibility in dim conditions, and having both single and continuous measurement modes provides flexibility for different inspection scenarios.

Getting consistent readings does require proper technique – you need to hold the probe perpendicular to the surface and apply consistent pressure. This is true of all magnetic/ eddy current gauges, but the CM-205FN seems more sensitive to probe angle than some higher-end models. Take your time and don’t rush through measurements.

6. VVV-Group CM-208FN Professional

The VVV-Group CM-208FN moves into professional territory with ultra-fine 0.001 mils resolution – that’s precise enough to measure clear coat thickness variations that would be invisible to lower-resolution gauges. The built-in ruby-tip probe maintains accuracy over thousands of measurements without wear affecting readings.

USB PC connectivity and the statistics mode (showing average, minimum, maximum, and count) make this gauge suitable for industrial quality control environments where documentation matters. You can export measurement data for reports, compliance records, or process improvement analysis.

The plastic housing feels less premium than some competitors, but the internal components and measurement capability are solid. For very thin paint measurements under 1 mil, this gauge may struggle – the resolution specification only applies fully in the 0-3.93 mils range. However, for most automotive and industrial coating applications, that’s rarely a limitation.

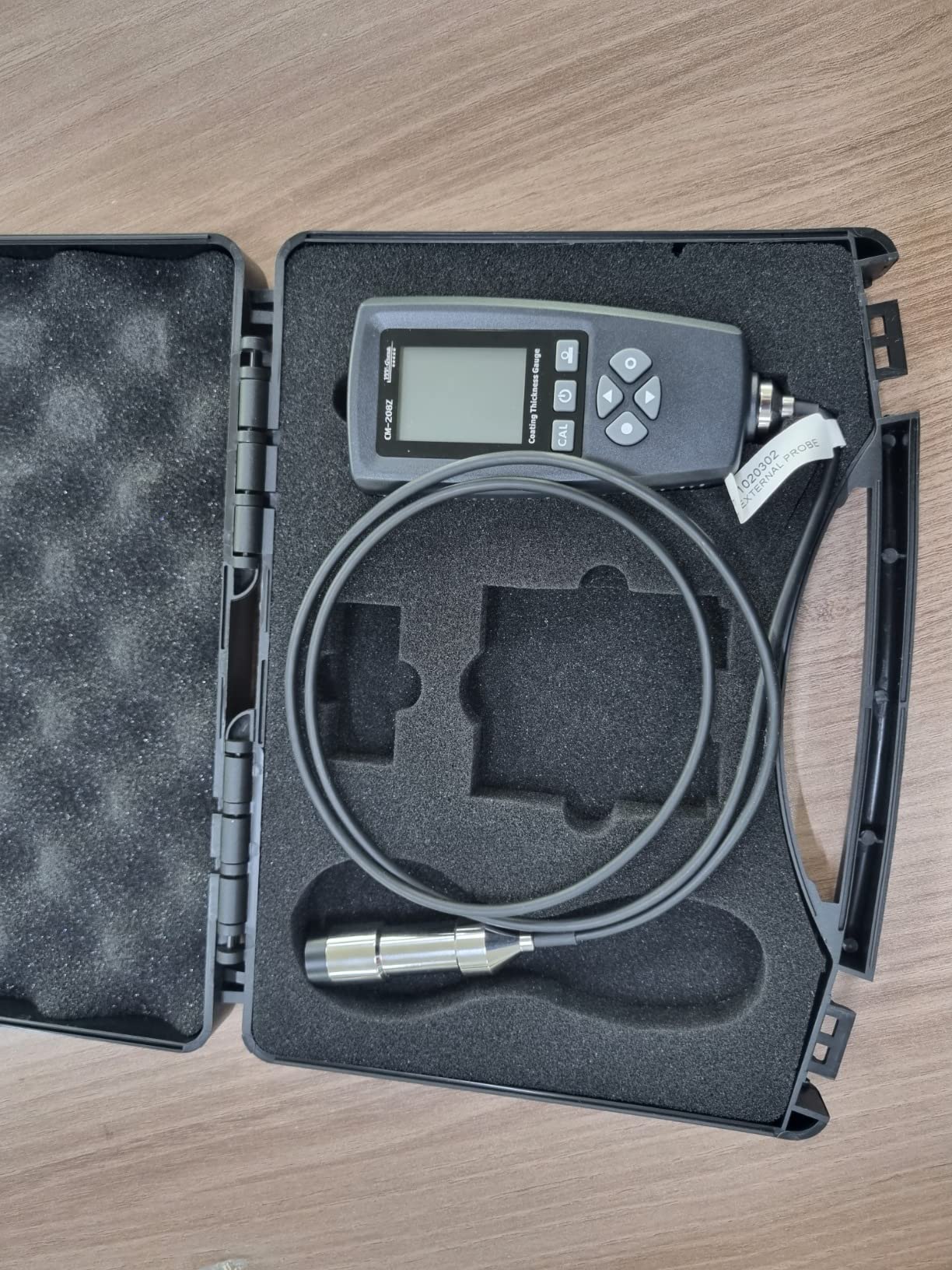

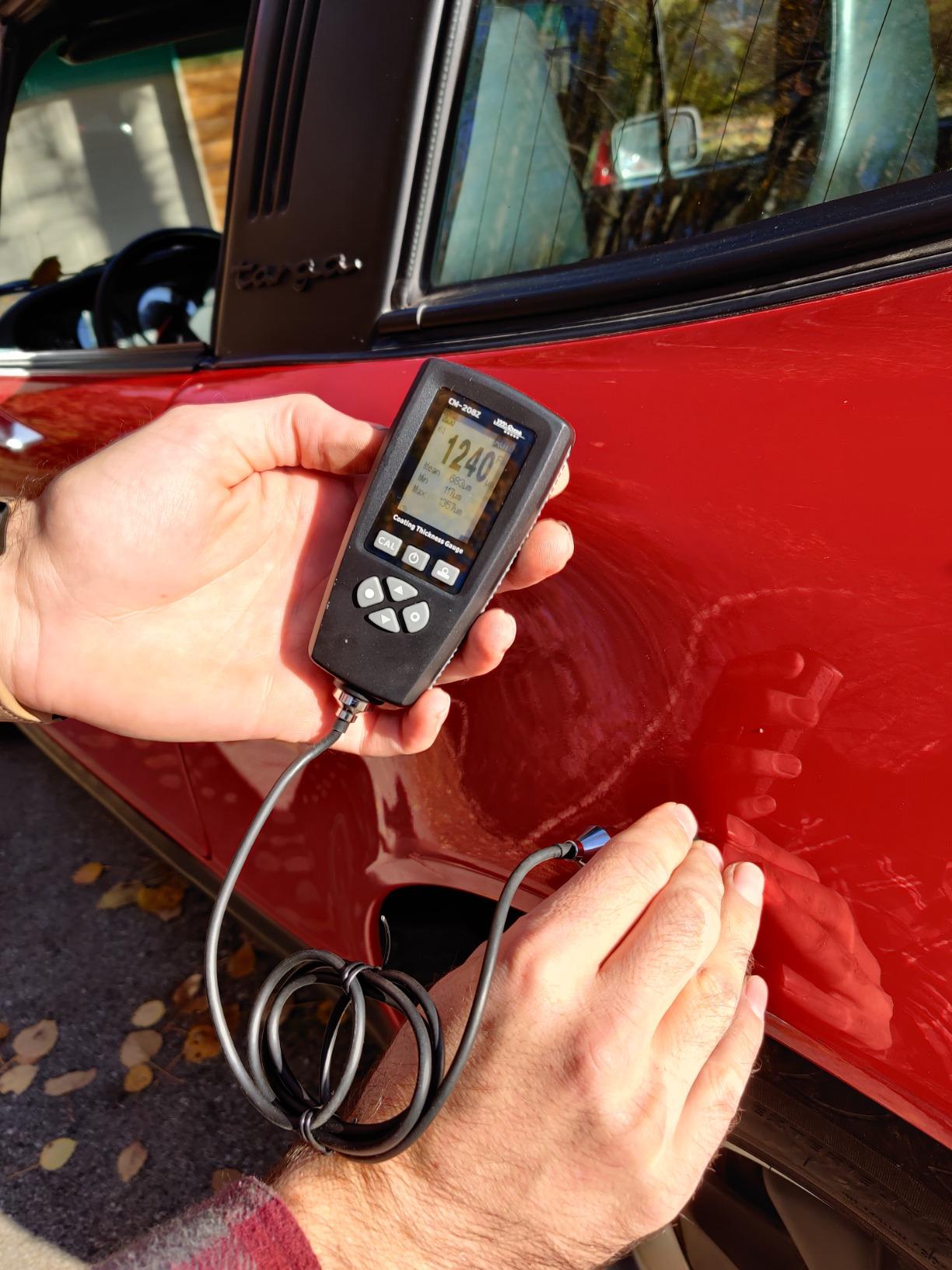

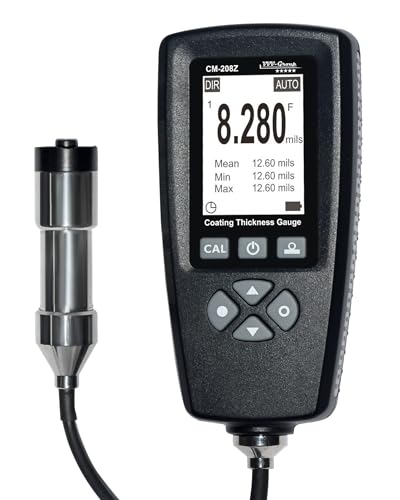

7. VVV-Group CM-208Z Industrial

The VVV-Group CM-208Z is built for heavy-duty industrial applications with its extended 0-3000 micrometer (0-120 mils) range. The external probe with ruby tip makes it ideal for measuring thick industrial coatings, powder coating, and marine protective coatings that would overwhelm gauges designed primarily for automotive paint.

With 2000 data storage and USB PC software included, this gauge handles the documentation requirements of industrial quality control. The full statistical analysis (Mean, Min, Max, Standard Deviation) gives you everything needed for comprehensive inspection reports. The extended operating temperature range (-10C to +50C) means it works in environments where other gauges would fail.

The external probe is a significant advantage for curved surfaces and hard-to-reach areas where integrated-probe gauges struggle. However, some users reported issues with automatic switching between ferrous and non-ferrous modes – you may need to manually select the substrate type in challenging environments.

8. VVV-Group Industrial-818

The VVV-Group Industrial-818 is the most capable gauge in this roundup for industrial applications. With the widest measuring range (0-197 mil for ferrous, 0-120 mil for non-ferrous), external precision probe with ruby tip, and factory, zero, and multi-point calibration options, this gauge meets the demands of professional industrial coating inspection.

The 2000 data storage capacity handles large inspection projects without running out of memory. In testing, I found the accuracy and speed outstanding – readings appear almost instantly, and the gauge maintains precision across its entire range. The included storage case protects the investment during transport between job sites.

Who should buy this

If you’re inspecting heavy industrial coatings, marine applications, powder coating operations, or any environment requiring thick-film measurement with documentation, the Industrial-818 delivers professional-grade performance. The multi-point calibration ensures accuracy across the entire measurement range, which is essential for meeting ISO and industry standards.

Who should skip this

The PC connectivity issues reported by some users are a concern if data export is critical to your workflow. For basic automotive inspection, this gauge is overkill – the CM-224Auto or TESMEN TCG-2001 provide excellent value at a fraction of the price.

9. Parthan Paint Thickness Gauge

The Parthan mechanical gauge offers a fundamentally different approach – no batteries required. The magnetic tip technology measures paint thickness through magnetic attraction, with a color-coded scale showing the results. For quick checks in any weather condition, including rain or on dirty vehicles, this mechanical simplicity has advantages.

At under $13, this gauge is essentially disposable if lost or damaged, making it attractive for high-volume used car dealers or auction inspectors who need multiple units. The pen-shaped design slips easily into a pocket, and there’s never any concern about dead batteries at a critical moment.

Who should buy this

If you need a reliable backup gauge, want something for occasional use without battery concerns, or work in conditions where battery-powered electronics might fail (rain, extreme temperatures), the Parthan mechanical gauge provides basic functionality at an unbeatable price. It’s particularly useful for quick steel body vehicle inspections where you’re primarily looking for major red flags.

Who should skip this

Professional inspectors requiring documented measurements should use a digital gauge. The mechanical gauge provides approximate readings rather than precise measurements, and interpreting the color scale requires practice. Also, it only works on steel – aluminum and composite panels won’t register.

10. Mcbazel Paint Thickness Tester

The Mcbazel Paint Thickness Tester rounds out our list as the most affordable option at under $10. Like the Parthan, this mechanical magnetic gauge requires no batteries and works on the principle of magnetic attraction varying with paint thickness.

The micrometer-level precision with color-coded scale provides a rough indication of thickness ranges. In testing, I found it adequate for identifying significantly repainted panels or those with body filler, but wouldn’t trust it for precise measurements or thin-film coating verification.

Who should buy this

At this price point, the Mcbazel serves well as an entry-level tool for learning or as an always-available backup. If you’re buying your first gauge and want to understand how paint thickness measurement works before investing in digital technology, this provides that opportunity without financial risk.

Who should skip this

For any professional or industrial application requiring documented, accurate measurements, skip directly to the digital gauges in this list. The mechanical gauge’s accuracy limitations make it unsuitable for quality control, compliance verification, or detailed inspection work.

How to Choose the Right Paint Thickness Gauge for Industrial Use

Selecting the appropriate paint thickness gauge for your industrial application requires understanding several key factors. Let me walk you through the critical considerations based on our testing methodology and real-world industrial experience.

Types of Paint Thickness Gauges

Understanding the three main types of paint thickness gauges helps you make the right choice for your specific needs:

Magnetic (Ferrous) Gauges use magnetic induction to measure coating thickness on ferrous metals (steel, iron). These are the most common type for automotive and industrial applications involving magnetic substrates. The magnetic field penetrates the coating and measures distance to the underlying metal. As coating thickness increases, magnetic attraction decreases proportionally.

Eddy Current (Non-Ferrous) Gauges use electromagnetic induction to measure on non-ferrous metals like aluminum, copper, and brass. These gauges create alternating magnetic fields that induce eddy currents in the conductive substrate – the changes in these currents reveal coating thickness.

Dual-Function/Automatic Gauges combine both technologies, automatically detecting substrate type and selecting the appropriate measurement mode. Most modern digital gauges fall into this category, including several of our top recommendations.

Ultrasonic Gauges use sound waves to measure coating thickness on non-metallic surfaces like plastic, fiberglass, wood, and composites. If your industrial work involves these materials, you’ll need an ultrasonic gauge like the DeFelsko PosiTector 200. Our thermal cameras for industrial inspection article covers related measurement tools.

Key Features to Consider

Measurement Range – Different applications require different ranges. Automotive paint inspection typically needs 0-60 mils (0-1500 micrometers), while industrial powder coating and thick protective coatings may require 0-120 mils (0-3000 micrometers) or more. Choose a gauge with adequate range for your thickest anticipated coating.

Accuracy and Resolution – Accuracy specifies how close measurements are to true values (typically +/- 1-3% for quality gauges). Resolution indicates the smallest detectable measurement increment. For professional work, look for gauges with 0.1 micrometer (0.01 mil) resolution or finer.

Auto Substrate Detection – Automatic Fe/NFe detection saves time and prevents errors by automatically identifying whether you’re measuring on steel or aluminum. This feature is standard on mid-range and professional digital gauges.

Data Storage and Connectivity – For industrial quality control, gauges with memory storage (200+ readings) and USB PC connectivity allow documentation and analysis. Many digital gauges for industrial applications include these features.

Calibration Options – Factory calibration is sufficient for most applications. For precise industrial work, look for gauges offering zero calibration and multi-point calibration for maximum accuracy across the measurement range.

Display and Readability – Backlit LCD displays matter for dim environments. Color TFT screens (like the TESMEN TCG-2001) offer enhanced readability. Consider probe angle – some gauges include auto-rotation displays for convenience.

Battery Type and Life – Rechargeable USB-C batteries (like the TESMEN) eliminate ongoing battery costs. AAA battery models are universally available but require regular replacement. Some industrial users prefer standard batteries for field work where charging isn’t convenient.

Understanding Industry Standards: 90/10 and 80/20 DFT Rules

Industrial coating specifications often reference the 90/10 and 80/20 dry film thickness (DFT) rules:

90/10 Rule – At least 90% of all coating thickness measurements must meet the minimum specified dry film thickness, with no single measurement below 90% of specification. This is the stricter standard, typically applied to critical infrastructure, marine, and aerospace applications.

80/20 Rule – At least 80% of all measurements must meet minimum DFT, with no single measurement below 80% of specification. This more lenient standard applies to general industrial and commercial applications where some variation is acceptable.

Understanding these standards helps you select a gauge with appropriate accuracy for your compliance requirements. Professional industrial work may require documented measurements demonstrating compliance, making data logging features essential.

Price Tiers: Budget vs Professional

Budget ($10-$30) – Mechanical magnetic gauges and basic digital models. Suitable for occasional use, hobbyists, and learning. Resolution typically 1-2 mils. Limited features and durability.

Mid-Range ($30-$70) – Consumer-grade digital gauges with auto-detection, good resolution (0.1 micrometer), and useful features like data storage and backlit displays. Ideal for professional automotive inspection, body shops, and general industrial use.

Professional ($70-$300) – Industrial-grade gauges with high resolution (0.001 mil), extensive calibration options, external probes, large data storage, USB connectivity, and robust construction. Required for documented quality control, ISO compliance, and demanding industrial applications.

If you’re shopping for gifts for engineers and industrial professionals, consider their specific application needs when selecting from these price tiers.

FAQ

Conclusion

Finding the best paint thickness gauge for industrial use ultimately depends on your specific application requirements, accuracy needs, and budget. After extensive testing, our top recommendations stand out for different user categories:

The TESMEN TCG-2001 earns our Editor’s Choice award for delivering premium features like data logging, color display, and USB-C charging at a mid-range price – perfect for professional inspectors who need versatility without professional-grade cost.

The VVV-Group CM-224Auto provides exceptional value with automatic Fe/NFe/Fe+Zn detection at under $60, making it the Best Value for automotive and industrial inspectors who need professional accuracy without the premium price tag.

For those on tight budgets, the Reenwee YNB-100 offers basic functionality at the lowest price point, while the VVV-Group Industrial-818 serves demanding industrial applications requiring the widest measurement range and professional documentation capabilities.

Regardless of which gauge you choose, proper technique and regular calibration ensure accurate measurements that meet industry standards. Invest in quality, and your paint thickness gauge will pay for itself through improved inspection accuracy, reduced rework, and compliance confidence.
