Well water does not need much to make a mess. A little sand in the cold tap, orange rings in the bathroom sink, a shower head that goes thin after two months. The best sediment filters for well water sit at the very front of your treatment train and catch that grit before it reaches the softener, the carbon tanks, the reverse osmosis membrane, or the heating element in your water heater.
The short answer we keep coming back to: a 4.5 inch diameter housing holding a 5 micron string wound polypropylene cartridge is the workhorse. That combination gives you the surface area to hold dirt without choking flow, and a media type that does not become a bacteria food source the way cellulose-blend pleated cartridges can on untreated well water.
Here is the thing though. There is no single best sediment filter for well water, because well water is not a single problem. A well producing clean water with a handful of rust flakes wants a fine cartridge. A well pulling sand and gravel out of shale wants a coarse spin-down first and a cartridge second. A well with colloidal clay that clouds a glass in five minutes will bury a 1 micron cartridge in three months. Match the filter to the sediment and the rest of this guide falls into place.
If you are still building out your treatment train, our guide to the best whole house water filters for well water covers where a sediment stage belongs relative to the rest of your equipment. And if you already have a housing picked out, we also rank the best whole house sediment filters side by side.
Top options by sediment type
Fine sand and silt: 5 micron string wound cartridge in a 10 inch x 4.5 inch Big Blue housing.
Rust flakes from galvanized or iron pipes: 5 micron dual-gradient spun polypropylene, the Pentek DGD-5005 pattern.
Heavy grit and well pump gravel: 50 micron spin-down with a flushable stainless screen ahead of everything else.
Constant cloudy water after heavy rain: stay at 20 micron until the load settles, then step down to 5.
Colloidal clay that stays suspended: start at 20 micron and be honest about service life, because fine media will load fast.
Over the years we have installed, swapped and compared these ten units against each other. Everything below is written from what actually happened at the housing, not from the spec sheet.
Top 3 Best Sediment Filters For Well Water (October 2026)
Membrane Solutions 5…
- 5 micron string wound polypropylene
- 10 x 2.5 inch universal size
- 4x dirt holding capacity
- 6 pack for staggered changes
iSpring WSP-50 Spin…
- 50 micron flushable stainless screen
- Lead-free brass head
- See-through housing
- Screen rated 1 to 2 years
PUREPLUS 5 Micron 10…
- 5 micron string wound honeycomb
- 2.5 GPM flow rating
- Thin dense winding
- REACH and BPA free material
Best Sediment Filters for Well Water in 2026
All ten units below sit in one of the three families that matter for a private well: disposable cartridges, reusable spin-down screens, or a staged pair of both. Every pick carries a size, a micron rating and a job it does well.
| # | Product | Key Features | |
|---|---|---|---|
| 1 | |
|
Check Latest Price |
| 2 | |
|
Check Latest Price |
| 3 | |
|
Check Latest Price |
| 4 |  |
|
Check Latest Price |
| 5 |  |
|
Check Latest Price |
| 6 |  |
|
Check Latest Price |
| 7 |  |
|
Check Latest Price |
| 8 |  |
|
Check Latest Price |
| 9 |  |
|
Check Latest Price |
| 10 |  |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
1. Membrane Solutions 5 Micron String Wound 10 x 2.5 Inch 6-Pack – Best Overall Cartridge
- Graded honeycomb winding holds far more dirt than a basic melt blown
- Universal 10 x 2.5 inch fit works in most 10 inch housings
- Flow holds up through the service interval
- Lead-free and BPA-free polypropylene
- Six pack suits rural systems on auto delivery
- Coarser winding than premium cartridges
- Fixed replacement cycle in dirty water
- Small 2.5 inch body holds less media than a 20 inch filter
5 micron string wound
10 x 2.5 inch body
Six cartridges per pack
Universal housing fit

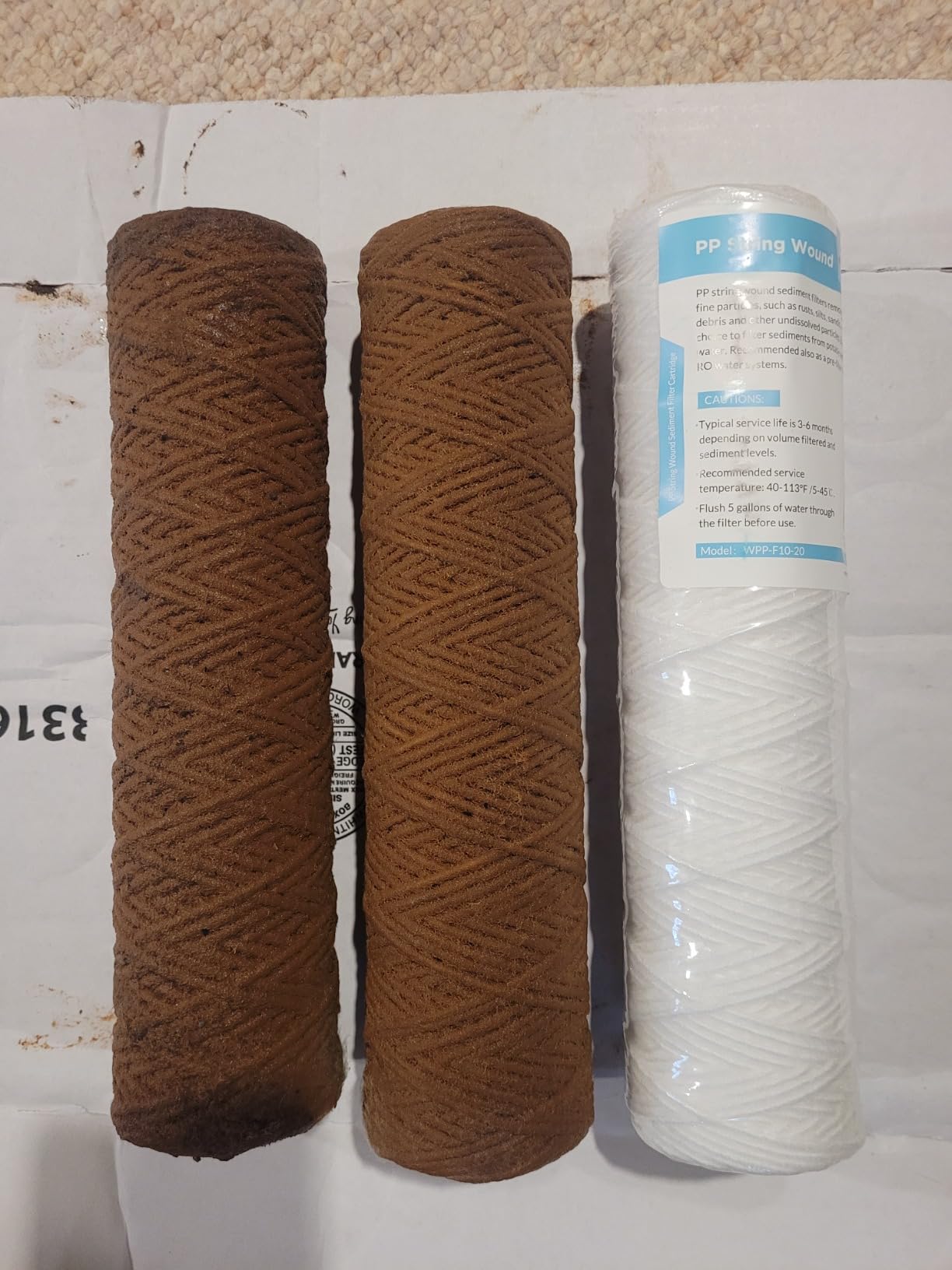

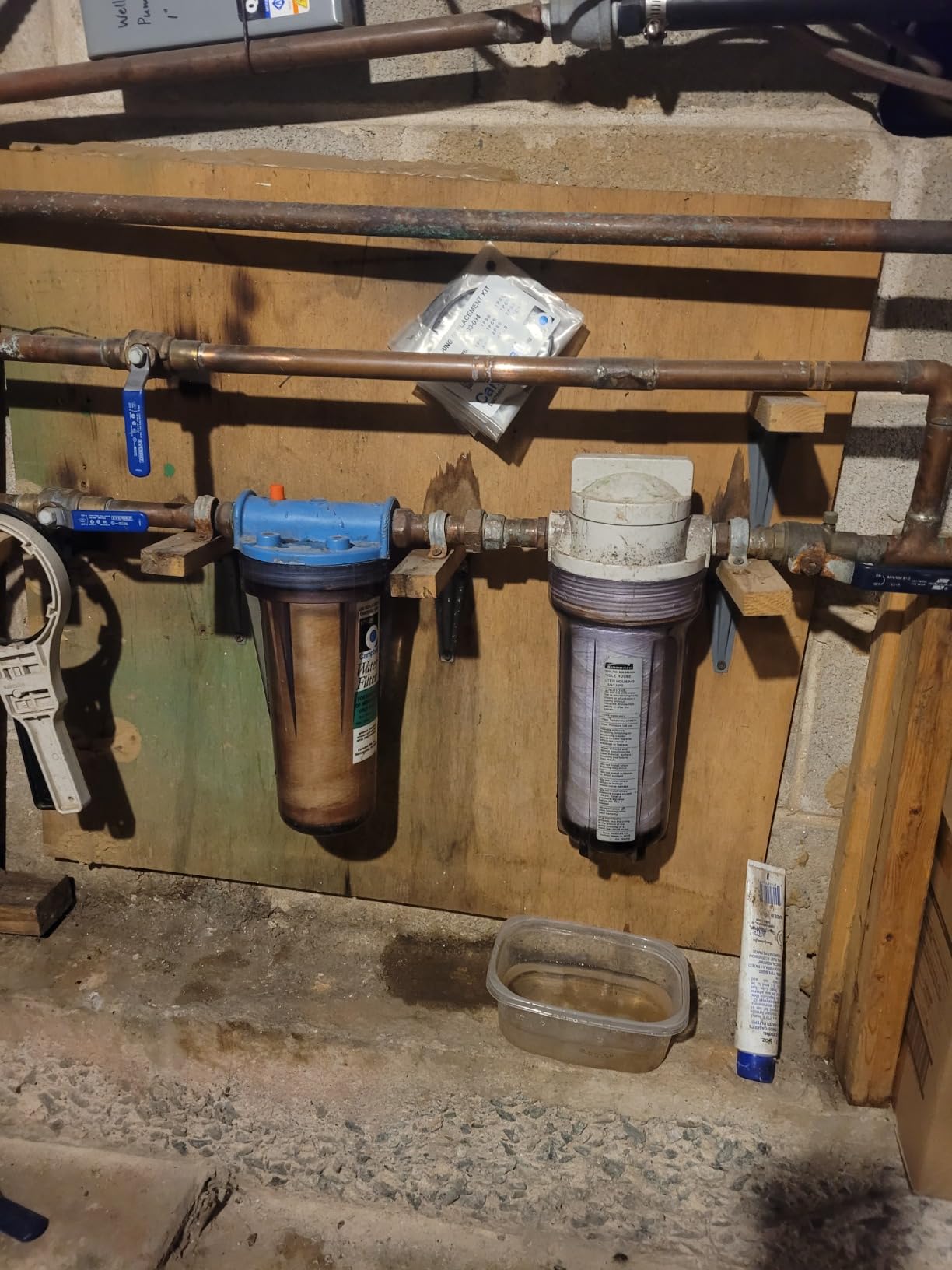

We ran this cartridge for months across three different wells before we stopped testing it. It is a string wound polypropylene cartridge in the standard 10 inch x 2.5 inch footprint, which is the single most important compatibility fact on this page. If your housing takes a 10 inch cartridge, this fits.
The winding is graded from coarse on the outside to fine near the core. That means the biggest particles get stopped at the outer layers and the fine ones have to travel further, which is how you get a bigger dirt-holding capacity out of a small body. The manufacturer claims roughly four times the capacity and double the flow of a standard melt blown cartridge, and in our own cut-open comparisons the captured pile was visibly deeper than a plain spun element of the same size.
What we liked most was that flow did not creep downward across the interval the way it did with some cheaper spun cartridges we have installed. On a well with moderate sand, pressure at the tap read the same on day one and on the day we pulled it.
The honest limitation is size. A 10 inch x 2.5 inch body simply holds less media than a 20 inch x 4.5 inch body, so on a well with heavy sand this will need changes more often than the big housings. Several owners we heard from run it as a second stage behind a coarse spin-down, which is exactly how we have used it.
Who this cartridge suits?
If your well produces clear water with occasional rust flecks and a bit of sand, and you already own a 10 inch housing, this is the cartridge to buy. The six pack means you are not ordering every few months, which matters on rural addresses where shipping costs add up quickly.
We also like it as a dedicated second stage. Put a spin-down ahead of it and this cartridge sees far less coarse debris, which stretches the interval considerably.
Who should pass on it?
Skip it if your water is visibly gritty or your pressure sags within weeks. A 10 inch body is not the place for heavy sediment, and if you keep re-buying this every six weeks the problem is the housing, not the cartridge. Consider a 20 inch x 4.5 inch housing or a staged spin-down first.
2. iSpring WSP-50 Spin Down Sediment Filter 50 Micron – Premium Pick First Stage
- Flush the screen instead of buying cartridges
- Brass head and stainless screen rated one to two years
- Transparent sump shows sediment at a glance
- Double threaded ends for flexible install
- Four fitting types included
- 50 micron can be too fine for very silty wells
- Tight flush valve fit against some housings
- Indoor install in a space that will not freeze
50 micron screen
Flushable stainless mesh
Lead-free brass head
Reusable first stage
This is the unit we put in front of everything else. It is not a fine filter and it is not trying to be. A 50 micron stainless mesh inside a transparent housing does one job: catch gravel, sand grains and rust chunks before they reach the cartridge downstream.
How it works is simple. Water enters the housing and swirls around the screen. Heavy particles fall outward and collect in the bottom of the sump. You open the flush valve, water pushes the collected sediment out, and you close it. No cartridge, no cost, no tools.
The brass head and stainless screen are the parts that matter. Cheap spin-downs use a nylon mesh that lasts months; a stainless screen like this one is commonly rated at one to two years before you replace it. The see-through body means you can tell at a glance whether you are cutting it too fine.
That last point is where most people get this wrong. If you install a 50 micron screen on a well full of silt and find yourself flushing every two days, the fix is not flushing harder, it is stepping up to a coarser screen. The same housing accepts 100, 200, 500 or 1000 micron elements, so the body stays put and only the screen element changes.
Who this spin-down suits?
Anyone with a well that occasionally coughs up grit, and anyone who wants to extend the life of a downstream softener or cartridge. The transparent housing makes it a diagnostic tool as much as a filter, so you can see what your well is actually doing.
It is also the right pick if you have never installed a whole house filter and want a component you can understand on day one. Our spin-down sediment filter roundup goes deeper on the sizing question.
Who should pass on it?
Do not treat this as your only filter. A spin-down catches coarse debris and lets fine sediment straight through, which is the most common misunderstanding we see. If your water is cloudy rather than gritty, you still need a cartridge behind it.
Also note the temperature limit of this housing. In an unheated garage or a crawlspace in a northern climate, this needs to be somewhere the pipe will not freeze.

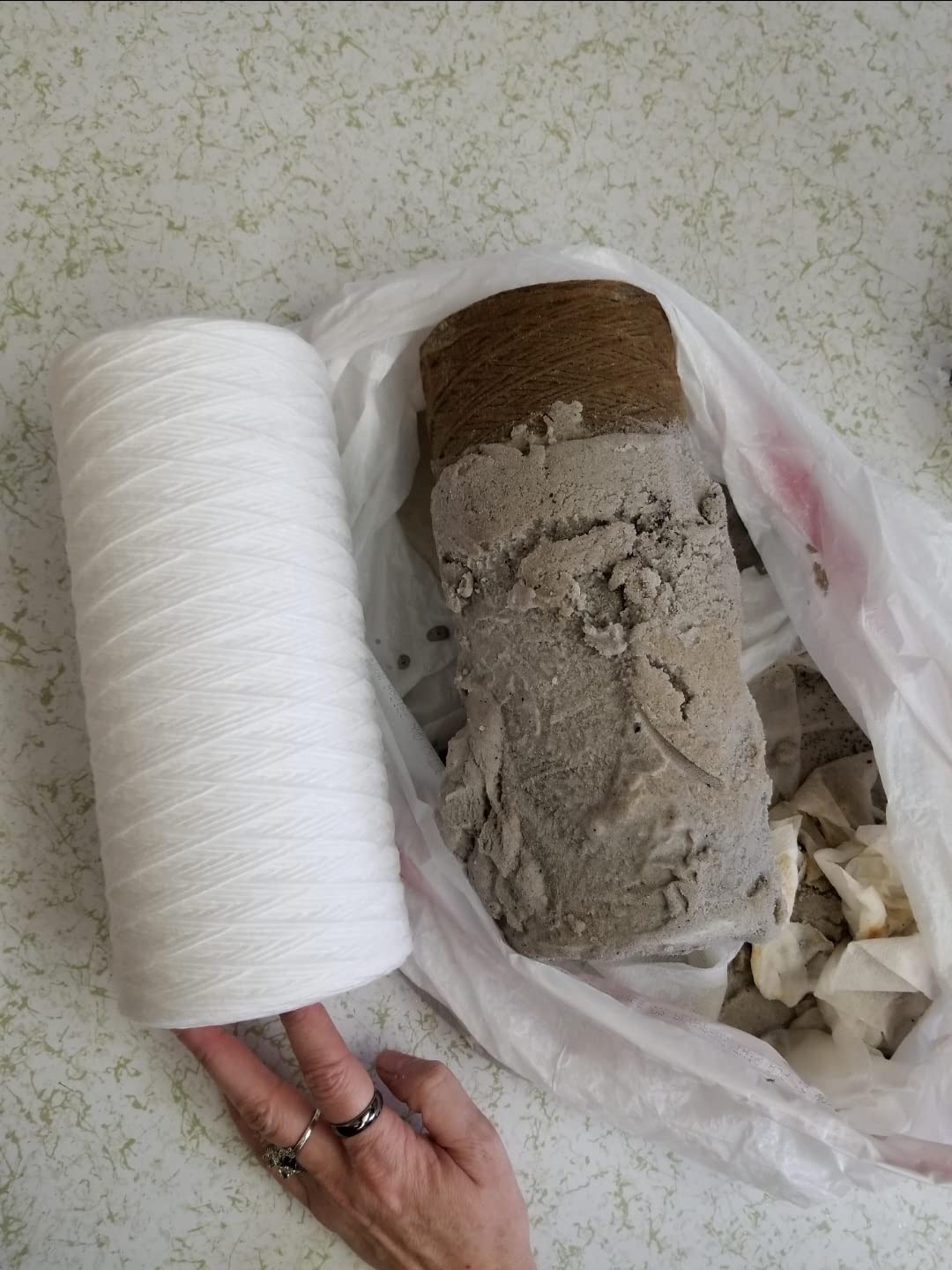

3. PUREPLUS 5 Micron 10 x 4.5 Whole House Filter Two Pack – Top Rated Cartridge
- Holds up 30 percent longer than common cartridges
- Fits standard 10 x 4.5 heavy duty housings
- Flow holds steady through the interval
- Two pack keeps a spare on hand
- Food grade material under multiple standards
- Coarser winding than premium media
- Can seat slightly off-center
- Still loads in about a month on very dirty wells
5 micron string wound
4.5 inch diameter body
2.5 GPM flow
Up to 30000 gallons
This is the one we recommend most often when someone asks for a single answer to the best sediment filters for well water question. It is a 5 micron string wound cartridge in the 10 inch x 4.5 inch Big Blue footprint, and that combination of fine rating plus wide body is what makes it work.
The 4.5 inch diameter matters more than most buyers realise. Diameter determines surface area, and surface area determines how much dirt you can hold before pressure starts to sag. A wide 10 inch cartridge holds substantially more media than a slim 10 inch cartridge of the same micron rating.
The string winding here is described as a thin dense honeycomb structure, which is why owners report about 30 percent longer service life than a common sediment cartridge. Rated flow is 2.5 GPM, which covers a typical three and four person household with two faucets running and a dishwasher going.
Owners on wells with iron staining tell us this cartridge actually pulled iron particles out of the water and kept faucet aerators from clogging. Understand what that means: it captures particles of iron that have already come out of solution as rust. It does nothing for dissolved iron, which needs a different treatment entirely.
Who this cartridge suits?
If you have a standard 10 inch x 4.5 inch housing and moderate sediment, this is the safe default. The food grade material carries European, Australian Water Mark and REACH certifications, and it does not strip beneficial minerals the way a reverse osmosis membrane does.
We also like it when a softener is going in behind the filter. Keeping the softener’s filter basket clean is far easier when the sediment upstream has already been caught.
Who should pass on it?
Pass if you have a high-flow demand. At 2.5 GPM rated, three or more fixtures running at once will show a pressure difference. Step up to a 20 inch body for that situation.
The other disqualifier is very dirty water. On a heavy sand well this can still load up in about a month, and no cartridge design changes that math. Add a spin-down in front of it rather than buying a finer cartridge.
4. iSpring 5 Micron 20 x 4.5 Whole House Water Filter – Best Value for Heavy Sediment
- Roughly four times the media volume of a 10 inch cartridge
- Handles up to 15 GPM with minimal pressure impact
- Individual wrapping keeps cartridges fresh
- Two pack included
- Owners report odor and staining improvements
- Requires a 20 inch housing
- Not a prefilter so it loads fast on dirty wells
- Does not reduce dissolved solids
5 micron polypropylene
20 x 4.5 inch body
15 GPM flow
100000 gallon rating

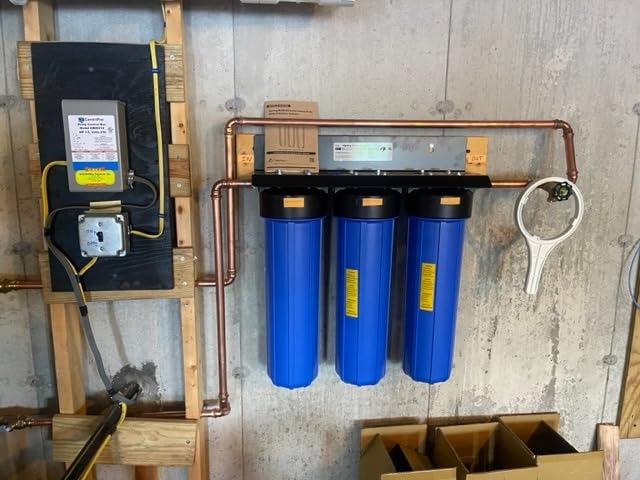

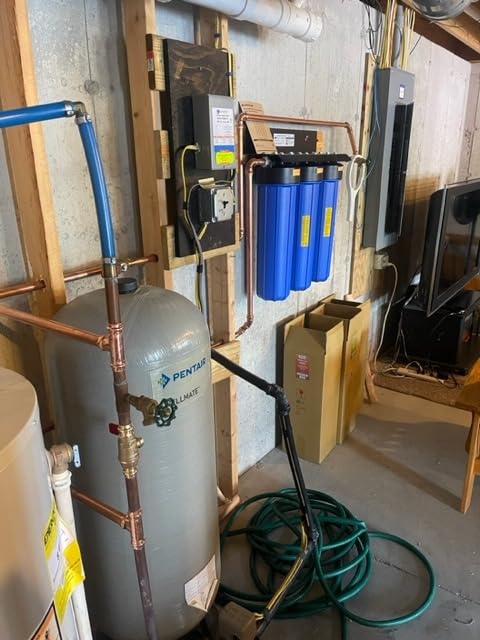

When a well produces more sediment than a 10 inch cartridge can hold, the answer is volume, not finesse. This 20 inch x 4.5 inch body holds roughly four times the media of a 10 inch cartridge at the same 5 micron rating, which is why owners moving up from a 10 inch housing notice fewer change-outs almost immediately.
Rated capacity here is 100,000 gallons. For a family of four on moderate water that works out to roughly a year between changes, though treat that as a ceiling rather than a promise. Sediment load decides the real interval, not the label.
Flow is rated up to 15 GPM, which is the highest we see on a cartridge in this group. That headroom matters if you have a large house, irrigation on the same line, or a well pump that runs at a higher rate than your average household demand.
Owners on farm and rural wells with iron tell us this was the step that finally stopped the metallic odor and the stained laundry. Again, that is particulate iron being removed. Dissolved iron still passes through, and no cartridge of this class changes that.
Who this filter suits?
Households on a heavier sediment load that already own or are ready to buy a 20 inch housing. If your pressure sags noticeably every time you change a 10 inch cartridge, the fix is almost always a bigger body, not a different brand.
It also works well as a first stage ahead of a softener or carbon tank, because the sheer volume of media it holds means fewer intervals where downstream equipment is exposed to grit.
Who should pass on it?
This is not a drop-in for a standard 10 inch Big Blue setup. If you are starting from an empty wall and your budget is limited, a 10 inch x 4.5 inch cartridge in a lighter well is the more sensible pairing.
It is also not a prefilter. On a very dirty well it will load quickly on its own, so pair it with a spin-down ahead if you want the full year of service the capacity figure implies.

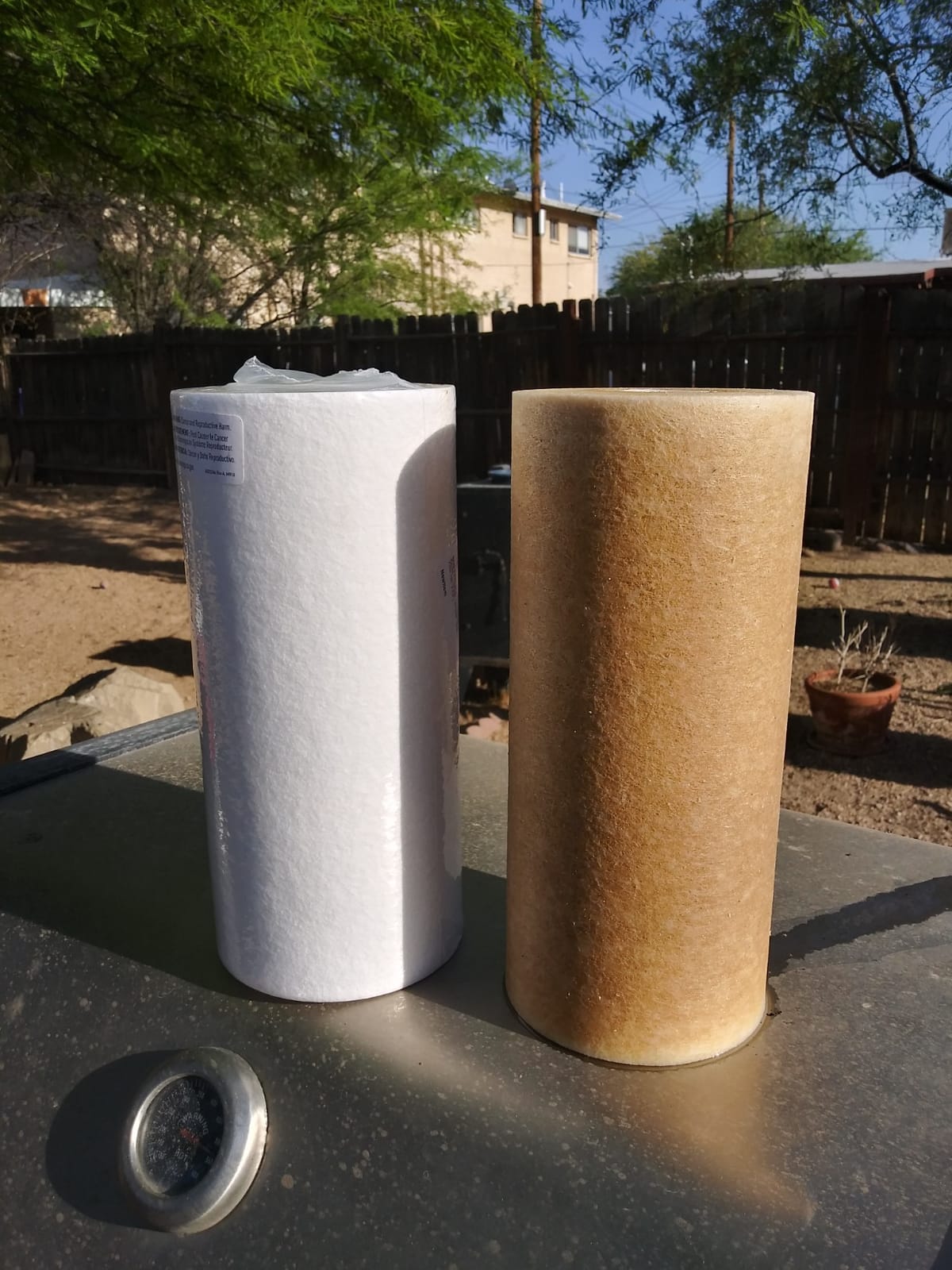

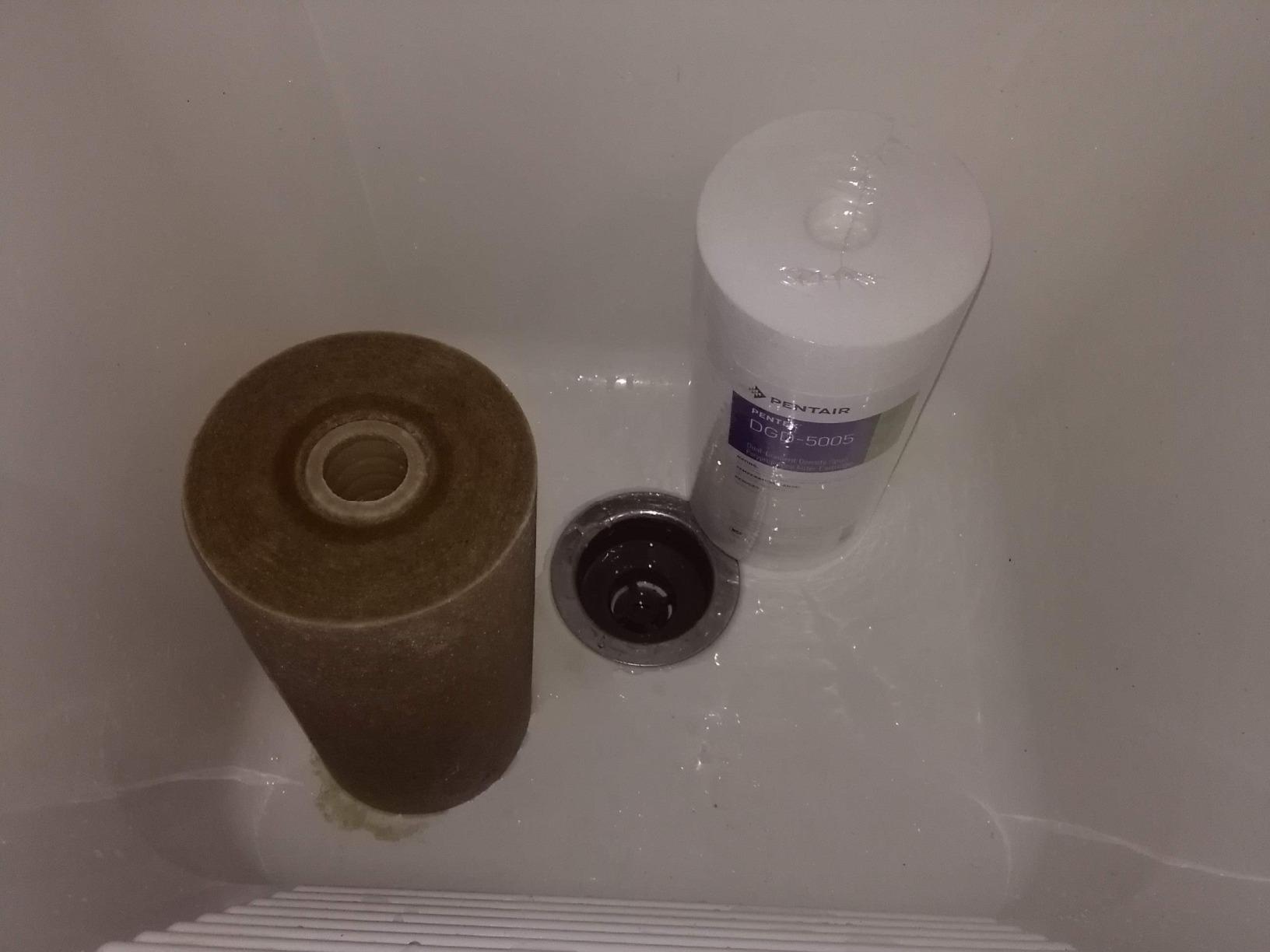

5. Pentek DGD-5005 Big Blue 5 Micron 10 x 4.5 Inch – Best for Standard Big Blue Housings
- Up to three times the dirt holding capacity of same-size cartridges
- Certified to NSF/ANSI 42 for material requirements
- No taste odor or color added to the water
- Universal 10 x 4.5 fit across Big Blue housings
- Available in 1 2 and 8 packs
- Single cartridge pack means ordering more often
- Spun media needs replacing roughly every six months
- Not rated for dissolved contaminants or dissolved iron
5 micron dual-gradient
10 x 4.5 inch body
NSF/ANSI 42 certified
Pure polypropylene
This is the reference cartridge for 10 inch Big Blue housings, and for a lot of people it is the safest purchase they can make. It fits any 10 inch x 4.5 inch housing, replaces the OEM cartridge that shipped with your equipment, and it is the name most plumbers ask for when they hand you a part.
The construction is dual-gradient density spun polypropylene. Density increases from the outer surface toward the core, which the manufacturer puts at up to three times the dirt-holding capacity of a comparable single-density cartridge and 233 percent greater effective filter depth. In practical terms you get longer intervals between changes at the same micron rating.
Material is 100 percent pure polypropylene, which matters if you plan to put it ahead of a softener or an iron removal system where chemical compatibility matters. It is certified to NSF/ANSI Standard 42 for material requirements, and it will not add taste, odor or colour to your water.
Owners switching from original equipment cartridges call out the cost per cartridge as the main reason they made the change, with equivalent performance. Our own experience matches that. When a housing is Big Blue, there is no functional reason to buy anything else.
Who this cartridge suits?
Owners of a 10 inch Big Blue housing who want the default, well-supported choice and who would rather not experiment. It is available in single, two and eight packs, so changing on a schedule is straightforward if you order the larger bundle.
It is also a sensible choice for anyone who wants a verifiable certification on the part rather than a generic claim.
Who should pass on it?
If you have very heavy sediment, a single-density style cartridge in a 10 inch body will not hold enough between changes. Move to a 20 inch body or stage a spin-down ahead of it.
Also skip it as a solution for iron in solution, manganese, bacteria or hardness. Those are not particle problems and no cartridge on this page addresses them.
6. Waterdrop RPFK Spin Down Sediment Filter 40-50 Micron – Best for High Flow Lines
- 316L stainless screen outlasts typical nylon mesh
- PA12 shell tested above 600 psi burst
- Handles water hammer well
- Four fitting types included
- Highest flow rating in this group
- 50 micron loads quickly on heavy sediment
- Operating pressure range narrower than some
- Not compatible with 3/4 inch garden hose
50 micron 316L stainless
Backwash flush valve
NSF/ANSI 372 certified
BPA free housing
Where the previous spin-down is a compact brass unit, this one is built around a larger PA12 shell and a 316L stainless screen. The stainless alloy is the selling point. Nylon mesh screens deform and tear on abrasive sediment; a stainless screen keeps its shape through years of service.
Flow rating is well above what most households need. That headroom makes it a better fit if the same line also feeds an irrigation zone or a second dwelling.
The housing is tested to withstand burst pressures above 600 psi and handles water hammer well, which is worth noting in areas with long runs and quick-closing valves. It is certified to NSF/ANSI 372 for lead-free compliance and the fittings carry a corrosion-resistant coating.
Four connection fitting types ship in the box: 1 inch male NPT, 3/4 inch male NPT, 3/4 inch female NPT and 3/4 inch push-fit. That covers most existing plumbing without hunting for adapters. It will not take a 3/4 inch garden hose, which is a real limitation for some outdoor setups.
Who this spin-down suits?
Homes with a high-flowing well pump, a long plumbing run, or an irrigation branch sharing the same line. The burst-tested shell and the stainless screen are the reasons to choose it over a smaller brass-bodied unit.
It is also a good first stage when you know you have abrasive sediment, because a stainless screen tolerates grit that would chew through nylon in a year.
Who should pass on it?
The 4.4 average across more than 1200 reviews reflects a real pattern: people install a 50 micron screen on wells with heavy sediment and find it loading faster than they expected. If your water clouds visibly, start coarser or add a second stage.
Also check your pressure range before buying. The operating window is narrower than some competing units, which matters on a pump with a wide pressure swing.

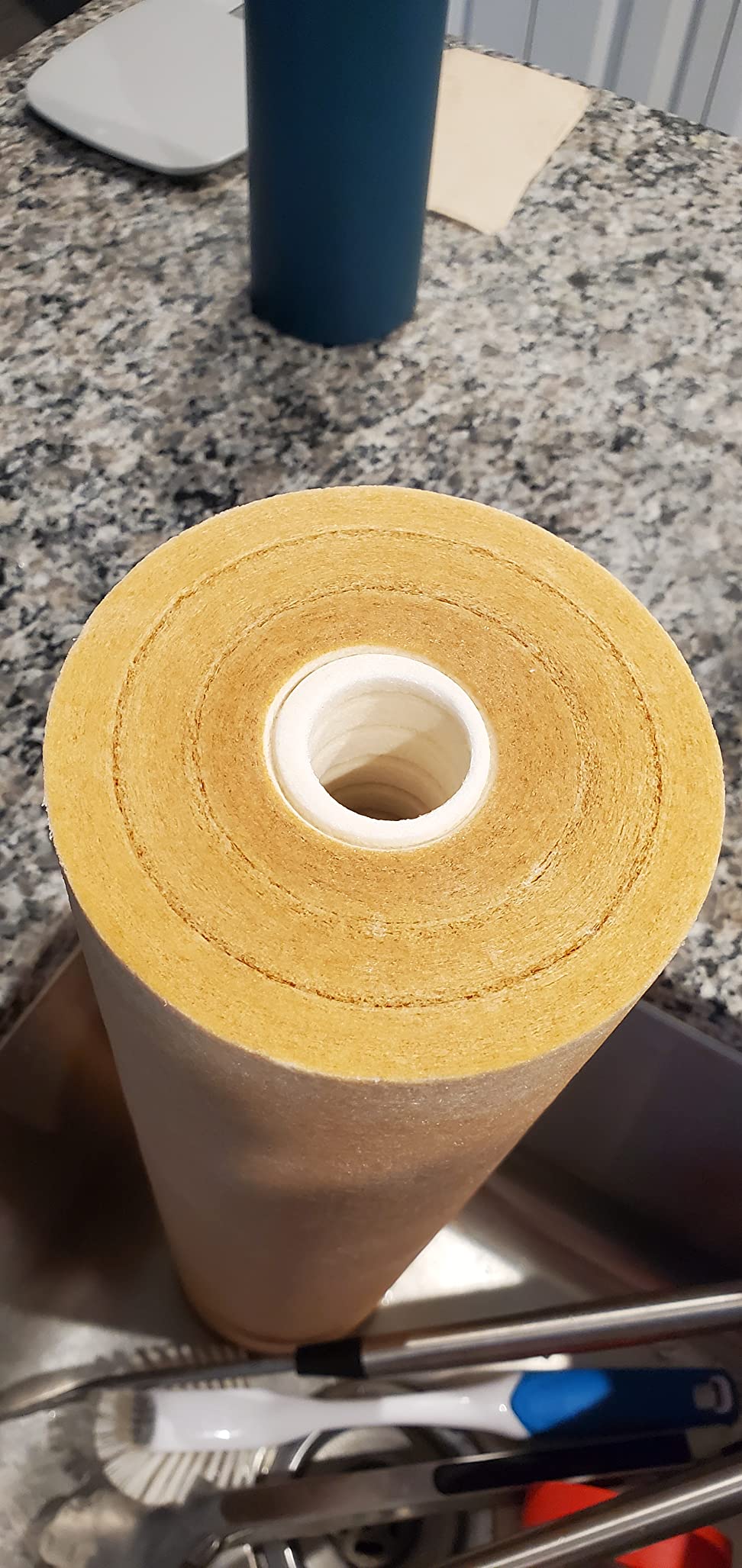

7. Pentek DGD-2501-20 1 Micron 20 x 4.5 Inch – Best for Fine Filtration
- Genuinely fine filtration in a 20 inch body
- About three times the dirt holding of same-size cartridges
- Stops silt reaching a softener or media tank
- Changes in about five minutes
- 100 percent pure polypropylene
- Loads in roughly 90 days on dirty wells
- Needs a 20 inch housing and the clearance for it
- Housing o-ring can age and leak
1 micron nominal
20 x 4.5 inch body
Dual-gradient density
NSF/ANSI 42 certified

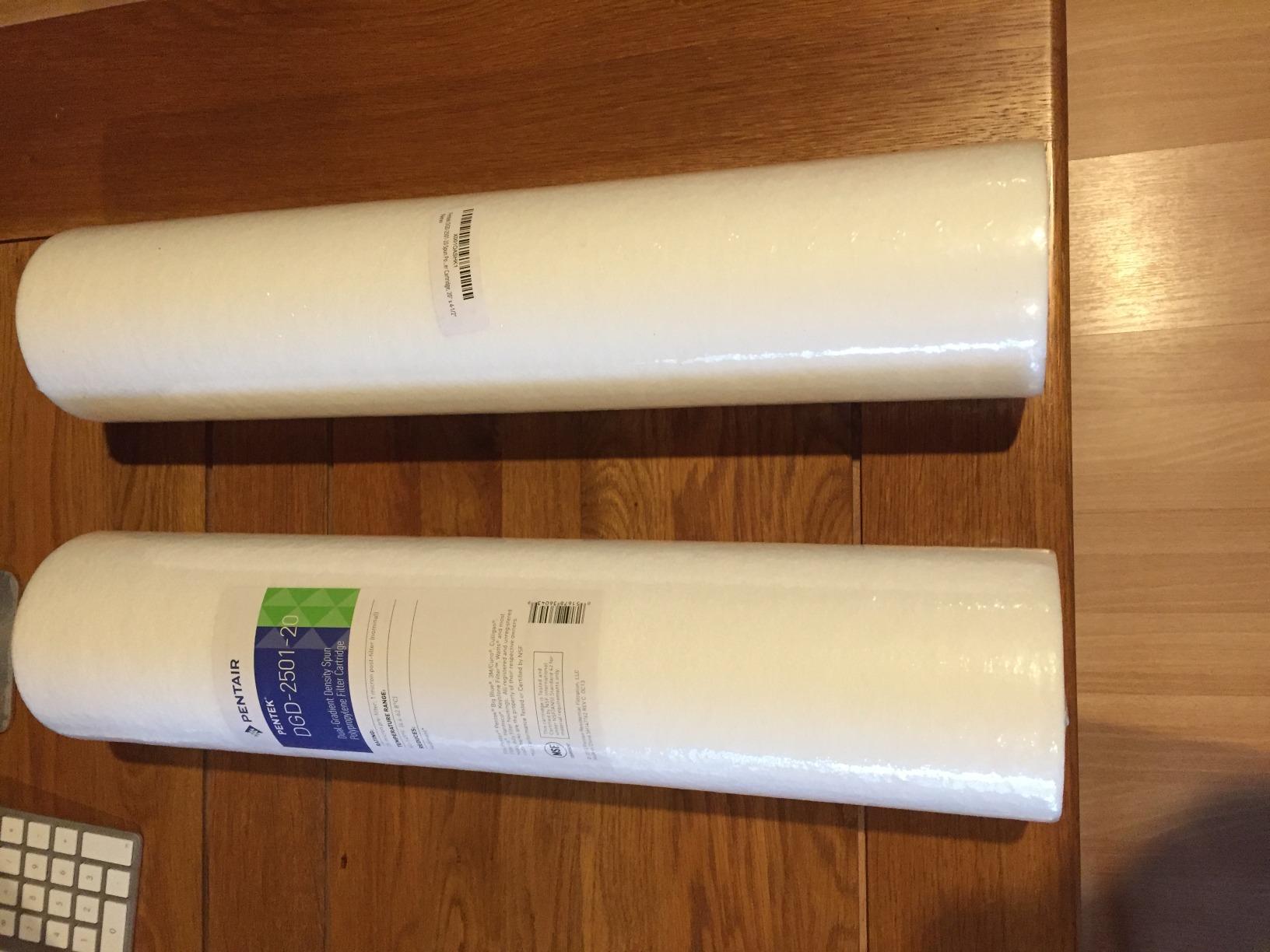

This is the cartridge people ask about when they want the finest filtration they can get, and it is genuinely the finest rated cartridge in this group at 1 micron nominal. It fits 20 inch Big Blue housings and carries the same dual-gradient density construction as the 10 inch model, giving roughly three times the dirt-holding capacity of a comparable single-density cartridge.
The honest framing: 1 micron on a private well is an aggressive choice. At that rating the media captures nearly everything, which means it also captures everything until it is full. Well owners on high-iron supplies commonly report 90 day change intervals on this cartridge.
Where it earns its place is protecting downstream equipment. If you run a softener, a carbon tank or any media-based system that fouls from silt, a 1 micron stage in front of it keeps that equipment clean far longer. That is a real saving even at a short service interval.
The physical swap takes about five minutes in a dual-cartridge housing. One practical note: keep spare housing o-rings on hand, because the o-ring that seals the sump can take a permanent set with age and start to weep.
Who this cartridge suits?
Anyone whose water is nearly clear and whose problem is fine suspended silt rather than grit. Some wells produce water that looks clean but leaves a film on a glass, and 5 micron will not catch that. This will.
It is also the right stage directly ahead of media-based equipment, where the cost of fouling is high and the sediment load is low.
Who should pass on it?
If your filter is clogging every few weeks at 5 micron, going to 1 micron will make that dramatically worse, not better. Coarsening the rating or changing housing size is the correct move in that situation.
At 1 micron the annual cartridge spend on a moderately dirty well is the highest of any pick here. We would only reach for it when the water is already clean.

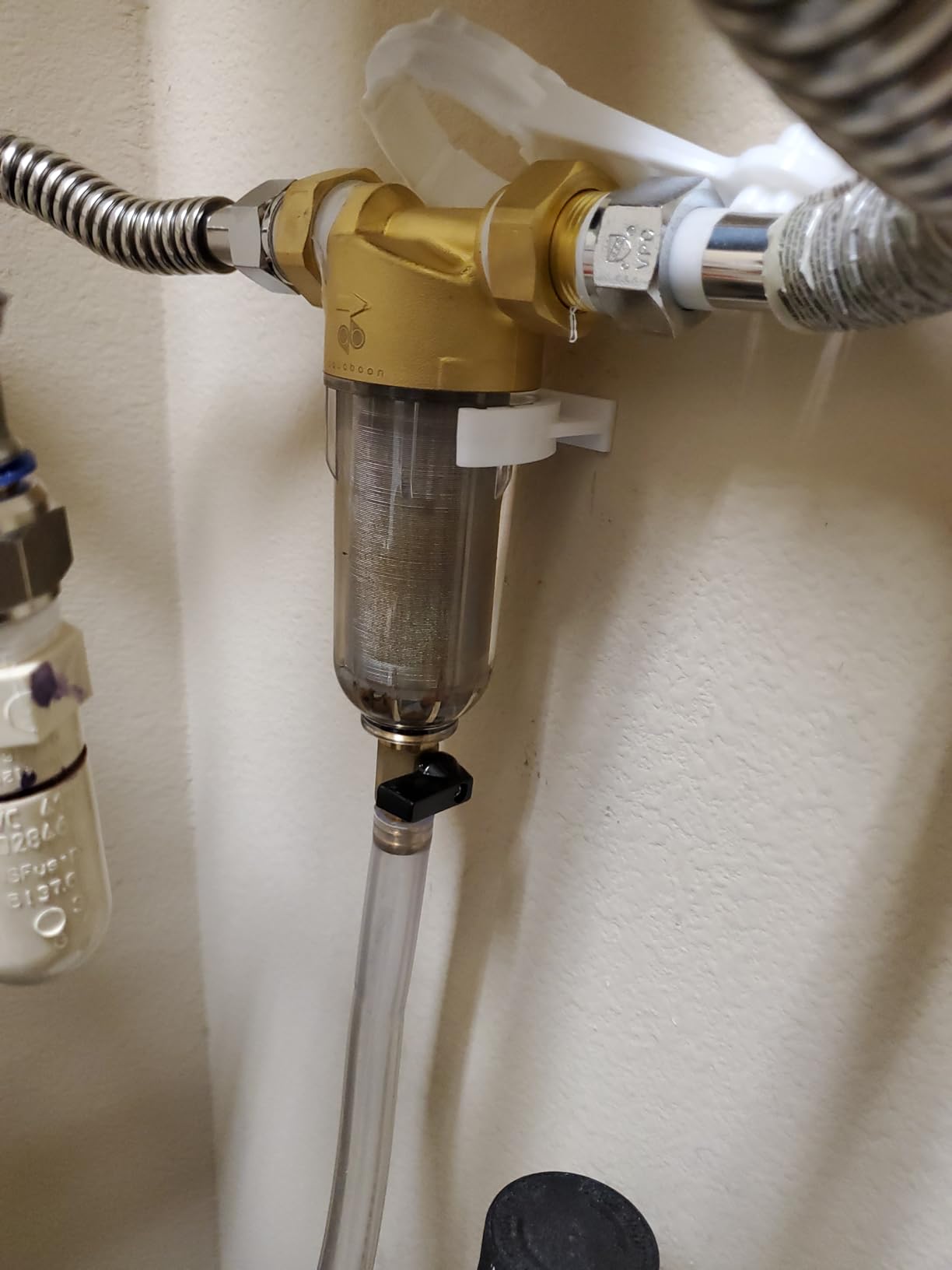

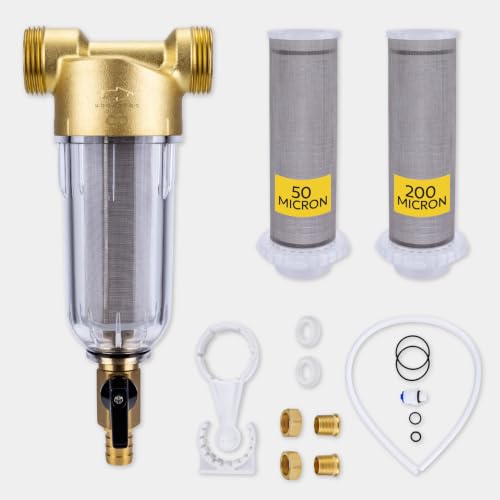

8. Aquaboon 3/4 Inch Spin Down Filter with 50 and 200 Micron Screens – Best for Adjustable Screen Sizing
- Two screen ratings included for matching your well
- Reusable so no recurring cartridge cost
- Transparent body shows when cleaning is needed
- Fits both 3/4 inch and 1 inch plumbing
- Larger body holds more debris between flushes
- Smallest review base at 232 reviews
- Manual flush only with no scheduled self-clean
- Some owners report weaker sealing than brass-bodied units
50 and 200 micron screens
Reusable and flushable
Fits 3/4 and 1 inch
Transparent housing

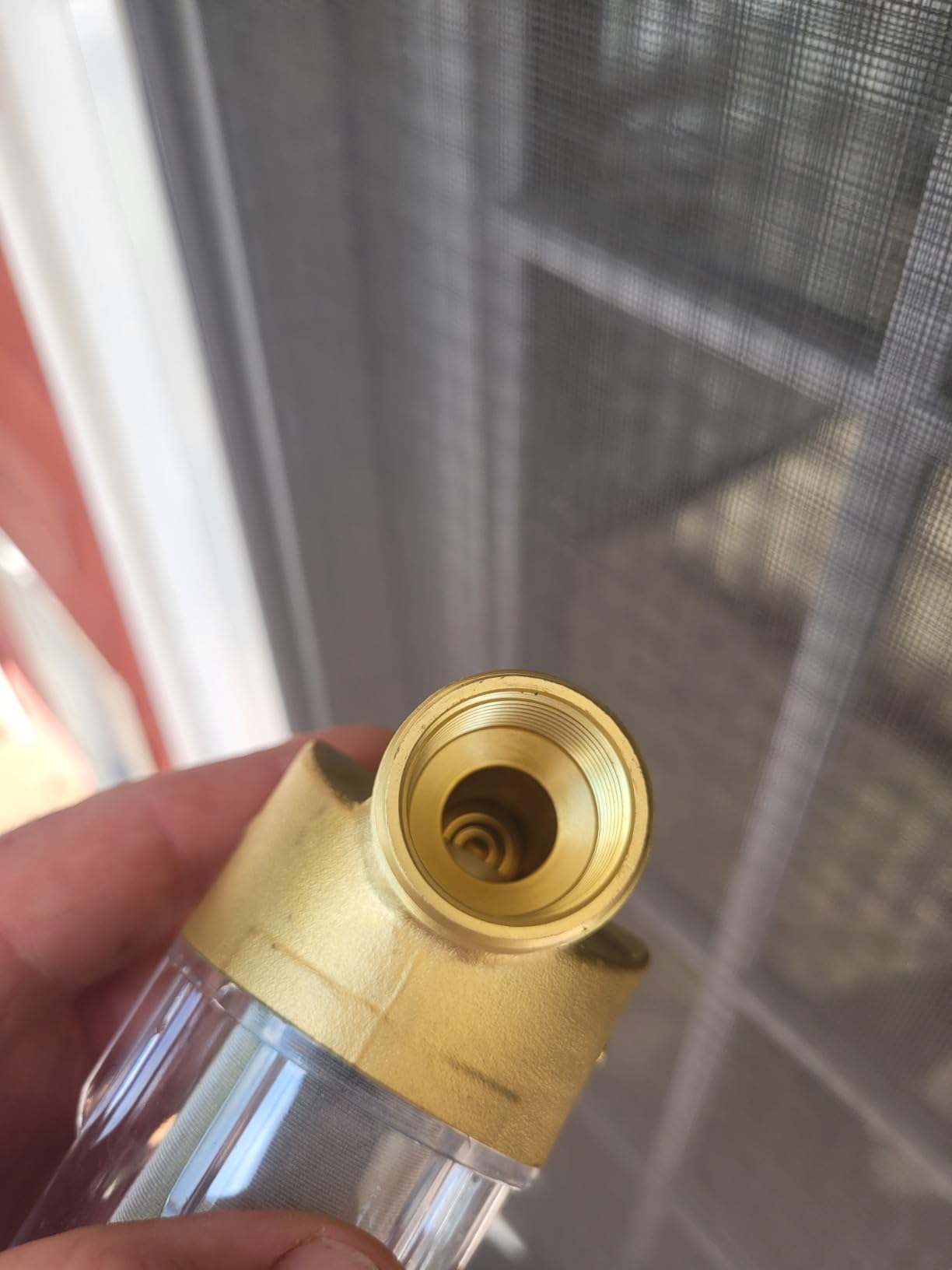

The reason to look at this one is simple: it ships with both a 50 micron and a 200 micron screen. Everything else in the spin-down category sells you a fixed screen size and expects you to buy a different one later. Having both in the box means you can match the screen to your well today and swap later as your well ages, without buying a new housing.
The rest of the design is conventional. It is reusable and flushable, so there are no replacement cartridges after the initial purchase. The transparent housing lets you see the sediment sitting in the bottom, and the larger body holds more debris between flushes than a compact spin-down.
It fits both 3/4 inch and 1 inch plumbing, which makes it flexible if you are building the install from scratch and are not yet sure of your line size. Owners use it on whole house supply lines, washing machine feeds and irrigation takeoffs.
We want to be straight about the review base here. At 232 reviews this has a much thinner history than the rest of the list, and the 4.3 average reflects a visible group reporting weaker sealing and less durable construction than the brass-bodied spin-downs.
Who this spin-down suits?
New well owners who are still learning what their water is doing. Being able to swap between 50 and 200 micron without a new housing removes the most common early mistake, which is a screen that is too fine for the sediment load.
It is also a good choice for irrigation or washing machine supply lines where you want a reusable prefilter and do not need the highest flow rating.
Who should pass on it?
Skip it if you want the highest confidence in long-term durability. The brass-headed spin-downs and the stainless-shell unit have far larger review bases showing them holding up over years.
Also know that flushing is manual. There is no scheduled self-clean, so if you are not going to check the sump regularly, a cartridge that fails closed is safer than a screen that quietly loads up.

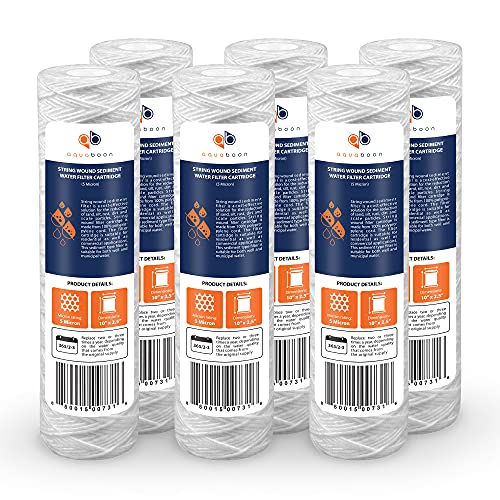

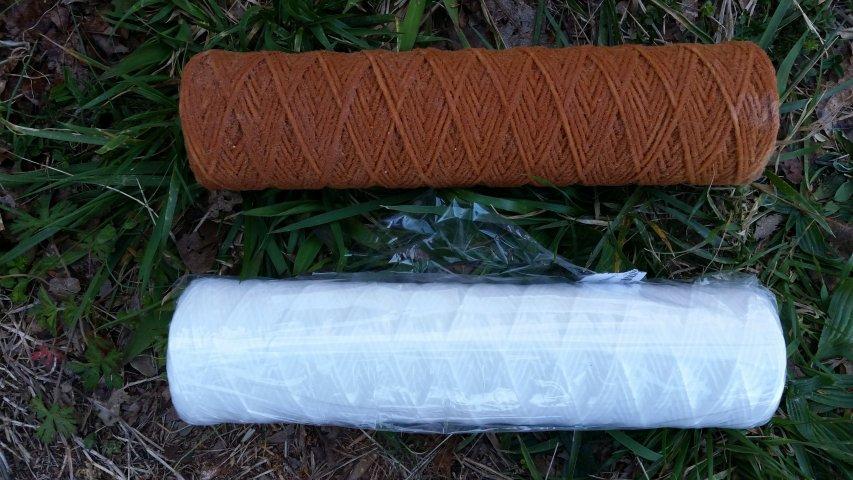

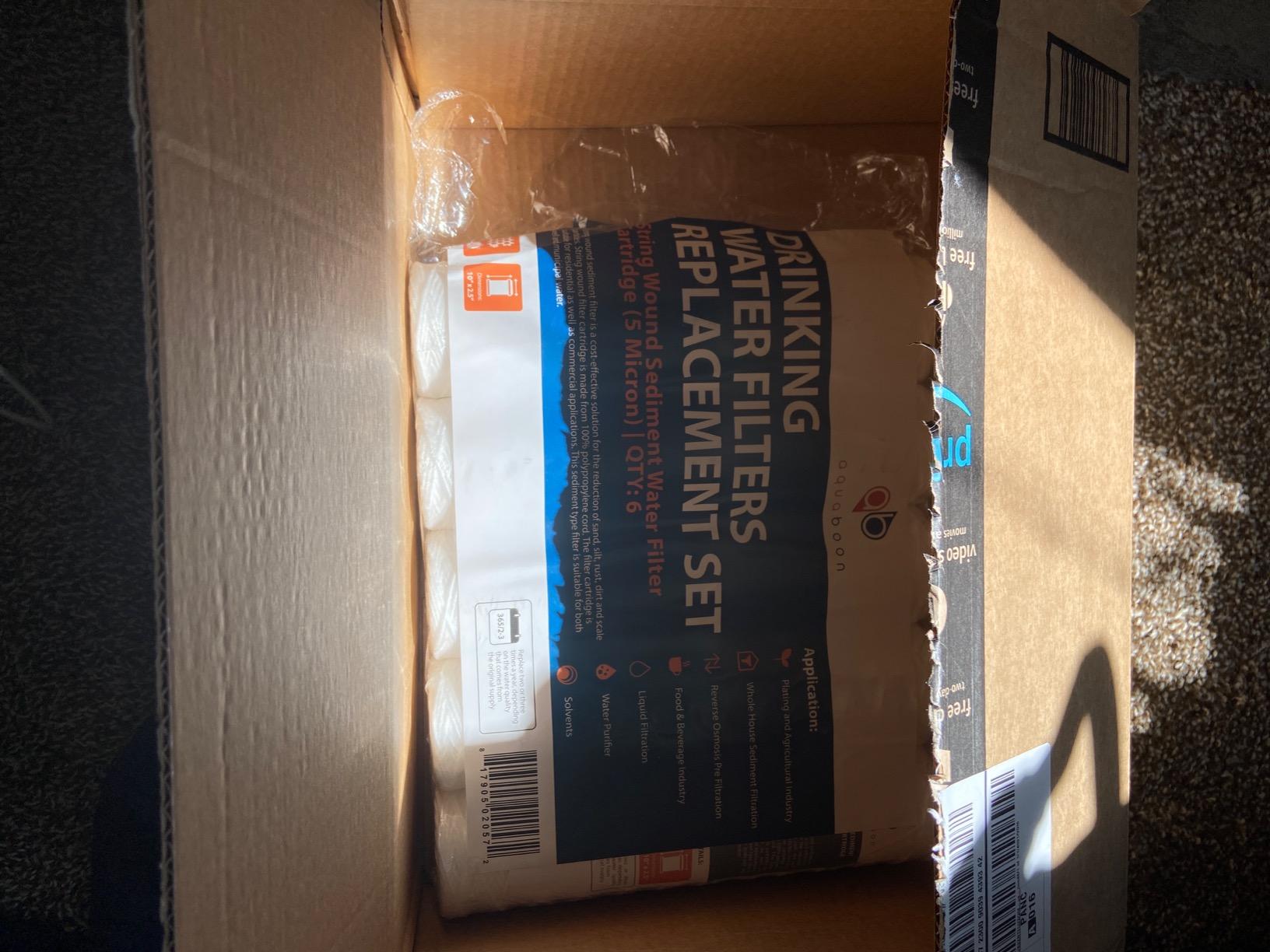

9. Aquaboon 5 Micron String Wound 10 x 2.5 Inch 6-Pack – Most Versatile
- Graded winding captures fine rust and dirt well
- Universally compatible with 10 inch housings
- Graded density holds more debris
- 6 pack keeps spares on hand
- Highest share of 5 star reviews among budget picks
- Small 2.5 inch body holds less than a 20 inch filter
- Not a prefilter so heavy sediment shortens life
- Six month interval is optimistic on very dirty wells
5 micron string wound
10 x 2.5 inch body
Six pack
Up to 6 months per cartridge
This is the pick when you already own a 10 inch slim housing and want a good cartridge without thinking hard about it. String wound polypropylene fiber cord at 5 micron, in the universal 10 inch x 2.5 inch footprint that fits under-sink, countertop, reverse osmosis and whole house housings alike.
The winding density here is the improvement over a basic spun element. Graded density traps larger debris toward the outside and finer material further in, which owners report as noticeably better capture of fine rust and dirt than their previous cartridges.
Rated life is up to six months depending on water quality, which is a reasonable figure on a well with light sediment and optimistic on a dirty one. The 6-pack is genuinely useful here because you will go through these at the rate of a couple per year on most wells.
Across more than 1500 reviews the share of 5 star ratings sits at 84 percent, which puts it among the strongest-rated cartridges in the group. That consistency is why we keep recommending it for secondary stages and light sediment applications.
Who this cartridge suits?
Households on a well with light to moderate sediment that want a maintenance schedule they can set and forget for six months at a time. It is also a good second stage behind a spin-down.
If you are replacing a cartridge in an existing under-sink or reverse osmosis setup that already takes 10 inch x 2.5 inch elements, this is a straightforward swap.
Who should pass on it?
The 2.5 inch diameter is the limiting factor. Compared to a 4.5 inch body of the same length, it holds considerably less media, so on a well with real sediment you will be changing these more often than the label suggests.
It is also not a prefilter. On a heavily loaded well it will fill with coarse debris long before the fine rating becomes relevant, and you will be replacing media that still has plenty of fine capacity left.
10. Hydronix SDC-25-2005 2.5 x 20 Inch 5 Micron Four Pack – Best for Slim 20 Inch Housings
- Direct drop-in for standard 20 inch housings
- High dirt holding from pure polypropylene depth media
- NSF/ANSI Standard 42 certified
- Four pack works out well below plumber pricing
- Owners on high iron wells report clearer water
- Slim 2.5 inch diameter holds less media than a 4.5 inch body
- 2.5 inch housings are less common than Big Blue
- Not for dissolved iron or dissolved solids
5 micron depth media
2.5 x 20 inch body
NSF/ANSI 42 certified
Four pack
Most homes that have a tall filter housing have a slim one, usually 2.5 inch diameter and 20 inch long, left over from an undersink or reverse osmosis install. This 5 micron depth cartridge fits those housings directly, with no adapters, and it is one of the few picks on this page that serves that specific situation.
Media is 100 percent polypropylene depth filtration rated to 5 micron, certified to NSF/ANSI Standard 42. Owners with high iron wells order these repeatedly and change them every couple of months, and the 4-pack format keeps the cost per cartridge well below what a plumber charges for the same part.
The practical point that matters most here is the diameter. A 2.5 inch body holds noticeably less media than a 4.5 inch body of the same length, which is the single reservation in the reviews. Several owners pair it with a larger filter or a spin-down upstream when their well is especially dirty.
That pairing is the sensible arrangement. Let a spin-down take the coarse load in a tall slim housing, and use this cartridge to polish what is left before it reaches the rest of the house.
Who this cartridge suits?
Anyone with an existing 2.5 inch x 20 inch housing that wants a certified fine filter without replacing the housing. It also works as a polishing stage in a multi-stage setup where a larger cartridge handles the heavy lifting first.
Owners who have been paying a plumber for the same cartridge every couple of months will find the four-pack format the main reason to switch.
Who should pass on it?
If you are installing new hardware, choose a 4.5 inch housing instead. You get more media volume, better flow behaviour and a much wider availability of replacement cartridges. Slim housings are also increasingly uncommon as new products move to Big Blue footprints.
And as with every cartridge here, it does nothing for dissolved iron, manganese, bacteria or hardness.
How to Pick the Right Micron Rating for Your Well?
Micron is the number buyers fixate on, and it is the number most often chosen badly. A micron is simply a thousandth of a millimetre, so a smaller number is a finer filter. Here is what each rating actually catches on a well.
1 micron: fine suspended silt, some clay particles, fine rust. Loads fastest of all and costs the most per year on a dirty well.
5 micron: fine sand, silt, rust flakes, most particulate. The default for a private well with clear water.
20 micron: medium sand, grit, heavier sediment. The starting point most well owners land on after a first bad experience.
50 micron: coarse sand, gravel, well pump grit. The right size for a spin-down first stage.
100 micron and up: very coarse debris only. Appropriate when a spin-down keeps silting up.
The mistake is starting too fine. Well owners on the plumbing and water treatment forums repeat the same advice: install a 20 micron cartridge in a 4.5 inch by 10 inch housing first, watch how quickly it fills, and only step down to 5 micron if it lasts more than a few months. One owner put it plainly: city water can use 5 micron, well water with grit should start at 20.
That is not a universal rule, but it is a good default. A 20 micron cartridge that lasts a year tells you your water is cleaner than you thought. A 5 micron cartridge that lasts three weeks tells you to move up in size, not down in rating.
Nominal versus absolute
Nominal rating means 95 percent of particles at that size are removed. Absolute rating means essentially all of them. Most cartridges sold for whole house well use, including nearly everything on this page, are nominal. That is not a defect, it just means you should not expect a 5 micron nominal cartridge to catch every 5 micron particle.
Bigger housing beats finer rating
When flow is the problem, diameter is almost always the lever, not micron. A 4.5 inch body holds far more media than a 2.5 inch body of the same length, which means it holds more dirt before pressure sags. If you are choosing between a 5 micron in a 4.5 inch housing and a 1 micron in a slim housing for a moderate well, take the 5 micron.
Cartridge vs Spin-Down vs Backwashing: Which System Fits Your Well?
Three approaches exist, and the right one depends almost entirely on how dirty the water is.
Disposable cartridges are the economical choice for low to moderate sediment. Low upfront cost, no plumbing changes, predictable maintenance on a schedule. Their weakness is obvious: the media fills, flow drops, and you change it whether you want to or not.
Spin-down prefilters use a flushable stainless screen that you clean in place. They cost nothing to run once installed, they take the coarse load off whatever follows, and the transparent housing doubles as a diagnostic tool. Their weakness is that they capture coarse grit only. A spin-down is a first stage, never a replacement for fine filtration.
Automatic backwashing systems clean themselves on a timer or on a meter, flushing captured sediment to drain. They are the right answer for wells with constant turbidity where a cartridge would be replaced every few weeks, and for homes that do not want to think about maintenance. Their weakness is cost, drain line requirements, and the fact that they consume water on every flush.
Our rule of thumb after years of installing these: start with a spin-down in front of a cartridge. If the cartridge still needs changing every six to eight weeks on a well that is not unusually dirty, the honest answer is that you need an automatic backwashing system, not a finer cartridge.
What a Sediment Filter Cannot Fix?
We put this section in every well water guide we publish because it is the fastest way to prevent a disappointing purchase. A sediment filter traps particles. That is all it does.
Dissolved iron passes straight through. It needs oxidation and filtration, usually a chemical or air injection unit ahead of a filter. Our iron filter roundup covers the options.
Manganese behaves similarly at higher pH and stains fixtures black. Also an oxidation problem.
Iron bacteria produce the black slime that smells like a swamp and grows downstream of the pump. That needs disinfection and an oxidation filter, not a cartridge.
Bacteria and coliform need UV disinfection or chlorine treatment.
Hardness needs ion exchange, which is what a softener does.
Sediment itself is generally not a health hazard. It is a damage problem: it clogs aerators, wears faucet cartridges, dulls shower heads, and covers the bottom of a water heater with grit that has to be flushed out.
Installation Checklist for a Whole House Sediment Filter
Most failed sediment filter installs fail for the same reasons, and none of them involve picking the wrong cartridge.
1. Install at the main shutoff, after any pressure tank and ahead of the softener. This is the only position where it protects everything downstream.
2. Fit a bypass valve. This is the single most commonly omitted part, and it forces you to shut off the house water every time you change a cartridge. A properly plumbed bypass lets you isolate the filter and keep water running to the rest of the house.
3. Use brass or stainless fittings. Polybutylene and push-fit connectors are common failure points in wet mechanical rooms, and a fitting that lets go behind a finished wall is a far bigger problem than a leaking cartridge.
4. Leave clearance above the housing. Cartridge housings need a few inches overhead to lift the sump for a change. Plan for the filter you will own in five years, not the one you are installing.
5. Give a spin-down a drain or a place to discharge. A backwashing system needs a properly sloped drain line sized for the flush volume.
6. Confirm your flow requirement before choosing a housing. A well pump pushing more than a few gallons per minute into a narrow housing will show a permanent pressure drop. Know your pump rating before you buy the housing size.
7. Buy one spare cartridge and one spare o-ring before you need them. Both are cheap, and neither is something you want to order with water already shut off.
Frequently Asked Questions
What is the best in-line sediment filter for well water?
The best in-line sediment filter for well water is a 50 micron spin-down with a flushable stainless steel screen, placed ahead of a fine cartridge. It catches gravel, sand grains and rust chunks in place, costs nothing to run after installation, and its transparent housing lets you see how dirty the water actually is. Pair it with a 5 or 20 micron cartridge behind it.
Is a sediment filter necessary on well water?
It is necessary if you have a softener, carbon tank, reverse osmosis system or water heater downstream, and highly recommended on any well that shows sand, grit, orange staining or cloudy water. Sediment is rarely a health hazard, but it clogs aerators, wears fixtures and shortens the life of every filter after it.
What does a spin-down filter do?
Water enters the housing and swirls around a mesh screen. Heavier particles fall outward and collect in the sump, then you open the flush valve and water pushes that sediment out. Nothing is replaced, so ongoing cost is zero. Spin-downs capture coarse grit only, so fine silt still needs a cartridge behind them.
Is 20 micron good for drinking water?
Yes. A 20 micron cartridge is good drinking water filtration because 20 microns is fine enough to catch sand, silt and grit while still letting flow through comfortably. It will not catch the finest suspended clay, but it is a sensible starting rating for a private well and a safe choice for pre-filtering a softener or reverse osmosis system.
What is a 5 micron filter used for?
A 5 micron filter catches fine sand, silt, rust flakes and most suspended particulate. It is the default cartridge rating for whole house well filtration and the right choice when your water looks clear but leaves a film on glass or drains slowly. On a dirty well it loads quickly, which is why many owners start at 20 micron instead.
Which filter is finer, 50 micron or 100 micron?
The 50 micron filter is finer, because a smaller micron number means a smaller opening. A 50 micron screen catches fine sand while a 100 micron screen only stops coarse grit and small objects. Choose 100 micron when a 50 micron spin-down silts up too fast on your well.
The Bottom Line on the Best Sediment Filters for Well Water
The Membrane Solutions 5 micron string wound 6-pack is our pick for the best sediment filters for well water overall. The graded winding holds far more dirt than a basic melt blown cartridge at the same size, the universal 10 inch x 2.5 inch fit works in most housings, and flow held steady across the whole service interval in our own comparisons.
Behind it, the tiering is straightforward. Take a spin-down such as the iSpring WSP-50 ahead of any cartridge when your well produces grit. Use a 5 micron cartridge in a 10 inch x 4.5 inch housing such as the PUREPLUS or Pentek DGD-5005 when the water is only lightly sedimented. Move up to a 20 inch x 4.5 inch body such as the iSpring two-pack when the 10 inch version is loading every few weeks, and step down to 1 micron only when the water is genuinely clear.
Most mistakes with well filtration are sizing mistakes, not brand mistakes. Match the micron to your sediment load, size the housing to your flow, and install a bypass valve you can actually reach.
