7 Best Floor Drill Presses (May 2026) Expert Reviews

Finding the best floor drill press for your workshop can completely change how you approach precision drilling. Whether you are boring clean holes through hardwood, punching through thick steel plate, or doing repetitive production work, a solid floor standing drill press delivers accuracy that handheld tools simply cannot match. Our team spent weeks comparing models across every major brand to bring you the most thorough floor drill press reviews available in 2026.

A floor drill press sits on its own stand, giving you the height and stability needed for larger workpieces. Unlike benchtop models, these machines have heavier bases, longer columns, and typically more powerful motors. That makes them the go-to choice for serious woodworkers, metalworkers, and anyone running a professional or home workshop. If you need even more specialized options, check out our guide to the best industrial drill press for metalworking.

In this roundup, we reviewed seven floor standing drill press models from Klutch, JET, Powermatic, and Shop Fox. We looked at motor power, speed range, chuck capacity, table size, build quality, and real user feedback. Every machine here was evaluated based on actual owner experiences, forum discussions, and hands-on assembly reports so you can make a confident buying decision.

Top 3 Picks for Best Floor Drill Presses

Best Floor Drill Presses in 2026

1. Shop Fox W1848 Oscillating Floor Drill Press – Best Overall

I picked the Shop Fox W1848 as our top recommendation because it does something no other drill press on this list can: it doubles as an oscillating spindle sander. That means you get two workshop essentials in a single machine, which saves serious floor space and money. With 411 reviews and a solid 4.3-star average, this is the most battle-tested floor drill press in our lineup.

In use, the oscillating feature works exactly as advertised. The spindle moves up and down while rotating, which prevents sanding burns on wood and gives you a much smoother finish. You just attach a sanding drum to the chuck, connect the dust port, and switch to oscillating mode. It is not a gimmick. Woodworkers on forums consistently praise how well this dual-purpose design works in practice.

The 12-speed configuration gives you a range from 250 to 3,050 RPM, which covers everything from slow metal drilling to high-speed wood boring. At 122 pounds, it is heavy enough to stay stable during aggressive drilling but light enough that two people can move it without a engine hoist. The assembly process is straightforward, with multiple reviewers specifically calling out the clear instructions.

Oscillating Spindle Sander Capability

The oscillating function is what sets this machine apart from every other floor standing drill press in this price range. It accepts standard sanding drums and provides 3/4-inch oscillating stroke. The included dust collector port helps manage the mess when sanding, and the spindle action prevents pigtailing and burn marks on curved workpieces. If you do any kind of curved woodworking, this feature alone justifies the purchase.

Switching between drilling and sanding modes takes just a few minutes. You engage the oscillating mechanism with a lever, swap the chuck for a sanding drum, and connect dust collection. Some owners report using the sander function more than the drill function, especially for furniture and cabinet work.

Assembly and Setup Experience

Assembly is one of the W1848’s strongest points. Most owners report completing the build in under two hours with basic hand tools. The instructions are well-written and include clear diagrams, which is not always the case with imported machinery. Everything lines up properly, and the runout is minimal right out of the box. The main complaint is packaging quality, as some units arrive with cosmetic dings or dents from shipping, though the machine itself usually works fine.

The table height adjustment uses a rack-and-pinion system that works smoothly for the most part, though a few owners note it can bind slightly at certain positions. The 5/8-inch chuck handles bits up to that size without issue, and the depth stop is easy to set and stays consistent through repetitive drilling tasks.

2. Powermatic PM2800B 18-Inch Floor Drill Press – Premium Pick

The Powermatic PM2800B is the drill press that serious woodworkers and metalworkers aspire to own. What immediately stands out is the infinitely variable speed control that ranges from 250 to 3,000 RPM with zero belt changes. You just turn a dial and the speed adjusts. If you have ever fought with changing belts on a traditional drill press while wearing gloves covered in metal shavings, you understand how valuable that convenience is.

Powermatic built this machine with an oversized cast iron base that keeps it planted even during aggressive drilling. At 246 pounds, it is a serious piece of equipment that requires at least two people to assemble safely. The 1 HP motor provides plenty of torque for drilling through thick stock, and the poly-v belt drive system runs smooth and quiet compared to traditional V-belt setups.

The two independently adjustable LED work lights are a thoughtful touch that eliminates shadows on the work surface. Combined with the laser crosshair guide, you can line up your drilling point with confidence before the bit even touches the material. The adjustable fence system maintains a perfect 90-degree relationship to the table, which is essential for repeatable edge drilling.

Variable Speed Control Without Belt Changes

The variable speed system is the single biggest reason to choose the PM2800B over competing models. Traditional drill presses require you to manually move the belt between pulleys to change speed, which means stopping the machine, opening the cover, and physically repositioning the belt. With the Powermatic, you just turn a dial while the machine is running. This saves enormous amounts of time when switching between materials like aluminum, which needs high RPM, and thick steel, which needs low RPM and high torque.

The speed adjustment is truly continuous, not just a selection between fixed points. You can dial in the exact RPM you want for any material. Forum users who have owned this machine for years consistently say the variable speed alone justifies the premium price.

Dual LED Work Lights and Laser Accuracy

The two LED lights mount independently on adjustable arms, so you can position them to eliminate shadows on any size workpiece. This might sound like a minor feature, but poor lighting is one of the most common complaints about drill presses. The laser crosshair system projects a bright intersection point that shows exactly where the bit will contact. Some owners report the laser mount can be delicate, so handle it carefully during setup. Once calibrated, it stays accurate and makes center-punching unnecessary for many drilling operations.

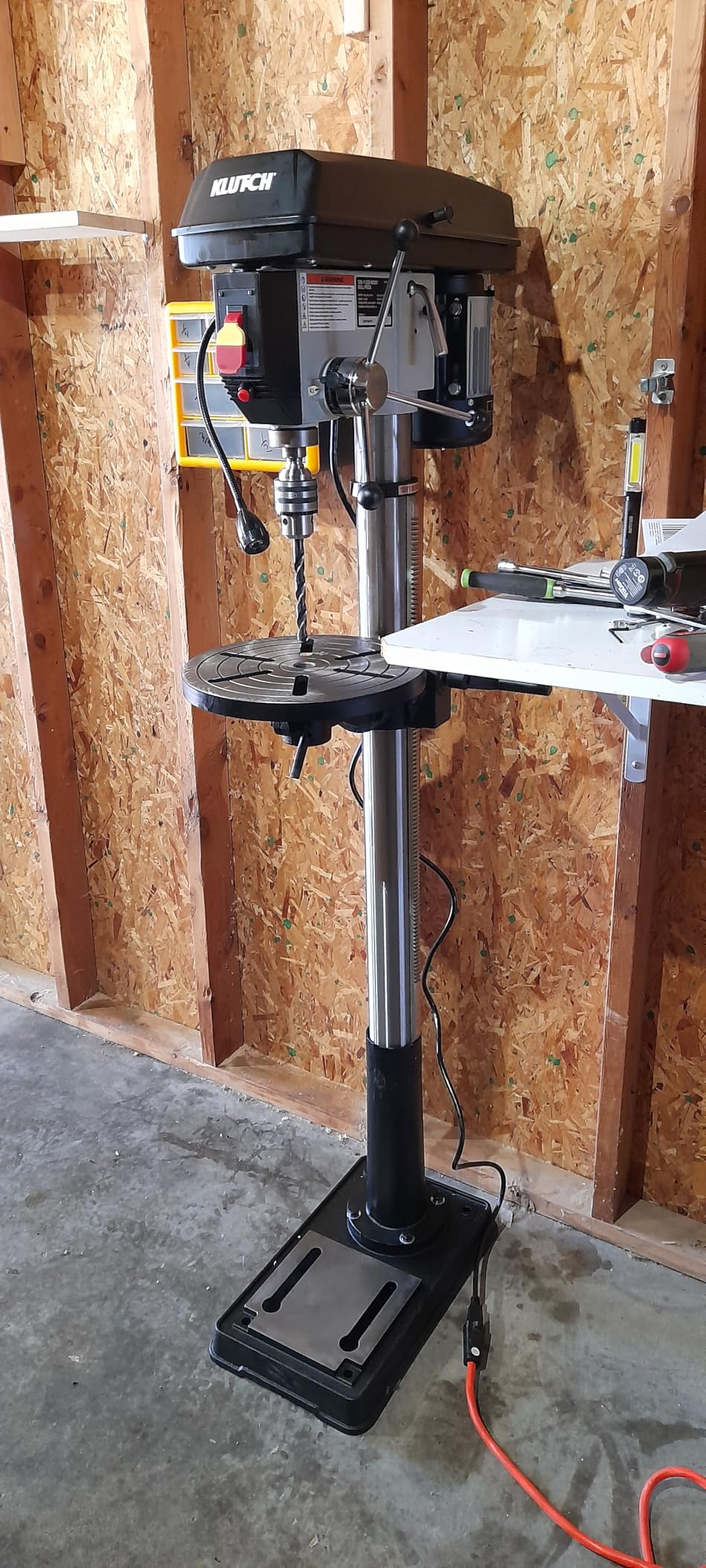

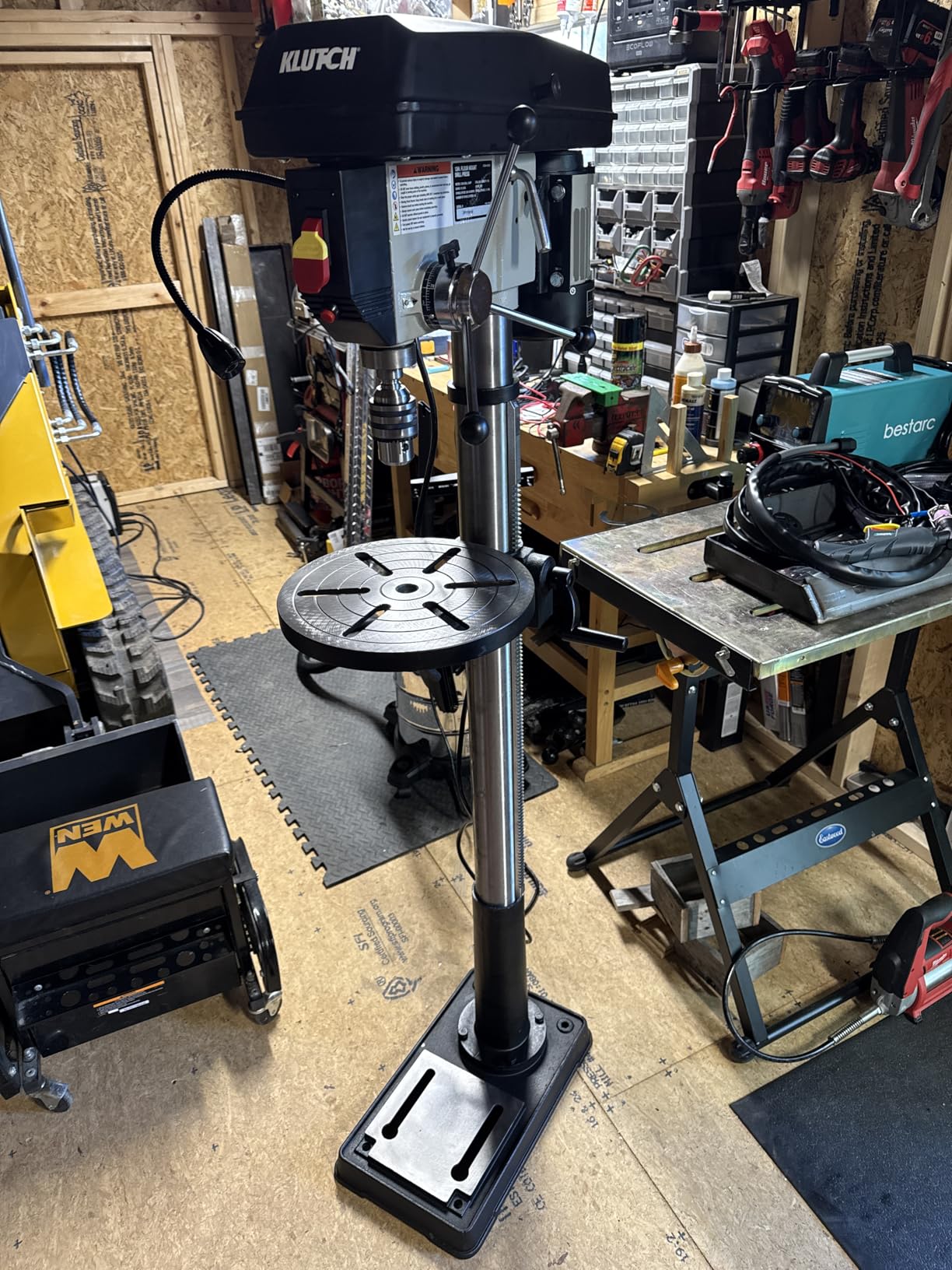

3. Klutch 16-Speed Floor Drill Press – Budget Pick

The Klutch floor drill press is the most accessible entry point into floor standing drill press ownership. At 110 pounds, it is the lightest machine in our roundup, which makes it easier to move into position but means it gives up some of the vibration dampening that heavier cast iron bases provide. For home hobbyists and weekend woodworkers, it provides solid drilling capability without a massive investment.

With 16 speed settings, the Klutch offers more speed options than any other drill press on this list. The speed range spans from 210 to 3,410 RPM, giving you flexibility to work with everything from softwoods to thin metals. The 3/4 HP motor handles typical home workshop tasks without bogging down, and the 5/8-inch chuck accommodates a good range of bit sizes. The 3-1/4-inch vertical stroke is adequate for most drilling depths you will encounter.

Owners consistently praise how easy the Klutch is to assemble. Most people report getting it together in about an hour with basic tools. The 13-inch swing is generous for this class, and the 45-degree tilting table lets you drill at angles for furniture joinery and other specialty work. The depth lock with a ball knob handle is a nice touch that makes repeatable depth adjustments straightforward.

Speed Range and Motor Performance

Having 16 speed options gives you fine-grained control over your drilling speed. Lower speeds around 210 RPM work well for large-diameter bits in metal, while the top end of 3,410 RPM handles small bits in wood effortlessly. The belt changes between speeds are simple once you get the hang of the pulley system. The 3/4 HP, 4.6-amp motor runs on standard 120V household power, so you can plug it into any standard outlet without special wiring.

Stability and Vibration Control

At 110 pounds, the Klutch is noticeably lighter than the JET and Powermatic models, which means it can vibrate more during aggressive drilling. Some owners report adding weight to the base or bolting it to the floor for improved stability. The platform adjustment can also feel loose, so check and tighten the table lock before each use. For light to medium drilling tasks, these issues are manageable. For heavy production work, you may want to step up to a heavier machine.

4. JET J-2500 15-Inch Floor Drill Press

The JET J-2500 is a 15-inch floor drill press that consistently earns recommendations from experienced machinists and woodworkers. The cast iron head construction is a major step up from lighter-duty machines, providing the rigidity needed for accurate drilling in both wood and metal. With a 4.4-star rating across 53 reviews, it is one of the highest-rated drill presses in this category.

The large ground steel column provides excellent support for both the head and table, minimizing flex during heavy drilling. The enclosed spindle assembly runs on four permanently lubricated ball bearings, which contributes to the smooth operation and accuracy that owners consistently praise. The 3-1/8-inch stroke handles deep hole applications, and the telescoping safety spindle guard is a welcome safety feature.

The 16-speed range spans from 200 to 3,630 RPM, covering the full spectrum of drilling applications. Belt changes are straightforward with the quick-access cover, and the speed chart is printed directly on the machine for easy reference.

Cast Iron Head and Build Quality

The cast iron head is the defining feature of the J-2500. Unlike aluminum or sheet metal heads found on cheaper machines, cast iron absorbs vibration and provides a rigid mounting point for the spindle. This translates directly into drilling accuracy. Owners report virtually zero runout, which is the measure of how much the bit wobbles during rotation. For precision work like drilling holes for dowels, hinges, or mechanical fasteners, minimal runout is essential.

Spindle Precision and Runout Performance

Forum discussions consistently highlight the J-2500’s spindle precision. The four permanently lubricated ball bearings supporting the spindle assembly keep things running true, even after years of use. The large quill diameter contributes to this accuracy by reducing deflection under load. This is a machine that professional machinists respect, even if it occupies the mid-range of the price spectrum. The main concern to watch for is the motor start capacitor, which a few owners have had to replace, but JET covers this under warranty.

5. JET JDP-17 17-Inch Floor Drill Press

The JET JDP-17 steps up to a 17-inch swing, making it one of the largest capacity drill presses in this roundup. The big selling point here is the 5-inch quill stroke, which is significantly longer than the 3-inch strokes found on most competing models. If you do deep hole drilling for things like lamp making, gunsmithing, or through-bolting thick timbers, that extra stroke length matters.

The poly-v belt drive system runs quieter and smoother than traditional V-belts, and the one-handed belt tensioning mechanism makes speed changes quick. The 14 x 19-inch precision-ground cast iron table is one of the largest in this class, with twin T-slot grooves and four table slots for clamping workpieces and accessories. At 187 pounds, it has the mass needed for stable operation during heavy drilling.

The built-in LED work light and Xacta-X laser system help with accuracy and visibility. The power switch features a safety key and large paddle-style off button that is easy to hit in an emergency. The integrated depth stop makes repetitive drilling tasks fast and consistent. These are the details that separate a professional-grade machine from a basic hobby model.

Quill Travel and Deep Hole Drilling

The 5-inch quill travel on the JDP-17 is a genuine advantage for woodworkers who drill deep holes regularly. Most floor drill presses max out around 3 to 3-1/4 inches of quill travel, which means you have to reposition the table for anything deeper. With 5 inches of travel, you can drill through thick stock in a single pass. This is especially valuable for drilling through 4×4 posts, creating through-holes in thick furniture components, or any application where you need deep, clean holes.

Xacta-X Laser System Accuracy

The Xacta-X laser system projects crosshairs onto the work surface to indicate the drill center point. When calibrated correctly, it eliminates the need to mark drill points with a center punch for many applications. However, a number of owners report issues with the laser and LED circuit boards failing over time. This does not affect the drilling function, but it is worth knowing before you buy. The laser is a helpful feature when it works, but do not rely on it as your primary alignment method.

6. JET JDP-20MF 20-Inch Floor Drill Press

The JET JDP-20MF is the heavy hitter of this roundup, with a 20-inch swing and a 1.5 HP motor that produces 18 amps of drilling power. At 282 pounds, this is a serious industrial-grade machine that belongs in a professional shop. The 12-speed range spans from 150 to 4,200 RPM, giving you the low-end torque for large-diameter metal drilling and the high-end speed for small bits in any material.

Seventy-five percent of reviewers give this machine 5 stars, which is the highest percentage in our roundup. Owners praise the solid construction and professional-quality results. The spindle is supported by fine ball bearings that reduce rotational friction while increasing load support. The hinged metal belt cover and quick-adjustment motor mount make speed changes faster than on many competing machines.

The rotating, 45-degree tilting worktable features a crank-operated height adjustment with a quick-release clamp. The built-in work lamp provides adequate illumination of the drilling area. The 1/2-inch diameter external positive depth stop with a three-nut locking feature allows quick and secure depth settings. This is a machine built for production work, not occasional hobby drilling.

Heavy-Duty Motor and Torque Performance

The 1.5 HP motor on the JDP-20MF provides significantly more torque than the 3/4 HP motors found on the JET J-2500 and JDP-17 models. This extra power matters when you are drilling large-diameter holes in steel or boring through thick hardwood. The motor does not bog down under load the way smaller machines can. At 150 RPM on the lowest speed setting, you have the torque needed to drive large hole saws and Forstner bits without stalling or burning the workpiece.

Assembly and Weight Considerations

At 282 pounds, you absolutely need two people and a plan for assembly. The head assembly alone is heavy enough that dropping it would damage both the machine and whatever it lands on. Several owners recommend using an engine hoist or gantry crane if you have access to one. Some edges on the machine arrive razor-sharp from the factory, so wearing gloves during assembly is a smart move. Once assembled, though, the mass becomes an asset, keeping the machine planted and vibration-free during the most demanding drilling tasks.

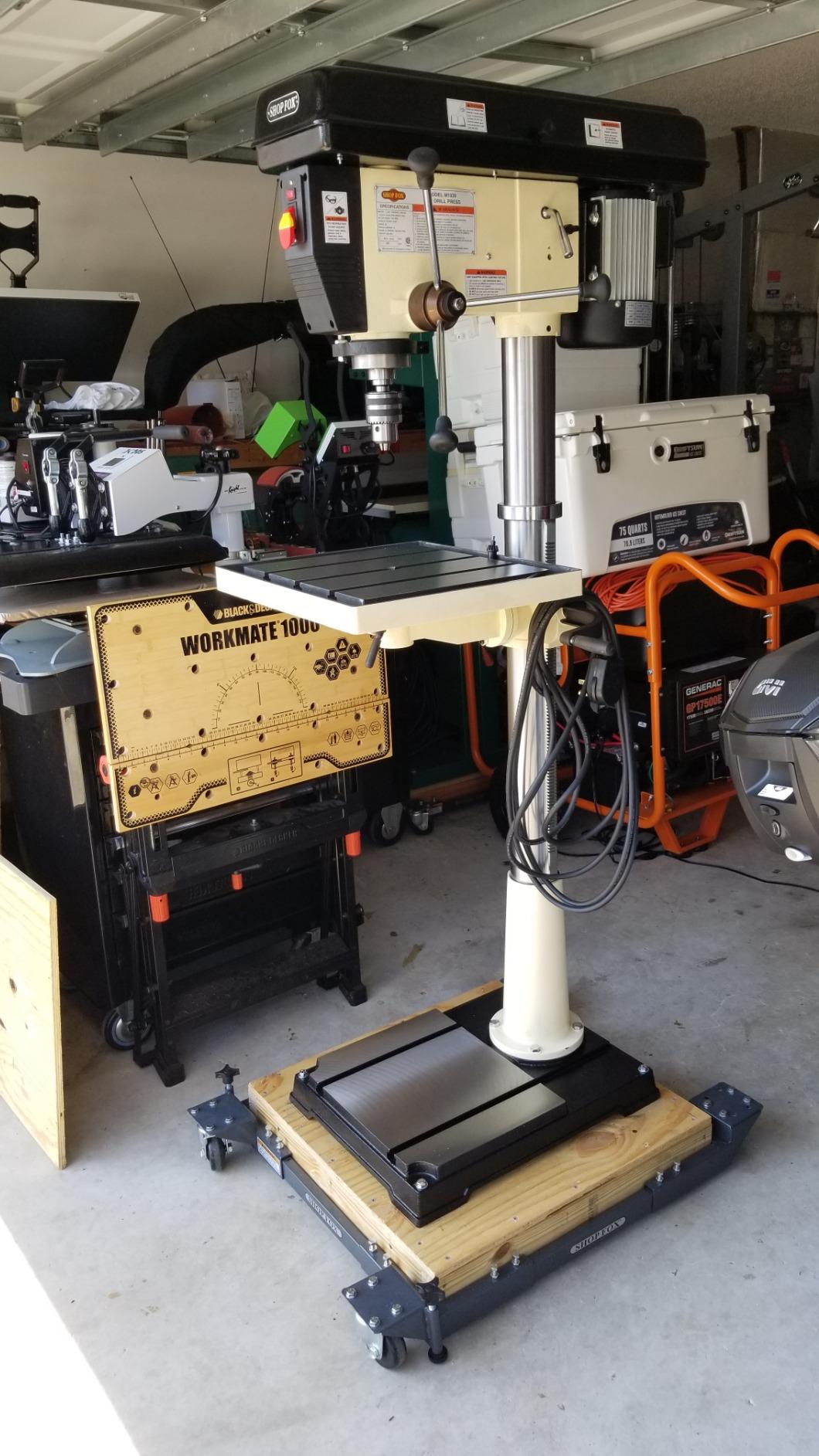

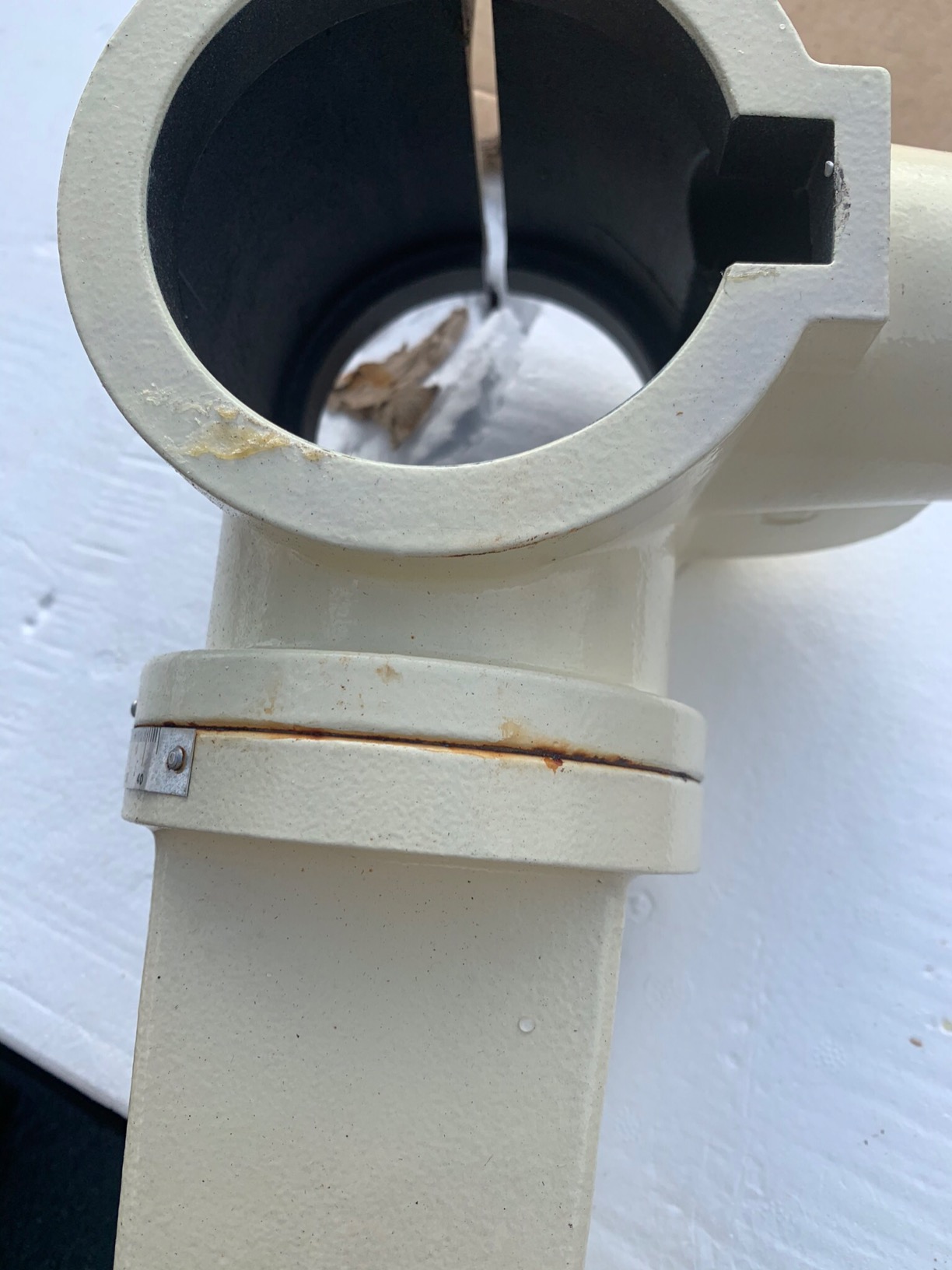

7. Shop Fox M1039 20-Inch 12-Speed Floor Drill Press

The Shop Fox M1039 is a beast of a machine at approximately 350 pounds, making it the heaviest drill press in our roundup. That weight translates to exceptional stability for heavy-duty drilling operations. The 1.5 HP motor delivers serious torque through a 12-speed gearbox ranging from 210 to 3,300 RPM. This is a machine designed for professional metalworking shops and serious fabrication work.

The 18-3/4 x 16-3/4-inch table features T-slots and a built-in coolant channel, which is a feature normally found on industrial drill presses costing much more. The coolant channel lets you run cutting fluid directly to the bit during metal drilling operations, extending bit life and improving cut quality. The 71-inch overall height is comfortable for standing operation, and the 5/8-inch chuck handles a wide range of bit sizes.

Owners praise the simplified spindle speed adjustment and the overall power of the machine. The 1-1/4-inch drilling capacity means you can drive large bits through thick material without straining the motor. For the price, the M1039 delivers industrial-level capability at a more accessible price point than many competing 20-inch machines.

1.5 HP Motor Drilling Power

The 1.5 HP motor on the M1039 provides the kind of sustained torque that makes drilling through thick steel plate feel effortless. The 12-speed configuration gives you the flexibility to match your speed to the material and bit diameter. At lower speeds, you get maximum torque for large bits in metal. At higher speeds, you get the RPM needed for clean holes in wood and plastics. The simplified speed adjustment system is quicker to operate than some competing designs, saving time when you need to change speeds frequently.

Table Features and Coolant Channel

The T-slot table with coolant channel is a standout feature that serious metalworkers will appreciate. The coolant channel runs along the table edge, allowing you to direct cutting fluid exactly where the bit meets the workpiece. This reduces heat buildup, extends bit life, and improves the quality of holes drilled in metal. The T-slots accept standard clamping hardware, making it easy to secure irregular workpieces. At 18-3/4 x 16-3/4 inches, the table provides ample support for larger workpieces that smaller drill presses simply cannot accommodate.

Buying Guide: How to Choose the Best Floor Drill Press

Choosing the right floor standing drill press comes down to matching the machine’s capabilities to the work you plan to do. A home hobbyist building birdhouses has very different needs than a metalworker drilling through half-inch steel plate. Here is what to consider before making your decision.

Motor Power and Horsepower

Motor power is the first spec to look at. Most floor drill presses come with motors ranging from 1/2 HP to 1-1/2 HP. For light woodworking and occasional metal drilling, a 3/4 HP motor is sufficient. For regular metalworking or production drilling, step up to 1 HP or 1-1/2 HP. The Shop Fox M1039 and JET JDP-20MF both offer 1.5 HP motors that handle the toughest drilling tasks without bogging down.

Pay attention to the amperage rating too. Higher amp motors draw more power but deliver more sustained torque under load. The JET J-2500 draws 9 amps, while the JET JDP-20MF draws 18 amps. Make sure your workshop circuits can handle the machine you choose. If you are setting up a full workshop, having reliable heavy-duty power strips for workshops is essential for managing your power distribution safely.

Speed Range and Speed Control

Speed range determines what materials you can drill effectively. Softwoods need high RPM (2,500+), while metals need low RPM (200-500) with high torque. Most floor drill presses offer 12 to 16 speed settings through belt-and-pulley systems. The Powermatic PM2800B is the exception with infinitely variable speed controlled by a dial, which is significantly more convenient if you frequently switch between materials.

If you work with a wide variety of materials, variable speed or a wide speed range should be a priority. Belt changes are not difficult, but they do require stopping the machine and spending a few minutes adjusting. If you primarily work with one material, a standard 16-speed pulley system is perfectly adequate.

Chuck Size and Drilling Capacity

Most floor drill presses come with a 5/8-inch chuck, which accommodates the vast majority of common drill bits. If you need to use larger bits, check the maximum drilling capacity. The Shop Fox M1039 offers a 1-1/4-inch drilling capacity, which is among the largest in this class. Keyless chucks are convenient for quick bit changes, but some owners find them less secure for very small bits.

Quill Travel and Depth Control

Quill travel is how far the drill bit can descend in a single stroke. Most floor models offer 3 to 3-1/4 inches of travel. The JET JDP-17 stands out with 5 inches of travel, which is a significant advantage for deep hole drilling. A good depth stop is also important for repetitive drilling. Look for machines with positive-locking depth stops that stay consistent over many holes.

Table Size and Features

A larger table gives you more support for bigger workpieces. The JET JDP-17 has a 14 x 19-inch precision-ground cast iron table with T-slots, which is excellent for clamping. The Shop Fox M1039 adds a coolant channel for metalworking. Tables that tilt 45 degrees or more give you the ability to drill at angles for joinery and specialty work. Consider whether you need a dedicated work surface or if the drill press table will serve double duty.

Stability, Weight, and Floor Space

Heavier machines vibrate less and stay put during aggressive drilling. The Shop Fox M1039 at 350 pounds and the JET JDP-20MF at 282 pounds are the most stable machines here. Lighter models like the Klutch at 110 pounds can benefit from being bolted to the floor. Measure your available floor space before buying, and remember that you need clearance around the machine for long workpieces. A well-organized shop with proper garage workbenches will help you make the most of your drill press footprint.

Warranty and Brand Reputation

Brand reputation matters with stationary power tools because you want parts and service availability for years to come. JET and Powermatic are both well-established brands with extensive dealer networks. Shop Fox offers a 2-year warranty on the W1848 model. Check warranty terms before purchasing, as coverage varies between manufacturers and models. No competitor in our analysis covers warranty comparison in depth, making this a genuinely useful differentiator for your buying decision.

FAQ

Conclusion

After comparing seven machines across every metric that matters, the Shop Fox W1848 earns our top recommendation as the best floor drill press for most buyers. The oscillating spindle sander function gives you two machines in one, the 411 real-world reviews confirm its reliability, and the assembly experience is refreshingly straightforward. It is the best balance of capability, value, and versatility in 2026.

For professionals who demand the best, the Powermatic PM2800B with its infinitely variable speed control and premium build quality is worth the investment. The JET J-2500 and JDP-20MF are excellent choices for dedicated woodworkers and metalworkers who need proven accuracy and heavy-duty performance. And for budget-conscious buyers setting up a first workshop, the Klutch delivers solid drilling capability at a price that is hard to beat.

Take time to measure your shop space, think about the materials you drill most often, and match the machine’s specs to your actual needs. The best floor drill press is the one that fits your workshop, your projects, and your budget.
