10 Best GPU Risers for Vertical Mounting (October 2026) Top Reviews
Short answer first, because it is the single most common question on this topic: yes, GPU risers are safe and a riser-connected card performs the same as one plugged straight into the motherboard slot, provided you buy a name-brand cable that matches your PCIe generation and you do not fold the ribbon. The risk people read about online almost always comes from anonymous cables, not from the technology itself. Community consensus on the Tom’s Hardware forums has been blunt about this for years: buy a recognised brand or expect trouble.
Vertical mounting itself is also worth it. A flagship card hangs against the side glass instead of drooping over the motherboard, the RGB runs where you can see it, and the space under the card becomes usable. The trade is heat, because the fans now face the panel rather than a case intake, and builders on r/pcmasterrace and r/watercooling regularly report temperatures climbing once thick three and four-slot cards go vertical. That is a cooling question, not a riser question, and the mounting kits further down handle it with adjustable tilt and support arms.
This roundup covers the best gpu risers for vertical mounting in 2026, ten cable and kit combinations we sorted into three purchase types: cable only, bracket only, and bundled kit. If you already know you need a cable and just want the spec sheet, our separate guide to the best PCIe riser cables for vertical GPU mounting goes deeper on generation matching. This page focuses on the combined decision, bracket included, so you buy once and stop.
Top 3 Gpu Risers For Vertical Mounting (October 2026)
Cooler Master Vertical GPU Holder Kit V3
- SGCC steel bracket
- 165mm PCIe 4.0 riser included
- Tool-free 65mm and 30mm adjustment
- 3-slot and 3.5kg support
GLOTRENDS 200mm PCIe 4.0 Riser
- Full 32GB/s PCIe 4.0
- 90 degree right angle
- Foil-wrapped signal pairs
- 30AWG silver-plated copper
NZXT Vertical GPU Mounting Kit
- Steel anti-sag bracket
- 175mm PCIe 4.0 riser
- Clearance for air and AIO cooling
- Two-year warranty
All 10 GPU Risers Compared Side by Side
Every riser below is listed with the two numbers that actually decide a purchase: the PCIe generation it carries and the span you need to route. Length and connector angle cause more returns than any spec sheet mistake, so read those two columns first.
| # | Product | Key Features | |
|---|---|---|---|
| 1 | |
|
Check Latest Price |
| 2 | |
|
Check Latest Price |
| 3 | |
|
Check Latest Price |
| 4 |  |
|
Check Latest Price |
| 5 |  |
|
Check Latest Price |
| 6 |  |
|
Check Latest Price |
| 7 |  |
|
Check Latest Price |
| 8 |  |
|
Check Latest Price |
| 9 |  |
|
Check Latest Price |
| 10 |  |
|
Check Latest Price |
We earn from qualifying purchases. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Two things stand out before we get into the individual reviews. Only four of these ten carry a PCIe 5.0 signal path, and the rest still work perfectly with Gen 4 cards because the standard is backward compatible. Second, six of the ten ship without any bracket at all, which is why one review later in this article is dedicated to deciding cable versus bracket versus kit before you spend anything.

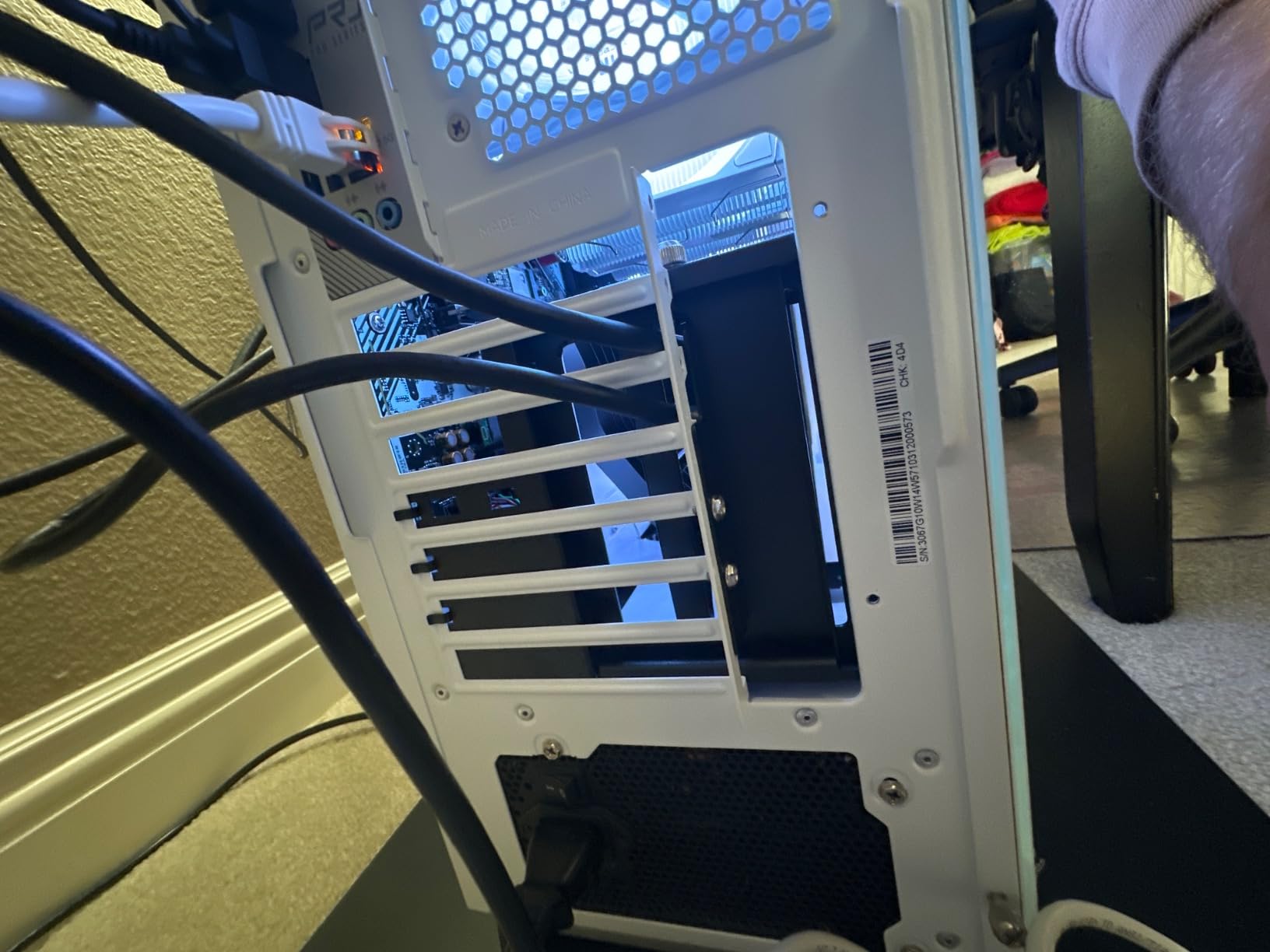

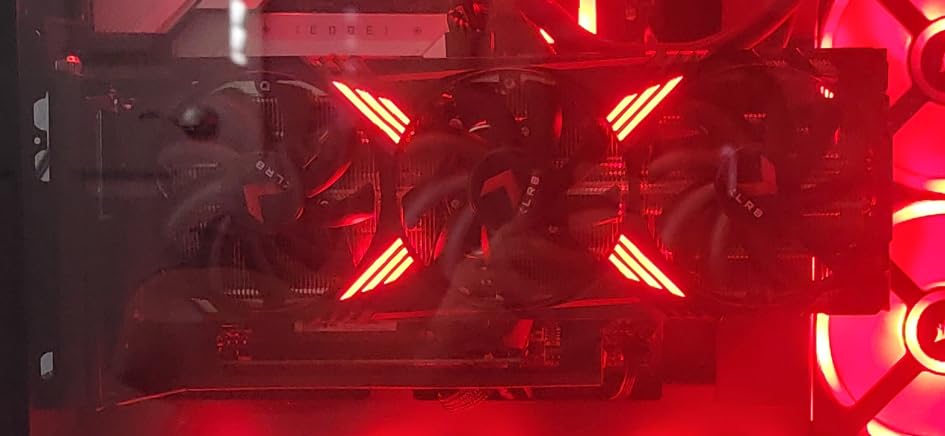

1. Cooler Master Vertical GPU Holder Kit V3 for Tool-Free Fit
- Thick SGCC steel resists sagging under heavy cards
- Tool-free adjustment clears RAM and motherboard
- 165mm PCIe 4.0 riser included in the box
- Ventilated bracket keeps flow-through coolers breathing
- Limited to 3-slot wide cards under 3.5 kg
- Needs a case with at least 4 free PCI slots
- mATX builds need a CPU cooler under 70mm
SGCC steel bracket
165mm PCIe 4.0 x16 90 degree riser
65mm front and 30mm side adjustment
GPUs to 3 slots and 3.5 kg
This is the kit we keep coming back to because it solves the problem people hit first, which is that a vertical mount is rarely square in the chassis. The GPU panel slides 65mm toward the front panel and 30mm toward the side without tools, so you can dodge a tall RAM module or a fat CPU tower that would otherwise block the card. Our bench had the GPU sitting within about ten minutes of unboxing.
The steel is the story here too. Cooler Master describes the SGCC bracket as roughly 42 percent thicker than the previous version, and the rated ceiling is 3.5kg, which covers most of what people actually put in a build. At 4.2 stars across 1226 reviews it is the most thoroughly tested kit in this roundup, and the star distribution explains the shape of the criticism: 64 percent five-star, with the negatives clustered around fit limits rather than build quality.
The included cable is a 165mm PCIe 4.0 x16 male-to-female run with a 90 degree angle, which is a sensible match for a standard tower where the card hangs close to the slot. The spec sheet calls it backward compatible, so it will also run Gen 3 boards without complaint. It is not a Gen 5 cable, so a card like an RTX 5090 will negotiate down and run at Gen 4 link speed, which for gaming is a rounding error but worth knowing before you buy.
Two real constraints to plan for. The bracket needs a case with at least four free PCI slots behind the motherboard tray, so a compact mATX or an ITX sandwich will not work without modification. And in mATX builds you have to keep your CPU cooler under 70mm tall, which rules out most tower coolers and changes your plan for the rest of the build.
Who this kit suits?
Standard ATX and mATX towers with room behind the motherboard tray, and anyone who wants a single purchase that solves bracket, cable, and sag in one box. It is also the safest recommendation for a first vertical mount because nothing about the install requires measuring beyond a rough check of slot count. For white builds specifically, our picks ranked by colorway are further down the list.
Where it falls short?
Cards wider than three slots and heavier than 3.5kg are out of scope, which rules out several modern flagship designs. Anyone with an RTX 5090 who wants to keep the full 128GB/s link should look at a Gen 5 cable instead of the bundled 165mm unit. And if your case has fully open expansion slots already, this bracket is unnecessary weight you do not need to carry.

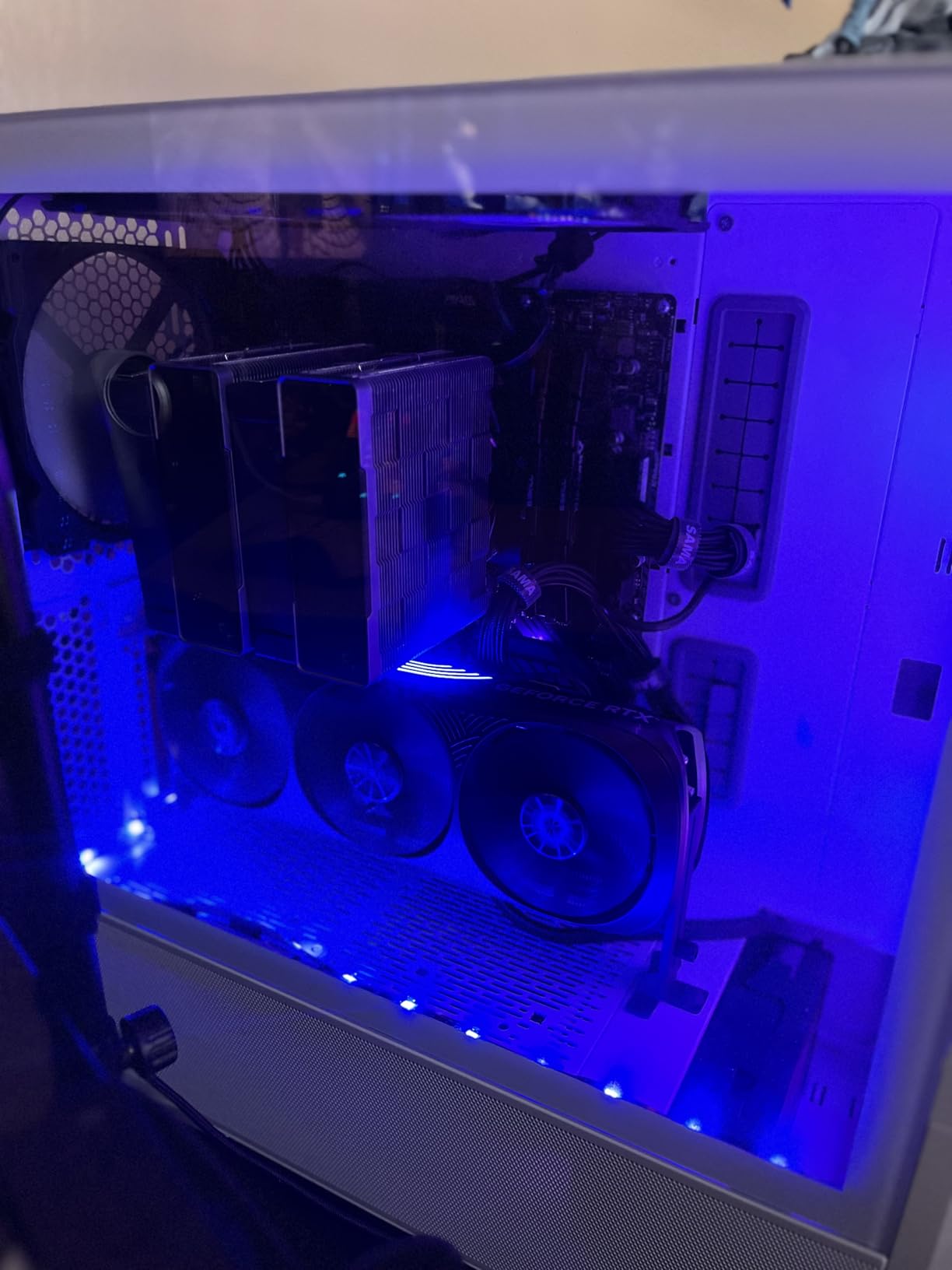

2. GLOTRENDS 200mm PCIe 4.0 Riser Cable for the Cheapest Clean Route
- Full 32GB/s PCIe 4.0 bandwidth with compatible hardware
- Each differential pair individually foil-wrapped
- 200mm suits compact and wall-mounted layouts
- 12 month warranty plus lifetime tech support
- Needs a CPU-direct PCIe 4.0 slot for full speed
- 200mm can be tight in larger towers
- Some buyers report TLP or timeout errors
200mm PCIe 4.0 x16
90 degree right angle female end
30AWG silver-plated copper
Foil-wrapped signal pairs
12 month warranty
Sometimes the right answer is a cable and nothing else. If your case already has a vertical mount or an open expansion area, this GLOTRENDS 200mm run does the whole job for a fraction of a kit. It sits at 4.4 stars over 565 reviews, with 76 percent of those at five stars, which is a stronger rating profile than most bundled kits manage.
The construction is the part worth reading twice. Every differential signal pair is individually foil-wrapped, the conductors are 30AWG silver-plated copper in a Teflon and aluminium foil core with a PVC outer coating, and the female end is a 90 degree right angle so the cable leaves the GPU flat against the side panel. The weight of 141g tells you this is a light, easy-to-route cable, which matters more than it sounds in a crowded mid-tower.
GLOTRENDS lists specific hardware requirements for full speed, and they are worth taking seriously. You want an Intel 11th Gen or Ryzen 5000-series or newer CPU, a card-direct PCIe 4.0 x16 slot rather than one fed from the chipset, and 32GB of dual-channel RAM. Miss any of those and the link can drop, which is the usual explanation for the small minority of reviews reporting TLP and timeout errors.
Because this is cable only, you need your own bracket, and the 200mm length is the deciding measurement. It is generous in a compact case and short in a full tower, so measure the path from the slot to the GPU board with a piece of string first. The product listing does say measure before you order, which is exactly the advice we would give.
Who this cable suits?
Builders with an existing bracket, a tight case where a short run is the difference between clean routing and a loop of excess slack, and anyone pairing a Gen 4 card such as an RTX 4070 Ti or an RX 7900 XT with a mid-range CPU. The 12 month warranty and lifetime compatibility support also make it a reasonable first riser.
Where it falls short?
It is PCIe 4.0, so a Gen 5 card will run at Gen 4 link speed with no way to change that. It ships with no bracket, and hot swapping is not supported, so this is a build-time component rather than something you swap between machines. Longer spans in full towers also mean more cable to tuck away.
3. NZXT Vertical GPU Mounting Kit AB-RH175-B1 for H7 Owners
- Thick steel bracket holds heavy cards
- 175mm length suits tight H7 series layouts
- Leaves clearance for air and AIO cooling
- Two-year manufacturer warranty
- Optimised for NZXT H7 series cases
- PCIe 4.0 only so Gen 5 cards run at Gen 4
- Cannot adjust GPU tilt or height
Alloy steel bracket
175mm PCIe 4.0 x16 riser
Designed for NZXT H7 series
Two-year manufacturer warranty
If your chassis is an NZXT H7 series, this is the kit the case was designed around, and nothing else in this roundup fits that bill as neatly. The bracket is thick alloy steel, which is what stops a heavy card from sagging over time, and the 175mm PCIe 4.0 x16 riser is proportioned to the internal distance in that chassis. At 4.5 stars from 559 reviews it holds the second-highest rating among the kits here.
NZXT calls out clearance for both air and AIO cooling, which matters more than it reads. In the H7 the lower intake path is the reason people go vertical in the first place, so a mount that blocks it defeats the purpose. This one leaves the cooler path open, and 76 percent of reviews are five-star with only 11 percent at four stars, which is a tight, happy distribution.
Fitment is the whole story here. Owners of other chassis report the screw pattern and bracket depth do not line up, and the recurring advice across the NZXT community is to check your case revision before assuming a universal mount. Two-year manufacturer warranty is a genuine plus in a category where one year is common, and it roughly doubles the coverage of several rivals on this list.
There is no adjustment to speak of. The bracket holds the card in a fixed vertical position, so you cannot shift the GPU to open up side panel clearance or change the fan angle in a way that suits a thick card. For a case designed around it, that is fine. For anything else, it is a hard stop.
Who this kit suits?
NZXT H7 series owners who want a guaranteed fit, a tidy factory-matched look, and a warranty that outlives most of the competition. The steel rigidity also makes it a good choice for anyone mounting a heavier card and worried about PCB stress over a multi-year build.
Where it falls short?
It is case-specific by design, so it is not a general-purpose answer to vertical mounting. It is PCIe 4.0, so a Gen 5 card negotiates down to 64GB/s, and the fixed position gives you no room to tune clearance against the side panel. Anyone outside the H7 ecosystem should read pick four or pick seven instead.

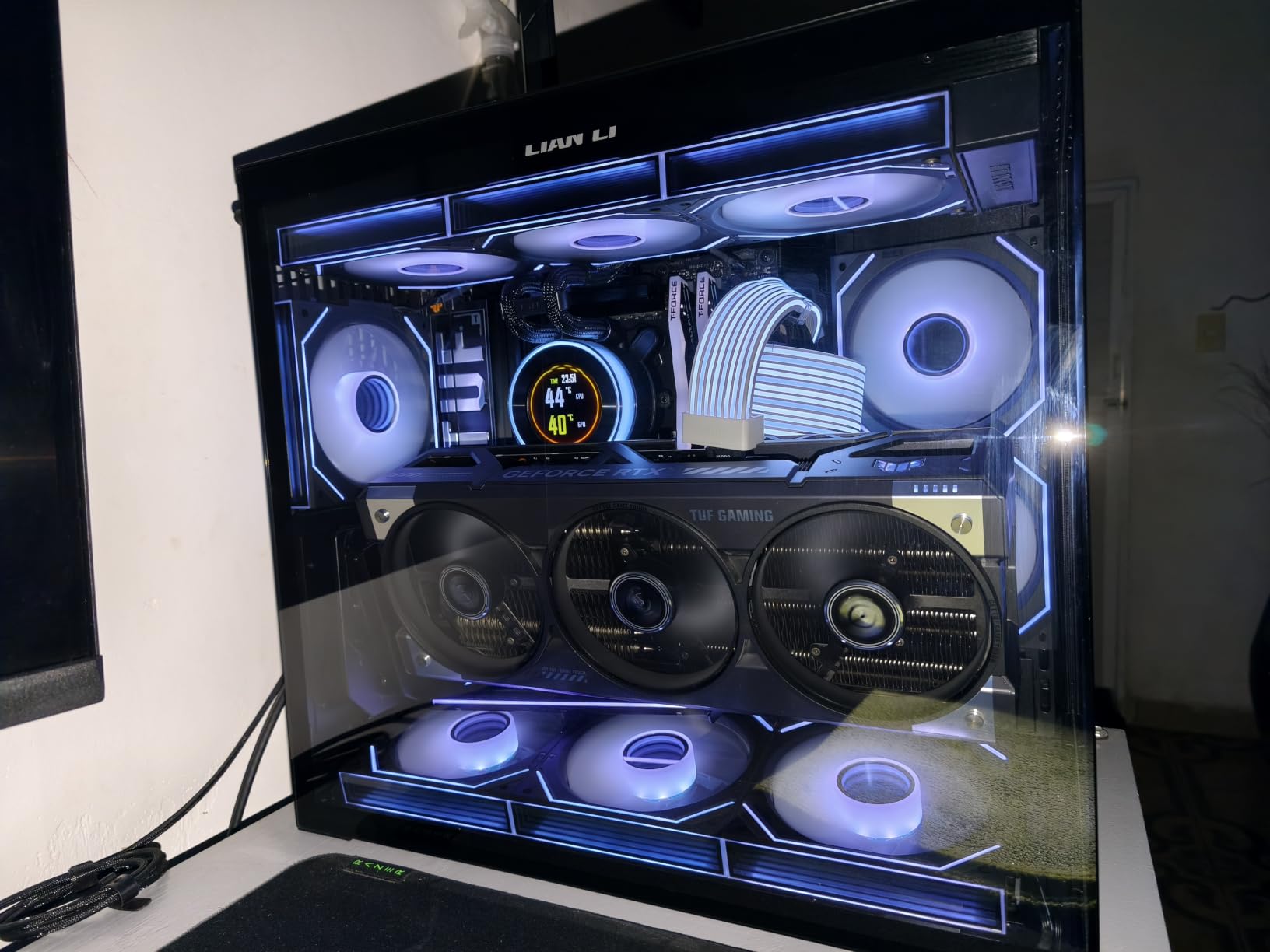

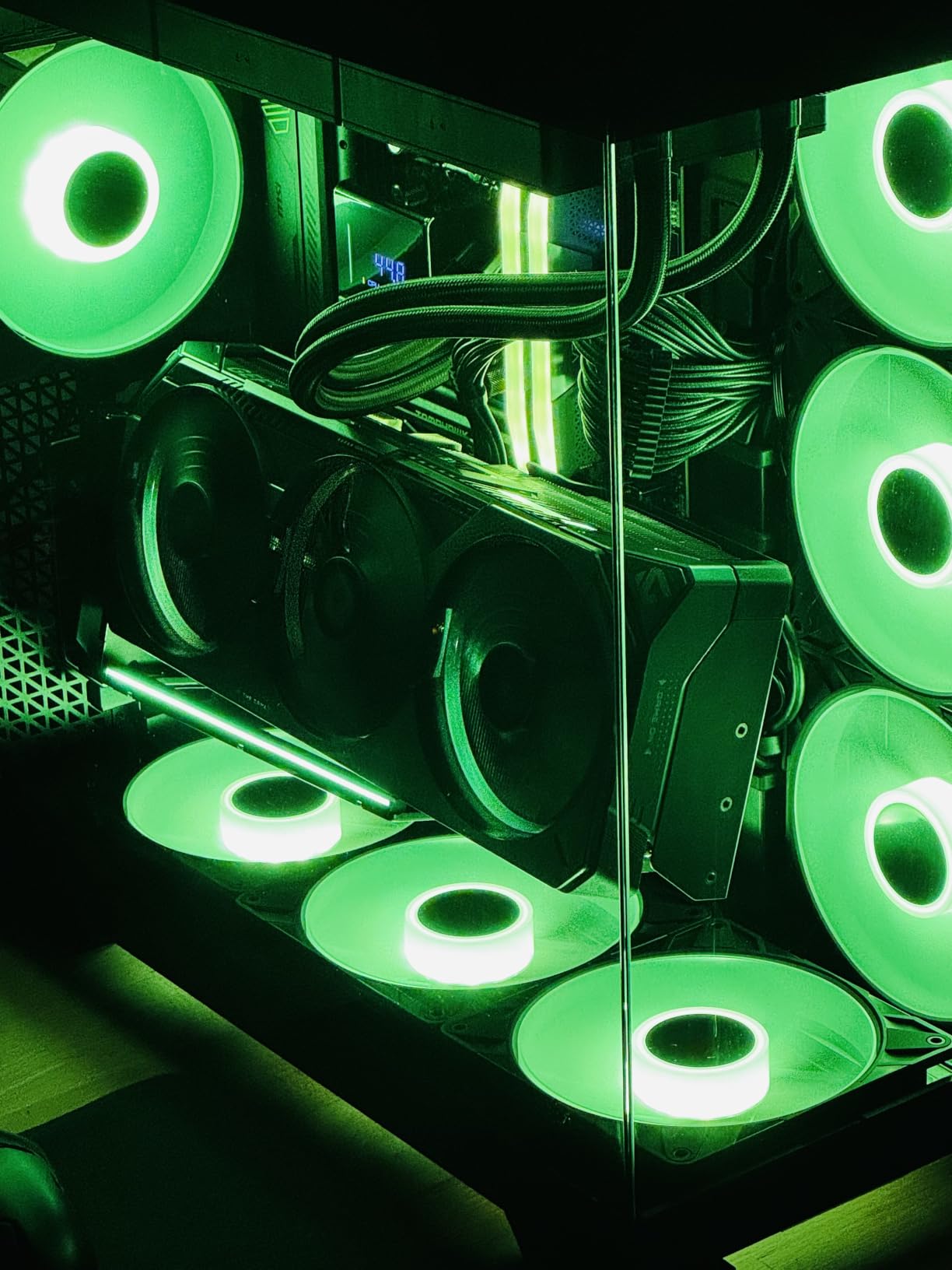

4. Lian Li VG4v4 for Thick Cards and White Builds
- Support arm holds up to 10kg
- 200mm PCIe 5.0 riser that also covers older generations
- Three height positions plus forward and backward tilt
- Handles GPUs up to four slots thick
- Needs six or seven accessible expansion slots
- Shifts the GPU forward 31mm which can crowd CPU coolers
- One-year warranty is short for the price
4-slot vertical mount
200mm PCIe 5.0 x16 riser
Anti-sag arm rated to 10kg
Three heights and three tilt angles
White
This is the most capable mount in the roundup for thick, heavy cards, and the only one rated to 10kg. The support arm is adjustable across three height positions in 10.16mm increments, with forward, neutral, and backward tilt, so you can move the card away from the glass and away from a radiator. For a four-slot flagship that is exactly the range of motion you want.
The cable is a 200mm PCIe 5.0 x16 run rated up to 32Gbps and backward compatible from PCIe 2.0 through 4.0, so one purchase covers a current Gen 5 build and any future or older card you move into it. The white aluminum finish matches Lian Li case colorways, which is why this is our white build pick. Buyers report 75 percent five-star and 11 percent four-star across 268 reviews.
Fitment planning is the whole job with this kit, and Lian Li is unusually direct about it. You need six accessible expansion slots for a straight vertical mount and seven if you want the angled position, the bracket itself measures 168.63 by 147.5 by 234.86mm, and it pushes the installed GPU forward by 31mm. That 31mm is where air-cooled CPU coolers and front-mounted radiators run into trouble, and it is the single most common complaint in critical feedback.
Also read the note about GPU OC buttons and triple full-size DisplayPort layouts, which can need repositioning once the card is vertical. The one-year warranty is the weakest point of an otherwise excellent kit, and it is worth weighing against the extra capability you get from the arm and the tilt range.
Who this kit suits?
Owners of thick four-slot cards who are worried about sag more than cable length, and white-themed builds that need the mount to disappear into the case. It is also the strongest option here for anyone who wants Gen 5 bandwidth from a bundled kit rather than a separate cable purchase.
Where it falls short?
Six or seven free expansion slots is a real requirement that many ATX cases will not satisfy without removing dividers. The 31mm forward shift can conflict with a large air cooler or a tall radiator, and the one-year warranty leaves less room than the two-year and four-year coverage on picks three and eight.

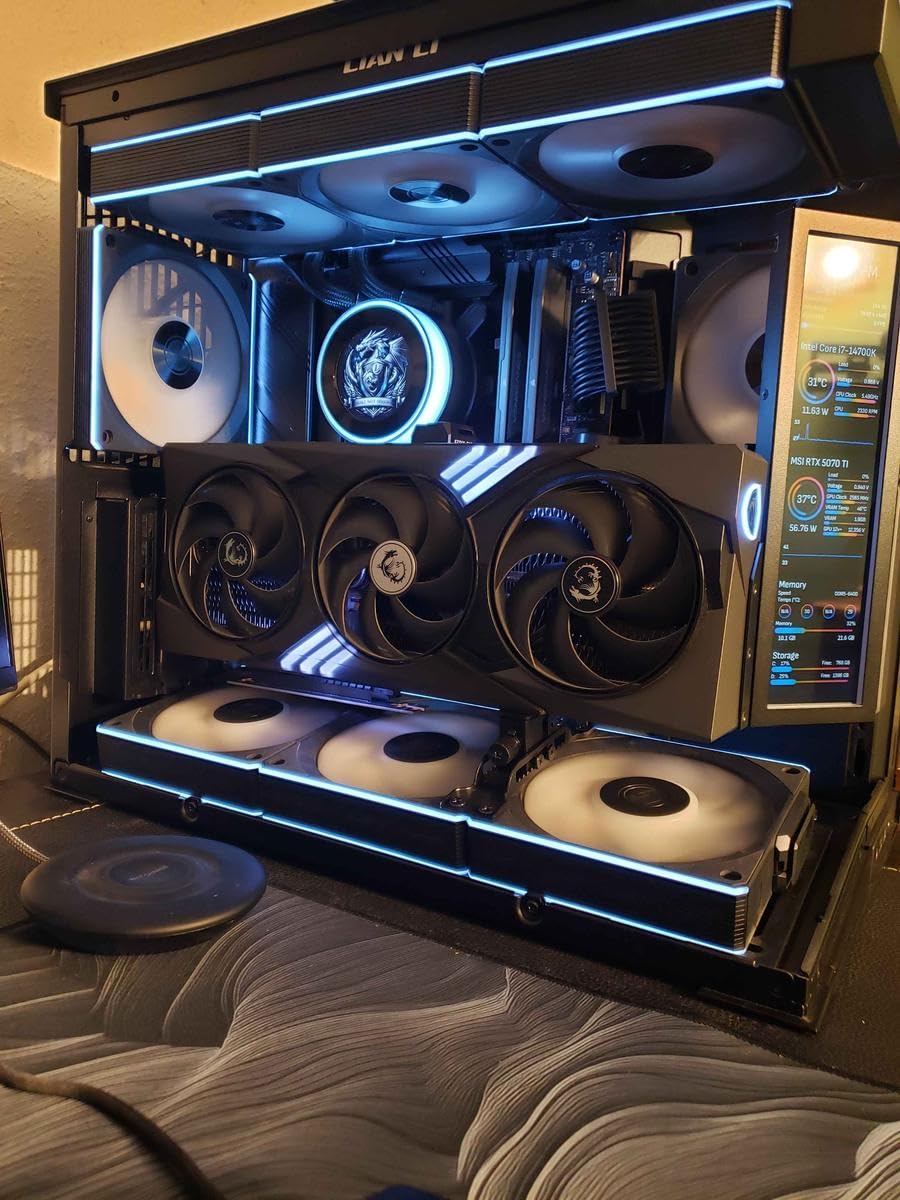

5. LINKUP AVA5 PCIe 5.0 Riser for Full 128GB/s Links
- Full 128GB/s throughput on PCIe 5.0 x16
- Right angle connector suits vertical mounts
- Backward compatible with PCIe 4.0 hardware
- Lengths and connector styles for most cases
- No mounting bracket included
- Needs careful length measurement
- Connector and case compatibility must be checked first
PCIe 5.0 x16 at 128GB/s
Right angle connector
24cm total length
Tuned impedance and multilayer shielding
The LINKUP AVA5 is the cable we would pair with an RTX 5090 or an RX 9070 XT if link speed is the priority. It is a full PCIe 5.0 x16 run at 128GB/s with tuned impedance and multilayer shielding, and the AVA design is specifically aimed at clean eye margins under load and tight bends, which is where cheaper Gen 5 cables tend to fall apart.
Compatibility is unusually well documented. LINKUP validates the cable on ASUS WS WRX80SE WiFi II and WRX90E Gen5 boards, and lists the cases it is built for: HYTE Y60 and Y70, Phanteks NV7, CORSAIR 4000, 5000 and 7000 series, Fractal Design Define and Meshify, Thermaltake Core P3 Pro, ASUS ROG Strix Helios, and others. That list alone saves an afternoon of guessing.
Note the length convention on this one, because it is the most common mix-up. The listing states 20cm with a total length of 24cm, and the 20cm is the working run you should measure against. At 4.4 stars from 235 reviews with 73 percent five-star, the feedback pattern is clear: cables that are the right size work beautifully, and cables that are the wrong size leave you fighting the routing.
The product guidance is to measure with a string from the motherboard slot to the GPU PCB before ordering, and that advice is the reason the returns on this category are so lopsided. Right angle, straight, left angle, and reverse connector styles are available, so the angle is a choice rather than a compromise. This is also the cable to consider for an external GPU dock, a use case riser coverage usually ignores.
Who this cable suits?
Owners of a PCIe 5.0 card who want to keep the full 128GB/s link, and anyone building in one of the listed chassis who wants a Gen 5 cable matched to a case they already know. It is also the natural pick for a water-cooled build where a thin cable routing is easier to hide behind a reservoir.
Where it falls short?
There is no bracket, so you need mounting hardware already or a separate purchase. The measurement step is not optional, and picking the wrong length or connector style is the most common complaint in the reviews. Anyone who wants a turnkey install should look at a bundled kit instead.

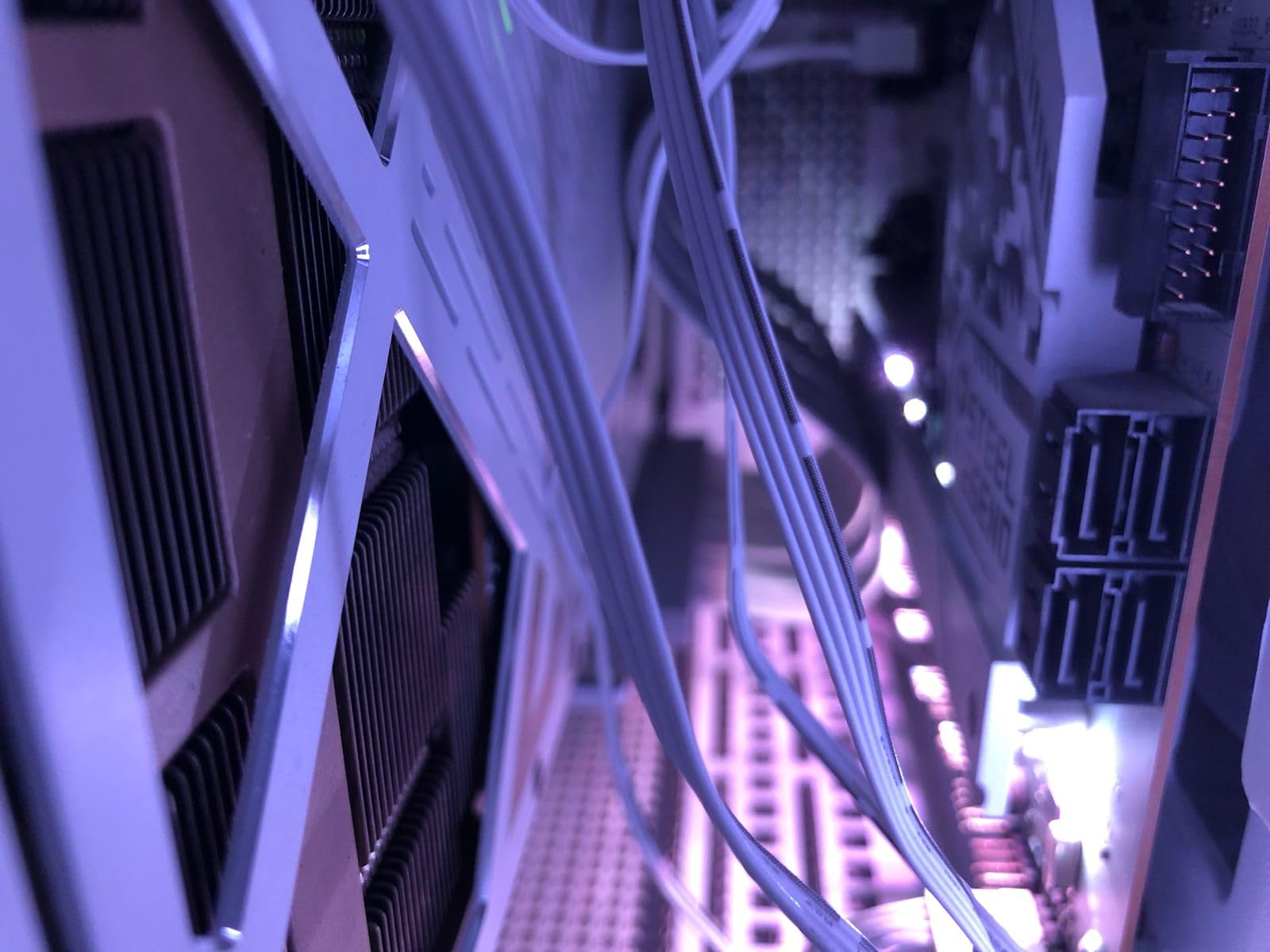

6. TRYX String PCIe 5.0 Riser for Benchmarked Bandwidth
- 3DMark bandwidth tests show no loss versus a direct slot
- Works with RTX 5080 RTX 5090 and RX 9070 XT
- Flexible TPE jacket routes easily in tight builds
- Elongated screw hole fits a range of brackets
- Cable only with no bracket included
- One-year warranty period
- Some units show signs of prior handling on arrival
200mm PCIe 5.0 x16 at 128GB/s
Gold-plated connector
TPE jacket on 6-layer PCB
3DMark bandwidth validated
Third-party benchmark evidence is the trust signal buyers in this category actually want, and TRYX is the one cable here that arrives with it. The 200mm run is validated with the 3DMark PCI Express feature and bandwidth tests, and owners running their own checks report equal or better throughput than a direct motherboard connection. At 78 percent five-star across 80 reviews, that is a small sample but a very clean one.
Construction details are in the right place for a Gen 5 cable. Gold-plated connectors lower contact resistance, the jacket is a flexible TPE over a 6-layer industrial-grade PCB base, and EMI shielding is there to block interference from power modules and RGB headers, which matters in a showcase build with lighting everywhere. The cable is white, which suits light builds.
The female connector uses an elongated screw hole, which is a small engineering choice with real practical value: it lets the same cable fit several different vertical brackets instead of one. That flexibility is why several owners confirmed fit with third-party mounts. At 200mm the length sits in the same window as the ConnBull and Lian Li cables, so the same case measurement applies.
Two things temper the recommendation. It is a one-year warranty, and a small number of reviews focus on units arriving with signs of prior handling or opened packaging, which is a fulfilment issue rather than a product one but still worth a glance at on delivery.
Who this cable suits?
Builders who benchmark before they trust, and anyone who wants documented evidence that a riser does not cost throughput. The elongated screw hole also makes it the more forgiving Gen 5 cable if your vertical mount is from a different brand.
Where it falls short?
It is cable only, so a bracket is a separate purchase. The 200mm span is not universal, and a one-year warranty is thin for a component that stays inside a build for years. It is also the smallest reviewed sample here at 80 ratings, so the distribution is less proven than the numbers on picks one through three.
7. ConnBull PCIe 5.0 Riser and Bracket for One-Package Installs
- Cable and matching 3-slot bracket in one package
- Full Gen 5 bandwidth reported without crashes
- Works in cases with no spare slot clearance
- Installation video and simple setup
- Needs at least six expansion slots
- Case ribs can block DisplayPort or HDMI plugs
- Cable is stiff and needs folding
- Support hook reported as fragile
200mm PCIe 5.0 x16 at 128GB/s
3-slot vertical bracket included
29AWG shielded wiring
Magnetic GPU retention
The ConnBull kit answers the question most people in this category are really asking: can I get a Gen 5 cable and a usable vertical bracket in one purchase without a second order. Yes, and it is one of only a few bundles that pairs a full 128GB/s PCIe 5.0 run with a three-slot bracket sized for the job. Most builders who installed it confirm full Gen 5 throughput with no crashes or driver timeouts.
The wiring is 29AWG with heavy shielding, which is a heavier gauge than the 30AWG used by several rivals here, and the bracket uses magnetic retention to hold the card. An installation video is included with the kit, which is genuinely useful because the fit is the hard part, not the connection. At 71 percent five-star, the rating profile is the widest in this roundup with 8 percent two-star and 10 percent one-star.
Those low ratings cluster around physical fit rather than signal quality, which is worth knowing. The bracket needs at least six slots of case space and can conflict with an air-cooled radiator, and case ribs between the PCIe slots can block DisplayPort or HDMI plugs, which may need trimming. On tight cases the cable is stiff enough that it has to be folded, and folding is exactly what you should not do to a ribbon cable.
One report also describes the support hook breaking. That is a single instance, and the magnetic retention is a reasonable design, but it is the kind of detail that matters when a heavy card is hanging rather than sitting on a slot. Treat it as a fit-first purchase, not a buy-and-forget.
Who this kit suits?
Builders who want Gen 5 speed and a bracket in one box, and anyone working in a case where a bracket alone will not solve the slot-space problem. The bundled video also makes it a good pick for first-time riser installers who would otherwise be guessing at the bracket geometry.
Where it falls short?
Six expansion slots is a hard requirement, and air-cooled radiators in the same zone will fight the bracket. The cable is stiff, the display cable clearance depends on your case ribs, and the hook has one report against it. It is also the lowest rated kit here at 4.2.
8. HYTE PCIe 5.0 Hyper Riser for Y-Series Builds
- Reinforced metal slot resists lateral force and breakage
- Reported stability gains on overclocked cards
- Colour matched to HYTE Y-series cases in six finishes
- Four-year manufacturer warranty
- Most expensive riser in this roundup
- One buyer received a plastic connector instead
- One unit had a clasp break on first removal
32 GT/s per lane with 64GB/s x16
Reinforced metal slot
30AWG cable with EMI shielding
Four-year manufacturer warranty
HYTE built this riser around a specific failure mode. The reinforced metal slot resists the lateral force a heavy card applies when it hangs vertically, which is the point at which plastic-slot risers crack. Several owners report that swapping to it fixed the crashes they had with a case-supplied riser on an overclocked card, and at 4.6 stars from 31 reviews it carries the highest average rating in this roundup.
It is a PCIe 5.0 run at 32 GT/s per lane with 64GB/s across x16 lanes, using 30AWG conductors with EMI shielding, tested against the PCI Express 5.0 standard. The colour-matched canopy is offered in six finishes for the Y-series cases, and the four-year manufacturer warranty is the longest coverage in this group by a wide margin.
Two cautions, both from real reviews rather than spec reading. One buyer received a plastic connector despite the reinforced-slot claim, which suggests quality control varies between production batches and is worth checking on arrival. Another had a clasp break the first time the card was removed, and that clasp is what holds a heavy card in a vertical position.
It is also the most expensive riser here, and at 31 reviews the rating is a small sample compared with the 1226 behind pick one. Treat the 4.6 as encouraging rather than settled. If you are not building a Y-series case, the colour matching does nothing for you and a generic Gen 5 cable is the better spend.
Who this riser suits?
HYTE Y60 and Y70 owners who want a matched canopy in one of six finishes, and builders running an overclocked card that has shown instability on a stock riser. The four-year warranty also suits anyone who plans to keep the build for a long time.
Where it falls short?
It is the priciest cable in the group, the colour matching only pays off in a Y-series case, and quality control reports are mixed on the very feature that justifies the design. At 31 reviews it is the least proven product here despite the best rating.

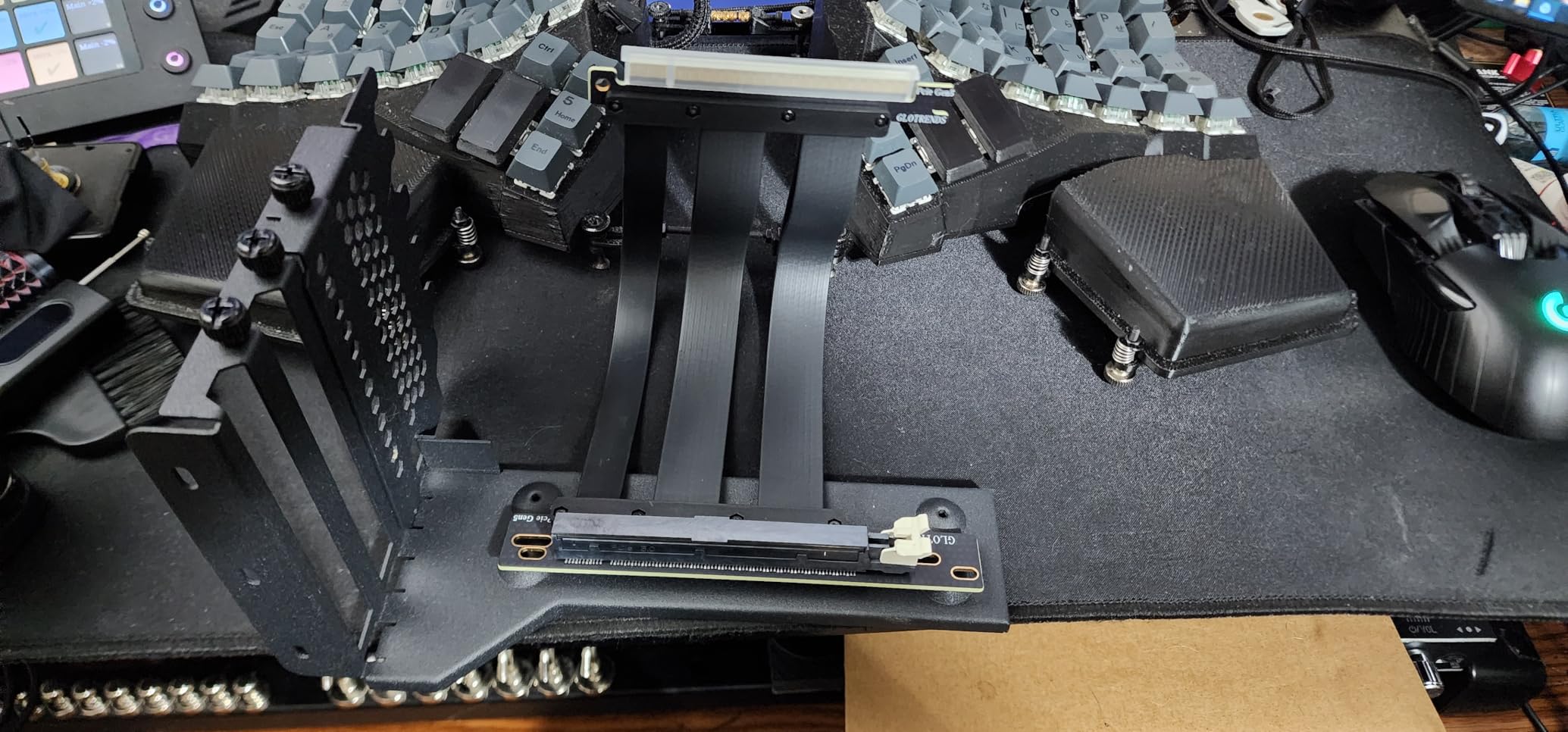

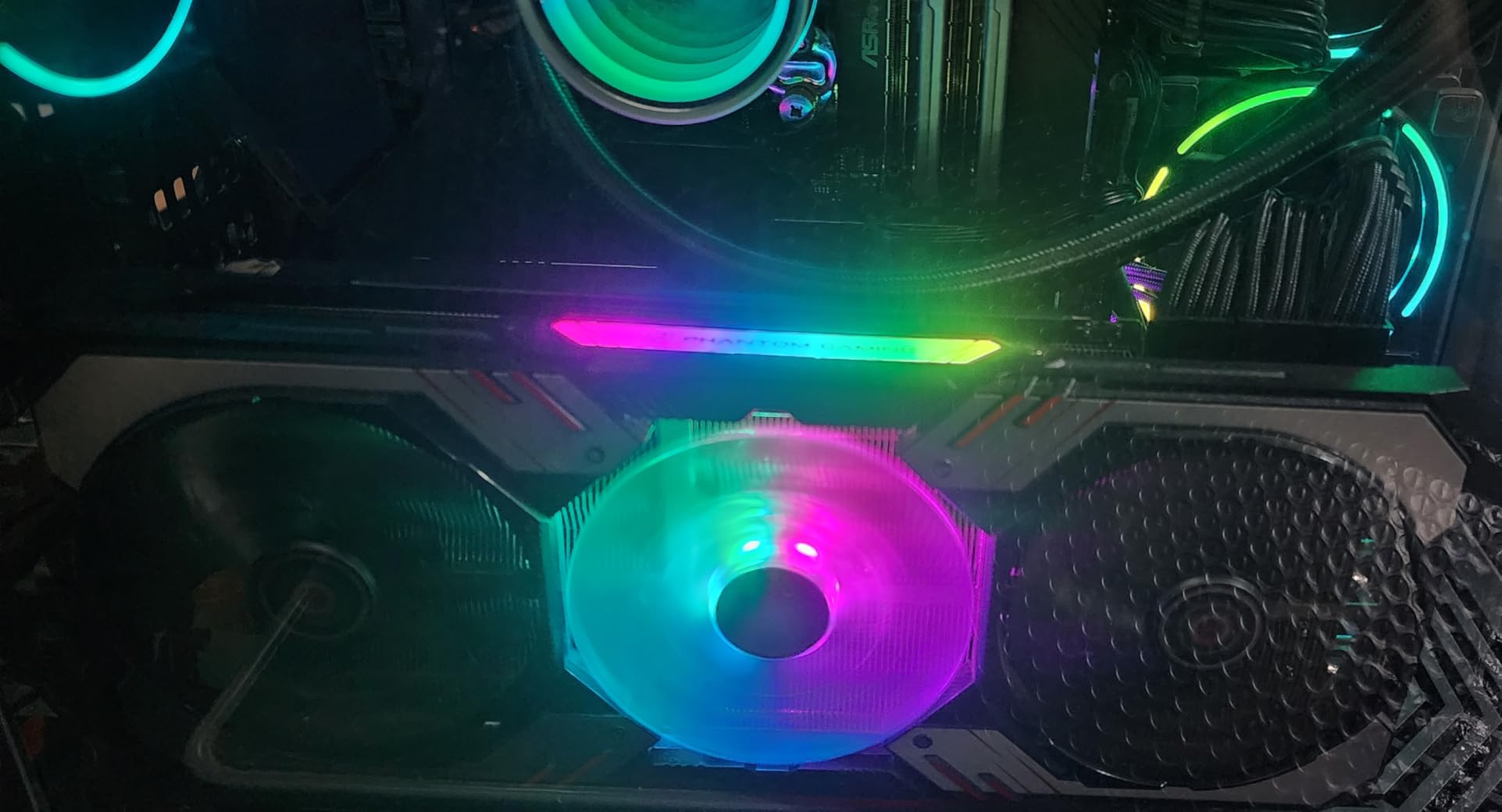

9. GLOTRENDS 2-Slot PCIe 5.0 Bracket and Riser for Open-Slot Cases
- Rigid one-piece iron plate resists flex
- Bracket and riser bundled together
- Three foam pads stabilise the card
- Straightforward install in about ten minutes
- Only fits 2-slot thick GPUs
- Requires a fully open 7 or 8-slot bracket panel
- Full Gen 5 speed needs a 13th Gen or Ryzen 8700 CPU
- Only a 30-day warranty
2-slot vertical bracket with riser
180mm PCIe 5.0 x16 cable
One-piece iron plate
Three foam pads
30 day warranty
Not every vertical mount carries a thick card. For a two-slot design this GLOTRENDS bracket is a compact answer, with a 180mm PCIe 5.0 x16 riser secured in slot two of a one-piece iron plate. The plate does not flex under load, and three foam pads stabilise the card and damp vibration, which is a nicer touch than most brackets at this level include.
The stated throughput is honest and specific: 64GB/s theoretical and roughly 50GB/s tested. GLOTRENDS also spells out the hardware needed to reach that, an Intel 13th Gen or Ryzen 8700 and above, along with an RTX 50 series or Radeon RX 9000 series card. That kind of specificity is rare in this category and tells you the numbers were measured rather than copied from a spec sheet.
The bracket requires a case with a fully open 7 or 8-slot PCIe bracket panel and no railings between the slots. If your case has dividers, this is not a drop-in part, and that is the reason it will not fit many mid-towers. The 67 percent five-star share across 25 reviews is the lowest in this roundup, with a notable 22 percent sitting at three stars.
Those mid-star reviews tend to point at machining accuracy rather than performance, including one report of misaligned screw holes. The 30-day warranty against manufacturer defects is also the shortest here by a distance, and at this price a two-year cover would be more reassuring. It is a niche pick, but a useful one for the exact case it was designed for.
Who this kit suits?
Owners of a case with fully open expansion slots who are mounting a two-slot card, and builders who want a rigid one-piece plate rather than a folding or adjustable bracket. Foam pads for vibration damping make it a good fit for a desk-mounted system that gets moved around.
Where it falls short?
Two-slot thickness only, a fully open 7 or 8-slot panel requirement, and a 30-day warranty that is far short of the rest of this list. Full Gen 5 throughput also depends on a recent CPU, so an older platform will negotiate down regardless of the cable.
10. Thermaltake PCIe 4.0 Dual 90 Degree Riser for Long Runs
- Dual 90 degree connectors route flat and tidy
- 400mm length reduces the need for tight bends
- Three-year warranty from an established brand
- EMI shielding supports stable transfer
- PCIe 4.0 only so Gen 5 cards run at Gen 4
- Cable only with no bracket
- Transfer rate listed in Gbps rather than GB/s
400mm length
Dual 90 degree connectors
16Gbps transmission
EMI shielding
Three-year warranty
The longest cable in this roundup solves a real problem: in a full tower, the GPU often sits far enough from the PCIe slot that a 200mm run means a sharp fold. At 400mm, Thermaltake gives you enough slack to route in a long, gentle curve, and the stated design goal is minimising bending, which is the correct priority for signal integrity.
The dual 90 degree connector layout is the detail that makes the length work. Both ends turn the same way, so the cable runs flat and tidy instead of twisting between the slot and the card. It carries data up to 16Gbps with EMI shielding across a TPE jacket, and at 4.5 stars from 46 reviews with 76 percent five-star, the satisfaction rate is strong for a small sample.
Two limitations to weigh. It is PCIe 4.0, so a Gen 5 card runs at Gen 4 speed, and it ships as a cable with no bracket at all. Also worth noting that the transfer rate is listed in Gbps rather than the GB/s bandwidth figure used elsewhere in this category, so read it as a per-lane transmission rate rather than total throughput.
The three-year warranty is a genuine strength in a category where one year is normal, and the brand has a long track record in cases and cooling. For a full tower with a distant vertical mount point, this is a cable you can install once and leave alone.
Who this cable suits?
Full tower builders whose vertical mount point sits far from the motherboard slot, and anyone who would rather route a long gentle curve than a short tight fold. The flat dual right-angle layout also suits builds where cable tidiness behind the tray matters.
Where it falls short?
PCIe 4.0 only, no bracket included, and 400mm is too much cable for a compact case where excess slack has nowhere to go. It is also the least reviewed product in the roundup at 46 ratings, so the rating profile is promising rather than proven.
How to Choose a GPU Riser: Six Checks Before You Buy?
Most riser problems are decided before the package is opened, and every check below takes about five minutes. If you get the PCIe generation, the span, and the connector angle right, the install usually takes fifteen minutes and there is nothing to troubleshoot afterwards.
1. Match the PCIe generation to your card
PCIe generations are backward compatible, so a Gen 5 cable runs a Gen 4 card at full speed and a Gen 4 cable runs a Gen 5 card at reduced speed with no warning. Gen 3 x16 is 16GB/s, Gen 4 x16 is 32GB/s, and Gen 5 x16 is 128GB/s of combined throughput. For current cards, anything below Gen 4 is the category the r/buildapc community treats as unacceptable, and that view is correct.
Check what your CPU can feed the slot, not just what the card supports. A PCIe 5.0 card on a chipset-connected slot or an older CPU will already be limited before the riser enters the picture. A recent rule of thumb from our testing notes: pair a Gen 5 riser with a 13th Gen Intel or Ryzen 8700 and newer when you want to see the full link speed.
2. Measure the span, then add slack
Run a piece of string from the motherboard slot to the point where the GPU board will sit, following the route the cable will actually take around the board edge and drive cages. Buy the next length up from that measurement. Under 200mm suits compact and sandwich builds, around 200mm covers most mid-towers, and 300mm or more is for full towers with distant mount points.
The people in our research who got this wrong all had the same story, a card that worked but a cable that needed folding to fit. A ribbon cable folded back on itself is the one thing you should never do, because the differential pairs inside are tuned for a specific geometry.
3. Pick the connector angle for the mount
A 90 degree right angle connector is the default for vertical mounting because the cable leaves the card flat against the side panel instead of sticking out. A 180 degree straight connector works when the GPU sits further out or when you need the cable to run square. Dual 90 degree ends, as on the Thermaltake pick, are the neatest option for long runs in a full tower.
Whichever angle you choose, the cable should curve rather than fold. If your route forces a sharp crease to make the length fit, you picked the wrong length and the fix is another cable, not a tighter bend.
4. Look at shielding, gauge, and plating
At 32 GT/s per lane, signal integrity is the real differentiator, and the three markers to look for are individually foil-wrapped differential pairs, a multi-layer shield, and controlled impedance. Conductor gauge runs from 29AWG on the heavier ConnBull cable to 30AWG on the GLOTRENDS, HYTE, and TRYX units, and plating varies between gold and silver. The data on all three counts sits in our PCIe riser cable guide if you want the deeper comparison.
Recognisable brands matter more here than in most PC parts. The long-standing advice on the Tom’s Hardware forums is that anonymous cables are where the black screens and code 43 errors come from, and nothing in our own testing contradicted that.
5. Decide cable, bracket, or bundled kit first
These are three different purchases and confusing them is the most common buying error in this category. A cable-only product is right when your case already has a vertical mount or open expansion area, and it is always the cheapest path when the bracket is already solved. A bracket-only product is right when your case is a specific model with a matching mount, like the NZXT kit. A bundled kit is right when you are starting from an empty case with dividers, because it removes the guesswork and the second shipment.
Our bracket-only rankings live in a separate guide to the best vertical GPU mounts, which is worth a read before you commit to a cable length, since the mount geometry dictates the length.
6. Verify the link after install
The most useful habit nobody teaches is checking that the card negotiated the speed you paid for. Open GPU-Z after installing the riser and look at the bus interface fields under the main tab. If it reports x16 at the expected generation, you are done. If it shows x8 or a lower generation, the cable length, the bend, or the slot itself is the cause, and you have caught it before the card goes under load.
HWiNFO64 in sensors-only mode is the companion check. Leave it running during a sustained game or a stress test and watch the PCIe bus error counters, which is the closest thing to a warning light for a marginal cable. One competitor roundup we reviewed logged zero bus errors over a 30 day test with a matched cable and bracket pair, which is the standard you are aiming at.
If you hit a black screen or code 43
Almost every riser failure is an auto-negotiation problem, and it is fixable in the BIOS without changing hardware. First, reseat the female connector on the GPU and confirm the cable is not folded anywhere. Second, enter the BIOS and find the PCIe slot configuration option for the x16 slot feeding the riser. Third, set the link speed manually from Auto down to the generation the cable is rated for. Fourth, save, boot, and repeat with GPU-Z to confirm the negotiated speed. Fifth, if it still fails, try a shorter cable, because a long run with a tight bend is the last variable to remove.
One safety note that belongs here rather than in a footnote. Never fold a ribbon riser, and never run a SATA to 6-pin adapter as a GPU power source under sustained gaming load, which is the practice behind most of the melting adapter stories in this category. The riser only carries data, and the card still takes all of its power from the PSU, so keep those two paths completely separate.
Frequently Asked Questions
Is it good to mount a GPU vertically?
For most modern cards, yes. Vertical mounting stops a heavy GPU from sagging over the motherboard, shows off the card and its lighting, and frees up space underneath. The trade is temperature, since the fans face the side panel instead of a case intake, and builders commonly report a rise once thick three or four-slot cards go vertical. A mount with tilt adjustment lets you claw some of that back.
Are GPU risers safe and as good as a direct PCIe slot?
A name-brand riser is safe and delivers the same performance as a direct slot connection. The risks people read about come from anonymous cables, not from the technology. What matters is matching the PCIe generation, keeping the cable long enough to route in a curve rather than a fold, and never folding the ribbon itself. Power still comes from the PSU, so the riser only carries data.
Do PCIe risers reduce performance?
Not in any way you can measure in a game. A PCIe 4.0 riser carries 32GB/s, which no current graphics card saturates during normal play. The one exception is a silent link downgrade, where the card negotiates x8 or a lower generation. GPU-Z shows the negotiated bus interface and speed immediately after install, so you can confirm in seconds that you got what you paid for.
What is the best PCIe 5.0 riser cable?
Among the options tested here, the LINKUP AVA5 is the strongest all-round Gen 5 cable, with 128GB/s throughput, tuned impedance, multilayer shielding, and published compatibility across dozens of named cases. The TRYX String is the pick if you want published 3DMark bandwidth validation, and the ConnBull kit is the pick if you want a Gen 5 cable bundled with a three-slot bracket.
What is the best vertical GPU mounting kit available?
For most ATX and mATX builds, the Cooler Master Vertical GPU Holder Kit V3 is the easiest starting point, with tool-free 65mm and 30mm adjustment, a thick SGCC steel bracket rated to 3.5kg, and a 165mm PCIe 4.0 riser in the box. For thick four-slot cards, the Lian Li VG4v4 supports up to 10kg and shifts the card forward 31mm.
What are the best cases for vertical GPU mounts?
Cases with fully open 7 or 8-slot PCIe bracket panels are the easiest, which is why the Lian Li, ConnBull, and GLOTRENDS 2-slot brackets are straightforward to fit there. Cases with six or seven accessible expansion slots work with adjustable kits such as the Cooler Master V3. Cases with slot dividers or air-cooled radiators in the lower expansion area usually need dividers removed before anything will fit.
How long should a GPU riser cable be?
Measure the actual route from the motherboard x16 slot to the GPU board with a string, then buy the next length up. Under 200mm suits compact and ITX sandwich builds, around 200mm covers most mid-towers, and 300mm or longer is for full towers where the mount point sits far from the slot. Longer is not automatically better, since excess slack has to be tucked somewhere.
Final Verdict: Which Riser Should You Buy?
The Cooler Master Vertical GPU Holder Kit V3 is our pick for the best gpu risers for vertical mounting in 2026, because it does the most to remove the three things that go wrong: fit, sag, and cable length. The tool-free adjustment absorbs the case geometry, the steel holds the weight, and the 165mm Gen 4 riser removes the second purchase. It is also the most reviewed kit in the group at 1226 ratings, which means its limitations are documented rather than discovered.
Take the Lian Li VG4v4 instead if your card is four slots thick and heavy, and the LINKUP AVA5 if you want to keep full Gen 5 link speed on a card like an RTX 5090. Whatever you pick, measure the route, match the generation, and check the negotiated link in GPU-Z before you close the panel. Use the buttons on each review to check current pricing, and update this list as 2026 brings new cases and cards into the picture.
